MERCEDES-BENZ SPRINTER 2005 Service Repair Manual

8W-51 REAR LIGHTING
Component Page
Brake Lamp Switch.................. 8W-51-6
Center High Mounted Stop Lamp...... 8W-51-6, 8

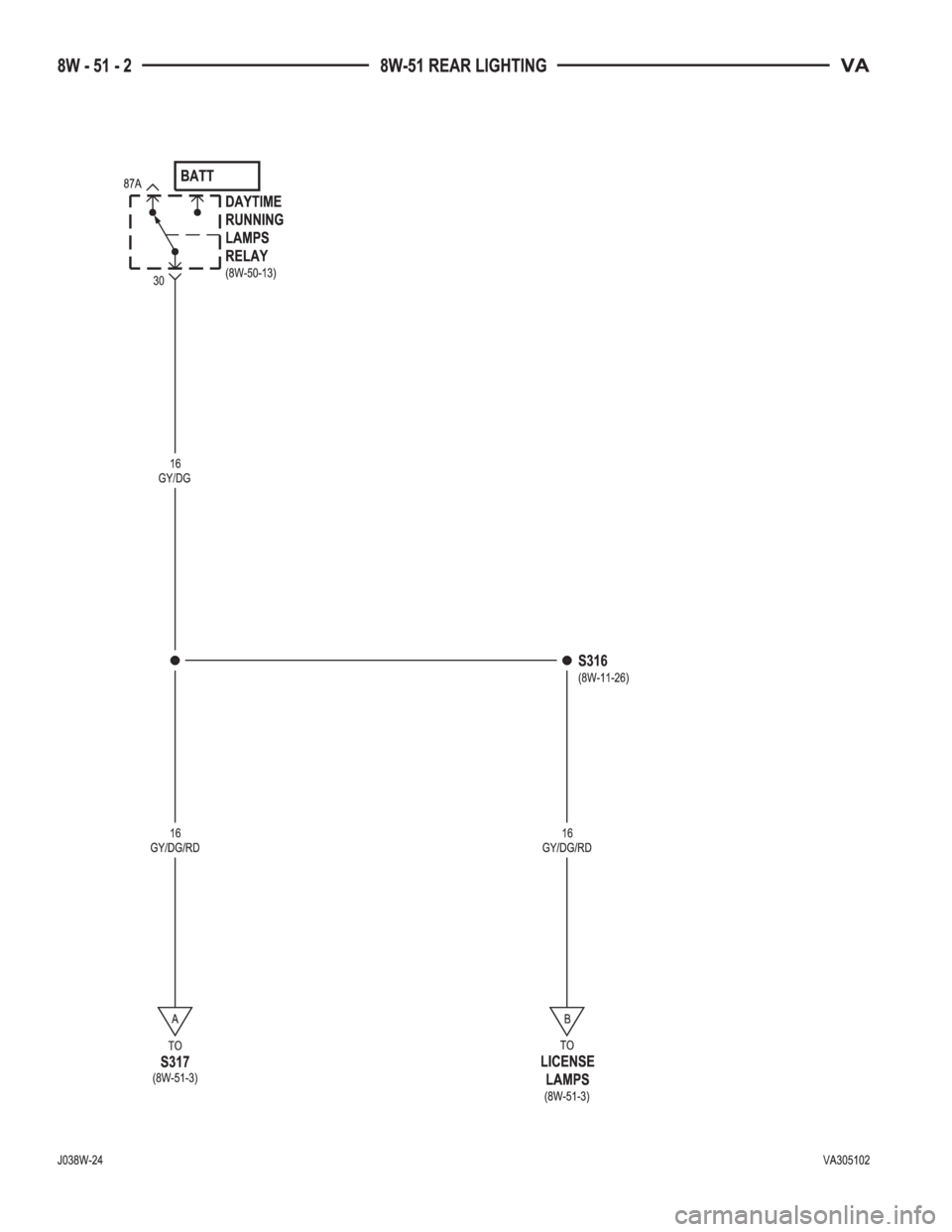

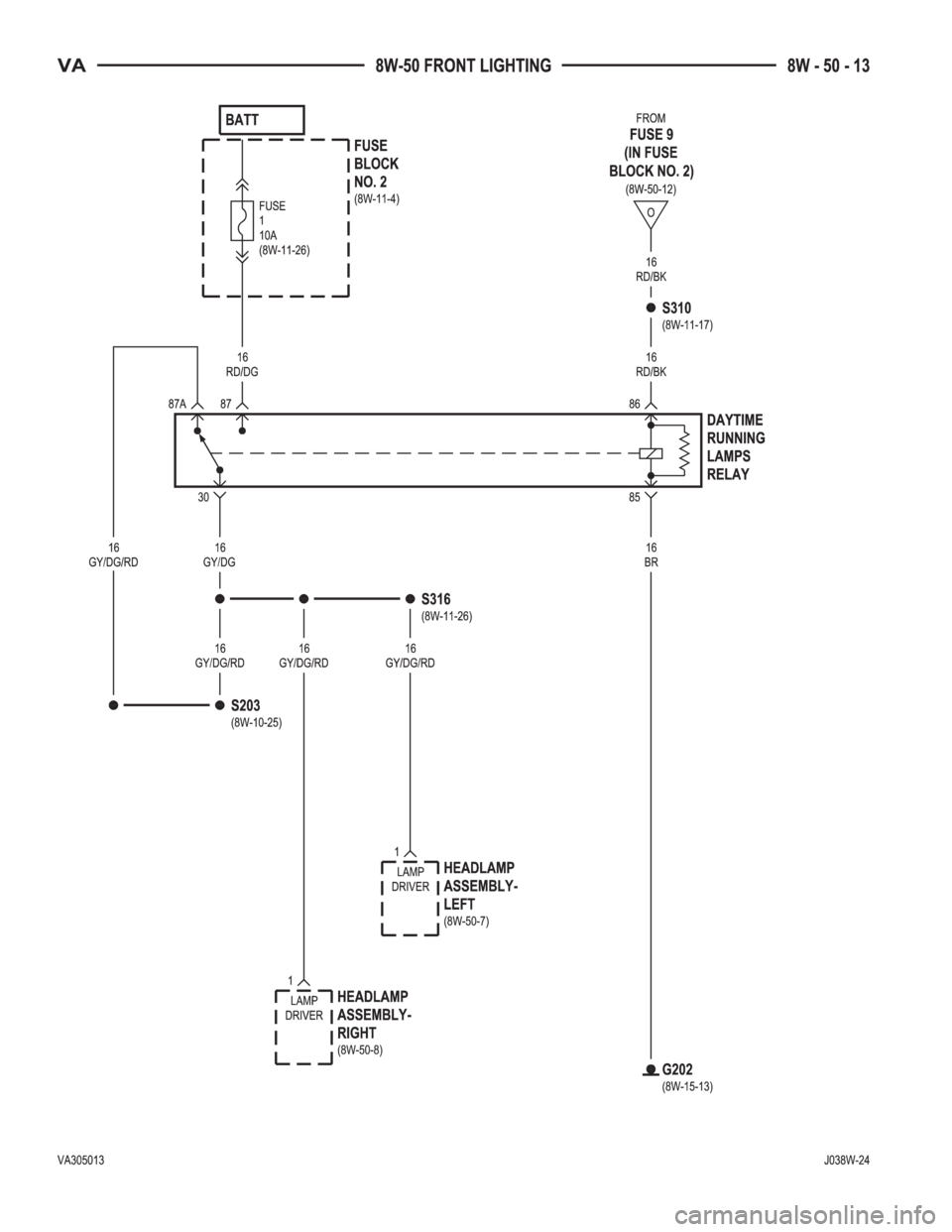

Daytime Running Lamps Relay...... 8W-51-2, 10

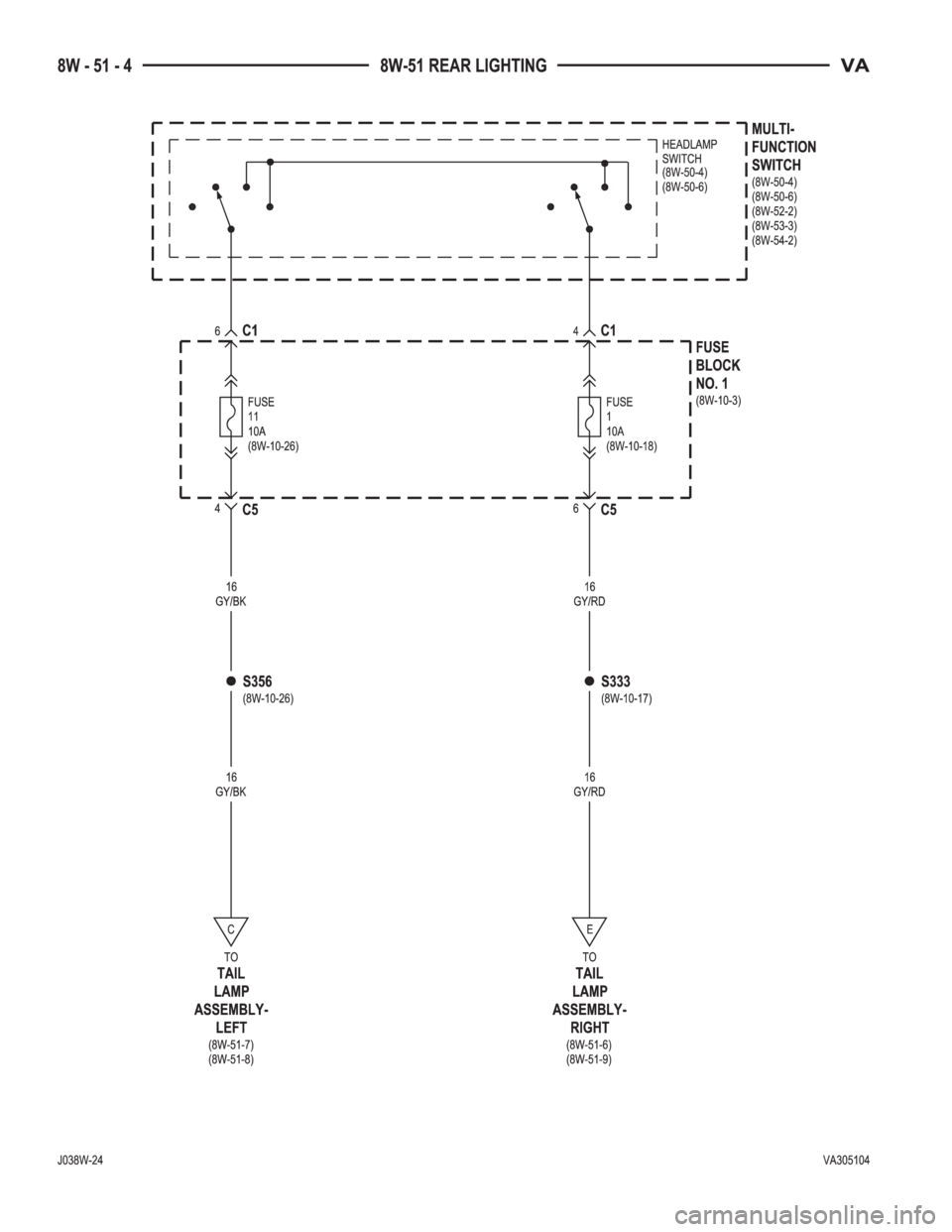

Fuse 1.......................... 8W-51-4, 10
Fuse 8............................ 8W-51-5
Fuse 11............................ 8W-51-4
Fuse Block No. 1.................. 8W-51-4, 5

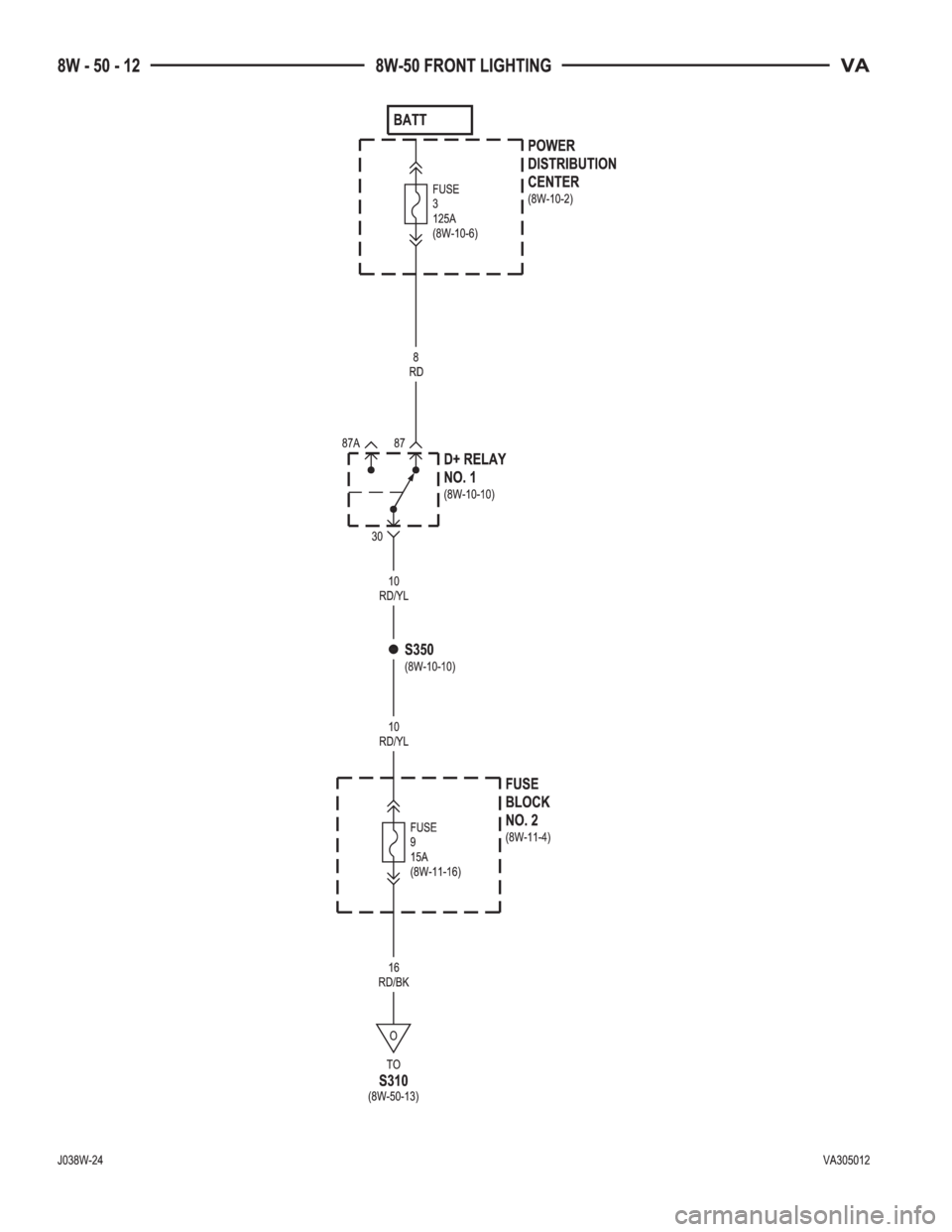

Fuse Block No. 2................... 8W-51-10
G200............................ 8W-51-6, 8
G202............................. 8W-51-10
G300................... 8W-51-3, 6, 7, 8, 9, 10
Headlamp Switch.................... 8W-51-4

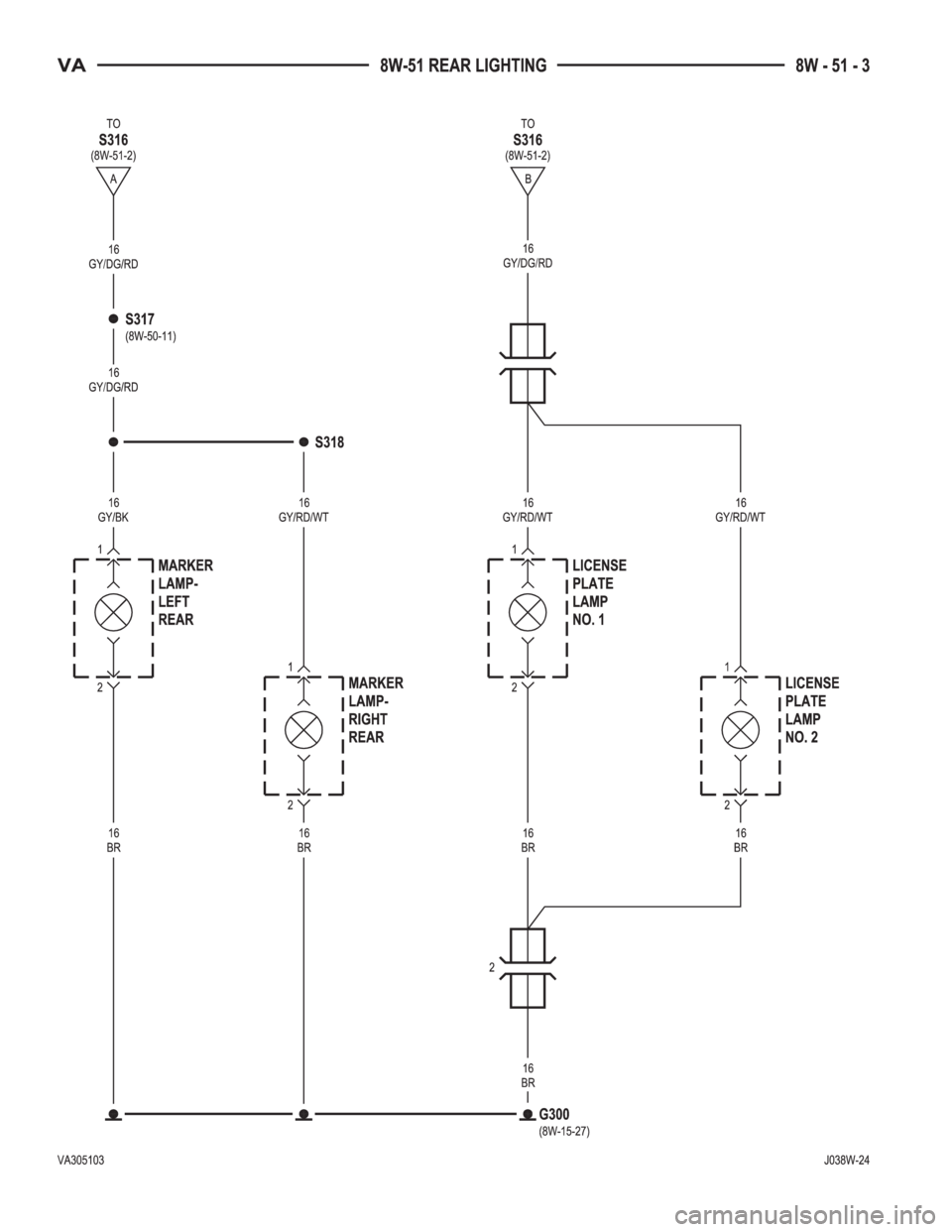

License Plate Lamp No. 1........... 8W-51-3, 10Component Page
License Plate Lamp No. 2........... 8W-51-3, 10

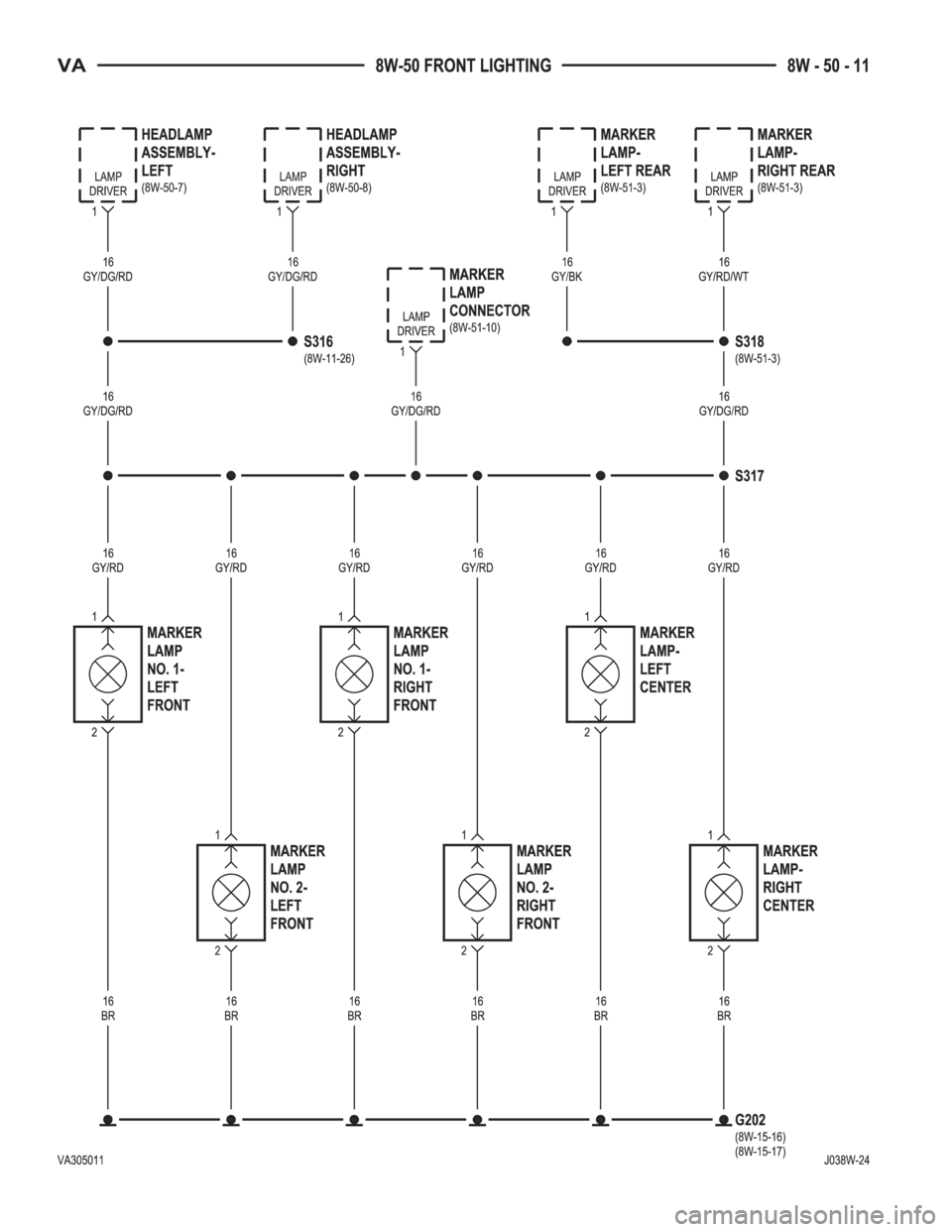

Marker Lamp Connector............. 8W-51-10
Marker Lamp- Left Rear.............. 8W-51-3
Marker Lamp- Right Rear............. 8W-51-3
Multi- Function Switch................ 8W-51-4
Shifter Assembly................. 8W-51-7, 8, 9

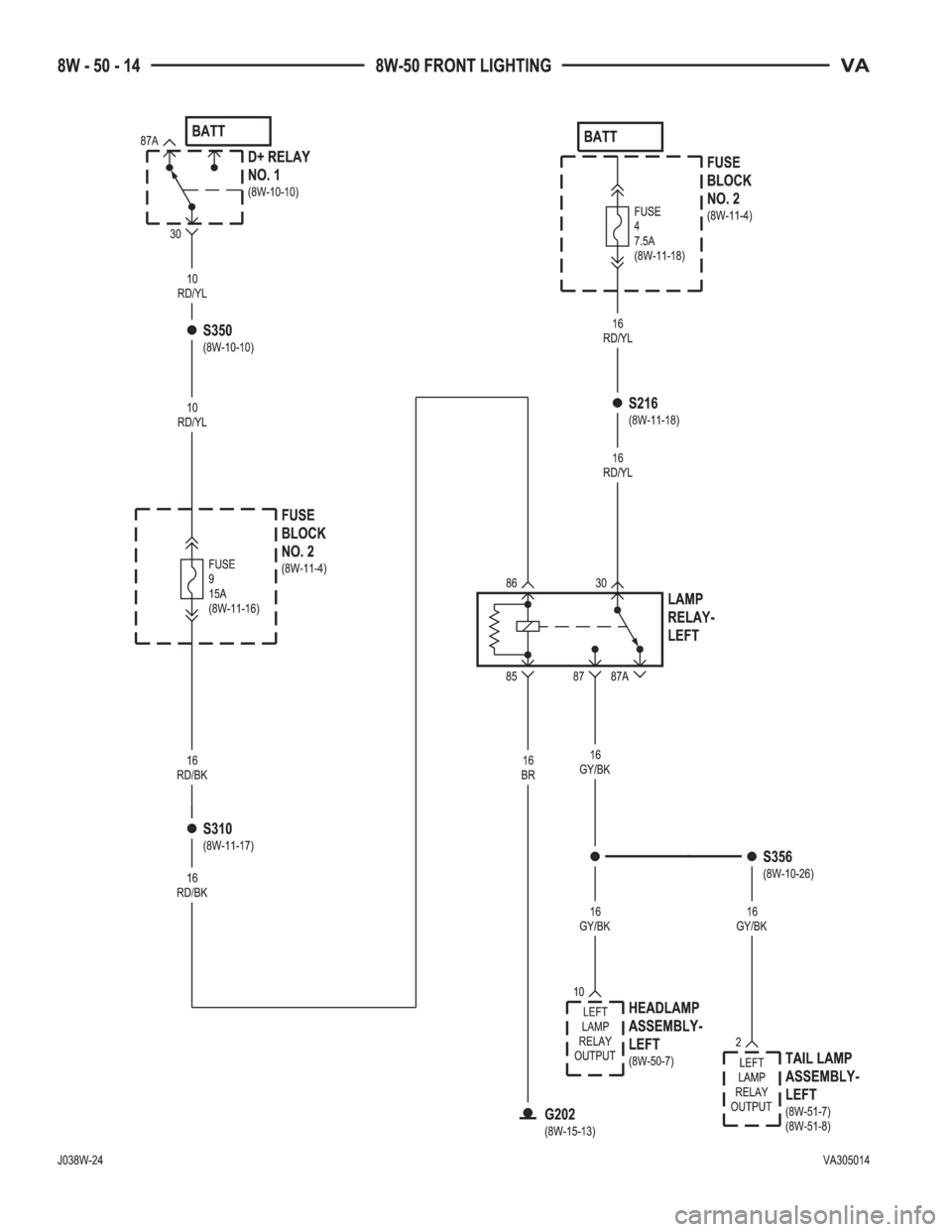

Tail Lamp Assembly- Left.... 8W-51-4, 5, 6, 7, 8, 9

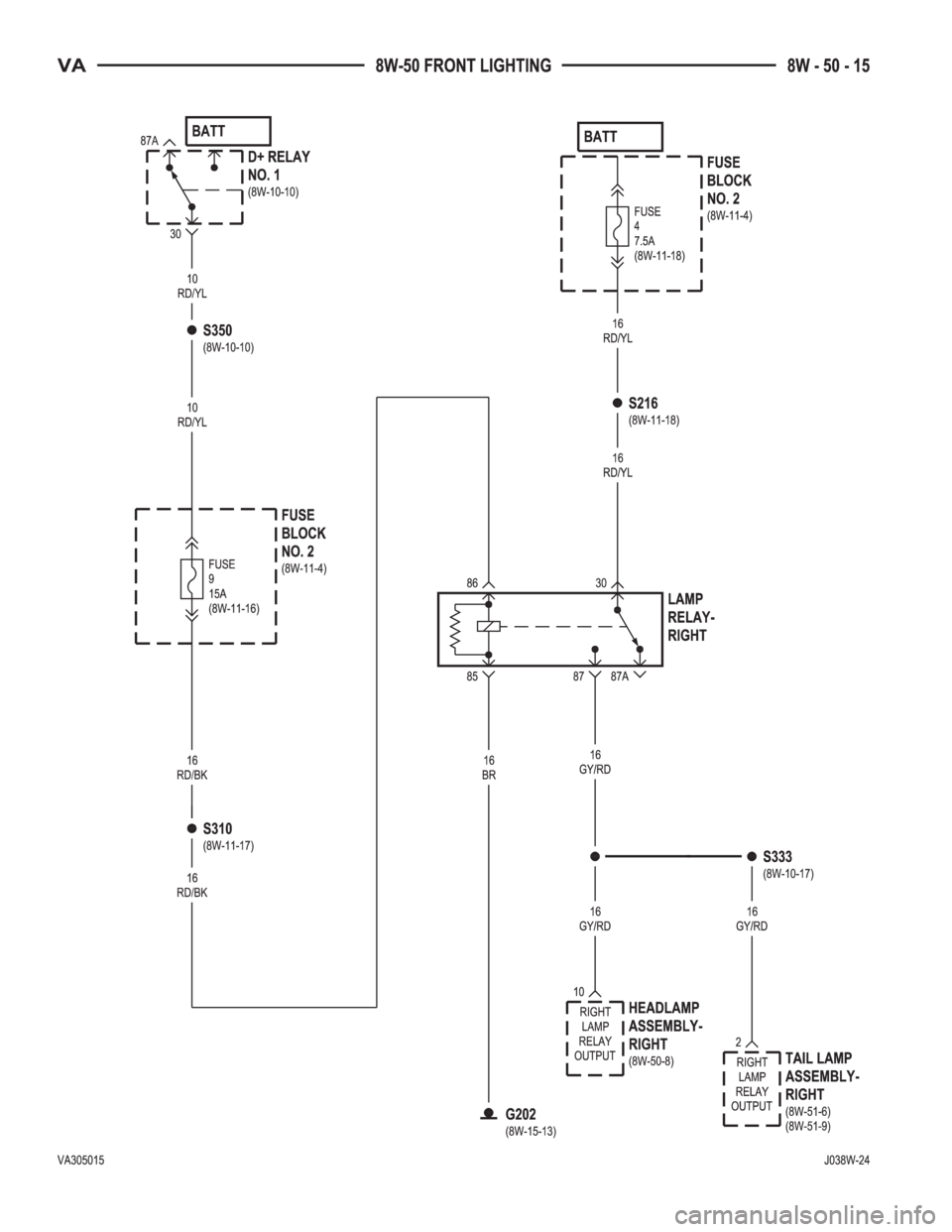

Tail Lamp Assembly- Right . . . 8W-51-4, 5, 6, 7, 8, 9
Turn Signal/Anti-Theft Alarm
Relay- Left....................... 8W-51-5
Turn Signal/Anti-Theft Alarm
Relay- Right...................... 8W-51-5
VA8W-51 REAR LIGHTING 8W - 51 - 1
