MERCEDES-BENZ SPRINTER 2006 Service Manual

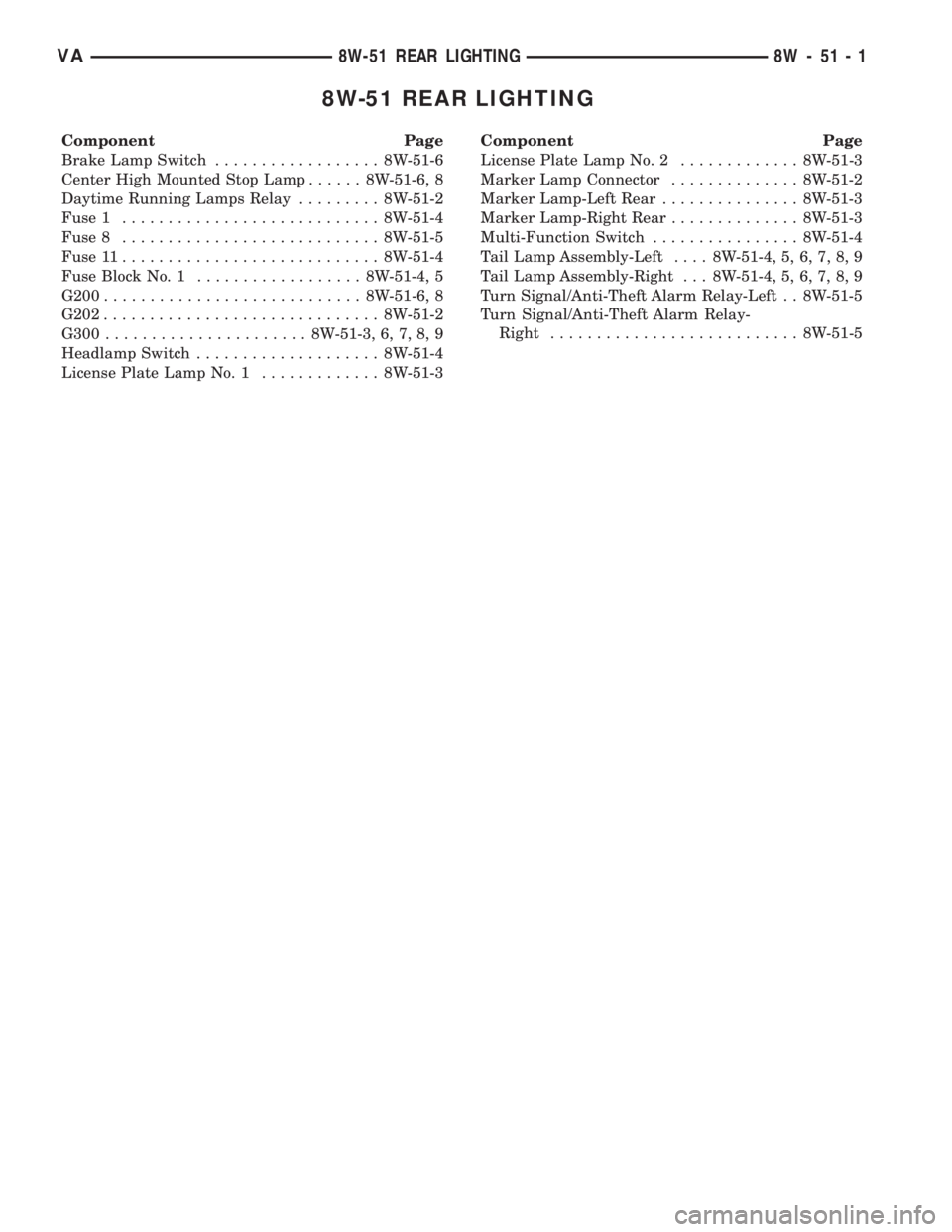

8W-51 REAR LIGHTING
Component Page
Brake Lamp Switch.................. 8W-51-6
Center High Mounted Stop Lamp...... 8W-51-6, 8

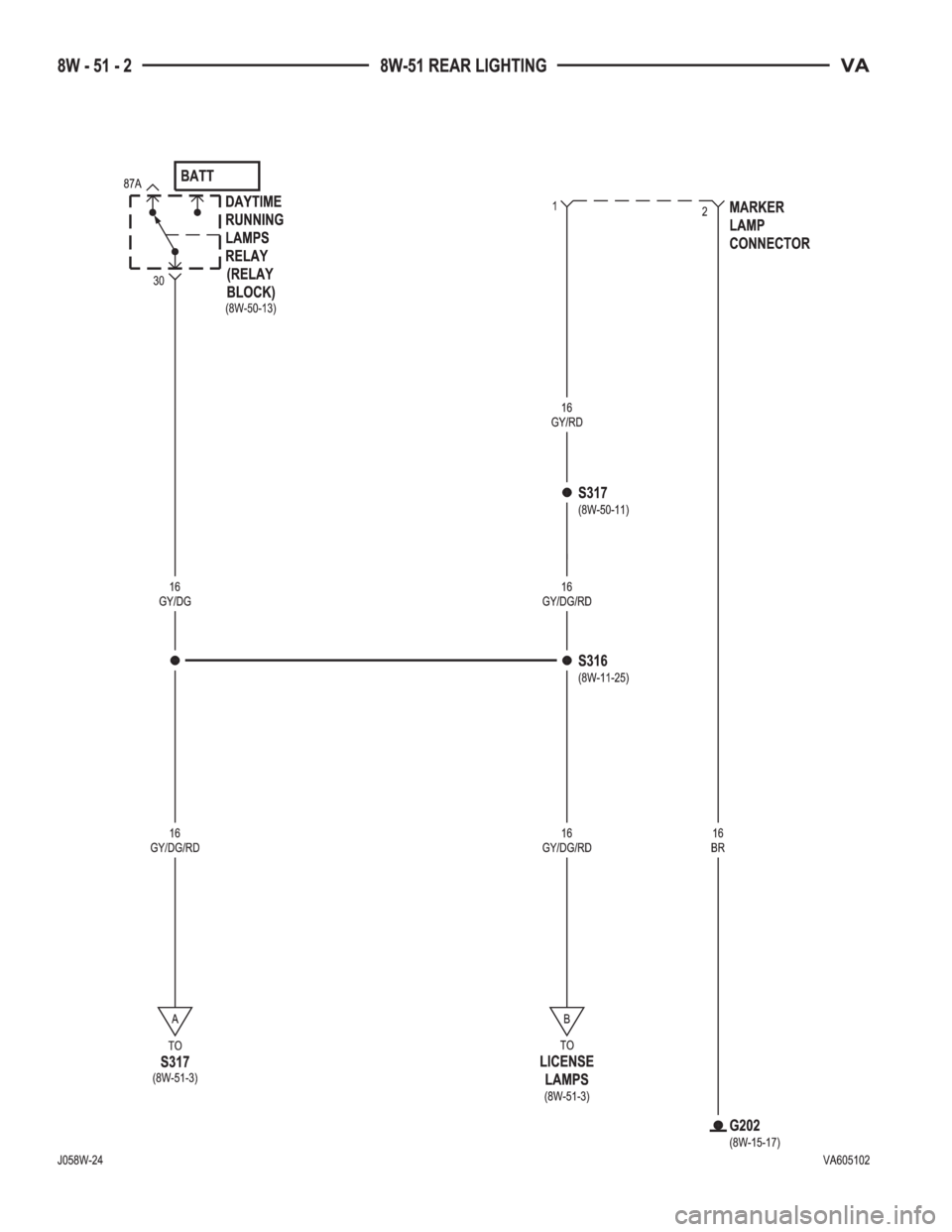

Daytime Running Lamps Relay......... 8W-51-2

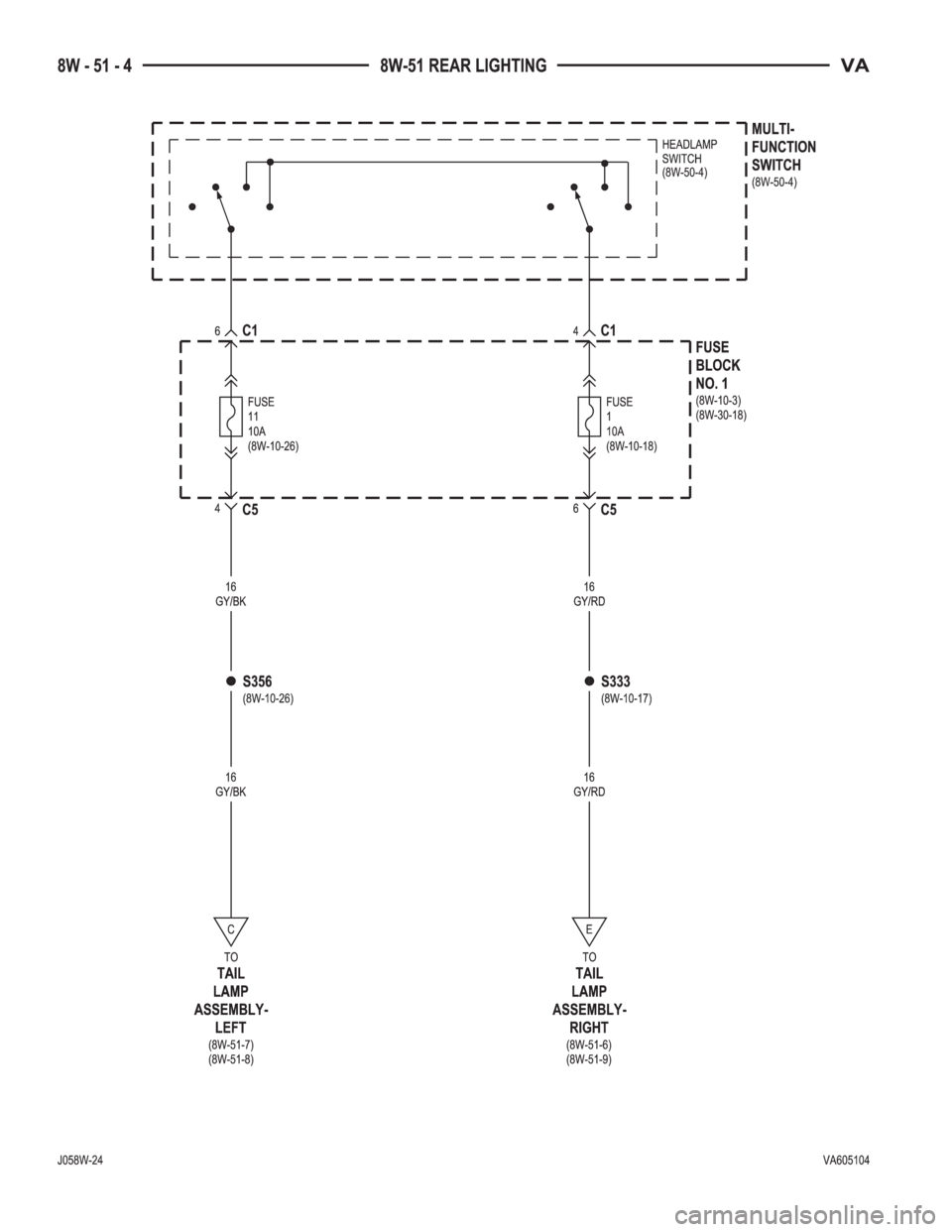

Fuse 1............................ 8W-51-4

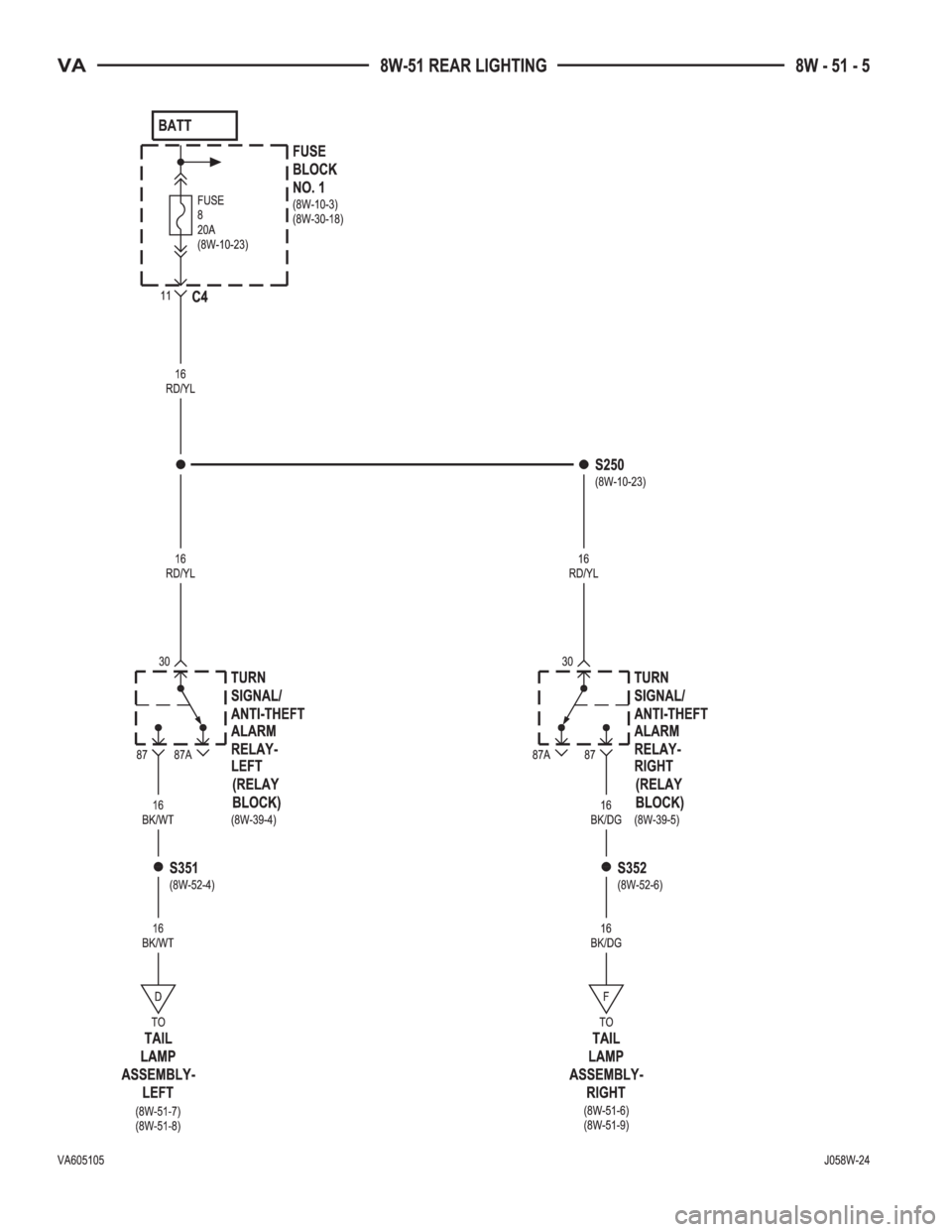

Fuse 8............................ 8W-51-5
Fuse 11............................ 8W-51-4
Fuse Block No. 1.................. 8W-51-4, 5
G200............................ 8W-51-6, 8
G202.............................. 8W-51-2
G300...................... 8W-51-3, 6, 7, 8, 9
Headlamp Switch.................... 8W-51-4

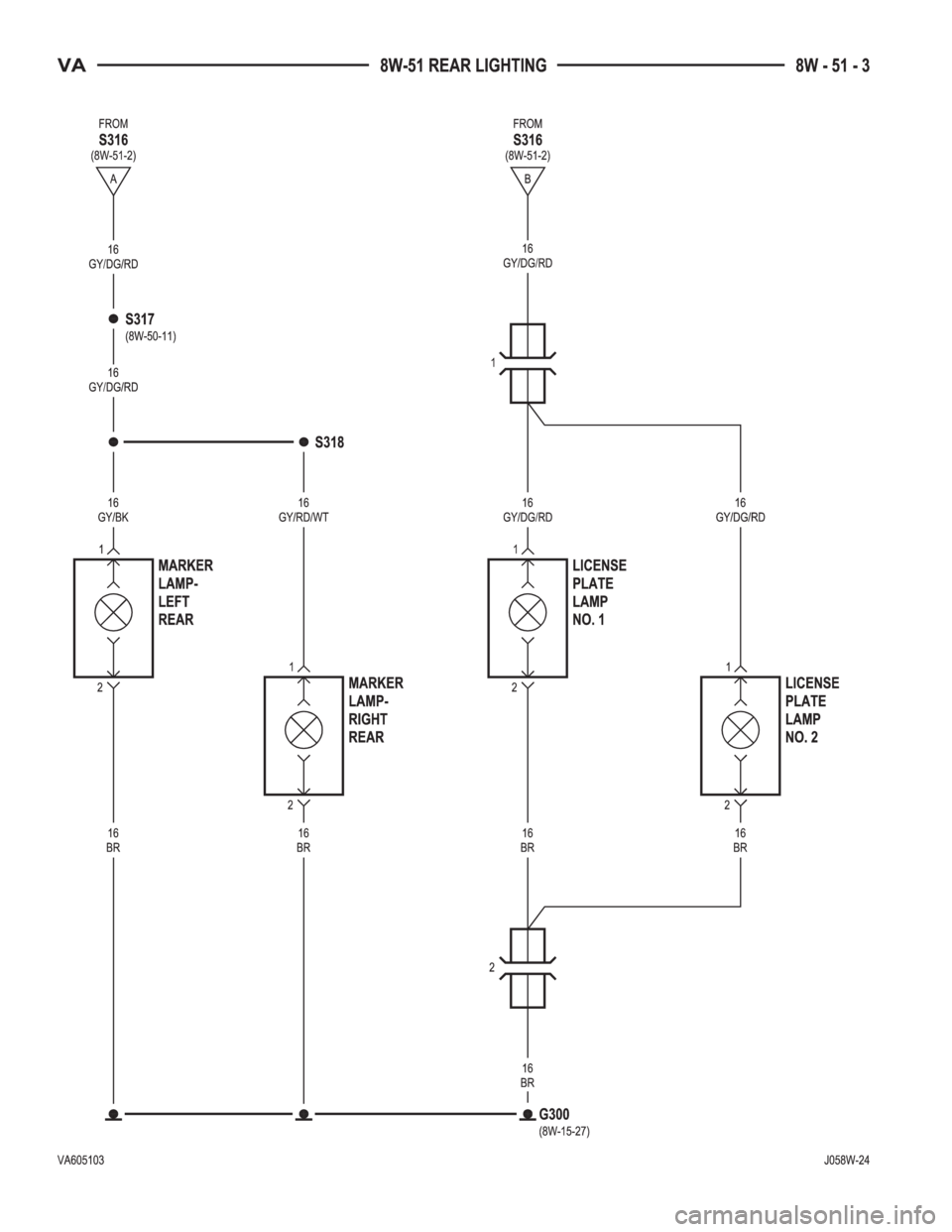

License Plate Lamp No. 1............. 8W-51-3Component Page
License Plate Lamp No. 2............. 8W-51-3
Marker Lamp Connector.............. 8W-51-2
Marker Lamp-Left Rear............... 8W-51-3
Marker Lamp-Right Rear.............. 8W-51-3
Multi-Function Switch................ 8W-51-4
Tail Lamp Assembly-Left.... 8W-51-4, 5, 6, 7, 8, 9
Tail Lamp Assembly-Right . . . 8W-51-4, 5, 6, 7, 8, 9
Turn Signal/Anti-Theft Alarm Relay-Left . . 8W-51-5
Turn Signal/Anti-Theft Alarm Relay-
Right........................... 8W-51-5
VA8W-51 REAR LIGHTING 8W - 51 - 1
