Page 2101 of 2305

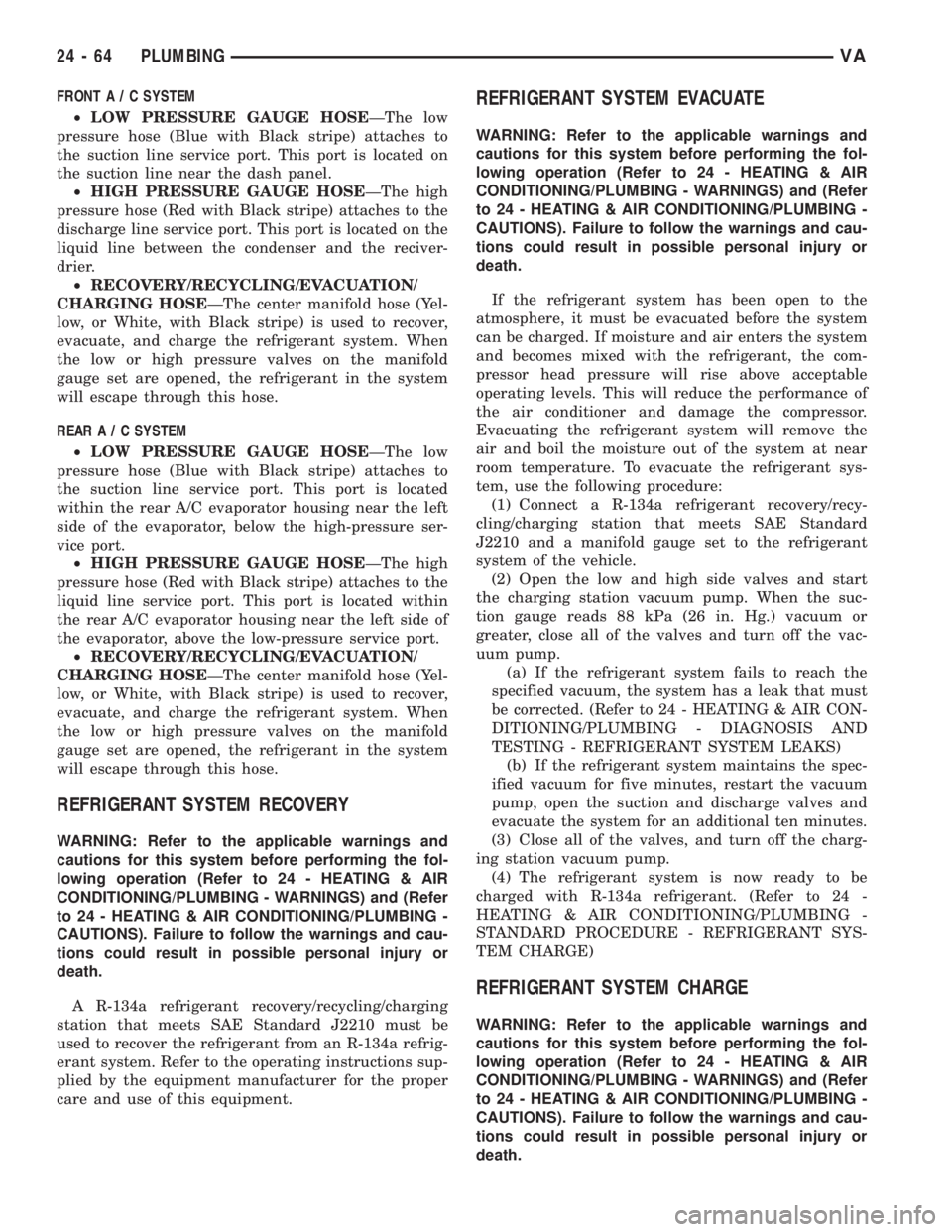

MERCEDES-BENZ SPRINTER 2006  Service Manual FRONTA/CSYSTEM
²LOW PRESSURE GAUGE HOSEÐThe low
pressure hose (Blue with Black stripe) attaches to
the suction line service port. This port is located on
the suction line near the dash panel.
²HIGH

Page 2102 of 2305

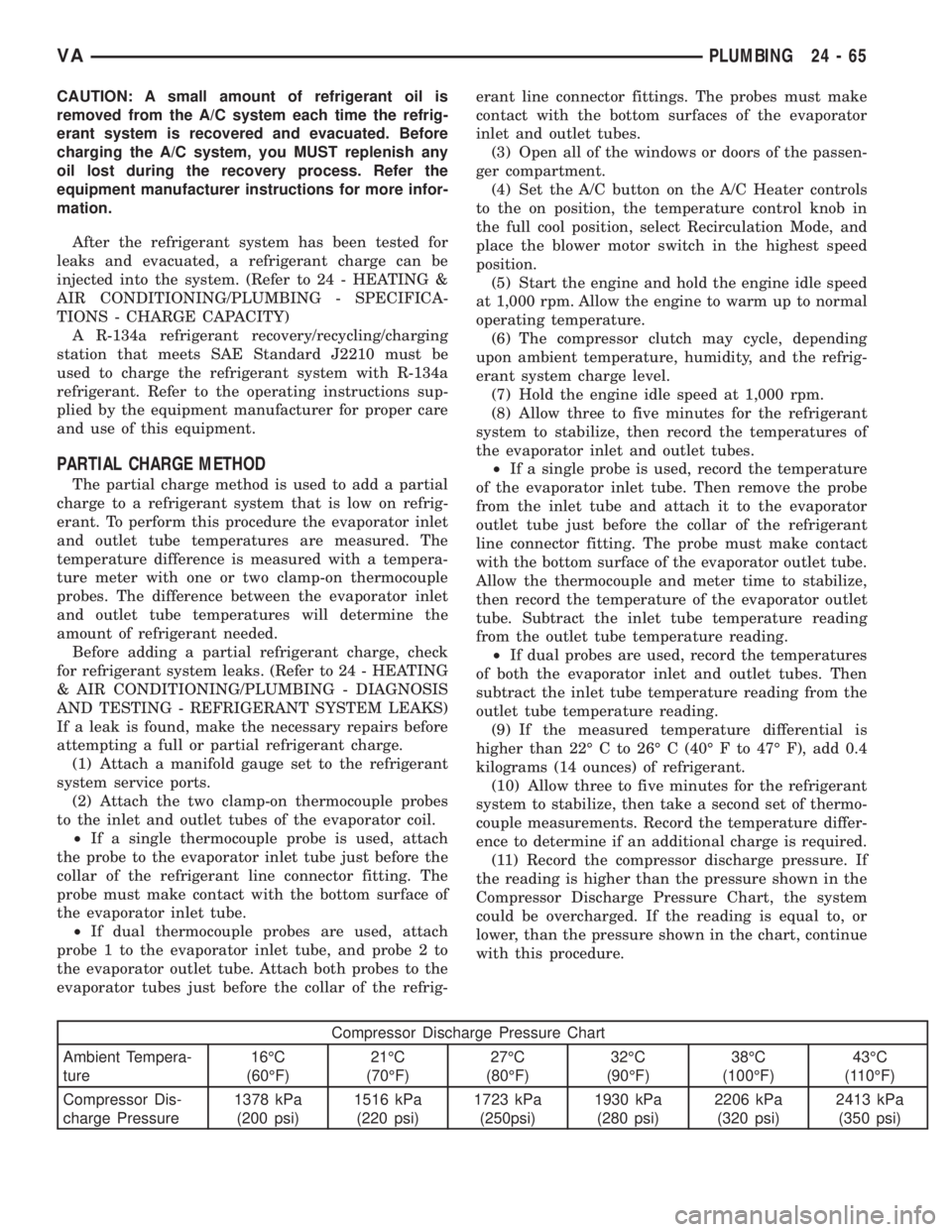

MERCEDES-BENZ SPRINTER 2006  Service Manual CAUTION: A small amount of refrigerant oil is
removed from the A/C system each time the refrig-
erant system is recovered and evacuated. Before
charging the A/C system, you MUST replenish any
oil lost

Page 2103 of 2305

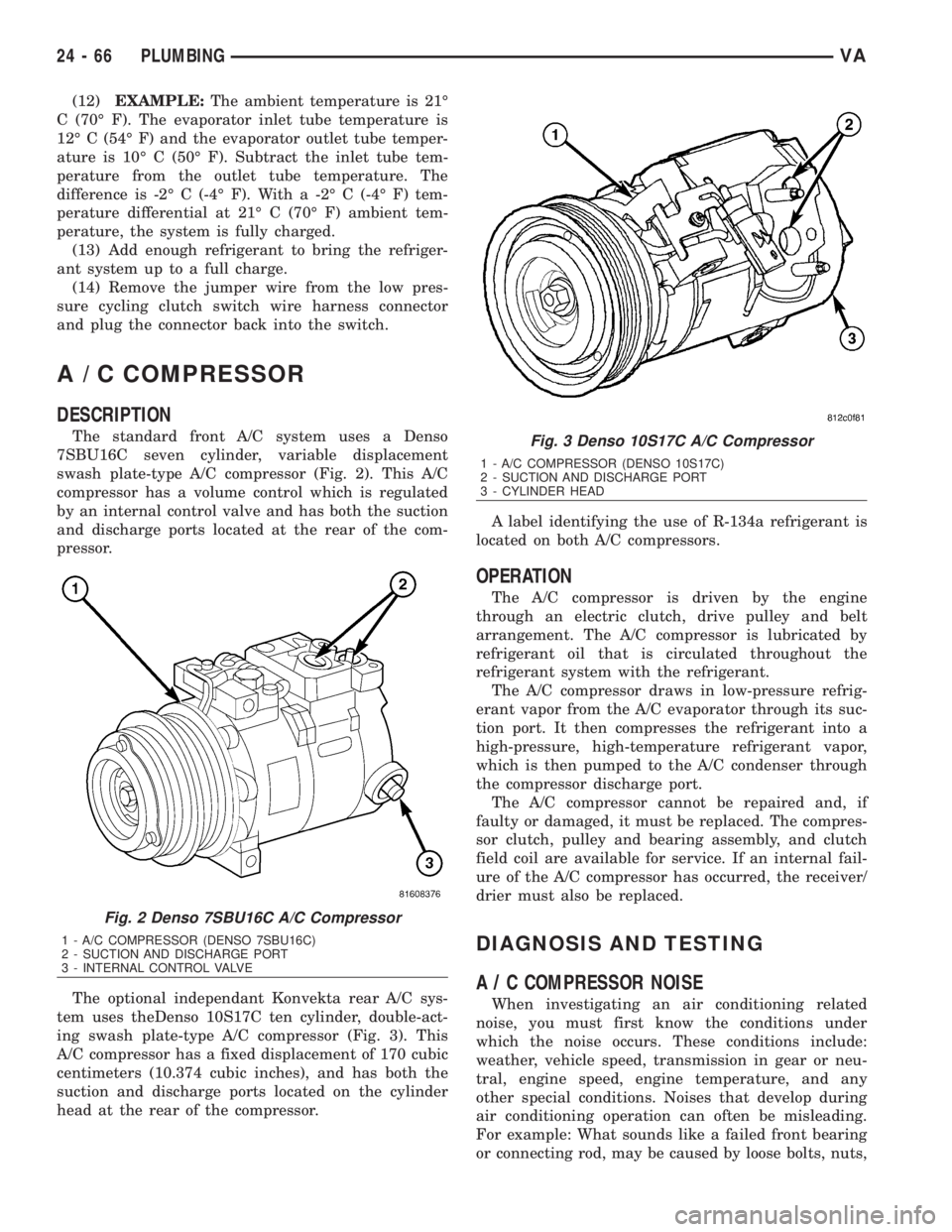

MERCEDES-BENZ SPRINTER 2006  Service Manual (12)EXAMPLE:The ambient temperature is 21É
C (70É F). The evaporator inlet tube temperature is
12É C (54É F) and the evaporator outlet tube temper-
ature is 10É C (50É F). Subtract the inlet tub

Page 2104 of 2305

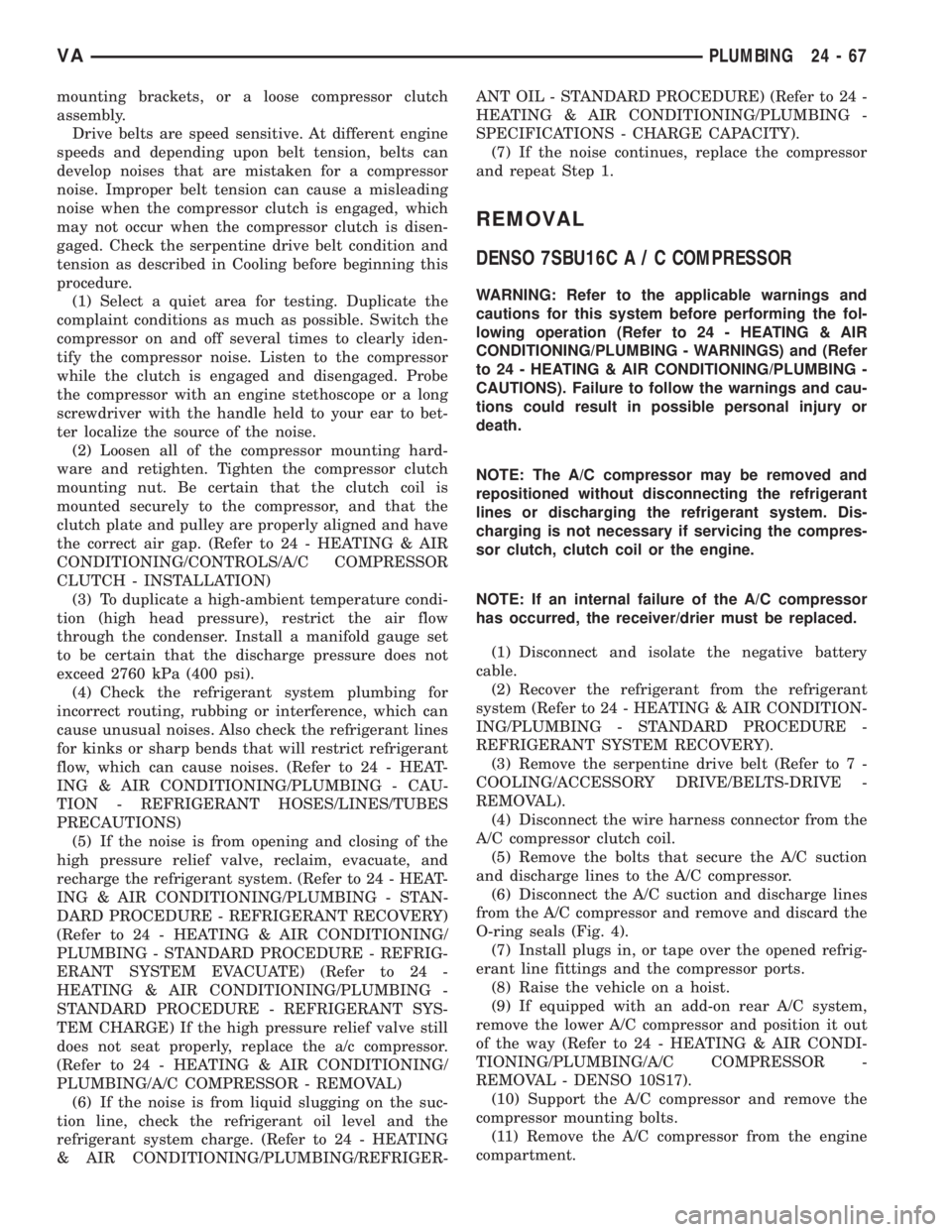

MERCEDES-BENZ SPRINTER 2006  Service Manual mounting brackets, or a loose compressor clutch
assembly.
Drive belts are speed sensitive. At different engine
speeds and depending upon belt tension, belts can
develop noises that are mistaken for a

Page 2105 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual DENSO 10S17A/CCOMPRESSOR
WARNING: Refer to the applicable warnings and
cautions for this system before performing the fol-
lowing operation (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING - WARNING

Page 2106 of 2305

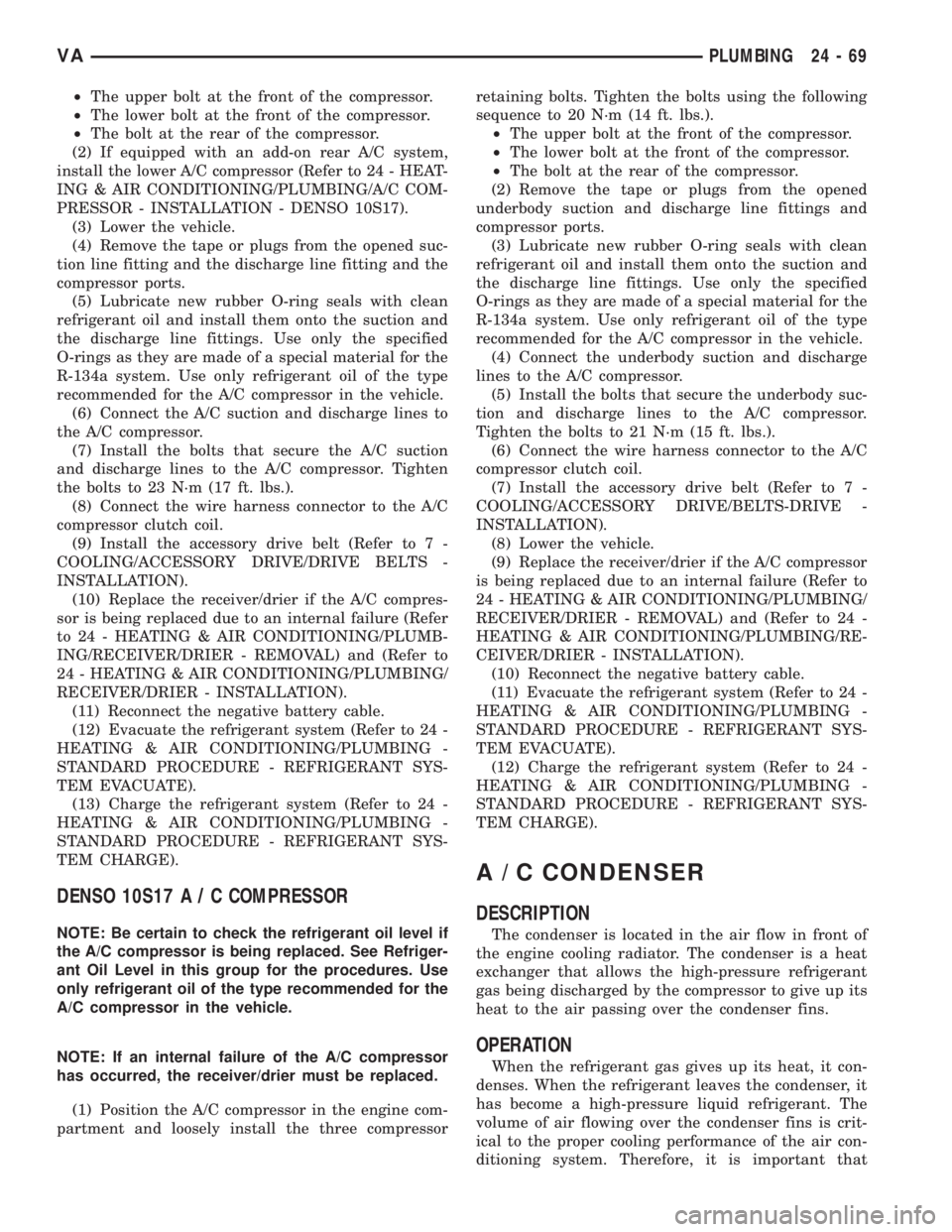

MERCEDES-BENZ SPRINTER 2006  Service Manual ²The upper bolt at the front of the compressor.
²The lower bolt at the front of the compressor.
²The bolt at the rear of the compressor.
(2) If equipped with an add-on rear A/C system,
install the

Page 2107 of 2305

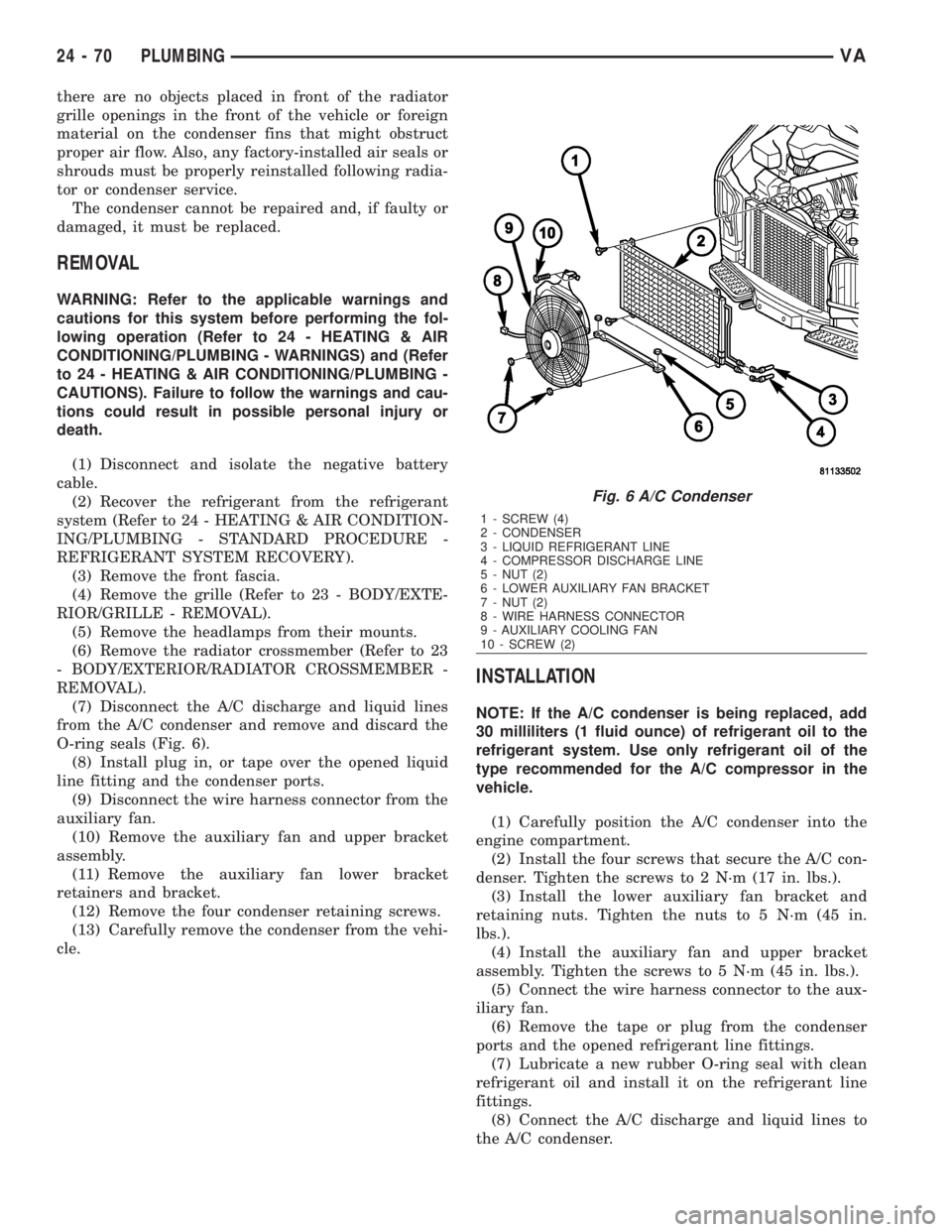

MERCEDES-BENZ SPRINTER 2006  Service Manual there are no objects placed in front of the radiator
grille openings in the front of the vehicle or foreign
material on the condenser fins that might obstruct
proper air flow. Also, any factory-instal

Page 2108 of 2305

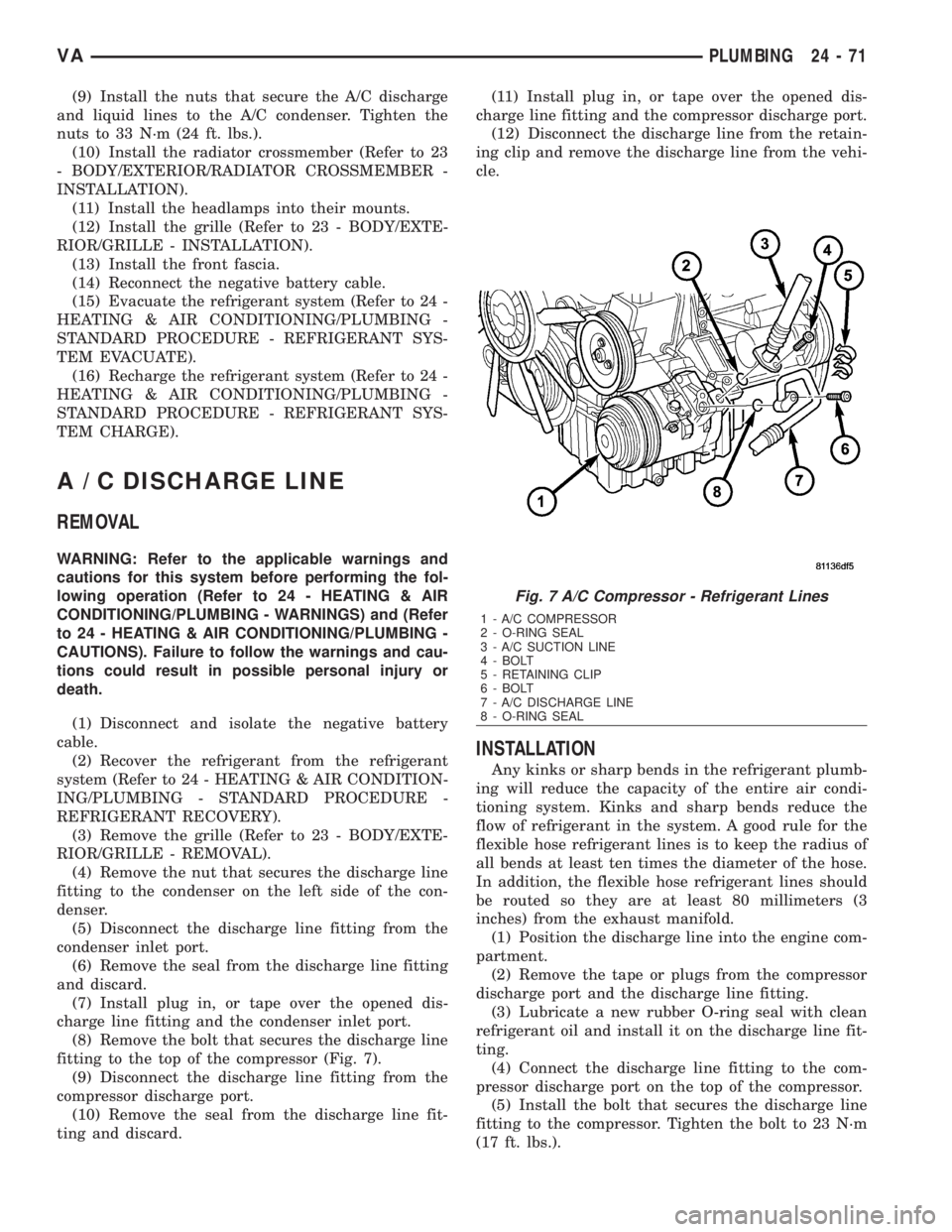

MERCEDES-BENZ SPRINTER 2006  Service Manual (9) Install the nuts that secure the A/C discharge
and liquid lines to the A/C condenser. Tighten the
nuts to 33 N´m (24 ft. lbs.).
(10) Install the radiator crossmember (Refer to 23
- BODY/EXTERIOR/

Page 2109 of 2305

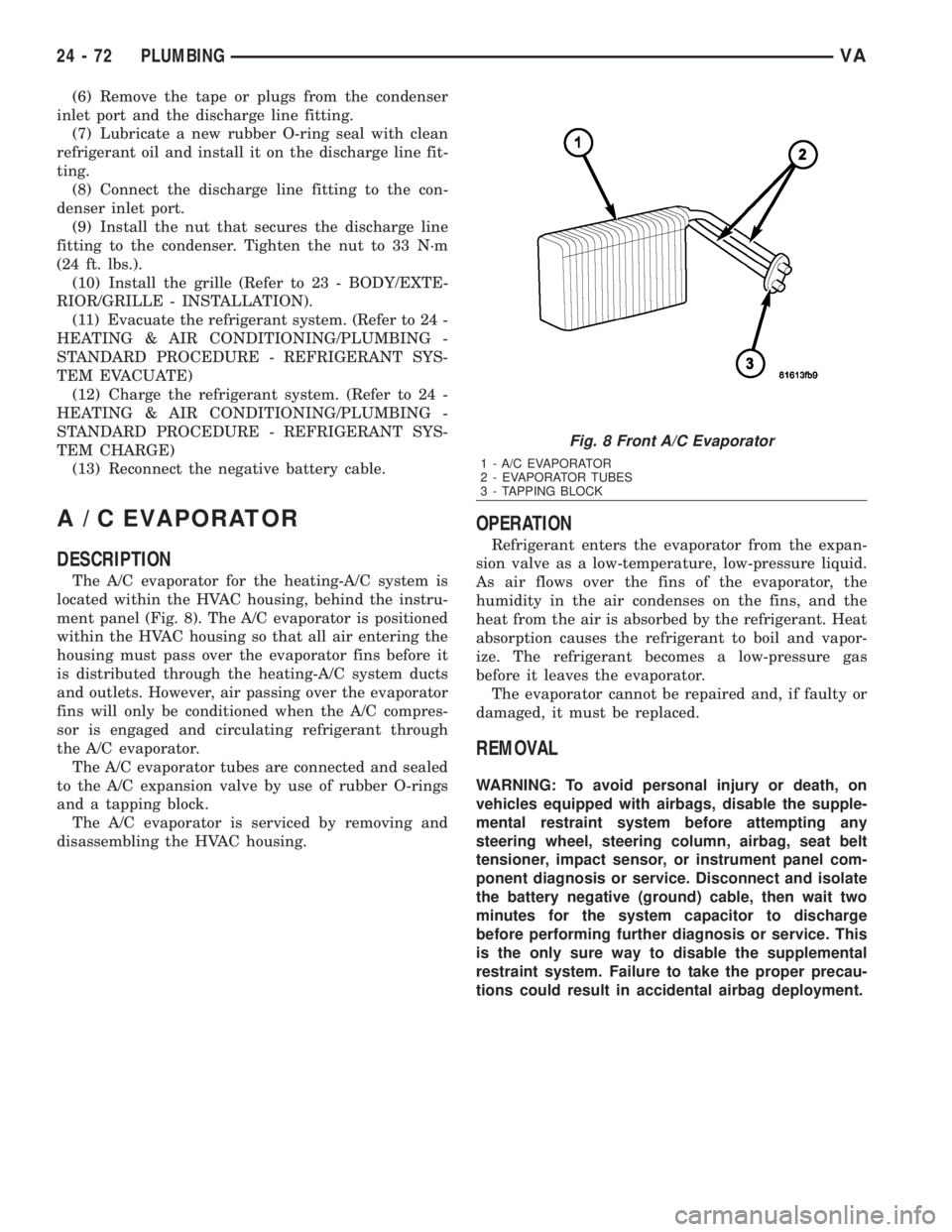

MERCEDES-BENZ SPRINTER 2006  Service Manual (6) Remove the tape or plugs from the condenser
inlet port and the discharge line fitting.
(7) Lubricate a new rubber O-ring seal with clean
refrigerant oil and install it on the discharge line fit-
t

Page 2110 of 2305

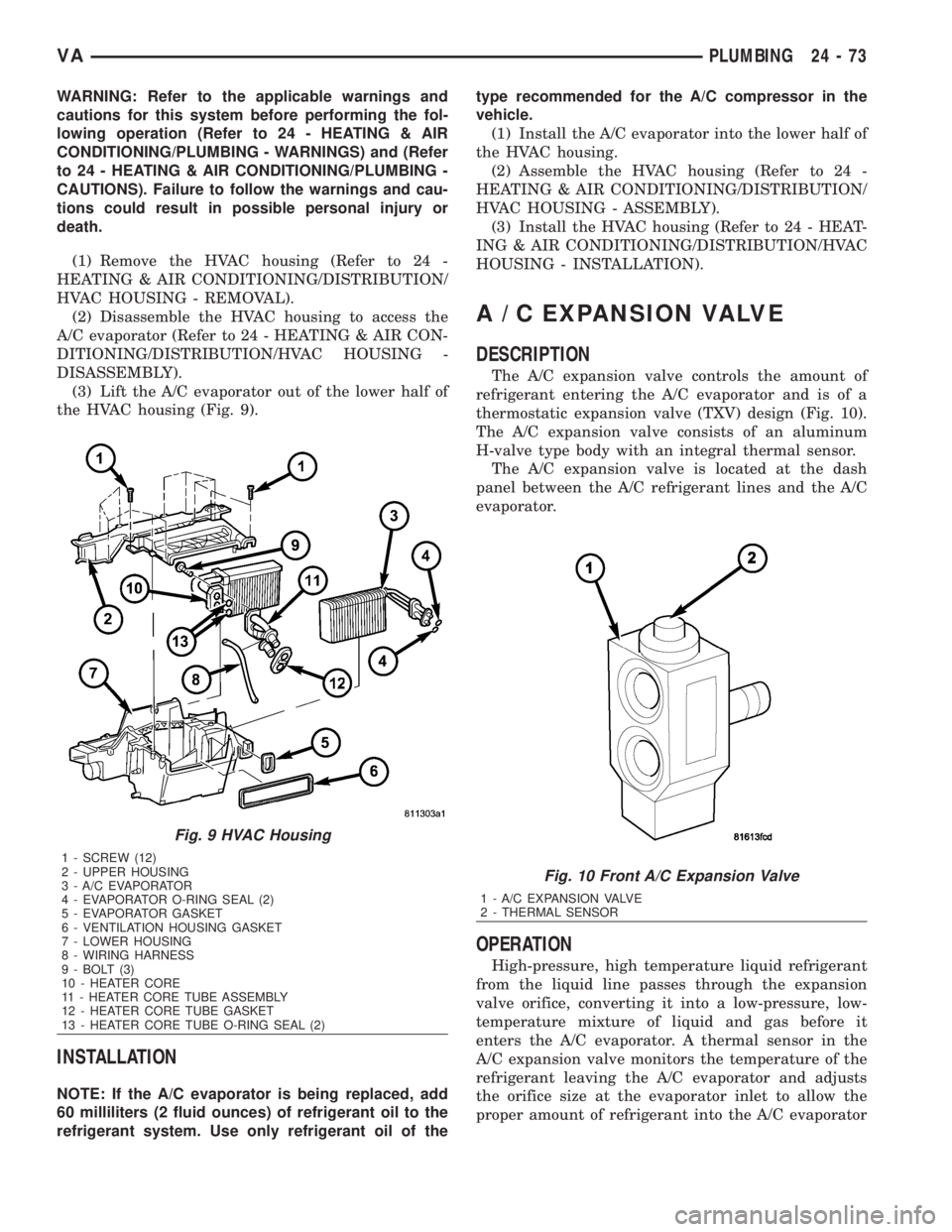

MERCEDES-BENZ SPRINTER 2006  Service Manual WARNING: Refer to the applicable warnings and
cautions for this system before performing the fol-
lowing operation (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING - WARNINGS) and (Refer
to 24 - HEA
