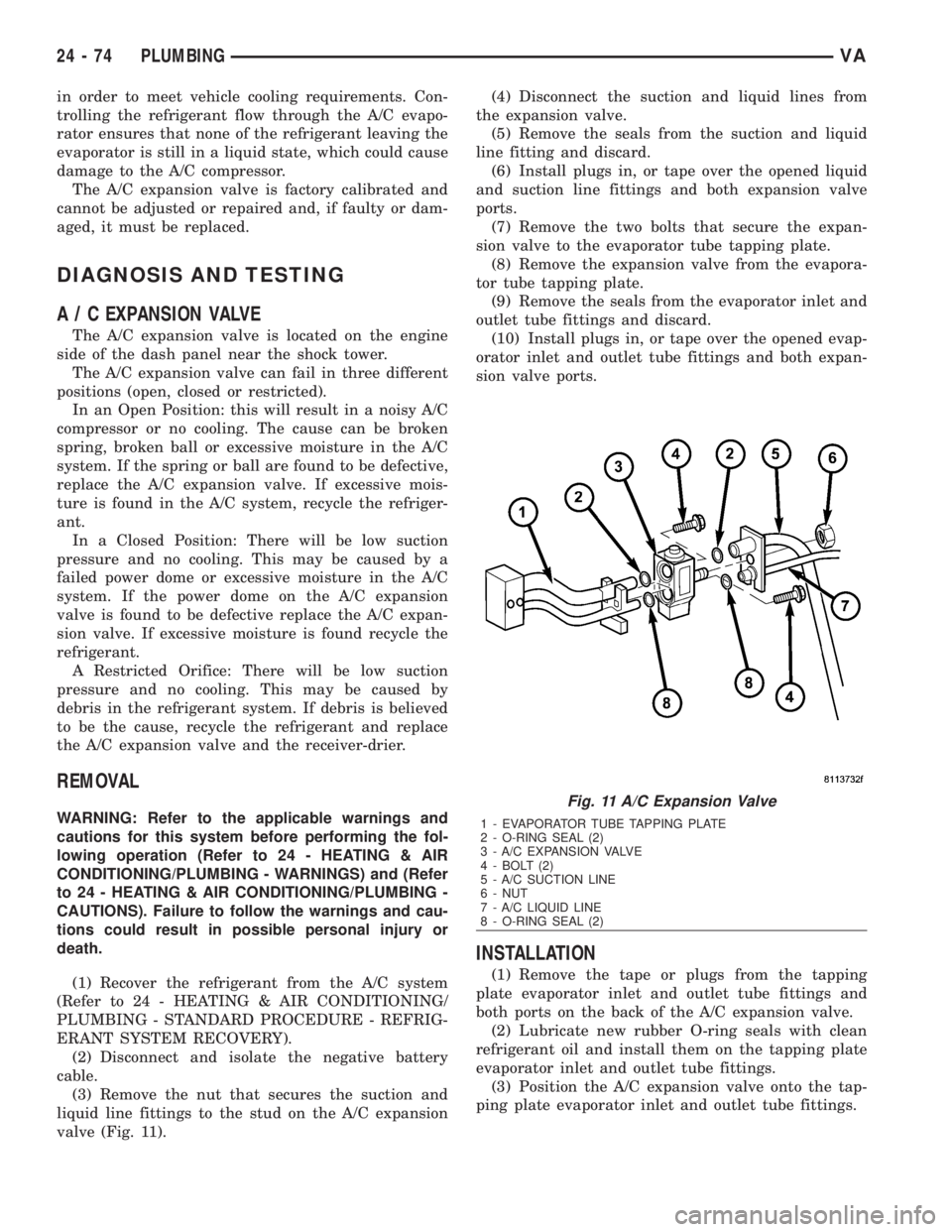

Page 2111 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual in order to meet vehicle cooling requirements. Con-
trolling the refrigerant flow through the A/C evapo-
rator ensures that none of the refrigerant leaving the
evaporator is still in a liquid state, w

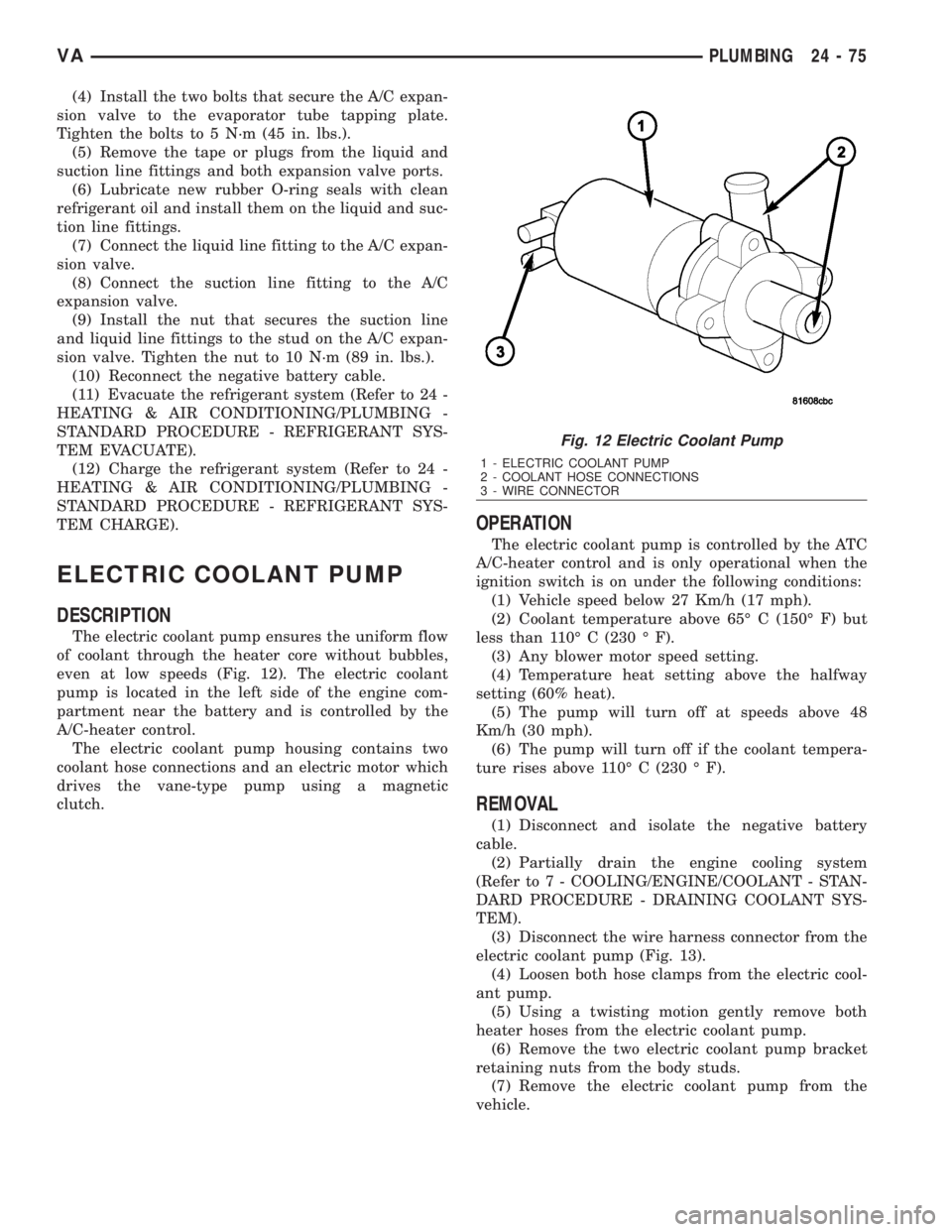

Page 2112 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual (4) Install the two bolts that secure the A/C expan-
sion valve to the evaporator tube tapping plate.
Tighten the bolts to 5 N´m (45 in. lbs.).
(5) Remove the tape or plugs from the liquid and
suctio

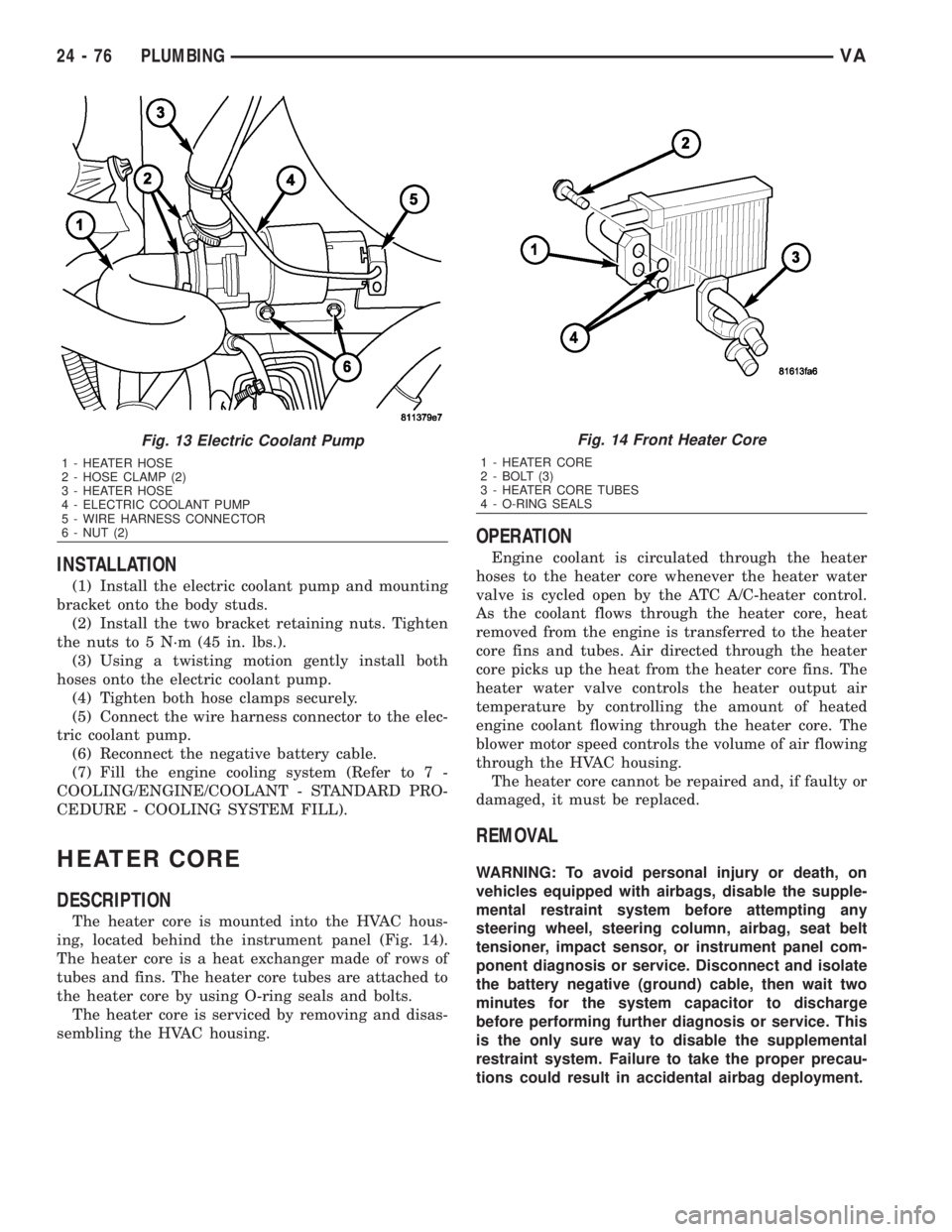

Page 2113 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual INSTALLATION
(1) Install the electric coolant pump and mounting
bracket onto the body studs.
(2) Install the two bracket retaining nuts. Tighten
the nuts to 5 N´m (45 in. lbs.).
(3) Using a twisting

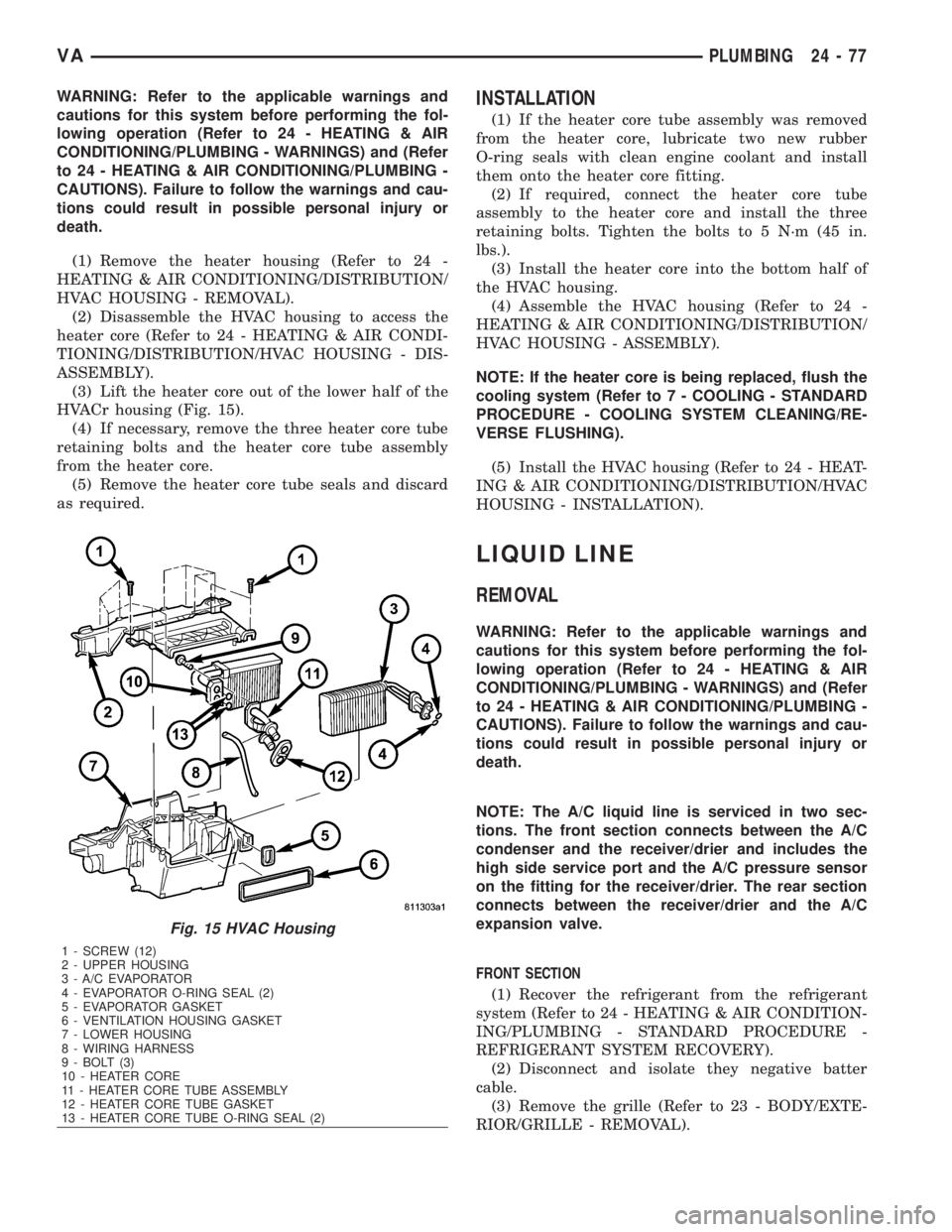

Page 2114 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual WARNING: Refer to the applicable warnings and
cautions for this system before performing the fol-
lowing operation (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING - WARNINGS) and (Refer
to 24 - HEA

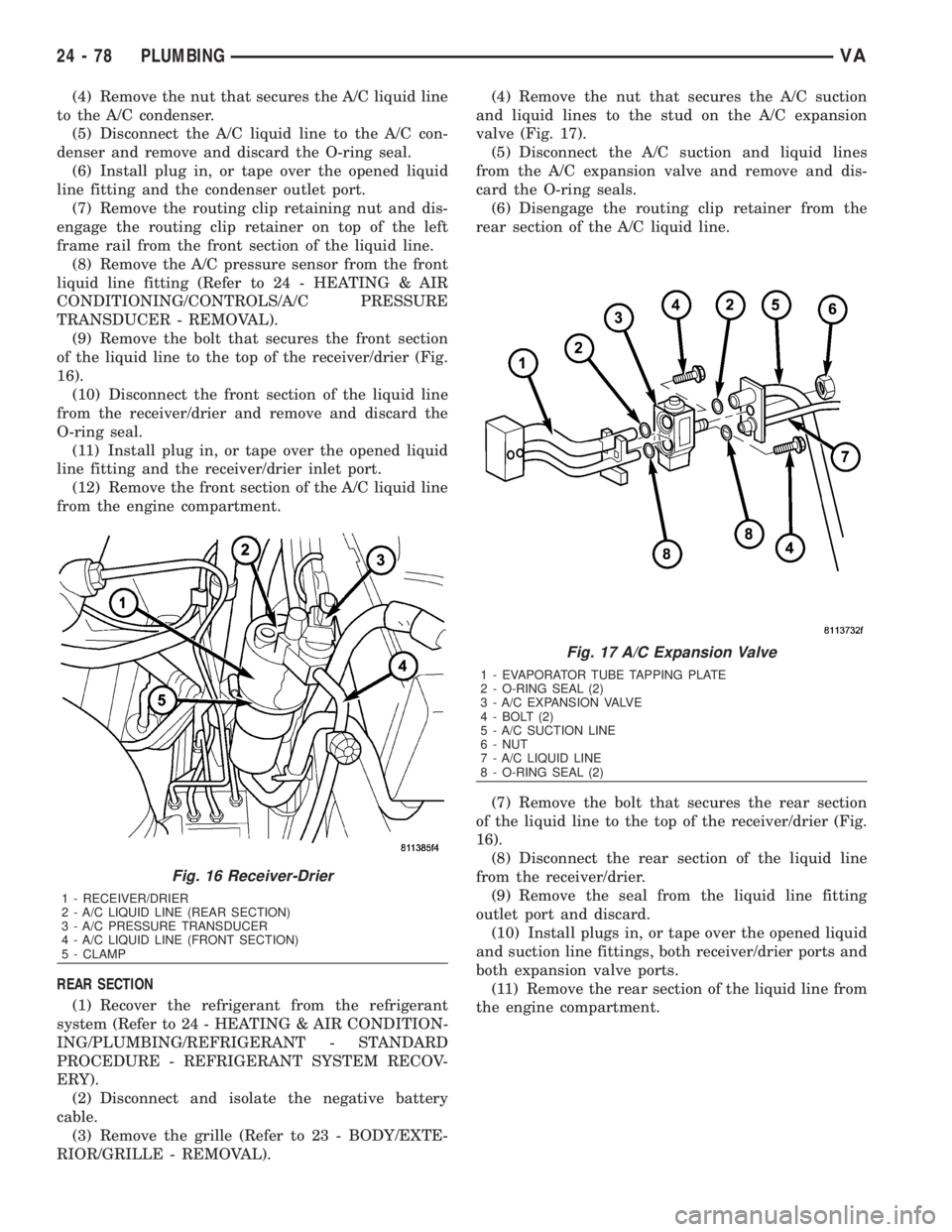

Page 2115 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual (4) Remove the nut that secures the A/C liquid line
to the A/C condenser.
(5) Disconnect the A/C liquid line to the A/C con-
denser and remove and discard the O-ring seal.
(6) Install plug in, or tape

Page 2116 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual INSTALLATION
NOTE: The A/C liquid line is serviced in two sec-
tions. The front section connects between the A/C
condenser and the receiver/drier and includes the
high side service port and the A/C pr

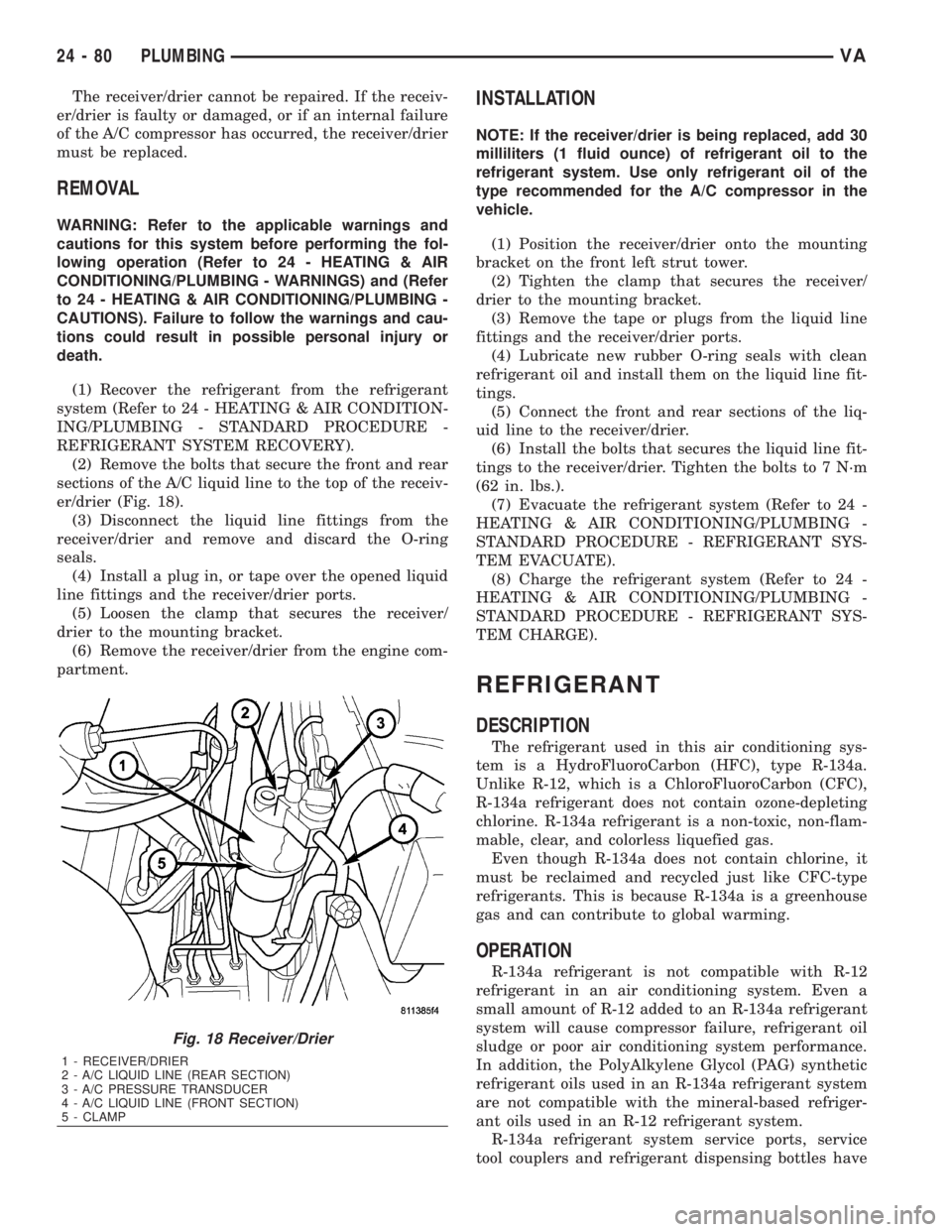

Page 2117 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual The receiver/drier cannot be repaired. If the receiv-
er/drier is faulty or damaged, or if an internal failure
of the A/C compressor has occurred, the receiver/drier
must be replaced.
REMOVAL
WARNING:

Page 2118 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual all been designed with unique fittings to ensure that
an R-134a system is not accidentally contaminated
with the wrong refrigerant (R-12). There are also
labels posted in the engine compartment of the

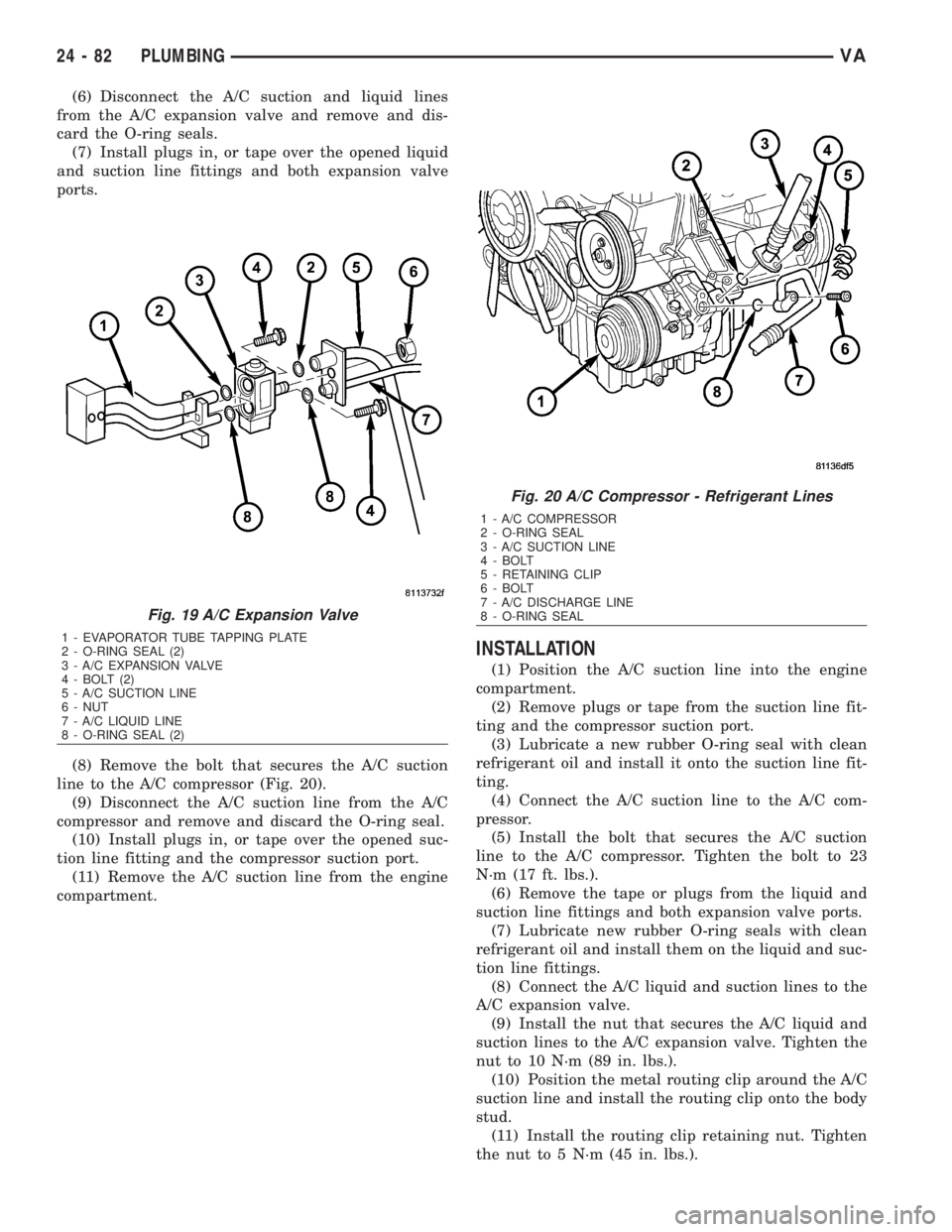

Page 2119 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual (6) Disconnect the A/C suction and liquid lines
from the A/C expansion valve and remove and dis-
card the O-ring seals.
(7) Install plugs in, or tape over the opened liquid
and suction line fittings a

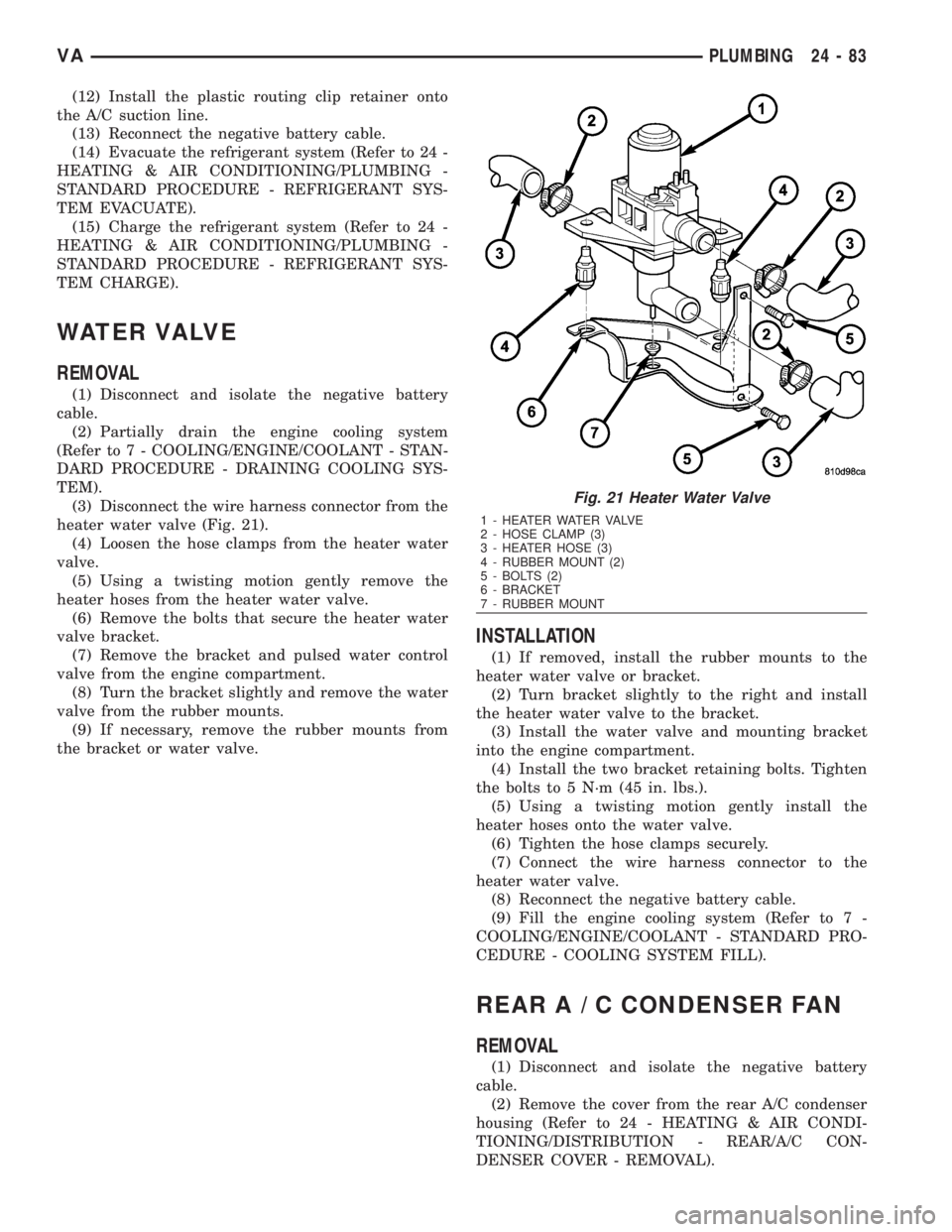

Page 2120 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual (12) Install the plastic routing clip retainer onto
the A/C suction line.
(13) Reconnect the negative battery cable.
(14) Evacuate the refrigerant system (Refer to 24 -
HEATING & AIR CONDITIONING/PLUM
