MERCEDES-BENZ SPRINTER 2011 MY11 Operator’s Manual

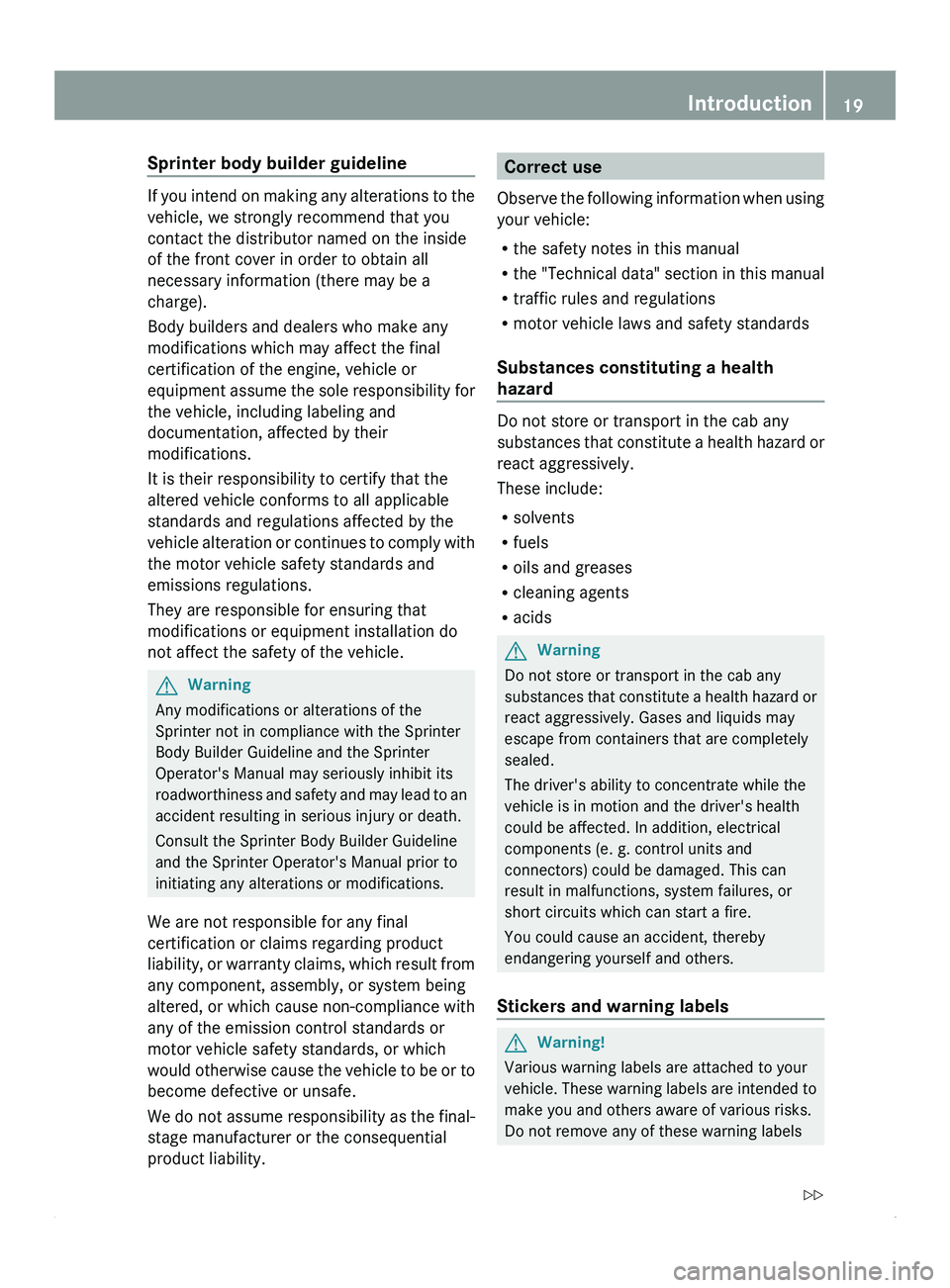

Sprinter body builder guideline
If you intend on making any alterations to the
vehicle, we strongly recommend that you
contact the distributor named on the inside
of the front cover in order to obtain all
necessary information (there may be a
charge).
Body builders and dealers who make any
modifications which may affect the final
certification of the engine, vehicle or
equipment assume
the
sole responsibility for
the vehicle, including labeling and
documentation, affected by their
modifications.
It is their responsibility to certify that the
altered vehicle conforms to all applicable
standards and regulations affected by the
vehicle alteration or continues to comply with
the motor vehicle safety standards and
emissions regulations.
They are responsible for ensuring that
modifications or equipment installation do
not affect the safety of the vehicle. G
Warning
Any modifications or alterations of the
Sprinter not in compliance with the Sprinter
Body Builder Guideline and the Sprinter
Operator's Manual may seriously inhibit its
roadworthiness and safety

and may lead to an
accident resulting in serious injury or death.
Consult the Sprinter Body Builder Guideline
and the Sprinter Operator's Manual prior to
initiating any alterations or modifications.
We are not responsible for any final
certification or claims regarding product
liability, or warranty claims, which result from
any component, assembly, or system being
altered, or which cause non-compliance with
any of the emission control standards or
motor vehicle safety standards, or which
would otherwise cause the vehicle to be or to
become defective or unsafe.
We do not assume responsibility as the final-
stage manufacturer or the consequential
product liability. Correct use
Observe the following

information when using
your vehicle:
R the safety notes in this manual
R the "Technical data" section in this manual
R traffic rules and regulations
R motor vehicle laws and safety standards
Substances constituting a health
hazard Do not store or transport in the cab any
substances that
constitute

a health hazard or
react aggressively.
These include:
R solvents
R fuels
R oils and greases
R cleaning agents
R acids G
Warning
Do not store or transport in the cab any
substances that constitute

a health hazard or
react aggressively. Gases and liquids may
escape from containers that are completely
sealed.
The driver's ability to concentrate while the
vehicle is in motion and the driver's health
could be affected. In addition, electrical
components (e. g. control units and
connectors) could be damaged. This can
result in malfunctions, system failures, or
short circuits which can start a fire.
You could cause an accident, thereby
endangering yourself and others.
Stickers and warning labels G
Warning!
Various warning labels are attached to your
vehicle. These warning

labels are intended to
make you and others aware of various risks.
Do not remove any of these warning labels Introduction
19 Z

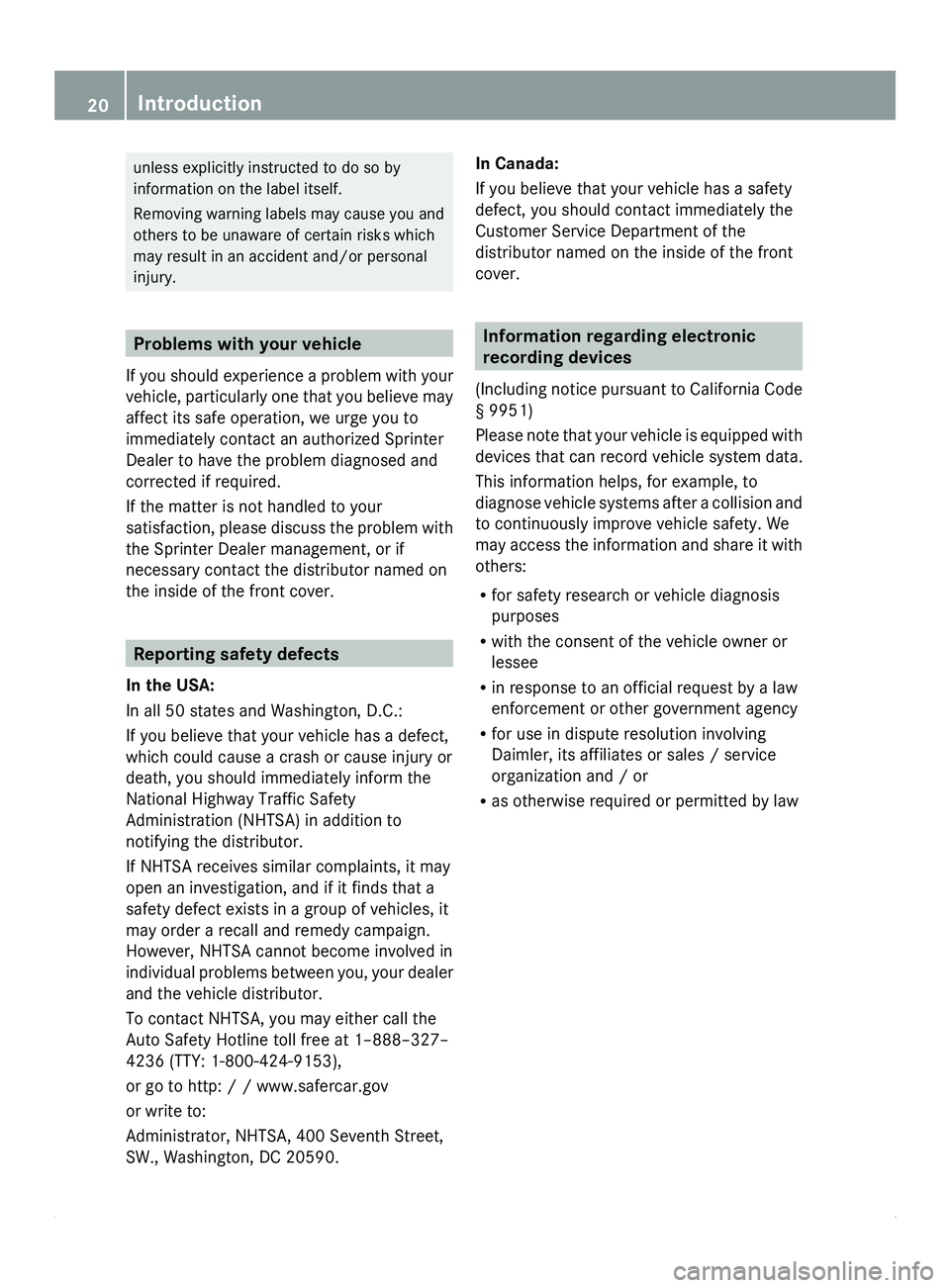

unless explicitly instructed to do so by
information on the label itself.
Removing warning labels may cause you and
others to be unaware of certain risks which
may result in an accident and/or personal
injury.
Problems with your vehicle
If you should
experience a problem with your
vehicle, particularly one that you believe may
affect its safe operation, we urge you to
immediately contact an authorized Sprinter
Dealer to have the problem diagnosed and
corrected if required.
If the matter is not handled to your
satisfaction, please discuss the problem with
the Sprinter Dealer management, or if
necessary contact the distributor named on
the inside of the front cover. Reporting safety defects
In the USA:
In all 50 states and Washington, D.C.:
If you believe that your vehicle has a defect,
which could cause a crash or cause injury or
death, you should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying the distributor.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between

you, your dealer
and the vehicle distributor.
To contact NHTSA, you may either call the
Auto Safety Hotline toll free at 1–888–327–
4236 (TTY: 1-800-424-9153),
or go to http: / / www.safercar.gov
or write to:
Administrator, NHTSA, 400 Seventh Street,
SW., Washington, DC 20590. In Canada:
If you believe that your vehicle has a safety
defect, you should contact immediately the
Customer Service Department of the
distributor named on the inside of the front
cover.
Information regarding electronic
recording devices
(Including notice pursuant

to California Code
§ 9951)
Please note that your vehicle is equipped with
devices that can record vehicle system data.
This information helps, for example, to
diagnose vehicle systems after a collision and
to continuously improve vehicle safety. We
may access the information and share it with
others:
R for safety research or vehicle diagnosis
purposes
R with the consent of the vehicle owner or
lessee
R in response to an official request by a law
enforcement or other government agency
R for use in dispute resolution involving
Daimler, its affiliates or sales / service
organization and / or
R as otherwise required or permitted by law20
Introduction

Cockpit
................................................. 22
Instrument cluster variants ...............24
Steering wheel with buttons ..............26
Center console .................................... 26
Switch units ......................................... 27 21At a glance

Cockpit
Cockpit
i
This Operator's Manual describes all the
standard and optional
equipment available
for your vehicle at the time of purchase.
Country specific differences are possible.
Please note that your vehicle might not be
equipped with all the functions described
here. This also includes safety relevant
systems and functions. Function Page
0046
Door control panel 28
0047
Light switch 89
008A
Combination switch:
• turn signals 90
• high-beam headlamps 90
• windshield wipers 94
• rear window wiper 94
0088
Cruise control lever 118
0086
Horn
0087
Steering wheel without/
with buttons
26 Function Page
006E
Instrument cluster 24
006F
Stowage compartment
0070
• Stowage compartment
with interior light
92
• Overhead control panel 27
0071
Rear-view mirror 69
0072
Rear-view camera monitor 122
0073
PARKTRONIC warning
display
119
0074
Opens/closes the right-
hand side window
60
0075
Jack and vehicle tool kit 182
0076
Glove box 131
0077
Center console 26
0078
Ignition lock 56
0079
Additional switch unit 2822
Cockpit
At a glance

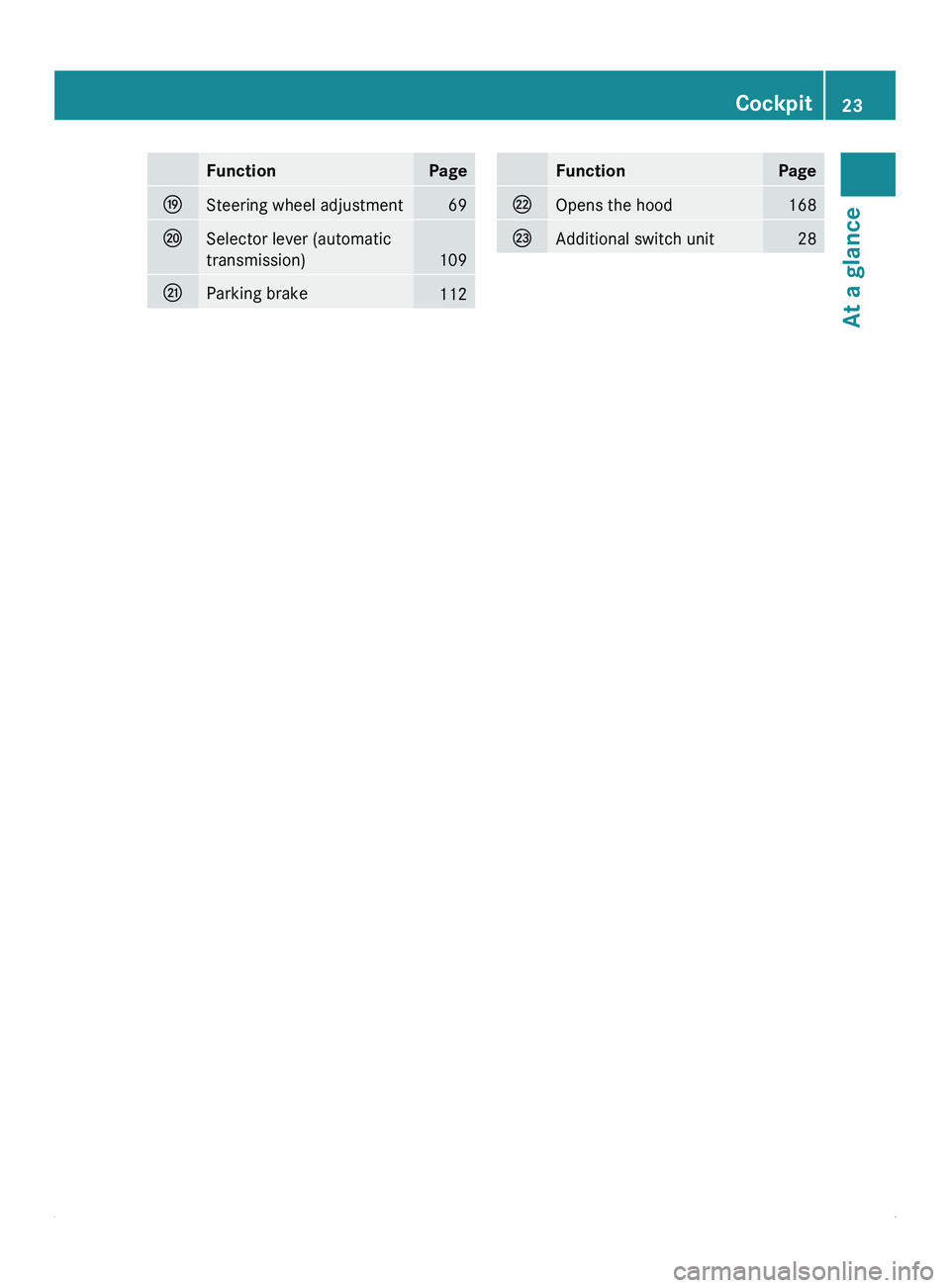

Function Page
007A
Steering wheel adjustment 69
007B
Selector lever (automatic
transmission)
109
007C
Parking brake
112 Function Page
007D
Opens the hood 168
007E
Additional switch unit 28Cockpit
23At a glance

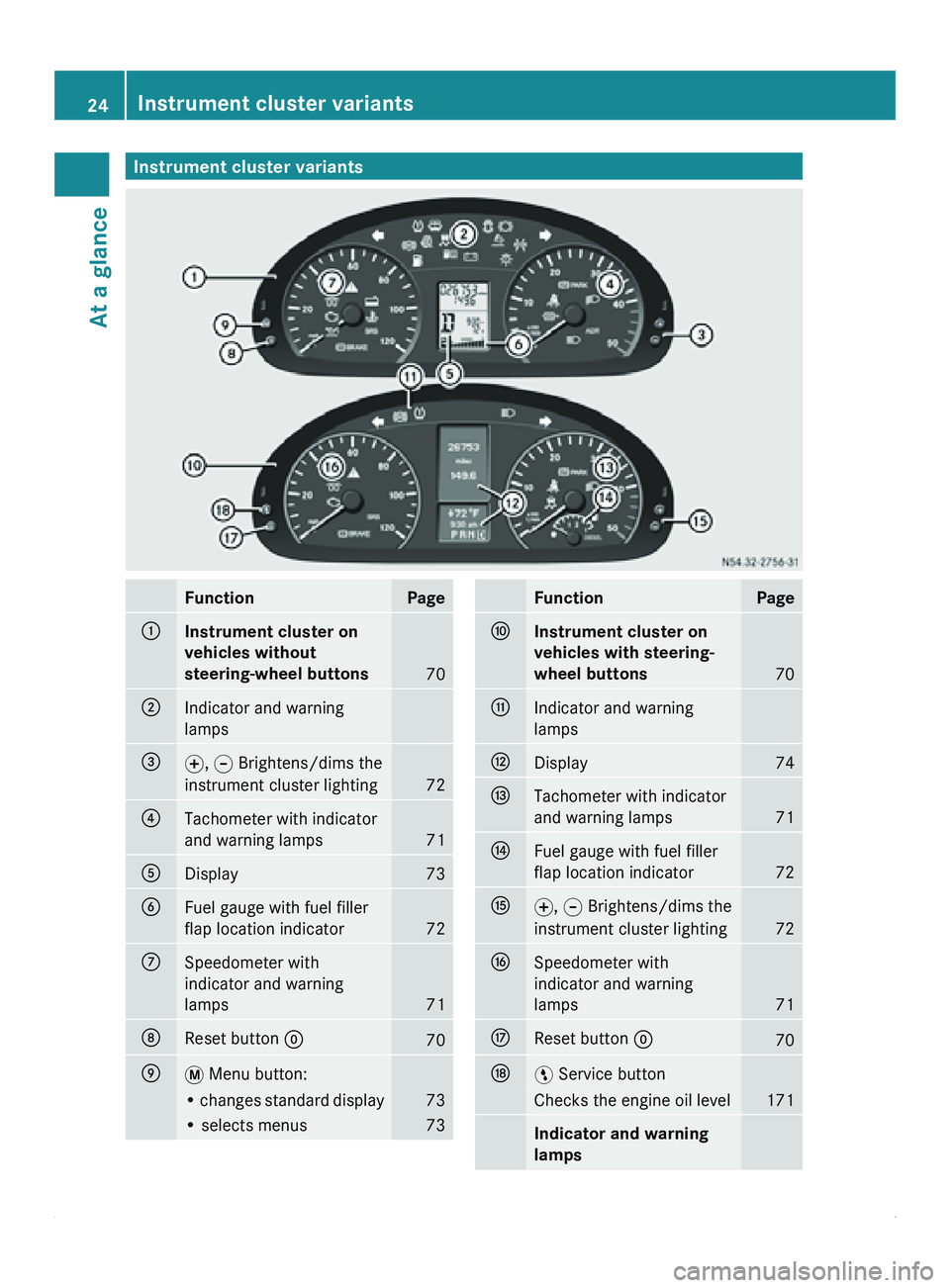

Instrument cluster variants
Function Page
0046
Instrument cluster on
vehicles without
steering-wheel buttons
70
0047
Indicator and warning
lamps
008A
0069, 006A Brightens/dims the
instrument cluster lighting 72
0088
Tachometer with indicator
and warning lamps
71
0086
Display 73
0087
Fuel gauge with fuel filler
flap location indicator
72
006E
Speedometer with
indicator and warning
lamps
71
006F
Reset button 0048
70
0070
007B Menu button:
• changes standard display 73
• selects menus 73 Function Page
0071
Instrument cluster on
vehicles with steering-
wheel buttons
70
0072
Indicator and warning
lamps
0073
Display 74
0074
Tachometer with indicator
and warning lamps
71
0075
Fuel gauge with fuel filler
flap location indicator
72
0076
0069, 006A Brightens/dims the
instrument cluster lighting 72
0077
Speedometer with
indicator and warning
lamps
71
0078
Reset button 0048
70
0079
00A4 Service button
Checks the engine oil level 171
Indicator and warning
lamps24
Instrument cluster variants
At a glance

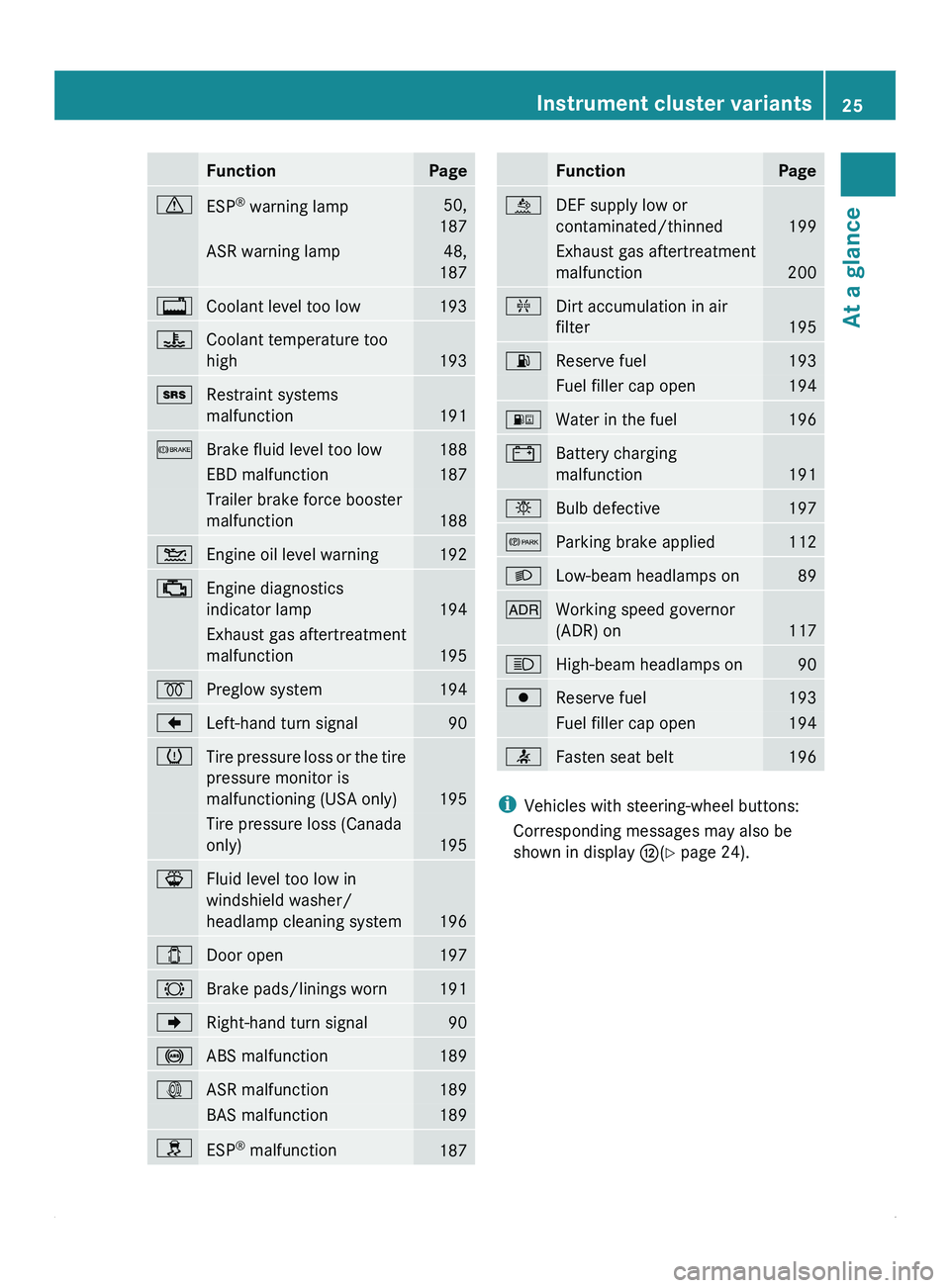

Function Page
0067
ESP
®
warning lamp 50,
187 ASR warning lamp 48,
187 0041
Coolant level too low 193
00AE
Coolant temperature too
high
193
008A
Restraint systems
malfunction
191
0065
Brake fluid level too low 188
EBD malfunction 187
Trailer brake force booster
malfunction
188
00B4
Engine oil level warning 192
00BB
Engine diagnostics
indicator lamp
194
Exhaust gas aftertreatment
malfunction
195
0028
Preglow system 194
004A
Left-hand turn signal 90
0077
Tire pressure loss or the tire
pressure monitor is
malfunctioning (USA only)
195
Tire pressure loss (Canada
only)
195
00BD
Fluid level too low in
windshield washer/
headlamp cleaning system
196
003E
Door open 197
0026
Brake pads/linings worn 191
004D
Right-hand turn signal 90
0031
ABS malfunction 189
003D
ASR malfunction 189
BAS malfunction 189
009E
ESP
®
malfunction 187 Function Page
00E4
DEF supply low or
contaminated/thinned
199
Exhaust gas aftertreatment
malfunction
200
00AB
Dirt accumulation in air
filter
195
00B6
Reserve fuel 193
Fuel filler cap open 194
00BA
Water in the fuel 196
003F
Battery charging
malfunction
191
0055
Bulb defective 197
0066
Parking brake applied 112
0064
Low-beam headlamps on 89
004E
Working speed governor
(ADR) on
117
0063
High-beam headlamps on 90
0080
Reserve fuel 193
Fuel filler cap open 194
0082
Fasten seat belt 196
i
Vehicles with steering-wheel buttons:
Corresponding messages may also be
shown in display 0073(Y page 24). Instrument cluster variants
25At a glance

Steering wheel with buttons
Function Page
0046
Display 74
Controls the on-board
computer
0047
Selects a submenu or
adjusts the volume
74
005A Up/increases the
volume
005B Down/reduces the
volume
008A
Using the telephone 86
006A Accepts a call/starts
dialing
007F Ends a call/rejects an
incoming call 0088
Scrolling from one menu to
another
74
0059 Forwards
0058 Back
0086
Scrolling from one
submenu to another
74
0029 Forwards
002D Back Center console
Function Page
0046
Stowage compartment 130
0047
Radio; see the separate
operating instructions
008A
Air-conditioning control
panel
97
0088
Center console switch unit 27
0086
• Stowage compartment or
• CD changer; see the
separate operating
instructions
0087
Cup holder with 132
• ashtray 128
• cigarette lighter 129
006E
12 V socket 13326
Center console
At a glance

Switch units
Center console
Function Page
0072
Switches the left/right-
hand seat heating on/off
68
0087
Switches the windshield
heating on/off
95
0073
Switches the rear window
defroster on/off
95
0069
Activates/deactivates
PARKTRONIC
122
003B
Switches the hazard
warning lamps on/off
91
00E3
Activates/deactivates ASR 48
00BF
00C0
Central locking, interior/
rear compartment
54 Roof
Function Page
0046
Microphone for the
telephone
134
0047
Switches the right-hand
reading lamp on/off
92
008A
Switches the automatic
interior lighting on/off
92
0088
• Eyeglasses compartment
or 131
• Anti-theft alarm system
(ATA)
61
0086
Switches the interior
lighting on/off
92
0087
Switches the left-hand
reading lamp on/off
92Switch units
27
At a glance

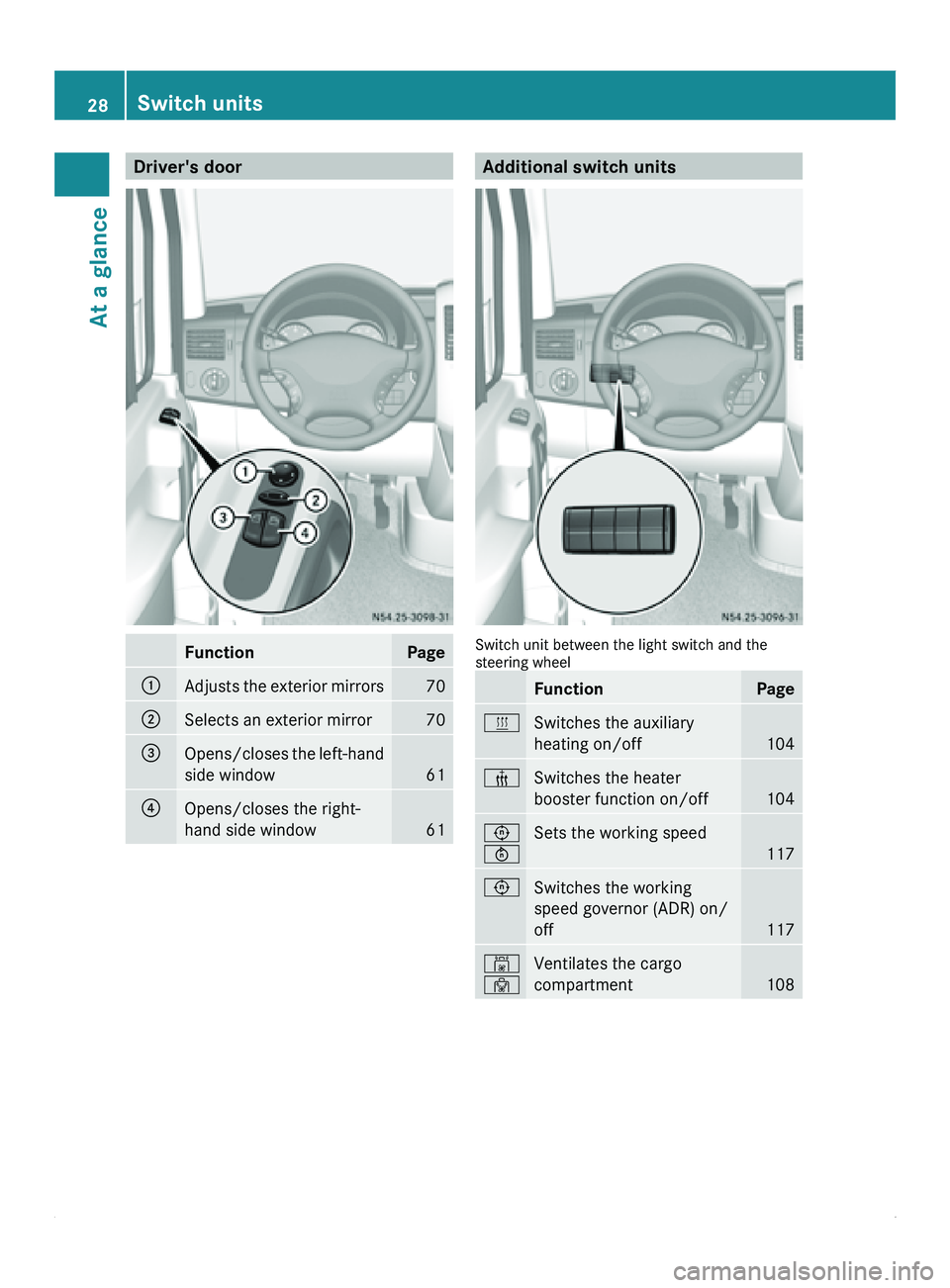

Driver's door
Function Page
0046
Adjusts the exterior mirrors 70
0047
Selects an exterior mirror 70
008A
Opens/closes the left-hand
side window 61
0088
Opens/closes the right-
hand side window
61 Additional switch units
Switch unit between the light switch and the
steering wheel
Function Page
0086
Switches the auxiliary
heating on/off
104
00B7
Switches the heater
booster function on/off
104
0093
0094
Sets the working speed
117
0093
Switches the working
speed governor (ADR) on/
off
117
00B4
00B3
Ventilates the cargo
compartment
10828
Switch units
At a glance
