MERCEDES-BENZ SPRINTER 2019 MY19 with no MMS Operator’s Manual

#
Switc hoffthel ighting sy stem. #
Place ascrew driver ,for example, at opening
2 between lamp 3and panel 1and care‐
full ypryofflamp 3. #
Remo velamp 3from panel 1. #
Rotate theb ulb holder byaround 45 °and
de tach it from thel amp. #
Remo vethel ight bulb. #
Inser tthe ne wbulb int othe bulb holder. #
Inser tthe bulb holder int othe lam pand
ro tate itby around 45°. #
Inser tthe lam pintot he panel opening until it
engages. Re
placing rear light bulb s(ch assis) Overvie
wofrear bul btypes (chassis)
Yo uc an chang ethe following bulbs. Ve
hicles wit hstandar dtail lamps
1 Clearance lamp: R5W
2 Tail light :R5W
3 Brak elight :P21W
4 Turn signals: PY 21 W
5 Reversing lights: P21W
6 Rear fogl ight (driver's side): P21W
7 License plate lamp:R5W Re
placing the tai llamps on the chassis
Re quirements:
R Rear fogl ights: bulb type P21W
R License pla telighting: bulb type R5W
R Reversing lights: bulb typeP21W
R Turn signal indicators: bulb type PY21 W
R Clearance lamp: bulb typeR5W
R Brak elight: bulb type P21W
R Taillight: bulb type R5W 1
Light lens
2 Screws
3 Rear fogl ight
4 License plat elamp
5 Reversing light
6 Turn signal indicator
7 Cleara nce lamp
8 Brak elight
9 Taillight #
Swit chofft he lighting sy stem. #
Unscr ewscrews 1and remo velight lens
2. #
Remo vethep lug connector from thel amp
car rier. #
Gentl yturnt he bulb counter-clockwise and
ta ke it out of thes ocket. #
Inse rtthen ew bulb int othe soc keta nd tur nit
clo ckwise. #
Position light lens 2and tighten scr ews1. Light and vision
87

Re
placing interio rlight bulbs Re
placing rear interior lamps
Re quirements:
% Fo
rthe standar dbulb failur eindicator func‐
tion towo rkcor rectly ,only lights bulbs must
be use dthat ar ethe same type and po weras
th ose ins talled during production. #
Swit chofft he interior lighting. #
Press in catc hspring of lens 1withas uita‐
ble object e.g. ascrew driver ,and then le ver
of ft he lens wit hthe lam phousing. #
Topull bac klen sf romt he lam phousing:
press thel ugs of lens 2inwa rds. #
Remo velight bulb 3from thel am ph ousing. #
Inser tthe ne wlight bulb. #
Inser tthe lens in thel am ph ousing until it
engages. #
Place thel ens wit hthe lam phousing in posi‐
tion and engag eit. Wi
ndshield wipers Switching
thef ront windshield wiper sonand
off 1
00D4 Singlew ipe/wiping wit hwashe rfluid
0047 005AWindshield wipe rsoff
0048 0062 Intermittent wiping, normal
Ve hicles wit hrain sensors: automatic wiping,
normal
0049 0063 Intermit tent wiping, frequent
Ve hicles wit hrain sensors: automatic wiping,
frequent
004A 00AA Continuous wiping, slow
004B 00A9 Continuous wiping, fast #
Turn thec ombination switc htothe cor re‐
sponding position 0047–004B. #
Single wipe/washing: presstheb utton on
th ec ombination switc hinthe direction of
ar row 1.
R 00D3 Single wipe
R 00D4 Wipes wit hwashe rfluid 88
Light and vision

Switching
ther ear windo wwiperon/off 1
00E2 Single wipe/wash
2 00C5 Intermittent wiping #
Single wipe: press button1tothep oint of
re sis tance. #
Wiping with washer fluid: press button 1
be yond thep oint of resis tan ce. #
Toswitc hintermittent wiping on or off:
press button 2.
If th er ear windo wwiper is swit ched on, the
00C5 symbol will appearont he Instrument
Displa y. Re
placing the windshiel dwiper blades &
WARNING Risk of becoming trapped if
th ew indshield wiper sareswitched on
while wiper blades ar ebeing replaced
If th ew indshield wiper sbegin tomo vewhile
yo ua rechanging thew iper blades, youc an
be trapped bythew iper arm. #
Alwayss witc hoffthew indshield wipers
and thei gnition befor echanging the
wiper blades. &
WARNING Risk of inju ryfrom using the
windshield wiper swhile thee ngine hood
is open
When thee ngine hood is open and thew ind‐
shield wiper saresetinm otion, youc an be
trapped bythew iper linkage. #
Alwayss witc hoffthew indshield wipers
and ignition befor eopening thee ngine
hood. %
If
th ew iper blades ar eworno ut, they will not
wipe thew indshield proper ly.R eplace the
wiper blades twic eayear,prefera blyin
spring and fall. #
Fold wiper arm 3away from thew indshield. #
Hold wiper arm 3and tur nthe wiper blade
aw ay from wiper arm 3inthed irection of
th ea rrow asfarasitw illg o. #
Slide catch 2upwards in thed irection of the
ar row until it engages. #
Fold bac kthe wiper blade ont othe wiper arm. #
Remo vewiper blade 1from wiper arm. #
Inser tnew wa sher blade 1intheh older on
wiper arm 3.
When doing so, take intoa ccount thed iffe re nt
lengths of thew iper blades:
R Driver's side: long wiper blade
R Front-passenger side: shor twiper blade #
Slide catch 2down wardsu ntil it engages. #
Fold wiper arm 3bac kontot he windshield. Re
placing the windshiel dwiper blades (WET
WIPER SYSTEM) &
WARNING Risk of becoming trapped if
th ew indshield wiper sareswitched on
while wiper blades ar ebeing replaced
If th ew indshield wiper sbegin tomo vewhile
yo ua rechanging thew iper blades, youc an
be trapped bythew iper arm. #
Alwayss witc hoffthew indshield wipers
and thei gnition befor echanging the
wiper blades. Light and vision
89

&

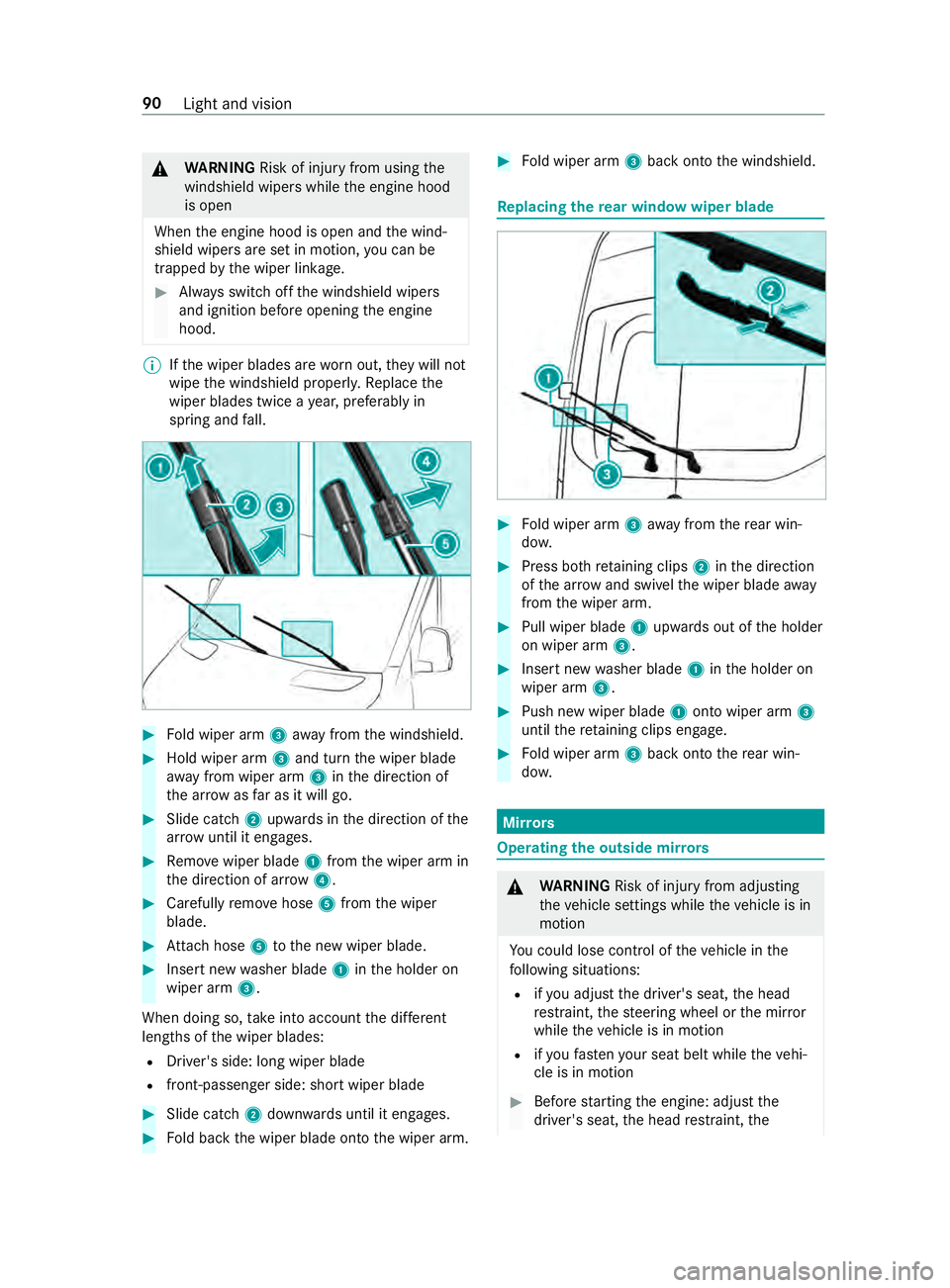

WARNING Risk of inju ryfrom using the
windshield wiper swhile thee ngine hood
is open
When thee ngine hood is open and thew ind‐
shield wiper saresetinm otion, youc an be
trapped bythew iper linkage. #
Alwayss witc hoffthew indshield wipers
and ignition befor eopening thee ngine
hood. %
If
th ew iper blades ar eworno ut, they will not
wipe thew indshield proper ly.R eplace the
wiper blades twic eayear,prefera blyin
spring and fall. #
Fold wiper arm 3away from thew indshield. #
Hold wiper arm 3and tur nthe wiper blade
aw ay from wiper arm 3inthed irection of
th ea rrow asfarasitw illg o. #
Slide catch 2upwards in thed irection of the
ar row until it engages. #
Remo vewiper blade 1from thew iper ar min
th ed irection of ar row4. #
Carefull yremo vehose 5from thew iper
blade. #
Attach hose 5tothen ew wiper blade. #
Inser tnew wa sher blade 1intheh older on
wiper arm 3.
When doing so, take intoa ccount thed iffe re nt
lengths of thew iper blades:
R Driver's side: long wiper blade
R front-passenger side: shor twiper blade #
Slide catch 2down wardsu ntil it engages. #
Fold bac kthe wiper blade ont othe wiper arm. #
Fold wiper arm 3bac kontot he windshield. Re
placing the rear windo wwiperblade #
Fold wiper arm 3away from ther ear win‐
do w. #
Press bo thretainin gclips 2inthed irection
of thea rrow and swivel thew iper blade away
from thew iper arm. #
Pull wiper blade 1upwards out of theh older
on wiper arm 3. #
Inser tnew wa sher blade 1intheh older on
wiper arm 3. #
Push ne wwiper blade 1ontow iper arm 3
until ther etainin gclips engage. #
Fold wiper arm 3bac kontot he rear win‐
do w. Mir
rors Operating
theo utside mir rors &
WARNING Risk of inju ryfrom adju sting
th ev ehicle settings while thev ehicle is in
motion
Yo uc oul dlose control of thev ehicle in the
fo llowing situations:
R ifyo ua djus tthe driver's seat, theh ead
re stra int ,the steering wheel or them irror
while thev ehicle is in motion
R ifyo uf asteny our seat belt whilet hevehi‐
cle is in motion #
Befor estarti ngthee ngine: adjus tthe
driver's seat, theh ead restra int ,the 90
Light and vision

st
eering wheel or them irro ra nd fast en
yo ur seat belt. &
WARNING Risk of accident du etomis‐
judgment of dis tances when using the
passenger mir ror
The outside mir roront he front-passenger
side reflects object sonasmaller scale. The
object sinviewa reinfact closer than they
appear.
As aresult, youm aymisjudg ethe dis tance
between youa nd ther oad user driving behi nd
yo u, fore xamp le, when changing lanes. #
Therefore, alw aysl ook overyour shoul‐
der in order toensur ethat youa re
aw areoft he actual dis tance between
yo ua nd ther oad user sdrivin gb ehind
yo u. Ad
justin gthe outside mir rors manually #
Adjus tthe outside mir rors to thec orrect posi‐
tion manually. #
Toengag eano utside mir rort hat has
been pushed out of position: pushtheo ut‐
side mir rorint op osition manually.
Ad justin gthe outside mir rors electrically Example image
* NO
TEDama getothee lectric outside
mir rors If
yo uf old thee lectric outside mir rors in or
out manuall y,yo um aydamag ethe outside
mir rors and they will no tloc kinp lace prop‐
er ly. If
th eo utside mir rors aren otfolded in when
wa shing thev ehicle in acarwa sh, thew asher
brushes ma yfold them in forc ibl ya nd dam‐
ag et hem. #
The outside mir rors mus tonly be folded
in and out elect rical ly. #
Foldtheo utside mir rors in befor ewash‐
ing thev ehicle in acarwa sh. #
Befor edriving off, switc honthe powersupp ly
or thei gnition. #
Tofold in or out: brieflypress button 2. #
Toadjus t:use button 1or3 toselect the
outside mir rortobea djusted. #
Setthe position of them irro rg lass bypress‐
ing button 4. #
Toengag eano utside mir rort hat has
been pushed out of position: press and
hol db utton 2.
Yo uw ill hear aclicka nd them irro rw illa udi‐
bly engag einposition. The outsid emirro ris
se tint he cor rect position.
Heating the outside mir rors #
Vehicles without arear windo wdefros ter:
at lo wtemperatures, them irro rh eating
switches on automatically when thee ngine is
st ar ted. #
Vehicles with arear windo wdefros ter: at
lo wt emperatures, them irro rh eater switches
on automatically when thee ngine is star ted.
The mir rorh eater can also be switched on
to ge ther wit hthe rear wind owdefros teru sing
th er ear windo wdefros terb utton. Dimming
thei nsid erearvie wmirror Light and vision
91

#

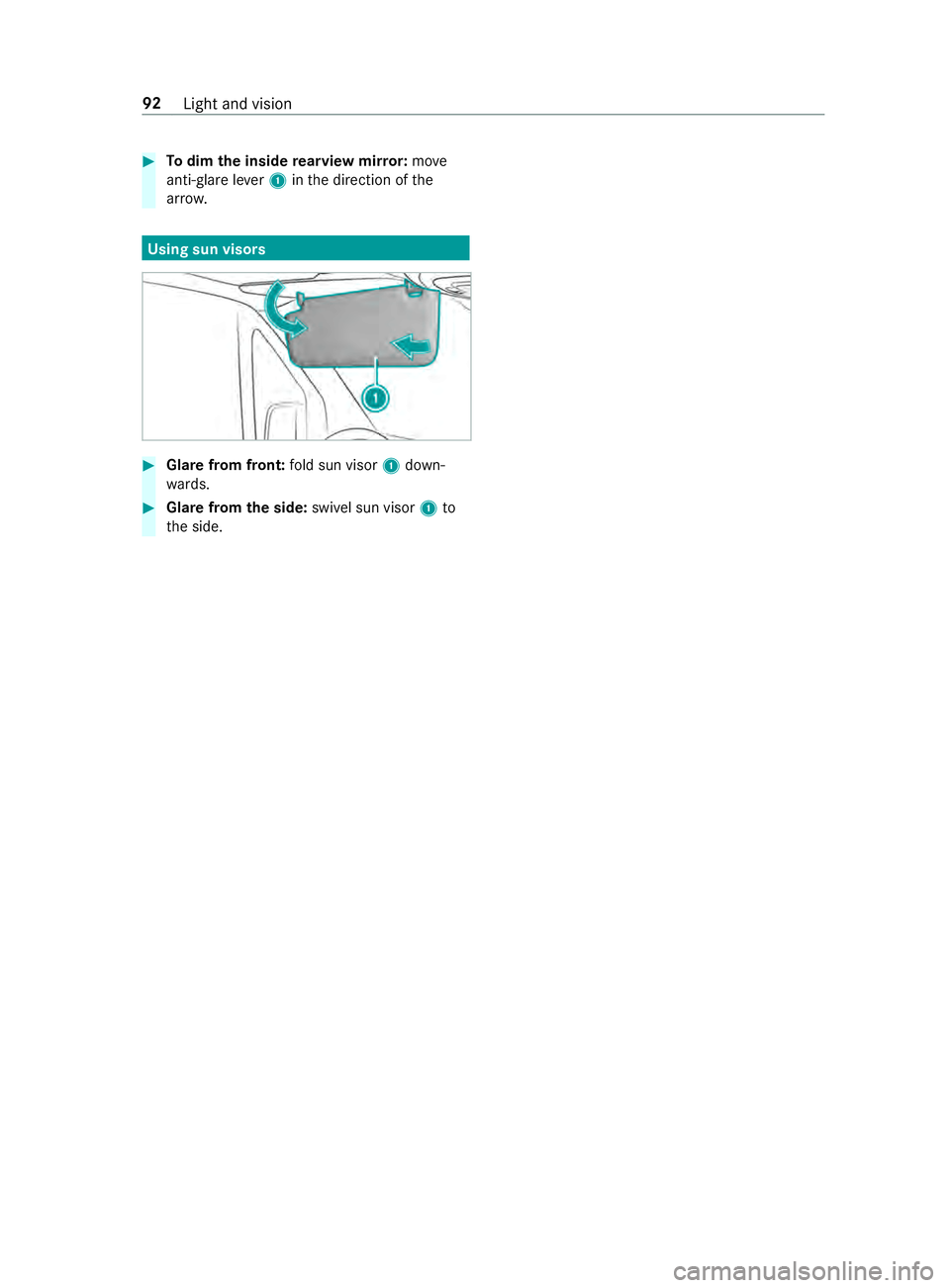

Todim the inside rearvie wmirro r:mo ve
anti-glar elever 1inthed irection of the
ar row. Using sun visors
#
Glar efromf ront: fold sun visor 1down‐
wa rds. #
Glar efromt he side: swivels un visor 1to
th es ide. 92
Light and vision

Overvie
wofclimatecontrol sy stems Heating sy
stem overview 1
Sets thet emperature
2 /00A4
Switches the
re ar compartment heating
on/off
3 006C Switches ther ear win‐
do wh eater on/off
(/ page98)
4 009B Switches foot we ll air
distribution on/off 5
0064 Switches windshield
defrosting on/o ff
( / pag e97)
6 Vehicles wit hstationary
heater or heater boos ter:
003B switches thes tation‐
ar yh eater or heater boos‐
te ro n/of f(/pag e100)
7 Ve
hicles with
windshield heating: switches windshield heating
on/of
f(/ pag e98)
8 Sets thea irflow
% The indicator lamps on
theb uttons signal
th at thef unction in question has been activa‐
te d. Climat
econtrol 93

TEMPMATIC
overview 1
0082 Setsthet emperature
2 Display
3 0097 Setsthea irflow
4 Ve
hicles with
windshield heating: switches
windshield heating on/off
(/ page98)
5 Vehicles wit hstationary
heater or heater boos ter:
003B switches thes tation‐
ar yh eater or heater boos ter
on/of f(/ pag e100) 6
Vehicles wit hrear window
defros ter: 006C switches
re ar wind owdefros ter
on/of f(/ pag e98)
7 0089 Switches air-recircula‐
tion mode on/off
(/ page98)
8 0064 Switches windshield
defrosting on/off
(/ page97)
9 008F Adjusts thea ir distri‐
bution (/ page97)
A 005A Switche sthe A/C
function on/off
(/ page96)
B /00A4
Vehicles wit ha
dual-zone climat econt rol
sy stem: adjusts ther ear
compartment climat econ‐ trol/
re
ar compartment heating
(indicator lam pflashes)
(/ page96)
% The indicator lamps on
theb uttons signal
th at thef unction in question has been activa‐
te d. 94
Climat econtrol

3-zone automatic climat
econtrol overview 1
0082 Setsthet emperature
2 Display
3 0097 Setsthea irflow
4 Ve
hicles with
windshield heating: switches
windshield heating on/off
(/ page98)
5 Vehicles wit hstationary
heater or heater boos ter:
003B switches thes tation‐ ar
yh eater or heater boos ter
on/off(/ page100)
6 Vehicles wit hrear window
defros ter: 006C switches
re ar wind owdefros ter
on/of f(/ pag e98)
7 0089 Switches air-recircula‐
tion mode on/off
(/ page98)
8 0064 Switches windshield
defrosting on/off
(/ page97)
9 008F Adjusts thea ir distri‐
bution (/ page97) A
005A Switche sthe A/C
function on/off
(/ page96)
B 0058 Automatically controls
th ec limat econt rol, front
(/ page96) and rear com‐
partment (/ page97)
C 0015 Switches synchroniza‐
tion on/of f(/pag e97)
D /00A4
Vehicles with
dual-zone climat econt rol
sy stems: adjusts ther ear
compartment climat econ‐
trol/
re ar compartment heating
(indicator lam pflashes)
(/ page96)
% The indicator lamps on
theb uttons signal
th at thef unction in question has been activa‐
te d. Operating climat
econtrol sy stems Switching
thec lima tecontrol sy stem on or
off #
Toswitc hon:setthe air flow to1orh igher
on thef ront-compartmen tmenu. #
Toswitc hoff:setthe air flow to0orOFF on
th ef ront-compartmen tmenu.
OFF appear sonthe climat econt rols ystem
displa y.
% When
thec limat econt rols ystemiss witched
off, thew indo wsmayfog up mor equickl y.
Switc hthe climat econt rols ystemo ffonly
brief ly. Climat
econtrol 95

%
If
th ef ront-compartmen tsystemh as already
been switched on and ther ear-compartment
sy stem has been switched off, youc an
swit chit on byturning up thef an on ther ear-
compartment menu. If thef ront-compart‐
ment sy stem is switched on, ther ear-com‐
partment sy stem will automaticall yswitc hon
as well. Ad
justin gthe rear comp artment climat econ‐
trol Re
quirements:
R The climat econtrol sy stem has been
switched on (/ page95).
Switching on thet emperatur eand airflow
and adju sting dual-zone and 3-zone automatic
climat econtrol #
Press the /
00A4 button.
The indicator lam ponthe /00A4
but‐
to na nd the /
00A4 symbol on thec li‐
mat econt rols ystemd ispla ywillflash.
The displa yswit ches tothet emperatur eand
th eb lowe rint herear menu. #
Use rocker switches 0082and0097 toset
th er equired temp eratur eand air flow onthe
re ar menu.
% If
th er ea resignificant dif fere nces between
th et emperatur esettings of thef ront and rear
sy stems, these cann otbe controlled accu‐
ra tely.
% If
th er ear compartment climat econtrol has
been swit ched off, youc an swit chit on auto‐
matically bypressing the0015 button.
Dependin gonthevehicle equipment, climate
contro lswitches on theo verhead air-conditioning
sy stem or rear compartment heating as requ ired:
R Ve
hicles with an overhead air-condition‐
ing sy stem: ther ear compartment can be
cooled onl y.
R Ve
hicles with rear comp artment heating:
th er ear compartment can be heated onl y.Switching of
frear compa rtment air condition‐
ing with dual and 3-zone automatic climate
control #
Press the /
00A4 button. #
Ifth ei ndicator lam ponthe /00A4
but‐
to na nd the /
00A4 symbol on thec li‐
mat econt rols ystemd ispla yflash, se tthe air‐
fl ow to0ont herear menu.
% Indicator lam
pon:rear compartment climate
control has been swit ched on.
Indicator lam poff:r ear compartment climate
control has been switched off.
Indicator lam pflashes: thes etting mode of
th er ear compartment climat econtrol is
active. Swit
ching theA /C function on and off Re
quirements:
R The climat econtrol sy stem has been
switched on (/ page95).
The A/C function cont rols thec limat eand dries
th ea ir inside thev ehicle. #
Press the005A button.
% Switc
hofftheA /C function onl ybrief ly.O th‐
erwise, thew indo wscould fogupf aster.
% Condensation ma
yleak from theu nderside of
th ev ehicle in cooling mode. This is no tasign
of ad efect. Au
tomaticall yregulating climat econtrol Re
quirements:
R The climat econtrol sy stem is switched on
(/ page95).
Switching on automatic climat econtrol
In automatic mode, thet emperature, air flow and
air distribution ar eregulated and kept cons tant. #
Press the0058 button.
The displa ywill sho wthe temp erature. The
air flow and air distribution will disappear from
th ed ispla y.
If th er ear-compartment climat econtrol has
been swit ched on, thes etting fort he rear
compartment is car ried over. 96
Climat econt rol
