FRONT SEAT BELT
INTERIOR52A-58
FRONT SEAT BELT
REMOVAL AND INSTALLATIONM1523001300370
SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B, Seat
Belt with Pre-tensioner P.52B-250.
NOTE:
*If so equipped
Pre-removal and Post-installation Operation
Turn the ignition key to the LOCK (OFF) position.
Disconnect the negative battery terminal.Post-installation Operation
Adjustment Procedures of Special Function (refer to GROUP
52B, On-Vehicle Service P.52B-250.)
1. EXTENDER SEAT BELT
ASSEMBLY*
OUTER SEAT BELT REMOVAL
STEPS
2. SASH GUIDE COVER
CENTER PILLAR TRIM LOWER
(REFER TO P.52A-11.)
3. OUTER SEAT BELT (REFER TO
GROUP 52B, SEAT BELTS WITH
PRE-TENSIONER P.52B-250.)4. CENTER PILLAR TRIM UPPER
(REFER TO P.52A-11.)
5. ADJUSTABLE SEAT BELT ANCOR
INNER SEAT BELT
6. SEAT BELT SWITCH
CONNECTOR
SHIELD COVER (REFER TO
P.52A-33.)
7. INNER SEAT BELTOUTER SEAT BELT REMOVAL
STEPS (Continued)

DASH PANEL
CONFIGURATION DIAGRAMS80-16
C-301 (2-B) REMOTE CONTROLLED RADIO
SWITCH (RH)
C-302 (3-Y) AUTO-CRUISE CONTROL SWITCH
C-303 (5-GR) CLOCK SPRING AND CLOCK
SPRING WIRING HARNESS
COMBINATION
C-304 (1) HORN SWITCH
C-305 (2-Y) AIR BAG MODULE (SQUIB)
(DRIVER’S SIDE)C-306 (6) CLOCK SPRING
C-307 (4-Y) CLOCK SPRING
C-308 (6) IGNITION SWITCH
C-309 (10) COLUMN SWITCH
C-310 (7) KEY REMINDER SWITCH
C-311 (2-B) REMOTE CONTROLLED RADIO
SWITCH (LH)

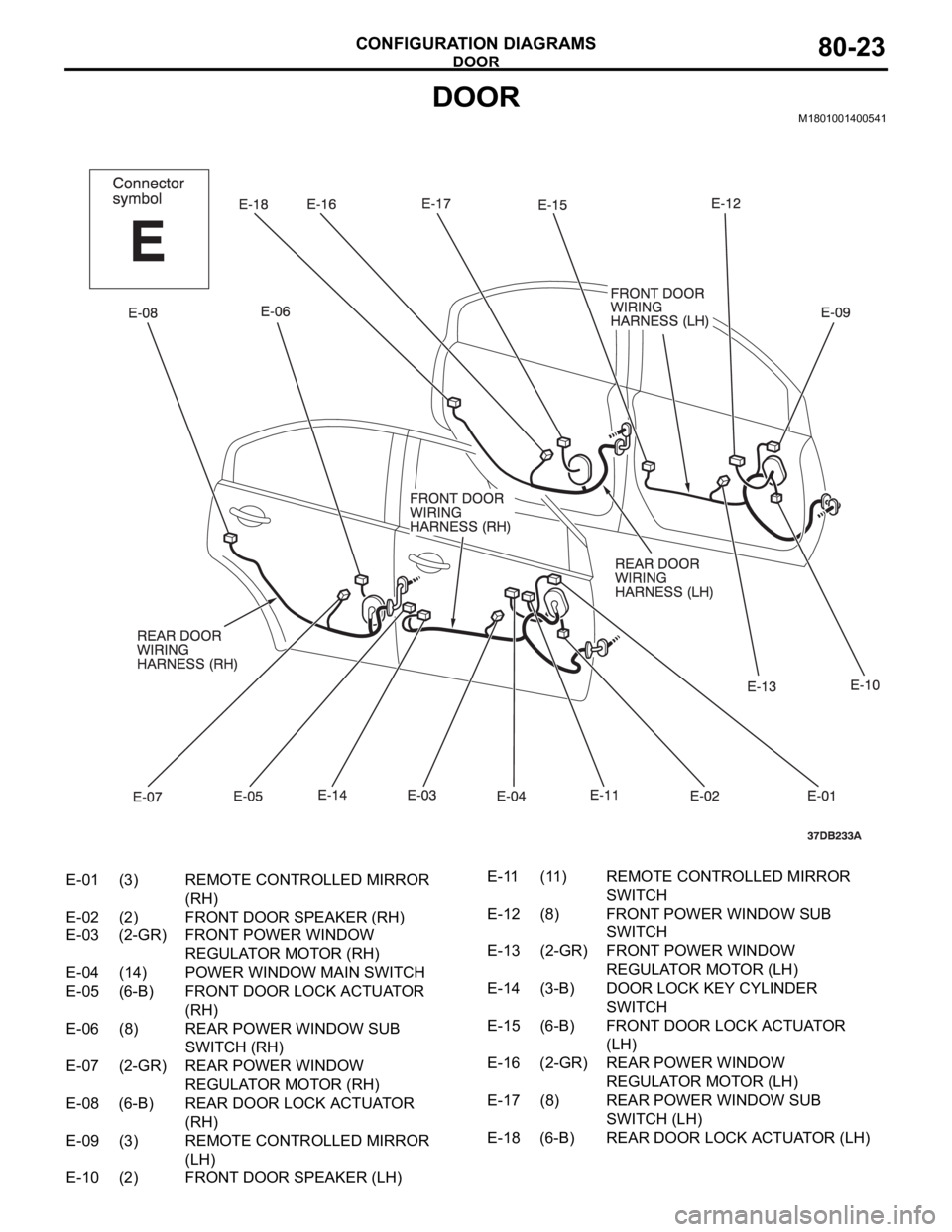

DOOR
CONFIGURATION DIAGRAMS80-23
DOORM1801001400541
E-01 (3) REMOTE CONTROLLED MIRROR
(RH)
E-02 (2) FRONT DOOR SPEAKER (RH)
E-03 (2-GR) FRONT POWER WINDOW
REGULATOR MOTOR (RH)
E-04 (14) POWER WINDOW MAIN SWITCH
E-05 (6-B) FRONT DOOR LOCK ACTUATOR
(RH)
E-06 (8) REAR POWER WINDOW SUB
SWITCH (RH)
E-07 (2-GR) REAR POWER WINDOW
REGULATOR MOTOR (RH)
E-08 (6-B) REAR DOOR LOCK ACTUATOR
(RH)
E-09 (3) REMOTE CONTROLLED MIRROR
(LH)
E-10 (2) FRONT DOOR SPEAKER (LH)E-11 (11) REMOTE CONTROLLED MIRROR
SWITCH
E-12 (8) FRONT POWER WINDOW SUB
SWITCH
E-13 (2-GR) FRONT POWER WINDOW
REGULATOR MOTOR (LH)
E-14 (3-B) DOOR LOCK KEY CYLINDER
SWITCH
E-15 (6-B) FRONT DOOR LOCK ACTUATOR
(LH)
E-16 (2-GR) REAR POWER WINDOW
REGULATOR MOTOR (LH)
E-17 (8) REAR POWER WINDOW SUB
SWITCH (LH)
E-18 (6-B) REAR DOOR LOCK ACTUATOR (LH)

90-1
GROUP 90
CIRCUIT DIAGRAMS
CONTENTS
HOW TO READ CIRCUIT DIAGRAMS90-3
JUNCTION BLOCK . . . . . . . . . . . . . .90-9
JOINT CONNECTOR . . . . . . . . . . . . .90-11
CENTRALISED JUNCTION . . . . . . . .90-12
POWER DISTRIBUTION SYSTEM . .90-18
STARTING SYSTEM . . . . . . . . . . . . .90-21
IGNITION SYSTEM . . . . . . . . . . . . . .90-22
CHARGING SYSTEM . . . . . . . . . . . .90-23
MULTIPOINT FUEL INJECTION (MPI)
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-24
COOLING SYSTEM . . . . . . . . . . . . . .90-29
INVECS-II 5A/T . . . . . . . . . . . . . . . . .90-30
HEADLAMPS . . . . . . . . . . . . . . . . . . .90-35
TAIL LAMP, POSITION LAMP, AND
LICENCE PLATE LAMP . . . . . . . . . .90-38
FOG LAMPS . . . . . . . . . . . . . . . . . . .90-41FRONT DOME LAMP, REAR DOME LAMP,
TRUNK LAMP AND IGNITION KEY HOLE
ILLUMINATION LAMP . . . . . . . . . . . .90-44
GLOVE BOX LAMP . . . . . . . . . . . . . .90-48
VANITY MIRROR LAMP. . . . . . . . . . .90-49
TURN-SIGNAL LAMP AND HAZARD
WARNING LAMP . . . . . . . . . . . . . . . .90-50
BACKUP LAMP . . . . . . . . . . . . . . . . .90-54
STOPLAMP. . . . . . . . . . . . . . . . . . . . .90-55
HORN . . . . . . . . . . . . . . . . . . . . . . . . .90-56
METER AND GAUGE . . . . . . . . . . . . .90-57
BRAKE WARNING LAMP, OIL
PRESSURE WARNING LAMP, FUEL
WARNING LAMP . . . . . . . . . . . . . . . .90-60
POWER WINDOWS . . . . . . . . . . . . . .90-62
CENTRAL DOOR LOCKING
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-64
Continued on next page

CIRCUIT DIAGRAMS90-2
AUTOMATIC AIR CONDITIONING
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-71
WINDSHIELD WIPER AND WASHER90-75
REAR WINDOW DEFOGGER . . . . . .90-78
REMOTE CONTROLLED MIRROR . .90-79
AUDIO SYSTEM . . . . . . . . . . . . . . . .90-80
ACCESSORY SOCKET . . . . . . . . . . .90-82
CLOCK DISPLAY . . . . . . . . . . . . . . .90-83
MULTI-CENTER DISPLAY . . . . . . . .90-84
SUNROOF . . . . . . . . . . . . . . . . . . . . .90-87
AUTO-CRUISE CONTROL SYSTEM90-89
ANTI-LOCK BRAKING SYSTEM (ABS)
CONTROL (TCL)> . . . . . . . . . . . . . . .90-93
ANTI-LOCK BRAKING SYSTEM (ABS)
CONTROL (TCL)> . . . . . . . . . . . . . . .90-96SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) . . . . . . . . . . . . . . . . . .90-99
ENGINE IMMOBILISER SYSTEM . . .90-103
POWER SEAT WITH MEMORY
(DRIVER). . . . . . . . . . . . . . . . . . . . . . .90-104
POWER SEAT (8-WAY)
(DRIVER AND PASSENGER) . . . . . .90-106
POWER SEAT [(6-WAY) DRIVER] . .90-108
FORGOTTEN KEY PREVENTION
FUNCTION . . . . . . . . . . . . . . . . . . . . .90-109
LIGHTING MONITOR TONE ALARM90-111
IGNITION KEY REMINDER TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .90-112
SEAT BELT WARNING TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .90-113
DOOR AJAR WARNING TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .90-115
RHEOSTAT . . . . . . . . . . . . . . . . . . . . .90-118
CONTROLLER AREA NETWORK
(CAN) . . . . . . . . . . . . . . . . . . . . . . . . .90-119

CENTRALISED JUNCTION
CIRCUIT DIAGRAMS90-13
19 Front-ECU (Field
effect transistor for
headlamp: Low)Fuse 10 Red Headlamp (LH) and headlamp (Low:
LH)
20 Front-ECU (Taillamp
relay)7.5 Brown A/C-ECU, A/T selector lever position
illumination lamp, combination meter,
fog lamp switch, headlamp (RH),
glove box lamp, hazard warning lamp
switch, multi-center display unit,
radio, CD player, rear combination
lamp (RH), rheostat and TCL switch
21 7.5 Brown Headlamp (LH), license plate lamp
and rear combination lamp (LH)
22 Battery/Alternator
(Fusible link No.27)15 Blue A/C-ECU, column switch,
combination meter, ETACS-ECU,
front-ECU, key reminder switch, multi-
center display unit, radio, CD player,
and vanity mirror lamp
23 Ignition switch (ACC) 10 Red A/C-ECU, accessory socket relay,
ETACS-ECU, multi-center display
unit, radio, CD player.
24 Battery/Alternator
(Fusible link No.27)15 Blue Fuel pump module
25 Ignition switch (ACC) 30 Green Front-ECU and windshield wiper
motor
26 Battery/Alternator
(Fusible link No.27)Fusible
link20 Light blue Anti-lock braking system(solenoid
valve)
27
Alternator120
Battery, front-ECU, fusible link Nos.1,
2, 3, 4, 5 and 26 and fuse Nos.6, 7, 8,
9, 10, 11, 13, 14, 15, 22 and 24 (in
relay box) NO. POWER SUPPLY
CIRCUITNAME RATED
CAPACITY (A)HOUSING
COLOURLOAD CIRCUIT

FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION LAMP
CIRCUIT DIAGRAMS90-44
FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP
AND IGNITION KEY HOLE ILLUMINATION LAMP
M1901002100313

FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION LAMP
CIRCUIT DIAGRAMS90-45

FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION LAMP
CIRCUIT DIAGRAMS90-46
FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION
LAMP (CONTINUED)

FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION LAMP
CIRCUIT DIAGRAMS90-47
