INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-408
INSPECTION PROCEDURE M-2: ETACS-ECU does not receive any signal from the ignition switch
(IG1).
.
CIRCUIT OPERATION
The ETACS-ECU operates the following equipment
or functions according to signal from the ignition
switch (IG1):
Light reminder tone alarm function
Seat belt tone alarm function
Door ajar warning buzzer
Turn-signal lamp buzzer
Multi center display operation tone
Power window timer function
Sunroof timer function
Headlamp automatic shutdown function
Turn-signal lamp
Dome lamp dimming function
Ignition key hole illumination lamp
If the power supply circuit from the battery to the
ETACS-ECU is open, this circuit is used as
backup circuit.
If the signal is not normal, the equipment or functions
described in "CIRCUIT OPERATION" do not work
normally.
The ETACS-ECU receives information on the ignition
switch condition (IG1) from the combination meter
via CAN communication. If the ignition switch (IG1)
input signal is incorrect, refer to the Diagnostic Trou-
ble Code Chart P.54B-25.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective
DIAGNOSIS
Required Special Tool:
MB991223: Harness Set
STEP 1. Check ETACS-ECU connector C-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-219 in good condition?
YES : Go to Step 2.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. If the functions described in "CIRCUIT
OPERATION" work normally, the input signal from the
ignition switch (IG1) should be normal.
Page 414 of 1500
INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-414
CIRCUIT OPERATION
The ETACS-ECU operates the following functions or
systems according to signal from the front door
switches:
Light reminder tone alarm function
Door ajar warning buzzer
Forgotten key reminder
Power window timer function
Sunroof timer function
Keyless entry system
Timed locking mechanism
Headlamp automatic shutdown function
Dome lamp
Interior lamp automatic-shutdown function
Ignition key hole illumination lamp
Door-ajar indicator lamp
.
TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the functions or systems
described in "CIRCUIT OPERATION" do not work
normally. If the signal is not normal, the front door
switches or the ETACS-ECU may be defective.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The front door switches may be defective
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective
Page 432 of 1500
INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-432
INSPECTION PROCEDURE N-1: ETACS-ECU does not receive any signal from the key reminder
switch.
.
CIRCUIT OPERATION
The ETACS-ECU operates the following functions or
systems according to signal from the key reminder
switch:
Forgotten key reminder
Keyless entry system
Timed locking mechanism
Dome lamp dimming function
Ignition key hole illumination lamp
.
TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the functions or systems
described in "CIRCUIT OPERATION" do not work
normally.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The key reminder switch may be defective
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective
DIAGNOSIS
Required Special Tool:
MB991223: Harness Set
STEP 1. Check key reminder switch connector C-310 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is key reminder switch connector C-310 in good
condition?
YES : Go to Step 2.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. If the functions described in "CIRCUIT
OPERATION" work normally, the input signal from the
key reminder switch should be normal.
Page 433 of 1500
INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-433
STEP 2. Check the key reminder switch.
Disconnect key reminder switch connector C-310. Then check
continuity between terminals.
Q: Is the key reminder switch in good condition?
YES : Go to Step 3.
NO : Replace the key reminder switch. If the functions
described in "CIRCUIT OPERATION" work normally,
the input signal from the key reminder switch should
be normal.
STEP 3. Check the ground circuit to the key reminder
switch. Measure the resistance at key reminder switch
connector C-310.
(1) Disconnect key reminder switch connector C-310 and
measure the resistance available at the wiring harness side
of the connector.
(2) Measure the resistance value between terminal 4 and
ground.
The resistance should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES : Go to Step 5.
NO : Go to Step 4. IGNITION KEY TESTER
CONNECTIONSPECIFIED
CONDITION
Removed 4
6 Open circuit
Inserted 4
6 Less than 2 ohms
Page 434 of 1500
INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-434
STEP 4. Check the wiring harness between key reminder
switch connector C-310 (terminal 4) and ground.
Q: Is the wiring harness between key reminder switch
connector C-310 (terminal 4) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions described in "CIRCUIT OPERATION" work
normally, the input signal from the key reminder
switch should be normal.
STEP 5. Check ETACS-ECU connector C-217 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-217 in good condition?
YES : Go to Step 6.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. If the functions described in "CIRCUIT
OPERATION" work normally, the input signal from the
key reminder switch should be normal.
Page 435 of 1500
INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-435
STEP 6. Check the wiring harness between key reminder
switch connector C-310 (terminal 6) and ETACS-ECU
connector C-217 (terminal 30).
Q: Is the wiring harness between key reminder switch
connector C-310 (terminal 6) and ETACS-ECU connector
C-217 (terminal 30) in good condition?
YES : Go to Step 7.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions described in "CIRCUIT OPERATION" work
normally, the input signal from the key reminder
switch should be normal.
STEP 7. Check for continuity between key reminder switch
connector C-310 terminal 4 and each of the other terminals
as well as terminal 6 and each of the other terminals.
(1) Disconnect key reminder switch connector C-310 and
measure the resistance available at the equipment side of
the connector.
(2) Check for continuity between key reminder switch
connector C-310 terminal 4 and each of the other terminals
as well as terminal 6 and each of the other terminals.
Q: Does continuity exist between the terminals?
NO : Replace the ETACS-ECU. If the functions described
in "CIRCUIT OPERATION" work normally, the input
signal from the key reminder switch should be normal.
YES : Replace the key reminder switch. If the functions
described in "CIRCUIT OPERATION" work normally,
the input signal from the key reminder switch should
be normal.
Page 436 of 1500
INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-436
INSPECTION PROCEDURE N-2: ETACS-ECU does not receive any signal from the hazard warning
lamp switch.
.
CIRCUIT OPERATION
The ETACS-ECU operates the following functions or
systems according to signal from the hazard warning
lamp switch:
Turn-signal lamp buzzer
Hazard warning lamp
Keyless entry system (registering the encrypted
code)
.
TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the equipment or systems
described in "CIRCUIT OPERATION" do not work
normally.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The hazard warning lamp switch may be defec-
tive
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective
DIAGNOSIS
Required Special Tool:
MB991223: Harness Set
STEP 1. Check hazard warning lamp switch connector
C-08 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is hazard warning lamp switch connector C-08 in good
condition?
YES : Go to Step 2.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. If the equipment described in "CIRCUIT
OPERATION" work normally, the input signal from the
hazard warning lamp switch should be normal.
Page 440 of 1500
INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-440
INSPECTION PROCEDURE N-3: ETACS-ECU does not receive any signal from any of the door
switches.
.
CIRCUIT OPERATION
The ETACS-ECU operates the following functions or
systems according to signal from the front or rear
door switches:
Light reminder tone alarm function
Door ajar warning buzzer
Ignition key reminder tone alarm
Power window timer function
Sunroof timer function
Headlamp automatic shutdown function
Keyless entry system
Timer lock
Dome lamp
Interior lamp automatic-shutdown function
Ignition key hole illumination lamp
Door-ajar indicator lamp
.
TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the functions or systems
described in "CIRCUIT OPERATION" do not work
normally. If the signal is not normal, the front or rear
door switches or the ETACS-ECU may be defective.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The front or rear door switches may be defective
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective
DIAGNOSIS
Required Special Tools:
MB991223: Harness Set
MB991958: Diagnostic Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.)
MB991827: MUT-III USB Cable
MB991910: MUT-III Main Harness A
Page 446 of 1500
INPUT SIGNAL PROCEDURES

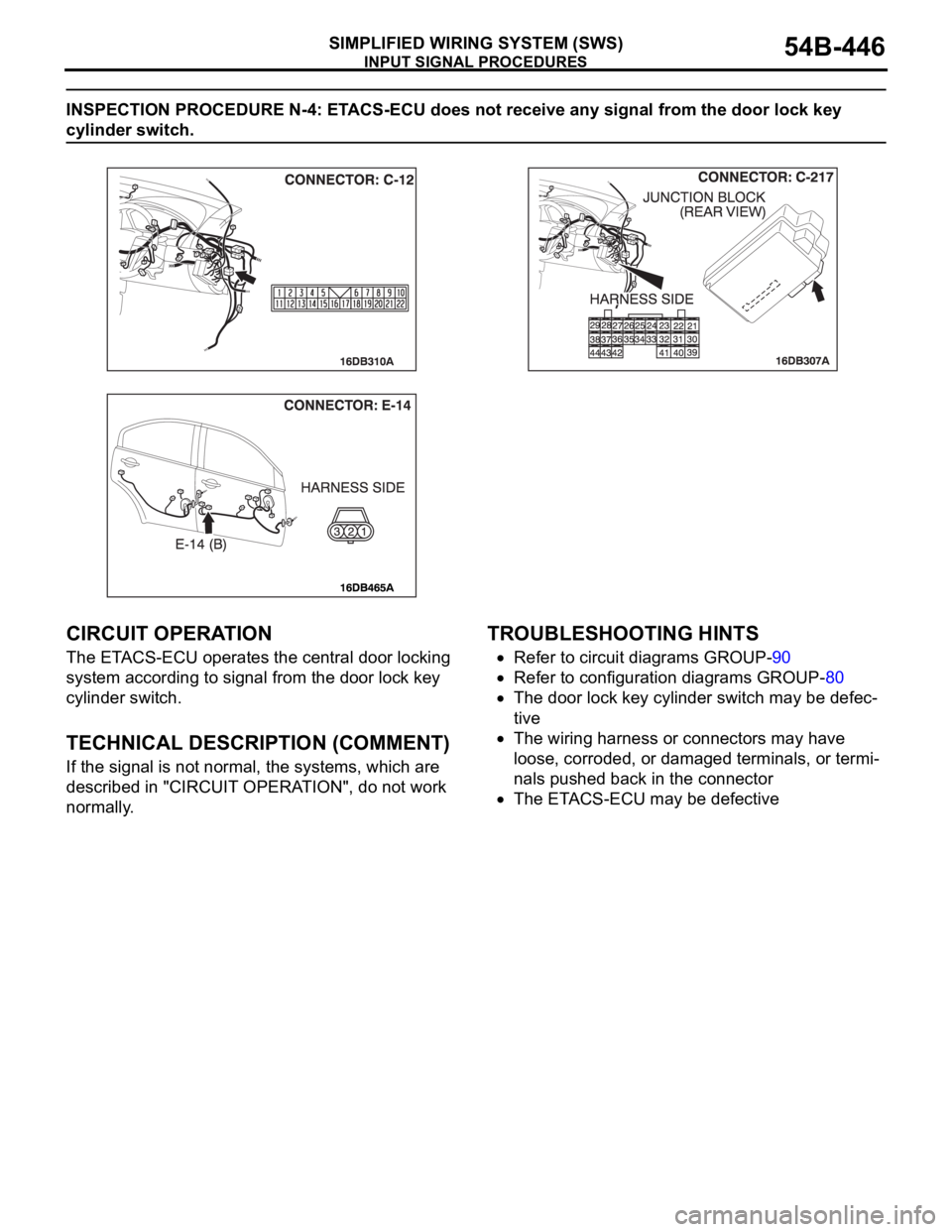

SIMPLIFIED WIRING SYSTEM (SWS)54B-446
INSPECTION PROCEDURE N-4: ETACS-ECU does not receive any signal from the door lock key
cylinder switch.
.
CIRCUIT OPERATION
The ETACS-ECU operates the central door locking
system according to signal from the door lock key
cylinder switch.
.
TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the systems, which are
described in "CIRCUIT OPERATION", do not work
normally.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The door lock key cylinder switch may be defec-
tive
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective
Page 447 of 1500
INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-447
DIAGNOSIS
Required Special Tool:
MB991223: Harness Set
STEP 1. Check door lock key cylinder switch connector
E-14 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is door lock key cylinder switch connector E-14 in good
condition?
YES : Go to Step 2.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. If the systems described in "CIRCUIT
OPERATION" work normally, the input signal from the
door lock key cylinder switch should be normal.
STEP 2. Check the door lock key cylinder switch.
Disconnect door lock key cylinder switch connector E-14. Then
check continuity between the switch terminals.
Q: Is the door lock key cylinder switch in good condition?
YES : Go to Step 3.
NO : Replace the door lock key cylinder switch. If the
systems described in "CIRCUIT OPERATION" work
normally, the input signal from the door lock key
cylinder switch should be normal.
SWITCH
POSITIONTESTER
CONNECTIONSPECIFIED
CONDITION
LOCK 2
3 Less than 2 ohms
Neutral (OFF) 1
2, 2 3 Open circuit
UNLOCK 1
2 Less than 2 ohms
