MITSUBISHI COLT 2008 (in English) Repair Manual

Seat and seat belts2-13
2

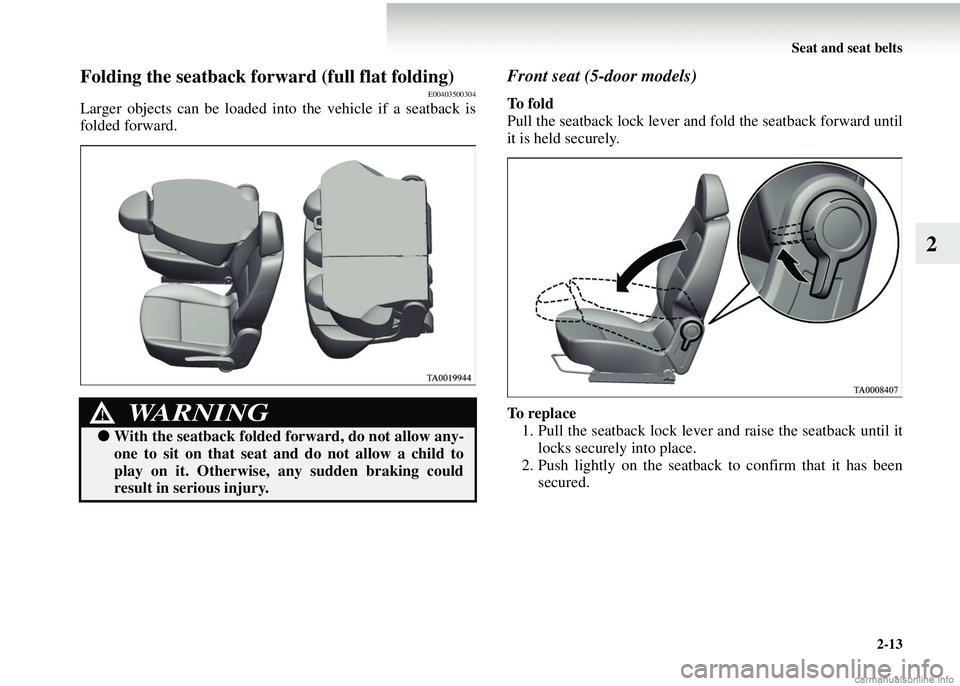

Folding the seatback forward (full flat folding)E00403500304
Larger objects can be loaded in to the vehicle if a seatback is
folded forward.
Front seat (5-door models)
To f o l d
Pull the seatback lock lever and fold the seatback forward until
it is held securely.
To replace 1. Pull the seatback lock lever and raise the seatback until it locks securely into place.
2. Push lightly on the seatback to confirm that it has been
secured.
WARNING!
● With the seatback folded forward, do not allow any-
one to sit on that seat and do not allow a child to
play on it. Otherwise, any sudden braking could
result in serious injury.

2-14 Seat and seat belts
2

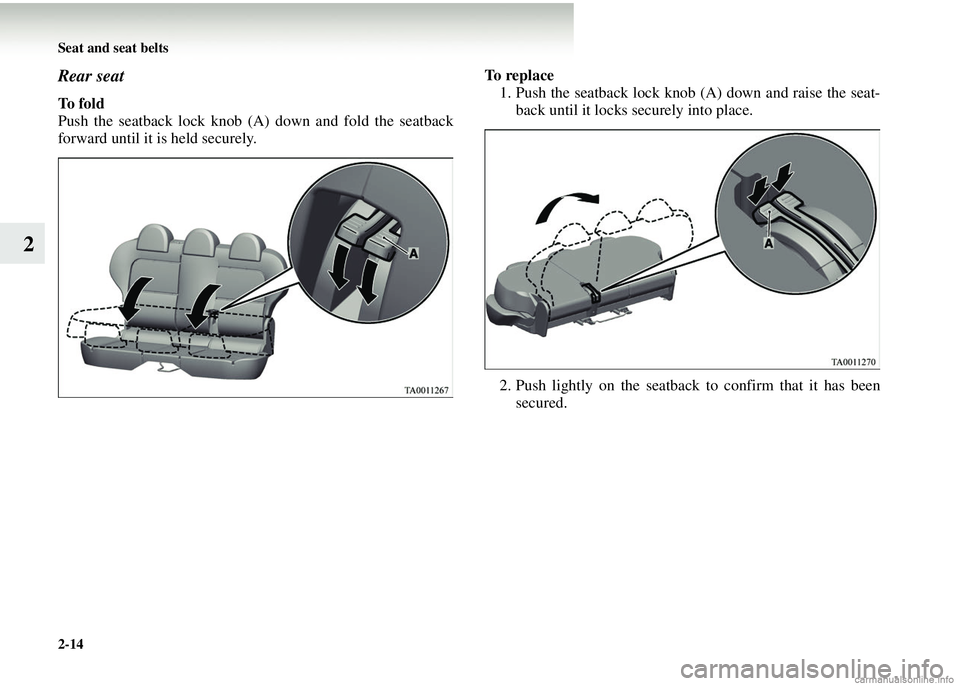

Rear seat
To f o l d
Push the seatback lock knob (A) down and fold the seatback
forward until it is held securely. To r e p l a c e
1. Push the seatback lock knob (A) down and raise the seat-
back until it locks securely into place.
2. Push lightly on the seatback to confirm that it has been
secured.

Seat and seat belts2-15
2

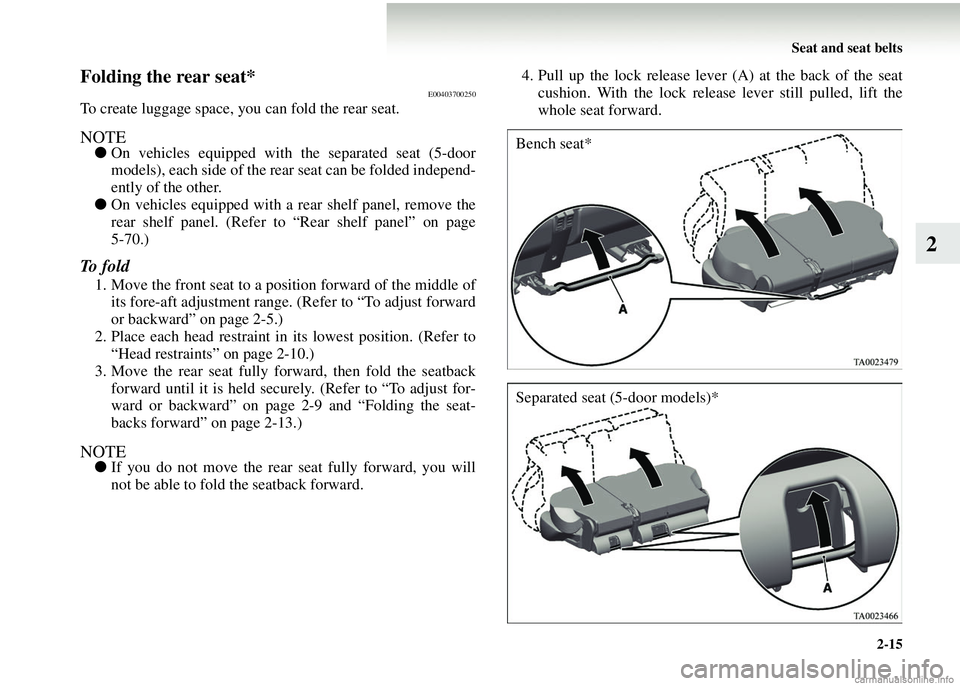

Folding the rear seat*E00403700250
To create luggage space, you can fold the rear seat.
NOTE●On vehicles equipped with the separated seat (5-door
models), each side of the rear seat can be folded independ-
ently of the other.
● On vehicles equipped with a rear shelf panel, remove the
rear shelf panel. (Refer to “Rear shelf panel” on page
5-70.)
To f o l d
1. Move the front seat to a position forward of the middle of
its fore-aft adjustment range. (Refer to “To adjust forward
or backward” on page 2-5.)
2. Place each head restraint in its lowest position. (Refer to “Head restraints” on page 2-10.)
3. Move the rear seat fully fo rward, then fold the seatback
forward until it is held securely . (Refer to “To adjust for-
ward or backward” on page 2-9 and “Folding the seat-
backs forward” on page 2-13.)
NOTE● If you do not move the rear seat fully forward, you will
not be able to fold the seatback forward. 4. Pull up the lock release leve
r (A) at the back of the seat
cushion. With the lock release lever still pulled, lift the
whole seat forward.
Bench seat*
Separated seat (5-door models)*

2-16 Seat and seat belts
2

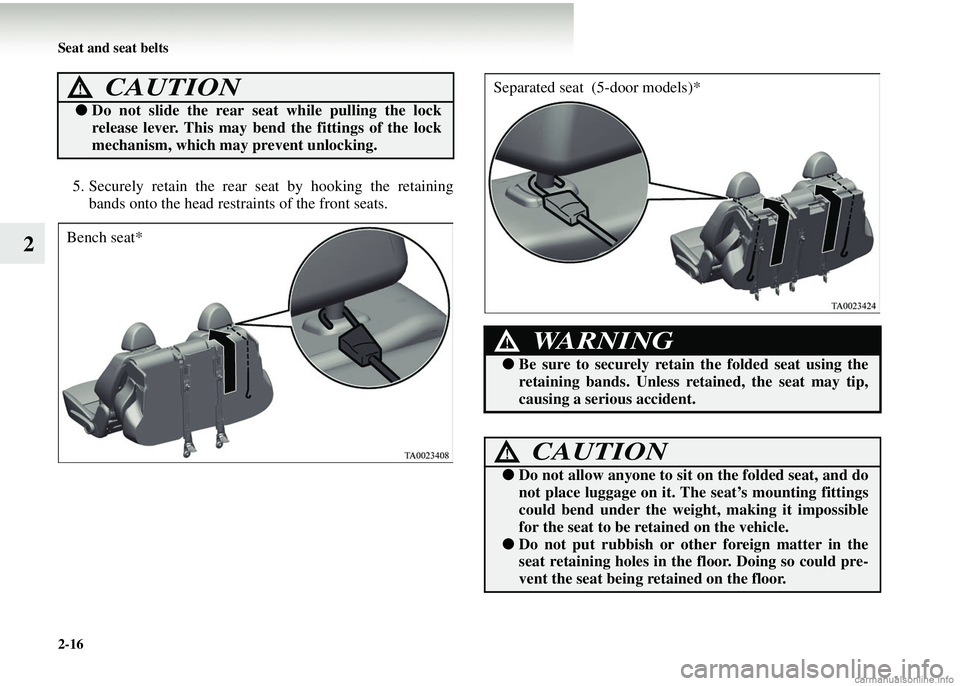

5. Securely retain the rear seat by hooking the retainingbands onto the head restraints of the front seats.
CAUTION!
● Do not slide the rear se at while pulling the lock
release lever. This may bend the fittings of the lock
mechanism, which m ay prevent unlocking.
Bench seat*
WARNING!
●Be sure to securely retain the folded seat using the
retaining bands. Unless retained, the seat may tip,
causing a serious accident.
CAUTION!
● Do not allow anyone to sit on the folded seat, and do
not place luggage on it. The seat’s mounting fittings
could bend under the weight, making it impossible
for the seat to be retained on the vehicle.
● Do not put rubbish or ot her foreign matter in the
seat retaining holes in the floor. Doing so could pre-
vent the seat being retained on the floor.
Separated seat (5-door models)*

Seat and seat belts2-17
2

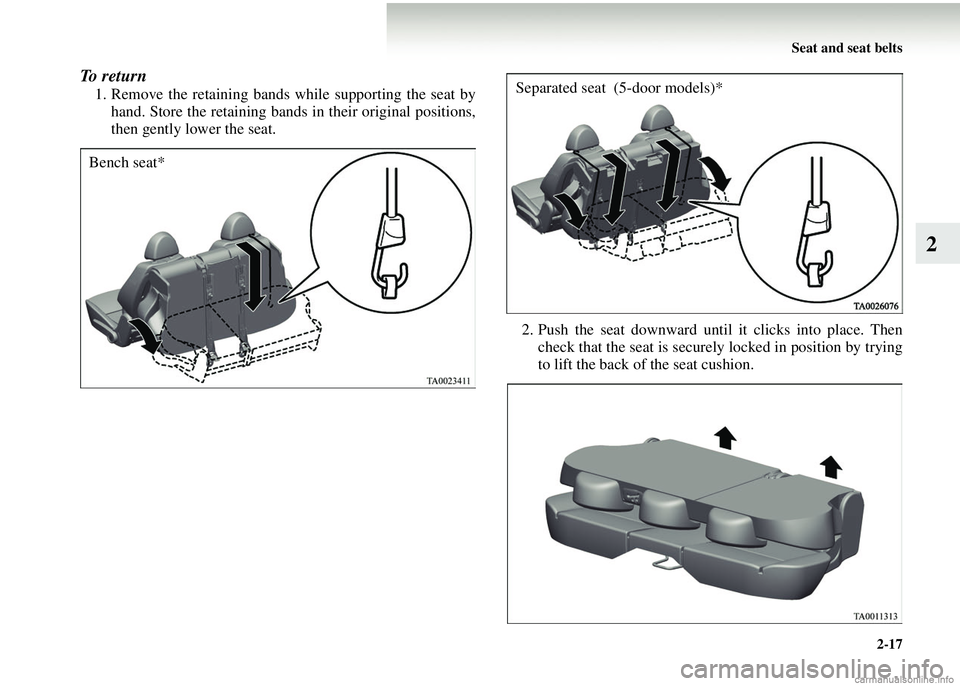

To return
1. Remove the retaining bands while supporting the seat byhand. Store the retaining bands in their original positions,
then gently lower the seat.
2. Push the seat downward until it clicks into place. Then
check that the seat is securely locked in position by trying
to lift the back of the seat cushion.
Bench seat*
Separated seat (5-door models)*

2-18 Seat and seat belts
2

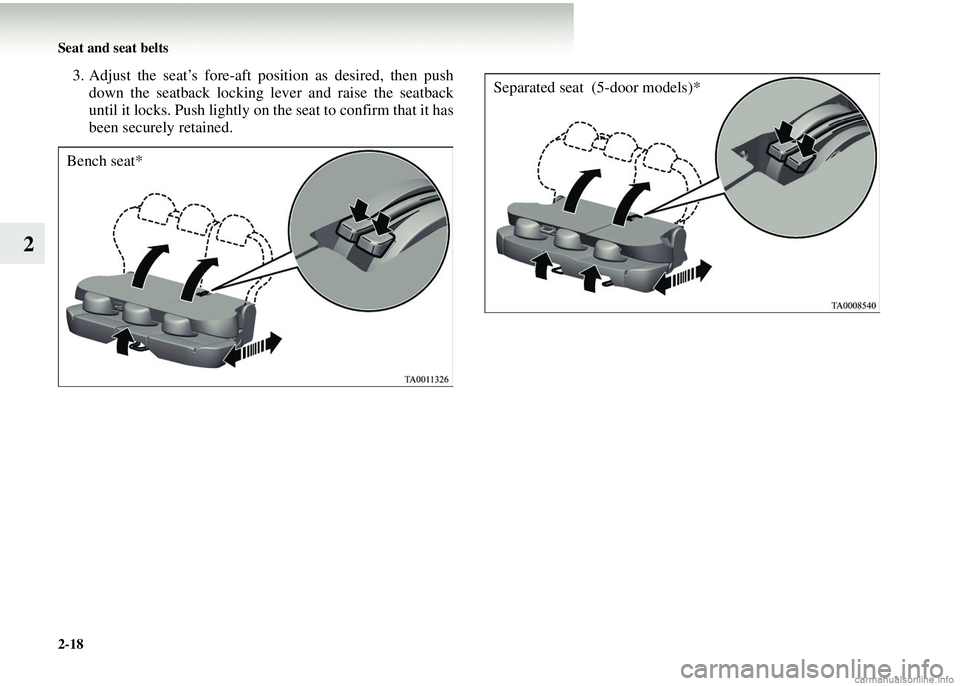

3. Adjust the seat’s fore-aft position as desired, then pushdown the seatback locking lever and raise the seatback
until it locks. Push lightly on the seat to confirm that it has
been securely retained.
Bench seat*
Separated seat (5-door models)*

Seat and seat belts2-19
2

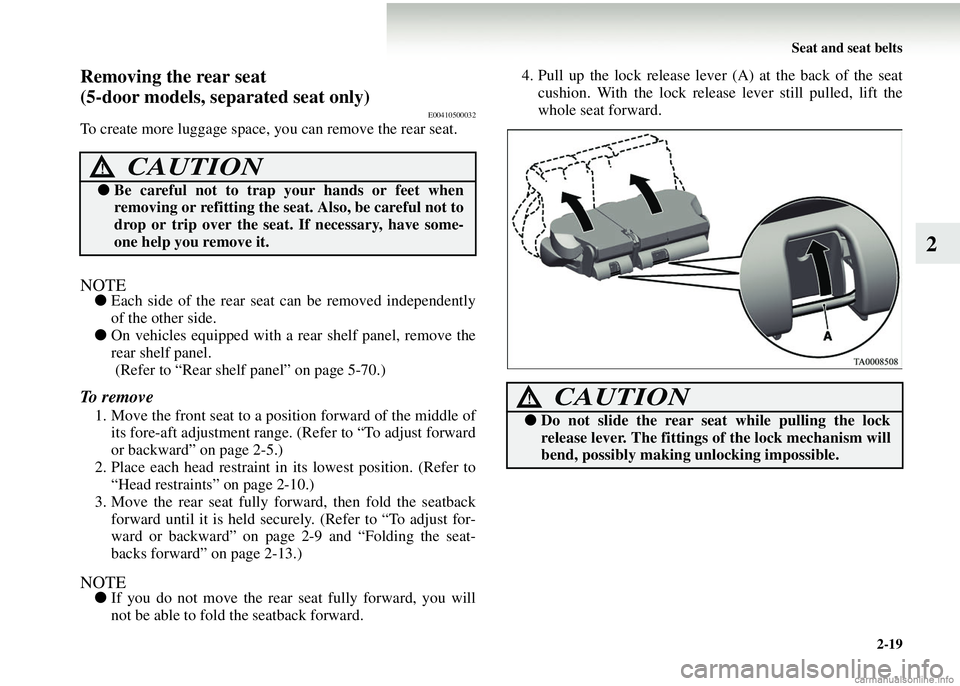

Removing the rear seat
(5-door models, separated seat only)
E00410500032
To create more luggage space, yo u can remove the rear seat.
NOTE●Each side of the rear seat can be removed independently
of the other side.
● On vehicles equipped with a rear shelf panel, remove the
rear shelf panel.
(Refer to “Rear shelf panel” on page 5-70.)
To remove
1. Move the front seat to a position forward of the middle of
its fore-aft adjustment range. (Refer to “To adjust forward
or backward” on page 2-5.)
2. Place each head restraint in its lowest position. (Refer to “Head restraints” on page 2-10.)
3. Move the rear seat fully fo rward, then fold the seatback
forward until it is held securely . (Refer to “To adjust for-
ward or backward” on page 2-9 and “Folding the seat-
backs forward” on page 2-13.)
NOTE● If you do not move the rear seat fully forward, you will
not be able to fold the seatback forward. 4. Pull up the lock release leve
r (A) at the back of the seat
cushion. With the lock release lever still pulled, lift the
whole seat forward.
CAUTION!
● Be careful not to trap your hands or feet when
removing or refitting the seat. Also, be careful not to
drop or trip over the seat. If necessary, have some-
one help you remove it.
CAUTION!
●Do not slide the rear seat while pulling the lock
release lever. The fittings of the lock mechanism will
bend, possibly making unlocking impossible.

2-20 Seat and seat belts
2

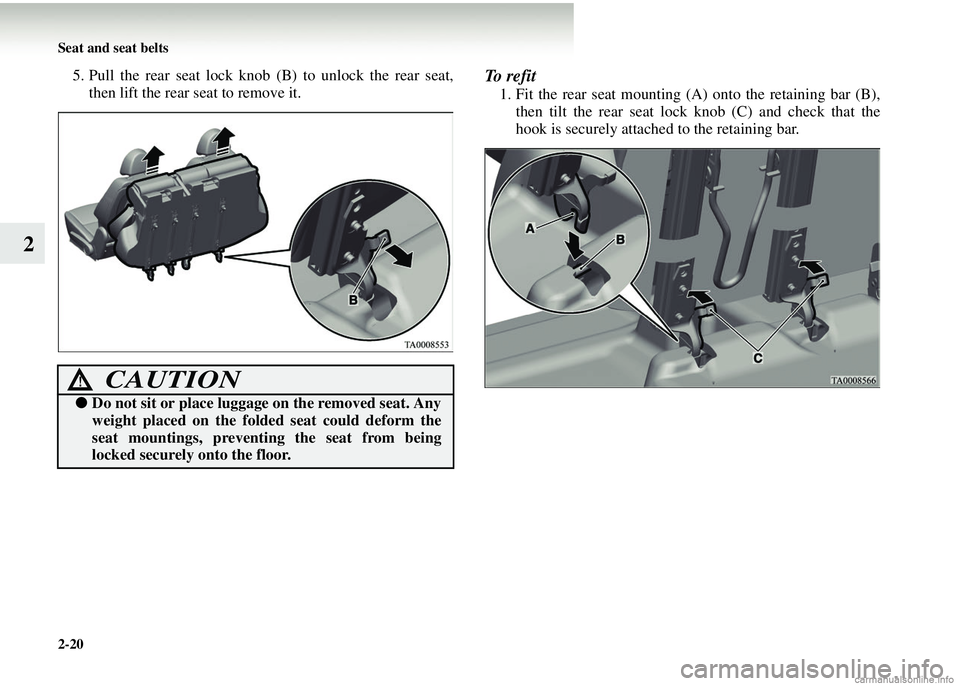

5. Pull the rear seat lock knob (B) to unlock the rear seat,
then lift the rear seat to remove it.To r e f i t
1. Fit the rear seat mounting (A) onto the retaining bar (B), then tilt the rear seat lock knob (C) and check that the
hook is securely attached to the retaining bar.
CAUTION!
● Do not sit or place luggage on the removed seat. Any
weight placed on the fold ed seat could deform the
seat mountings, preventing the seat from being
locked securely onto the floor.

Seat and seat belts2-21
2

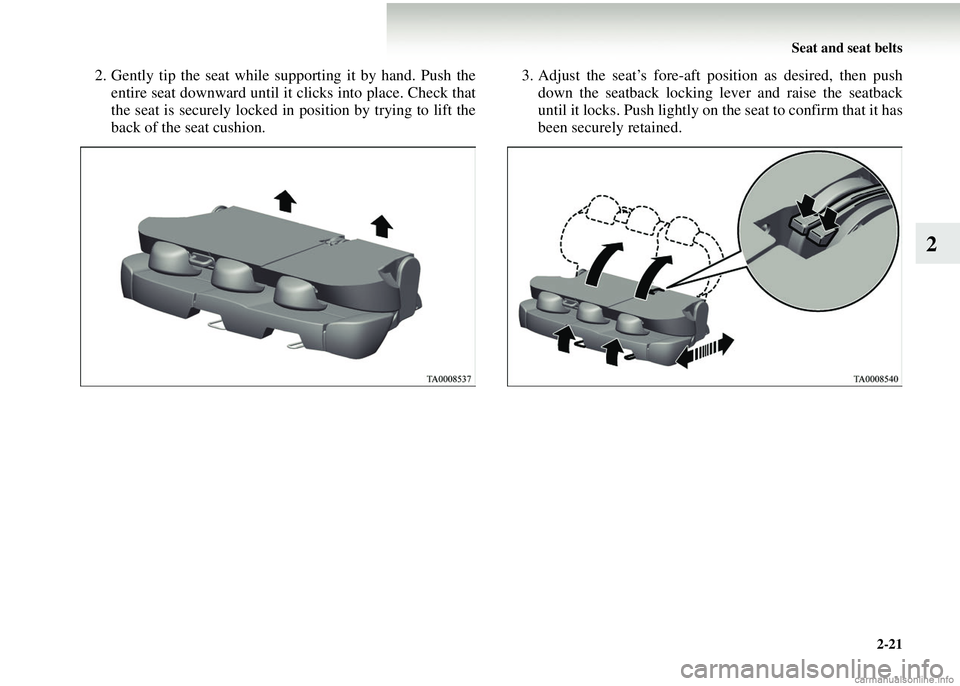

2. Gently tip the seat while supporting it by hand. Push theentire seat downward until it clicks into place. Check that
the seat is securely locked in position by trying to lift the
back of the seat cushion. 3. Adjust the seat’s fore-aft position as desired, then push
down the seatback locking le ver and raise the seatback
until it locks. Push lightly on the seat to confirm that it has
been securely retained.

2-22 Seat and seat belts

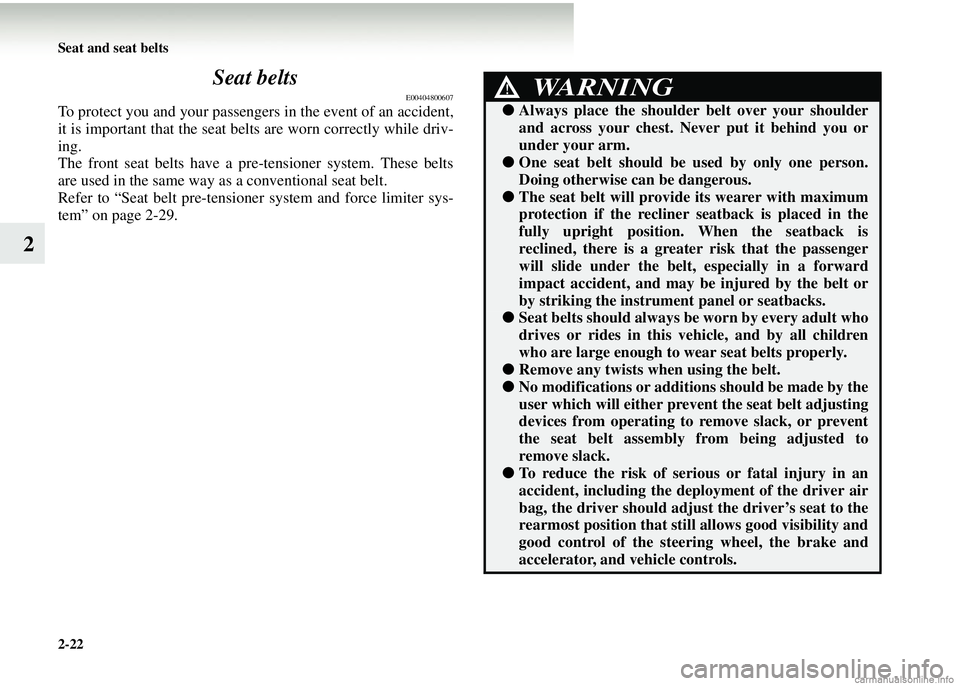

2Seat belts
E00404800607
To protect you and your passengers
in the event of an accident,
it is important that the seat belts are worn correctly while driv-
ing.
The front seat belts have a pre-tensioner system. These belts
are used in the same way as a conventional seat belt.
Refer to “Seat belt pre-tensioner system and force limiter sys-
tem” on page 2-29.
WARNING!
● Always place the should er belt over your shoulder
and across your chest. Never put it behind you or
under your arm.
● One seat belt should be used by only one person.
Doing otherwise can be dangerous.
●The seat belt will provid e its wearer with maximum
protection if the recliner seatback is placed in the
fully upright position. When the seatback is
reclined, there is a greater risk that the passenger
will slide under the belt, especially in a forward
impact accident, and may be injured by the belt or
by striking the instrument panel or seatbacks.
● Seat belts should always be worn by every adult who
drives or rides in this ve hicle, and by all children
who are large enough to wear seat belts properly.
● Remove any twists when using the belt.
●No modifications or additions should be made by the
user which will either prevent the seat belt adjusting
devices from operating to remove slack, or prevent
the seat belt assembly from being adjusted to
remove slack.
●To reduce the risk of seri ous or fatal injury in an
accident, including the depl oyment of the driver air
bag, the driver should adjust the driver’s seat to the
rearmost position that still allows good visibility and
good control of the steeri ng wheel, the brake and
accelerator, and vehicle controls.
