MITSUBISHI COLT 2008 (in English) Owner's Guide

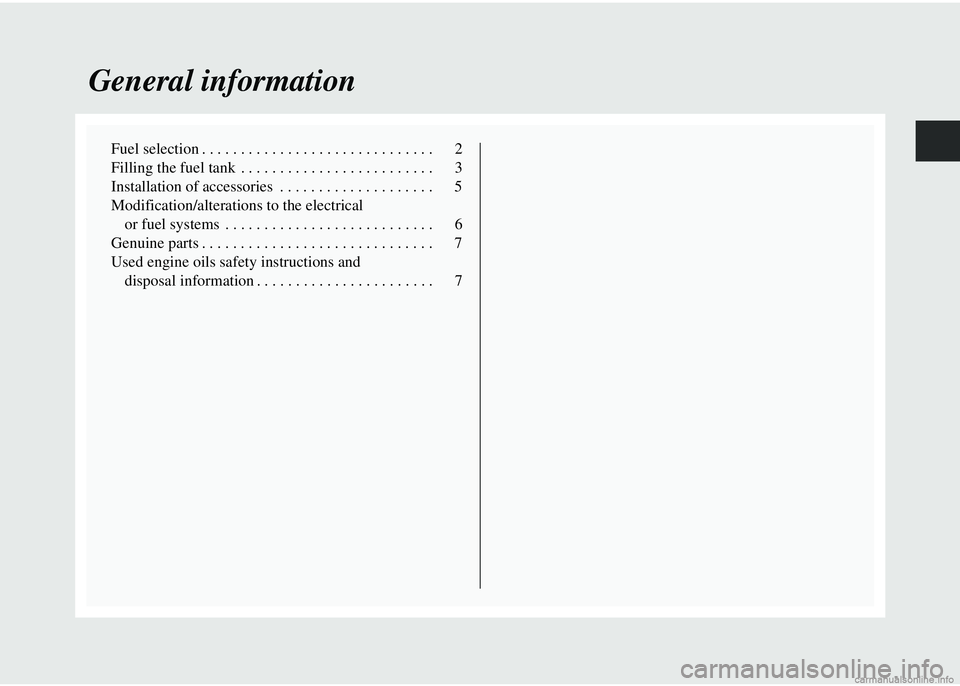

General information
Fuel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation of accessories . . . . . . . . . . . . . . . . . . . . 5
Modification/alterations to the electrical
or fuel systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Genuine parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Used engine oils safety instructions and disposal information . . . . . . . . . . . . . . . . . . . . . . . 7

2 General information

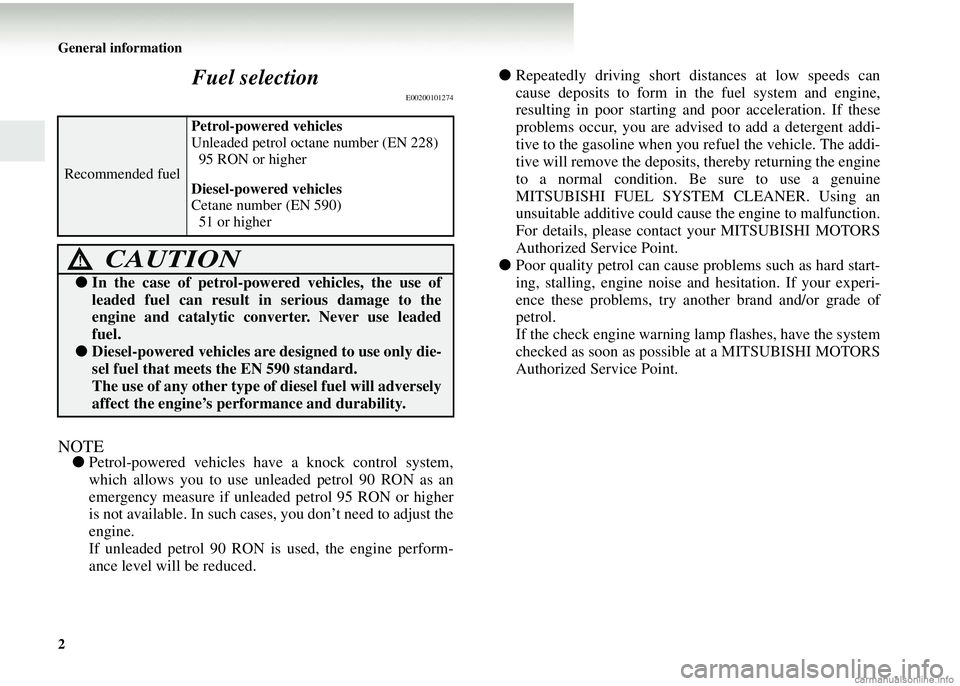

Fuel selection
E00200101274
NOTE●Petrol-powered vehicles have a knock control system,
which allows you to use unleaded petrol 90 RON as an
emergency measure if unleaded petrol 95 RON or higher
is not available. In such cases, you don’t need to adjust the
engine.
If unleaded petrol 90 RON is used, the engine perform-
ance level will be reduced. ●
Repeatedly driving short distances at low speeds can
cause deposits to form in the fuel system and engine,
resulting in poor starting and poor acceleration. If these
problems occur, you are advised to add a detergent addi-
tive to the gasoline when you re fuel the vehicle. The addi-
tive will remove the deposits, thereby returning the engine
to a normal condition. Be sure to use a genuine
MITSUBISHI FUEL SYSTEM CLEANER. Using an
unsuitable additive could cause the engine to malfunction.
For details, please contact your MITSUBISHI MOTORS
Authorized Service Point.
● Poor quality petrol can cause problems such as hard start-
ing, stalling, engine noise and hesitation. If your experi-
ence these problems, try another brand and/or grade of
petrol.
If the check engine warning lamp flashes, have the system
checked as soon as possible at a MITSUBISHI MOTORS
Authorized Service Point.
Recommended fuel Petrol-powered vehicles
Unleaded petrol octane number (EN 228)
95 RON or higher
Diesel-powered vehicles
Cetane number (EN 590)
51 or higher
CAUTION!
●
In the case of petrol-pow ered vehicles, the use of
leaded fuel can result in serious damage to the
engine and catalytic converter. Never use leaded
fuel.
● Diesel-powered vehicles are designed to use only die-
sel fuel that meets the EN 590 standard.
The use of any other type of diesel fuel will adversely
affect the engine’s performance and durability.

General information3

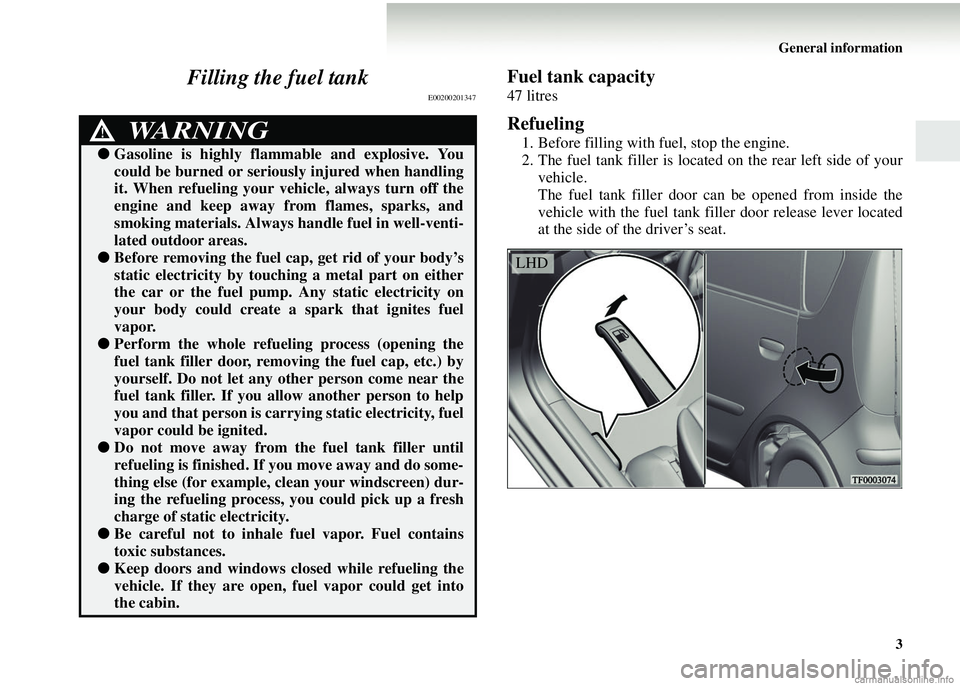

Filling the fuel tank
E00200201347
Fuel tank capacity
47 litres
Refueling
1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear left side of yourvehicle.
The fuel tank filler door can be opened from inside the
vehicle with the fuel tank filler door release lever located
at the side of the driver’s seat.WARNING!
● Gasoline is highly flammable and explosive. You
could be burned or seriously injured when handling
it. When refueling your vehicle, always turn off the
engine and keep away from flames, sparks, and
smoking materials. Always ha ndle fuel in well-venti-
lated outdoor areas.
● Before removing the fuel cap, get rid of your body’s
static electricity by touchi ng a metal part on either
the car or the fuel pump. Any static electricity on
your body could create a spark that ignites fuel
vapor.
● Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself. Do not let any other person come near the
fuel tank filler. If you allow another person to help
you and that person is carrying static electricity, fuel
vapor could be ignited.
●Do not move away from the fuel tank filler until
refueling is finished. If you move away and do some-
thing else (for example, clean your windscreen) dur-
ing the refueling process, you could pick up a fresh
charge of static electricity.
●Be careful not to inhale fuel vapor. Fuel contains
toxic substances.
● Keep doors and windows cl osed while refueling the
vehicle. If they are open , fuel vapor could get into
the cabin.
LHD

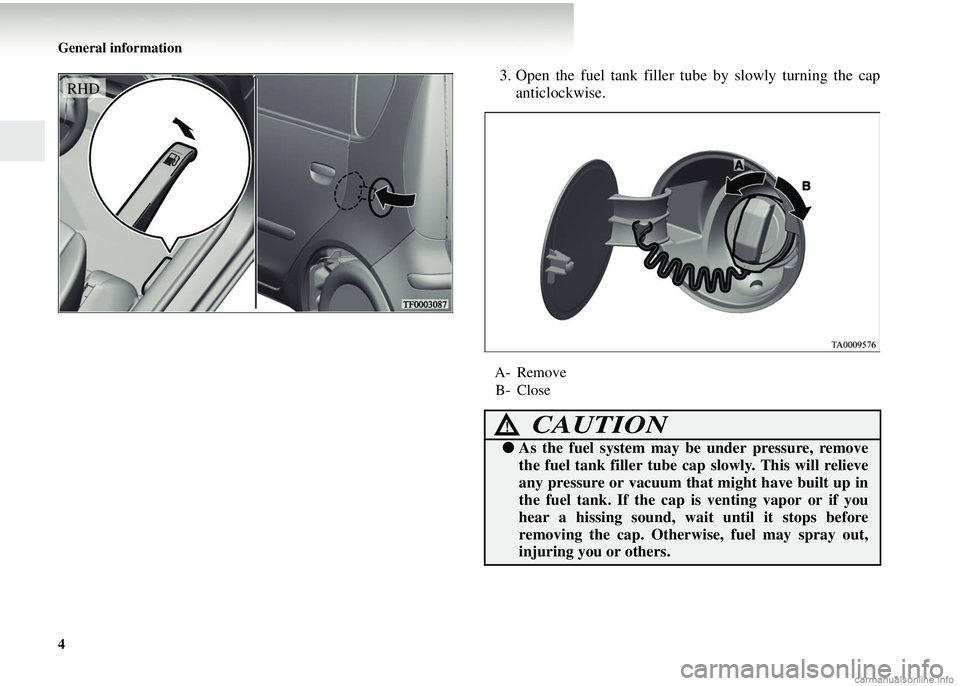

4 General information
3. Open the fuel tank filler tube by slowly turning the capanticlockwise.RHD
A- Remove
B- Close
CAUTION!
● As the fuel system may be under pressure, remove
the fuel tank filler tube ca p slowly. This will relieve
any pressure or vacuum that might have built up in
the fuel tank. If the cap is venting vapor or if you
hear a hissing sound, wait until it stops before
removing the cap. Otherw ise, fuel may spray out,
injuring you or others.

General information5
4. To fill with fuel correctly mainly depends on correct han-dling of the fuel filler gun. Do not tilt the gun. Insert the
gun in the tank port as far as it will go.
5. When the gun stops automatically, withdraw it halfway in the tank port. After the second automatic stop, do not fill
with any more fuel.
6. To close, turn the fuel tank filler tube cap slowly clock-
wise until you hear a clicking sound, then gently push the
fuel tank filler door closed.Installation of accessories
E00200300413
We recommend you to consult your MITSUBISHI MOTORS
Authorized Service Point.
● The installation of accessories, optional parts, should only
be carried out within the limits prescribed by law in your
country, and in accordance wi th the guidelines fitting
instructions and warnings contained within the documents
accompanying the parts or accessories.
● Improper installation of electrical components may cause
an electrical fire if incorrect ly fitted. Please refer to the
“Modification/alterations to th e electrical or fuel systems”
section within this owner’s manual.
● Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.
● Tyres and wheels which do no t meet specifications must
not be used.
Refer to the “Specifications ” section for information
regarding wheel and tyre sizes.
CAUTION!
● A label which reads “UNLEADED FUEL ONLY” is
attached to the fuel tank f iller lid of vehicles which
can only operate on unlead ed petrol. Serious engine
and catalytic converter damage will result if leaded
petrol is put into these ve hicles, and this must conse-
quently never be attempted.
CAUTION!
● To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank.
CAUTION!
●If you need to replace the fuel tank filler tube cap,
use only the cap specified for your vehicle model.

6 General information

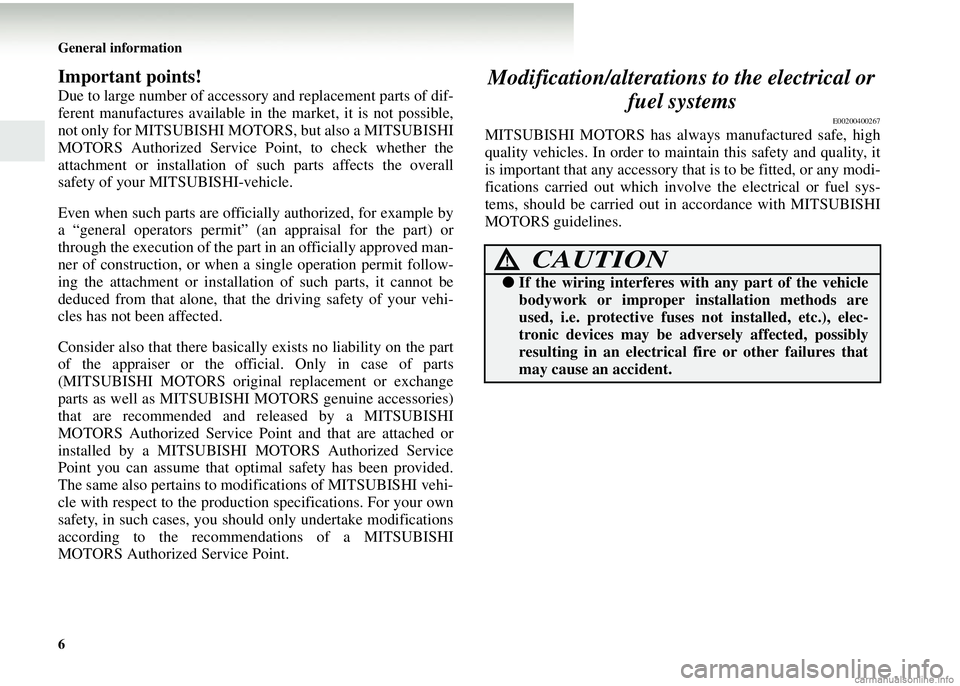

Important points!
Due to large number of accessory and replacement parts of dif-
ferent manufactures available in the market, it is not possible,
not only for MITSUBISHI MOTO RS, but also a MITSUBISHI
MOTORS Authorized Service Po int, to check whether the
attachment or installation of such parts affects the overall
safety of your MITSUBISHI-vehicle.
Even when such parts are offici ally authorized, for example by
a “general operators permit” (an appraisal for the part) or
through the execution of the part in an officially approved man-
ner of construction, or when a single operation permit follow-
ing the attachment or installatio n of such parts, it cannot be
deduced from that alone, that the driving safety of your vehi-
cles has not been affected.
Consider also that there basically exists no liability on the part
of the appraiser or the official. Only in case of parts
(MITSUBISHI MOTORS origin al replacement or exchange
parts as well as MITSUBISHI MOTORS genuine accessories)
that are recommended and released by a MITSUBISHI
MOTORS Authorized Service Po int and that are attached or
installed by a MITSUBISHI MOTORS Authorized Service
Point you can assume that optimal safety has been provided.
The same also pertains to modi fications of MITSUBISHI vehi-
cle with respect to the produc tion specifications. For your own
safety, in such cases, you should only undertake modifications
according to the recommen dations of a MITSUBISHI
MOTORS Authorized Service Point.
Modification/alterations to the electrical or
fuel systems
E00200400267
MITSUBISHI MOTORS has always manufactured safe, high
quality vehicles. In order to maintain this safety and quality, it
is important that any accessory that is to be fitted, or any modi-
fications carried out which invo lve the electrical or fuel sys-
tems, should be carried out in accordance with MITSUBISHI
MOTORS guidelines.
CAUTION!
● If the wiring interferes wi th any part of the vehicle
bodywork or improper installation methods are
used, i.e. protective fuses not installed, etc.), elec-
tronic devices may be ad versely affected, possibly
resulting in an electrical fire or other failures that
may cause an accident.

General information7

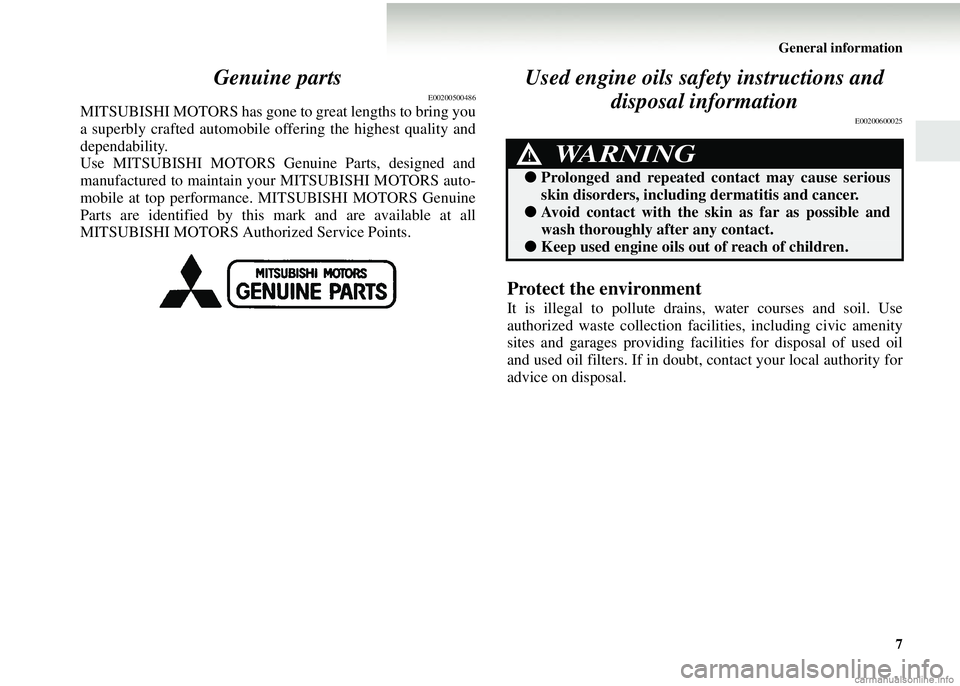

Genuine parts
E00200500486
MITSUBISHI MOTORS has gone to great lengths to bring you
a superbly crafted automobile offering the highest quality and
dependability.
Use MITSUBISHI MOTORS Genuine Parts, designed and
manufactured to maintain your MITSUBISHI MOTORS auto-
mobile at top performance. MITSUBISHI MOTORS Genuine
Parts are identified by this mark and are available at all
MITSUBISHI MOTORS Auth orized Service Points.
Used engine oils safety instructions and
disposal information
E00200600025
Protect the environment
It is illegal to pollute drains, water courses and soil. Use
authorized waste collection faci lities, including civic amenity
sites and garages providing facilities for disposal of used oil
and used oil filters. If in doubt, contact your local authority for
advice on disposal.
WARNING!
● Prolonged and repeated contact may cause serious
skin disorders, including dermatitis and cancer.
●Avoid contact with the skin as far as possible and
wash thoroughly after any contact.
● Keep used engine oils ou t of reach of children.

1

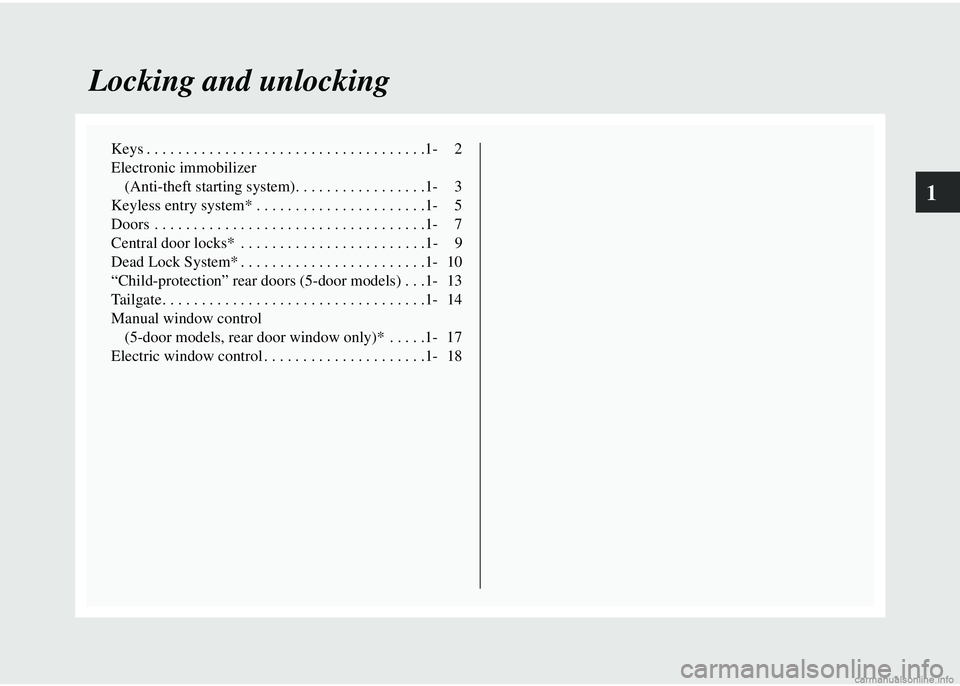

Locking and unlocking
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2
Electronic immobilizer (Anti-theft starting system). . . . . . . . . . . . . . . . .1- 3
Keyless entry system* . . . . . . . . . . . . . . . . . . . . . .1- 5
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 7
Central door locks* . . . . . . . . . . . . . . . . . . . . . . . .1- 9
Dead Lock System* . . . . . . . . . . . . . . . . . . . . . . . .1- 10
“Child-protection” rear doors (5-door models) . . .1- 13
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 14
Manual window control (5-door models, rear door window only)* . . . . .1- 17
Electric window control . . . . . . . . . . . . . . . . . . . . .1- 18

1-2 Locking and unlocking

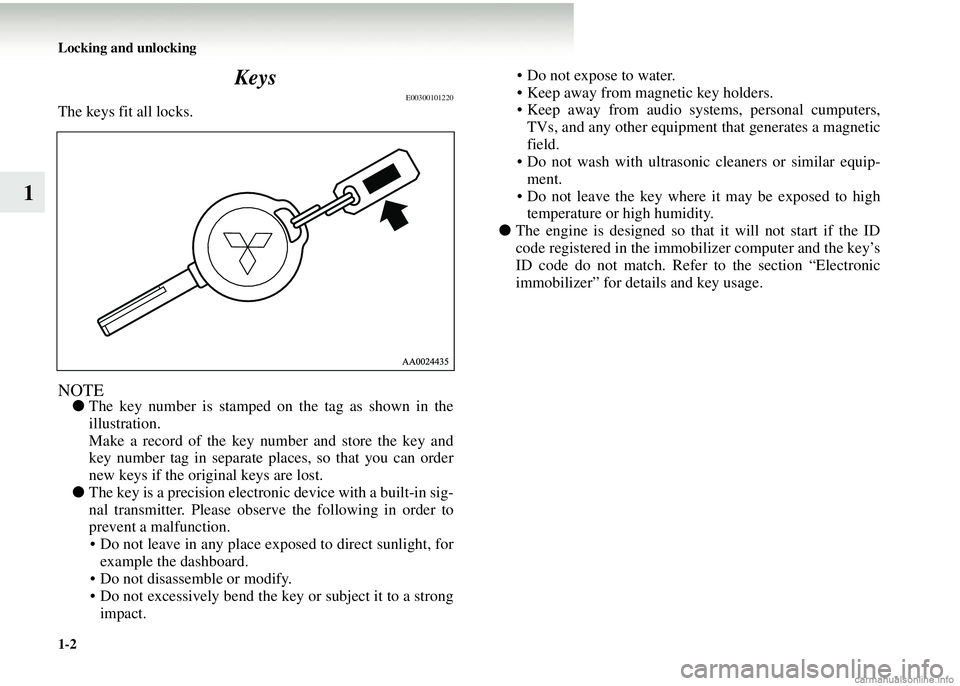

1Keys
E00300101220
The keys fit all locks.
NOTE●
The key number is stamped on the tag as shown in the
illustration.
Make a record of the key number and store the key and
key number tag in separate places, so that you can order
new keys if the original keys are lost.
● The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent a malfunction.
• Do not leave in any place expo sed to direct sunlight, for
example the dashboard.
• Do not disassemble or modify.
• Do not excessively bend the key or subject it to a strong impact. • Do not expose to water.
• Keep away from magnetic key holders.
• Keep away from audio sy
stems, personal cumputers,
TVs, and any other equipment that generates a magnetic
field.
• Do not wash with ultrasonic cleaners or similar equip-
ment.
• Do not leave the key where it may be exposed to high temperature or high humidity.
● The engine is designed so that it will not start if the ID
code registered in the immobi lizer computer and the key’s
ID code do not match. Refer to the section “Electronic
immobilizer” for details and key usage.
