Locking and unlocking1-13
1

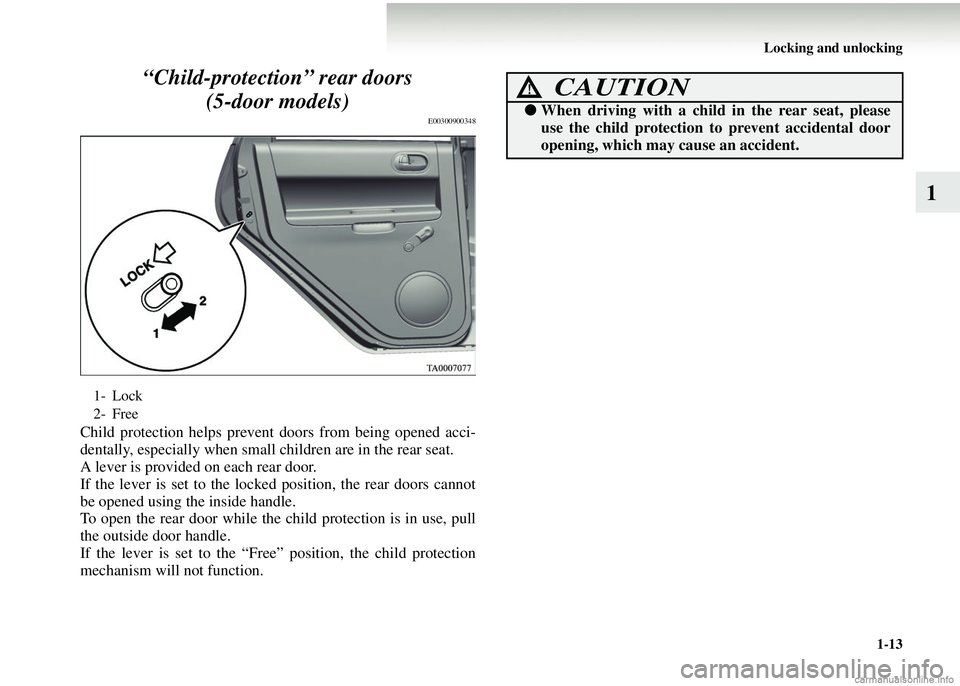

“Child-protection” rear doors
(5-door models)
E00300900348
Child protection helps prevent doors from being opened acci-
dentally, especially when small children are in the rear seat.
A lever is provided on each rear door.
If the lever is set to the locked position, the rear doors cannot
be opened using the inside handle.
To open the rear door while the child protection is in use, pull
the outside door handle.
If the lever is set to the “Free” position, the child protection
mechanism will not function.
1- Lock
2- Free
CAUTION!
● When driving with a child in the rear seat, please
use the child protection to prevent accidental door
opening, which may cause an accident.

1-14 Locking and unlocking
1Tailgate
E00301400698
NOTE●
For vehicles with central doo r locks, locking/unlocking of
the driver’s door by using the key, inside lock knob (driver
side) or keyless entry system also locks/unlocks the tail-
gate.
To lock or unlock from outside the vehicle (except
for vehicles with keyless entry system)
WARNING!
● It is dangerous to drive wi th the tailgate open as car-
bon monoxide (CO) gas can enter the cabin.
You cannot see or smell CO. It can cause uncon-
sciousness and even death.
● When opening and closing the tailgate, make sure
that there are no people nearby and be careful not to
hit your head or pinch your hands, neck, etc.
CAUTION!
● Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.

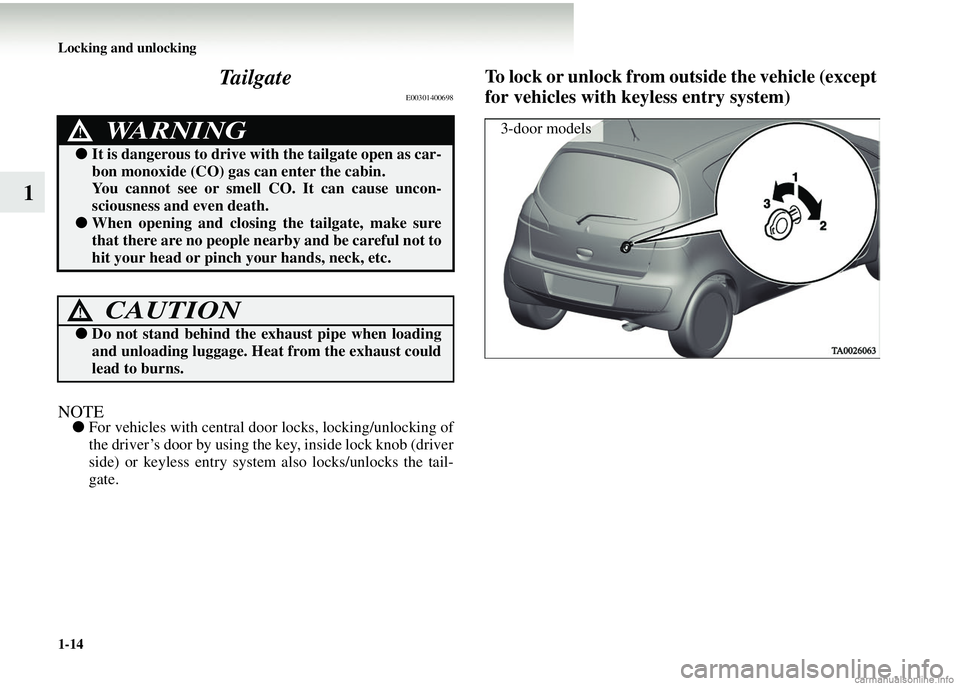

3-door models

Locking and unlocking1-15
1

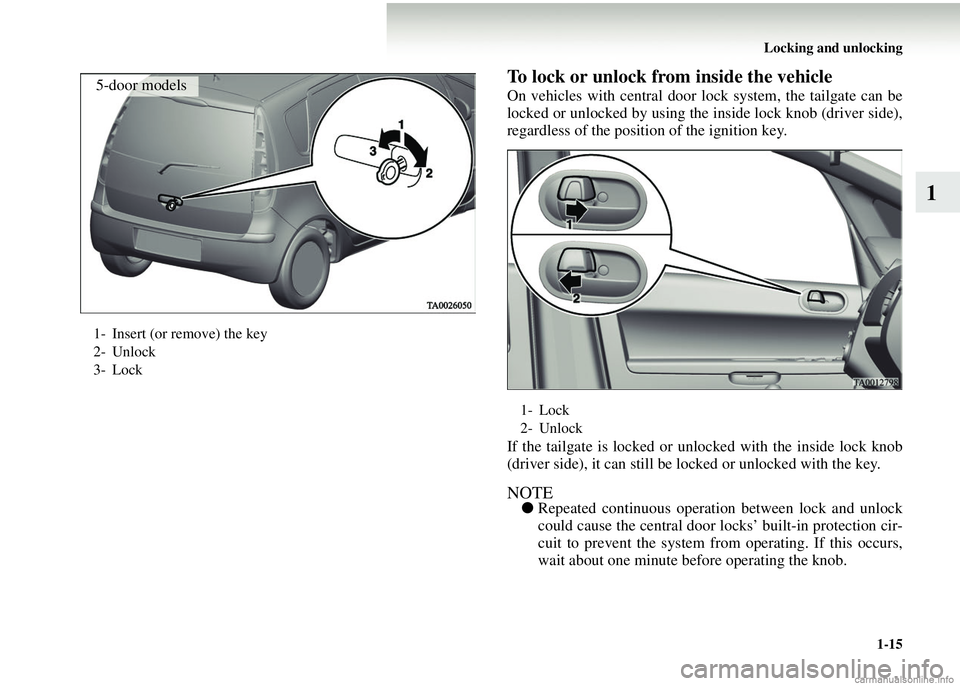

To lock or unlock from inside the vehicle
On vehicles with central door lo ck system, the tailgate can be
locked or unlocked by using the inside lock knob (driver side),
regardless of the position of the ignition key.
If the tailgate is locked or unlo cked with the inside lock knob
(driver side), it can still be locked or unlocked with the key.
NOTE● Repeated continuou s operation between lock and unlock
could cause the central door locks’ built-in protection cir-
cuit to prevent the system from operating. If this occurs,
wait about one minute before operating the knob.
1- Insert (or remove) the key
2- Unlock
3- Lock
5-door models
1- Lock
2- Unlock

1-16 Locking and unlocking
1

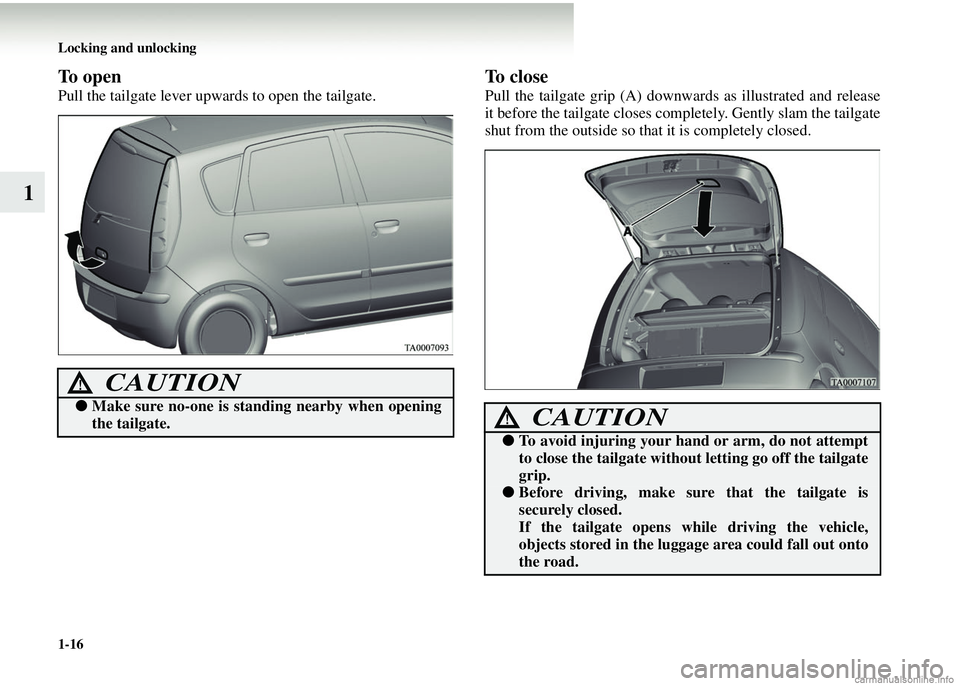

To open
Pull the tailgate lever upwards to open the tailgate.
To close
Pull the tailgate grip (A) downwards as illustrated and release
it before the tailgate closes completely. Gently slam the tailgate
shut from the outside so that it is completely closed.
CAUTION!
●Make sure no-one is standing nearby when opening
the tailgate.CAUTION!
●To avoid injuring your hand or arm, do not attempt
to close the tailgate without letting go off the tailgate
grip.
●Before driving, make sure that the tailgate is
securely closed.
If the tailgate opens while driving the vehicle,
objects stored in the luggage area could fall out onto
the road.

Locking and unlocking1-17
1
NOTE●Gas struts (B) are installed in the locations illustrated to
support the tailgate. Please observe the following in order
to prevent damage or faulty operation.
• Do not hold the gas struts when closing the tailgate. Do
not push or pull the gas struts.
• Do not attach any plastic material, tape, etc., to the gas
struts.
• Do not tie string, etc., around the gas struts.

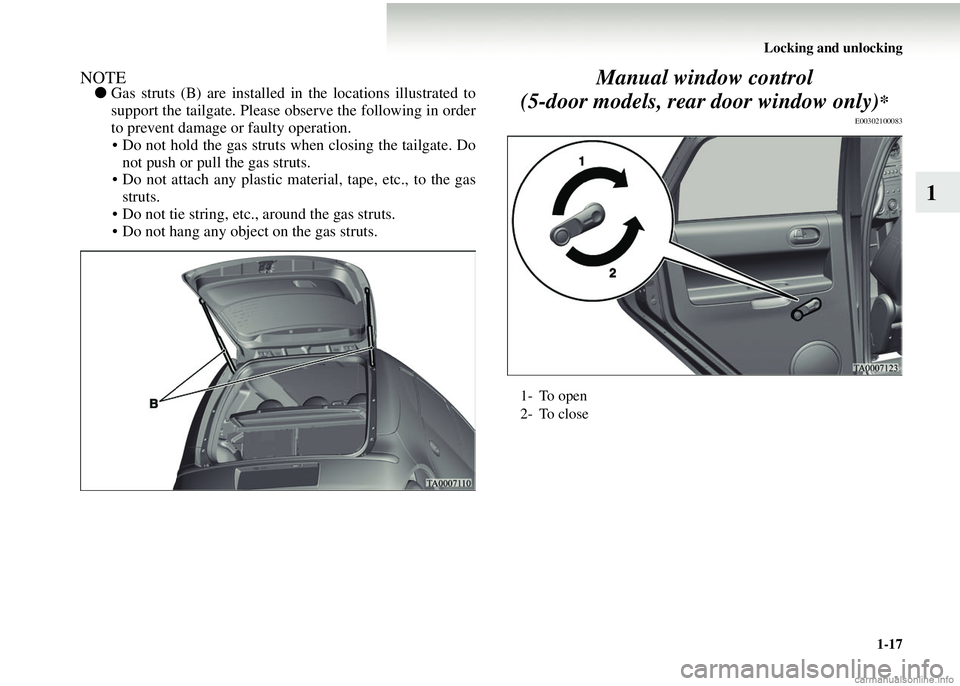

• Do not hang any object on the gas struts.Manual window control
(5-door models, rear door window only)
*
E00302100083
1- To open
2- To close

1-18 Locking and unlocking
1Electric window control
E00302200042
The electric windows can only be operated with the ignition
switch in the “ON” position.

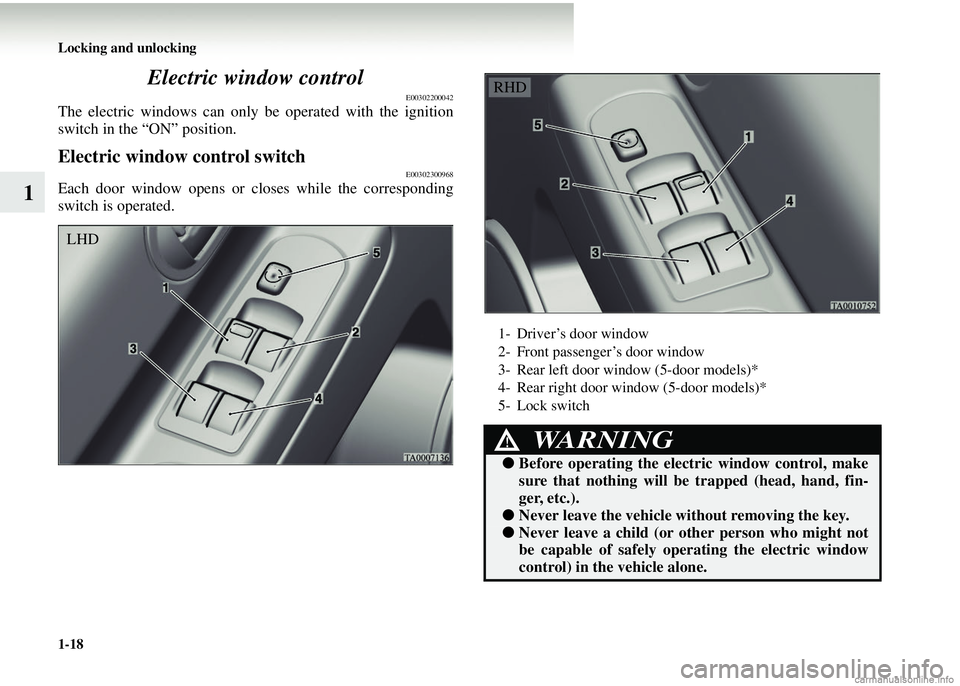

Electric window control switchE00302300968
Each door window opens or
closes while the corresponding
switch is operated.
LHD
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window (5-door models)*
4- Rear right door window (5-door models)*
5- Lock switch
WARNING!
● Before operating the elect ric window control, make
sure that nothing will be trapped (head, hand, fin-
ger, etc.).
● Never leave the vehicle without removing the key.
●Never leave a child (or ot her person who might not
be capable of safely op erating the electric window
control) in the vehicle alone.
RHD

Locking and unlocking1-19
1
NOTE●Repeated operation with the engine stopped will run down
the battery. Operate the window switches only while the
engine is running.

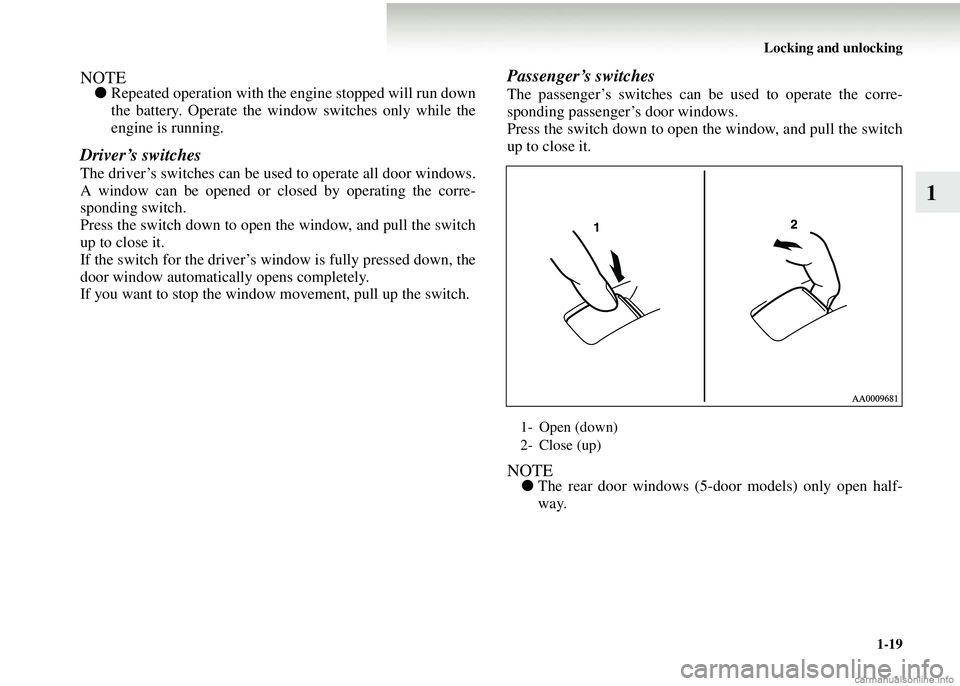

Driver’s switches
The driver’s switches can be us ed to operate all door windows.
A window can be opened or closed by operating the corre-
sponding switch.
Press the switch down to open the window, and pull the switch
up to close it.
If the switch for the driver’s window is fully pressed down, the
door window automatically opens completely.
If you want to stop the window movement, pull up the switch.
Passenger’s switches
The passenger’s switches can be used to operate the corre-
sponding passenger’s door windows.
Press the switch down to open the window, and pull the switch
up to close it.
NOTE● The rear door windows (5-door models) only open half-
way.
1- Open (down)
2- Close (up)

1-20 Locking and unlocking
1
Lock switchE00303100413
When this switch is operated, the passenger’s switches cannot
be used to open or close the door windows and the driver’s
switch cannot open or close any door windows other than the
driver’s door windows.
To unlock, press it once again.
1- Lock
2- Unlock
WARNING!
●A child may tamper with the sw itch at the risk of its
hands or head being trapped in the window. When
driving with a child in the vehicle, please press the
window lock switch to disable the passenger’s
switches.

2

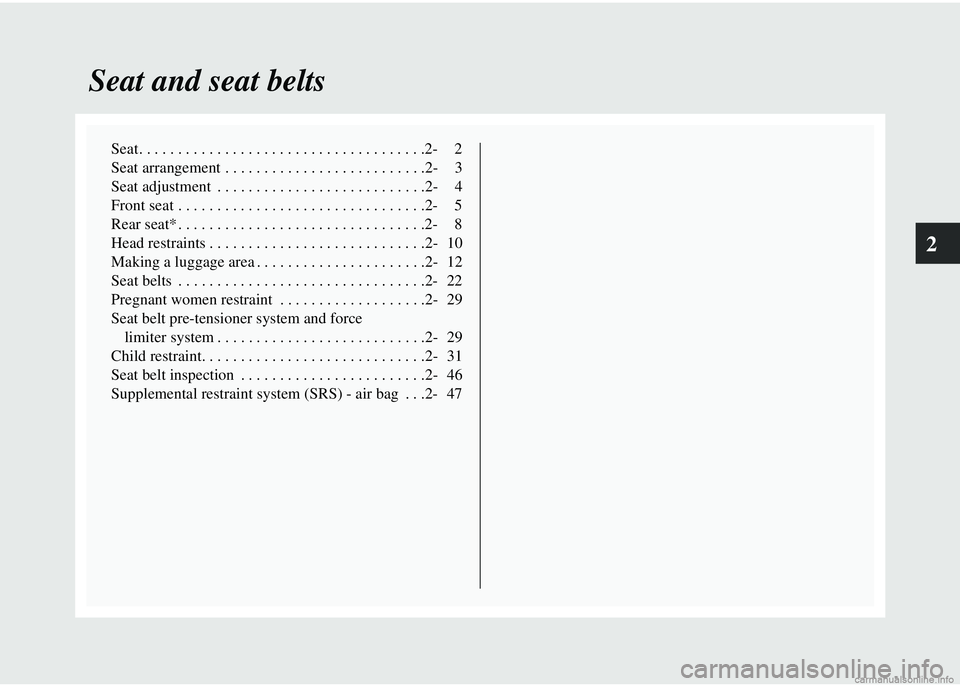

Seat and seat belts
Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2
Seat arrangement . . . . . . . . . . . . . . . . . . . . . . . . . .2- 3
Seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 4
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 5
Rear seat* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 8
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 10
Making a luggage area . . . . . . . . . . . . . . . . . . . . . .2- 12
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 22
Pregnant women restraint . . . . . . . . . . . . . . . . . . .2- 29
Seat belt pre-tensioner system and force limiter system . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 29
Child restraint. . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 31
Seat belt inspection . . . . . . . . . . . . . . . . . . . . . . . .2- 46
Supplemental restraint system (SRS) - air bag . . .2- 47

2-2 Seat and seat belts
2Seat
E00400101003

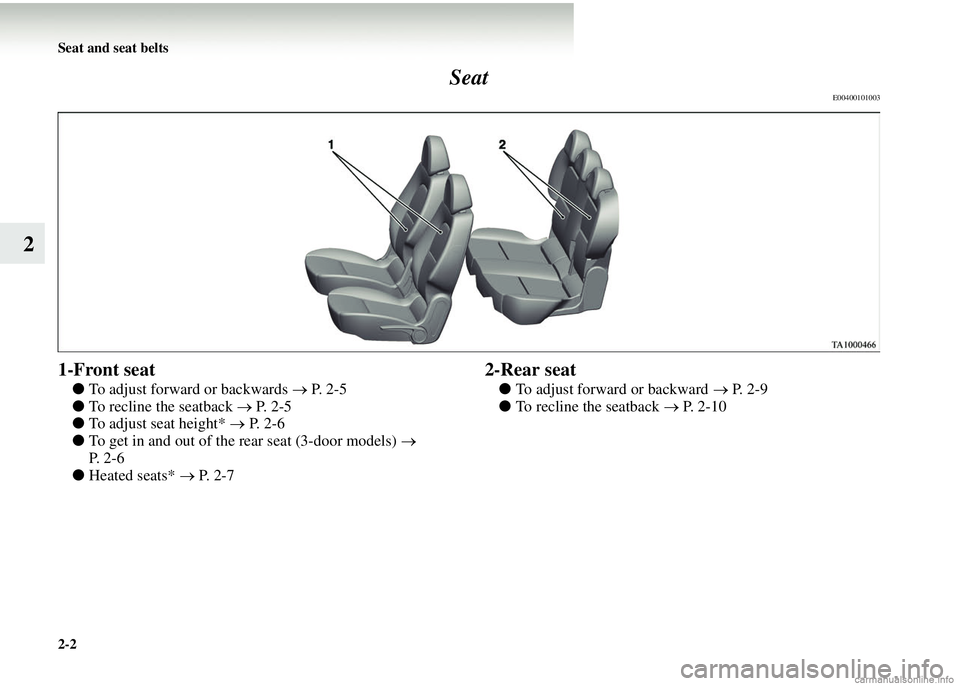

1-Front seat
●
To adjust forward or backwards → P. 2 - 5
● To recline the seatback → P. 2-5
● To adjust seat height* → P. 2-6
● To get in and out of the rear seat (3-door models) →
P. 2 - 6
● Heated seats* → P. 2-7
2-Rear seat
●To adjust forward or backward → P. 2-9
● To recline the seatback → P. 2 - 1 0
