MITSUBISHI COLT 2011 Owner's Manual (in English)

5-door models1Front track1,460 mm2Overall width1,695 mm3Front overhang845 mm4Wheel base2,500 mm5Rear overhang595 mm6Overall length3,940 mm7Ground clearance (unladen)154 mm8Overall height (unladen)1,550 mm9Rear track1,445 mm
Specifications
9-05
9

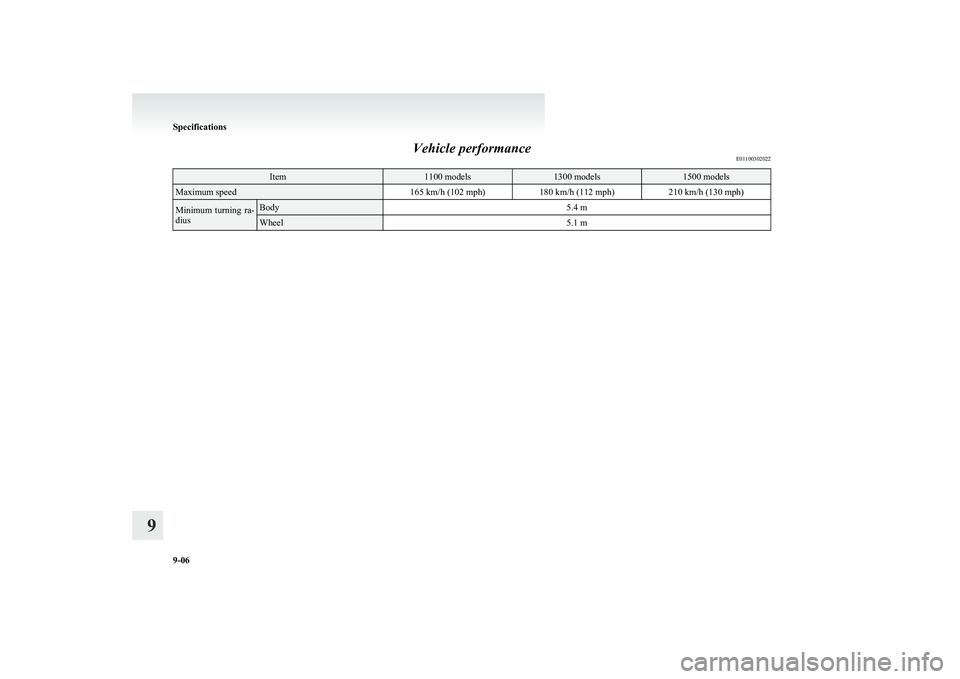

Vehicle performanceE01100302022Item1100 models1300 models1500 modelsMaximum speed165 km/h (102 mph)180 km/h (112 mph)210 km/h (130 mph)Minimum turning ra-
diusBody5.4 mWheel5.1 m
Specifications
9-06
9

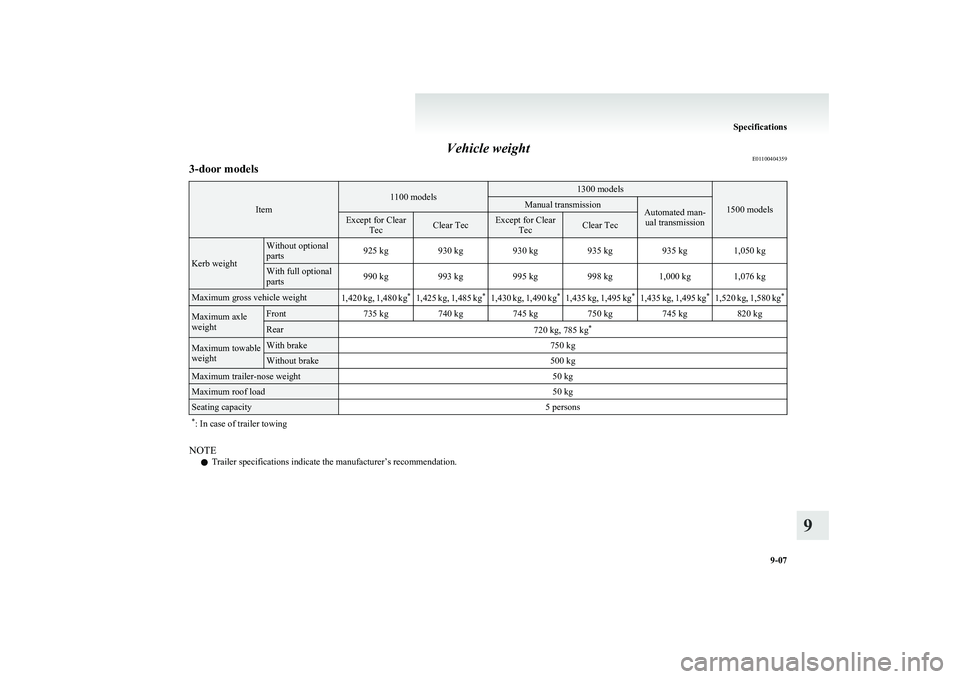

Vehicle weightE011004043593-door models
Item
1100 models1300 models
1500 models
Manual transmissionAutomated man-
ual transmissionExcept for Clear TecClear TecExcept for ClearTecClear Tec
Kerb weight
Without optional
parts925 kg930 kg930 kg935 kg935 kg1,050 kgWith full optional
parts990 kg993 kg995 kg998 kg1,000 kg1,076 kgMaximum gross vehicle weight1,420 kg, 1,480 kg *1,425 kg, 1,485 kg*1,430 kg, 1,490 kg*1,435 kg, 1,495 kg*1,435 kg, 1,495 kg*1,520 kg, 1,580 kg*Maximum axle
weightFront735 kg740 kg745 kg750 kg745 kg820 kgRear720 kg, 785 kg *Maximum towable
weightWith brake750 kgWithout brake500 kgMaximum trailer-nose weight50 kgMaximum roof load50 kgSeating capacity5 persons* : In case of trailer towing
NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
Specifications
9-07
9

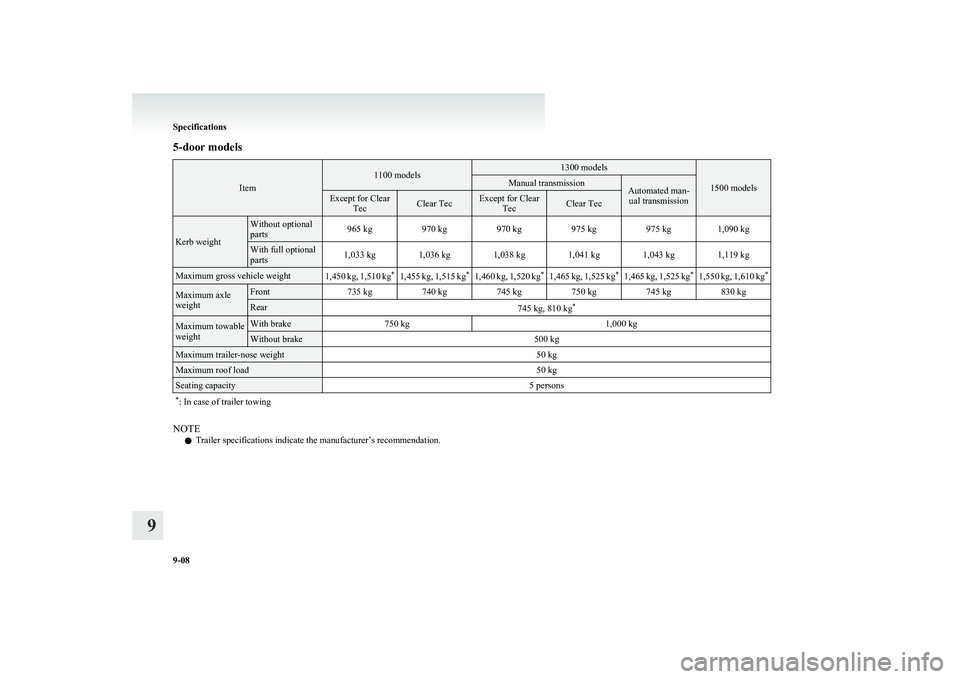

5-door models
Item
1100 models1300 models
1500 models
Manual transmissionAutomated man-ual transmissionExcept for Clear TecClear TecExcept for ClearTecClear Tec
Kerb weight
Without optional
parts965 kg970 kg970 kg975 kg975 kg1,090 kgWith full optional
parts1,033 kg1,036 kg1,038 kg1,041 kg1,043 kg1,119 kgMaximum gross vehicle weight1,450 kg, 1,510 kg *1,455 kg, 1,515 kg*1,460 kg, 1,520 kg*1,465 kg, 1,525 kg*1,465 kg, 1,525 kg*1,550 kg, 1,610 kg*Maximum axle
weightFront735 kg740 kg745 kg750 kg745 kg830 kgRear745 kg, 810 kg *Maximum towable
weightWith brake750 kg1,000 kgWithout brake500 kgMaximum trailer-nose weight50 kgMaximum roof load50 kgSeating capacity5 persons* : In case of trailer towing
NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
Specifications
9-08
9

Engine specificationsE01100602386Item1100 models1300 models1500 modelsEngine typeThree-cylinder, in line, water cooled
four-cycle, double overhead camshaftFour-cylinder, in line, water cooled
four-cycle, double overhead camshaftFour-cylinder, in line, water cooled four-
cycle, double overhead camshaft with in- tercooler and turbochargerEngine model1349103A911359304A904G15Total displacement1,124 cc1,332 cc1,468 ccBore75.0 mm75.0 mm75.5 mmStroke84.8 mm75.4 mm82.0 mmCompression ratio10.511.010.511.09.0Valve clearanceIntake0.18 - 0.26 mm (cold)AutomaticallyExhaust0.26 - 0.34 mm (cold)AutomaticallyFiring order1-3-21-3-4-2Maximum output (EEC net)55 kW/6.000 r/min70 kW/6.000 r/min110 kW/6.000 r/minMaximum torque (EEC net)100 Nm/4,000 r/min125 Nm/4,000 r/min210 Nm/3,500 r/min
Specifications
9-09
9

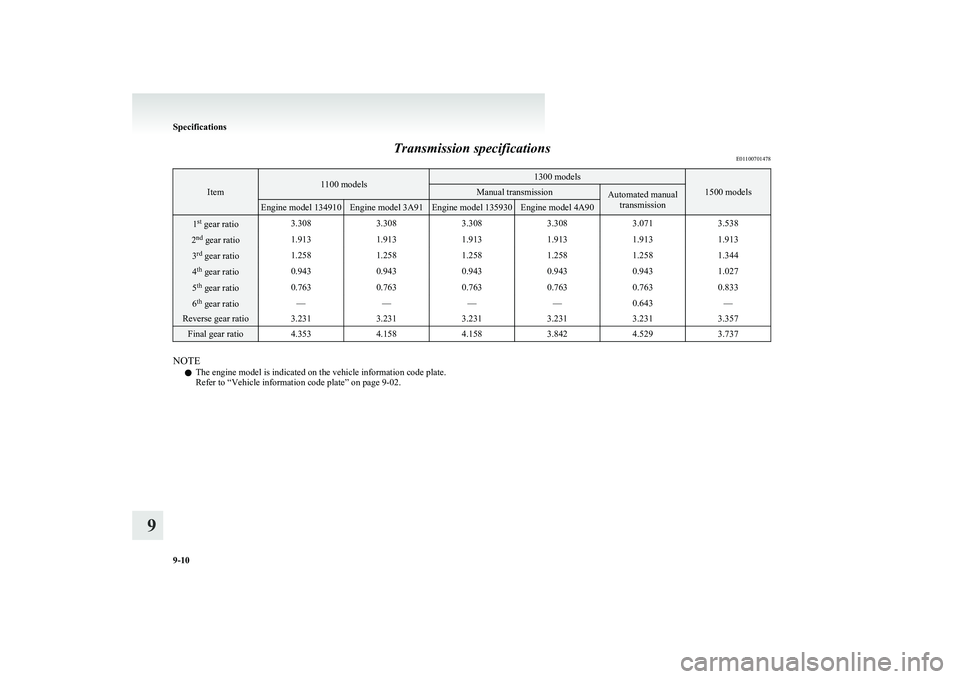

Transmission specificationsE01100701478
Item1100 models1300 models
1500 models
Manual transmissionAutomated manual
transmissionEngine model 134910Engine model 3A91Engine model 135930Engine model 4A901st
gear ratio3.3083.3083.3083.3083.0713.5382nd
gear ratio1.9131.9131.9131.9131.9131.9133rd
gear ratio1.2581.2581.2581.2581.2581.3444th
gear ratio0.9430.9430.9430.9430.9431.0275th
gear ratio0.7630.7630.7630.7630.7630.8336th
gear ratio————0.643—Reverse gear ratio3.2313.2313.2313.2313.2313.357Final gear ratio4.3534.1584.1583.8424.5293.737
NOTE
l The engine model is indicated on the vehicle information code plate.
Refer to “Vehicle information code plate” on page 9-02.
Specifications
9-10
9

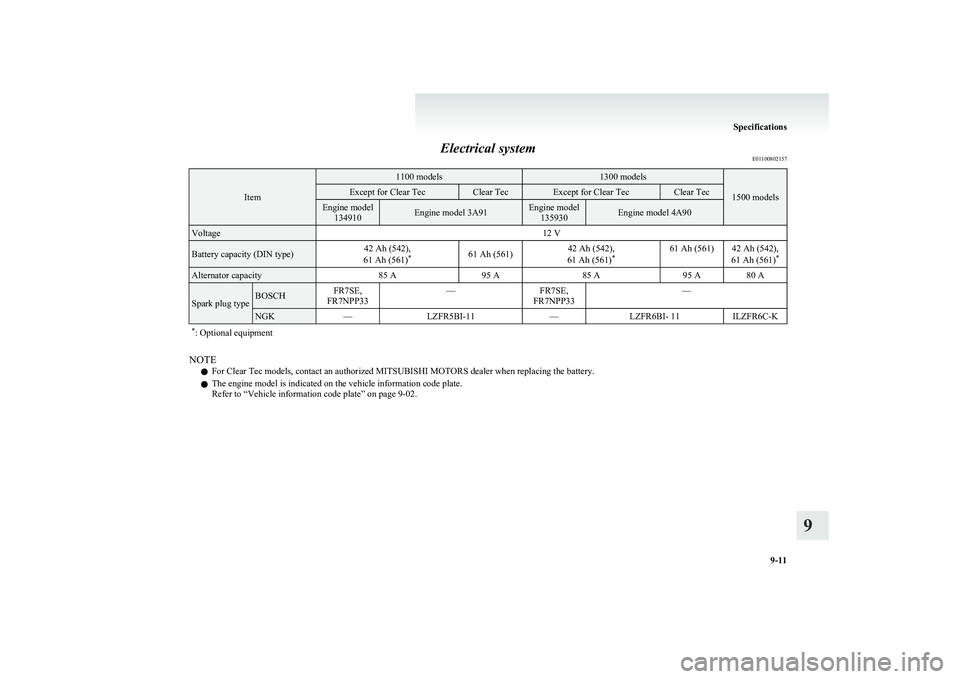

Electrical systemE01100802157
Item
1100 models1300 models
1500 models
Except for Clear TecClear TecExcept for Clear TecClear TecEngine model
134910Engine model 3A91Engine model135930Engine model 4A90Voltage12 VBattery capacity (DIN type)42 Ah (542),
61 Ah (561) *61 Ah (561)42 Ah (542),
61 Ah (561) *61 Ah (561)42 Ah (542),
61 Ah (561) *Alternator capacity85 A95 A85 A95 A80 A
Spark plug typeBOSCHFR7SE,
FR7NPP33—FR7SE,
FR7NPP33—NGK—LZFR5BI-11—LZFR6BI- 11ILZFR6C-K* : Optional equipment
NOTE
l For Clear Tec models, contact an authorized MITSUBISHI MOTORS dealer when replacing the battery.
l The engine model is indicated on the vehicle information code plate.
Refer to “Vehicle information code plate” on page 9-02.
Specifications
9-11
9

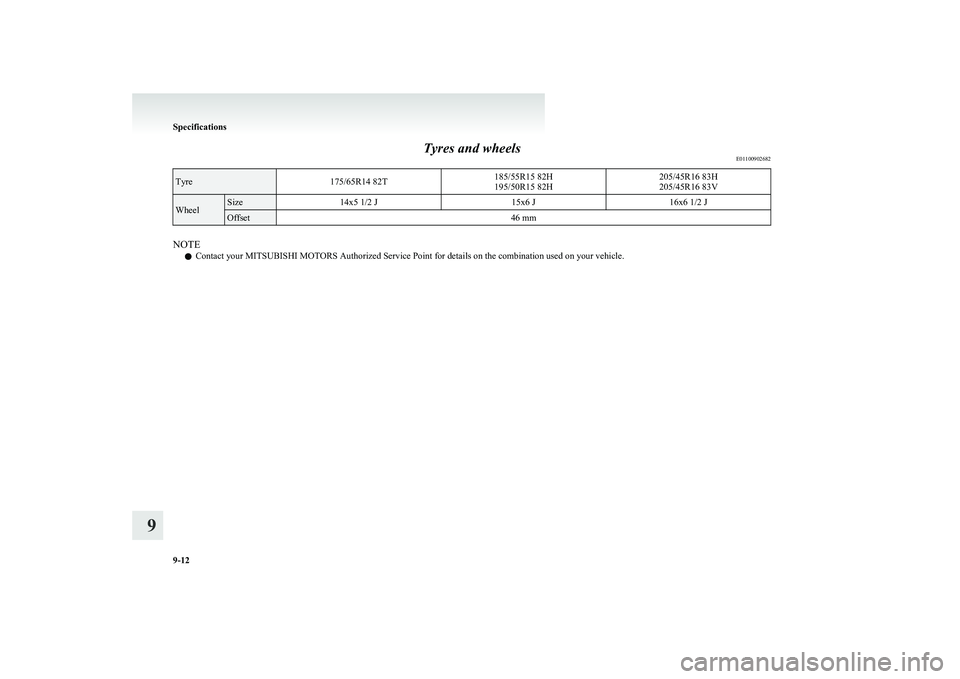

Tyres and wheelsE01100902682Tyre175/65R14 82T185/55R15 82H
195/50R15 82H205/45R16 83H
205/45R16 83VWheelSize14x5 1/2 J15x6 J16x6 1/2 JOffset46 mm
NOTE
l Contact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.
Specifications
9-12
9

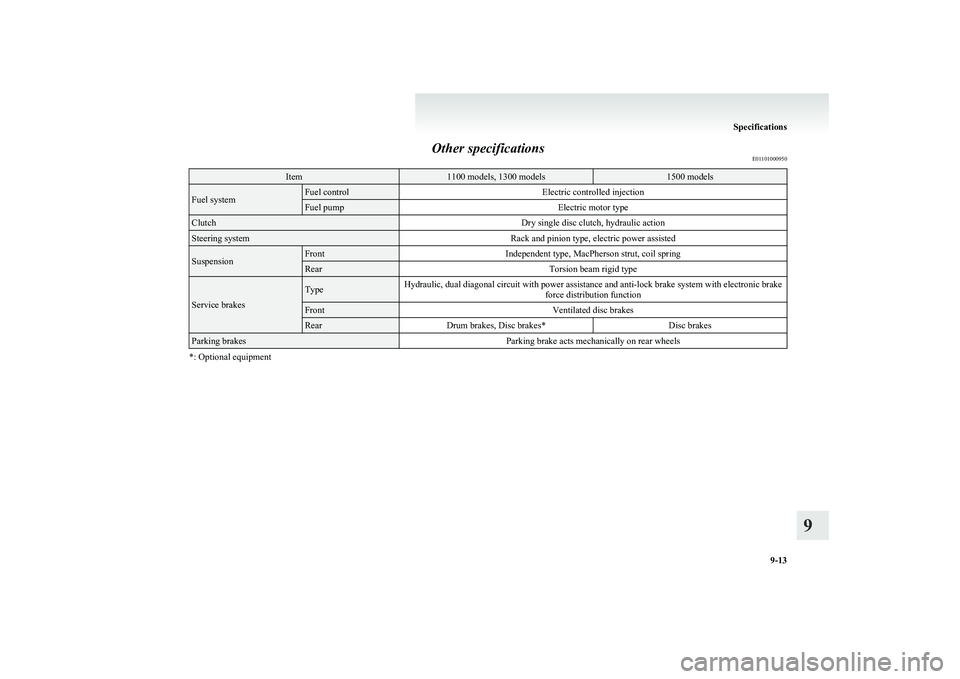

Other specificationsE01101000950Item1100 models, 1300 models1500 modelsFuel systemFuel controlElectric controlled injectionFuel pumpElectric motor typeClutchDry single disc clutch, hydraulic actionSteering systemRack and pinion type, electric power assistedSuspensionFrontIndependent type, MacPherson strut, coil springRearTorsion beam rigid type
Service brakes
TypeHydraulic, dual diagonal circuit with power assistance and anti-lock brake system with electronic brake
force distribution functionFrontVentilated disc brakesRearDrum brakes, Disc brakes*Disc brakesParking brakesParking brake acts mechanically on rear wheels
*: Optional equipment
Specifications
9-13
9

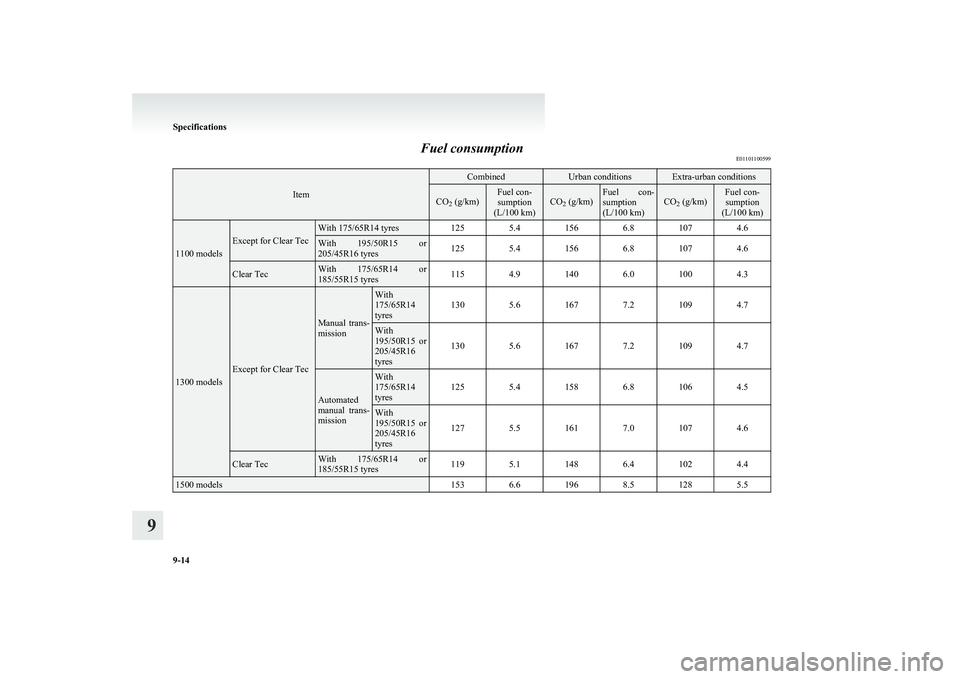

Fuel consumptionE01101100599
Item
CombinedUrban conditionsExtra-urban conditionsCO2 (g/km)Fuel con-
sumption
(L/100 km)CO 2 (g/km)Fuel con-
sumption
(L/100 km)CO 2 (g/km)Fuel con-
sumption
(L/100 km)
1100 models
Except for Clear Tec
With 175/65R14 tyres1255.41566.81074.6With 195/50R15 or
205/45R16 tyres1255.41566.81074.6Clear TecWith 175/65R14 or
185/55R15 tyres1154.91406.01004.3
1300 models
Except for Clear Tec
Manual trans-
mission
With
175/65R14
tyres1305.61677.21094.7With
195/50R15 or
205/45R16
tyres
1305.61677.21094.7Automated
manual trans-
mission
With
175/65R14
tyres1255.41586.81064.5With
195/50R15 or
205/45R16
tyres
1275.51617.01074.6Clear TecWith 175/65R14 or
185/55R15 tyres1195.11486.41024.41500 models1536.61968.51285.5
Specifications
9-14
9
