System control MITSUBISHI ECLIPSE CROSS 2019 Owner's Manual (in English)

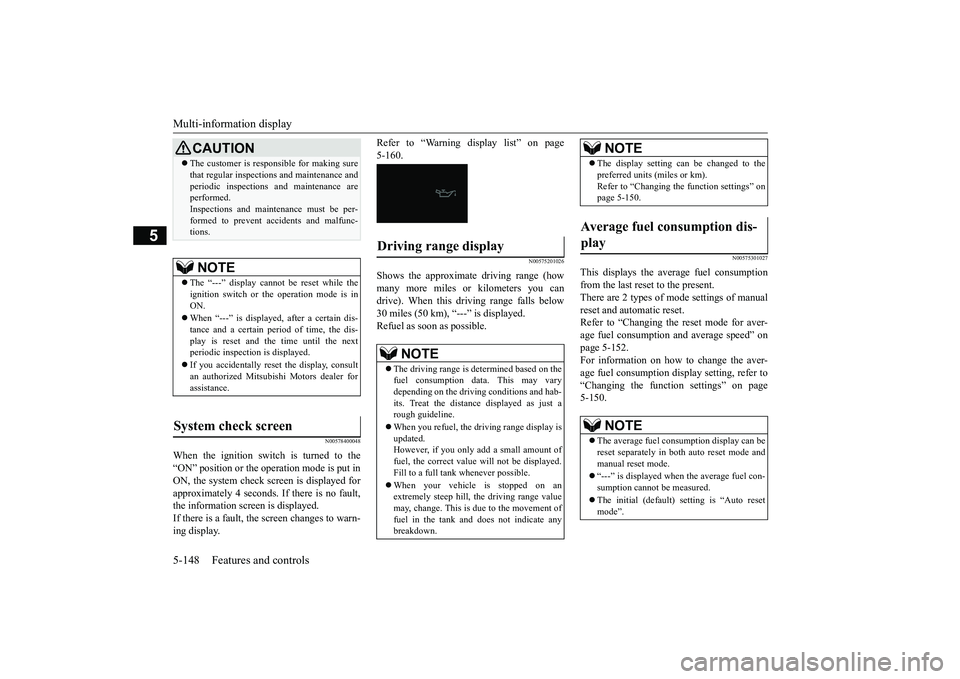

Multi-information display 5-148 Features and controls
5
N00578400048
When the ignition switch is turned to the “ON” position or the operation mode is put in ON, the system check screen is displayed forapproximately 4 seconds. If there is no fault, the information screen is displayed. If there is a fault, the screen changes to warn-ing display.
Refer to “Warning display list” on page 5-160.
N00575201026
Shows the approximate driving range (how many more miles or kilometers you can drive). When this driving range falls below30 miles (50 km), “---” is displayed. Refuel as soon as possible.
N00575301027
This displays the average fuel consumptionfrom the last reset to the present. There are 2 types of mode settings of manualreset and automatic reset. Refer to “Changing the reset mode for aver- age fuel consumption and average speed” onpage 5-152. For information on how to change the aver- age fuel consumption display setting, refer to“Changing the function settings” on page 5-150.
CAUTION The customer is responsible for making sure that regular inspections and maintenance and periodic inspections and maintenance are performed. Inspections and maintenance must be per-formed to prevent accidents and malfunc- tions.NOTE
 The “---” display cannot be reset while the ignition switch or the operation mode is in ON.  When “---” is displayed, after a certain dis- tance and a certain period of time, the dis- play is reset and the time until the nextperiodic inspection is displayed.  If you accidentally reset the display, consult an authorized Mitsubishi Motors dealer for assistance.
System check screen
Driving range display
NOTE
 The driving range is determined based on the fuel consumption data. This may vary depending on the driving conditions and hab- its. Treat the distance displayed as just arough guideline.  When you refuel, the driving range display is updated. However, if you only add a small amount of fuel, the correct value will not be displayed.Fill to a full tank whenever possible.  When your vehicle is stopped on an extremely steep hill, the driving range value may, change. This is due to the movement of fuel in the tank and does not indicate anybreakdown.
 The display setting can be changed to the preferred units (miles or km). Refer to “Changing the function settings” on page 5-150.
Average fuel consumption dis- play
NOTE
 The average fuel consumption display can be reset separately in both auto reset mode and manual reset mode.  “---” is displayed when the average fuel con- sumption cannot be measured.  The initial (default) setting is “Auto reset mode”.NOTE
BK0266800US.book
148 ページ ２０１８年６月２７日　水曜日　午後５時６分

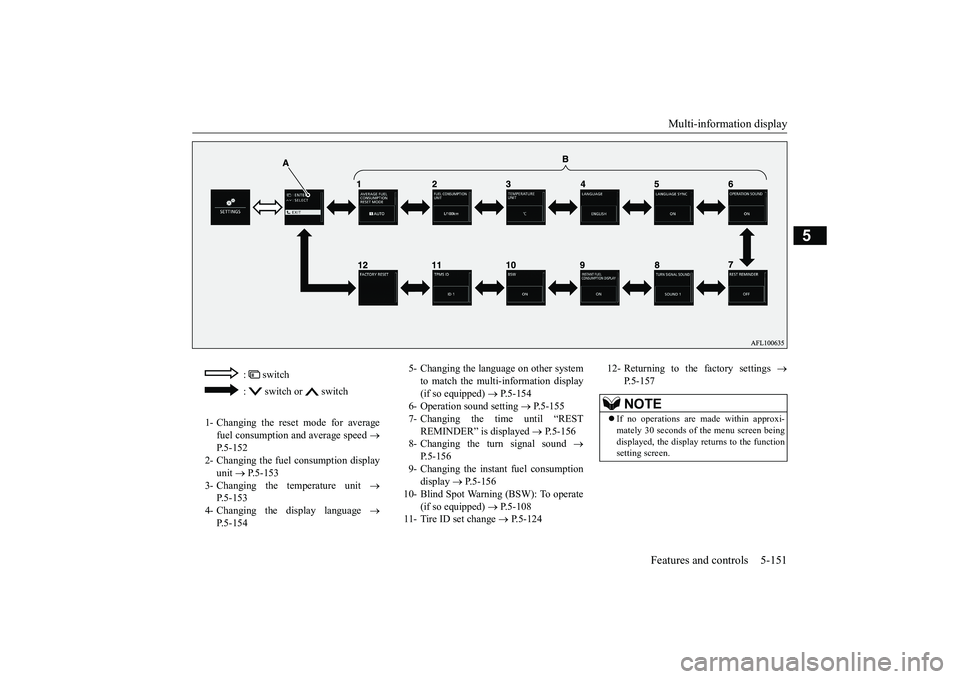

Multi-information display
Features and controls 5-151
5
: switch : switch or switch
1- Changing the reset mode for average
fuel consumption and average speed

P.5-152
2- Changing the fuel consumption display
unit
 P.5-153
3- Changing the temperature unit

P.5-153
4- Changing the display language

P.5-154
5- Changing the language on other system
to match the multi-information display (if so equipped)
 P.5-154
6- Operation sound setting
 P.5-155
7- Changing the time until “REST
REMINDER” is displayed
 P.5-156
8- Changing the turn signal sound

P.5-156
9- Changing the instant fuel consumption
display
 P.5-156
10- Blind Spot Warning (BSW): To operate
(if so equipped)
 P.5-108
11- Tire ID set change
 P.5-124
12- Returning to the factory settings

P.5-157NOTE
 If no operations are made within approxi- mately 30 seconds of the menu screen beingdisplayed, the display returns to the function setting screen.
BK0266800US.book
151 ページ ２０１８年６月２７日　水曜日　午後５時６分

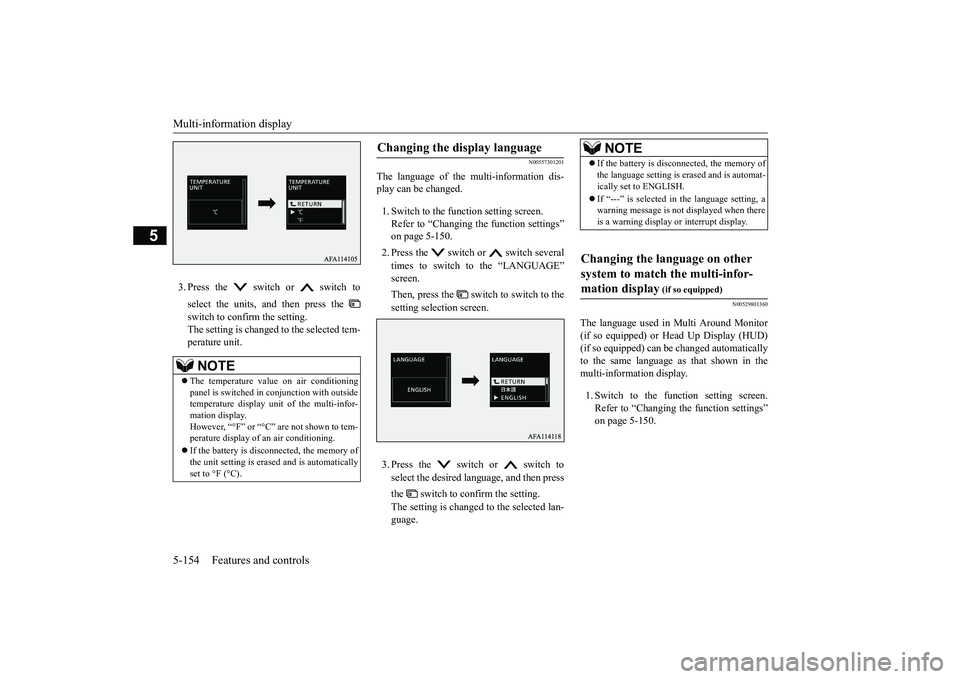

Multi-information display 5-154 Features and controls
5
3. Press the switch or switch to select the units, and then press the switch to confirm the setting. The setting is changed to the selected tem-perature unit.
N00557301201
The language of the multi-information dis-play can be changed. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-150. 2. Press the switch or switch several times to switch to the “LANGUAGE” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the desired language, and then press the switch to confirm the setting. The setting is changed to the selected lan- guage.
N00529801360
The language used in Multi Around Monitor (if so equipped) or Head Up Display (HUD) (if so equipped) can be changed automatically to the same language as that shown in themulti-information display. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-150.
NOTE
 The temperature value on air conditioning panel is switched in conjunction with outside temperature display unit of the multi-infor-mation display. However, “°F” or “°C” are not shown to tem- perature display of an air conditioning.  If the battery is disconnected, the memory of the unit setting is erased and is automaticallyset to °F (°C).
Changing the display language
NOTE
 If the battery is disconnected, the memory of the language setting is erased and is automat- ically set to ENGLISH.  If “---” is selected in the language setting, a warning message is not displayed when there is a warning display or interrupt display.
Changing the language on other system to match the multi-infor- mation display
(if so equipped)
BK0266800US.book
154 ページ ２０１８年６月２７日　水曜日　午後５時６分

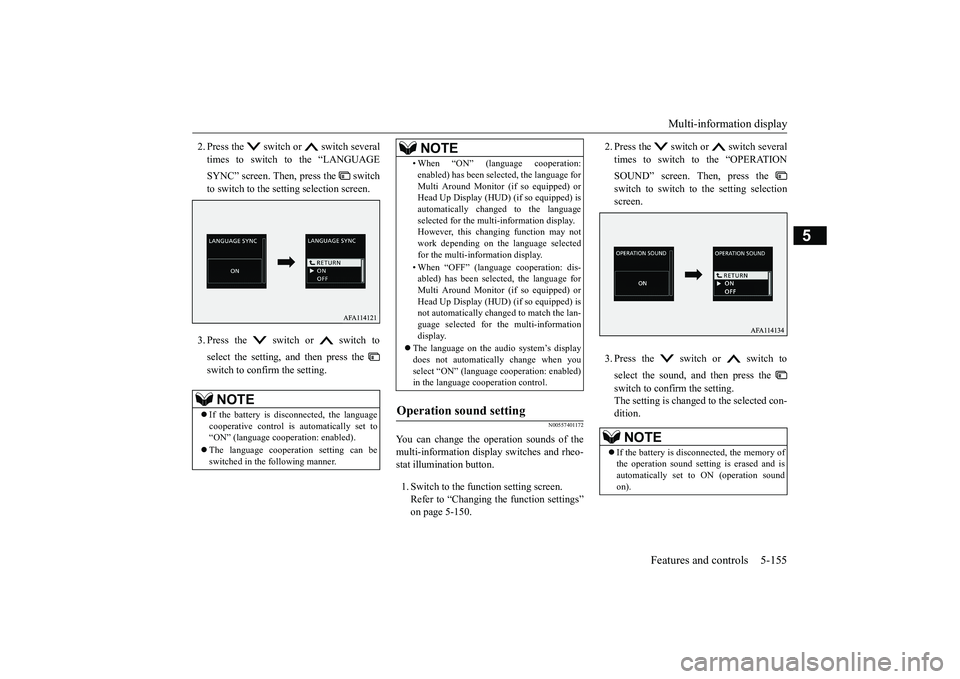

Multi-information display
Features and controls 5-155
5
2. Press the switch or switch several times to switch to the “LANGUAGE SYNC” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the setting, and then press the switch to confirm the setting.
N00557401172
You can change the operation sounds of the multi-information display switches and rheo- stat illumination button. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-150.
2. Press the switch or switch several times to switch to the “OPERATION SOUND” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the sound, and then press the switch to confirm the setting. The setting is changed to the selected con- dition.
NOTE
 If the battery is disconnected, the language cooperative control is automatically set to “ON” (language cooperation: enabled).  The language cooperation setting can be switched in the following manner.
• When “ON” (language cooperation:enabled) has been selected, the language for Multi Around Monitor (if so equipped) or Head Up Display (HUD) (if so equipped) is automatically changed to the languageselected for the multi-information display. However, this changing function may not work depending on the language selectedfor the multi-information display. • When “OFF” (language cooperation: dis- abled) has been selected, the language for Multi Around Monitor (if so equipped) or Head Up Display (HUD) (if so equipped) isnot automatically changed to match the lan- guage selected for the multi-information display.
 The language on the audio system’s display does not automatically change when youselect “ON” (language cooperation: enabled) in the language cooperation control.
Operation sound setting
NOTE
NOTE
 If the battery is disconnected, the memory of the operation sound setting is erased and is automatically set to ON (operation sound on).
BK0266800US.book
155 ページ ２０１８年６月２７日　水曜日　午後５時６分

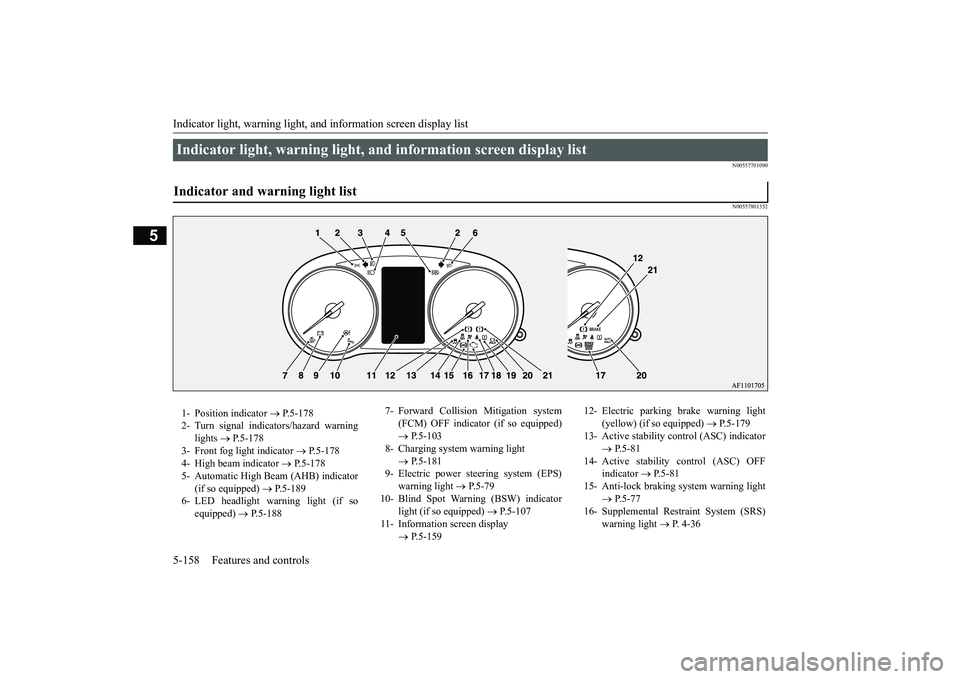

Indicator light, warning light, an
d information screen display list
5-158 Features and controls
5
N00557701090 N00557801352
Indicator light, warning light, and information screen display list Indicator and warning light list 1- Position indicator
 P.5-178
2- Turn signal indicators/hazard warning
lights
 P.5-178
3- Front fog light indicator
 P.5-178
4- High beam indicator
 P.5-178
5- Automatic High Beam (AHB) indicator
(if so equipped)
 P.5-189
6- LED headlight warning light (if so
equipped)
 P.5-188
7- Forward Collision Mitigation system
(FCM) OFF indicator (if so equipped)  P.5-103
8- Charging system warning light
 P.5-181
9- Electric power steering system (EPS)
warning light
 P.5-79
10- Blind Spot Warning (BSW) indicator
light (if so equipped)
 P.5-107
11- Information screen display
 P.5-159
12- Electric parking brake warning light
(yellow) (if so equipped)
 P.5-179
13- Active stability control (ASC) indicator
 P.5-81
14- Active stability control (ASC) OFF
indicator
 P.5-81
15- Anti-lock braking system warning light
 P.5-77
16- Supplemental Restraint System (SRS)
warning light
 P. 4-36
BK0266800US.book
158 ページ ２０１８年６月２７日　水曜日　午後５時６分

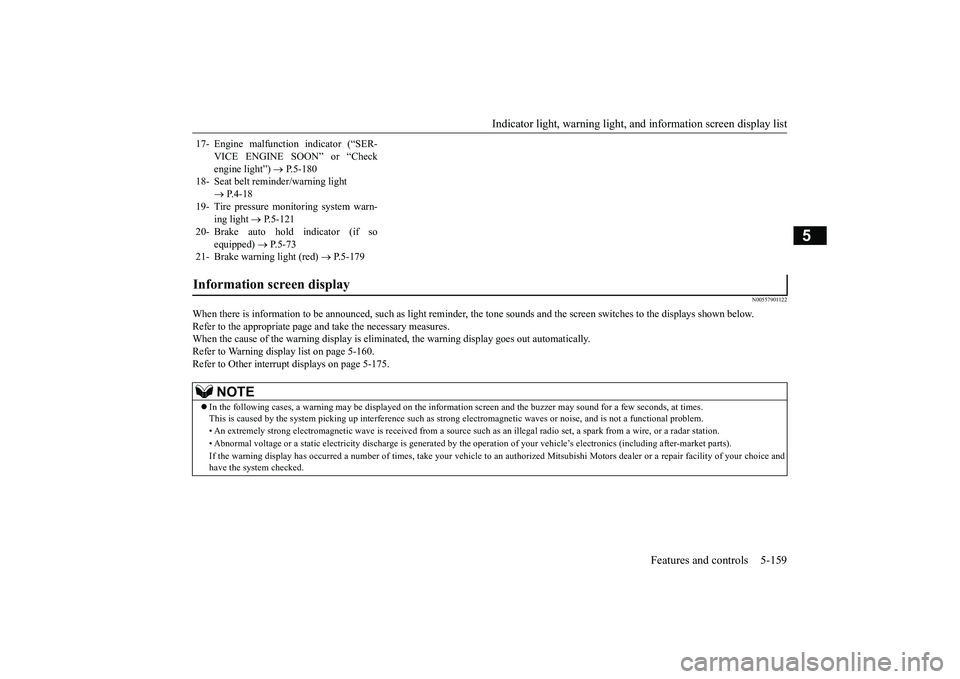

Indicator light, warning light, an
d information screen display list Features and controls 5-159
5
N00557901122
When there is information to be announced, such as light reminder,
the tone sounds and the screen switches to the displays show
n below.
Refer to the appropriate page and take the necessary measures.When the cause of the warning display is eliminated, the warning display goes out automatically. Refer to Warning display list on page 5-160. Refer to Other interrupt displays on page 5-175. 17- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Checkengine light”)
 P.5-180
18- Seat belt reminder/warning light
 P.4-18
19- Tire pressure monitoring system warn-
ing light
 P.5-121
20- Brake auto hold indicator (if so
equipped)
 P.5-73
21- Brake warning light (red)
 P.5-179
Information screen display
NOTE
In the following cases, a warning may be displayed on the informa
tion screen and the buzzer may sound for a few seconds, at tim
es.
This is caused by the system picking up interference such as stro
ng electromagnetic waves or nois
e, and is not a functional pro
blem.
• An extremely strong electromagnetic wave is received from a source
such as an illegal radio set,
a spark from a wire, or a rad
ar station.
• Abnormal voltage or a static electricity discharge is genera
ted by the operation of your vehicle’s electronics (including afte
r-market parts).
If the warning display has occurred a number of times, take your ve
hicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and
have the system checked.
BK0266800US.book
159 ページ ２０１８年６月２７日　水曜日　午後５時６分

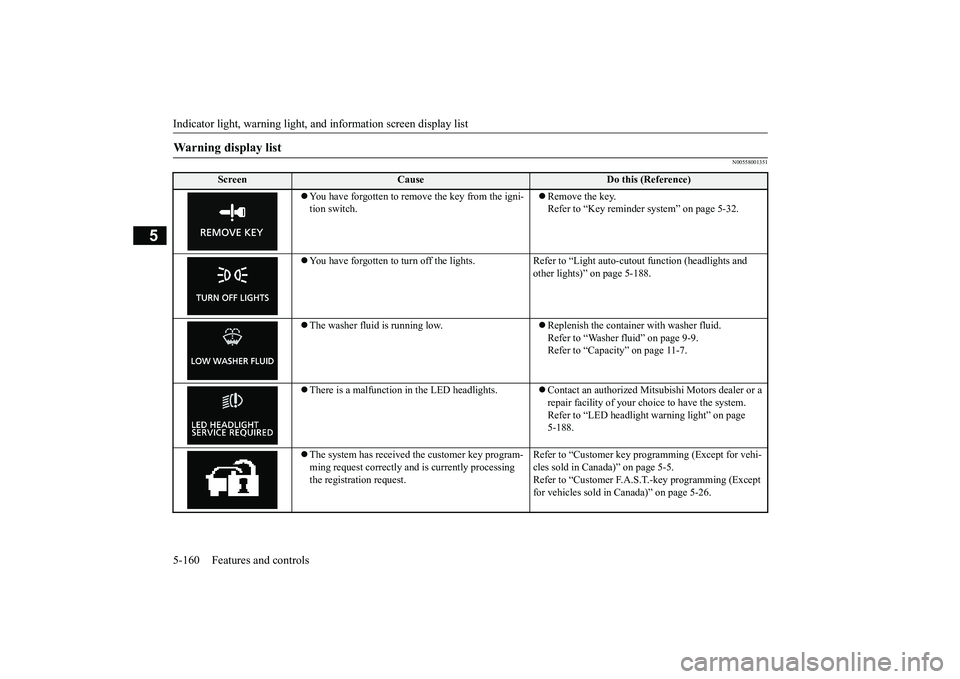

Indicator light, warning light, an
d information screen display list
5-160 Features and controls
5
N00558001351
Warning display list
Screen
Cause
Do this (Reference)
 You have forgotten to remove the key from the igni- tion switch.
 Remove the key. Refer to “Key reminder system” on page 5-32.
 You have forgotten to turn off the lights. Refer
to “Light auto-cutout function (headlights and
other lights)” on page 5-188.
 The washer fluid is running low.
Replenish the container with washer fluid. Refer to “Washer fluid” on page 9-9. Refer to “Capacity” on page 11-7.
 There is a malfunction in the LED headlights.
Contact an authorized Mitsub
ishi Motors dealer or a
repair facility of your choice to have the system. Refer to “LED headlight warning light” on page 5-188.
 The system has received the customer key program- ming request correctly and is currently processing the registration request.
Refer to “Customer key programming (Except for vehi- cles sold in Canada)” on page 5-5.Refer to “Customer F.A.S.T.-key programming (Except for vehicles sold in Canada)” on page 5-26.
BK0266800US.book
160 ページ ２０１８年６月２７日　水曜日　午後５時６分

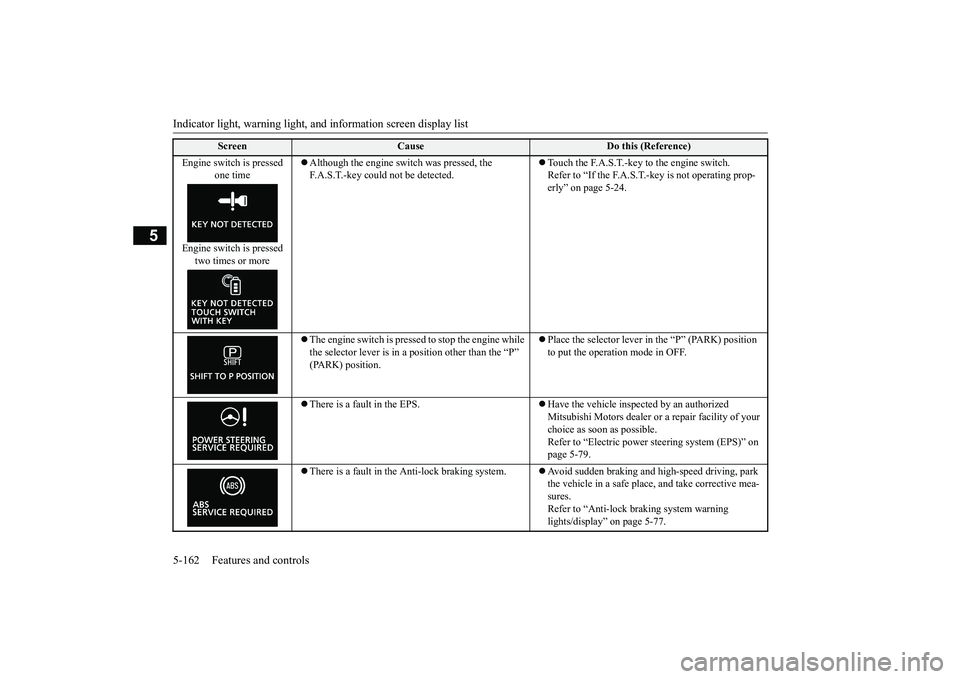

Indicator light, warning light, an
d information screen display list
5-162 Features and controls
5
Engine switch is pressed
one time
Engine switch is pressed
two times or more
 Although the engine switch was pressed, the F.A.S.T.-key could not be detected.
 Touch the F.A.S.T.-key to the engine switch. Refer to “If the F.A.S.T.-key is not operating prop- erly” on page 5-24.
 The engine switch is pressed to stop the engine while the selector lever is in a position other than the “P” (PARK) position.
 Place the selector lever in the “P” (PARK) position to put the operation mode in OFF.
 There is a fault in the EPS.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. Refer to “Electric power
steering system (EPS)” on
page 5-79.
 There is a fault in the Anti-lock braking system.
Avoid sudden braking and high-speed driving, park the vehicle in a safe place, and take corrective mea- sures. Refer to “Anti-lock braking system warning lights/display” on page 5-77.
Screen
Cause
Do this (Reference)
BK0266800US.book
162 ページ ２０１８年６月２７日　水曜日　午後５時６分

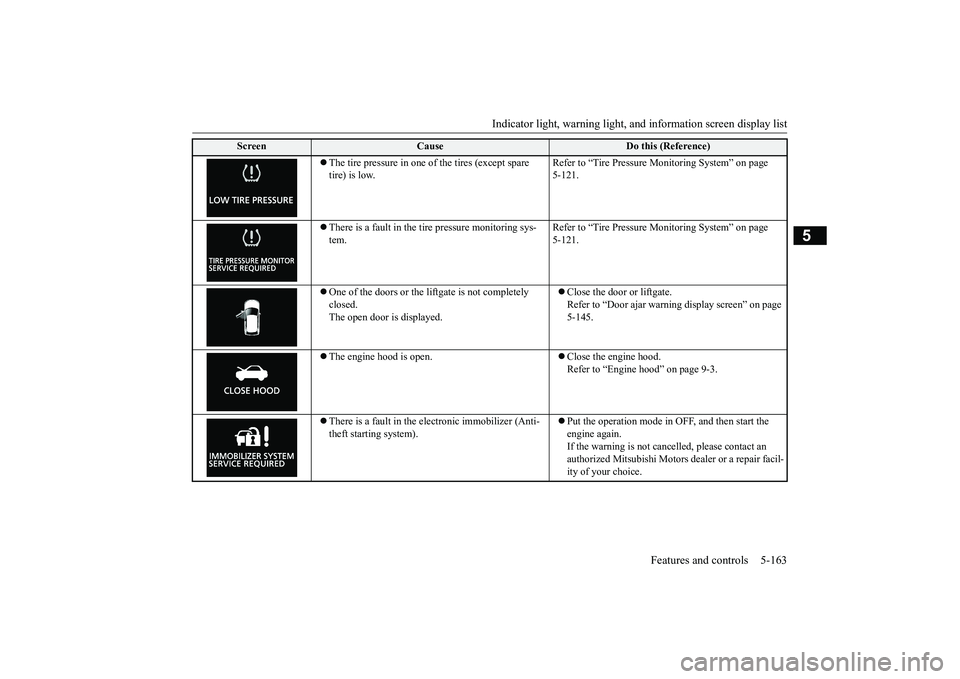

Indicator light, warning light, an
d information screen display list Features and controls 5-163
5
 The tire pressure in one of the tires (except spare tire) is low.
Refer to “Tire Pressure Monitoring System” on page 5-121.
 There is a fault in the tire pressure monitoring sys- tem.
Refer to “Tire Pressure Monitoring System” on page 5-121.
 One of the doors or the liftgate is not completely closed. The open door is displayed.
 Close the door or liftgate. Refer to “Door ajar warning display screen” on page 5-145.
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 There is a fault in the electronic immobilizer (Anti- theft starting system).
 Put the operation mode in OFF, and then start the engine again. If the warning is not cancelled, please contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice.
Screen
Cause
Do this (Reference)
BK0266800US.book
163 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list
5-164 Features and controls
5
 The driver’s door is open when the operation mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Operation mode ON reminder system” on page 5-33.
 An attempt was made to lock all the doors and the liftgate when the operation mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Operation mode OFF reminder system” on page 5-19.
 There is a fault in the electrical system.
Park your vehicle in a safe
place as soon as possible
and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 8-4.
 The automatic transaxle or CVT fluid temperature is increased.
 Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable transmission (CVT)” on page 5-59.
 The seat belt is not fastened when the ignition switch or operation mode is in ON.
 Wear your seat belt properly. Refer to “Driver’s seat belt reminder/warning light and display” on page 4-18.
Screen
Cause
Do this (Reference)
