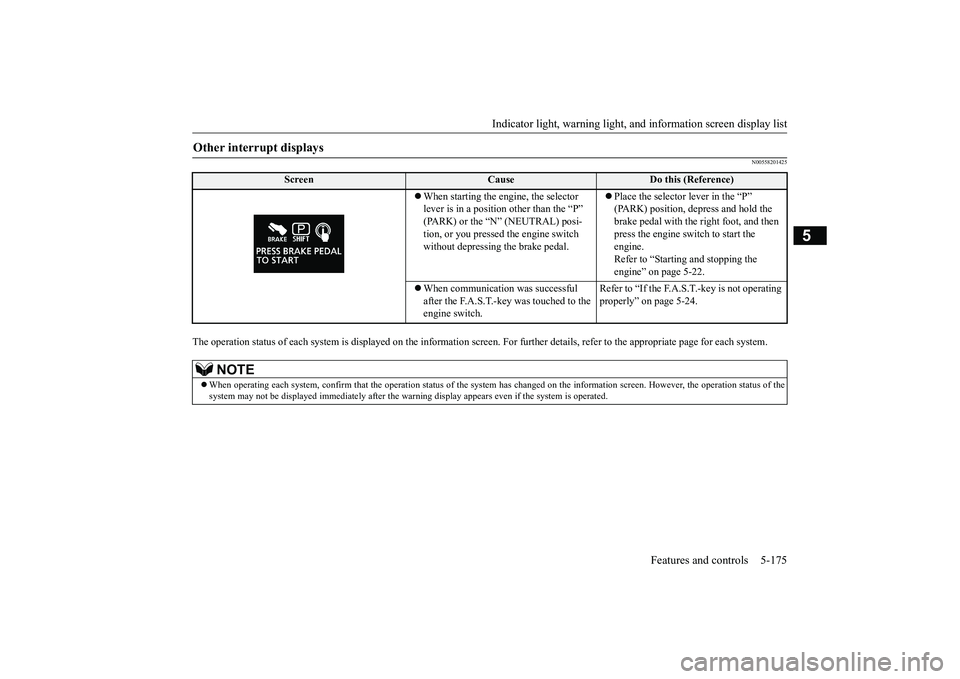

System control MITSUBISHI ECLIPSE CROSS 2019 Owner's Manual (in English)

Indicator light, warning light, an
d information screen display list Features and controls 5-175
5
N00558201425
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page
for each system.
Other interrupt displays
Screen
Cause
Do this (Reference)
 When starting the engine, the selector lever is in a position other than the “P” (PARK) or the “N” (NEUTRAL) posi- tion, or you pressed the engine switch without depressing the brake pedal.
 Place the selector lever in the “P” (PARK) position, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-22.
 When communication was successful after the F.A.S.T.-key was touched to the engine switch.
Refer to “If the F.A.S.T.-key is not operating properly” on page 5-24.
NOTE
 When operating each system, confirm that the operation status of
the system has changed on the information screen. However, the
operation status of the
system may not be displayed immediately after the warn
ing display appears even if the system is operated.
BK0266800US.book
175 ページ ２０１８年６月２７日　水曜日　午後５時６分

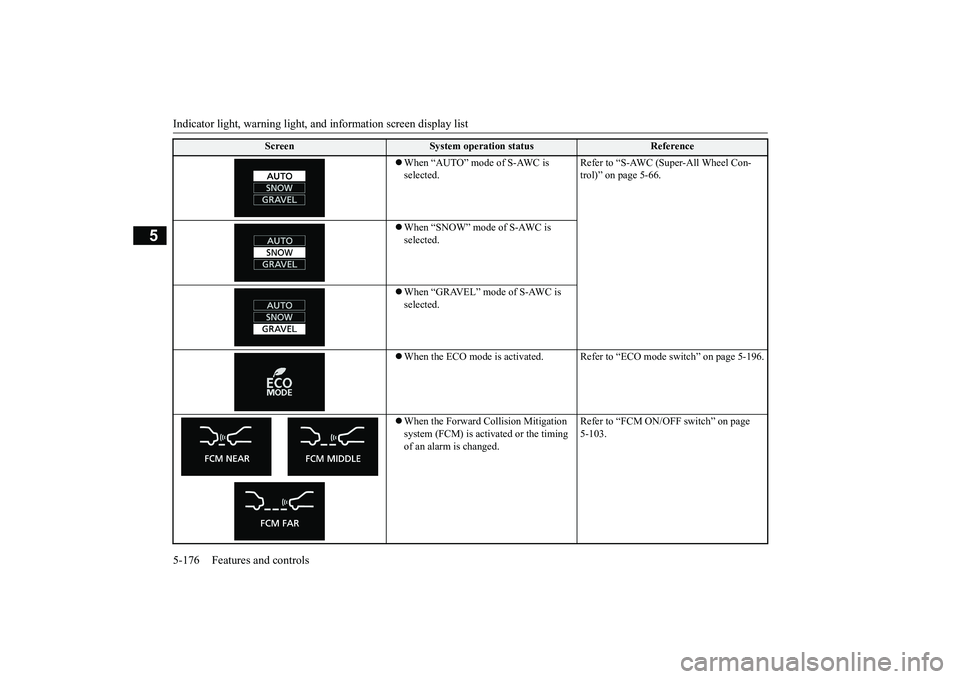

Indicator light, warning light, an
d information screen display list
5-176 Features and controls
5
Screen
System operation status
Reference
 When “AUTO” mode of S-AWC is selected.
Refer to “S-AWC (Super-All Wheel Con- trol)” on page 5-66.
 When “SNOW” mode of S-AWC is selected.  When “GRAVEL” mode of S-AWC is selected.  When the ECO mode is activated. Refer to “ECO mode switch” on page 5-196.  When the Forward Collision Mitigation system (FCM) is activated or the timing of an alarm is changed.
Refer to “FCM ON/OFF switch” on page 5-103.
BK0266800US.book
176 ページ ２０１８年６月２７日　水曜日　午後５時６分

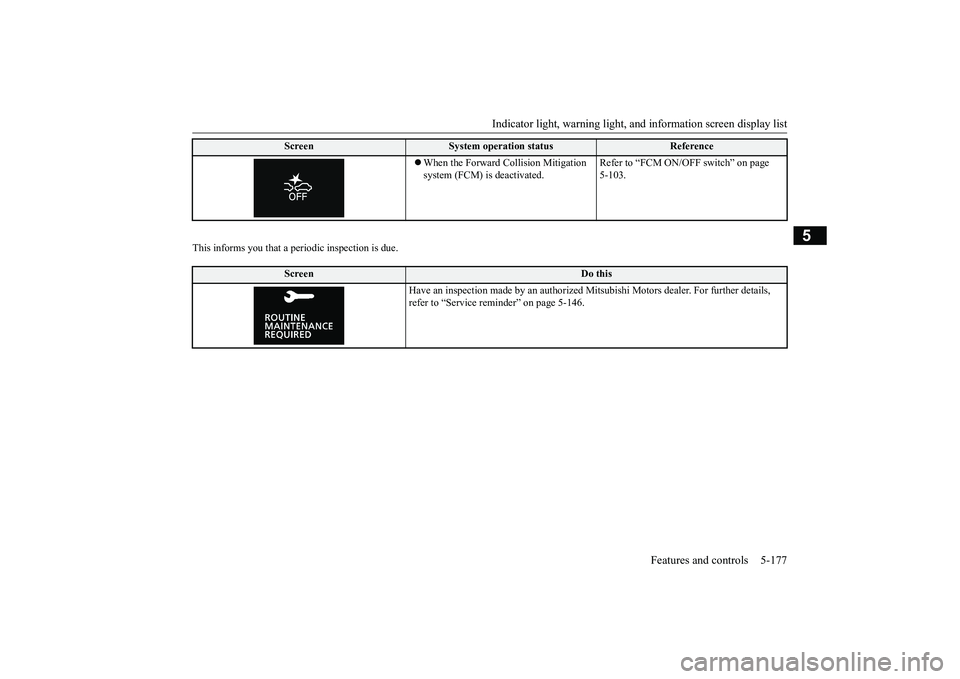

Indicator light, warning light, an
d information screen display list Features and controls 5-177
5
This informs you that a periodic inspection is due.
 When the Forward Collision Mitigation system (FCM) is deactivated.
Refer to “FCM ON/OFF switch” on page 5-103.
Screen
Do this
Have an inspection made by an authorized M
itsubishi Motors dealer. For further details,
refer to “Service reminder” on page 5-146.
Screen
System operation status
Reference
BK0266800US.book
177 ページ ２０１８年６月２７日　水曜日　午後５時６分

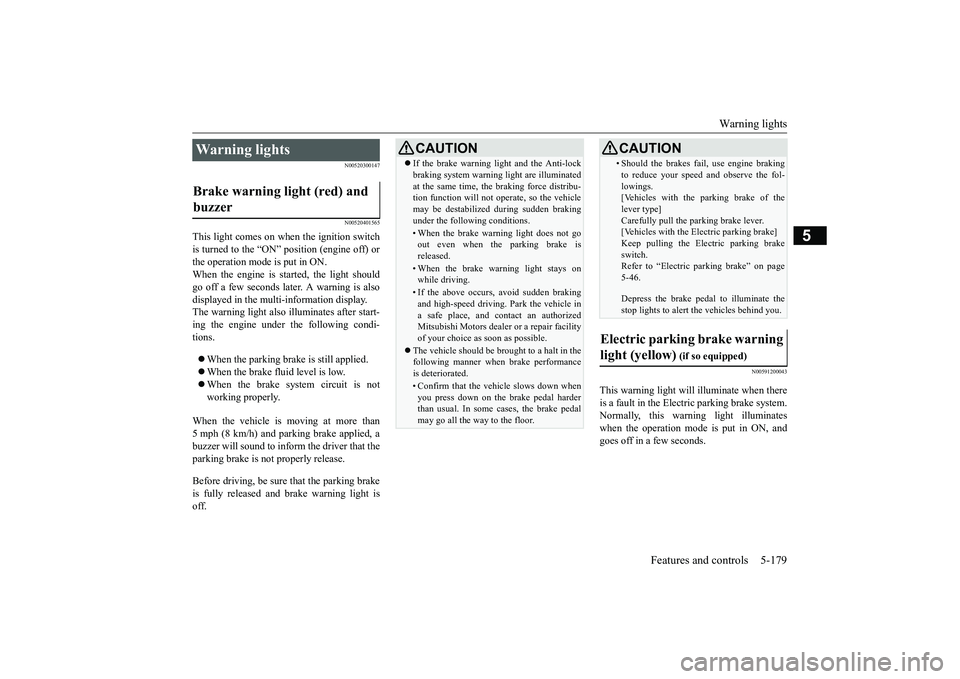

Warning lights
Features and controls 5-179
5
N00520300147 N00520401565
This light comes on when the ignition switch is turned to the “ON” position (engine off) or the operation mode is put in ON. When the engine is started, the light shouldgo off a few seconds later. A warning is alsodisplayed in the multi-information display. The warning light also illuminates after start- ing the engine under the following condi-tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
When the vehicle is moving at more than 5 mph (8 km/h) and parking brake applied, a buzzer will sound to inform the driver that theparking brake is not properly release. Before driving, be sure that the parking brake is fully released and brake warning light is off.
N00591200043
This warning light will
illuminate when there
is a fault in the Electric parking brake system. Normally, this warning light illuminateswhen the operation mode is put in ON, and goes off in a few seconds.
Warning lights Brake warning light (red) and buzzer
CAUTION If the brake warning light and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribu- tion function will not operate, so the vehicle may be destabilized during sudden brakingunder the following conditions.• When the brake warning light does not goout even when the parking brake is released.• When the brake warning light stays onwhile driving.• If the above occurs, avoid sudden brakingand high-speed driving. Park the vehicle in a safe place, and contact an authorizedMitsubishi Motors dealer or a repair facility of your choice as soon as possible.
 The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harderthan usual. In some cases, the brake pedal may go all the way to the floor.
• Should the brakes fail, use engine brakingto reduce your speed and observe the fol- lowings. [Vehicles with the parking brake of the lever type]Carefully pull the parking brake lever. [Vehicles with the Electric parking brake] Keep pulling the Electric parking brakeswitch. Refer to “Electric parking brake” on page 5-46. Depress the brake pedal to illuminate the stop lights to alert the vehicles behind you.
Electric parking brake warning light (yellow)
(if so equipped)
CAUTION
BK0266800US.book
179 ページ ２０１８年６月２７日　水曜日　午後５時６分

Warning lights 5-180 Features and controls
5
N00520501856
This indicator is a part of the onboard diag- nostic (OBD) system which monitors the emissions, engine contro
l system or continu-
ously variable transmission (CVT) control system. If a problem is detected in one of these systems, this indicator illuminates orflashes. When the ignition switch is turned to the “ON” position or the operation mode is put in ON, this indicator normally comes onand goes off after the engine has started. This indicator will come on if the fuel tank filler cap is not properly tightened. If this
indicator comes on and stays on after refuel- ing, stop the engine an
d check that the cap is
properly tightened. (Turn the cap clockwise until you hear clicking sounds.)If this indicator does not go off after several seconds or lights up while driving, have the system checked as soon as possible at anauthorized Mitsubishi Motors dealer or a repair facility of your choice.
CAUTION When the warning light remains on or does not come on, there is the possibility that the parking brake cannot be operated or released. Immediately contact the nearest authorized Mitsubishi Motors dealer. Whenthe warning light comes on during driving, immediately stop the vehicle in a safe place, and contact an authorized Mitsubishi Motorsdealer. If you inevitably have to park, park the vehicle on level and stable ground, shift the selector lever in “P” (PARK) positionand place chocks or blocks.
Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”)
CAUTION Driving for a long time with the engine mal- function indicator on may cause more dam- age to the emission control system. This could also affect fuel economy and drivabil-ity. If this indicator does not come on when the ignition switch is turned to the “ON” posi- tion or the operation mode is put in ON, have the system checked at an authorizedMitsubishi Motors dealer or a repair facility of your choice.
 If the engine malfunction indicator comes on while the engine is running, avoid driving at high speeds. During vehicle operation with the indicator on, the vehicle may not accelerate when youdepress the accelerator pedal. When the vehicle is stationary with the indi- cator on, you must depress the brake pedalmore firmly than usual since the engine idling speed is higher than usual and a vehi- cle with continuously variable transmission(CVT) has a stronger tendency to creep for- ward.NOTE
 Do not disconnect the battery cable when the engine malfunction indicator (“SERVICEENGINE SOON” or “Check engine light”) is on. The engine electronic control module storescritical OBD information (especially exhaust emission data), which may be lost if the bat- tery cable is disconnected while the enginemalfunction indicator is on. This will make it difficult to diagnose the cause of future prob- lems.CAUTION
BK0266800US.book
180 ページ ２０１８年６月２７日　水曜日　午後５時６分

Information screen display
Features and controls 5-181
5
N00520601349
This light comes on in the event of a malfunc- tion in the charging system or when the igni-tion switch is turned to the “ON” position (engine off) or the operation mode is put in ON. The warning is also displayed in themulti-information display. When the engine is started, the light should go out. Check to make sure that the light has gone out beforedriving.
N00558301077 N00558401182
This warning is displayed if the vehicle is being driven with the parking brake still applied. The brake warning light in the instru- ment cluster only comes on when the parkingbrake is applied. For details, refer to “Brake warning light (red) and buzzer” on page 5-179. When the ignition switch is turned to the “ON” position or the operation mode is put in ON, if the brake fluid is low, this warning isdisplayed. The brake warning light in the instrument cluster also illuminates.For details, refer to “Brake warning light (red) and buzzer” on page 5-179.
Charging system warning light
CAUTION If the warning light stays on while the engine is running, park your vehicle in a safe place as soon as possible and contact an authorizedMitsubishi Motors dealer or a repair facility of your choice to have the system checked.
Information screen display Brake warning display
CAUTION If a vehicle is driven without releasing the parking brake, the brakes will overheat,resulting in ineffective braking and possible brake failure. If this warning is displayed, release the park-ing brake.
CAUTION If this warning stays on and does not go out while driving, there is a danger of ineffective braking. If this happens, park the vehicle in a safe place, and contact an authorized Mitsubishi Motors dealer or a repair facilityof your choice. If the brake warning display, brake warning light, and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribution functionwill not operate, so the vehicle may be desta- bilized during sudden braking. Avoid sudden braking and high-speed driving. Park thevehicle in a safe place, and contact an autho- rized Mitsubishi Motors dealer or a repair facility of your choice. The vehicle should be brought to a halt in the following manner when brake performanceis deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harder than usual. In some cases, the brake pedal may go all the way to the floor.
BK0266800US.book
181 ページ ２０１８年６月２７日　水曜日　午後５時６分

Head Up Display (HUD) (if so equipped) 5-182 Features and controls
5
N00558601126
If there is a fault in
the charging system, the
warning display is displayed on the informa- tion screen in the multi-information display.The charge warning light in the instrument cluster also illuminates.
N00558701127
If the engine oil pressure drops while the engine is running, the warning display is dis- played on the information screen in the multi- information display.
N00594300032
The Head Up Display (HUD) shows informa-tion on a transparent display so that you can easily check the following information while looking ahead when driving. Displayed information: Vehicle speed  Auto-speed (cruise) control information  Adaptive Cruise Control System (ACC) information
• Should the brakes fail, use engine braking to reduce your speed and observe the fol- lowings. [Vehicles with the parking brake of the lever type]Carefully pull the parking brake lever. [Vehicles with the Electric parking brake] Keep pulling the Electric parking brakeswitch. (Refer to “Electric parking brake” on page 5-46.) Depress the brake pedal to illuminate the stop lights to alert the vehicles behind you.
Charging system warning dis- play
CAUTION
CAUTION If warnings are displayed while the engine is running, park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
Oil pressure warning display
CAUTION If the vehicle is driven while the engine oil is low, or the oil level is normal but the warn- ing is displayed, the engine may overheat and damage may result. If the warning is displayed while the engine is running, park your vehicle in a safe place as soon as possible and check the engine oillevel.
 If this warning display comes on when the engine oil level is proper, have your vehicle checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.NOTE
 The oil pressure warning display does not show the amount of oil. The oil level must bechecked using the dipstick.
Head Up Display (HUD)
(if so
equipped)
CAUTION
BK0266800US.book
182 ページ ２０１８年６月２７日　水曜日　午後５時６分

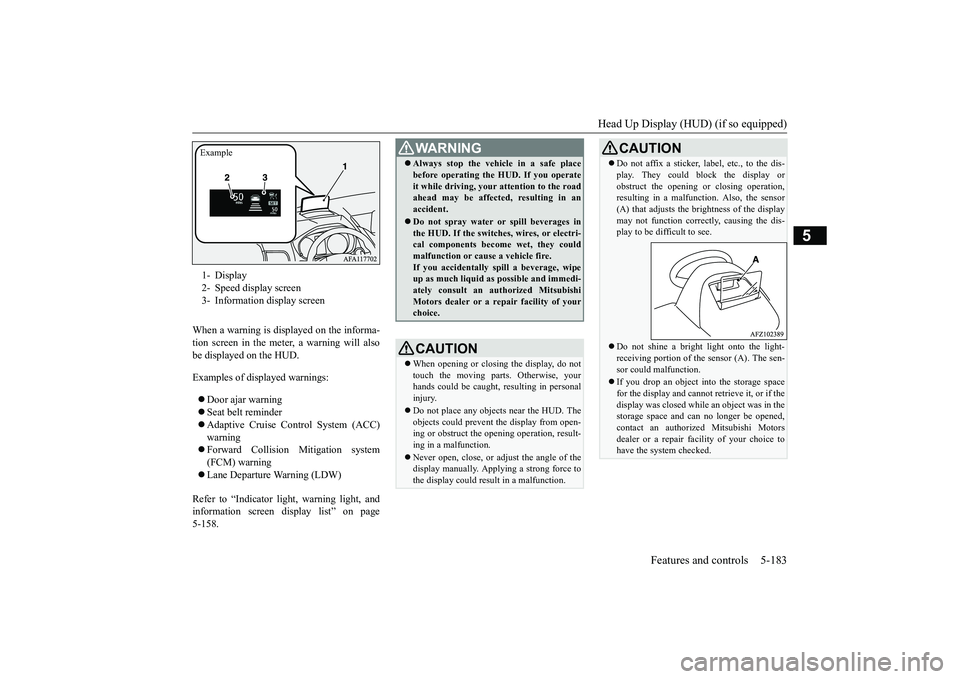

Head Up Display (HUD) (if so equipped)
Features and controls 5-183
5
When a warning is displayed on the informa- tion screen in the meter, a warning will also be displayed on the HUD. Examples of displayed warnings:  Door ajar warning  Seat belt reminder  Adaptive Cruise Control System (ACC) warning  Forward Collision Mitigation system (FCM) warning Lane Departure Warning (LDW)
Refer to “Indicator light, warning light, and information screen display list” on page 5-158. 1- Display 2- Speed display screen 3- Information display screen Example
WA R N I N G  Always stop the vehicle in a safe place before operating the HUD. If you operate it while driving, your attention to the road ahead may be affected, resulting in an accident. Do not spray water or spill beverages in the HUD. If the switches, wires, or electri-cal components become wet, they could malfunction or cause a vehicle fire. If you accidentally spill a beverage, wipeup as much liquid as possible and immedi- ately consult an authorized Mitsubishi Motors dealer or a repair facility of yourchoice.CAUTION When opening or closing the display, do not touch the moving parts. Otherwise, yourhands could be caught, resulting in personal injury. Do not place any objects near the HUD. The objects could prevent the display from open- ing or obstruct the opening operation, result-ing in a malfunction. Never open, close, or adjust the angle of the display manually. Applying a strong force to the display could result in a malfunction.
 Do not affix a sticker, label, etc., to the dis- play. They could block the display or obstruct the opening or closing operation, resulting in a malfunction. Also, the sensor (A) that adjusts the brightness of the displaymay not function correctly, causing the dis- play to be difficult to see. Do not shine a bright light onto the light- receiving portion of the sensor (A). The sen- sor could malfunction. If you drop an object
into the storage space
for the display and cannot retrieve it, or if the display was closed while an object was in thestorage space and can no longer be opened, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice tohave the system checked.CAUTION
BK0266800US.book
183 ページ ２０１８年６月２７日　水曜日　午後５時６分

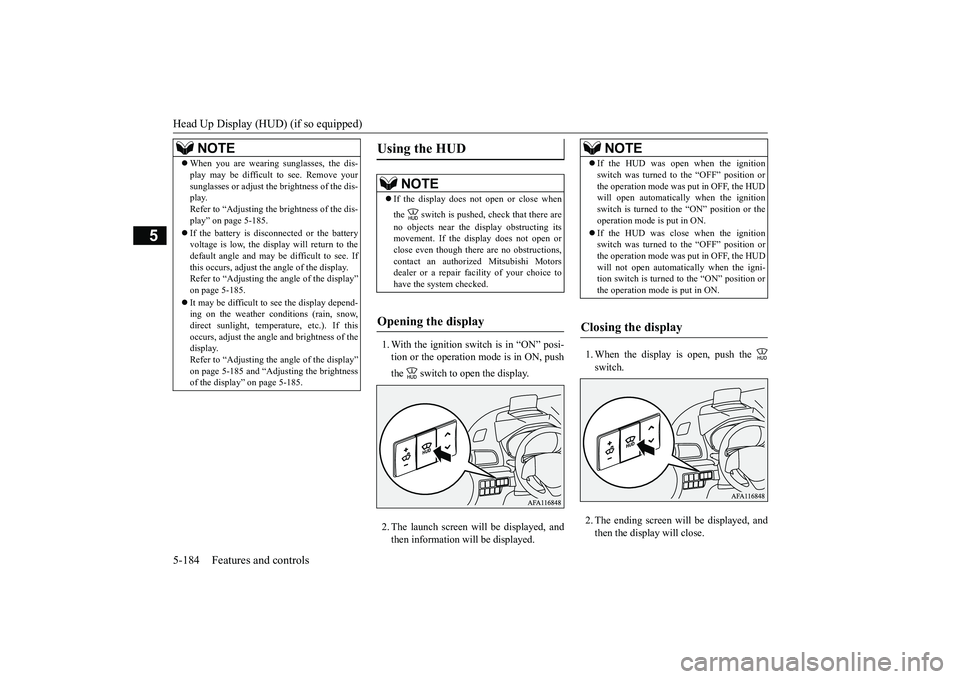

Head Up Display (HUD) (if so equipped) 5-184 Features and controls
5
1. With the ignition switch is in “ON” posi- tion or the operation mode is in ON, push the switch to open the display. 2. The launch screen will be displayed, and then information will be displayed.
1. When the display is open, push the switch. 2. The ending screen will be displayed, and then the display will close.
NOTE
 When you are wearing sunglasses, the dis- play may be difficult to see. Remove your sunglasses or adjust the brightness of the dis- play. Refer to “Adjusting the brightness of the dis-play” on page 5-185.  If the battery is disconnected or the battery voltage is low, the display will return to the default angle and may be difficult to see. If this occurs, adjust the angle of the display.Refer to “Adjusting the angle of the display” on page 5-185.  It may be difficult to see the display depend- ing on the weather conditions (rain, snow, direct sunlight, temperature, etc.). If thisoccurs, adjust the angle and brightness of the display. Refer to “Adjusting the angle of the display”on page 5-185 and “Adjusting the brightness of the display” on page 5-185.
Using the HUD

NOTE
 If the display does not open or close when the switch is pushed, check that there are no objects near the display obstructing its movement. If the display does not open or close even though there are no obstructions, contact an authorized Mitsubishi Motorsdealer or a repair faci
lity of your choice to
have the system checked.
Opening the display

NOTE
 If the HUD was open when the ignition switch was turned to the “OFF” position or the operation mode was put in OFF, the HUD will open automatically when the ignition switch is turned to the “ON” position or theoperation mode is put in ON.  If the HUD was close when the ignition switch was turned to the “OFF” position or the operation mode was put in OFF, the HUD will not open automatically when the igni-tion switch is turned to the “ON” position or the operation mode is put in ON.
Closing the display

BK0266800US.book
184 ページ ２０１８年６月２７日　水曜日　午後５時６分

Combination headlights and dimmer switch
Features and controls 5-187
5
Rotate the switch to operate the lights. The combinations of switch operations and illuminated lights differ in accordance with the following conditions. [When the engine is started, and the parking brake is released]
[When the engine is not running, or when the engine is running but the parking brake is not released] The engine starts when the lights are off.
Ty p e 2 OFF
The daytime running lights illumi- nated
AUTO
The daytime running lights illumi- nated (when it is light outside the vehicle) Headlights and other lights turn on and off automatically in accor- dance with outside light level.
The daytime running lights illumi-nated Tail, front and rear side-marker lights, license plate and instrument panel lights on Headlights and other lights on
NOTE
 Once the daytime running light come on, they do not go out until the ignition switch is turned to the “OFF” or “ACC” position or the operation mode is changed to OFF orACC.OFF All lights off AUTO
Headlights and other lights turn on and off automatically in accor- dance with outside light level. Parking, tail, front and rear side- marker lights, license plate and instrument panel lights on Headlights and other lights on
NOTE
 The sensitivity of the automatic on/off con- trol can be adjusted. For further information, please contact your authorized Mitsubishi Motors dealer or a repair facility of your choice.As your vehicle is equipped with Smart- phone Link Display Audio, screen operations can be used to make the adjustment.Refer to the separate owner’s manual for details.  Do not cover the sensor (A) for the automatic on/off control by affixing a sticker or label to the windshield.  If the lights do not turn on or off with the switch in the “AUTO” position, manually operate the switch. Have the system checkedby an authorized Mitsubishi Motors dealer or a repair facility of your choice.
BK0266800US.book
187 ページ ２０１８年６月２７日　水曜日　午後５時６分
