Forward Collision Mitigation system (FCM) (if so equipped)
5-112 Features and controls
5
CAUTION To maintain proper performance of the FCM,
LDW, AHB and ACC;Forward Collision Mitigation system (FCM)Forward Collision Mitigation system with
High-Speed Braking Capability (FCM-HSBC)
• Always keep clean the windshield and front
bumper.
If the inside of the windshield where the
sensor is installed becomes dirty or fogged,
contact an authorized Mitsubishi Motors
dealer.• Do not apply an impact or load on the sen-sor or its surrounding area.• Do not put anything including a sticker orfilm to the outer side of windshield in front
of or surrounding the area of the sensor.
Also, do not put anything including a
sticker of film to inner side of the wind-
shield under the sensor.• Do not attempt to detach or disassemble the
sensor and sensor mounting screw.• The sensor front cover should not be modi-fied or painted.• Do not cover the sensor mounted area witha license plate or anything such as a grill
guard, etc. {Forward Collision Mitigation
system with High-Speed Braking Capabil-
ity (FCM-HSBC) only}CAUTION
• If the windshield is misted, remove the mistfrom the windshield by using the defogger
switch.• Maintain the wiper blades in good condi-tion. Refer to “Wiper blades” on page 9-39.
When replacing the wiper blades, use only
Mitsubishi Motors Genuine parts or equiva-
lent.• Do not dirty or damage the sensor.• Do not spray glass cleaner on the sensor.Also, do not spill liquid, such as a bever-
age, on the sensor.• Do not install an electronic device, such asan antenna, or a device that emits strong
electric waves, near the sensor.• Always use tires of the same size, same
type and same brand, and which have no
significant wear differences.• Do not modify the vehicle’s suspensions. If the windshield in front of the sensor or in
the surrounding area of the sensor is cracked
or scratched, the sensor may not detect an
object properly. This could cause a serious
accident. Turn off the FCM and have your
vehicle inspected as soon as possible at an
authorized Mitsubishi Motors dealer.
If you need to replace the windshield, con-
tact an authorized Mitsubishi Motors dealer.The sensor emits infrared rays when the
operation mode is in ON. Do not look into
the sensor by using optical goods such as a
magnifying glass. The infrared ray might
injure your eyes.CAUTION
BK0277700US.book 112 ページ ２０１９年３月１２日　火曜日　午前９時３５分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped)
5-114 Features and controls
5
N00593500112
When the ignition switch is turned to the “ON” position or the operation mode is put in
WA R N I N G In certain situations, the BSW may not detect a vehicle in the detection areas orthe detection may be delayed. Some of these include;• When a small motorcycle or a bicycle isbehind your vehicle.• When a vehicle is traveling alongside ofyour vehicle at nearly the same speed for prolonged periods of time.
• When the heights of the next lane and your lane are different.• Immediately after the BSW has been turned on.• Immediately after the ignition switch isturned to the “ON” position or the oper-ation mode is put in ON.• Under adverse weather conditions, suchas rain, snow, strong winds, snow or sand storm.• When your vehicle becomes too close toanother vehicle.• While multiple vehicle are overtakingyour vehicle.• When driving near a pot hole and tram-line.• When a surrounding vehicle or anoncoming vehicle is splashing water, snow or dirt.• When driving on a curve including thebeginning and the end of the curve.• When driving on a road with alternatingup and down steep slopes.• When driving on a bumpy or rough road.• When the rear of your vehicle is weighed down or your vehicle is leaning to the right or left due to the weight of passen- gers and luggage or the improper adjust- ment of tire pressure. • When the bumper surface around theradar sensor is covered with dirt, snowand ice, etc.WA R N I N G
• When a bicycle carrier or accessory is installed to the rear of the vehicle.• When the sensor is extremely hot or cold (while the vehicle is parked for a longperiod of time under a blazing sun or in cold weather).CAUTION To maintain proper performance of the BSW, follow the instructions below.• Always keep the bumper surface around thesensor clean.• Avoid impacting the sensor or its surround-ing area.• Do not put a sticker on the sensor or its sur-rounding bumper surface.• Do not paint the sensor or its surroundingbumper surface.• Do not modify the sensor or its surroundingarea.
 If the bumper has experienced an impact, the sensor may have been damaged and the BSWmay not function properly. Have the vehicle inspected at an authorized Mitsubishi Motors dealer.
To operate

WA R N I N G
BK0277700US.book
114 ページ ２０１９年３月８日　金曜日　午前９時２３分

Rear Cross Traffic Alert (RCTA) (if so equipped) 5-120 Features and controls
5
The detection area is shown as illustrated.
1. Select “ON” in the “BSW” setting screen of the multi-information display.(Refer to “Blind Spot Warning (BSW): Tooperate” on page 5-114.) 2. When the selector lever is moved to the “R” (REVERSE) position, the RCTA willoperate.
If the system detects a problem, a warning is displayed on the information screen in themulti-information display.
Detection areas

CAUTION In certain situations, the RCTA may not detect a vehicle in the detection areas. Some of these situations include;• When the reversing speed of your vehicle is approximately 11 mph (18 km/h) or higher.
• When the speed of an approaching vehicle is approximately 4 mph (7 km/h) or less.• If the sensor detection area is blocked by a nearby object, such as wall or parked vehi-cle.• When a vehicle is approaching fromstraight behind your vehicle.• When your vehicle is exiting from anangled parking spot.• Immediately after the RCTA has beenturned on.• Immediately after the ignition switch isturned to the “ON” position or the opera- tion mode is put in ON.• When the bumper surface around the sensoris covered with dirt, snow and ice, etc.• When the sensor becomes extremely hot orcold, such as after the vehicle has been parked for a prolonged time under the blaz- ing sun or in cold weather.CAUTION
 If the bumper has experienced an impact, the sensor may have been damaged and the RCTA may not function properly. Have the vehicle inspected at an authorized Mitsubishi Motors dealer.
To operate

NOTE
 Set the RCTA to OFF when towing.  The BSW light in the outside rearview mir- ror may not be visible due to strong directsunlight or the glare from the headlights of vehicles behind you during night driving.
When a problem is detected in the system

CAUTION
BK0277700US.book
120 ページ ２０１９年３月８日　金曜日　午前９時２３分

Tire pressure monitoring system (TPMS)
Features and controls 5-127
5
N00532701389
When the ignition switch is turned to the “ON” position or the operation mode is put inON, the tire pressure monitoring system
warning light normally illuminates and goes off a few seconds later. If one or more of the vehicle tires (except for the spare tire) is significantly under-inflated, the warning light will remain illuminatedwhile the ignition switch is in the “ON” posi- tion or the operation mode is put in ON. Refer to “If the warning light / display illumi-nates while driving” on page 5-129 and take the necessary measures.
NOTE
 The TPMS is not a substitute for regularly checking tire inflation pressures. Be sure to check the tire inflation pressures as described in “Tires” on page 9-12.  The tire inflation pressure sensor (B) is installed in the illustrated location. • On vehicles equipped with Type 1 sensor which has the metallic air valve (C), replace grommet and washer (D) with the new oneswhen the tire is replaced. • On vehicles equipped with Type 2 sensor which has the rubber air valve (E), replace rubber air valve (E) with new one when the tire is replaced.
For details, please contact your authorized Mitsubishi Motors dealer.
Tire pressure monitoring sys- tem warning light / display
NOTE
Type 1Type 2
NOTE
 In addition, the warning display is displayed on the information screen in the multi-infor- mation display.
BK0277700US.book
127 ページ ２０１９年３月８日　金曜日　午前９時２３分

Tire pressure monitoring system (TPMS) 5-128 Features and controls
5
Each tire, including the spare (if provided), should be checked monthly when cold andinflated to the inflation pressure recom- mended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label.(If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you shoulddetermine the proper tire inflation pressure for those tires.) As an added safety feature, your vehicle hasbeen equipped with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure telltale when one or more of yourtires is significantly under-inflated. Accordingly, when the low tire pressure tell- tale illuminates, you should stop and checkyour tires as soon as possible, and inflate them to the proper pressure. Driving on a sig- nificantly under-inflated tire causes the tire tooverheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehi- cle’s handling and stopping ability. Please note that the TPMS is not a substitute forproper tire maintenance, and it is the driver’s responsibility to maintain correct tire pres- sure, even if under-inflation has not reachedthe level to trigger illumination of the TPMS low tire pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate whenthe system is not operating properly. TheTPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, thetelltale will flash for approximately 1 minute and then remain continuously illuminated. This sequence will continue upon subsequentvehicle start-ups as long as the malfunction exists. When the malfunction indicator is illumi-nated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a varietyof reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from function-ing properly. Always check the TPMS mal- function telltale after replacing one or more tires or wheels on your vehicle to ensure thatthe replacement or alternate tires and wheels
CAUTION If the tire pressure monitoring system warn- ing light does not illuminate when the igni- tion switch is turned to the “ON” position or the operation mode is put in ON, it means that the tire pressure monitoring system isnot working properly. Have the system inspected by an authorized Mitsubishi Motors dealer.In such situations, a malfunctioning of the system may be preventing the monitoring of the tire pressure. Avoid sudden braking,sharp turning and high-speed driving. If a malfunction is detected in the tire pres- sure monitoring system, the tire pressure monitoring system warning light will blink for approximately 1 minute and then remaincontinuously illuminated. The warning light will issue further warnings each time the engine is restarted as long as the malfunctionexists. Check to see whether the warning light goes off after few minutes driving.If it then goes off during driving, there is no problem. However, if the warning light does not gooff, or if it blinks again when the engine is restarted, have the vehicle inspected by an authorized Mitsubishi Motors dealer. In such situations, a malfunctioning of the system may be preventing the monitoring ofthe tire pressure. For safety reasons, when the warning light appears while driving, avoid sudden braking, sharp turning andhigh-speed driving.
NOTE
 In addition, the warning display is displayed on the information screen in the multi-infor- mation display.
BK0277700US.book
128 ページ ２０１９年３月８日　金曜日　午前９時２３分

Instrument cluster 5-142 Features and controls
5
N00594200028

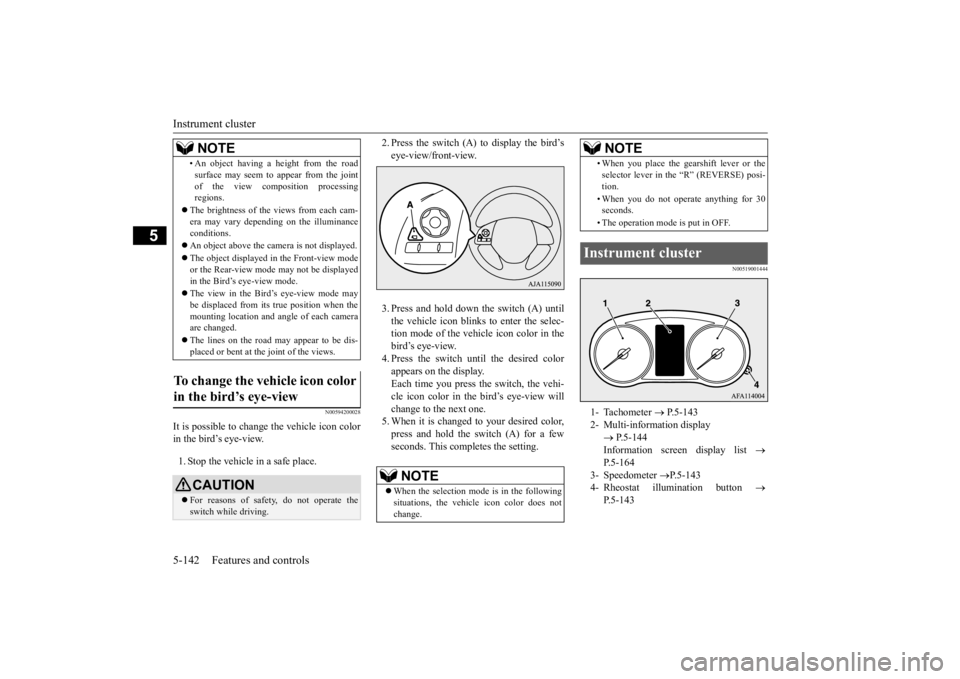

It is possible to change the vehicle icon color in the bird’s eye-view. 1. Stop the vehicle in a safe place.
2. Press the switch (A) to display the bird’s eye-view/front-view. 3. Press and hold down the switch (A) until the vehicle icon blinks to enter the selec- tion mode of the vehicle icon color in the bird’s eye-view.4. Press the switch until the desired color appears on the display. Each time you press the switch, the vehi-cle icon color in the bird’s eye-view willchange to the next one. 5. When it is changed to your desired color, press and hold the switch (A) for a fewseconds. This completes the setting.
N00519001444
• An object having a height from the road surface may seem to appear from the joint of the view composition processing regions.
 The brightness of the views from each cam- era may vary depending on the illuminance conditions.  An object above the camera is not displayed.  The object displayed in the Front-view mode or the Rear-view mode may not be displayed in the Bird’s eye-view mode.  The view in the Bird’s eye-view mode may be displaced from its true position when themounting location and angle of each camera are changed.  The lines on the road may appear to be dis- placed or bent at the joint of the views.
To change the vehicle icon color in the bird’s eye-view

CAUTION For reasons of safety, do not operate the switch while driving.NOTE
NOTE
 When the selection mode is in the following situations, the vehicle icon color does not change.
• When you place the gearshift lever or theselector lever in the “R” (REVERSE) posi- tion. • When you do not operate anything for 30 seconds. • The operation mode is put in OFF.
Instrument cluster 1- Tachometer
 P.5-143
2- Multi-information display
 P.5-144 Information screen display list

P.5-164
3- Speedometer
P.5-143
4- Rheostat illumination button

P.5-143NOTE
BK0277700US.book
142 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display 5-144 Features and controls
5
N00555001480
The multi-information display displays warn- ings, the odometer, trip odometer, service reminder, engine coolant temperature, fuelremaining, outside temperature, selector lever position, average and instant fuel consump- tion, driving range, average speed, etc. It is also possible to change elements such as the language and units used on the multi- information display.
[With ignition switch or operation mode in OFF]
 The brightness level of the instruments is stored when the ignition switch is turned to the “OFF” position or the operation mode is put in OFF.  If you press and hold the button for longer than approximately 2 second when the front side-marker lights are illuminated, thebrightness level changes to the maximum level. Pressing and holding the button for longer than approximately 2 second againreturns the brightness level to the previous level. On vehicles equipped with Smartphone LinkDisplay Audio, the map screen color may not be switched to nighttime setting when the meter illumination brightness level is at themaximum.
Multi-information display
NOTE
1-
Warning display screen
 P.5-149
2- Information screen
 P.5-146
Interrupt display screen
 P.5-149
3- Door ajar warning display screen
 P.5-150
4- Odometer
 P.5-151
5-
“ ” mark indicator
 P.5-149
BK0277700US.book
144 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display
Features and controls 5-145
5
[With ignition switch or operation mode in ON]
N00555101234
Each time the multi-information display switches are operated, the buzzer sounds and the multi-information display changesbetween information such as warnings, trip odometer, average and instant fuel consump- tion, distance range.It is also possible to change elements such as the language and units used on the multi- information display by operating the multi-information display switches.
1- S-AWC drive mode display screen (if
so equipped)
 P.5-71
2-
Warning display screen
 P.5-149
3- ECO mode indicator display screen
 P.5-201
4- Information screen
 P.5-146
5- Selector lever position display
 P.5-65
6- Engine coolant temperature display
 P.5-150
7- Odometer
 P.5-151
8- Cruise control display screen
 P.5-87
9- Adaptive Cruise Control System (ACC)
display screen (if so equipped)  P.5-92
10- ECO indicator
 P.5-154
11-
“ ” mark indicator
 P.5-149
12- Fuel remaining display screen
 P.5-150
13- Outside temperature display screen
 P.5-151NOTE
The fuel units, outside temperature units, display language, and other settings can be changed. Refer to “Changing the function settings” onpage 5-155.
Multi-information display switches
BK0277700US.book
145 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display
Features and controls 5-147
5
N00555801260
When the ignition switch is turned to the
“ON” position or the operation mode is put
in ON, the display screen switches in the
following order.
2-
Trip odometer
 P.5-151
3- ECO score display
 P.5-155
4- Service reminder
 P.5-151
5- Redisplay of a warning display screen
 P.5-149
Information screen (With the ignition switch is turned from the “OFF” position to the “ON” position or the operation mode is changed from OFF to ON) * : When the inspection time has arrived 1- Screen when the ignition switch or the operation mode is OFF 2- System check screen
 P.5-153
3- Screen when the ignition switch or the operation mode is ON4- Service reminder
 P.5-151
BK0277700US.book
147 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display 5-148 Features and controls
5
N00556201317
Press the switch or switch to switch the display screen in the following order.Information screen (With the ignition switch or the operation mode in ON) * : When there is a warning display 1-
Trip odometer
 P.5-151
2-
Trip odometer
 P.5-151
3- Driving range display
 P.5-153
ECO drive assist display
 P.5-154
4- Average fuel consumption display
 P.5-153 ECO drive assist display
 P.5-154
5- Average speed display
 P.5-154
Instant fuel consumption display

P.5-154
6- ECO score display
 P.5-155
7- AYC (Active Yaw Control) operation
display (if so equipped)
 P.5-81
8- S-AWC operation display (if so
equipped)
 P.5-72
9- Service reminder
 P.5-151
10- Function setting screen
 P.5-155
11- Redisplay of a warning display screen
 P.5-149NOTE
While driving, the service reminder are not displayed even if you operate the multi-information display switches. Always stop the vehicle in a safe place before operating.
BK0277700US.book
148 ページ ２０１９年３月８日　金曜日　午前９時２３分
