Multi-information display 5-150 Features and controls
5
N00529700043
If any of the doors or the liftgate is not com- pletely closed, this displays the open door orliftgate. If the speed increases to approximately 5 mph (8 km/h) or higher with a door ajar, a tonewill sound four times to inform you that a door is ajar.
N00578200020
Shows the engine coolant temperature. If the coolant becomes hot, “ ” will blink. Pay careful attention to the engine coolant temperature display while you are driving.
N00556601210
Shows the amount of fuel remaining.
NOTE
 When the warning is displayed, the warn- ing display screen can be redisplayed on the information screen. Refer to “Information screen (with the igni-tion switch in “OFF” position or the opera- tion mode in OFF)” on page 5-146. Refer to “Information screen (with the igni-tion switch or the operation mode in ON)” on page 5-148.
Door ajar warning display screen
CAUTION Always make sure that the warning display goes out before beginning to drive.
Engine coolant temperature display
CAUTION If the engine is overheating, “ ” will blink. In this case, the bar graph is on the red zone. Immediately park the vehicle in a safe placeand take the required measures. Refer to “Engine overheating” on page 8-4.
Fuel remaining display screen
F- Full E- Empty
CAUTION Running out of gas could damage the cata- lytic converter. If the warning display appears, refuel as soon as possible.NOTE
 It may take several seconds to stabilize the display after refilling the tank.  If fuel is added with the ignition switch or the operation mode in ON, the remaining fuel display may incorrectly indicate the fuel level.  The arrow (A) indicates that the fuel tank filler door is located on the left side of thevehicle. (Refer to “Filling the fuel tank” on page 3-3.)
BK0277700US.book
150 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display 5-152 Features and controls
5
1. Shows the time until the next periodic inspection. 2. This informs you that a periodic inspec- tion is due. Contact an authorized Mitsubishi Motors dealer or a repair facil-ity of your choice to have the system checked.
At that time, when the ignition switch is switched from the “OFF” position to the “ON” position or the operation mode ischanged from OFF to ON, the warning display is displayed for a few seconds on the information screen. 3. After your vehicle is inspected at an authorized Mitsubishi Motors dealer, it displays the time until the next periodic inspection.
The “---” display can be reset while the igni- tion switch or the operation mode is in OFF.When the display is reset, the time until the next periodic inspection is displayed and the warning display is no longer displayed whenthe ignition switch is switched from the “OFF” position to the “ON” position or the operation mode is changed from OFF to ON. 1. When you press
the switch or
switch, the information screen switches to the service reminder display screen.
2. Press and hold the switch (for approxi- mately 2 seconds or more) to display “ ” and make it flash. (If there is no operation for approximately 10
seconds with this
indicator flashing, the display returns tothe previous screen.) 3. With this indicator flashing, if you press the switch, the screen switches from “- --” to “CLEAR”. After that, the time until the next periodic inspection is shown.
NOTE
 The service reminder time can be modified by an authorized Mitsubishi Motors dealer, to adjust for severe usage, etc. Refer to “Severe maintenance schedule” in your vehi- cle’s Warranty and Maintenance Manual. Forfurther information, please contact your authorized Mitsubishi Motors dealer.NOTE
 Shows the distance in units of 100 miles (100 km) and the time
in units of 1 month.
To r e s e t
BK0277700US.book
152 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display
Features and controls 5-153
5
N00578400048
When the ignition switch is turned to the “ON” position or the operation mode is put in ON, the system check screen is displayed forapproximately 4 seconds. If there is no fault, the information screen is displayed. If there is a fault, the screen changes to warn-ing display.
Refer to “Warning display list” on page 5-165.
N00575201026
Shows the approximate driving range (how many more miles or kilometers you can drive). When this driving range falls below30 miles (50 km), “---” is displayed. Refuel as soon as possible.
N00575301027
This displays the average fuel consumptionfrom the last reset to the present. There are 2 types of mode settings of manualreset and automatic reset. Refer to “Changing the reset mode for aver- age fuel consumption and average speed” onpage 5-157. For information on how to change the aver- age fuel consumption display setting, refer to“Changing the function settings” on page 5-155.
CAUTION The customer is responsible for making sure that regular inspections and maintenance and periodic inspections and maintenance are performed. Inspections and maintenance must be per-formed to prevent accidents and malfunc- tions.NOTE
 The “---” display cannot be reset while the ignition switch or the operation mode is in ON.  When “---” is displayed, after a certain dis- tance and a certain period of time, the dis- play is reset and the time until the nextperiodic inspection is displayed.  If you accidentally reset the display, consult an authorized Mitsubishi Motors dealer for assistance.
System check screen
Driving range display
NOTE
 The driving range is determined based on the fuel consumption data. This may vary depending on the driving conditions and hab- its. Treat the distance displayed as just arough guideline.  When you refuel, the driving range display is updated. However, if you only add a small amount of fuel, the correct value will not be displayed.Fill to a full tank whenever possible.  When your vehicle is stopped on an extremely steep hill, the driving range value may, change. This is due to the movement of fuel in the tank and does not indicate anybreakdown.
 The display setting can be changed to the preferred units (miles or km). Refer to “Changing the function settings” on page 5-155.
Average fuel consumption dis- play
NOTE
 The average fuel consumption display can be reset separately in both auto reset mode and manual reset mode.  “---” is displayed when the average fuel con- sumption cannot be measured.  The initial (default) setting is “Auto reset mode”.NOTE
BK0277700US.book
153 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display
Features and controls 5-155
5
N00578800055
ECO score indicates
the points you have
scored on fuel-efficient driving by the num- ber of leaves as follows: [When the ignition switch or the operation mode is ON]The display shows the score you achieved in the last several minutes.
[When the ignition switch is turned to the “OFF” position or the operation mode is put in OFF] The display shows the overall ECO score thefunction has counted from the time when the ignition switch is turned to the “ON” position to the time when it is turned to the “OFF” or“ACC” position, or from the time when the operation mode is set to ON to the time when it is set to OFF.
N00556801283
1. Park your vehicle in a safe place.Firmly apply the parking brake and movethe selector lever into the “P” (PARK) position. 2. When you press the switch or switch, the information screen switches to the function setting screen.
Refer to “Information screen” on page 5-148. 3. Press the switch to switch to the top screen (A) for the menu screens. Then, press the switch or switch to switch to the menu screens (B).
NOTE
 The ECO drive assist is displayed only when vehicle is driven with the selector lever in the “D” (DRIVE) position or when vehicle isdriven in the sport mode (for vehicles equipped with sportronic steering wheel pad- dle shifter).

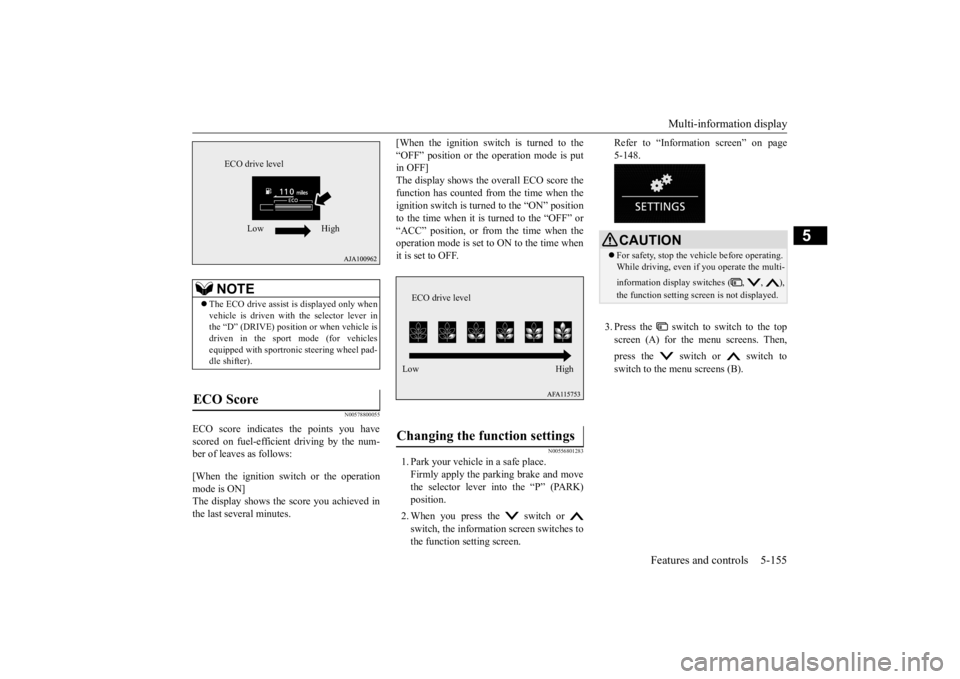

ECO Score
ECO drive level
Low High
Changing the function settings
ECO drive level Low High
CAUTION  For safety, stop the vehicle before operating. While driving, even if you operate the multi- information display switches ( , , ), the function setting scr
een is not displayed.
BK0277700US.book
155 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display 5-156 Features and controls
5
: switch : switch or switch
1- Changing the reset mode for average
fuel consumption and average speed

P.5-157
2- Changing the fuel consumption display
unit
 P.5-158
3- Changing the temperature unit

P.5-158
4- Changing the display language

P.5-159
5- Changing the language on other system
to match the multi-information display (if so equipped)
 P.5-159
6- Operation sound setting
 P.5-160
7- Changing the time until “REST
REMINDER” is displayed
 P.5-161
8- Changing the turn signal sound

P.5-161
9- Changing the instant fuel consumption
display
 P.5-161
10- Blind Spot Warning (BSW): To operate
(if so equipped)
 P.5-114
11- Tire ID set change
 P.5-130
12- Returning to the factory settings

P.5-162NOTE
 If no operations are made within approxi- mately 30 seconds of the menu screen beingdisplayed, the display returns to the function setting screen.
BK0277700US.book
156 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display 5-158 Features and controls
5
[For vehicles equipped with the F.A.S.T.- key] The operation mode has been in ACC or OFF for approximately 4 hours or more.
N00557101195
The fuel consumption display unit can be changed. The distance, speed, and amount units are also changed to match the selectedfuel consumption unit. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-155.
2. Press the switch or switch several times to switch to the “FUEL CON- SUMPTION UNIT” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the units, and then press the switch to confirm the setting. The setting is changed to the selected unit.
The distance and speed units are also changed in the following combinations to match the selected fuel consumption unit.
N00557201242
The temperature display unit can be switched. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-155. 2. Press the switch or switch several times to switch to the “TEMPERATURE UNIT” screen. Then, press the switch to switch to the setting selection screen.
NOTE
 The average fuel consumption display and average speed display can be reset separatelyin both auto reset mode and manual reset mode.  Disconnecting the battery cable will erase from memory the manual reset mode or auto reset mode setting for the average speed dis-play and average fuel consumption display.  The initial (default) setting is “Auto reset mode”.
Changing the fuel consumption display unit
NOTE
 The display units for the driving range, the average fuel consumption, the average speed and the instant fuel consumption are changed, but the units for the indicating nee- dle (speedometer), the odometer and the trip odometer will remain unchanged.  If the battery is disconnected, the memory of the unit setting is erased and is automaticallyset to {mpg (US) or L/100 km}.
Fuel economy
Distance (driving range)
Speed (average speed)
km /L km km /hL /100 km km km /hmpg (US) mile (s) mphmpg (UK) mile (s) mphChanging the temperature unit
BK0277700US.book
158 ページ ２０１９年３月８日　金曜日　午前９時２３分

Indicator light, warning light, an
d information screen display list Features and controls 5-181
5
Screen
System operation status
Reference
 When “AUTO” mode of S-AWC is selected.
Refer to “S-AWC (Super-All Wheel Con- trol)” on page 5-70.
 When “SNOW” mode of S-AWC is selected.  When “GRAVEL” mode of S-AWC is selected.  When the ECO mode is activated. Refer to “ECO mode switch” on page 5-201.  When the Forward Collision Mitigation system (FCM) is activated or the timing of an alarm is changed.
Refer to “FCM ON/OFF switch” on page 5-108.
BK0277700US.book
181 ページ ２０１９年３月８日　金曜日　午前９時２３分

Indicators
Features and controls 5-183
5
The rest time can be set.
N00519900127 N00520000216
The arrows will flash in
time with the corre-
sponding exterior turn signals when the turn signal lever is used. Both arrows will flas
h when the hazard warn-
ing flasher switch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520201273
This indicator comes on while the front foglights are on.
N00551301094
This indicator light illuminates while theparking lights are on.
Screen
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide fo
r taking rests during a long drive.
The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings” on page 5-155. The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds approx
imately every 5 minutes to encourage you to
take a rest.  In the following cases, the time driven is reset and the display returns to the previous display screen. After this, when the set time is reached again, the display and buzzer encourage you to take a rest. • The buzzer sounds three times. • The ignition switch is turned to the “OFF
” position or the operation mode is put in
OFF. • The multi-information display switches ar
e held (for approximately 2 seconds or
more).
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb orturn signal connection.
High beam indicator
Front fog light indicator Position indicator
BK0277700US.book
183 ページ ２０１９年３月８日　金曜日　午前９時２３分

Warning lights 5-184 Features and controls
5
N00520300147 N00520401594
This light comes on when the ignition switch is turned to the “ON” position (engine off) orthe operation mode is put in ON. When the engine is started, the light should go off a few seconds later. A warning is alsodisplayed in the multi-information display.The warning light also illuminates after start- ing the engine under the following condi- tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
When the vehicle is moving at more than 5 mph (8 km/h) and parking brake applied, a buzzer will sound to inform the driver that the parking brake is not properly release. Before driving, be sure that the parking brake is fully released and brake warning light is off.
N00591200069
This warning light will illuminate when thereis a fault in the Electric parking brake system. Normally, this warning light illuminateswhen the operation mode is put in ON, and goes off in a few seconds.
Warning lights Brake warning light and buzzer
CAUTION If the brake warning light and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribu- tion function will not operate, so the vehicle may be destabilized during sudden brakingunder the following conditions.• When the brake warning light does not goout even when the parking brake is released.• When the brake warning light stays onwhile driving.• If the above occurs, avoid sudden brakingand high-speed driving. Park the vehicle in a safe place, and contact an authorizedMitsubishi Motors dealer or a repair facility of your choice as soon as possible.
 The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harderthan usual. In some cases, the brake pedal may go all the way to the floor.
• Should the brakes fail, use engine brakingto reduce your speed and observe the fol- lowings. [Vehicles with the parking brake of the lever type]Carefully pull the parking brake lever. [Vehicles with the Electric parking brake] Keep pulling the Electric parking brakeswitch. Refer to “Electric parking brake” on page 5-50. Depress the brake pedal to illuminate the stop lights to alert the vehicles behind you.
Electric parking brake warning light
(if so equipped)CAUTION
BK0277700US.book
184 ページ ２０１９年３月８日　金曜日　午前９時２３分

Warning lights
Features and controls 5-185
5
N00520501856
This indicator is a part
of the onboard diag-
nostic (OBD) system which monitors the emissions, engine control system or continu-ously variable transmission (CVT) control system. If a problem is detected in one of these systems, this indicator illuminates orflashes. When the igniti
on switch is turned to
the “ON” position or the operation mode is put in ON, this indicator normally comes onand goes off after the engine has started. This indicator will come on if the fuel tank filler cap is not properly tightened. If this
indicator comes on and stays on after refuel- ing, stop the engine and check that the cap is properly tightened. (Turn the cap clockwise until you hear clicking sounds.)If this indicator does not go off after several seconds or lights up while driving, have the system checked as soon as possible at anauthorized Mitsubishi Motors dealer or a repair facility of your choice.
CAUTION When the warning light remains on or does not come on, there is the possibility that the parking brake cannot be operated or released. Immediately contact the nearest authorized Mitsubishi Motors dealer. Whenthe warning light comes on during driving, immediately stop the vehicle in a safe place, and contact an authorized Mitsubishi Motorsdealer. If you inevitably have to park, park the vehicle on level and stable ground, shift the selector lever in “P” (PARK) positionand place chocks or blocks.
Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”)
CAUTION Driving for a long time with the engine mal- function indicator on may cause more dam- age to the emission control system. This could also affect fuel economy and drivabil-ity. If this indicator does not come on when the ignition switch is turned to the “ON” posi- tion or the operation mode is put in ON, have the system checked at an authorizedMitsubishi Motors dealer or a repair facility of your choice.
 If the engine malfunction indicator comes on while the engine is running, avoid driving at high speeds. During vehicle operation with the indicator on, the vehicle may not accelerate when youdepress the accelerator pedal. When the vehicle is stationary with the indi- cator on, you must depress the brake pedalmore firmly than usual since the engine idling speed is higher than usual and a vehi- cle with continuously variable transmission(CVT) has a stronger tendency to creep for- ward.NOTE
 Do not disconnect the battery cable when the engine malfunction indicator (“SERVICEENGINE SOON” or “Check engine light”) is on. The engine electronic control module storescritical OBD information (especially exhaust emission data), which may be lost if the bat- tery cable is disconnected while the enginemalfunction indicator is on. This will make it difficult to diagnose the cause of future prob- lems.CAUTION
BK0277700US.book
185 ページ ２０１９年３月８日　金曜日　午前９時２３分
