Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

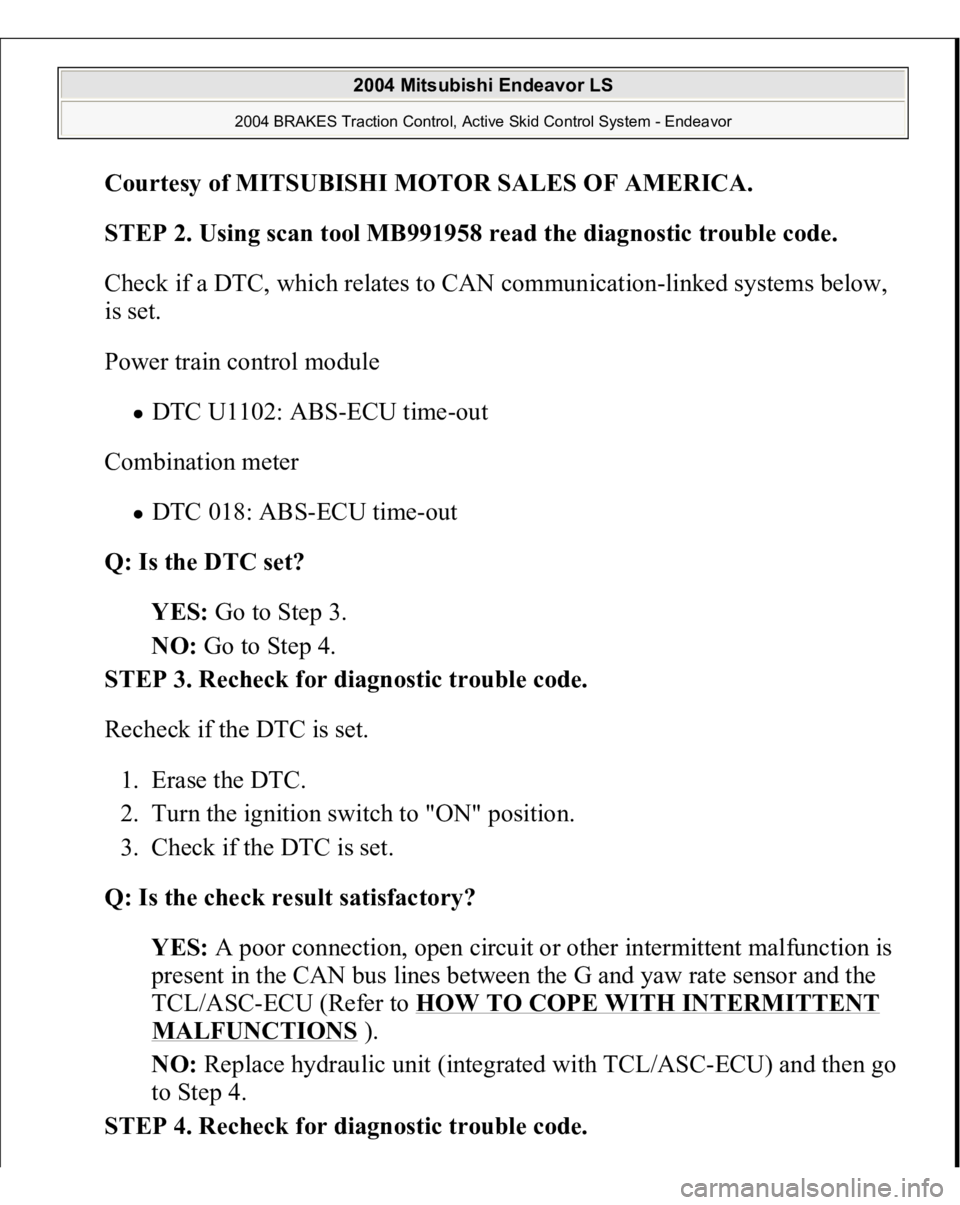

STEP 2. Using scan tool MB991958 read the diagnostic trouble code.
Check if a DTC, which relates to CAN communication-linked systems below,
is set.
Power train control module
DTC U1102: ABS-ECU time-out
Combination meter DTC 018: ABS-ECU time-out
Q: Is the DTC set?
YES: Go to Step 3.
NO: Go to Step 4.
STEP 3. Recheck for diagnostic trouble code.
Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?
YES: A poor connection, open circuit or other intermittent malfunction is
present in the CAN bus lines between the G and yaw rate sensor and the
TCL/ASC-ECU (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
NO: Replace hydraulic unit (integrated with TCL/ASC-ECU) and then go
to Step 4.
STEP 4. Recheck for diagnostic trouble code.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

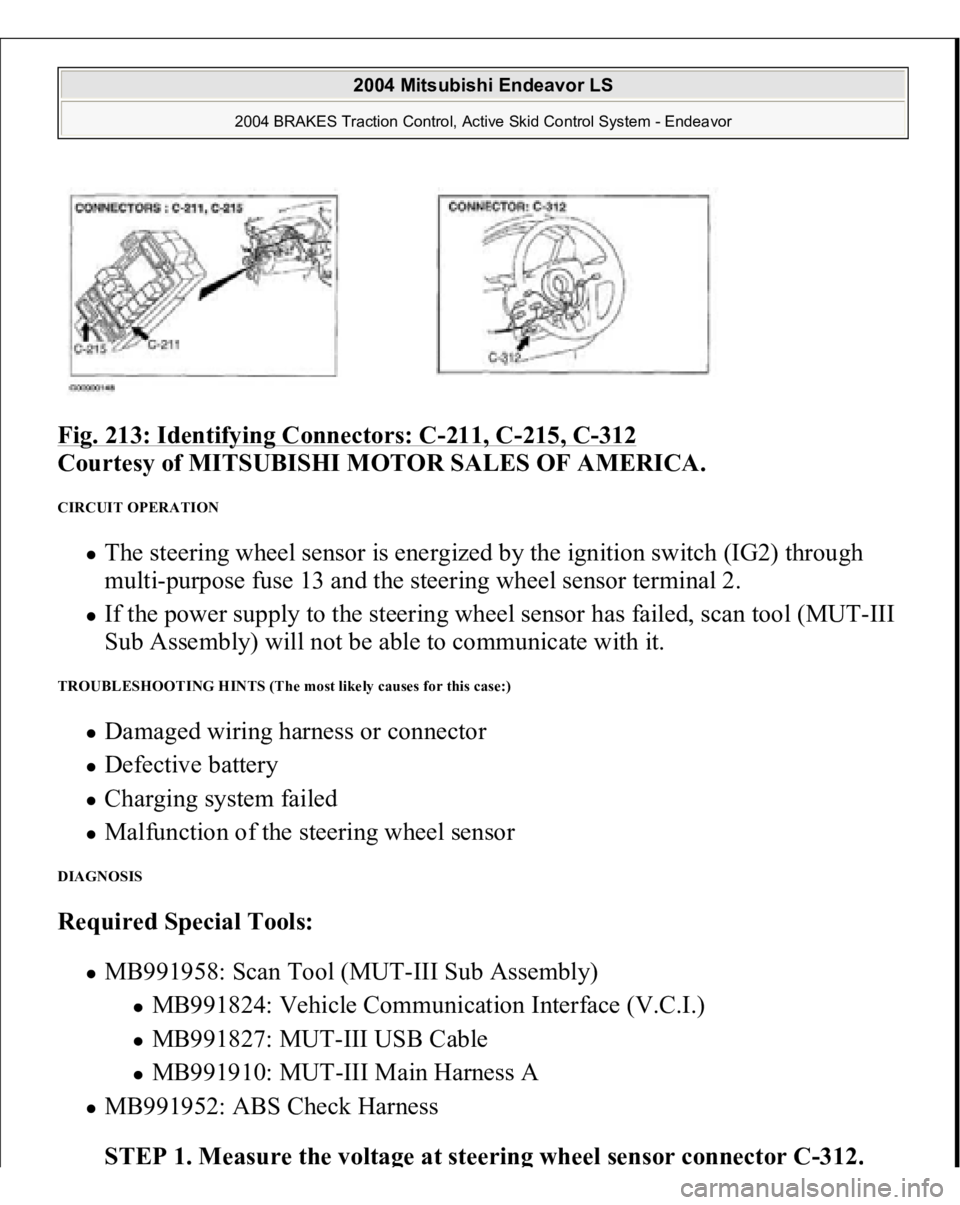

Fig. 213: Identifying Connectors: C
-211, C
-215, C
-312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
The steering wheel sensor is energized by the ignition switch (IG2) through
multi-purpose fuse 13 and the steering wheel sensor terminal 2. If the power supply to the steering wheel sensor has failed, scan tool (MUT-III
Sub Assembly) will not be able to communicate with it.
TROUBLESHOOTING HINTS (The most likely causes for this case:)
Damaged wiring harness or connector Defective battery Charging system failed Malfunction of the steering wheel sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
MB991952: ABS Check Harness
STEP 1. Measure the volta
ge at steerin
g wheel sensor connector C-312
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

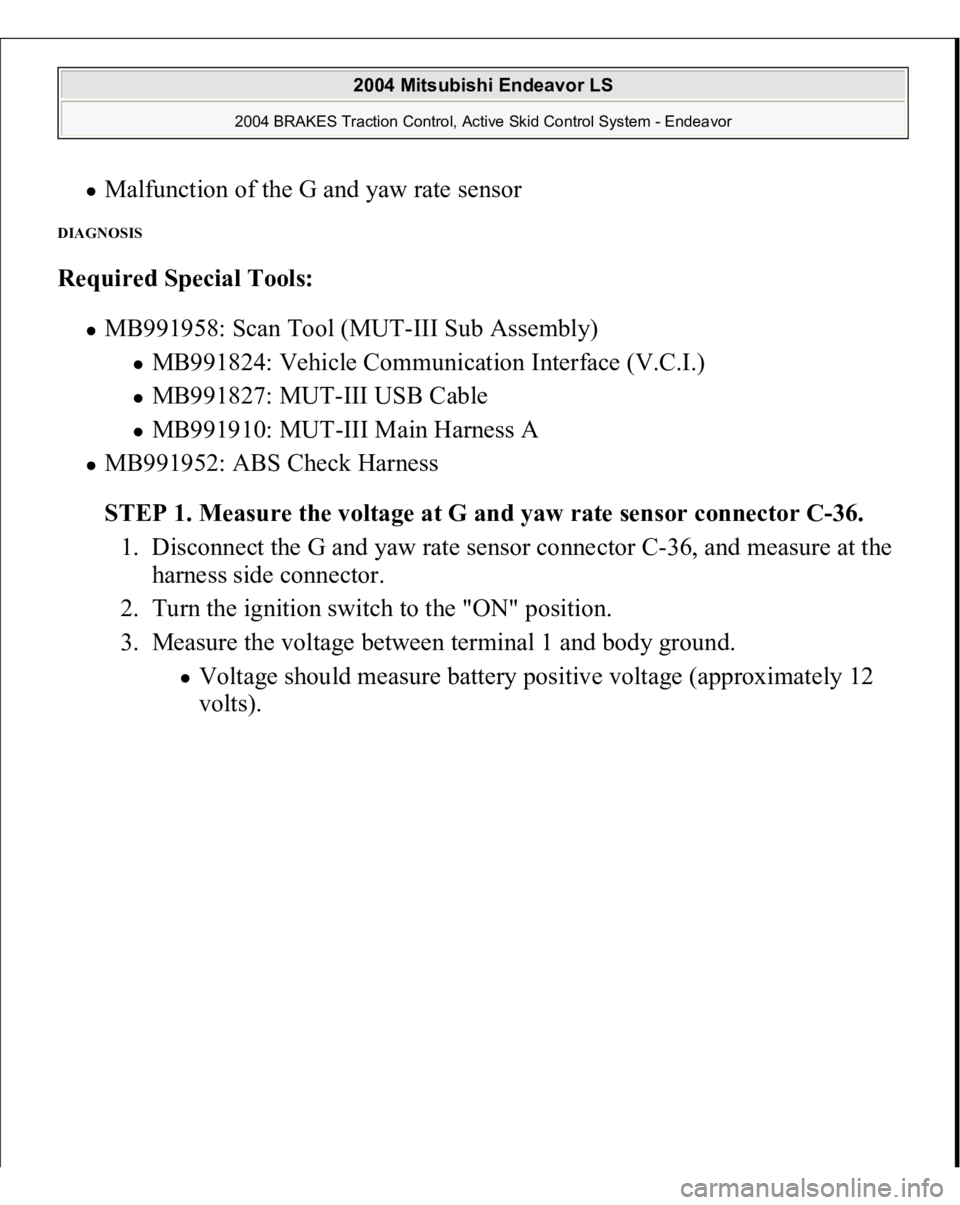

Malfunction of the G and yaw rate sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
MB991952: ABS Check Harness
STEP 1. Measure the voltage at G and yaw rate sensor connector C-36.
1. Disconnect the G and yaw rate sensor connector C-36, and measure at the
harness side connector.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal 1 and body ground.
Voltage should measure battery positive voltage (approximately 12
volts
).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 58: Inspecting Harness Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check the resistance and continuity between the terminals indicated in the table
below.
3. The terminal layout is shown in the illustration.
CONNECTOR TERMINAL
CHECK AT TCL/ASC-ECU TERMINAL VOLTAGE & TERMINAL VOLTAGE CHECK CHART Required Special Tool:
MB991952: ABS check harness
1. Disconnect the TCL/ASC-ECU connector A-32 and connect special tool
MB991952 between the TCL/ASC-ECU and the body-side harness connector.
Then use special tool MB991952 to measure the voltage between terminal 12
and each terminal.
2. The terminal la
youts are shown in the illustrations below.
CONNECTOR
TERMINAL NO.
SIGNAL
NORMAL
CONDITION
2 - body ground
Ground
Less than 2 ohms
9 - 10
Front-right wheel speed
sensor
1.24 - 1.64 kohm
11 - 17
Rear-right wheel speed
sensor
1.24 - 1.64 kohm
16 - 26
Front-left wheel speed
sensor
1.24 - 1.64 kohm
18 - body ground
Ground
Less than 2 ohms
27 - 28
Rear-left wheel speed
sensor
1.24 - 1.64 kohm

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

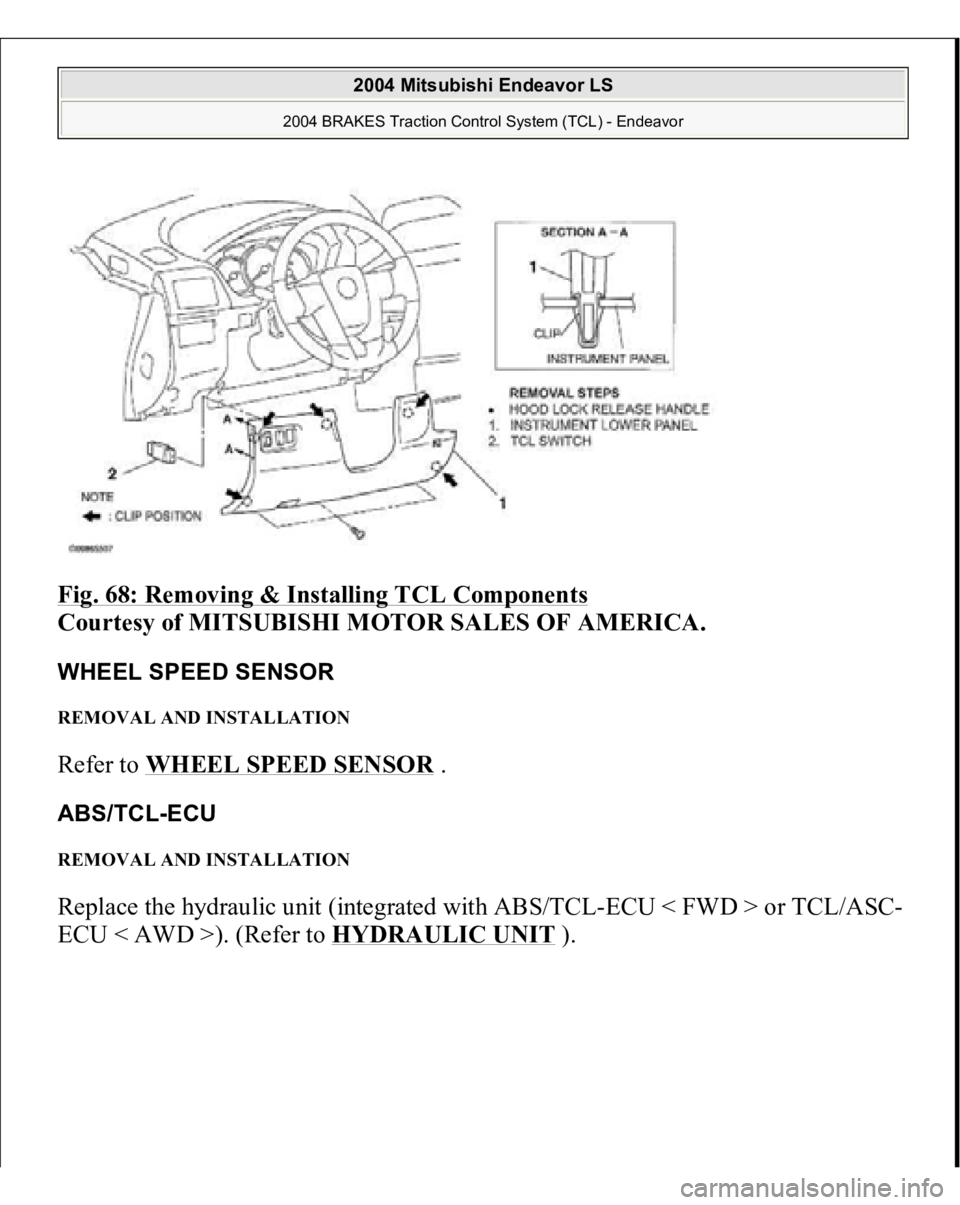

Fig. 68: Removing & Installing TCL Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEEL SPEED SENSOR REMOVAL AND INSTALLATION Refer to WHEEL SPEED SENSOR
.
ABS/TCL-ECU REMOVAL AND INSTALLATION Replace the hydraulic unit (integrated with ABS/TCL-ECU < FWD > or TCL/ASC-
ECU < AWD >
). (Refer to HYDRAULIC UNIT
).
