2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result satisfactory?

YES:
The procedure is complete.
NO:
Return to Step 1 .

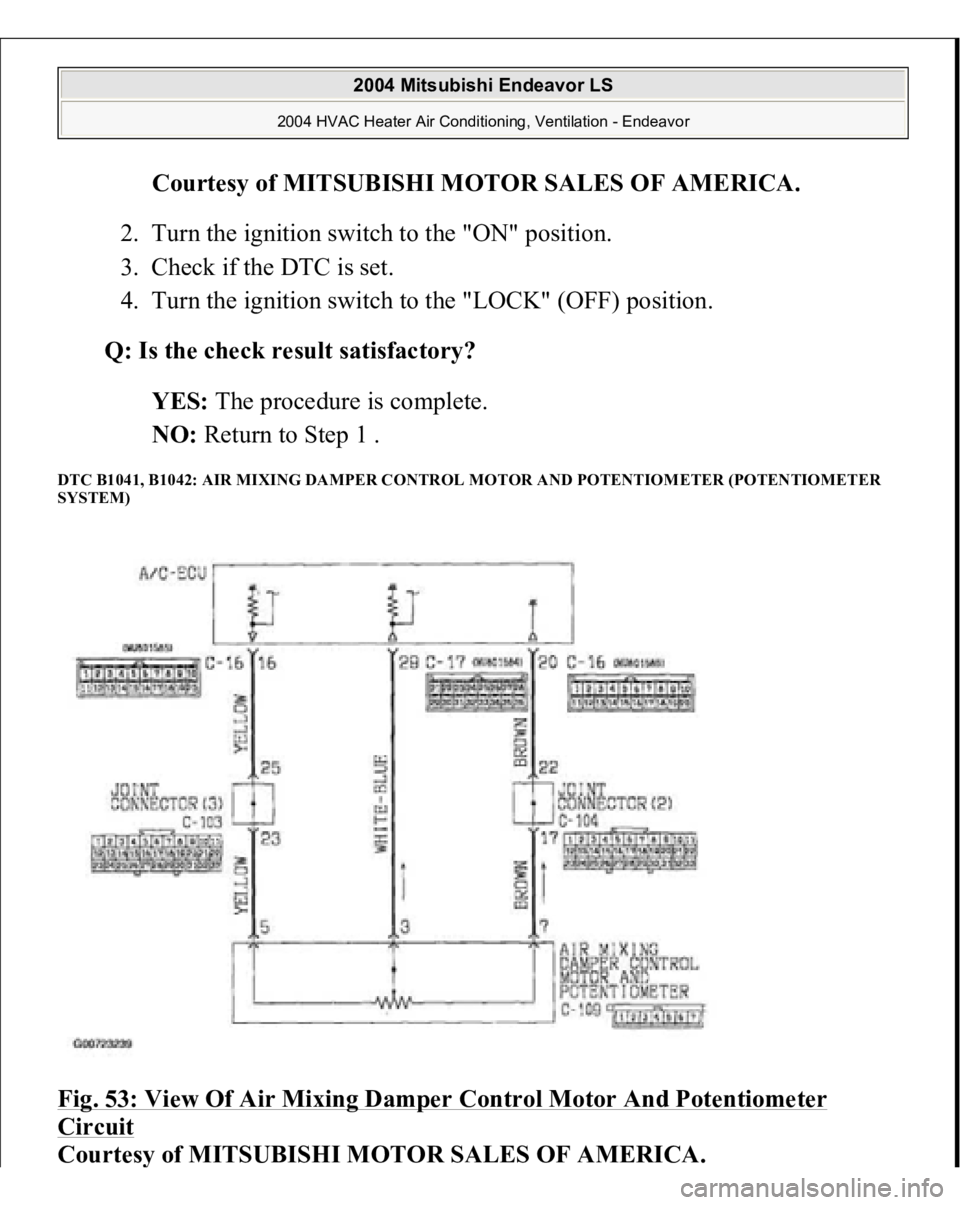

DTC B1041, B1042: AIR MIXING DAMPER CONTROL MOTOR AND POTENTIOMETER (POTENTIOMETER
SYSTEM) Fig. 53: View Of Air Mixing Damper Control Motor And Potentiometer Circuit

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

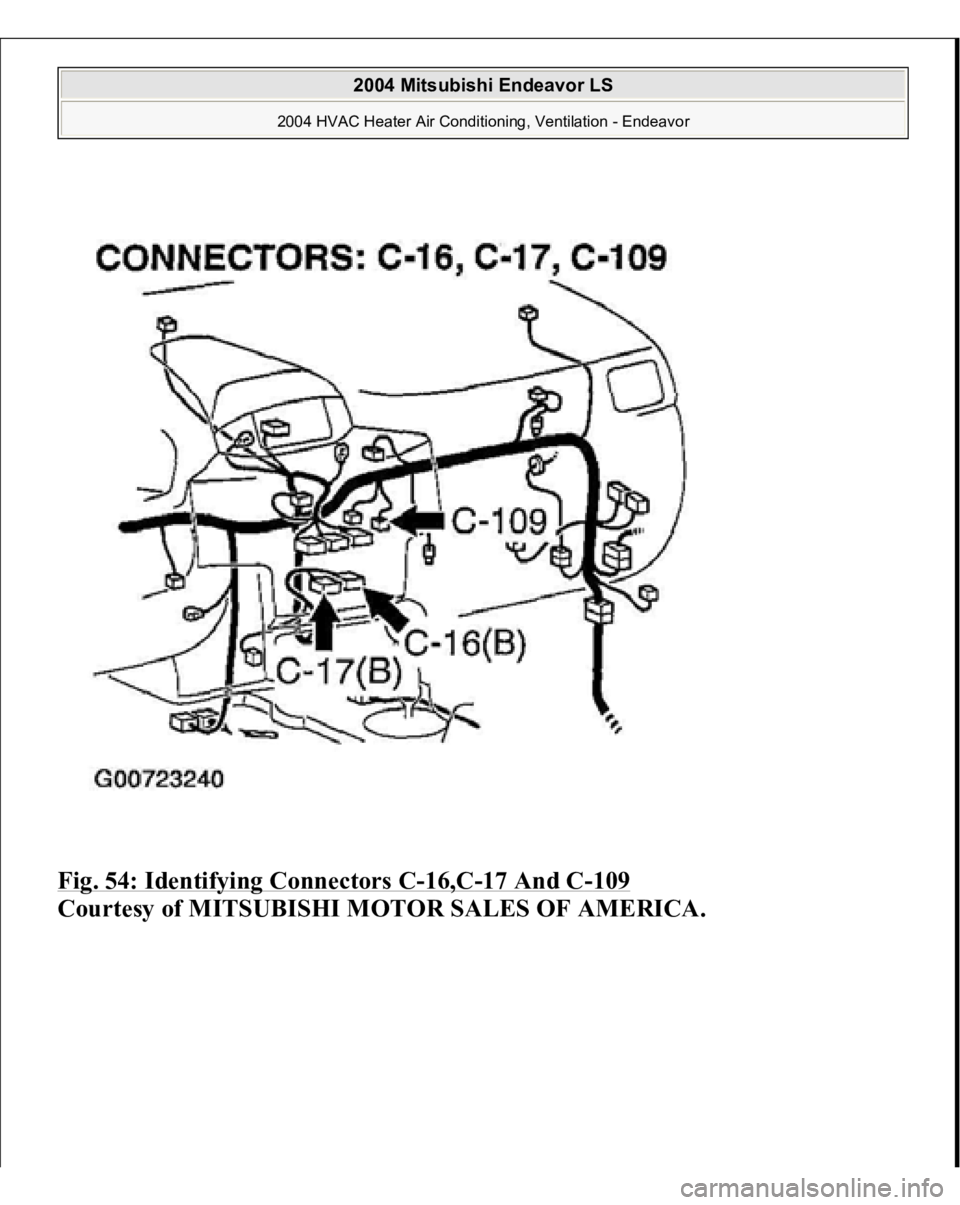

Fig. 54: Identifying Connectors C
-16,C
-17 And C
-109

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

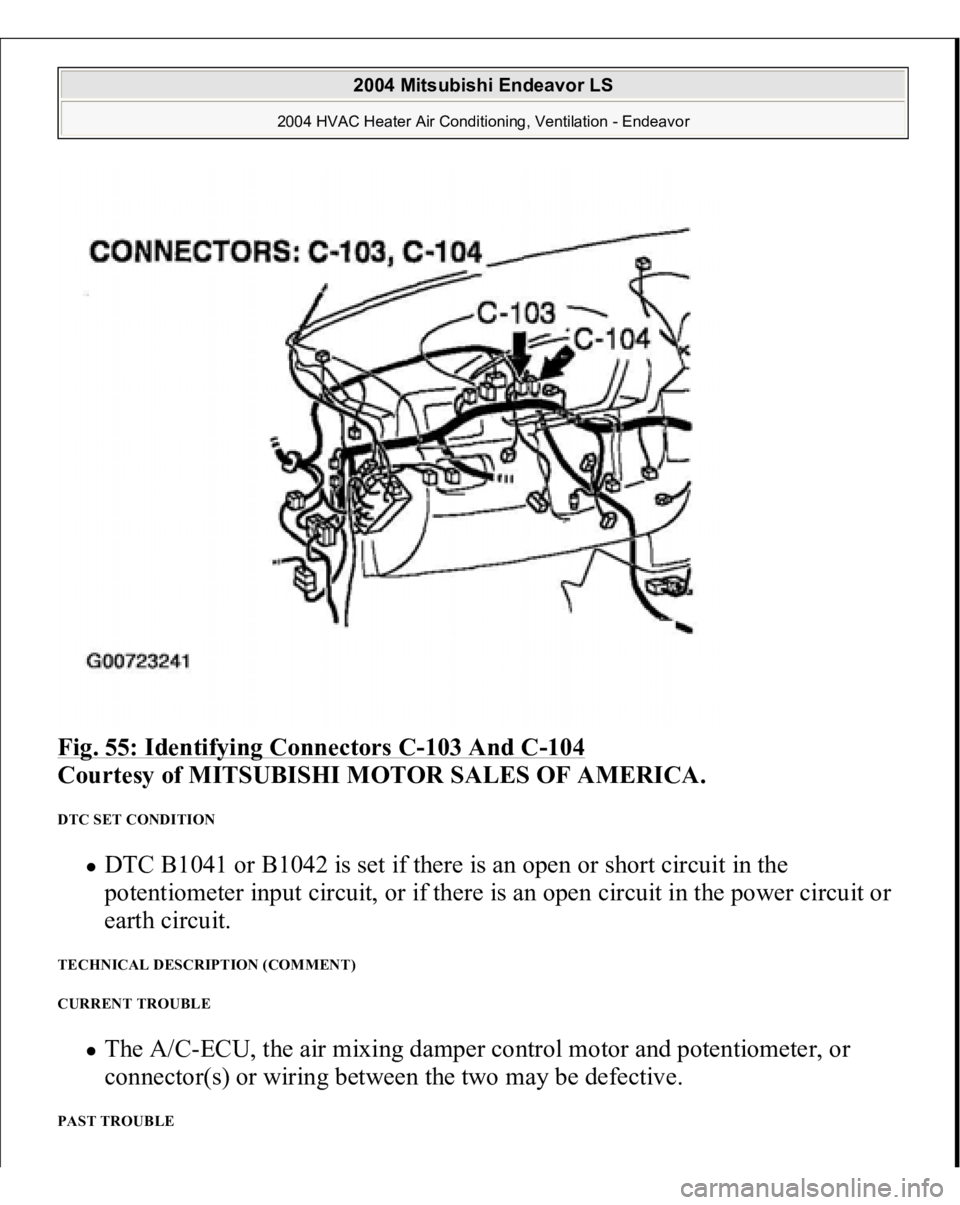

Fig. 55: Identifying Connectors C
-103 And C
-104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

DTC SET CONDITION
DTC B1041 or B1042 is set if there is an open or short circuit in the
potentiometer input circuit, or if there is an open circuit in the power circuit or
earth circuit.
TECHNICAL DESCRIPTION (COMMENT)
CURRENT TROUBLE
The A/C-ECU, the air mixing damper control motor and potentiometer, or
connector(s) or wiring between the two may be defective.
PAST TROUBLE
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

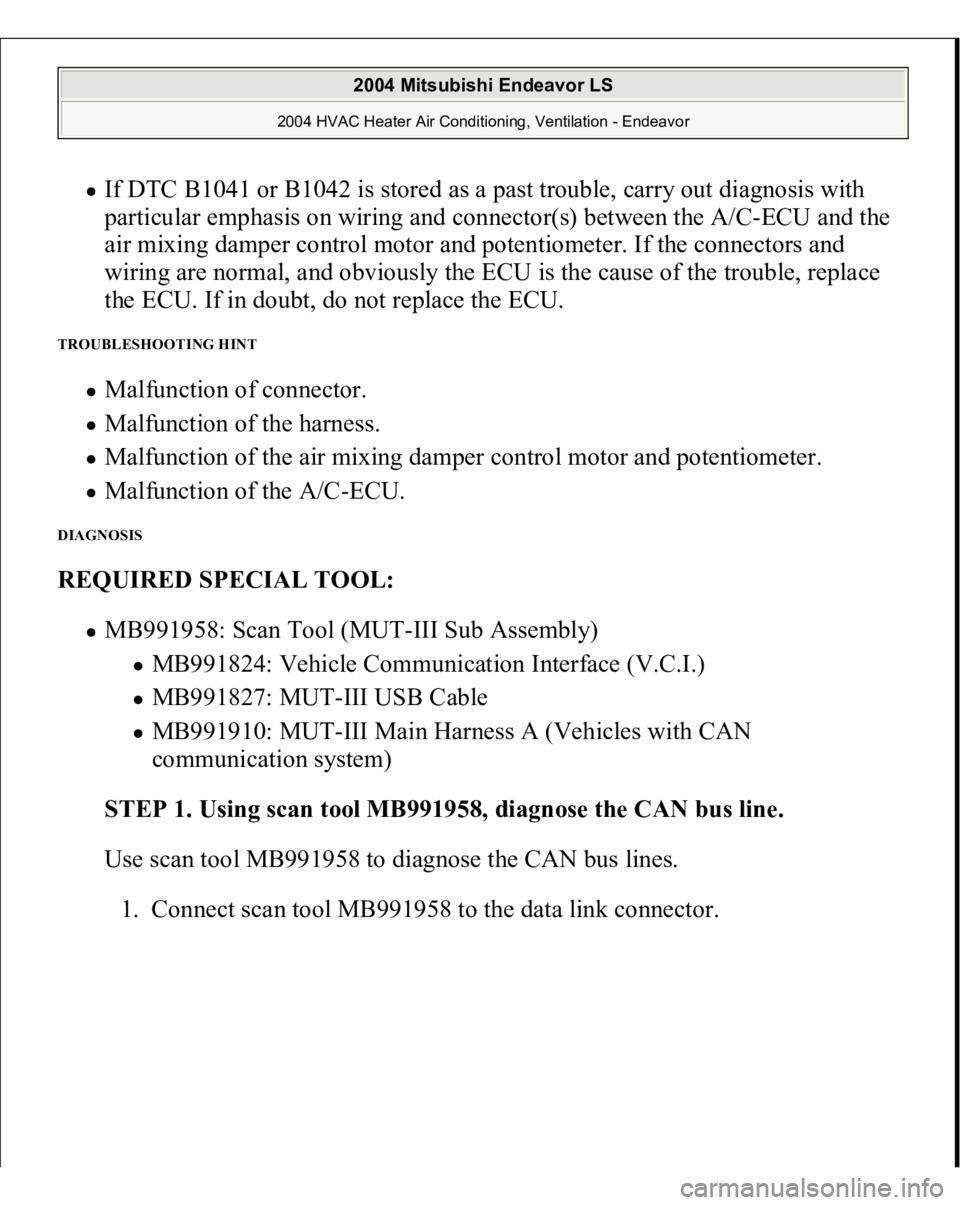

If DTC B1041 or B1042 is stored as a past trouble, carry out diagnosis with
particular emphasis on wiring and connector(s) between the A/C-ECU and the
air mixing damper control motor and potentiometer. If the connectors and
wiring are normal, and obviously the ECU is the cause of the trouble, replace
the ECU. If in doubt, do not replace the ECU.
TROUBLESHOOTING HINT
Malfunction of connector. Malfunction of the harness. Malfunction of the air mixing damper control motor and potentiometer. Malfunction of the A/C-ECU.
DIAGNOSIS REQUIRED SPECIAL TOOL:

MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A (Vehicles with CAN
communication system)
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool MB991958 to diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connec
tor.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Fig. 56: Connectin
g Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

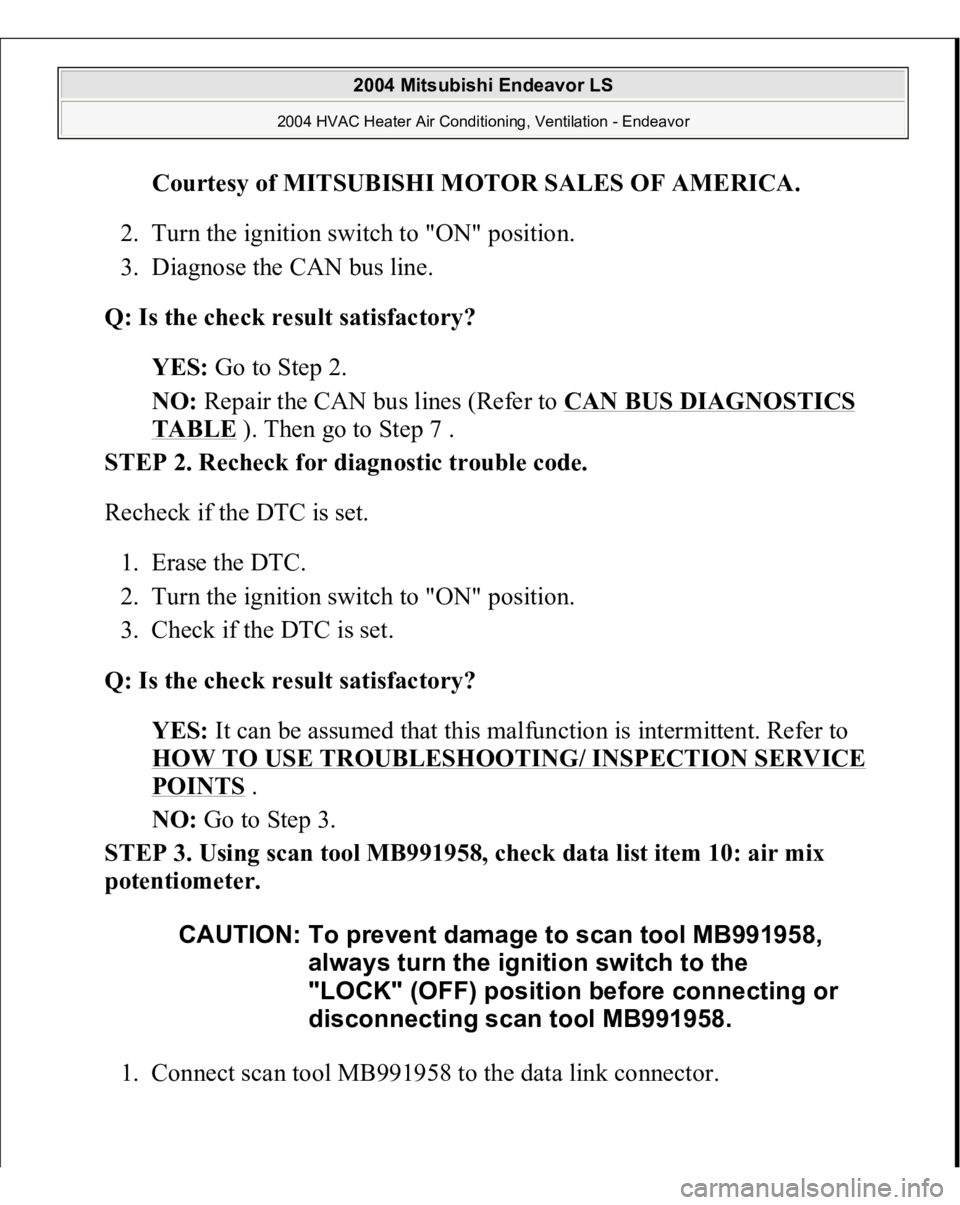

2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?

YES:
Go to Step 2.
NO:
Repair the CAN bus lines (Refer to
CAN BUS DIAGNOSTICS
TABLE
). Then go to Step 7 .
STEP 2. Recheck for diagnostic trouble code.

Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?

YES:
It can be assumed that this malfunction is intermittent. Refer to
HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS
.
NO:
Go to Step 3.
STEP 3. Using scan tool MB991958, check data list item 10: air mix
potentiometer.

1. Connect scan tool MB991958 to the data link connec
tor.
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Fig. 57: Connectin
g Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

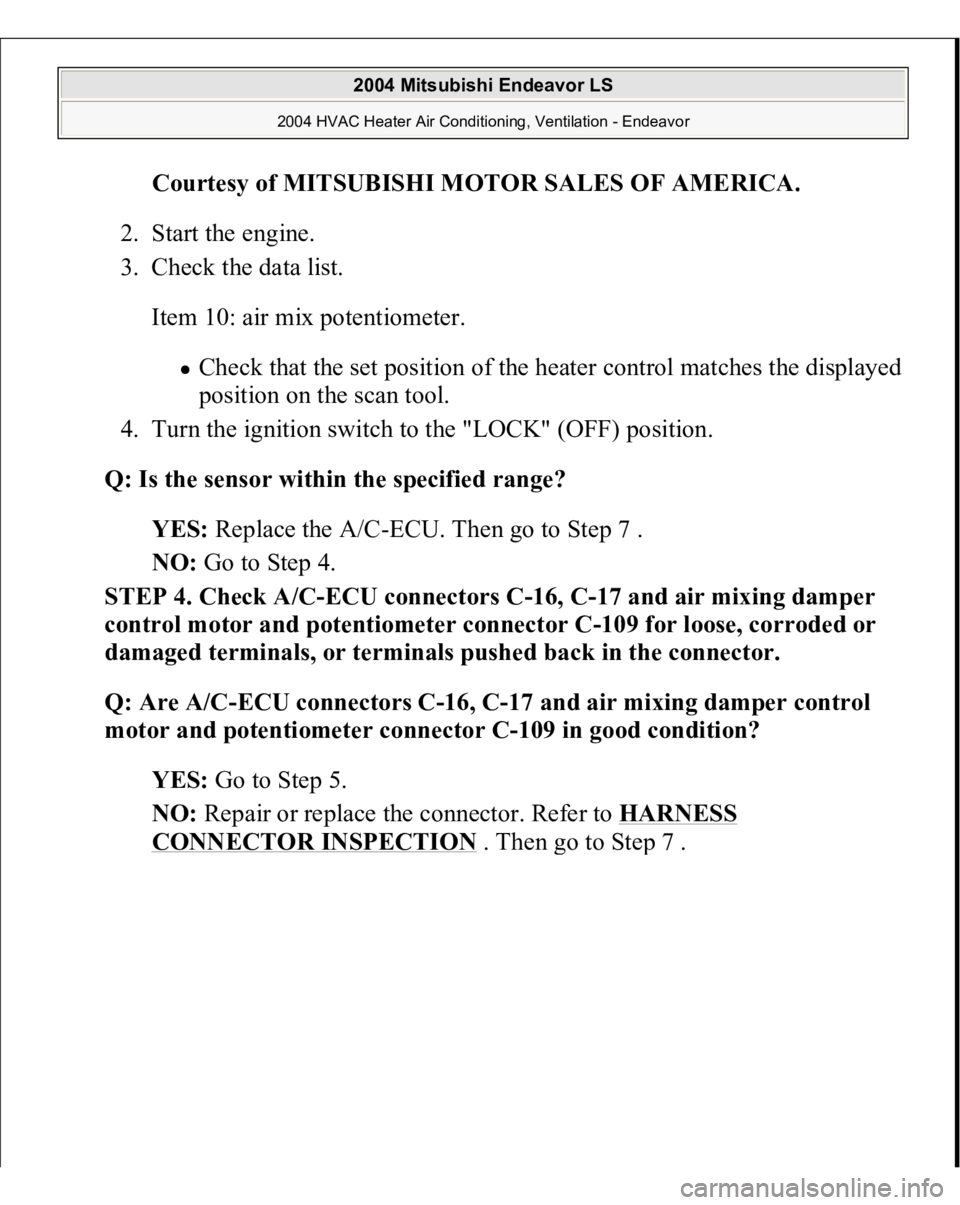

2. Start the engine.
3. Check the data list.
Item 10: air mix potentiometer.
Check that the set position of the heater control matches the displayed
position on the scan tool.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and air mixing damper
control motor and potentiometer connector C-109 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.

Q: Are A/C-ECU connectors C-16, C-17 and air mixing damper control
motor and potentiometer connector C-109 in good condition?

YES:
Go to Step 5.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Then
go to Ste
p 7 .

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

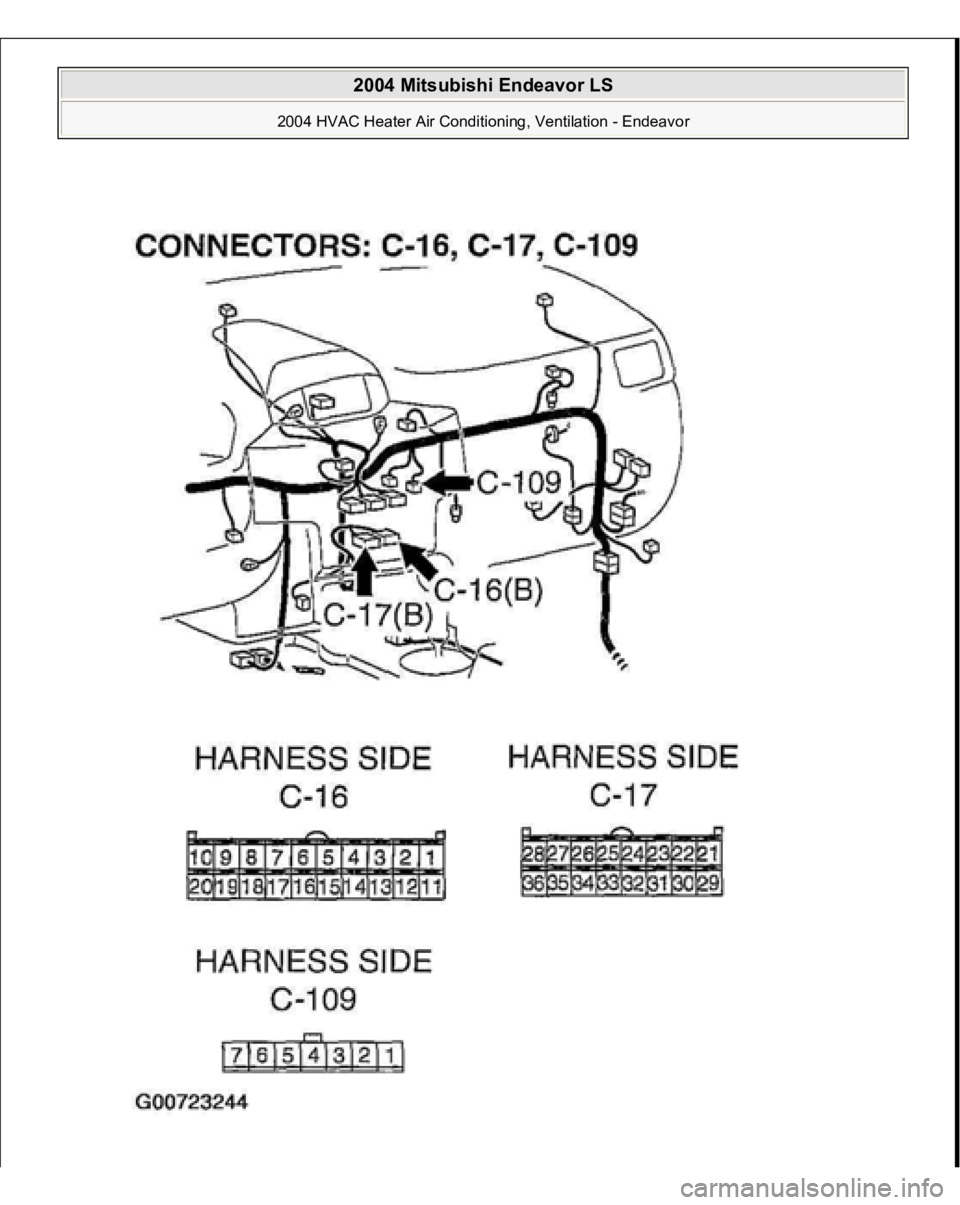

Fig. 58: Locating Connectors C
-16, C
-17 And C
-109
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

STEP 5. Check the wiring harness between A/C-ECU connectors C-16
(terminals 16 and 20), C-17 (terminal 29) and air mixing damper control
motor and potentiometer connector C-109 (terminals 5, 7 and 3).
