Page 61 of 101

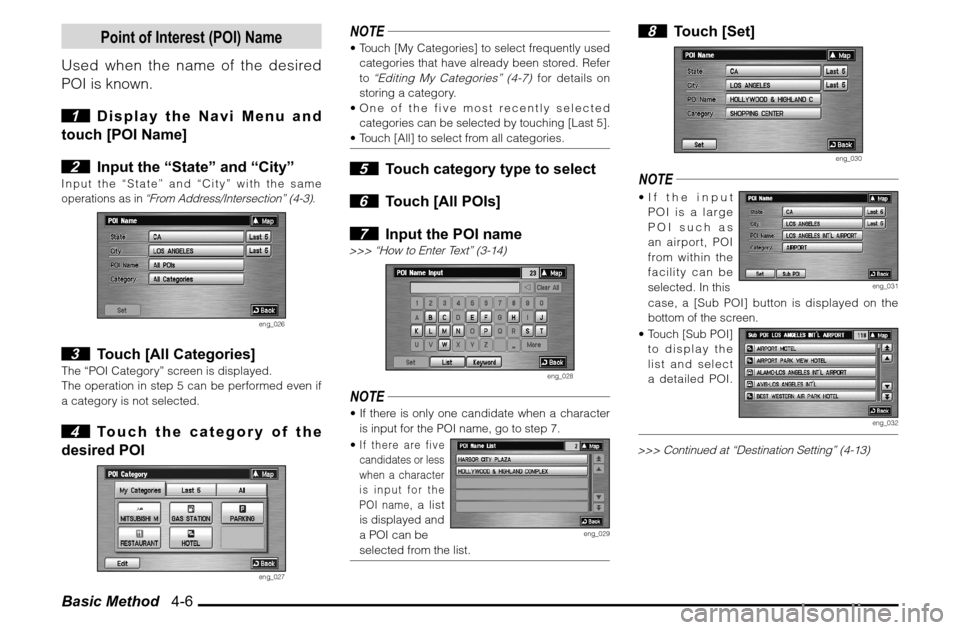

Basic Method 4-6
Point of Interest (POI) Name
Used when the name of the desired
POI is known.
1 Display the Navi Menu and
touch [POI Name]
2 Input the “State” and “City”
Input the “State” and “City” with the same
operations as in
“From Address/Intersection” (4-3).
eng_026
3 Touch [All Categories]
The “POI Category” screen is displayed.
The operation in step 5 can be performed even if
a category is not selected. 4 Touch the category of the
desired POI
eng_027
NOTE Touch [My Categories] to select frequently used
categories that have already been stored. Refer
to
“Editing My Categories” (4-7)
for details on
storing a category.
One of the five most recently selected
categories can be selected by touching [Last 5].
Touch [All] to select from all categories.
5 Touch category type to select
6 Touch [All POIs]
7 Input the POI name
>>> “How to Enter Text” (3-14)
eng_028
NOTE If there is only one candidate when a character
is input for the POI name, go to step 7.
If there are five
candidates or less
when a character
is input for the
POI name,
a list
is displayed and
a POI can be
eng_029
selected from the list.
8 Touch [Set]
eng_030
NOTE If the input
POI is a large
POI such as
an airport, POI
from within the
facility can be
selected. In this
eng_031
case, a [Sub POI] button is displayed on the
bottom of the screen.
Touch [Sub POI]
to display the
list and select
a detailed POI.
eng_032
>>> Continued at “Destination Setting” (4-13)
Page 62 of 101
Basic Method 4-7
Destination
Editing My CategoriesFrequently used POI categories can be stored in “My
Categories”.
A maximum of six category items can be stored in
“My Categories”. 1
Display the “POI Category” screen
>>> “Point of Interest (POI) Name” (4-6) 2 Touch [My Categories]
eng_027
3 Touch [Edit]
A list is displayed of all categories. 4 Touch the category to store
eng_033
NOTE The stored categories are displayed with a
black highlight. Touch a stored category to clear
the stored item.
Touch [Clear All] to clear all the stored category
items.
Touch [Default] to return to the factory settings
( ve items are stored before shipment). 5 Touch [Done]
eng_034
The categories currently displayed are stored,
and the display returns to the original “POI
Category” screen.
Previous 20
A new destination, way point, or
location to be stored can be set from
the 20 destinations that have been
previously set.
1
Display the Navi Menu and touch
[Previous 20]
A list of the 20 destinations that have been
previously set is displayed. 2 Touch the desired location
eng_035
>>> Continued at “Destination Setting” (4-13)NOTE Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_036
Destinations that have been previously set can
be deleted.
>>> “Delete Previous 20” (7-13)
Page 63 of 101

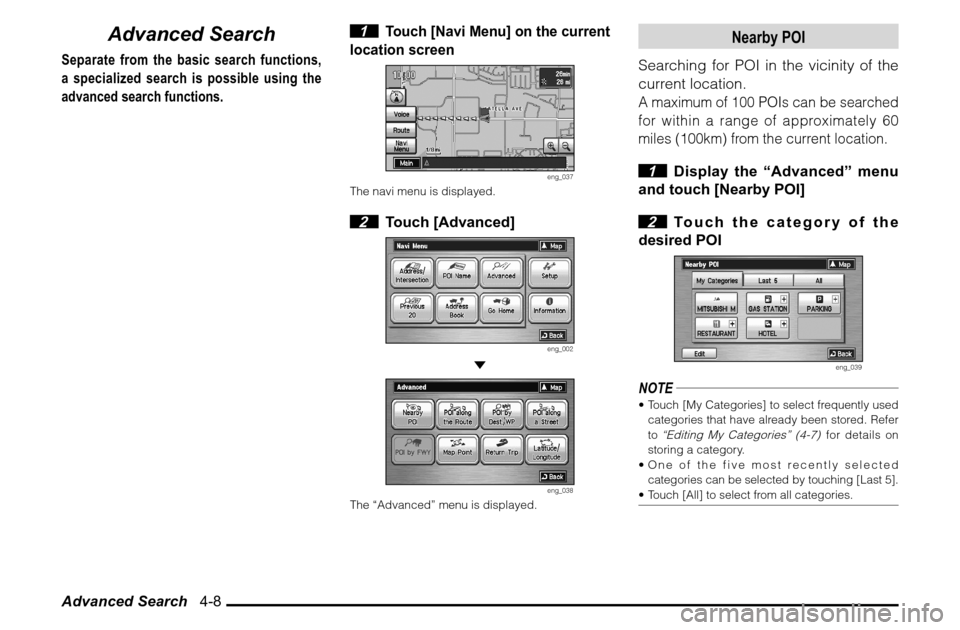

Advanced Search 4-8
Advanced Search
Separate from the basic search functions,
a specialized search is possible using the
advanced search functions.
1
Touch [Navi Menu] on the current
location screen
eng_037
The navi menu is displayed. 2 Touch [Advanced]
eng_002
eng_038
The “Advanced” menu is displayed.
Nearby POI
Searching for POI in the vicinity of the
current location.A maximum of 100 POIs can be searched
for within a range of approximately 60
miles (100km) from the current location. 1 Display the “Advanced” menu
and touch [Nearby POI]
2 Touch the category of the
desired POI
eng_039
NOTE Touch [My Categories] to select frequently used
categories that have already been stored. Refer
to
“Editing My Categories” (4-7)
for details on
storing a category.
One of the five most recently selected
categories can be selected by touching [Last 5].
Touch [All] to select from all categories.
Page 64 of 101
Advanced Search 4-9
Destination
3 Touch the desired POI
eng_040
>>> Continued at “Destination Setting” (4-13)NOTE Touch [Refresh] to search again.
Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_041
From the Scroll MenuPOIs in the vicinity of a speci ed location can be
searched for from the scroll menu. 1
Scroll the map and place the
cursor where POIs are to be searched
for
eng_042
2 Touch [Nearby POI]
The remaining operations are the same as from
step 2 of
“Nearby POI” (4-8)
.
POI along the Route
Searching for POI along the set route.
A maximum of 100 POIs can be
searched for.
1 Display the “Advanced” menu
and touch [POI along the Route]
The remaining operations are the same as from
step 2 of
“Nearby POI” (4-8)
.
Page 65 of 101
Advanced Search 4-10
POI by Dest./Way Point
Searching for POI in the vicinity of the
set destination/way point.A maximum of 100 POIs can be searched
for within a range of approximately 60
miles (100km) from the destination or
way point. 1 Display the “Advanced” menu
and touch [POI by Dest./WP]
2 Touch the destination or way
point
eng_043
The remaining operations are the same as from
step 2 of
“Nearby POI” (4-8)
.
NOTE Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_044
POI along a Street
Searching for POI along a specified
street.
1 Display the “Advanced” menu
and touch [POI along a Street]
2 Input the “State”, “City” and
“Street”
Input the “State”, “City” and “Street” with the same
operations as in
“From Address/Intersection” (4-3)
.
eng_045a
NOTE If no POIs are found in the vicinity of the input
location, “No POI found” is displayed. Touch
[OK] and set a different location. 3 Touch [Category List]
4
Touch the category of the desired
POI
eng_046
5 Touch [All POIs]
6 Input the POI name
>>> “How to Enter Text” (3-14)
eng_047
NOTE If there is only one candidate when a character
is input for the POI name, go to step 7.
If there are five
candidates or
less when a
character is
input for the POI
name, a list is
displayed and
eng_048
a POI can be selected from the list.
Page 66 of 101

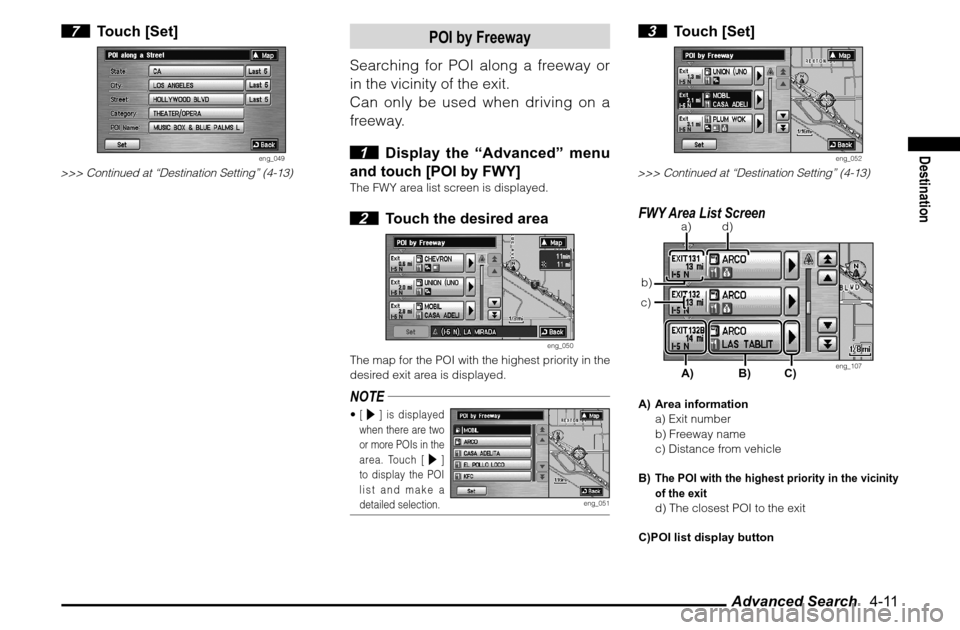

Advanced Search 4-11
Destination
7 Touch [Set]
eng_049
>>> Continued at “Destination Setting” (4-13)
POI by Freeway
Searching for POI along a freeway or
in the vicinity of the exit.
Can only be used when driving on a
freeway.
1 Display the “Advanced” menu
and touch [POI by FWY]
The FWY area list screen is displayed. 2 Touch the desired area
eng_050
The map for the POI with the highest priority in the
desired exit area is displayed.NOTE [ ] is displayed
when there are two
or more POIs in the
area. Touch [ ]
to display the POI
list and make a
detailed selection.
eng_051
3 Touch [Set]
eng_052
>>> Continued at “Destination Setting” (4-13)FWY Area List Screen
eng_107
A) Area information
a) Exit number
b) Freeway name
c) Distance from vehicle
B) The POI with the highest priority in the vicinity
of the exit d) The closest POI to the exit
C)POI list display button
a)
c)b)
d)
A) B)
C)
Page 67 of 101

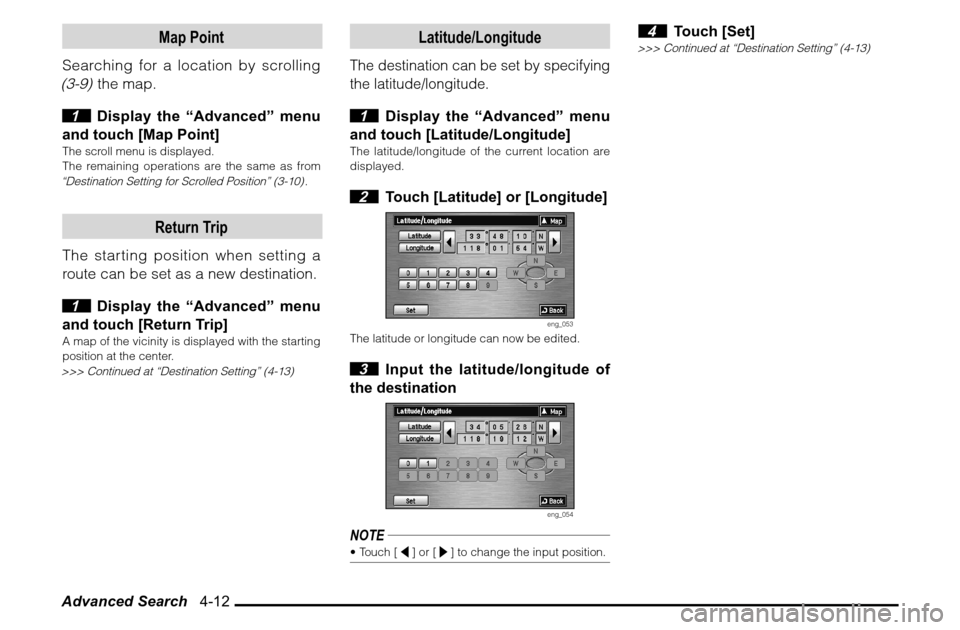

Advanced Search 4-12
Latitude/Longitude
The destination can be set by specifying
the latitude/longitude. 1 Display the “Advanced” menu
and touch [Latitude/Longitude]
The latitude/longitude of the current location are
displayed. 2 Touch [Latitude] or [Longitude]
eng_053
The latitude or longitude can now be edited. 3 Input the latitude/longitude of
the destination
eng_054
NOTE Touch [ ] or [
] to change the input position.
4 Touch [Set]
>>> Continued at “Destination Setting” (4-13)
Map Point
Searching for a location by scrolling (3-9)
the map.
1 Display the “Advanced” menu
and touch [Map Point]
The scroll menu is displayed.
The remaining operations are the same as from “Destination Setting for Scrolled Position” (3-10)
.
Return Trip
The starting position when setting a
route can be set as a new destination.
1 Display the “Advanced” menu
and touch [Return Trip]
A map of the vicinity is displayed with the starting
position at the center.>>> Continued at “Destination Setting” (4-13)
Page 68 of 101

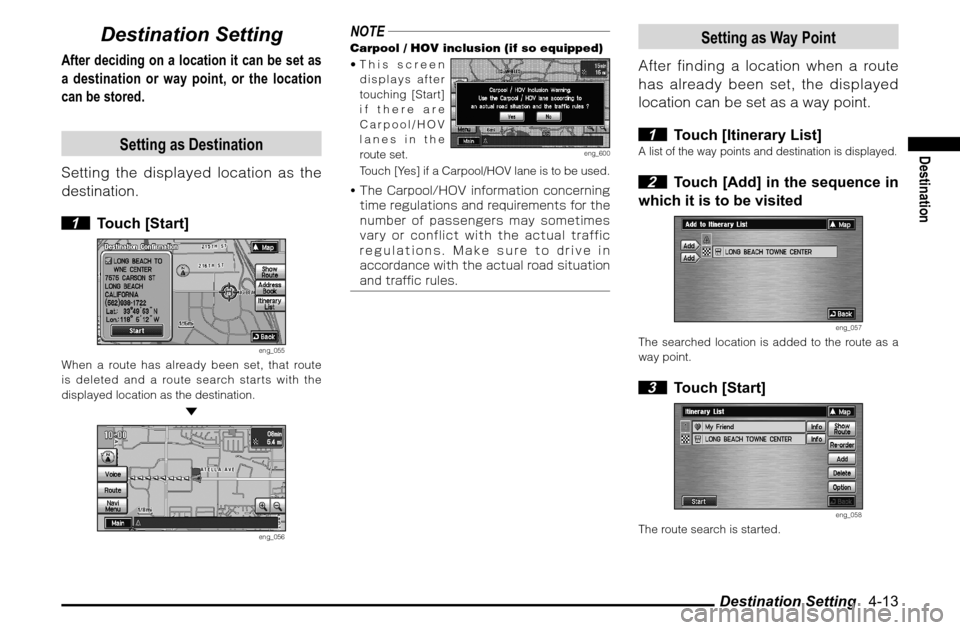

Destination Setting 4-13
Destination
Destination Setting
After deciding on a location it can be set as
a destination or way point, or the location
can be stored.
Setting as Destination
Setting the displayed location as the
destination.
1 Touch [Start]
eng_055
When a route has already been set, that route
is deleted and a route search starts with the
displayed location as the destination.
eng_056
NOTECarpool / HOV inclusion (if so equipped)
This screen
displays after
touching [Start]
if there are
Carpool/HOV
lanes in the
route set.
eng_600
Touch [Yes] if a Carpool/HOV lane is to be used.
w 5 I F $ B S Q P P M ) 0 7 J O G P S N B U J P O D P O D F S O J O H
U J N F S F H V M B U J P O T B O E S F R V J S F N F O U T G P S U I F
O V N C F S P G Q B T T F O H F S T N B Z T P N F U J N F T
W B S Z P S D P O G M J D U X J U I U I F B D U V B M U S B G G J D
S F H V M B U J P O T . B L F T V S F U P E S J W F J O
B D D P S E B O D F X J U I U I F B D U V B M S P B E T J U V B U J P O
B O E U S B G p D S V M F T
Setting as Way Point
After finding a location when a route
has already been set, the displayed
location can be set as a way point.
1 Touch [Itinerary List]
A list of the way points and destination is displayed. 2 Touch [Add] in the sequence in
which it is to be visited
eng_057
The searched location is added to the route as a
way point. 3 Touch [Start]
eng_058
The route search is started.
Page 69 of 101
Destination Setting 4-14NOTE Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_059
Touch [Show Route] to display the entire
route, view 3 different routes and change the
calculation conditions in the same way as “Showing the Route” (5-5)
.
Touch [Re-order] to change the sequence for
visiting each location in the same way as
“Re-
ordering” (5-6)
.
Touch [Add] to add a way point in the same way
as
“Adding a Way Point” (5-7)
.
Touch [Delete] to delete a destination or way
point in the same way as
“Deleting” (5-7)
.
Touch [Option] to perform settings related to the
route in the same way as
“Route Options” (7-6)
.
Storing the Location
Storing the displayed location and
adding it to the address book.
1 Touch [Address Book]
The information screen for the location to be
stored is displayed. 2 Touch [Done]
eng_060
The displayed location is stored in the address
book.NOTE Touch “Icon” or “Name” to edit information
about the stored location. When editing an icon
or name, perform in the same way as
“Editing a
Location” (6-4)
.
Page 70 of 101

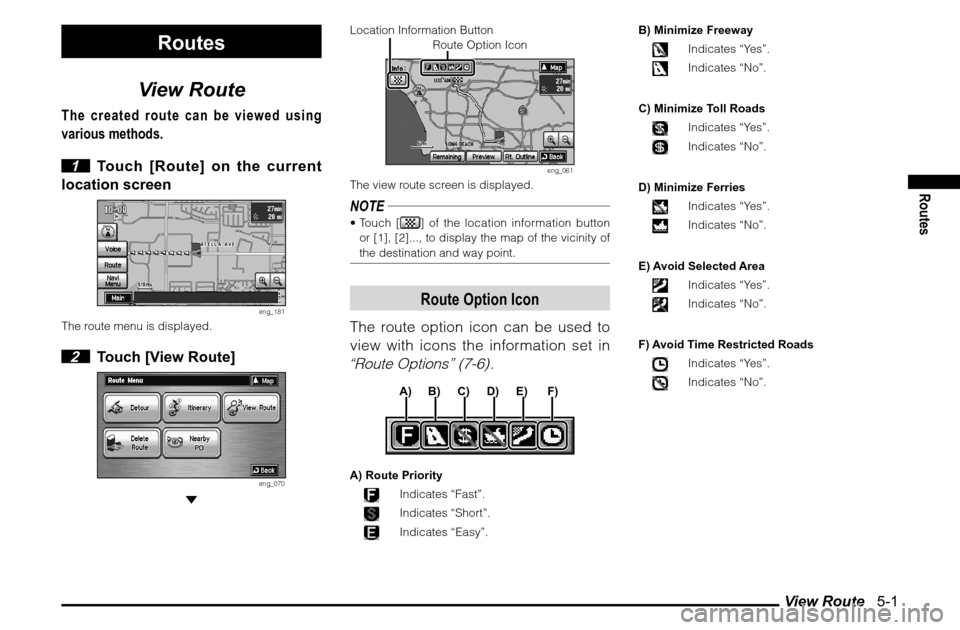

View Route 5-1
Routes
Routes
View Route
The created route can be viewed using
various methods.
1 Touch [Route] on the current
location screen
eng_181
The route menu is displayed. 2 Touch [View Route]
eng_070
Location Information Button
Route Option Icon
eng_061
The view route screen is displayed.NOTE Touch [
] of the location information button
or [1], [2]..., to display the map of the vicinity of
the destination and way point.Route Option Icon
The route option icon can be used to
view with icons the information set in “Route Options” (7-6)
.
A) Route Priority
Indicates “Fast”.Indicates “Short”.Indicates “Easy”.B) Minimize Freeway
Indicates “Yes”.Indicates “No”.
C) Minimize Toll RoadsIndicates “Yes”.Indicates “No”.
D) Minimize FerriesIndicates “Yes”.Indicates “No”.
E) Avoid Selected AreaIndicates “Yes”.Indicates “No”.
F) Avoid Time Restricted RoadsIndicates “Yes”.Indicates “No”.
A) B) C) D) E) F)
