MITSUBISHI GALANT 2012 9.G Owners Manual

3-92 Features and controls
3Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so
equipped)N00506400102
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition (Bluetooth
® HFP) uses a wireless com-
munication technology known as Bluetooth
® to allow you to
make hands-free calls in your vehicle using your Bluetooth
®
compatible cellular phone with Hands-free profile.
The system is equipped with a voice recognition function,
which lets you make hands-free calls by simple switch opera-
tions and voice command operations using a defined voice tree.
The Bluetooth
® HFP can be used when the ignition switch is in
the “ON” or “ACC” position.
To use the Bluetooth
® HFP, you should first connect your
Bluetooth
® compatible cellular phone to the Bluetooth
® HFP.
Refer to “Pairing a cellular phone” on page 3-100.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
NOTE
You cannot use the Bluetooth
® HFP if your cellular phone
has a dead battery or is turned off.

Hands-free calls will not be possible in areas outside your
cellular phone service area or locations where a signal
cannot reach your phone.
WA R N I N G
!
Although the Bluetooth
® HFP allows you to make
hands-free calls, if you choose to use the cellular
phone while driving, you must not allow that usage
to distract you in the safe operation of your vehicle.
Anything, including cellular phone usage, that dis-
tracts you from the safe operation of your vehicle
increases your risk of an accident. Refer to and fol-
low all state and local laws in your area regarding
cellular phone usage while driving.
BK0139500US.book 92 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-93
3

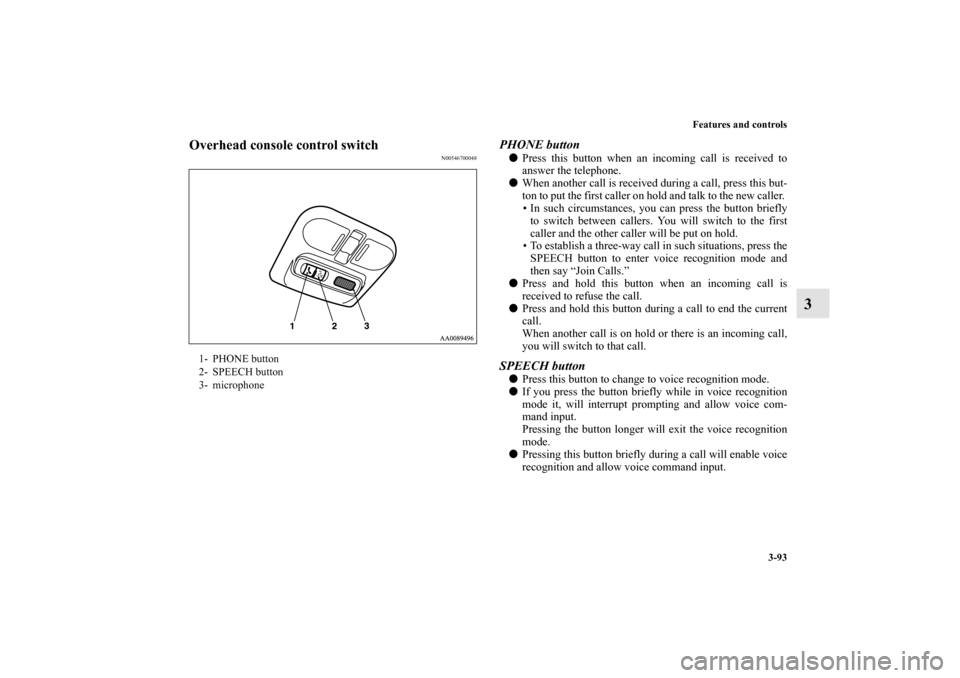

Overhead console control switch
N00546700048
PHONE button
Press this button when an incoming call is received to
answer the telephone.

When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
• In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
• To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join Calls.”

Press and hold this button when an incoming call is
received to refuse the call.

Press and hold this button during a call to end the current
call.
When another call is on hold or there is an incoming call,
you will switch to that call.SPEECH button
Press this button to change to voice recognition mode.

If you press the button briefly while in voice recognition
mode it, will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will exit the voice recognition
mode.

Pressing this button briefly during a call will enable voice
recognition and allow voice command input.
1- PHONE button
2- SPEECH button
3- microphone
BK0139500US.book 93 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-94 Features and controls
3
NOTE
When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.* (Refer to “Pairing
a cellular phone” on page 3-100.)
*: Some cellular phones will not send this information to
the Bluetooth
® HFP.

Call waiting and three-way calls can be used by the Blue-
tooth
® HFP, only when those services can be used with
your cellular phone.

Users may experience a delay in vehicle audio when plac-
ing a call from the handset. Users may experience a delay
in vehicle audio when answering an incoming call on the
handset. To reduce delays users should place calls and
receive calls through the Hands-free System.
Voice recognition function
N00506600133
The Bluetooth
® HFP is equipped with a voice recognition
function. Your voice will be recognized by a microphone in the
overhead console, allowing you to make hands-free calls with
voice commands.
Voice recognition is possible in US English, North American
Spanish and Canadian French. The factory setting is US
English.
Some of the voice commands indicated below have a number
of alternative commands. For a table showing the voice com-
mands in each language and the corresponding alternative
commands, refer to “Commands and Alternatives” on page 3-
114.
NOTE
If the voice command that you say differs from the pre-
defined command or cannot be recognized due to ambient
noise or some other reason, the Bluetooth
® HFP will ask
you for the voice command again up to 3 times.

For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.
Selecting the LanguageThere are two ways to change the language. NOTE
The more entries that are registered in the phonebook, the
longer it will take to change the language.
BK0139500US.book 94 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-95
3

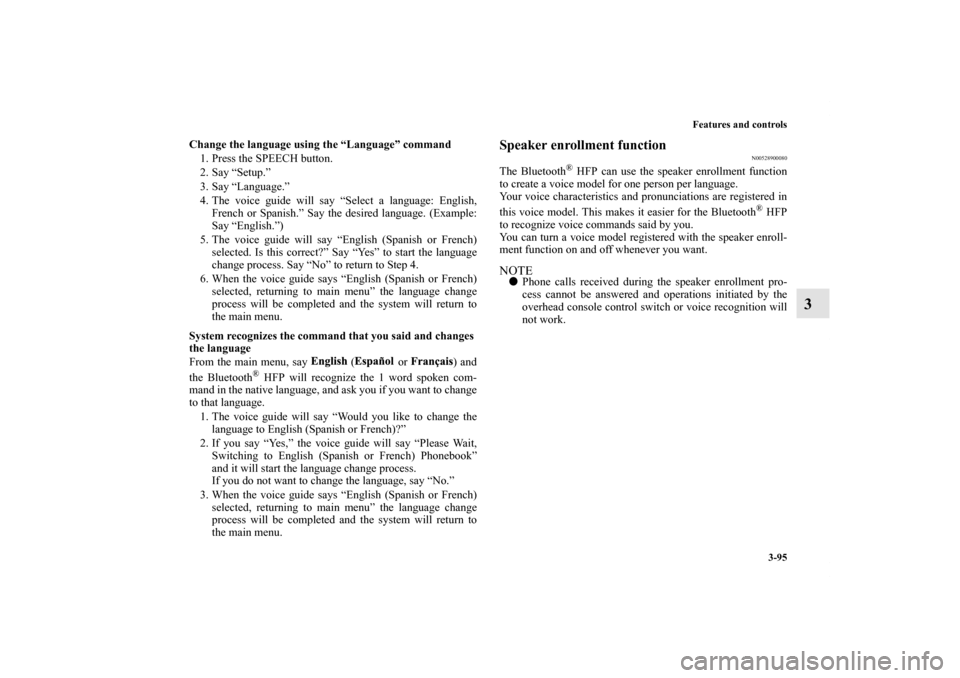

Change the language using the “Language” command
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Language.”
4. The voice guide will say “Select a language: English,
French or Spanish.” Say the desired language. (Example:
Say “English.”)
5. The voice guide will say “English (Spanish or French)
selected. Is this correct?” Say “Yes” to start the language
change process. Say “No” to return to Step 4.
6. When the voice guide says “English (Spanish or French)
selected, returning to main menu” the language change
process will be completed and the system will return to
the main menu.
System recognizes the command that you said and changes
the language
From the main menu, say ( or ) and
the Bluetooth
® HFP will recognize the 1 word spoken com-
mand in the native language, and ask you if you want to change
to that language.
1. The voice guide will say “Would you like to change the
language to English (Spanish or French)?”
2. If you say “Yes,” the voice guide will say “Please Wait,
Switching to English (Spanish or French) Phonebook”
and it will start the language change process.
If you do not want to change the language, say “No.”
3. When the voice guide says “English (Spanish or French)
selected, returning to main menu” the language change
process will be completed and the system will return to
the main menu.
Speaker enrollment function
N00528900080
The Bluetooth
® HFP can use the speaker enrollment function
to create a voice model for one person per language.
Your voice characteristics and pronunciations are registered in
this voice model. This makes it easier for the Bluetooth
® HFP
to recognize voice commands said by you.
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
NOTE
Phone calls received during the speaker enrollment pro-
cess cannot be answered and operations initiated by the
overhead console control switch or voice recognition will
not work.
BK0139500US.book 95 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-96 Features and controls
3

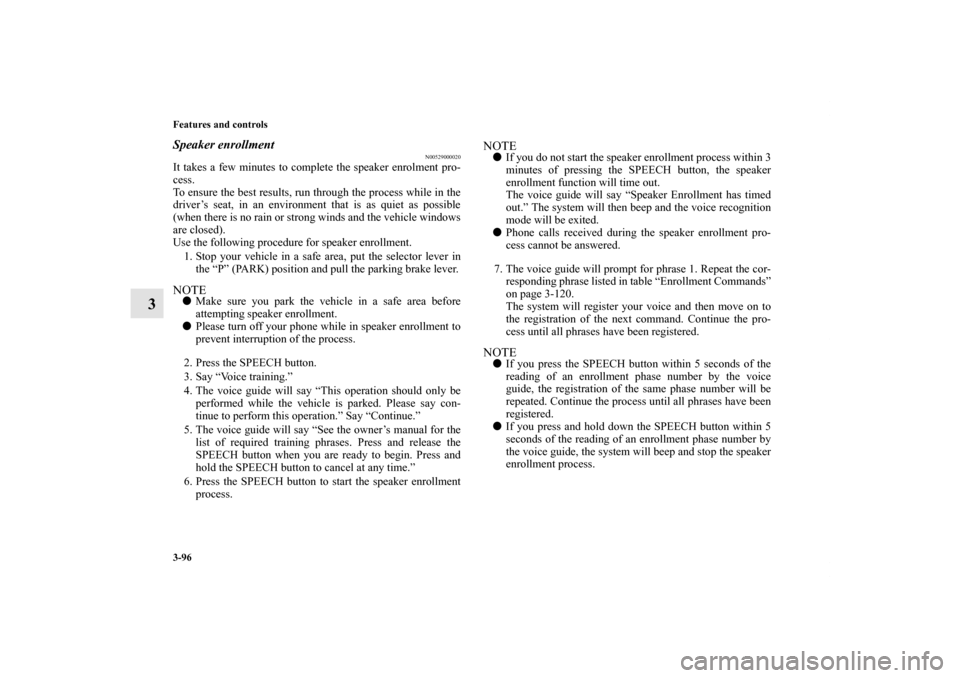

Speaker enrollment
N00529000020
It takes a few minutes to complete the speaker enrolment pro-
cess.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
(when there is no rain or strong winds and the vehicle windows
are closed).
Use the following procedure for speaker enrollment.
1. Stop your vehicle in a safe area, put the selector lever in
the “P” (PARK) position and pull the parking brake lever.NOTE
Make sure you park the vehicle in a safe area before
attempting speaker enrollment.

Please turn off your phone while in speaker enrollment to
prevent interruption of the process.
2. Press the SPEECH button.
3. Say “Voice training.”
4. The voice guide will say “This operation should only be
performed while the vehicle is parked. Please say con-
tinue to perform this operation.” Say “Continue.”
5. The voice guide will say “See the owner’s manual for the
list of required training phrases. Press and release the
SPEECH button when you are ready to begin. Press and
hold the SPEECH button to cancel at any time.”
6. Press the SPEECH button to start the speaker enrollment
process.
NOTE
If you do not start the speaker enrollment process within 3
minutes of pressing the SPEECH button, the speaker
enrollment function will time out.
The voice guide will say “Speaker Enrollment has timed
out.” The system will then beep and the voice recognition
mode will be exited.

Phone calls received during the speaker enrollment pro-
cess cannot be answered.
7. The voice guide will prompt for phrase 1. Repeat the cor-
responding phrase listed in table “Enrollment Commands”
on page 3-120.
The system will register your voice and then move on to
the registration of the next command. Continue the pro-
cess until all phrases have been registered.NOTE
If you press the SPEECH button within 5 seconds of the
reading of an enrollment phase number by the voice
guide, the registration of the same phase number will be
repeated. Continue the process until all phrases have been
registered.

If you press and hold down the SPEECH button within 5
seconds of the reading of an enrollment phase number by
the voice guide, the system will beep and stop the speaker
enrollment process.
BK0139500US.book 96 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-97
3

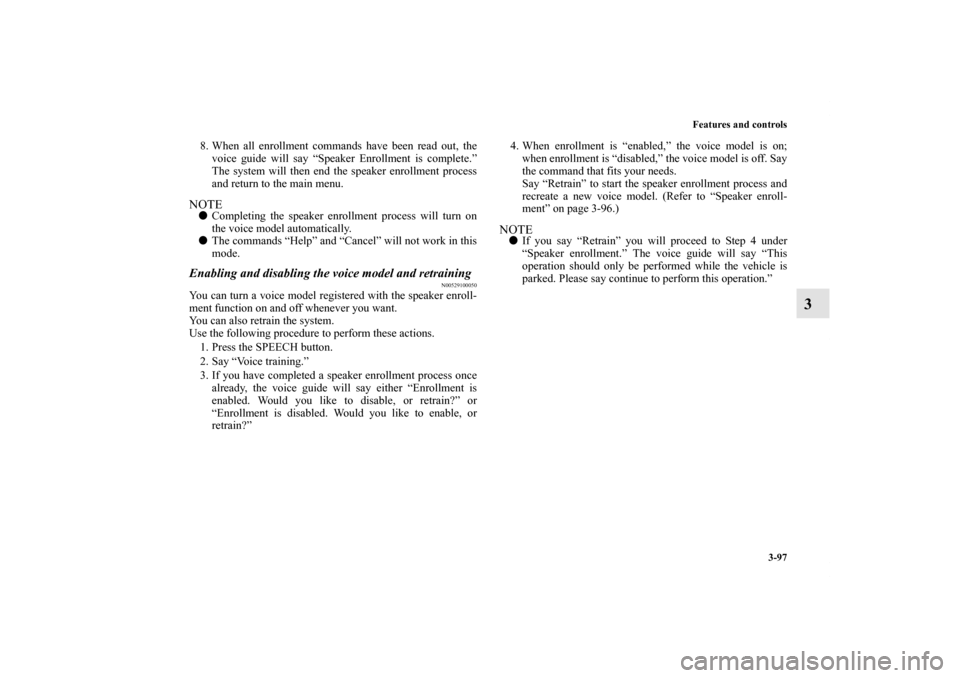

8. When all enrollment commands have been read out, the
voice guide will say “Speaker Enrollment is complete.”
The system will then end the speaker enrollment process
and return to the main menu. NOTE
Completing the speaker enrollment process will turn on
the voice model automatically.

The commands “Help” and “Cancel” will not work in this
mode.Enabling and disabling the voice model and retraining
N00529100050
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
You can also retrain the system.
Use the following procedure to perform these actions.
1. Press the SPEECH button.
2. Say “Voice training.”
3. If you have completed a speaker enrollment process once
already, the voice guide will say either “Enrollment is
enabled. Would you like to disable, or retrain?” or
“Enrollment is disabled. Would you like to enable, or
retrain?”4. When enrollment is “enabled,” the voice model is on;
when enrollment is “disabled,” the voice model is off. Say
the command that fits your needs.
Say “Retrain” to start the speaker enrollment process and
recreate a new voice model. (Refer to “Speaker enroll-
ment” on page 3-96.)
NOTE
If you say “Retrain” you will proceed to Step 4 under
“Speaker enrollment.” The voice guide will say “This
operation should only be performed while the vehicle is
parked. Please say continue to perform this operation.”
BK0139500US.book 97 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-98 Features and controls
3
Help function
N00506700033
The Bluetooth
® HFP is equipped with a Help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00506800034
There are two cancel functions.
If you are at the main menu, say “Cancel” to exit from the
Bluetooth
® HFP. If you are anywhere else within the system,
say “Cancel” to return to the main menu.
MUTE function
N00506900019
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn ON the MUTE function and mute the micro-
phone.
Saying “Mute off” in the same way will turn off the MUTE
function and cancel the mute on the microphone.Confirmation function setting
N00507000033
The Bluetooth
® HFP is equipped with a confirmation function.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Bluetooth
® HFP. This allows you to
decrease the possibility that a setting is accidentally changed.
The confirmation function can be turned on or off by following
the steps below. 1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Confirmation prompts.”
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
.”
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
, ready” and then the system will return to the
main menu.
Security function
N00538900012
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Bluetooth
® HFP.
When the security function is turned on, it is necessary to make
a voice input of a 4-digit passcode in order to use all functions
of the Bluetooth
® HFP, except for reception.
BK0139500US.book 98 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-99
3

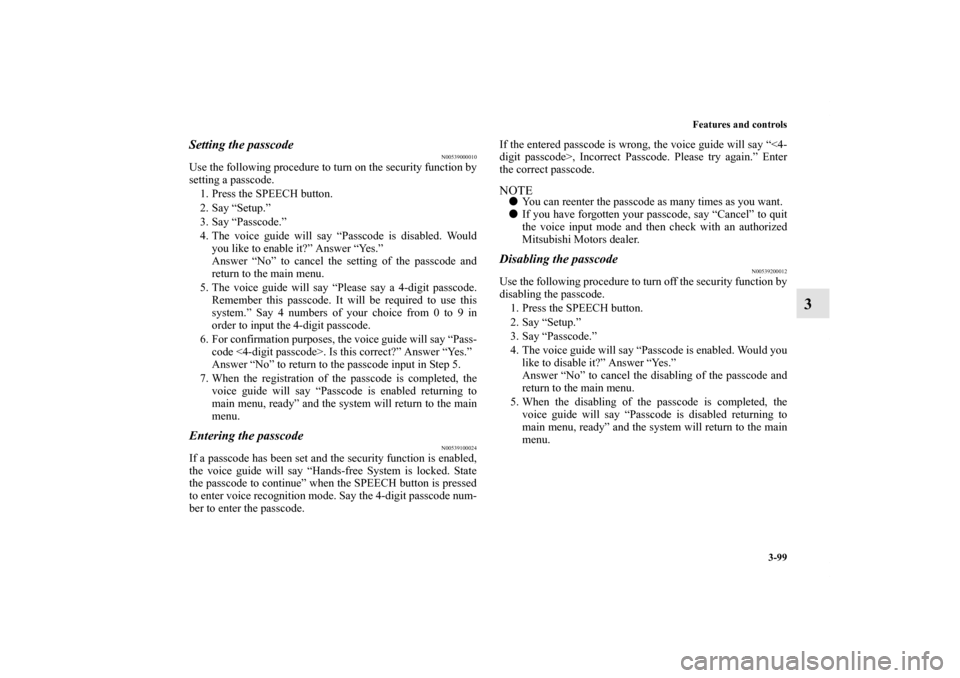

Setting the passcode
N00539000010
Use the following procedure to turn on the security function by
setting a passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is disabled. Would
you like to enable it?” Answer “Yes.”
Answer “No” to cancel the setting of the passcode and
return to the main menu.
5. The voice guide will say “Please say a 4-digit passcode.
Remember this passcode. It will be required to use this
system.” Say 4 numbers of your choice from 0 to 9 in
order to input the 4-digit passcode.
6. For confirmation purposes, the voice guide will say “Pass-
code <4-digit passcode>. Is this correct?” Answer “Yes.”
Answer “No” to return to the passcode input in Step 5.
7. When the registration of the passcode is completed, the
voice guide will say “Passcode is enabled returning to
main menu, ready” and the system will return to the main
menu.Entering the passcode
N00539100024
If a passcode has been set and the security function is enabled,
the voice guide will say “Hands-free System is locked. State
the passcode to continue” when the SPEECH button is pressed
to enter voice recognition mode. Say the 4-digit passcode num-
ber to enter the passcode. If the entered passcode is wrong, the voice guide will say “<4-
digit passcode>, Incorrect Passcode. Please try again.” Enter
the correct passcode.
NOTE
You can reenter the passcode as many times as you want.

If you have forgotten your passcode, say “Cancel” to quit
the voice input mode and then check with an authorized
Mitsubishi Motors dealer.Disabling the passcode
N00539200012
Use the following procedure to turn off the security function by
disabling the passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is enabled. Would you
like to disable it?” Answer “Yes.”
Answer “No” to cancel the disabling of the passcode and
return to the main menu.
5. When the disabling of the passcode is completed, the
voice guide will say “Passcode is disabled returning to
main menu, ready” and the system will return to the main
menu.
BK0139500US.book 99 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-100 Features and controls
3
Pairing a cellular phone
N00507100164
To use the Bluetooth
® HFP, you need to pair a Bluetooth
®
compatible cellular phone to the Bluetooth
® HFP.
The Bluetooth
® HFP can register up to a maximum of 7 Blue-
tooth
® compatible cellular phones. However, of the cellular
phones registered, the cellular phone with the highest priority
level will be automatically paired to the Bluetooth
® HFP.
NOTE
Some Bluetooth
® compatible cellular phones may not be
compatible with the Bluetooth
® HFP.
You can determine what types of Bluetooth
® cellular
phones with Hands-Free Profile can be used by checking
the following website for the Bluetooth
® HFP.
www.mitsubishicars.com/ownersUse the following procedure to pair a Bluetooth
® compatible
cellular phone to the Bluetooth
® HFP.
1. Stop your vehicle in a safe area, put the selector lever in
the “P” (PARK) position and pull the parking brake lever.
NOTE
Make sure you park the vehicle in a safe area before pair-
ing a cellular phone to the system.
2. Press the SPEECH button.
3. Say “Setup.”
4. Say “Pairing Options.”
5. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Pair a phone.” NOTE
A maximum of 7 Bluetooth
® compatible cellular phones
can be registered.
If 7 cellular phones are already registered, delete a phone
and then pair the new phone. (Refer to “Deleting a phone”
on page 3-103.)
6. The voice guide will say “This operation should only be
performed while the vehicle is parked. Please say con-
tinue to perform this operation.” Say “Continue.”
BK0139500US.book 100 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-101
3
7. After the voice guide says “Please say a 4-digit pairing
code,” say a 4-digit code. The 4-digit code will be regis-
tered as a pairing code for the phone.
When the confirmation function is on, the system will
confirm whether the code said is acceptable. To continue
with the code, answer “Yes.”
Say “No” to return to pairing code selection.NOTE
The pairing code entered here is only used for the Blue-
tooth
® connection certification. It is any 4-digit code the
user would like to select.
Remember the pairing code as it needs to be keyed into
the phone later in the pairing process.
Depending on the Bluetooth
® connection settings
selected, entry of this code may be required each time the
phone attempts to “connect” to the Bluetooth
® HFP. Refer
to your cellular phone owner’s manual for connection
defaults and settings.
8. The voice guide will say “Start pairing procedure on
phone. See phone’s manual for instructions.” Refer to the
owner’s manual for your cellular phone and enter into the
phone the pairing code that was registered in Step 7.9. When the system finds a Bluetooth
® compatible cellular
phone, the voice guide will say “Please say the name of
the phone after the beep.” After you hear the beep, name
the phone by saying a name of your preference.
When the confirmation function is on, the system will say
“Adding , is this correct?”
Answer “Yes” to accept that name or “No” to reenter a
new name.
NOTE
When the system cannot recognize the Bluetooth
® com-
patible cellular phone, the pairing process will end and the
system will beep and then return to normal status.
Try the pairing process again after reconfirming whether
or not the Bluetooth
® HFP supports your Bluetooth
®
compatible cellular phone.
10. The voice guide will say “Assign a priority for this phone
between 1 and 7 where 1 is the phone used most often.”
Say a number between 1 and 7 to set a priority level for
the cellular phone.
NOTE
If you selected a priority level that has already been set for
a different phone, the system will ask you whether you
wish to override that priority level.
To override the priority level, answer “Yes.”
Answer “No” to return to the priority level selection in
Step 10.
BK0139500US.book 101 ページ ２０１１年４月１９日　火曜日　午後１時４８分
