MITSUBISHI GALANT 2012 9.G Owners Manual

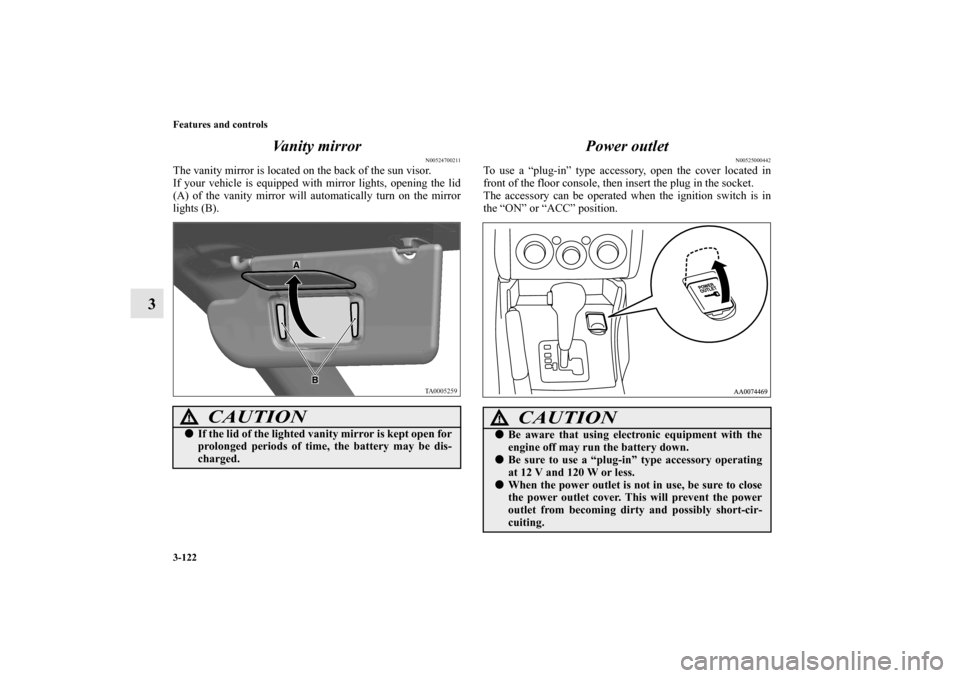

3-122 Features and controls
3Vanity mirror
N00524700211
The vanity mirror is located on the back of the sun visor.
If your vehicle is equipped with mirror lights, opening the lid
(A) of the vanity mirror will automatically turn on the mirror
lights (B).
Power outlet
N00525000442
To use a “plug-in” type accessory, open the cover located in
front of the floor console, then insert the plug in the socket.
The accessory can be operated when the ignition switch is in
the “ON” or “ACC” position.
CAUTION
!
If the lid of the lighted vanity mirror is kept open for
prolonged periods of time, the battery may be dis-
charged.
CAUTION
!
Be aware that using electronic equipment with the
engine off may run the battery down.
Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.
When the power outlet is not in use, be sure to close
the power outlet cover. This will prevent the power
outlet from becoming dirty and possibly short-cir-
cuiting.
BK0139500US.book 122 ページ ２０１１年４月１９日　火曜日　午後１時４８分

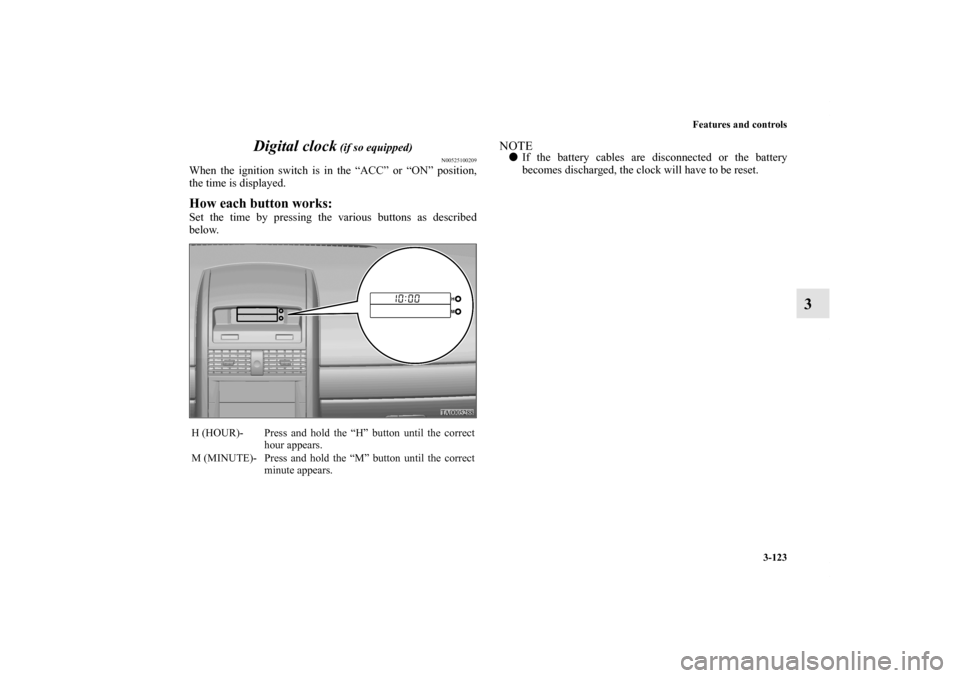

Features and controls
3-123
3 Digital clock
(if so equipped)
N00525100209
When the ignition switch is in the “ACC” or “ON” position,
the time is displayed.How each button works:Set the time by pressing the various buttons as described
below.
NOTE
If the battery cables are disconnected or the battery
becomes discharged, the clock will have to be reset.
H (HOUR)- Press and hold the “H” button until the correct
hour appears.
M (MINUTE)- Press and hold the “M” button until the correct
minute appears.
BK0139500US.book 123 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-124 Features and controls
3HomeLink
® Wireless Control System
(if so
equipped)N00554300030
HomeLink
® Wireless Control System is a registered trademark
of Johnson Controls Inc..
HomeLink® provides a convenient way to consolidate the
functions of up to three individual hand-held transmitters into
one built-in device.
HomeLink® will operate most radio frequency devices such as
garage doors, gates, home and office lighting, entry door locks
and security systems.
NOTE
Your vehicle’s engine should be turned off while program-
ming HomeLink
®.

HomeLink
® is powered by your vehicle’s battery. No sep-
arate batteries are required. If the vehicle’s battery is dis-
charged or is disconnected, HomeLink
® will retain all
programming.

Once HomeLink
® is programmed, retain the original
transmitter for future programming procedures (for exam-
ple, new vehicle purchases). Upon sale of the vehicle, the
programmed HomeLink
® buttons should be erased for
security purposes.
WA R N I N G
!
Do not use HomeLink
® with any garage door opener
that lacks safety stop and reverse features as
required by U.S. Federal Regulations. A garage door
opener which cannot detect an object in the path of
a closing garage door and then automatically stop
and reverse, does not meet current U.S. Federal
Regulations. Using a garage door opener without
these features increases the risk of serious injury or
death.

During programming, your garage door or gate may
open or close. Make sure that people and objects are
clear of the garage door or gate that you are pro-
gramming.
BK0139500US.book 124 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-125
3
Programming HomeLink
®
To program HomeLink
® to operate a garage door, gate, or
entry door opener, home or office lighting, you need to be at
the same location as the device.
NOTE
Some garage door openers manufactured after 1996 have
“rolling code protection”. To program a garage door
opener equipped with “rolling code protection”; you will
need to access the garage door opener motor to press the
motor’s learn buttons. For convenience, use a ladder and
another person to assist you.
1. Unplug the device during the “cycling” process to prevent
possible damage to the garage door opener components.2. Press and hold the 2 outer HomeLink
® buttons (A) (to
clear the memory) until the indicator light (B) blinks
slowly (after 20 seconds). Release both buttons.
3. Position the end of the hand-held transmitter 1 to 3 inches
(25 to 75 mm) away from HomeLink
® surface.
4. Using both hands, simultaneously press and hold both
HomeLink
® button (C) you want to program and the
hand-held transmitter button (D). Do not release the but-
tons until step 5 has been completed.
BK0139500US.book 125 ページ ２０１１年４月１９日　火曜日　午後１時４８分

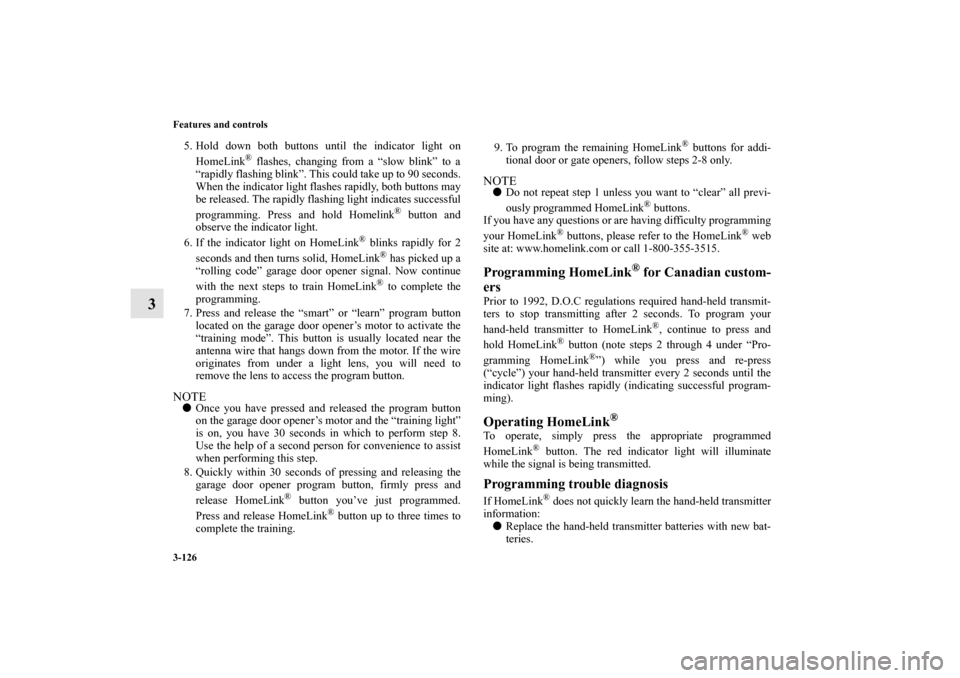

3-126 Features and controls
3
5. Hold down both buttons until the indicator light on
HomeLink
® flashes, changing from a “slow blink” to a
“rapidly flashing blink”. This could take up to 90 seconds.
When the indicator light flashes rapidly, both buttons may
be released. The rapidly flashing light indicates successful
programming. Press and hold Homelink
® button and
observe the indicator light.
6. If the indicator light on HomeLink
® blinks rapidly for 2
seconds and then turns solid, HomeLink
® has picked up a
“rolling code” garage door opener signal. Now continue
with the next steps to train HomeLink® to complete the
programming.
7. Press and release the “smart” or “learn” program button
located on the garage door opener’s motor to activate the
“training mode”. This button is usually located near the
antenna wire that hangs down from the motor. If the wire
originates from under a light lens, you will need to
remove the lens to access the program button.
NOTE
Once you have pressed and released the program button
on the garage door opener’s motor and the “training light”
is on, you have 30 seconds in which to perform step 8.
Use the help of a second person for convenience to assist
when performing this step.
8. Quickly within 30 seconds of pressing and releasing the
garage door opener program button, firmly press and
release HomeLink
® button you’ve just programmed.
Press and release HomeLink
® button up to three times to
complete the training.9. To program the remaining HomeLink
® buttons for addi-
tional door or gate openers, follow steps 2-8 only.
NOTE
Do not repeat step 1 unless you want to “clear” all previ-
ously programmed HomeLink
® buttons.
If you have any questions or are having difficulty programming
your HomeLink
® buttons, please refer to the HomeLink
® web
site at: www.homelink.com or call 1-800-355-3515.
Programming HomeLink
® for Canadian custom-
ers
Prior to 1992, D.O.C regulations required hand-held transmit-
ters to stop transmitting after 2 seconds. To program your
hand-held transmitter to HomeLink
®, continue to press and
hold HomeLink
® button (note steps 2 through 4 under “Pro-
gramming HomeLink
®”) while you press and re-press
(“cycle”) your hand-held transmitter every 2 seconds until the
indicator light flashes rapidly (indicating successful program-
ming).
Operating HomeLink
®
To operate, simply press the appropriate programmed
HomeLink
® button. The red indicator light will illuminate
while the signal is being transmitted.
Programming trouble diagnosisIf HomeLink
® does not quickly learn the hand-held transmitter
information:

Replace the hand-held transmitter batteries with new bat-
teries.
BK0139500US.book 126 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-127
3

Position the hand-held transmitter with its battery area
facing away from HomeLink
® surface.

Press and hold both HomeLink® and hand-held transmit-
ter buttons without interruption.

Position the hand-held transmitter 2 to 5 inches (50 to 126
mm) away from HomeLink
® surface. Hold the transmitter
in that position for up to 15 seconds. If HomeLink
® is not
programmed within that time, try holding the transmitter
in another position with the indicator light in view at all
times.
If you continue to have programming difficulties, please con-
tact an authorized Mitsubishi Motors dealer or a repair facility
of your choice.
Clearing the programmed informationTo clear all programming, press and hold the two outside but-
tons and release when the indicator light begins to flash
(approximately 20 seconds) individual buttons cannot be
cleared.Reprogramming a single HomeLink
® button
To reprogram a HomeLink
® button, complete the following.
1. Press and hold the desired HomeLink
® button. Do not
release the button until step 4 has been completed.
2. When the indicator light begins to flash slowly (after 20
seconds), position the hand-held transmitter 2 to 5 inches
(50 to 127 mm) away from HomeLink
® surface.
3. Press and hold the hand-held transmitter button.4. HomeLink
® indicator light will flash, first slowly and
then rapidly. When the indicator light begins to flash rap-
idly, release both buttons.
The new device can be activated by pushing HomeLink
® but-
ton that was just programmed. This procedure will not affect
any other programmed HomeLink
® buttons.
If your vehicle is stolenIf your vehicle is stolen, you should change the codes of any
non-rolling code device that has been programmed into
HomeLink
®. Consult the Owner’s Manual of each device or
call the manufacturer or dealer of those devices for additional
information. When your vehicle is recovered, you will need to
reprogram HomeLink
® with your new transmitter information.
General informationYour HomeLink
® system operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules (For
vehicles sold in U.S.A.) and Industry Canada Rules (For vehi-
cles sold in Canada). This device complies with Part 15 of the
FCC Rules and RSS- 210 of the Industry Canada Rules. Opera-
tion is subject to the following two conditions.

This device may not cause interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0139500US.book 127 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-128 Features and controls
3Interior lights
N00525300445
Reading lights
N00525700175
Push the reading light switch (A) to turn on the light. This light
produces a spot beam for convenient use as a map light.
Push the reading light switch again to turn the light off.
The reading light comes on when any door is opened.
When all the doors are closed, the reading light is dimmed
gradually for 30 seconds then goes off. However, the light goes
off immediately without being dimmed if:

The ignition switch is turned to the “ON” position.

All the doors are locked using the power door lock switch,
or the keyless entry remote transmitter.
Reading lights
→ P.3-128 Dome light
→ P. 3 - 1 2 9
BK0139500US.book 128 ページ ２０１１年４月１９日　火曜日　午後１時４８分

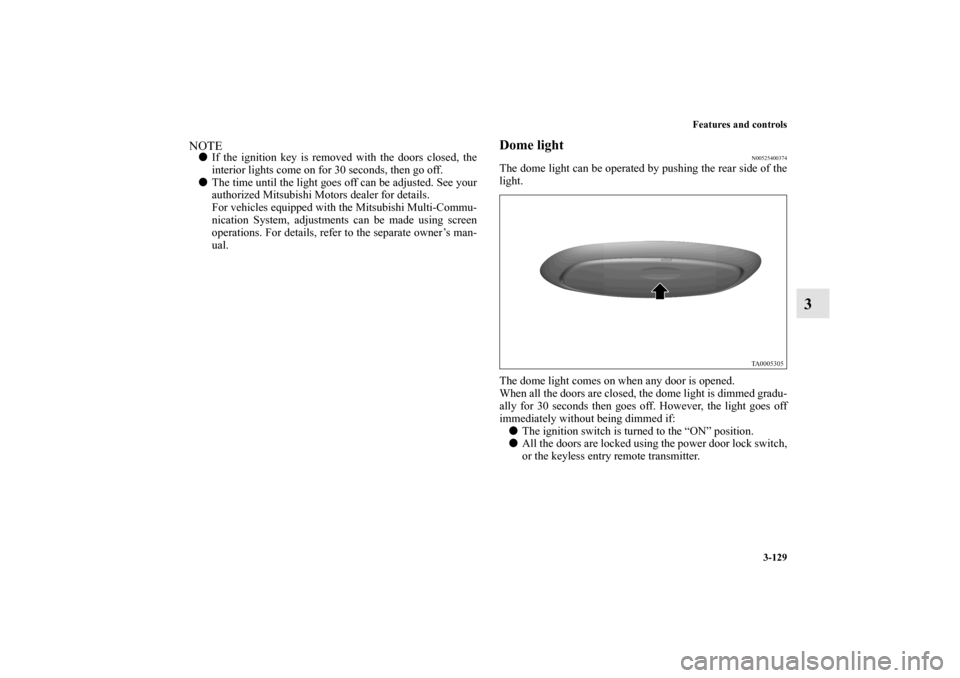

Features and controls
3-129
3
NOTE
If the ignition key is removed with the doors closed, the
interior lights come on for 30 seconds, then go off.

The time until the light goes off can be adjusted. See your
authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
Dome light
N00525400374
The dome light can be operated by pushing the rear side of the
light.
The dome light comes on when any door is opened.
When all the doors are closed, the dome light is dimmed gradu-
ally for 30 seconds then goes off. However, the light goes off
immediately without being dimmed if:

The ignition switch is turned to the “ON” position.

All the doors are locked using the power door lock switch,
or the keyless entry remote transmitter.
BK0139500US.book 129 ページ ２０１１年４月１９日　火曜日　午後１時４８分

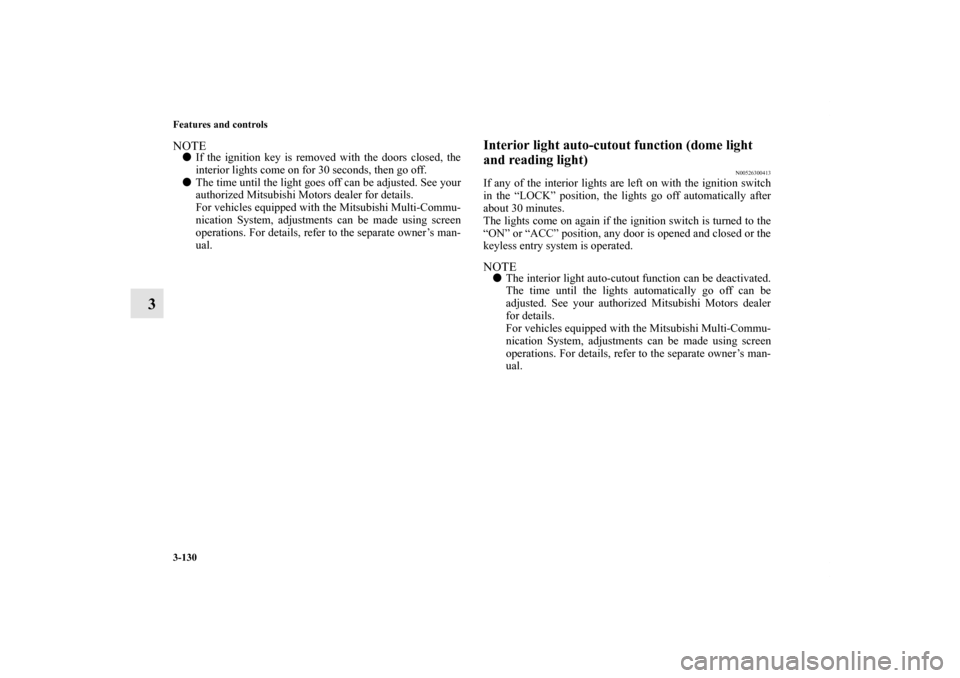

3-130 Features and controls
3
NOTE
If the ignition key is removed with the doors closed, the
interior lights come on for 30 seconds, then go off.

The time until the light goes off can be adjusted. See your
authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
Interior light auto-cutout function (dome light
and reading light)
N00526300413
If any of the interior lights are left on with the ignition switch
in the “LOCK” position, the lights go off automatically after
about 30 minutes.
The lights come on again if the ignition switch is turned to the
“ON” or “ACC” position, any door is opened and closed or the
keyless entry system is operated.NOTE
The interior light auto-cutout function can be deactivated.
The time until the lights automatically go off can be
adjusted. See your authorized Mitsubishi Motors dealer
for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
BK0139500US.book 130 ページ ２０１１年４月１９日　火曜日　午後１時４８分

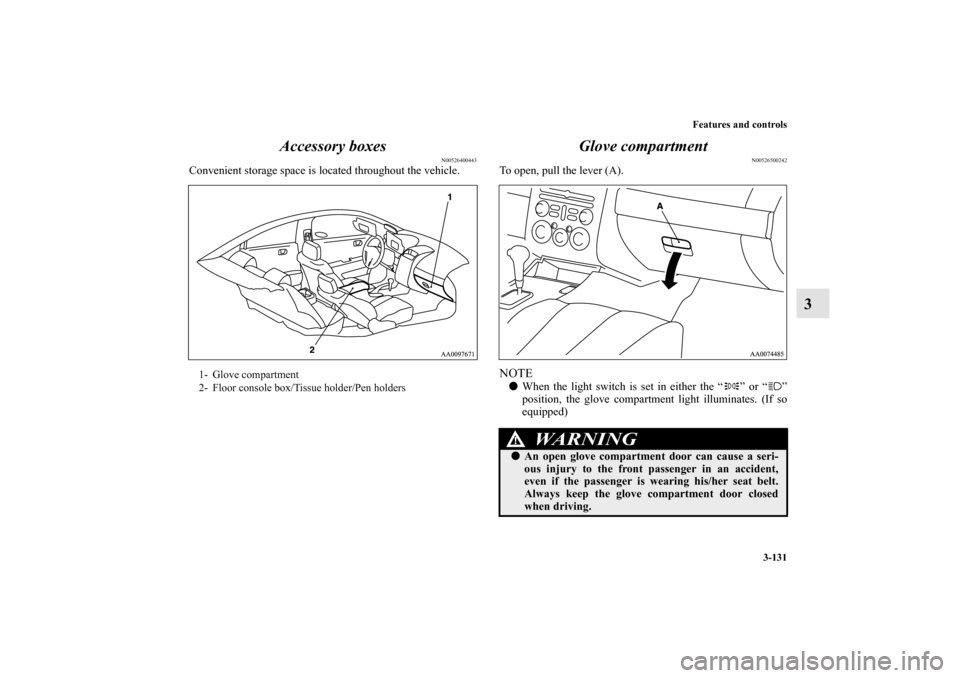

Features and controls
3-131
3 Accessory boxes
N00526400443
Convenient storage space is located throughout the vehicle.
Glove compartment
N00526500242
To open, pull the lever (A).NOTE
When the light switch is set in either the “ ” or “ ”
position, the glove compartment light illuminates. (If so
equipped)
1- Glove compartment
2- Floor console box/Tissue holder/Pen holders
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury to the front passenger in an accident,
even if the passenger is wearing his/her seat belt.
Always keep the glove compartment door closed
when driving.
BK0139500US.book 131 ページ ２０１１年４月１９日　火曜日　午後１時４８分
