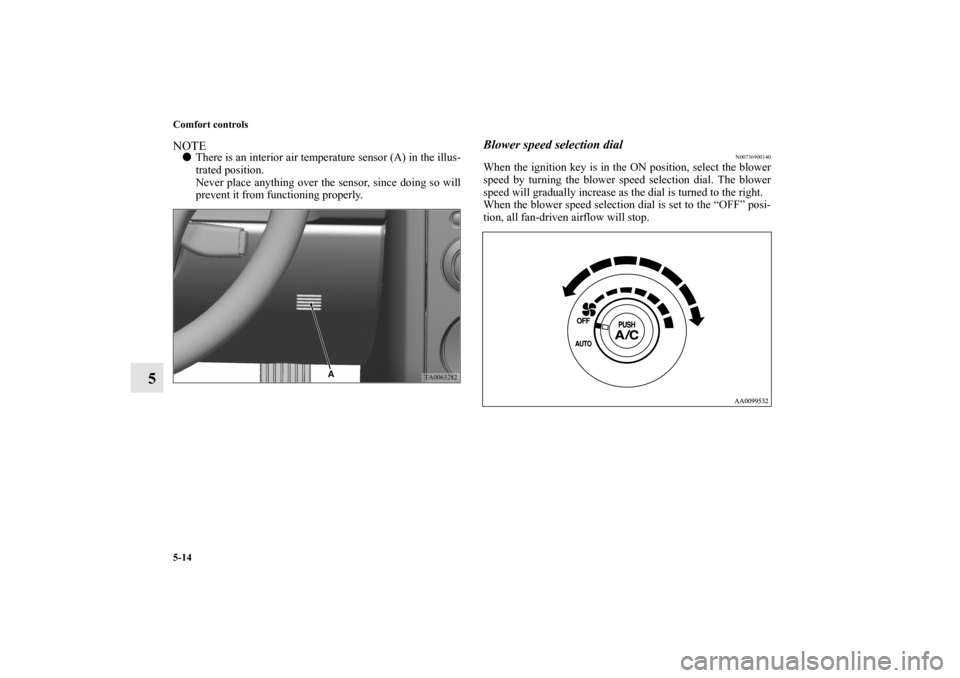

5-14 Comfort controls
5
NOTE
There is an interior air temperature sensor (A) in the illus-
trated position.
Never place anything over the sensor, since doing so will
prevent it from functioning properly.
Blower speed selection dial
N00736900140
When the ignition key is in the ON position, select the blower
speed by turning the blower speed selection dial. The blower
speed will gradually increase as the dial is turned to the right.
When the blower speed selection dial is set to the “OFF” posi-
tion, all fan-driven airflow will stop.
BK0139500US.book 14 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Comfort controls
5-15
5
Temperature control dial
N00737000294
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.
Mode selection dial
N00737100194
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Changing the
mode selection” on page 5-3.)
BK0139500US.book 15 ページ ２０１１年４月１９日　火曜日　午後１時４８分

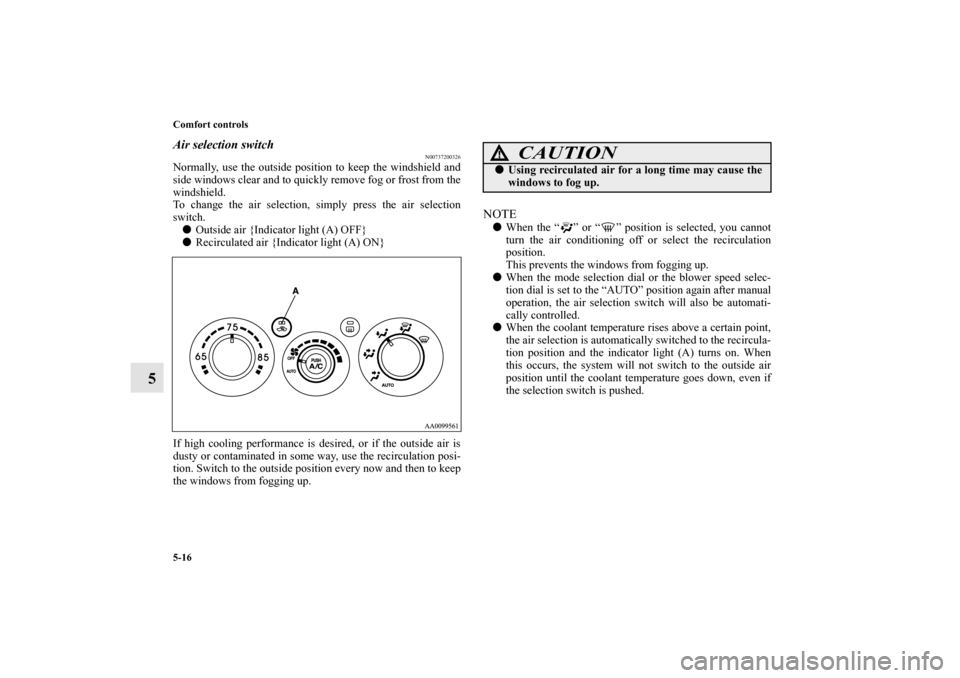

5-16 Comfort controls
5
Air selection switch
N00737200326
Normally, use the outside position to keep the windshield and
side windows clear and to quickly remove fog or frost from the
windshield.
To change the air selection, simply press the air selection
switch.

Outside air {Indicator light (A) OFF}

Recirculated air {Indicator light (A) ON}
If high cooling performance is desired, or if the outside air is
dusty or contaminated in some way, use the recirculation posi-
tion. Switch to the outside position every now and then to keep
the windows from fogging up.
NOTE
When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or select the recirculation
position.
This prevents the windows from fogging up.

When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position again after manual
operation, the air selection switch will also be automati-
cally controlled.

When the coolant temperature rises above a certain point,
the air selection is automatically switched to the recircula-
tion position and the indicator light (A) turns on. When
this occurs, the system will not switch to the outside air
position until the coolant temperature goes down, even if
the selection switch is pushed.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
BK0139500US.book 16 ページ ２０１１年４月１９日　火曜日　午後１時４８分

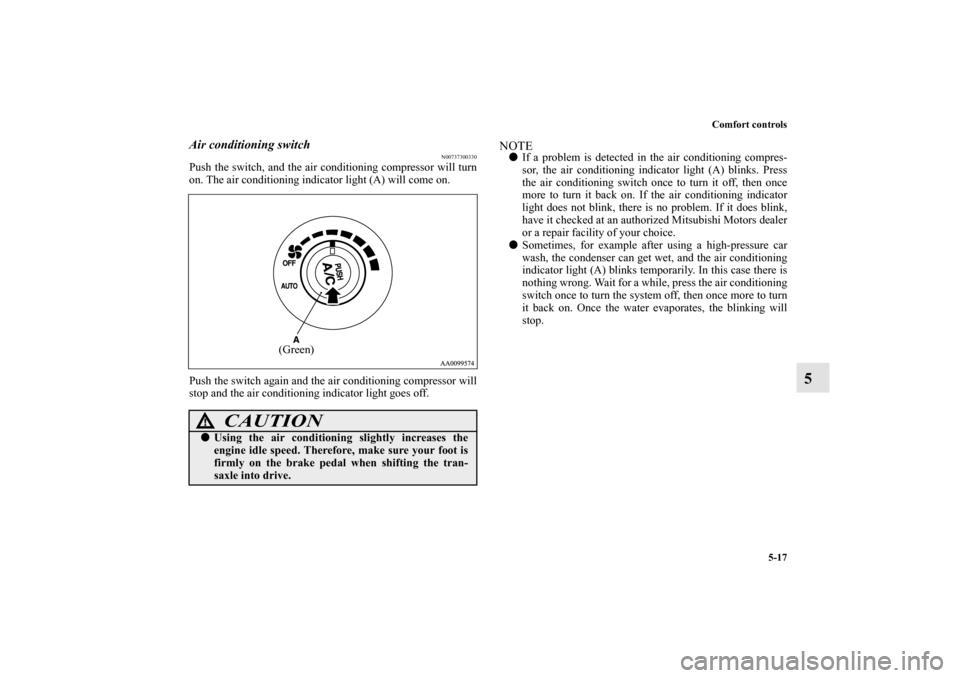

Comfort controls
5-17
5
Air conditioning switch
N00737300330
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
Push the switch again and the air conditioning compressor will
stop and the air conditioning indicator light goes off.
NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light does not blink, there is no problem. If it does blink,
have it checked at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. In this case there is
nothing wrong. Wait for a while, press the air conditioning
switch once to turn the system off, then once more to turn
it back on. Once the water evaporates, the blinking will
stop.
CAUTION
!
Using the air conditioning slightly increases the
engine idle speed. Therefore, make sure your foot is
firmly on the brake pedal when shifting the tran-
saxle into drive.
(Green)
BK0139500US.book 17 ページ ２０１１年４月１９日　火曜日　午後１時４８分

5-18 Comfort controls
5
Operating the air conditioning system (automatic
mode)
N00731700329
In normal conditions, use the system in the AUTO mode and
follow these procedures:
1. Set the blower speed selection dial to the “AUTO” posi-
tion.
2. Select the temperature control dial to the desired tempera-
ture. The temperature can be set within a range of around
61 to 89. The temperature may be set higher by turning
the dial to the right.
3. Set the mode selection dial to the “AUTO” position.
The vents (except “ ” and “ ”), recirculation/outside air,
blower speed, and ON/OFF of air conditioning will be con-
trolled automatically.
NOTE
Set the temperature at about 75 under normal conditions.

When the temperature is set to the highest or the lowest
setting under the AUTO operation, the air selection and
the air conditioning will be automatically changed as fol-
lows.
• Quick Heating (When the temperature is set to the high-
est setting)
Outside air will be introduced and the air conditioning
will stop.
• Quick Cooling (When the temperature is set to the low-
est setting)
Inside air will be recirculated and the air conditioning
will operate.

When the temperature is set to the highest setting, you can
turn the air conditioning on.
BK0139500US.book 18 ページ ２０１１年４月１９日　火曜日　午後１時４８分

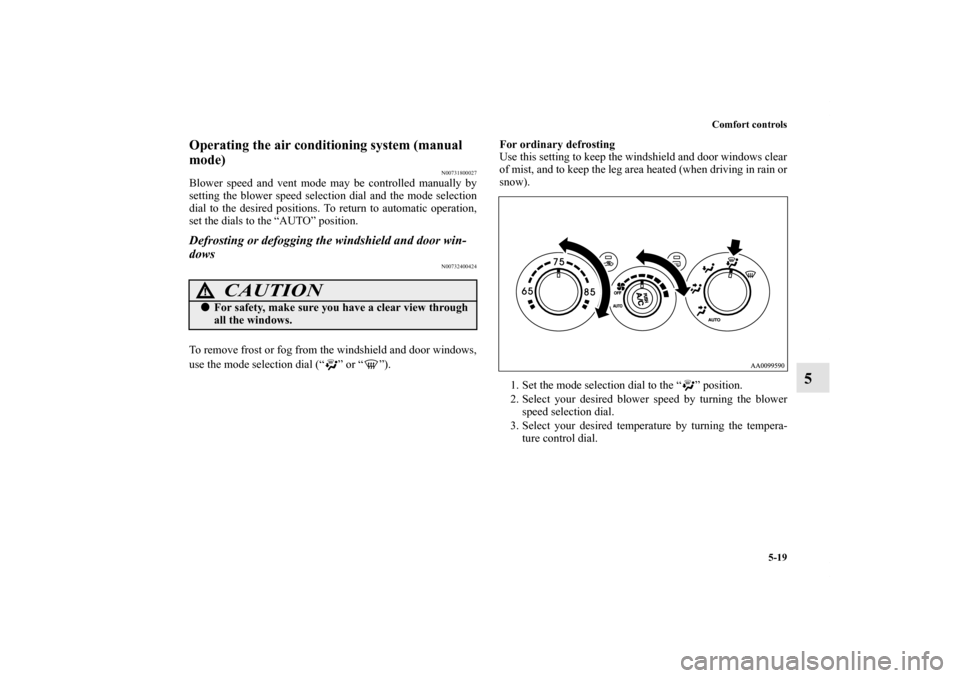

Comfort controls
5-19
5
Operating the air conditioning system (manual
mode)
N00731800027
Blower speed and vent mode may be controlled manually by
setting the blower speed selection dial and the mode selection
dial to the desired positions. To return to automatic operation,
set the dials to the “AUTO” position.Defrosting or defogging the windshield and door win-
dows
N00732400424
To remove frost or fog from the windshield and door windows,
use the mode selection dial (“ ” or “ ”).For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the mode selection dial to the “ ” position.
2. Select your desired blower speed by turning the blower
speed selection dial.
3. Select your desired temperature by turning the tempera-
ture control dial.
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0139500US.book 19 ページ ２０１１年４月１９日　火曜日　午後１時４８分

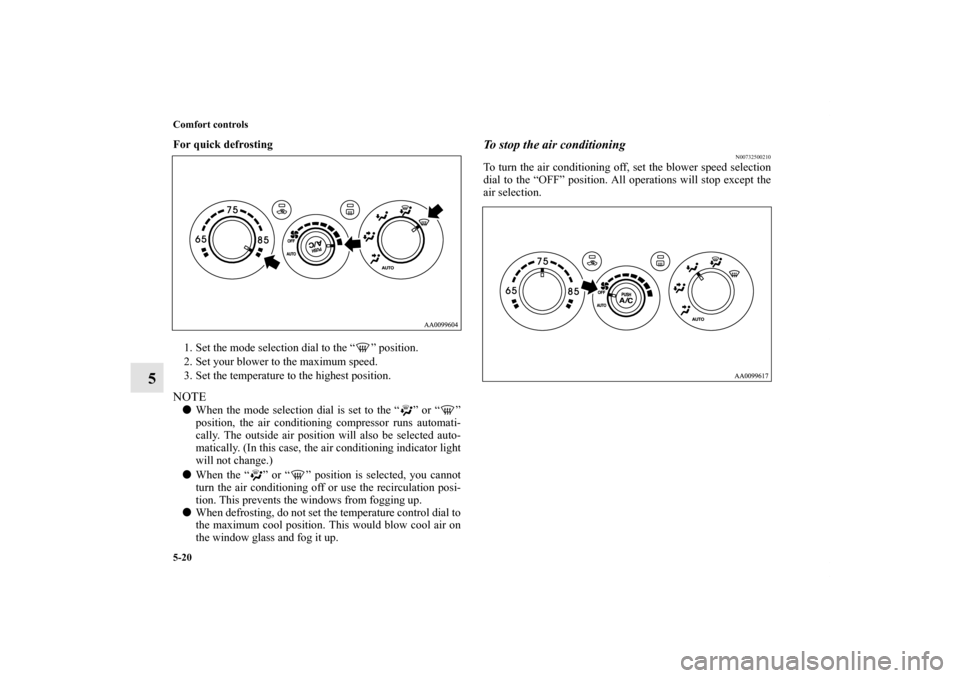

5-20 Comfort controls
5
For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.NOTE
When the mode selection dial is set to the “ ” or “ ”
position, the air conditioning compressor runs automati-
cally. The outside air position will also be selected auto-
matically. (In this case, the air conditioning indicator light
will not change.)

When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or use the recirculation posi-
tion. This prevents the windows from fogging up.

When defrosting, do not set the temperature control dial to
the maximum cool position. This would blow cool air on
the window glass and fog it up.
To stop the air conditioning
N00732500210
To turn the air conditioning off, set the blower speed selection
dial to the “OFF” position. All operations will stop except the
air selection.
BK0139500US.book 20 ページ ２０１１年４月１９日　火曜日　午後１時４８分

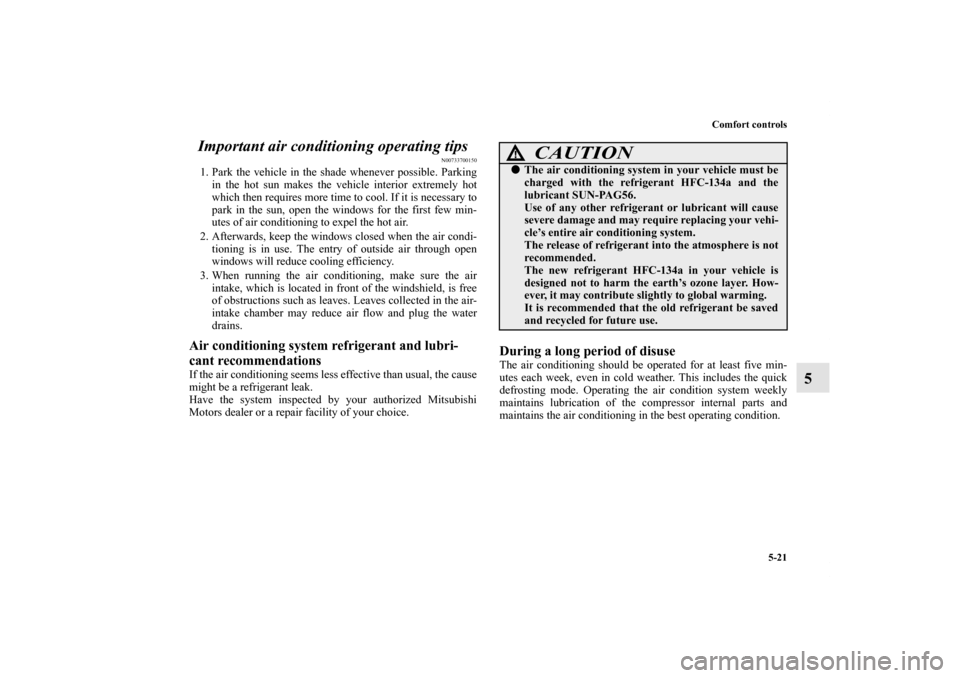

Comfort controls
5-21
5 Important air conditioning operating tips
N00733700150
1. Park the vehicle in the shade whenever possible. Parking
in the hot sun makes the vehicle interior extremely hot
which then requires more time to cool. If it is necessary to
park in the sun, open the windows for the first few min-
utes of air conditioning to expel the hot air.
2. Afterwards, keep the windows closed when the air condi-
tioning is in use. The entry of outside air through open
windows will reduce cooling efficiency.
3. When running the air conditioning, make sure the air
intake, which is located in front of the windshield, is free
of obstructions such as leaves. Leaves collected in the air-
intake chamber may reduce air flow and plug the water
drains. Air conditioning system refrigerant and lubri-
cant recommendations If the air conditioning seems less effective than usual, the cause
might be a refrigerant leak.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.
During a long period of disuse The air conditioning should be operated for at least five min-
utes each week, even in cold weather. This includes the quick
defrosting mode. Operating the air condition system weekly
maintains lubrication of the compressor internal parts and
maintains the air conditioning in the best operating condition.
CAUTION
!
The air conditioning system in your vehicle must be
charged with the refrigerant HFC-134a and the
lubricant SUN-PAG56.
Use of any other refrigerant or lubricant will cause
severe damage and may require replacing your vehi-
cle’s entire air conditioning system.
The release of refrigerant into the atmosphere is not
recommended.
The new refrigerant HFC-134a in your vehicle is
designed not to harm the earth’s ozone layer. How-
ever, it may contribute slightly to global warming.
It is recommended that the old refrigerant be saved
and recycled for future use.
BK0139500US.book 21 ページ ２０１１年４月１９日　火曜日　午後１時４８分

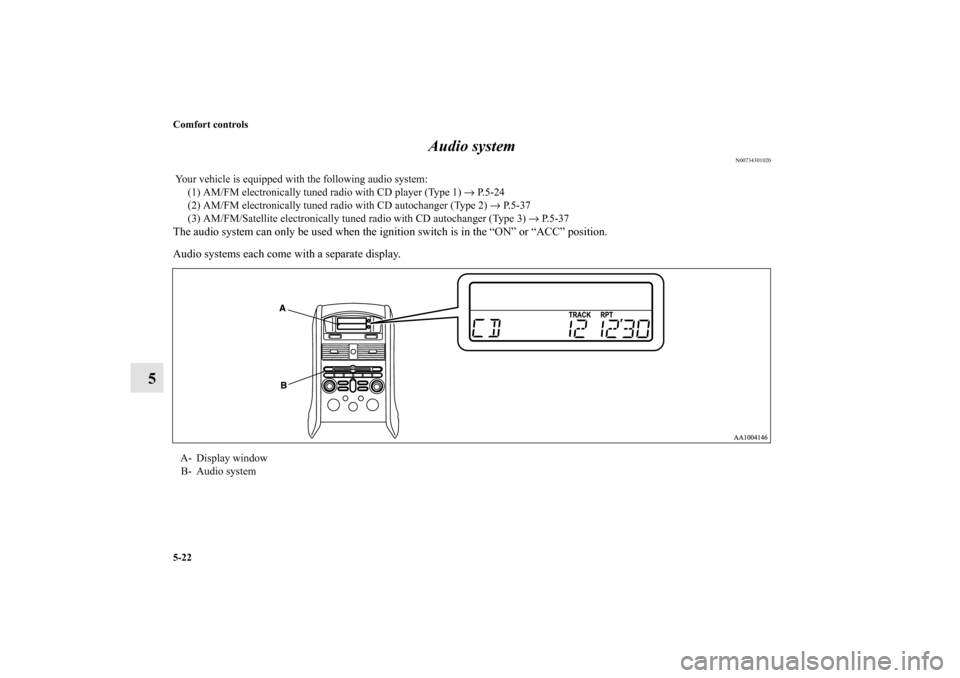

5-22 Comfort controls
5Audio system
N00734301020
The audio system can only be used when the ignition switch is in the “ON” or “ACC” position.
Audio systems each come with a separate display. Your vehicle is equipped with the following audio system:
(1) AM/FM electronically tuned radio with CD player (Type 1) → P.5-24
(2) AM/FM electronically tuned radio with CD autochanger (Type 2) → P.5-37
(3) AM/FM/Satellite electronically tuned radio with CD autochanger (Type 3) → P. 5 - 3 7
A- Display window
B- Audio system BK0139500US.book 22 ページ ２０１１年４月１９日　火曜日　午後１時４８分

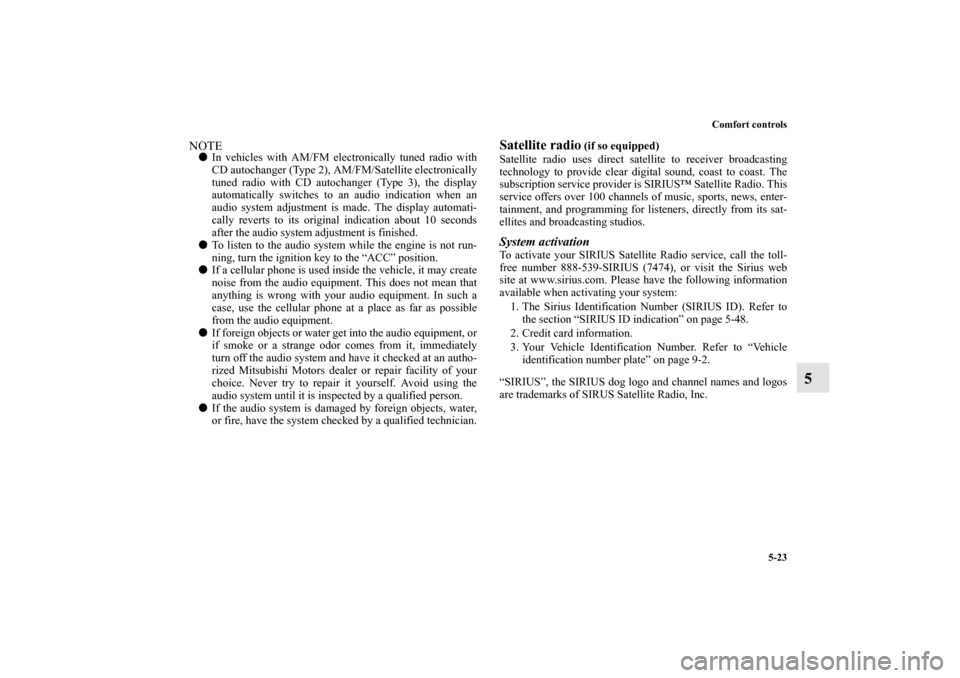

Comfort controls
5-23
5
NOTE
In vehicles with AM/FM electronically tuned radio with
CD autochanger (Type 2), AM/FM/Satellite electronically
tuned radio with CD autochanger (Type 3), the display
automatically switches to an audio indication when an
audio system adjustment is made. The display automati-
cally reverts to its original indication about 10 seconds
after the audio system adjustment is finished.

To listen to the audio system while the engine is not run-
ning, turn the ignition key to the “ACC” position.

If a cellular phone is used inside the vehicle, it may create
noise from the audio equipment. This does not mean that
anything is wrong with your audio equipment. In such a
case, use the cellular phone at a place as far as possible
from the audio equipment.

If foreign objects or water get into the audio equipment, or
if smoke or a strange odor comes from it, immediately
turn off the audio system and have it checked at an autho-
rized Mitsubishi Motors dealer or repair facility of your
choice. Never try to repair it yourself. Avoid using the
audio system until it is inspected by a qualified person.

If the audio system is damaged by foreign objects, water,
or fire, have the system checked by a qualified technician.
Satellite radio
(if so equipped)
Satellite radio uses direct satellite to receiver broadcasting
technology to provide clear digital sound, coast to coast. The
subscription service provider is SIRIUS™ Satellite Radio. This
service offers over 100 channels of music, sports, news, enter-
tainment, and programming for listeners, directly from its sat-
ellites and broadcasting studios.
System activationTo activate your SIRIUS Satellite Radio service, call the toll-
free number 888-539-SIRIUS (7474), or visit the Sirius web
site at www.sirius.com. Please have the following information
available when activating your system:
1. The Sirius Identification Number (SIRIUS ID). Refer to
the section “SIRIUS ID indication” on page 5-48.
2. Credit card information.
3. Your Vehicle Identification Number. Refer to “Vehicle
identification number plate” on page 9-2.
“SIRIUS”, the SIRIUS dog logo and channel names and logos
are trademarks of SIRUS Satellite Radio, Inc.
BK0139500US.book 23 ページ ２０１１年４月１９日　火曜日　午後１時４８分
