MITSUBISHI GRANDIS 2008 Owner's Manual (in English)

For pleasant driving
5-57

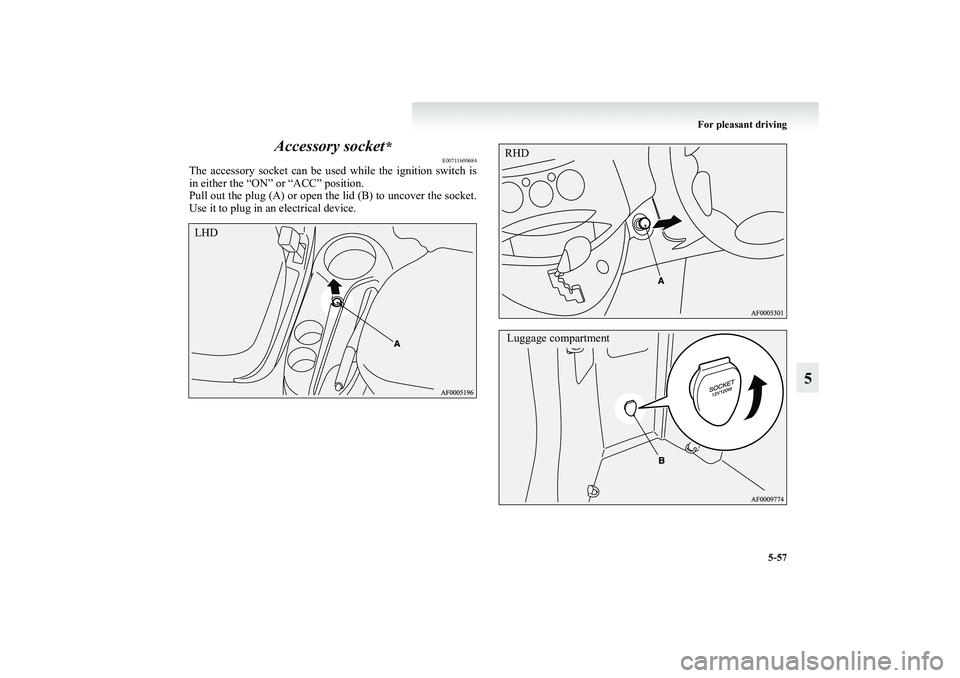

5 Accessory socket
*
E00711600684
The accessory socket can be used while the ignition switch is
in either the “ON” or “ACC” position.
Pull out the plug (A) or open the lid (B) to uncover the socket.
Use it to plug in an electrical device.LHD
RHDLuggage compartment
BK-XP08E1ENUK.en-uk.book Page 57 Monday, August 13, 2007 2:20 PM

5-58 For pleasant driving
5
NOTE●Long use of the electric appliance without running the
engine may run down the battery.

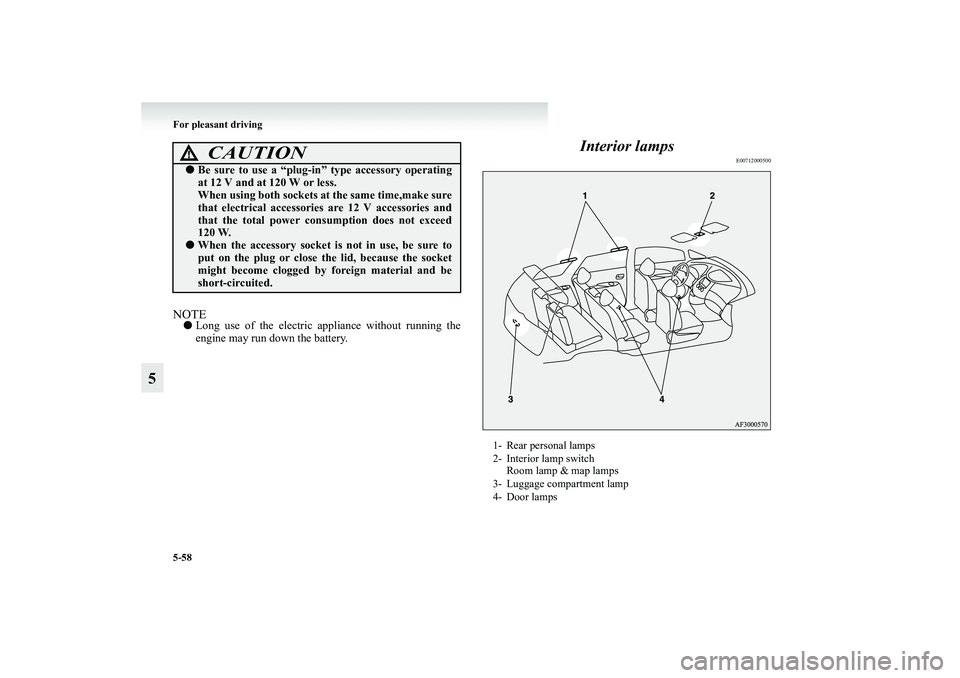

Interior lamps
E00712000500
CAUTION
!●Be sure to use a “plug-in” type accessory operating
at 12 V and at 120 W or less.
When using both sockets at the same time,make sure
that electrical accessories are 12 V accessories and
that the total power consumption does not exceed
120 W.●When the accessory socket is not in use, be sure to
put on the plug or close the lid, because the socket
might become clogged by foreign material and be
short-circuited.
1- Rear personal lamps
2- Interior lamp switch
Room lamp & map lamps
3- Luggage compartment lamp
4- Door lamps
BK-XP08E1ENUK.en-uk.book Page 58 Monday, August 13, 2007 2:20 PM

For pleasant driving
5-59
5
NOTE●If you leave the lamps on without running the engine, you
will run down the battery. Before you leave the vehicle,
make sure that all the lamps are off.
Interior lamp switch
E00717300263
The interior lamp switch can be used to turn the room lamp &
map lamps and rear personal lamps on and off.1 ( ) -The room lamp & map lamps and rear personal
lamps are off regardless of opening and closing of
the doors and tailgate.
NOTE●When the room lamp & map lamp switch is in
the “ON” position, the interior lamp switch
cannot be used to turn off the room lamp &
map lamps.
BK-XP08E1ENUK.en-uk.book Page 59 Monday, August 13, 2007 2:20 PM

5-60 For pleasant driving
5
2 (DOOR) - The room lamp & map lamps and rear personal
lamps go on when a door or the tailgate is opened.
When all doors and tailgate are closed, the room
lamp & map lamps and rear personal lamps are
illuminated and dimmed gradually for 15 seconds
and then go out.
However, the lamp goes out immediately without
being dimmed in the following cases:
●The doors and tailgate are closed and the igni-
tion switch is turned to the “ON” position.
●All doors and tailgate are locked using the
key mechanism of the driver’s door, the lock
knob of the driver’s door, or the remote con-
trol switch of the keyless entry system (if so
equipped).
NOTE●On vehicles with keyless entry system, if the
ignition key is removed with the doors and
tailgate closed, the room lamp & map lamps
and rear personal lamps are dimmed gradu-
ally for 15 seconds and then go out.
The dimming period is also adjustable.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Author-
ized Service Point.
On a vehicle equipped with a Multi Display
Station (MDS), the functions can be adjusted
on the screen. For details, refer to a separate
operation manual.
●When the room lamp & map lamp switch is in
the “ON” position, closing the doors and tail-
gate does not cause the room lamp & map
lamps to go off.3 ( ) -The room lamp & map lamps and rear personal
lamps are on regardless of opening and closing of
the doors and tailgate.
BK-XP08E1ENUK.en-uk.book Page 60 Monday, August 13, 2007 2:20 PM

For pleasant driving
5-61
5

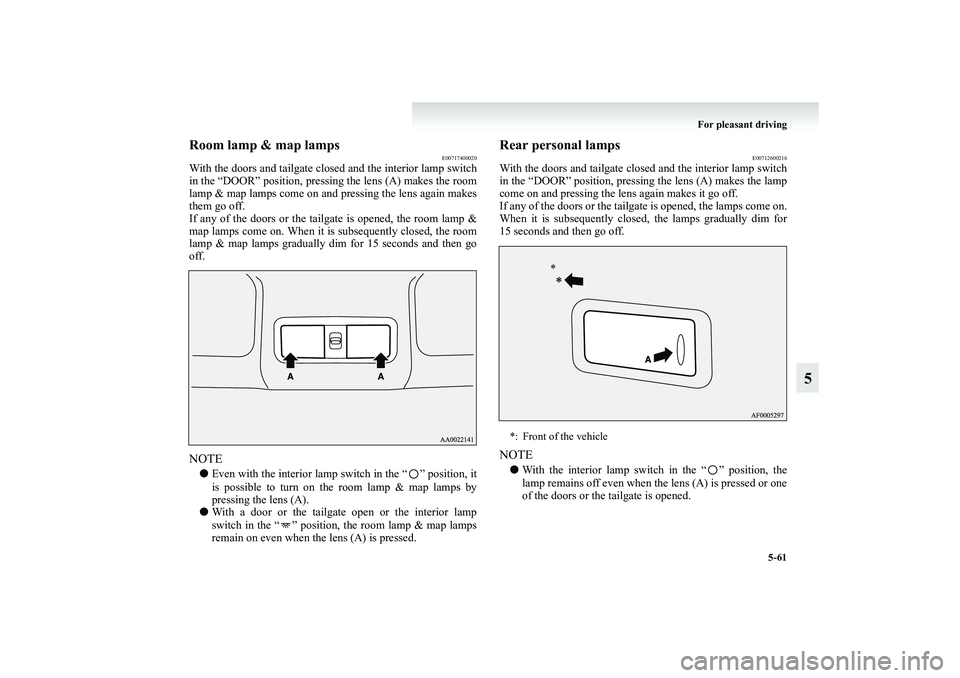

Room lamp & map lamps
E00717400020
With the doors and tailgate closed and the interior lamp switch
in the “DOOR” position, pressing the lens (A) makes the room
lamp & map lamps come on and pressing the lens again makes
them go off.
If any of the doors or the tailgate is opened, the room lamp &
map lamps come on. When it is subsequently closed, the room
lamp & map lamps gradually dim for 15 seconds and then go
off.NOTE●Even with the interior lamp switch in the “ ” position, it
is possible to turn on the room lamp & map lamps by
pressing the lens (A).
●With a door or the tailgate open or the interior lamp
switch in the “ ” position, the room lamp & map lamps
remain on even when the lens (A) is pressed.
Rear personal lamps
E00712600216
With the doors and tailgate closed and the interior lamp switch
in the “DOOR” position, pressing the lens (A) makes the lamp
come on and pressing the lens again makes it go off.
If any of the doors or the tailgate is opened, the lamps come on.
When it is subsequently closed, the lamps gradually dim for
15 seconds and then go off.NOTE●With the interior lamp switch in the “ ” position, the
lamp remains off even when the lens (A) is pressed or one
of the doors or the tailgate is opened.*: Front of the vehicle
*
BK-XP08E1ENUK.en-uk.book Page 61 Monday, August 13, 2007 2:20 PM

5-62 For pleasant driving
5
Luggage compartment lamp
E00712700031
Door lamps
E00717500021
Each door lamp comes on when the relevant door is opened
and goes off when the door is closed.
1- The lamp goes out.
2- The lamp illuminates when the tailgate is opened and goes
out when it is closed.
BK-XP08E1ENUK.en-uk.book Page 62 Monday, August 13, 2007 2:20 PM

For pleasant driving
5-63
5
Lamps (room lamps, etc.) auto-cutout function
(vehicles with keyless entry system)
E00712900293
If any of the interior lamps are left switched on with the igni-
tion key in any position other than “ON” or “ACC”, it goes off
automatically after approximately 30 minutes to prevent com-
plete discharge of the battery.
The lamp comes on again if the ignition key is turned to the
“ON” or “ACC” position, any door or tailgate is opened and
closed, or the keyless entry remote control is operated.NOTE●The interior lamp auto-cut function can be deactivated.
We recommend you to consult a MITSUBISHI MOTORS
Authorized Service Point for detailed information and
assistance.
On a vehicle equipped with a Multi Display Station
(MDS), the functions can be adjusted on the screen. For
details, refer to a separate operation manual.
Storage spaces
E00713100928
NOTE●Do not leave valuables in any storage space when leaving
the vehicle.
CAUTION
!●Never leave lighters, cans of carbonated drink, and
spectacles in the cabin when parking the vehicle in
hot sunshine. The cabin will become extremely hot,
so lighters and other flammable items may catch fire
and unopened drink cans (including beer cans) may
rupture. The heat may also deform or crack plastic
spectacle lenses and other spectacle parts that are
made of plastic.●Keep the lids of storage spaces closed while driving
the vehicle. A lid or the contents of a storage space
could otherwise cause injuries.
BK-XP08E1ENUK.en-uk.book Page 63 Monday, August 13, 2007 2:20 PM

5-64 For pleasant driving
5

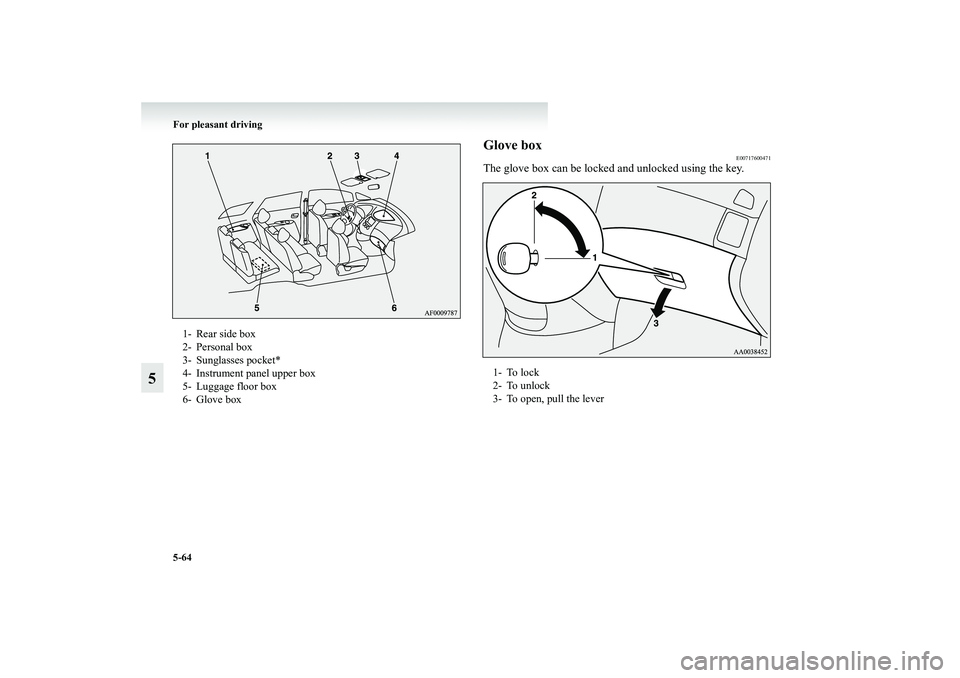

Glove box
E00717600471
The glove box can be locked and unlocked using the key.
1- Rear side box
2- Personal box
3- Sunglasses pocket*
4- Instrument panel upper box
5- Luggage floor box
6- Glove box
1- To lock
2- To unlock
3- To open, pull the lever
BK-XP08E1ENUK.en-uk.book Page 64 Monday, August 13, 2007 2:20 PM

For pleasant driving
5-65
5
NOTE●When the lamp switch is in the “ ” or “ ” position,
the glove box lamp illuminates.
●The owner’s manual can be stored in the upper area (A) of
the glove box.
Instrument panel upper box
E00717700023
To open, push the button.
BK-XP08E1ENUK.en-uk.book Page 65 Monday, August 13, 2007 2:20 PM

5-66 For pleasant driving
5

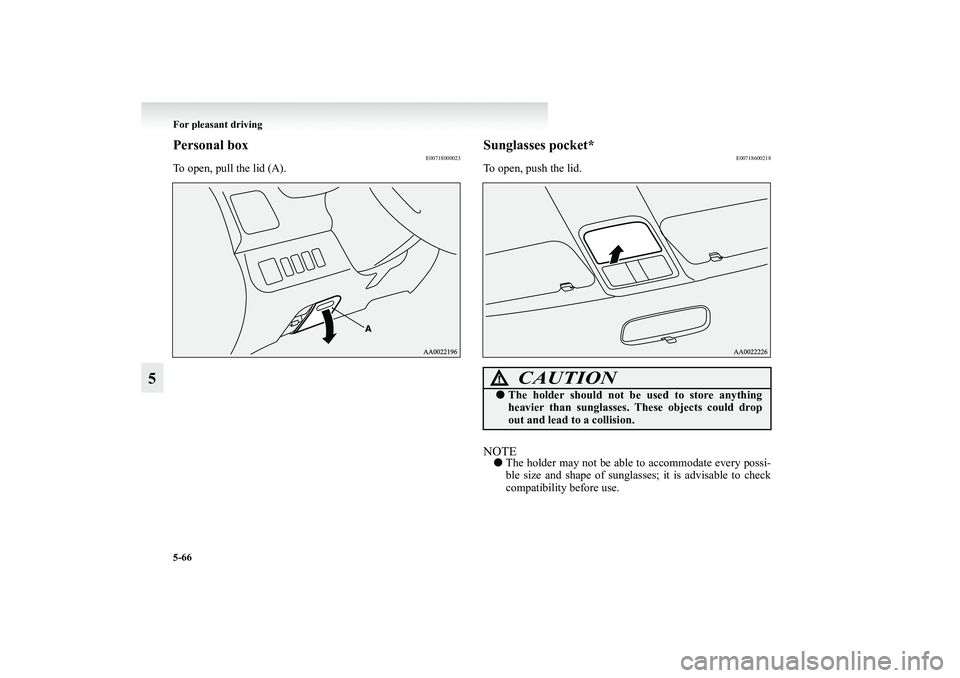

Personal box
E00718000023
To open, pull the lid (A).
Sunglasses pocket*
E00718600218
To open, push the lid.NOTE●The holder may not be able to accommodate every possi-
ble size and shape of sunglasses; it is advisable to check
compatibility before use.
CAUTION
!●The holder should not be used to store anything
heavier than sunglasses. These objects could drop
out and lead to a collision.
BK-XP08E1ENUK.en-uk.book Page 66 Monday, August 13, 2007 2:20 PM
