Instrument cluster 5-36 Features and controls
5
N00572300016
The odometer indicates the total distance the vehicle has traveled.
N00572400020
The trip odometer shows the distance traveled since the last time it was reset. There are two trip odometer displays: and
.
Trip odometer can be used to measure the distance traveled since the current trip began. At the same time, Trip odometer can be used to measure the distance from a second location.
To zero the counter, press and hold the reset button for more than 1 second. Only the cur- rently displayed value will be reset. If trip odometer is displayed, for exam-ple, only trip odometer
will be reset.
N00572500021
The service reminder s
hows the driving dis-
tance or number of m
onths remaining until
the next recommended
periodic maintenance
inspection is required. When the next inspection is nearly due, the display shows “------”.
1- Odometer 2-
Trip odometer
3-
Trip odometer
4- Dash lights brightness indicator 5- Service reminder
(Drive distance
remaining until
next inspection)
6- Service reminder
(Number of months
remaining until
next inspection)
7- Cruising range indicator 8- Outside temperature display
NOTE
 The cruising range indicator and outside temperature display are not indicated when the electric motor switch is in the “ACC” or “LOCK” position.
 If there is no operati
on for about 10 seconds
when the meter illumination control or ser-vice reminder is shown,
the display returns
to the odometer.
Odometer
NOTE
 Even if the electric motor switch is turned to “ACC” or “LOCK”, the odometer will be displayed for about 30 se
conds after the reset
button is pressed.
Trip odometer
NOTE
NOTE
 Even if the electric mo
tor switch is turned to
“ACC” or “LOCK” position, the trip odome-ter will be displaye
d for about 30 seconds
after the reset button is pressed.
To reset the trip odometer
NOTE
 Both trip odometer and trip odometer
can measure trips up to 9999.9
miles/kilometers.  If the 12V starter battery is disconnected for a long time, both of th
ese displays will be
reset to “0”.
Service reminder
BK0209800US.book 36 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster
Features and controls 5-37
5
1. The display shows the driving distance or number of months remaining until the next periodic inspection.
2. This informs you that a periodic inspec- tion is due. Contact a certified i-MiEVdealer to have the system checked. At this time, a spanner mark is shown for a few seconds whenever the electric motor switch is turned from the “LOCK”position or the “ACC” position to the “ON” position. 3. After your vehicle is inspected at a certi- fied i-MiEV dealer, it displays the time and miles (km) until the next periodic inspection.
With the electric motor switch in the “LOCK” position or the
“ACC” position, it is
possible to reset the sp
anner mark (A) and “--
----” indication (B). When they have been reset, the driving dis-tance or number of m
onths remaining until
the next periodic inspection are shown and the spanner mark (A) is no longer shownevery time the electric motor switch is turned from the “LOCK” position or the “ACC” position to the “ON” position. 1. Push the reset button (D) to view the driv- ing distance or number of months remain- ing until the next periodic inspection.
NOTE
 The service reminder ti
me can be modified
by a certified i-MiEV dealer, to adjust forsevere usage, etc. Refer to “Severe mainte-nance schedule” in you
r vehicle’s Warranty
and Maintenance Manual.
For further infor-
mation, please contac
t a certified i-MiEV
dealer.  Even if the electric motor switch is turned to “ACC” or “LOCK” pos
ition, the service
reminder will be disp
layed for about 30 sec-
onds after reset button is pressed.Driving distance Number of months
NOTE
 The indicated di
stance decreases in steps of
100miles (100 km). The indicated number ofmonths decreases in steps of one month.  It is possible to change the settings for the service reminder. For further information, we recommend you to consult a certified i-MiEV dealer.
Resetting the service reminder
BK0209800US.book 37 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster 5-38 Features and controls
5
2. Give the reset button (D) a long push (at least 2 seconds) to make the spanner mark(A) start flashing. (If you do not touch the reset button for about 10 seconds while the spanner mark is
flashing, the display
will revert to its
original indication.)
3. Give the reset butt
on (D) a gentle push
while the spanner mark is flashing. The “------” indication (B) will change to “cLEAr” (C). 4. The driving distance or number of months remaining until the ne
xt periodic inspec-
tion will be shown.
N00572600019
Each time you press the dash lights illumina-tion button (B), the brightness of the instru- ments changes.
N00572700036
This displays the approximate cruising range (how many more miles
or kilometres you can
drive). When the cruising range becomes short, the indicatio
n changes to “---”.
CAUTIONThe customer is responsible for making sure that regular inspections
and maintenance are
performed. Inspections and mainte
nance must be per-
formed to prevent accidents and malfunc-tions.NOTE
 It is not possible to re
set the “------” indica-
tion (B) with the electric motor switch in the “ON” position.  When a certain distance has been driven and a certain period has elapsed after appearance of the “------” indicati
on (B), the indication
is automatically re
set and the number of
months until the next
periodic inspection is
shown.
 If you accidentally rese
t the display, consult
a certified i-MiEV dealer for assistance.
Dash lights brightness indicator A- Brightness display B- Dash lights illumination button
NOTE
Bright Dim
NOTE
 You can adjust to 4 different levels for when the parking lights or
headlights are illumi-
nated and 4 for when they are not.  If you press and hold the button for longer than about 1 second, the brightness automati-cally scrolls through its different levels, and stops scrolling when you release the button. Select your desired
level of brightness.
 When the combination headlights and dim- mer switch is in the “AUTO” position, themeter illumination switches automatically to the adjusted bright
ness, depending on the
brightness outside the vehicle.  The brightness level
of the instruments is
stored when the electric motor switch isturned off.  If the 12V starter battery is disconnected for a long time, these level of brightness will be reset.
Cruising range indicator
BK0209800US.book 38 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster
Features and controls 5-39
5
N00573000010
This value (A) shows the outside temperature of the vehicle.
If the outside temperature drops below approximately 37 °F (3 °C), the alarm sounds and the outside air temperature warning indi- cator (B) flash for a
pproximately 10 seconds
to show there is a danger the road might be icy.
N00573100011
When the electric motor switch is in the “ACC” or “ON” position,
pressing the selec-
tor button (A) for more than 2 seconds will switch the outside temperature unit between °F and °C.
NOTE
 The cruising range is
displayed based on the
past drive data. It ma
y vary depending on the
driving condition (roa
d condition, driving
situation, etc.) and
air conditioning operation
status. For example, the cruising range can be short-ened by driving on congested roads, by driv- ing uphill, by repeated ha
rd acceleration, and
by use of the air c
onditioner and heater.
When the 12V starter battery terminal is dis- connected, the power
consumption data of
the main drive lithium-ion battery in the pastis deleted. A different
value from before may
be displayed. Be sure
to use the display only
for reference.  When the main drive lithium-ion battery is charged, the approximate cruising range isupdated.
Outside temperature display
NOTE
 The outside temperatur
e can be displayed
from -40 °F (-40 °C) to 122 °F (50 °C).  When the outside temperature is over 122 °F (50 °C) or below -40 °F (-40 °C), the displaywill remain 122 °F (50 °C) or -40 °F (-40 °C).  The outside temperatur
e displayed may dif-
fer from the actual temperature on account of surrounding conditions,
driving conditions,
etc.
CAUTION Even when the outside air temperature warn- ing indicator (B) indica
tions do not flash, the
road may be icy, so please take care when driving.
Change of the outside temperature unit
BK0209800US.book 39 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster 5-40 Features and controls
5
N00572800024
The energy level gauge indicates the remain- ing power in the main drive lithium-ion bat- tery during charging or when the electric motor switch is in the “ON” position.
N00572900025
When the electric motor switch is in the“ON” position and the remaining bar of theenergy level gauge shows 2 bars or less, the warning indicator (A) and the charging bars (B) flash as follows: When the energy level gauge shows 2 bars: The warning indicator flashes. When the energy level gauge shows 1 bar: The warning indicator and the charging barsflash alternately. Recharge the main drive lithium-ion battery as soon as possible.
NOTE
 Disconnecting the batter
y cable causes the
outside temperature unit memory to beerased. If it has been disconnected, readjust the unit with the above procedure.
Energy level gauge
F- Battery is fully charged. E- Charge the battery.
NOTE
 The charging indicator is also illuminated during charging.Refer to “Charging i
ndicator” on page 5-42.
Low energy warning indicator
NOTE
If the energy level gauge shows 0 bars during use of the air conditioning, the cooling or heating may stop opera
tion and the mode is
changed to fan only.  If the energy level gauge shows 0 bars, the power down warning light
is illuminated to
control the output.  If the energy level gauge shows 2 bars while the main drive lithium-ion battery is being charged, the warning i
ndicator flashes. If the
energy level gauge shows 1 bar while the main drive lithium-ion battery is being charged, the warning indicator and the charg-ing bars flash alternately.
BK0209800US.book 40 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Indicator and warning light package
Features and controls 5-41
5
N00519801862
Indicator and warning light package 1- Low energy warning indicator
 P.5-40
2- Selector lever
position indicator
 P.5-21
3- Acoustic Vehicle Alerting System
( AVA S ) i n d i c a t o r
 P.5-23
4- High-beam indicator
 P.5-42
5- Turn-signal indicators/Hazard warning
lights
 P.5-42
6- Position indicator
 P.5-42
7- Front fog light indicator
 P.5-42
8- Service reminder
 P. 5 - 3 6
9- Outside air temperature warning indi-
cator
 P. 5 - 3 9
10- Regenerative brake system indicator
 P.5-42
11- Ready indicator
 P.5-42
12- Tire pressure moni
toring system warn-
ing light
 P.5-31
13- 12V starter battery charging system
warning light
 P.5-43
14- Electric power steering system warning
light
 P.5-28
15- Electric motor unit warning light
 P.5-43
16- Brake warning light
 P. 5 - 4 2
17- Anti-lock braking system warning light
 P.5-26
18- Power down warning light
 P.5-43
19- Active stability control (ASC) indicator
 P.5-30
20- Active stability control (ASC) OFF
indicator
 P. 5 - 3 0
21- Charging indicator
 P.5-42
22- Theft-alarm indicator
 P.5-12
23- Door-ajar warning light
 P.5-43
24- Driver’s seat belt reminder/warning
light
 P. 4 - 1 0
25- Supplemental Restra
int System (SRS)
warning light
 P.4-13
BK0209800US.book 41 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Indicators 5-42 Features and controls
5
N00519900127 N00520000232
The arrows will flash in time with the corre- sponding exterior turn signals when the turnsignal lever is used. Both arrows will flash
when the hazard warn-
ing flasher swit
ch is pressed.
N00520100086
A blue light comes on when the headlights are on high beam.
N00520201244
This indicator comes on while the front foglights are on.
N00551300039
This indicator turns on while the position lights are on.
N00573200012
This indicator comes on when the electricmotor switch is turned to “START” and driv- ing becomes possible.
N00573300013
This indicator flashes when the regular charg-ing cable or quick charging cable is con- nected. After that, the light switches to being illumi-nated when charging starts and goes out when charging is completed.
N00573400014
The indicator comes on when the regenera- tive brake performance may be weakened. Inthis case, drive the vehicle at a lower speed.
N00520300147 N00520400513
This light comes on when the electric motor switch is turned to the “ON” position, and goes off after a few seconds when the parkingbrake is released. Befo
re driving your vehi-
cle, release the parki
ng brake and make cer-
tain that the brake warning light has gone off. If the light stays on when the parking brake is fully released, the service brake system is notworking properly or the brake fluid level is low.
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on wi
thout flashing, check
for a malfunctioning turn signal light bulb orturn signal connection.
High beam indicator Front fog light indicator
Position indicator Ready indicator Charging indicator Regenerative brake system indicator
Warning lights Brake warning light
WA R N I N G If any of the follow
ing conditions occur,
the brake effort
may significantly
increase. Stop the vehicle in a safe loca- tion, avoiding where possible any sudden brake application, a
nd contact a certified
i-MiEV dealer.• The brake warning light does not comeon when the electric motor switch is turned to the “ON” position.• The brake warning li
ght does not illumi-
nate while the parking brake is applied and the electric motor switch is in the“ON” position. • The brake warning
light stays on when
the parking brake is not applied.
BK0209800US.book 42 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Warning lights
Features and controls 5-43
5
N00573500028

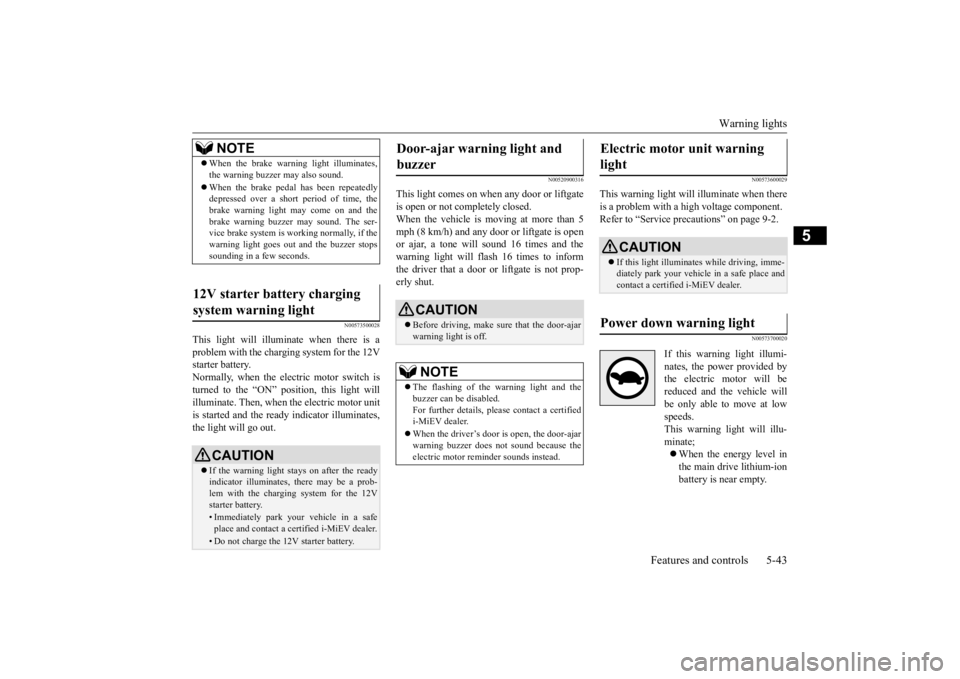

This light will illuminate when there is a problem with the charging system for the 12V starter battery.Normally, when the electric motor switch is turned to the “ON” position, this light will illuminate. Then, when the electric motor unitis started and the ready indicator illuminates, the light will go out.
N00520900316
This light comes on when any door or liftgate is open or not completely closed.When the vehicle is moving at more than 5 mph (8 km/h) and any door or liftgate is open or ajar, a tone will sound 16 times and thewarning light will fl
ash 16 times to inform
the driver that a door or liftgate is not prop- erly shut.
N00573600029
This warning light will illuminate when thereis a problem with a high voltage component.Refer to “Service prec
autions” on page 9-2.
N00573700020
NOTE
When the brake warning light illuminates, the warning buzzer may also sound.  When the brake pedal has been repeatedly depressed over a short period of time, the brake warning light may come on and thebrake warning buzzer may sound. The ser- vice brake system is working normally, if the warning light goes out and the buzzer stopssounding in a few seconds.
12V starter battery charging system warning light
CAUTION If the warning light stays on after the ready indicator illuminates,
there may be a prob-
lem with the charging system for the 12Vstarter battery.• Immediately park your
vehicle in a safe
place and contact a cert
ified i-MiEV dealer.
• Do not charge the
12V starter battery.
Door-ajar warning light and buzzer
CAUTION Before driving, make sure that the door-ajar warning light is off. NOTE
 The flashing of the warning light and the buzzer can be disabled. For further details, plea
se contact a certified
i-MiEV dealer.  When the driver’s door is open, the door-ajar warning buzzer does not
sound because the
electric motor remi
nder sounds instead.
Electric motor unit warning light
CAUTION If this light illuminates while driving, imme- diately park your vehicle in a safe place andcontact a certified i-MiEV dealer.
Power down warning light
If this warning light illumi- nates, the power provided bythe electric motor will be reduced and the vehicle will be only able to move at lowspeeds. This warning light will illu- minate; When the energy level in the main drive lithium-ion battery is near empty.
BK0209800US.book 43 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Combination headlights and dimmer switch 5-44 Features and controls
5
If the warning light illuminates when the out- side air temperature is very low, move thevehicle to a warmer location. If the warning light illuminates after the vehi- cle has been driven continuously uphill orwhen the outside air te
mperature is very high,
stop the vehicle in a safe place so the electric motor unit and/or the main drive lithium-ionbattery can cool down. When they have cooled down, the warni
ng light will go off. If
the warning light does not
turn off, contact a
certified i-MiEV dealer.
N00522501805
Rotate the switch to operate the lights.
The combinations of
switch operations and
illuminated lights differ in accordance withthe following conditions. [When the ready indicato
r is illuminated, and
the parking brake is released] The daytime running lights will be illumi- nated:
 When temperature of the electric motor unit or the main drive lithium-ionbattery is too high or too low.  When voltage of the main drive lithium-ion battery becomes low.
If the energy level gaugeshows 0 bar, the main drive lithium-ion battery is near empty and must be charged as soon as possible. Refer to “Charging” on page 3-11.
NOTE
 When the power down warning light illumi- nates, avoid rapid st
arts and aggressive
acceleration.
 Illumination of the
power down warning
light does not indica
te a malfunction.
 If the power down warn
ing light illuminates
while the air conditioning is used, the cool- ing or heating may stop operating and onlythe fan will operate.
Combination headlights and dimmer switch Headlights
NOTE
 Do not leave the head
lights and ot
her lights
on for a long period of time while the readyindicator is not illum
inated. A run down 12V
starter battery
could result.
 When it rains, or wh
en the vehicle has been
washed, the inside of the lens sometimes becomes foggy. This is the same as whenwindow glass mists up
on a humid day, and
does not indicate a problem. When the light is switched on, the heat
will dry out the fog.
However, if water collects inside the light,have it checked by a certified i-MiEV dealer.NOTE
OFF
The daytime running lights illumi- nated
AUTO
The daytime running lights illumi- nated Headlights and other lights turn on and off automatically in accor-dance with outside light level.
BK0209800US.book 44 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Combination headlights and dimmer switch
Features and controls 5-45
5
[When the ready indicato
r is not illuminated,
or when the ready indicator is illuminated but the parking brake is not released] The electric motor unit starts when the lights are off.
N00532600554
 If the key is turned to “LOCK” or “ACC” position or removed from the electric motor switch and the driver’s door is opened with the comb
ination headlights
and dimmer switch in the “ ” or “ ” position, the lights automatically turn off.
• If the driver’s door is opened after the key is removed from the electric motorswitch, a buzzer will sound to remind you to turn off the lights. • If the driver’s door is opened with thekey in the electric motor switch, a buzzer will sound intermitte
ntly to remind you
to remove the key.
 If the key is turned to “LOCK” or “ACC” position with the driver’s door closed and the combination headlights and dimmer switch in the “ ” or “ ” position, the lights will stay on for about 3 minutes and then turn off automatically.
If the combination
headlights and dimmer
switch is turned to the “ ” or “ ” posi- tion again after the electric motor switch is turned to “LOCK” or “ACC” position, the auto-cutout function described above will not work. The lights (the park
ing lights, tail lights
The daytime running lights illumi- nated Parking, tail, front
and rear side-
marker lights, license plate and instrument panel lights on Headlights and other lights on
NOTE
 Once the daytime running light come on, they do not go out until the electric motorswitch is turned to the “LOCK” or “ACC” position.OFF All lights off AUTO
Headlights and other lights turn on and off automatically in accor-dance with outsi
de light level.
Parking, tail, front
and rear side-
marker lights, license plate and instrument panel lights on Headlights and other lights on
NOTE
 The sensitivity of the automatic on/off con- trol can be adjusted.For further information, please contact a cer-tified i-MiEV dealer.  Do not place anything on the sensor (A), and do not clean with a gla
ss cleaner. Clean only
with clear water.  If the lights do not turn on or off with the switch in the “AUTO”
position, manually
operate the switch. Have the system checked by a certified i-MiEV dealer.
Light auto-cutout function (headlights and other lights)
NOTE
 The light auto-cutout f
unction can be deacti-
vated. See a certified i-MiEV dealer for details.
When you want to keep the lights on:
BK0209800US.book 45 ページ ２０１４年１月１４日　火曜日　午前９時２６分
