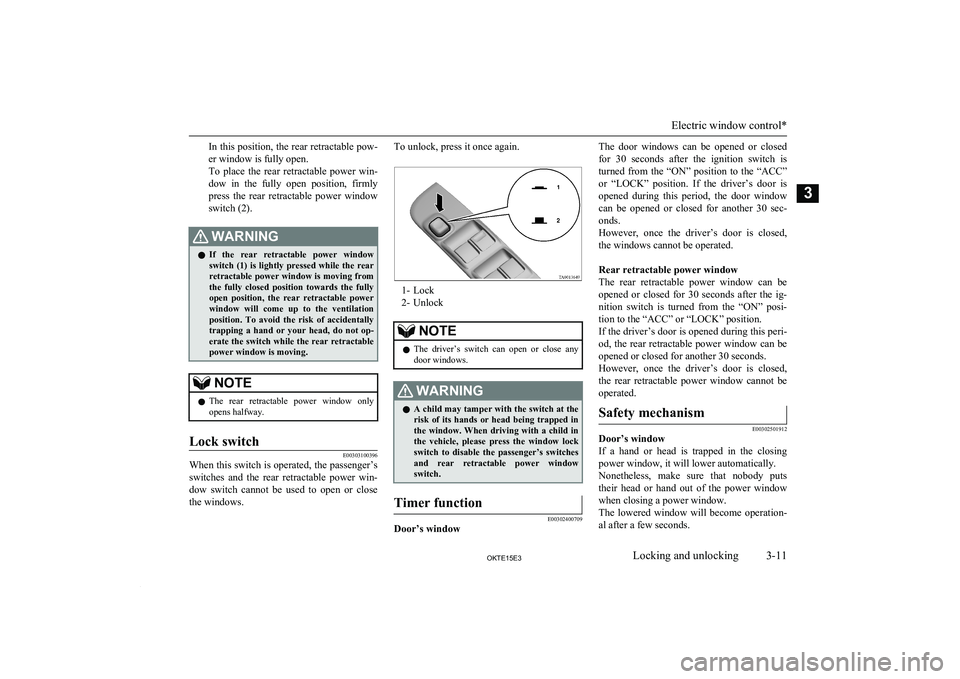

In this position, the rear retractable pow-er window is fully open.
To place the rear retractable power win-
dow in the fully open position, firmly
press the rear retractable power window switch (2).WARNINGl If the rear retractable power window
switch (1) is lightly pressed while the rear
retractable power window is moving from the fully closed position towards the fullyopen position, the rear retractable power
window will come up to the ventilation position. To avoid the risk of accidentally
trapping a hand or your head, do not op-
erate the switch while the rear retractable power window is moving.NOTEl The rear retractable power window only
opens halfway.Lock switch
E00303100396
When this switch is operated, the passenger’s
switches and the rear retractable power win-
dow switch cannot be used to open or close
the windows.
To unlock, press it once again.
1- Lock
2- Unlock
NOTEl The driver’s switch can open or close any
door windows.WARNINGl A child may tamper with the switch at the
risk of its hands or head being trapped in
the window. When driving with a child in the vehicle, please press the window lockswitch to disable the passenger’s switches
and rear retractable power window switch.Timer function
E00302400709
Door’s window
The door windows can be opened or closed
for 30 seconds after the ignition switch is turned from the “ON” position to the “ACC” or “LOCK” position. If the driver’s door is
opened during this period, the door window
can be opened or closed for another 30 sec- onds.
However, once the driver’s door is closed,
the windows cannot be operated.

Rear retractable power window
The rear retractable power window can be
opened or closed for 30 seconds after the ig-
nition switch is turned from the “ON” posi-tion to the “ACC” or “LOCK” position.If the driver’s door is opened during this peri- od, the rear retractable power window can be
opened or closed for another 30 seconds.
However, once the driver’s door is closed,
the rear retractable power window cannot be
operated.Safety mechanism
E00302501912
Door’s window
If a hand or head is trapped in the closing power window, it will lower automatically.
Nonetheless, make sure that nobody puts
their head or hand out of the power window
when closing a power window.
The lowered window will become operation-
al after a few seconds.
Electric window control*
3-11OKTE15E3Locking and unlocking3

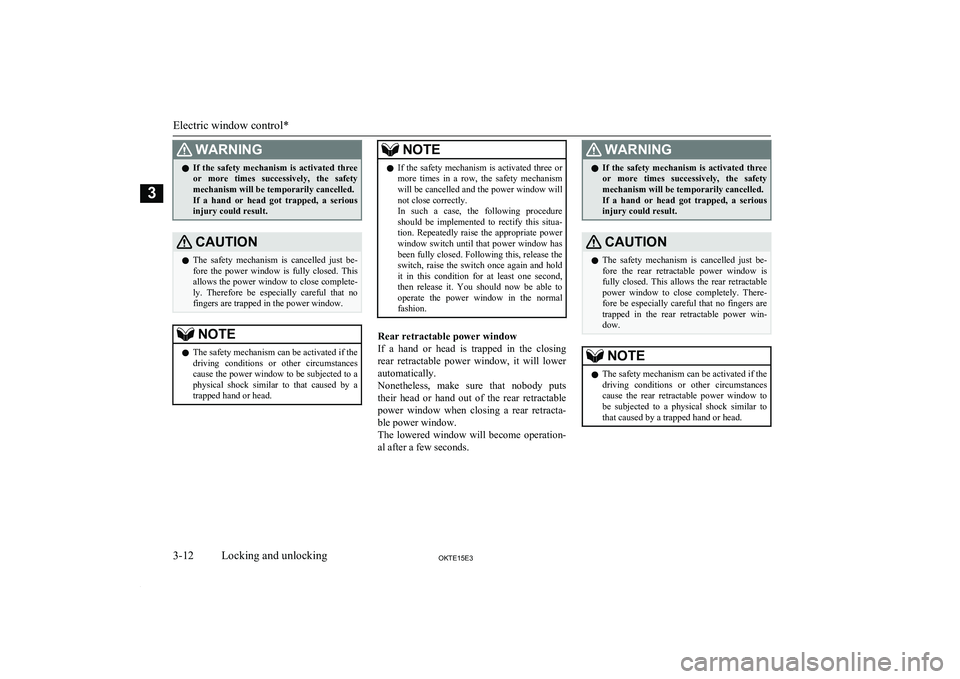

WARNINGlIf the safety mechanism is activated three
or more times successively, the safety
mechanism will be temporarily cancelled.
If a hand or head got trapped, a serious injury could result.CAUTIONl The safety mechanism is cancelled just be-
fore the power window is fully closed. This allows the power window to close complete- ly. Therefore be especially careful that no
fingers are trapped in the power window.NOTEl The safety mechanism can be activated if the
driving conditions or other circumstancescause the power window to be subjected to a
physical shock similar to that caused by a trapped hand or head.NOTEl If the safety mechanism is activated three or
more times in a row, the safety mechanism
will be cancelled and the power window will not close correctly.
In such a case, the following procedure
should be implemented to rectify this situa- tion. Repeatedly raise the appropriate power
window switch until that power window has
been fully closed. Following this, release the switch, raise the switch once again and holdit in this condition for at least one second, then release it. You should now be able to
operate the power window in the normal
fashion.
Rear retractable power window
If a hand or head is trapped in the closing
rear retractable power window, it will lower automatically.
Nonetheless, make sure that nobody puts
their head or hand out of the rear retractable
power window when closing a rear retracta- ble power window.
The lowered window will become operation-
al after a few seconds.
WARNINGl If the safety mechanism is activated three
or more times successively, the safety
mechanism will be temporarily cancelled.
If a hand or head got trapped, a serious injury could result.CAUTIONl The safety mechanism is cancelled just be-
fore the rear retractable power window is fully closed. This allows the rear retractable
power window to close completely. There-
fore be especially careful that no fingers are
trapped in the rear retractable power win- dow.NOTEl The safety mechanism can be activated if the
driving conditions or other circumstancescause the rear retractable power window to be subjected to a physical shock similar to
that caused by a trapped hand or head.
Electric window control*
3-12OKTE15E3Locking and unlocking3

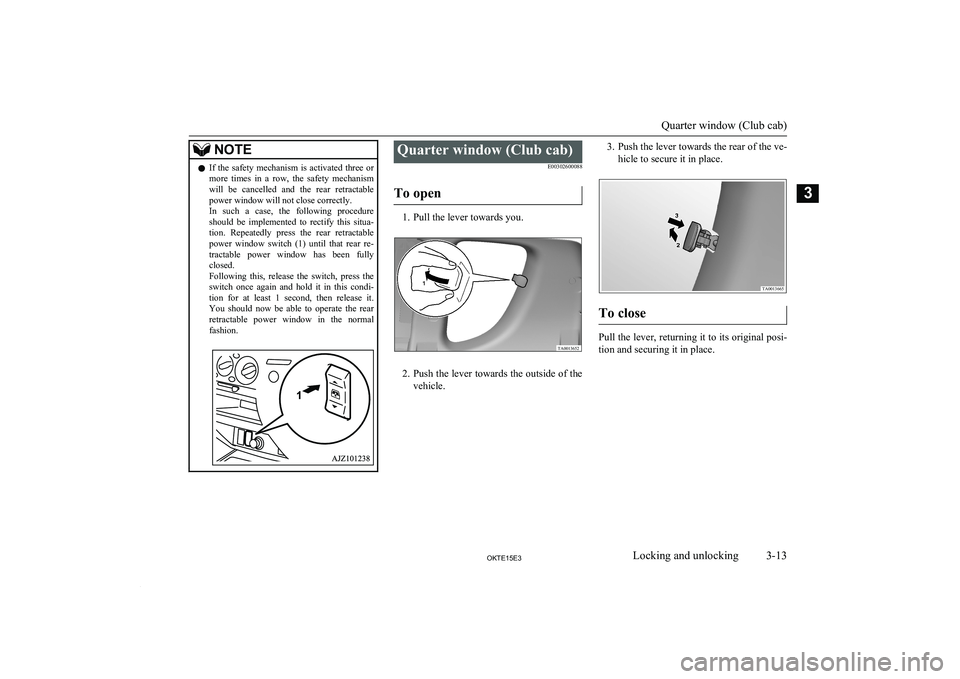

NOTElIf the safety mechanism is activated three or
more times in a row, the safety mechanism
will be cancelled and the rear retractable power window will not close correctly.
In such a case, the following procedure
should be implemented to rectify this situa-
tion. Repeatedly press the rear retractable
power window switch (1) until that rear re- tractable power window has been fully closed.
Following this, release the switch, press the
switch once again and hold it in this condi- tion for at least 1 second, then release it.
You should now be able to operate the rear retractable power window in the normalfashion.Quarter window (Club cab)
E00302600088
To open
1. Pull the lever towards you.
2. Push the lever towards the outside of the
vehicle.
3. Push the lever towards the rear of the ve-
hicle to secure it in place.
To close
Pull the lever, returning it to its original posi- tion and securing it in place.
Quarter window (Club cab)
3-13OKTE15E3Locking and unlocking3 TA0013652 TA0013665

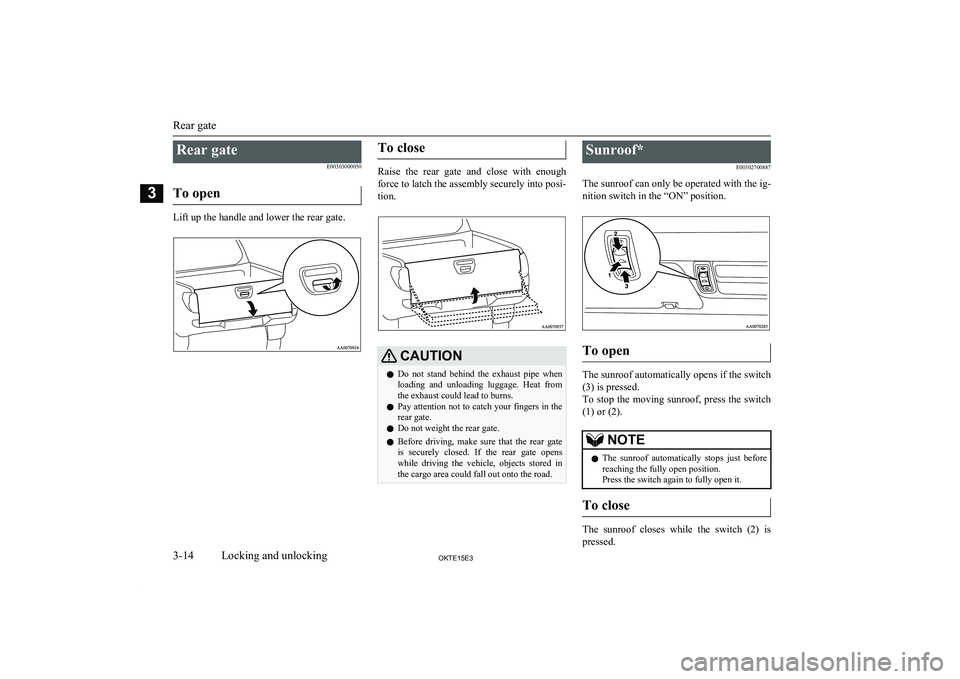

Rear gateE00303000050
To open
Lift up the handle and lower the rear gate.
To close
Raise the rear gate and close with enough
force to latch the assembly securely into posi- tion.
CAUTIONl Do not stand behind the exhaust pipe when
loading and unloading luggage. Heat fromthe exhaust could lead to burns.
l Pay attention not to catch your fingers in the
rear gate.
l Do not weight the rear gate.
l Before driving, make sure that the rear gate
is securely closed. If the rear gate opens
while driving the vehicle, objects stored in
the cargo area could fall out onto the road.Sunroof*
E00302700887
The sunroof can only be operated with the ig- nition switch in the “ON” position.
To open
The sunroof automatically opens if the switch(3) is pressed.
To stop the moving sunroof, press the switch
(1) or (2).
NOTEl The sunroof automatically stops just before
reaching the fully open position.
Press the switch again to fully open it.
To close
The sunroof closes while the switch (2) is
pressed.
Rear gate
3-14OKTE15E3Locking and unlocking3

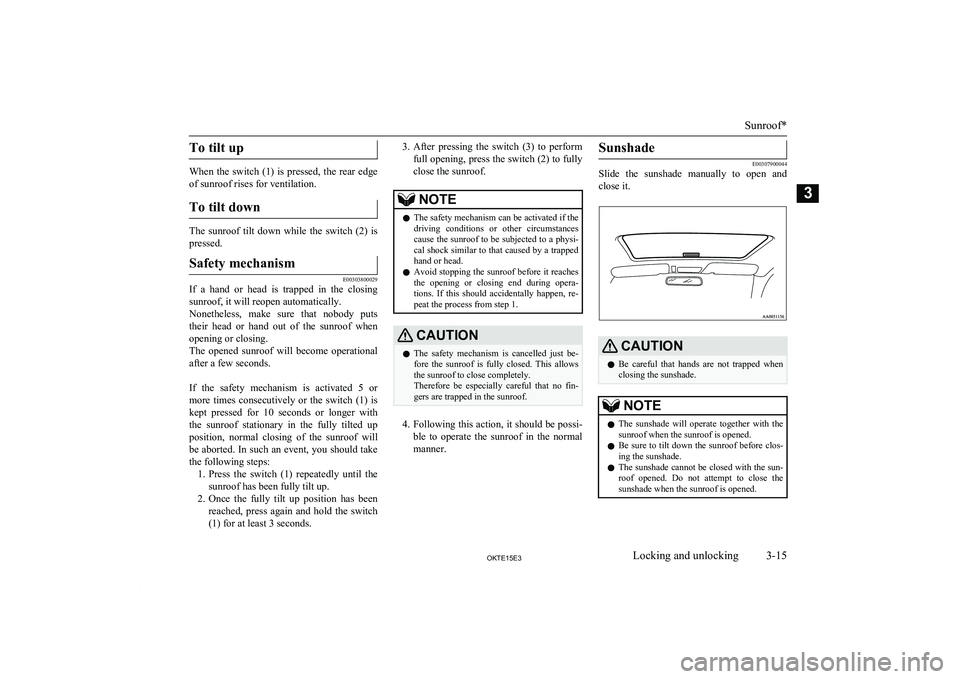

To tilt up
When the switch (1) is pressed, the rear edgeof sunroof rises for ventilation.
To tilt down
The sunroof tilt down while the switch (2) is
pressed.
Safety mechanism
E00303800029
If a hand or head is trapped in the closing sunroof, it will reopen automatically.Nonetheless, make sure that nobody puts
their head or hand out of the sunroof when
opening or closing.
The opened sunroof will become operational after a few seconds.

If the safety mechanism is activated 5 or
more times consecutively or the switch (1) is kept pressed for 10 seconds or longer with
the sunroof stationary in the fully tilted up position, normal closing of the sunroof will be aborted. In such an event, you should take
the following steps: 1. Press the switch (1) repeatedly until the
sunroof has been fully tilt up.
2. Once the fully tilt up position has been
reached, press again and hold the switch
(1) for at least 3 seconds.
3. After pressing the switch (3) to perform
full opening, press the switch (2) to fully close the sunroof.NOTEl The safety mechanism can be activated if the
driving conditions or other circumstancescause the sunroof to be subjected to a physi-
cal shock similar to that caused by a trapped hand or head.
l Avoid stopping the sunroof before it reaches
the opening or closing end during opera-
tions. If this should accidentally happen, re- peat the process from step 1.CAUTIONl The safety mechanism is cancelled just be-
fore the sunroof is fully closed. This allows the sunroof to close completely.
Therefore be especially careful that no fin-
gers are trapped in the sunroof.
4. Following this action, it should be possi-
ble to operate the sunroof in the normal manner.
Sunshade
E00307900044
Slide the sunshade manually to open and
close it.
CAUTIONl Be careful that hands are not trapped when
closing the sunshade.NOTEl The sunshade will operate together with the
sunroof when the sunroof is opened.
l Be sure to tilt down the sunroof before clos-
ing the sunshade.
l The sunshade cannot be closed with the sun-
roof opened. Do not attempt to close the sunshade when the sunroof is opened.
Sunroof*
3-15OKTE15E3Locking and unlocking3

WARNINGlDo not put head, hands or anything else
out of the sunroof opening while driving
the vehicle.
l Never leave a child (or other person who
might not be capable of safe operation of
the sunroof switch) in the vehicle alone.
l Before operating the sunroof, make sure
that nothing is capable of being trapped
(head, hand, finger, etc.).NOTEl The sunroof stops just before reaching the
fully open position.
If the vehicle is driven with the sunroof in
this position, wind throb is lower than with the sunroof fully open.
l When leaving the vehicle unattended, make
sure you close the sunroof and remove the ignition key.
l Do not try to operate the sunroof if it is fro-
zen closed (after snow fall or during extreme cold).
l Do not sit or place heavy luggage on the
sunroof or roof opening edge.
l Release the switch as soon as the sunroof
reaches the fully open or fully closed posi-
tion.NOTEl If the sunroof does not operate when the
sunroof switch is operated, release the switch and check whether something is trap-
ped by the sunroof. If nothing is trapped, we recommend you to have the sunroof
checked.
l Depending on the model of ski carriers or
roof carriers, the sunroof may make contactwith the carrier when the sunroof is tilted up.Be careful when tilting up the sunroof if
such a ski carrier or a roof carrier is instal-
led.
l Be sure to close the sunroof completely
when washing the vehicle or when leaving
the vehicle.
l Be careful, not to put any wax on the weath-
erstrip (black rubber) around the sunroof opening. If stained with wax, the weather-
strip cannot maintain a weatherproof seal with the sunroof.
l After washing the vehicle or after it has
rained, wipe off any water that is on the sun-
roof before operating it.
l Operating the sunroof repeatedly with the
engine stationary will run down the battery. Operate the sunroof while the engine is run-
ning.
Sunroof*
3-16OKTE15E3Locking and unlocking3

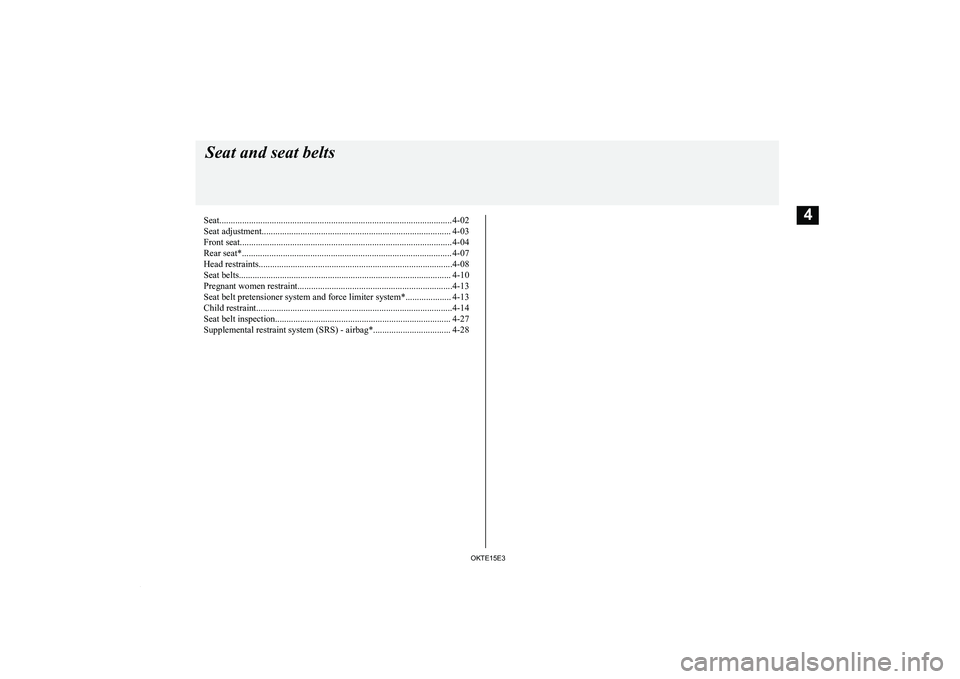

Seat...................................................................................................... 4-02
Seat adjustment................................................................................... 4-03 Front seat............................................................................................. 4-04
Rear seat*............................................................................................ 4-07
Head restraints.....................................................................................4-08
Seat belts............................................................................................. 4-10 Pregnant women restraint....................................................................4-13
Seat belt pretensioner system and force limiter system*.................... 4-13
Child restraint......................................................................................4-14 Seat belt inspection............................................................................. 4-27Supplemental restraint system (SRS) - airbag*.................................. 4-28Seat and seat belts
OKTE15E34

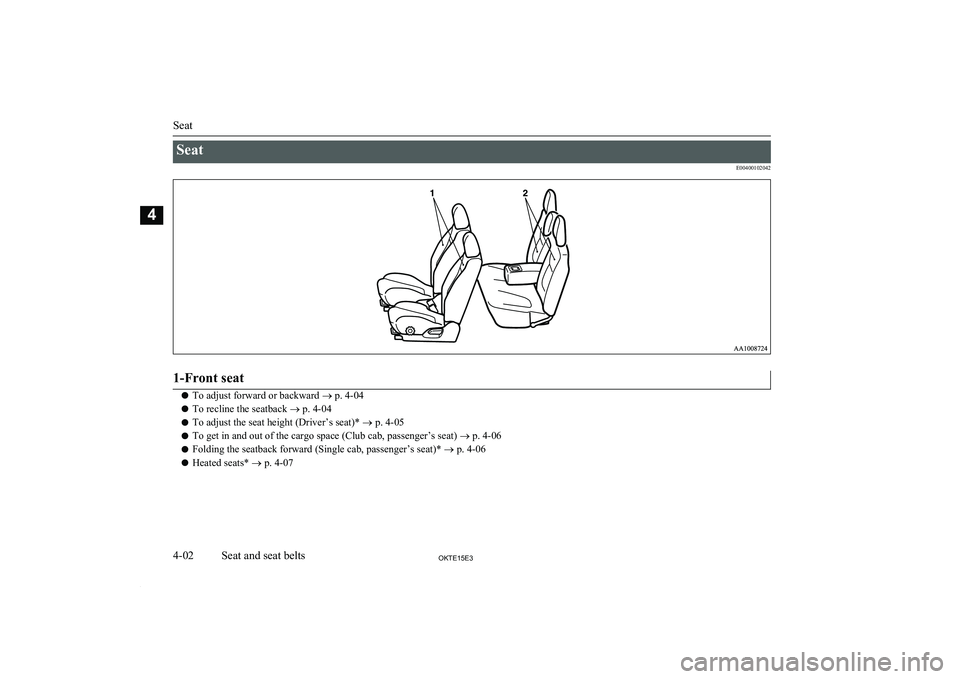

SeatE004001020421-Front seat

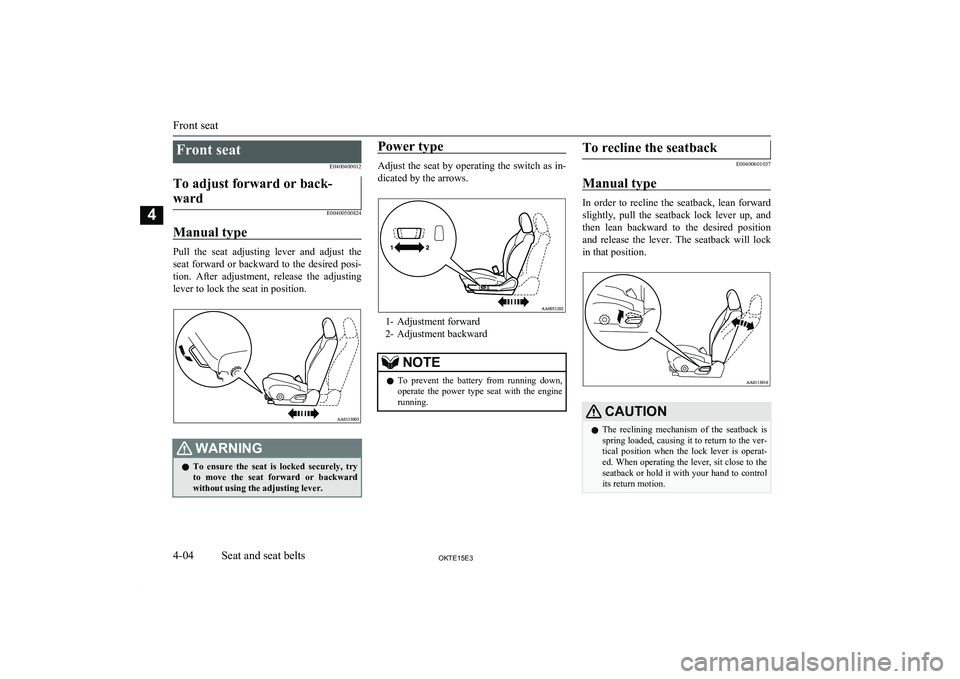

lTo adjust forward or backward
® p. 4-04
l To recline the seatback
® p. 4-04
l To adjust the seat height (Driver’s seat)*
® p. 4-05
l To get in and out of the cargo space (Club cab, passenger’s seat)
® p. 4-06
l Folding the seatback forward (Single cab, passenger’s seat)*
® p. 4-06
l Heated seats*
® p. 4-07
Seat
4-02OKTE15E3Seat and seat belts4

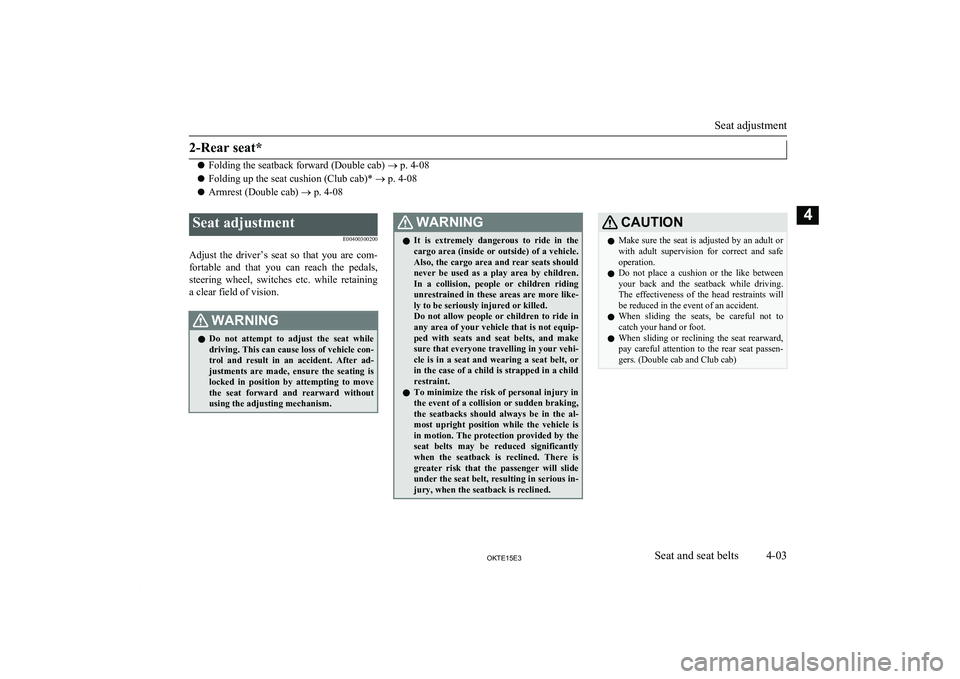

2-Rear seat*
lFolding the seatback forward (Double cab)
® p. 4-08
l Folding up the seat cushion (Club cab)*
® p. 4-08
l Armrest (Double cab)
® p. 4-08

Seat adjustment E00400300200
Adjust the driver’s seat so that you are com- fortable and that you can reach the pedals,
steering wheel, switches etc. while retaining a clear field of vision.WARNINGl Do not attempt to adjust the seat while
driving. This can cause loss of vehicle con- trol and result in an accident. After ad-
justments are made, ensure the seating is locked in position by attempting to move
the seat forward and rearward without
using the adjusting mechanism.WARNINGl It is extremely dangerous to ride in the
cargo area (inside or outside) of a vehicle.Also, the cargo area and rear seats should
never be used as a play area by children.
In a collision, people or children riding unrestrained in these areas are more like- ly to be seriously injured or killed.
Do not allow people or children to ride in any area of your vehicle that is not equip-
ped with seats and seat belts, and make
sure that everyone travelling in your vehi- cle is in a seat and wearing a seat belt, or in the case of a child is strapped in a childrestraint.
l To minimize the risk of personal injury in
the event of a collision or sudden braking, the seatbacks should always be in the al- most upright position while the vehicle is
in motion. The protection provided by the seat belts may be reduced significantly when the seatback is reclined. There is
greater risk that the passenger will slide
under the seat belt, resulting in serious in- jury, when the seatback is reclined.CAUTIONl Make sure the seat is adjusted by an adult or
with adult supervision for correct and safe operation.
l Do not place a cushion or the like between
your back and the seatback while driving.The effectiveness of the head restraints will
be reduced in the event of an accident.
l When sliding the seats, be careful not to
catch your hand or foot.
l When sliding or reclining the seat rearward,
pay careful attention to the rear seat passen-
gers. (Double cab and Club cab)
Seat adjustment
4-03OKTE15E3Seat and seat belts4

Front seatE0400400012To adjust forward or back-
ward
E00400500824
Manual type
Pull the seat adjusting lever and adjust the seat forward or backward to the desired posi-tion. After adjustment, release the adjusting
lever to lock the seat in position.
WARNINGl To ensure the seat is locked securely, try
to move the seat forward or backward
without using the adjusting lever.Power type
Adjust the seat by operating the switch as in-
dicated by the arrows.
1- Adjustment forward
2- Adjustment backward
NOTEl To prevent the battery from running down,
operate the power type seat with the engine
running.To recline the seatback
E00400601037
Manual type
In order to recline the seatback, lean forward slightly, pull the seatback lock lever up, and
then lean backward to the desired position
and release the lever. The seatback will lock in that position.
CAUTIONl The reclining mechanism of the seatback is
spring loaded, causing it to return to the ver- tical position when the lock lever is operat- ed. When operating the lever, sit close to the
seatback or hold it with your hand to control its return motion.
Front seat
4-04OKTE15E3Seat and seat belts4
