MITSUBISHI L200 2015 Owner's Manual (in English)

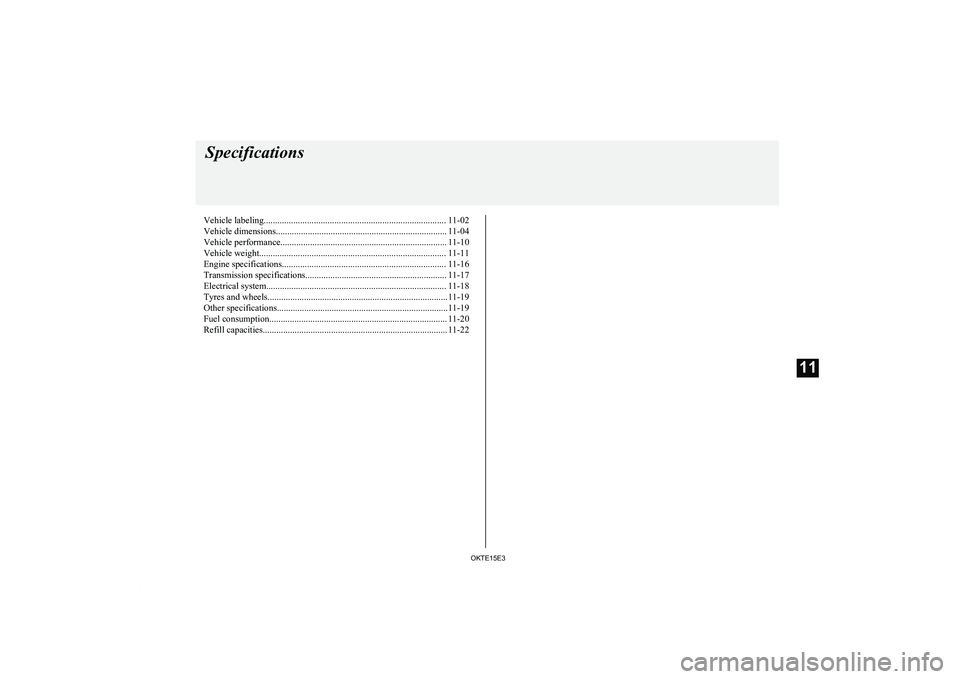

Vehicle labeling................................................................................ 11-02
Vehicle dimensions........................................................................... 11-04
Vehicle performance......................................................................... 11-10 Vehicle weight.................................................................................. 11-11
Engine specifications........................................................................ 11-16
Transmission specifications.............................................................. 11-17
Electrical system............................................................................... 11-18
Tyres and wheels...............................................................................11-19
Other specifications...........................................................................11-19
Fuel consumption.............................................................................. 11-20
Refill capacities................................................................................. 11-22Specifications
OKTE15E311

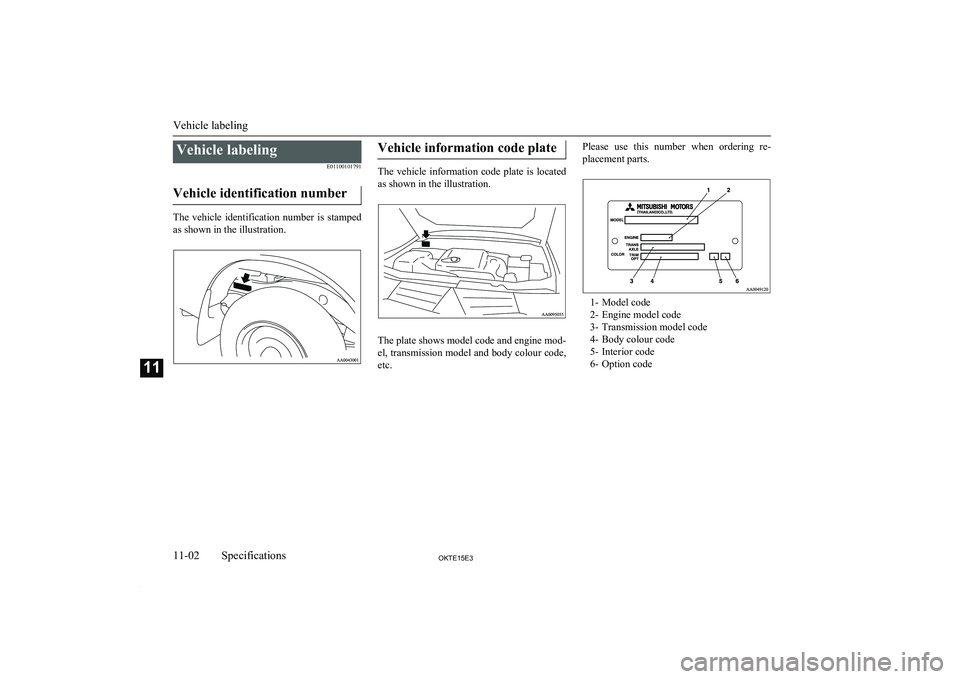

Vehicle labelingE01100101791
Vehicle identification number
The vehicle identification number is stamped as shown in the illustration.
Vehicle information code plate
The vehicle information code plate is located as shown in the illustration.
The plate shows model code and engine mod-
el, transmission model and body colour code,
etc.
Please use this number when ordering re-
placement parts.
1- Model code
2- Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
Vehicle labeling
11-02OKTE15E3Specifications11

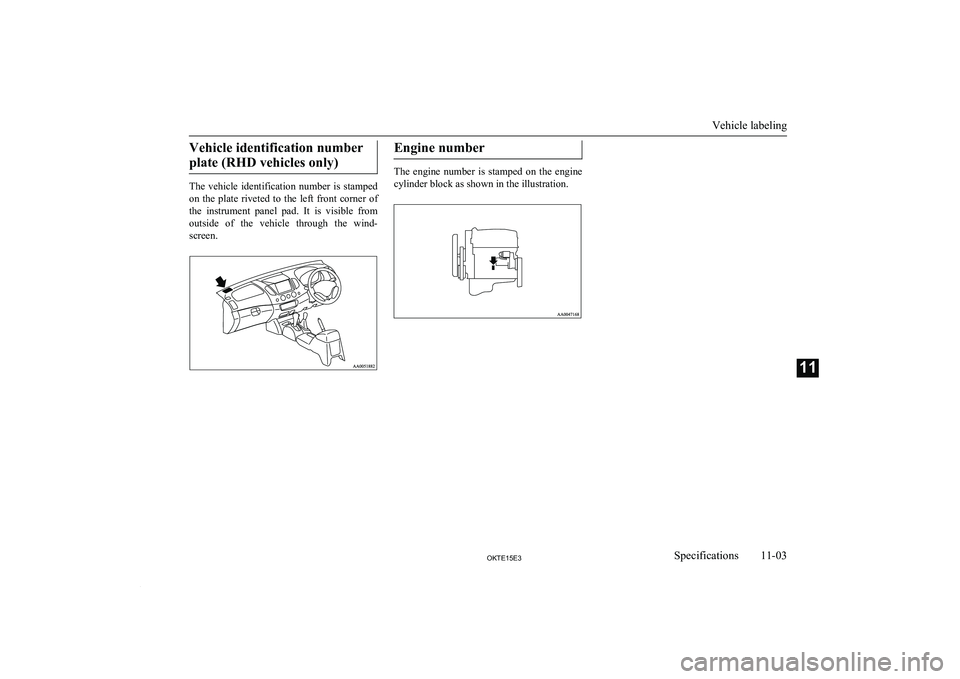

Vehicle identification numberplate (RHD vehicles only)
The vehicle identification number is stamped on the plate riveted to the left front corner of the instrument panel pad. It is visible from
outside of the vehicle through the wind- screen.
Engine number
The engine number is stamped on the enginecylinder block as shown in the illustration.Vehicle labeling
11-03OKTE15E3Specifications11

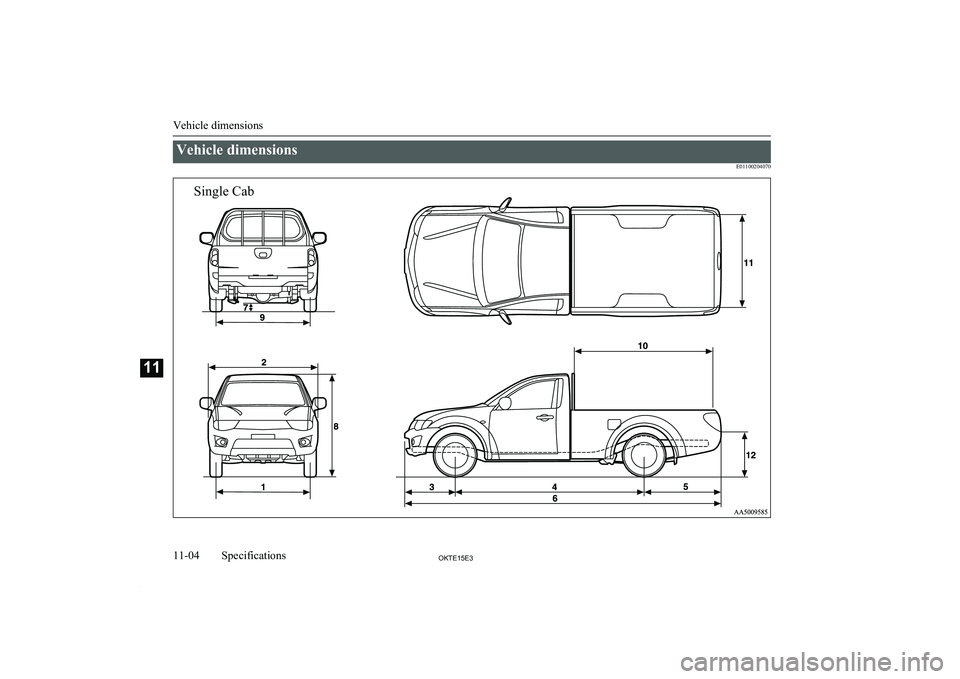

Vehicle dimensionsE01100204070
Vehicle dimensions
11-04OKTE15E3Specifications11Single Cab

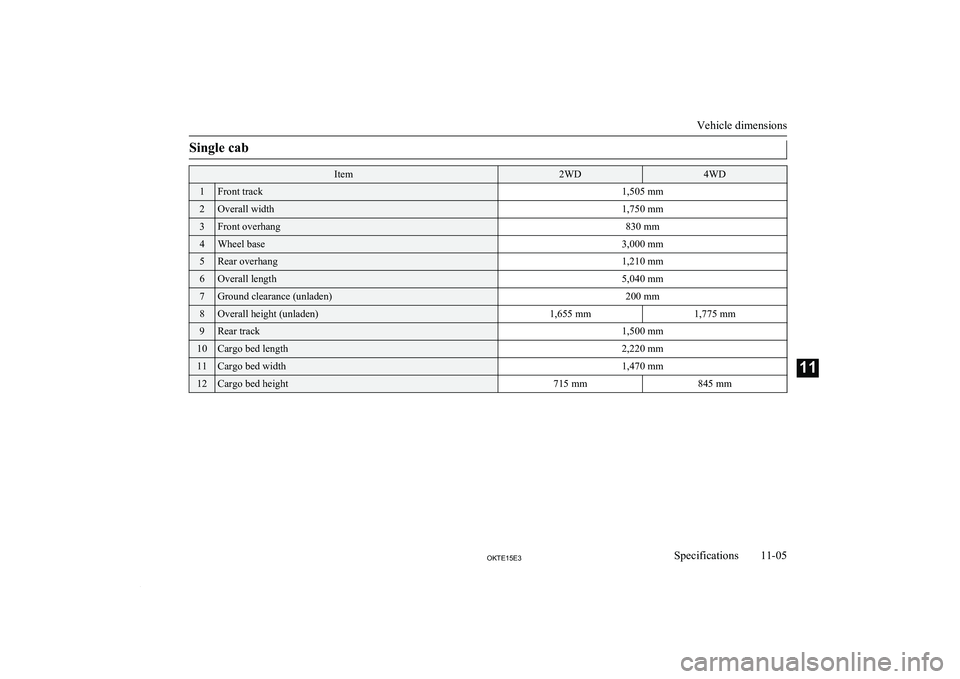

Single cabItem2WD4WD1Front track1,505 mm2Overall width1,750 mm3Front overhang830 mm4Wheel base3,000 mm5Rear overhang1,210 mm6Overall length5,040 mm7Ground clearance (unladen)200 mm8Overall height (unladen)1,655 mm1,775 mm9Rear track1,500 mm10Cargo bed length2,220 mm11Cargo bed width1,470 mm12Cargo bed height715 mm845 mm
Vehicle dimensions
11-05OKTE15E3Specifications11

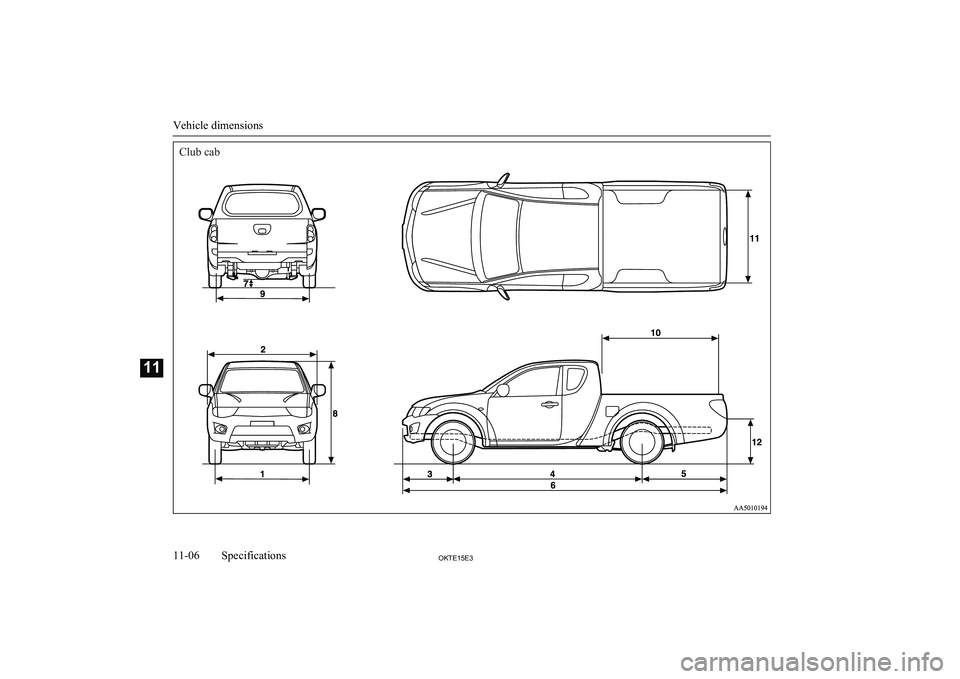

Club cab
Vehicle dimensions
11-06OKTE15E3Specifications11

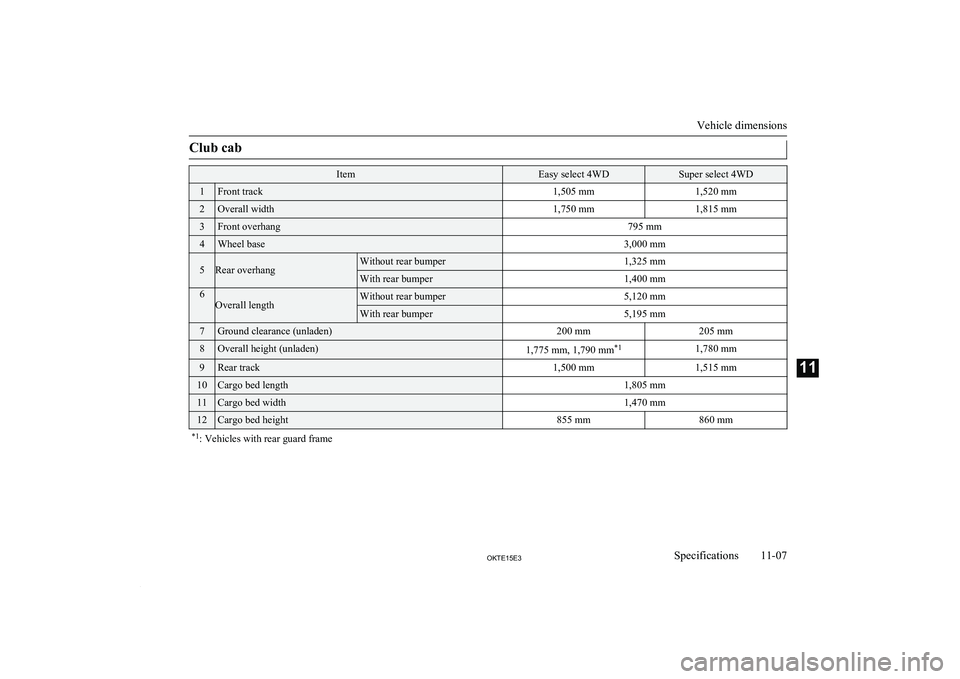

Club cabItemEasy select 4WDSuper select 4WD1Front track1,505 mm1,520 mm2Overall width1,750 mm1,815 mm3Front overhang795 mm4Wheel base3,000 mm5Rear overhangWithout rear bumper1,325 mmWith rear bumper1,400 mm6Overall lengthWithout rear bumper5,120 mmWith rear bumper5,195 mm7Ground clearance (unladen)200 mm205 mm8Overall height (unladen)1,775 mm, 1,790 mm*11,780 mm9Rear track1,500 mm1,515 mm10Cargo bed length1,805 mm11Cargo bed width1,470 mm12Cargo bed height855 mm860 mm*1
: Vehicles with rear guard frame
Vehicle dimensions
11-07OKTE15E3Specifications11

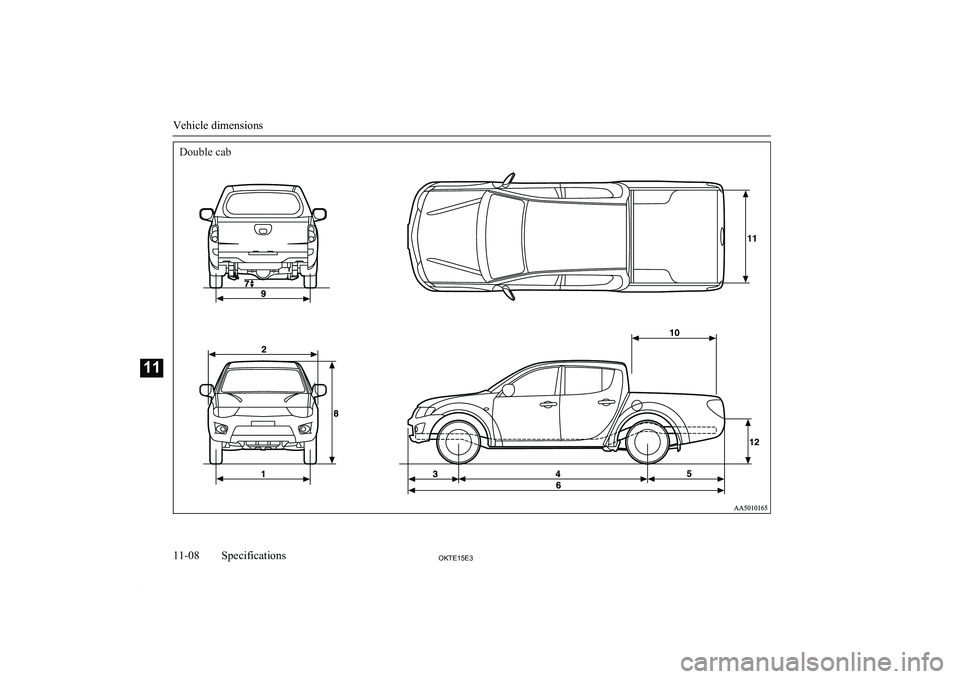

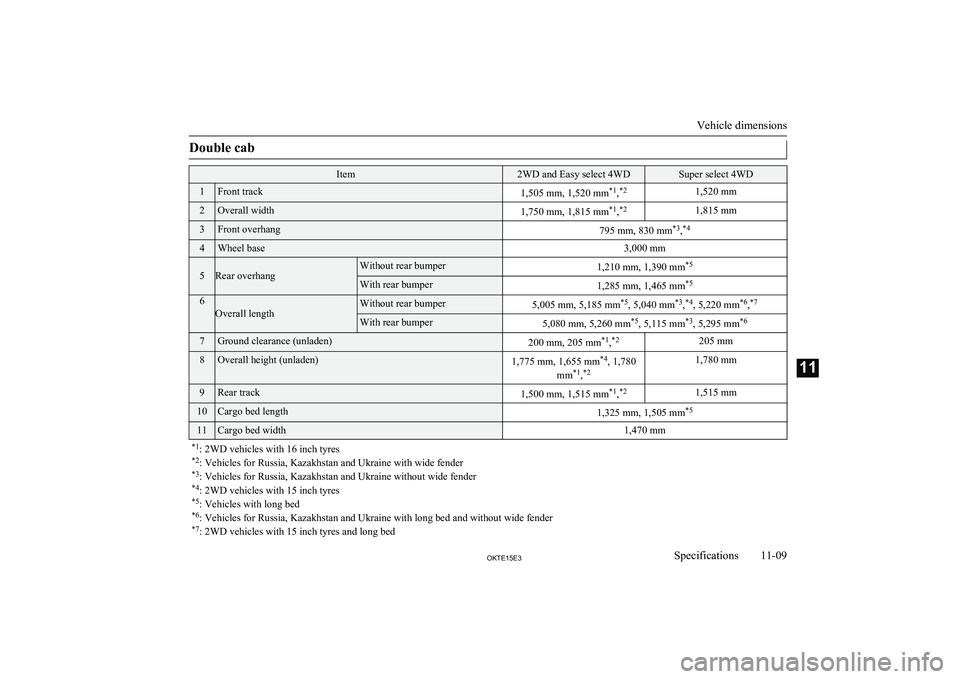

Double cab
Vehicle dimensions
11-08OKTE15E3Specifications11

Double cabItem2WD and Easy select 4WDSuper select 4WD1Front track1,505 mm, 1,520 mm*1
,*21,520 mm2Overall width1,750 mm, 1,815 mm *1
,*21,815 mm3Front overhang795 mm, 830 mm *3
,*44Wheel base3,000 mm
5Rear overhang
Without rear bumper1,210 mm, 1,390 mm *5With rear bumper1,285 mm, 1,465 mm *56
Overall length
Without rear bumper5,005 mm, 5,185 mm*5
, 5,040 mm *3
,*4
, 5,220 mm *6
,*7With rear bumper5,080 mm, 5,260 mm *5
, 5,115 mm *3
, 5,295 mm *67Ground clearance (unladen)200 mm, 205 mm *1
,*2205 mm8Overall height (unladen)1,775 mm, 1,655 mm *4
, 1,780
mm *1
,*21,780 mm9Rear track1,500 mm, 1,515 mm *1
,*21,515 mm10Cargo bed length1,325 mm, 1,505 mm *511Cargo bed width1,470 mm*1
: 2WD vehicles with 16 inch tyres
*2 : Vehicles for Russia, Kazakhstan and Ukraine with wide fender
*3 : Vehicles for Russia, Kazakhstan and Ukraine without wide fender
*4 : 2WD vehicles with 15 inch tyres
*5 : Vehicles with long bed
*6 : Vehicles for Russia, Kazakhstan and Ukraine with long bed and without wide fender
*7 : 2WD vehicles with 15 inch tyres and long bed
Vehicle dimensions
11-09OKTE15E3Specifications11

12Cargo bed height845 mm, 715 mm*4
, 850
mm *1
,*2850 mm*1
: 2WD vehicles with 16 inch tyres
*2 : Vehicles for Russia, Kazakhstan and Ukraine with wide fender
*3 : Vehicles for Russia, Kazakhstan and Ukraine without wide fender
*4 : 2WD vehicles with 15 inch tyres
*5 : Vehicles with long bed
*6 : Vehicles for Russia, Kazakhstan and Ukraine with long bed and without wide fender
*7 : 2WD vehicles with 15 inch tyres and long bed

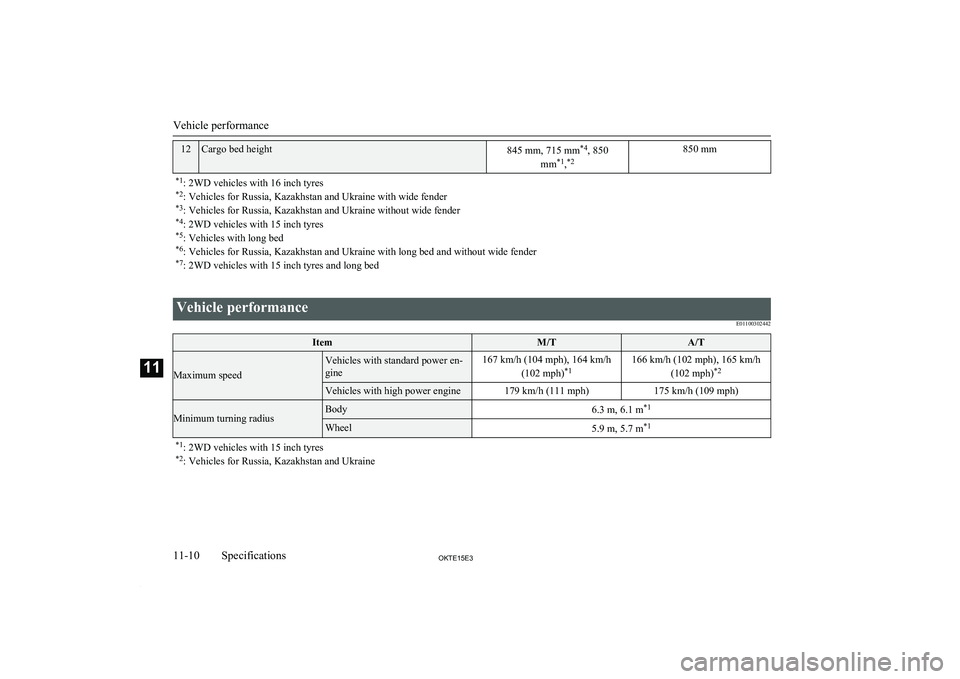

Vehicle performance
E01100302442ItemM/TA/T
Maximum speed
Vehicles with standard power en-
gine167 km/h (104 mph), 164 km/h
(102 mph) *1166 km/h (102 mph), 165 km/h
(102 mph) *2Vehicles with high power engine179 km/h (111 mph)175 km/h (109 mph)
Minimum turning radius
Body6.3 m, 6.1 m *1Wheel5.9 m, 5.7 m*1*1
: 2WD vehicles with 15 inch tyres
*2 : Vehicles for Russia, Kazakhstan and Ukraine

Vehicle performance
11-10OKTE15E3Specifications11
