Damaged paint
E00901200155
Small cracks and scratches in the paint coat
should be touched up as soon as possible
with MITSUBISHI touch-up paint to prevent
corrosion.
Check body areas facing the road or the tyres
carefully for damage to the paint coat caused
by flying stones, etc. The paint code number
for your vehicle can be found on the vehicle information code plate. (Refer to “Vehicle la-
beling” on page 11-02.)
Cleaning plastic parts
E00901300446
Use a sponge or chamois leather.
If a car wax adheres on a grey or black rough surface of the bumper, moulding or lamps, the surface becomes white. In such a case,
wipe it off using lukewarm water and soft cloth or chamois leather.
CAUTIONl Do not use a scrubbing brush or other hard
tools as they may damage the plastic part surface.
l Do not use wax containing compound (pol-
ishing powder) which may damage the plas-
tic part surface.CAUTIONl Do not bring the plastic parts into contact
with petrol, light oil, brake fluids, engine
oils, greases, paint thinners, and sulphuric acid (battery electrolyte) which may crack,stain or discolour the plastic parts.
If they touch the plastic parts, wipe them off
with soft cloth, chamois or the like and an aqueous solution of neutral detergent thenimmediately rinse the affected parts with
water.Chrome parts
E00901400014
In order to prevent spots and corrosion of
chrome parts, wash with water, dry thorough-
ly, and apply a special protective coating.
This should be done more frequently in win- ter.
Aluminium wheels*
E00901500116
1. Remove dirt using a sponge while sprin-
kling water on the vehicle.
2. Use neutral detergent on any dirt that
cannot be removed easily with water.
Rinse off the neutral detergent after
washing the vehicle.
3. Dry the vehicle thoroughly using a cha-
mois leather or a soft cloth.
CAUTIONl Do not use a brush or other hard implement
on the wheels.
Doing so could scratch the wheels.
l Do not use any cleaner that contains an abra-
sive substance or is acidic or alkaline. Doing
so could cause the coating on the wheels to peel or become discoloured or stained.
l Do not directly apply hot water using a
steam cleaner or by any other means.
l Contact with seawater and road deicer can
cause corrosion. Rinse off such substances as soon as possible.Window glass
E00901600058
The window glass can normally be cleaned
using only a sponge and water.
Glass cleaner can be used to remove oil, grease, dead insects, etc. After washing the
glass, wipe dry with a clean, dry, soft cloth. Never use the same cloth to wipe the window glass as would be used to wipe the paint-
work; wax from the painted surfaces could
adhere to the glass and reduce its transparen-
cy and visibility.
Cleaning the exterior of your vehicle
9-05OKTE15E3Vehicle care9

NOTElTo clean the inside of the rear window, al-
ways use a soft cloth and wipe the window
glass along the demister heater element so as not to cause damage.Wiper blades
E00901700017
Use a soft cloth and glass cleaner to remove
grease, dead insects, etc., from the wiper blades. Replace the wiper blades when they
no longer wipe properly. (Refer to page “Wiper blades” on page 10-17.)
Cleaning the sunroof*
E00901800180
Clean the inside of the sunroof with a soft cloth. Hard deposits should be wiped away
with a cloth dipped in warm, neutral deter- gent solution. Wipe away the solution with a
sponge dipped in fresh water.
NOTEl The surface treatment on the inside of the
glass may be removed if hard cloth or organ-
ic solvent (benzine, kerosene, thinner, etc.) is used.Engine compartment
E00902100265
Clean the engine compartment at the begin-
ning and end of winter. Pay particular atten- tion to flanges, crevices and peripheral parts where dust containing road chemicals and
other corrosive materials might collect.
If salt and other chemicals are used on the roads in your area, clean the engine compart- ment at least every three months.
Never spray or splash water on the electrical
components in the engine compartment, as
this may cause damage.
Do not bring the nearby parts, the plastic parts and so on into contact with sulphuric
acid (battery electrolyte) which may crack,
stain or discolour them.
If they are in contact, wipe off with soft cloth, chamois or the like and an aqueous sol-
ution of neutral detergent then immediately rinse the affected parts with plenty of water.
Cleaning the exterior of your vehicle
9-06OKTE15E3Vehicle care9

Service precautions........................................................................... 10-02
Catalytic converter............................................................................ 10-02
Bonnet............................................................................................... 10-03
Engine oil.......................................................................................... 10-04 Engine coolant...................................................................................10-06
Automatic transmission fluid*.......................................................... 10-07 Washer fluid...................................................................................... 10-08
Brake fluid.........................................................................................10-08
Clutch fluid*..................................................................................... 10-09 Power steering fluid.......................................................................... 10-10
Battery............................................................................................... 10-10 Tyres..................................................................................................10-12Clutch pedal free play*..................................................................... 10-16Brake pedal free play........................................................................ 10-17Parking brake lever stroke.................................................................10-17
Wiper blades..................................................................................... 10-17
General maintenance......................................................................... 10-19
For cold and snowy weather............................................................. 10-20
Fusible links...................................................................................... 10-20 Fuses..................................................................................................10-20
Replacement of lamp bulbs............................................................... 10-25Maintenance
OKTE15E310

Service precautionsE01000100706
Adequate care of your vehicle at regular in- tervals serves to preserve the value and ap-
pearance as long as possible.
Maintenance items as described in this own- er’s manual can be performed by the owner.We recommend you to have the periodic in-
spection and maintenance performed by a MITSUBISHI MOTORS Authorized Service
Point or another specialist.
In the event a malfunction or other problem is discovered, we recommend you to have it
checked and repaired. This section contains information on inspection maintenance pro- cedures that you can do yourself. Follow the
instructions and cautions for each of the vari- ous procedures.WARNINGl When checking or servicing the inside of
the engine compartment, make sure the
engine is switched off and has had a chance to cool down.
l If it is necessary to do work in the engine
compartment with the engine running, be
especially careful that your clothing, hair, etc., does not become caught by the fans,
drive belts, or other moving parts.WARNINGl For vehicle with air conditioning, the fan
may turn on automatically even if the en-
gine is not running; turn the ignition key
to “LOCK” position and remove the key to ensure safety while you work in the en-
gine compartment.
l Do not smoke, cause sparks or allow open
flames around fuel or battery. The fumesare flammable.
l Be extremely cautious when working
around the battery. It contains poisonous
and corrosive sulphuric acid.
l Do not get under your vehicle with just
the body jack supporting it. Always use
automotive jack stands.
l Improper handling of components and
materials used in the vehicle can endanger
your personal safety. We recommend you to consult a specialist for necessary infor-
mation.Catalytic converter
E01000200925
For ordinary use, there are no particular pre-cautions.
The exhaust gas scavenging devices used
with the catalytic converter are extremely ef- ficient for the reduction of noxious gases.
The catalytic converter is installed in the ex- haust system.
It is important to keep the engine properly
tuned to ensure proper catalyst operation andprevent possible catalyst damage.CAUTIONl Damage to the catalytic converter can result
if your vehicle is not kept in proper operat-ing condition. In the event of an engine mal-
function particularly involving engine mis-
fire or other apparent loss of performance, have your vehicle serviced promptly.
Continued operation of your vehicle with a
severe overheated condition may result in possible damage to the converter and vehi-cle.WARNINGl As with any vehicle, do not park or oper-
ate this vehicle in areas where combusti-
ble materials such as dry grass or leaves
can come in contact with a hot exhaust since a fire could occur.
l Paint should not be applied to the catalyt-
ic converter.
The catalytic converter itself gets hot quickly,
and may be damaged if overheated. The fol- lowing points should be noted in order to pre-vent the ignition of unburned fuel within the
catalytic converter.
Service precautions
10-02OKTE15E3Maintenance10

lDo not drive with an extremely low fuel
level; running out of fuel could cause
damage to the catalytic converter.
l Do not switch OFF the ignition switch
while driving.
l Do not attempt to start the engine by
pushing the vehicle. If the battery isweak or discharged, use another battery
to start the engine.
l Do not idle the engine for prolonged pe-
riods during very rough idle or malfunc-
tioning operating conditions.
l Do not race the engine when turning off
the ignition switch. This will cause the catalytic converter to be damaged due tocontact with unburnt fuel.
l Stop driving the vehicle if you think the
performance is noticeably low, or if theengine has a malfunction such as with
the ignition, etc.
If it is impractical to stop driving imme- diately, reduce the speed and drive for
only a short time. We recommend you to have your vehicle inspected as soon as possible.l In unusual situations involving major en-
gine problems, a burnt smell may indi- cate severe and abnormal catalyst over-
heating.
If this occurs, the vehicle should be stop- ped in a safe place, the engine switchedoff and the vehicle allowed to cool.
Once the engine is cool, a service, in-
cluding a tune-up to manufacturer’s specifications, should be obtained imme-
diately.Bonnet
E01000302281

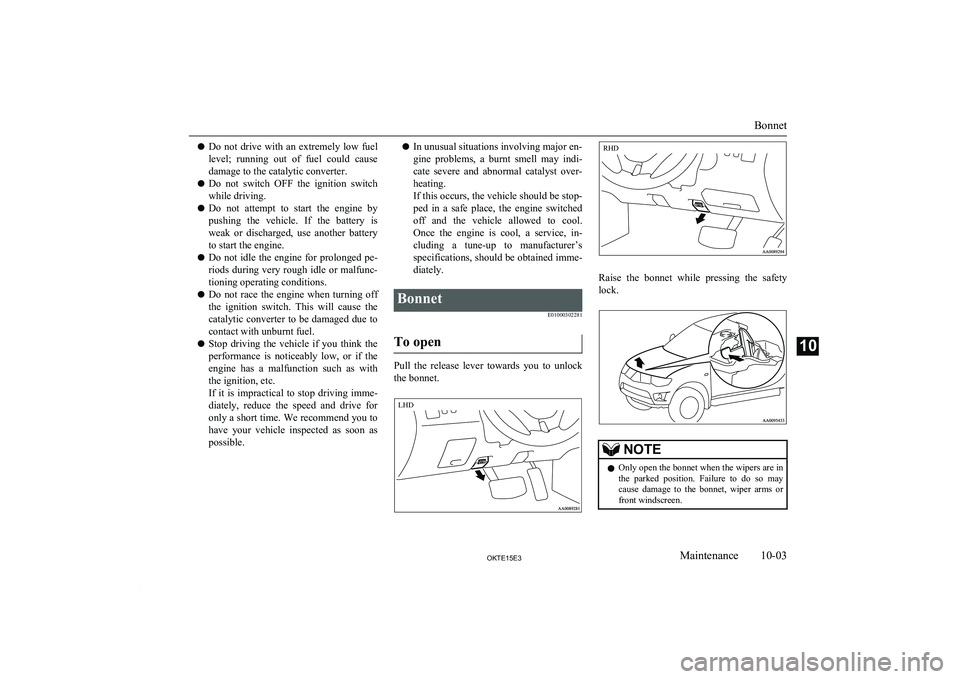

To open
Pull the release lever towards you to unlock
the bonnet.
Raise the bonnet while pressing the safety
lock.
NOTEl Only open the bonnet when the wipers are in
the parked position. Failure to do so may
cause damage to the bonnet, wiper arms or
front windscreen.
Bonnet
10-03OKTE15E3Maintenance10LHD RHD

Support the bonnet by inserting the supportbar in its slot.CAUTIONl Note that the support bar may disengage the
bonnet if the open bonnet is lifted by astrong wind.
l Always insert the support bar into the hole
provided specifically for this purpose. Sup- porting the bonnet at any other location
could result in the support bar slipping out
and lead to an accident.
To close
Unlatch the support bar and clip it in its hold-
er.
Slowly lower the bonnet to a position about
20 cm above the closed position, then let it drop.NOTEl If this does not close the bonnet, release it
from a slightly higher position.
l Do not press down the bonnet hard with a
hand as it may damage the bonnet.CAUTIONl Be careful that hands or fingers are not trap-
ped when closing the bonnet.
l Before driving, make sure that the bonnet is
securely locked. An incompletely locked bonnet can suddenly open while driving.
This can be extremely dangerous.Engine oil
E01000402820
To check and refill engine oil
A- Minimum level B- Maximum level
C- Oil replacement indication mark
Type 1Type 2
The engine oil used has a significant effect on the engine’s performance, service life and
startability. Be sure to use oil of the recom- mended quality and appropriate viscosity.
All engines consume a certain amount of oil during normal operation. Therefore, it is im-portant to check the oil level at regular inter-
vals or before starting a long trip. 1. Park the car on a horizontal surface.
2. Switch off the engine.
3. Wait a few minutes.
Engine oil
10-04OKTE15E3Maintenance10

4.Remove the dipstick and wipe it with a
clean cloth.
5. Reinsert the dipstick as far as it goes.
6. Remove the dipstick and read the oil lev- el, which should always be within the
range indicated.
7. If the oil level is below the specified
limit, remove the cap located on the cyl-inder head cover and add enough oil to
raise the level to within the specified
range. Do not overfill to avoid engine
damage. Be sure to use the specified en-
gine oil and do not mix various types of
oil.
8. After adding oil, close the cap securely.
9. Confirm the oil level by repeating step 4
to 6.

Use only the recommended oils with an ACEA or API classification as specified inthis manual.NOTEl Check or refill the oil according to the fol-
lowing manner.
• When the oil level is checked in step 6
above, check it on a low side of the dip-
stick because it is different in appearance
of oil level in the two sides of the dip-
stick.NOTE• On vehicles without diesel particulate fil-
ter (DPF), the oil level should be within the range (A) to (B) on the dipstick.
• On vehicles with DPF, the oil level should
be within the range (A) to (C) (oil re- placement indication mark) on the dip-
stick.
If the oil level is beyond the oil replace-
ment indication mark (C), replace the oil as soon as possible.
Then, the oil should be refilled to the
maximum level (B).
• On vehicles with DPF, the engine oil will
increase due to a little fuel getting mixed in the engine oil when the DPF regener-
ates to burn away the PM (particulate
matter). However, it does not indicate a malfunction.
l The engine oil will deteriorate rapidly if the
vehicle is subjected to severe conditions, re-
quiring earlier oil replacement. Please refer to the maintenance schedule.
l For handling of used engine oils, refer to
page 2-05.Selection of engine oil
Vehicles without diesel particu-
late filter (DPF)
l Select engine oil of the proper SAE vis-
cosity number according to the atmos-pheric temperature.
l Use engine oil conforming to the follow-
ing classification: • ACEA classification: “For service A1/ B1, A3/B3, A3/B4,
A5/B5”
• API classification: “For service CF-4”
Engine oil
10-05OKTE15E3Maintenance10

NOTElUse of additives is not recommended since
they may reduce the effectiveness of addi-
tives already included in the engine oil. It may result in failure of the mechanical as-
sembly.
Vehicles with diesel particulate
filter (DPF)
l Select engine oil of the proper SAE vis-
cosity number according to the atmos- pheric temperature.
l Use engine oil conforming to the follow-
ing classification: • ACEA classification: “For service C1, C2, C3 or C4”
• JASO classification: “For service DL-1”
If those classifications are not available, contact a MITSUBISHI MOTORS Au-
thorized Service Point.
NOTEl Use of additives is not recommended since
they may reduce the effectiveness of addi-
tives already included in the engine oil. It may result in failure of the mechanical as-
sembly.Engine coolant
E01000502153
To check the coolant level
A transparent coolant reserve tank (A) is lo-cated in the engine compartment.
The coolant level in this tank should be kept
between the “LOW” and “FULL” marks when measured while the engine is cold.
*: Front of the vehicle
To add coolant
The cooling system is a closed system and
normally the loss of coolant should be very
slight. A noticeable drop in the coolant level
could indicate leakage. If this occurs, we rec- ommend you to have the system checked as
soon as possible.
If the level should drop below the “LOW” level on the reserve tank, open the lid and
add coolant.
Also, if the reserve tank is completely empty, remove the radiator cap (B) and add coolant until the level reaches the filler neck.
WARNINGl Do not open the radiator cap (B) while the
engine is hot. The coolant system is under
pressure and any hot coolant escaping
could cause severe burns.
Anti-freeze
The engine coolant contains an ethylene gly-
col anti-corrosion agent. The cylinder head and water pump housing are cast aluminium
alloy, and periodic changing of the engine coolant is necessary to prevent corrosion of
these parts.

Use “ MITSUBISHI MOTORS GENUINE
SUPER LONG LIFE COOLANT” or equiva- lent.
Engine coolant
10-06OKTE15E3Maintenance10 Type 1
Type 2

MITSUBISHI MOTORS GENUINE Coolant
has excellent protection against corrosion and rust formation of all metals including alumi-
nium and can avoid blockages in the radiator, heater, cylinder head, engine block, etc.
Because of the necessity of this anti-corro-
sion agent, the coolant must not be replaced with plain water even in summer. The re-
quired concentration of anti-freeze differs de-
pending on the expected ambient tempera- ture.Ambient
tempera-
ture (mini- mum) °C
-15-20-25-30-35-50
Anti-freezeconcentra- tion %
303540455060CAUTIONl Do not use alcohol or methanol anti-freeze
or any engine coolants mixed with alcohol
or methanol anti-freeze. The use of an im- proper anti-freeze can cause corrosion of the
aluminium components.
l For effective anti-corrosion and anti-freeze
performance, keep the anti-freeze concentra-tion within the range of 30 to 60 %.
Concentrations exceeding 60 % will result in
a reduction of both the anti-freeze and cool-
ing performance thus adversely affecting the
engine.CAUTIONl Do not top up with water only.
Water by itself reduces the rust-protective and anti-freeze qualities of the coolant and
has a lower boiling point. It can also cause damage to the cooling system if it should freeze. Do not use tapwater, as it can causecorrosion and rust formation.
During cold weather
If the temperatures in your area drop below
freezing, there is the danger that the coolant
in the engine or radiator could freeze and cause severe damage to the engine and/or ra-diator.
Add a sufficient amount of anti-freeze to the
coolant to prevent it from freezing.
The concentration should be checked before the start of cold weather and anti-freeze add- ed to the system if necessary.
Automatic transmission
fluid* E01000602125
The proper amount of automatic transmission fluid is essential to the life and operation of
the automatic transmission. Either insuffi- cient fluid or excessive fluid could causetransmission trouble. The transmission fluid filler port cap is equipped with a dipstick.Use the following procedure to check the flu-
id level.
Procedure for checking the flu- id level
1. Check the fluid level after the vehicle
has been driven enough to warm up the
transmission fluid.
2. Park the vehicle on a flat, level surface
and apply the parking brake.
3. With the engine idling and the brake
pedal fully depressed, move the trans- mission selector lever through all the po-sitions from P” (PARK) to “D”
(DRIVE), stopping momentarily at each position.
4. Move the selector lever to the “P”
(PARK) position.
5. Remove the dipstick and wipe it with a
clean lint-free cloth.
6. Reinsert the dipstick as far as it goes.
Automatic transmission fluid*
10-07OKTE15E3Maintenance10

7.Remove dipstick and read the automatic
transmission fluid level.
The fluid level should always be be-
tween the two marks on the dipstick.WARNINGl Do not spill the fluid onto a hot exhaust
manifold during topping up or inspection, or a fire may occur.
Fluid type
Use only “ MITSUBISHI MOTORS GENU-
INE ATF SP III” transmission fluid to ensure
optimum transmission performance.
CAUTIONl For the automatic transmission fluid, use on-
ly the MITSUBISHI MOTORS GENUINE
ATF SP III.
Use of a different fluid could damage the transmission.Washer fluid
E01000700672
The windscreen washer fluid reservoir is inthe engine compartment.
Check the washer fluid level at regular inter- vals and add washer fluid to reservoir if nec-
essary.
NOTEl The washer fluid container serves the wind-
screen and headlamps (if so equipped).During cold weather
To ensure proper operation of the washers at
low temperatures, use a fluid containing ananti-freezing agent.
Brake fluid
E01000900935
To check the fluid level
Check the brake fluid level in the reservoir.
The brake fluid level must be between the “MAX” and “MIN” marks on the reservoir.
The brake fluid level is monitored by a float.
When the brake fluid level falls below the “MIN” mark, the brake fluid warning lamp
lights up.
Washer fluid
10-08OKTE15E3Maintenance10 Type 1 Type 2
