MITSUBISHI L200 2015 Owner's Manual (in English)

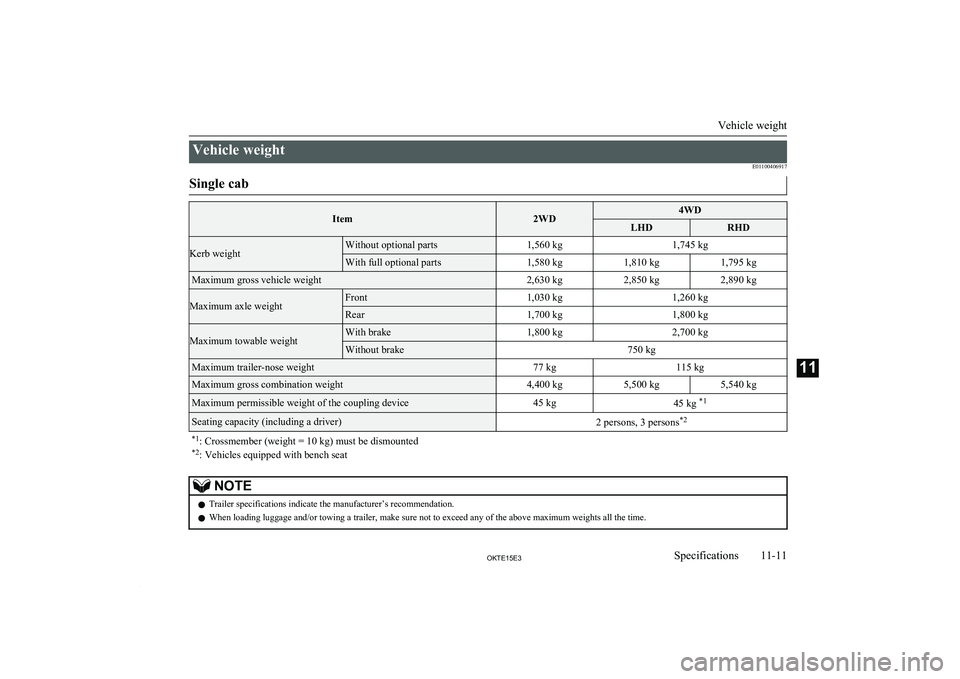

Vehicle weightE01100406917Single cabItem2WD4WDLHDRHDKerb weightWithout optional parts1,560 kg1,745 kgWith full optional parts1,580 kg1,810 kg1,795 kgMaximum gross vehicle weight2,630 kg2,850 kg2,890 kgMaximum axle weightFront1,030 kg1,260 kgRear1,700 kg1,800 kgMaximum towable weightWith brake1,800 kg2,700 kgWithout brake750 kgMaximum trailer-nose weight77 kg115 kgMaximum gross combination weight4,400 kg5,500 kg5,540 kgMaximum permissible weight of the coupling device45 kg45 kg *1Seating capacity (including a driver)2 persons, 3 persons *2*1
: Crossmember (weight = 10 kg) must be dismounted
*2 : Vehicles equipped with bench seatNOTEl Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
Vehicle weight
11-11OKTE15E3Specifications11

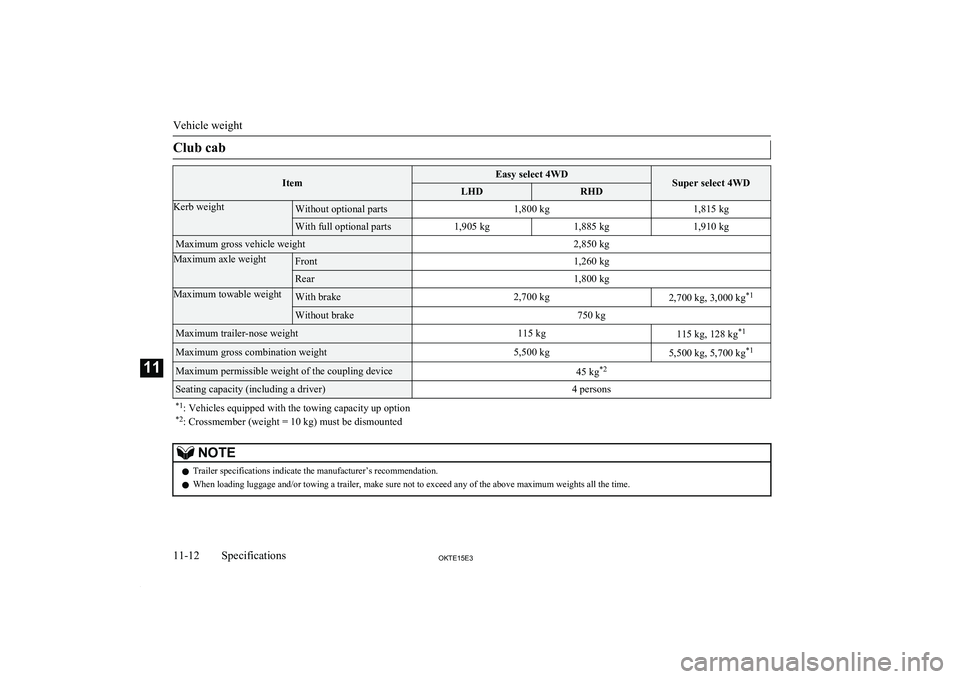

Club cabItemEasy select 4WDSuper select 4WDLHDRHDKerb weightWithout optional parts1,800 kg1,815 kgWith full optional parts1,905 kg1,885 kg1,910 kgMaximum gross vehicle weight2,850 kgMaximum axle weightFront1,260 kgRear1,800 kgMaximum towable weightWith brake2,700 kg2,700 kg, 3,000 kg*1Without brake750 kgMaximum trailer-nose weight115 kg115 kg, 128 kg*1Maximum gross combination weight5,500 kg5,500 kg, 5,700 kg *1Maximum permissible weight of the coupling device45 kg*2Seating capacity (including a driver)4 persons*1
: Vehicles equipped with the towing capacity up option
*2 : Crossmember (weight = 10 kg) must be dismountedNOTEl Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
Vehicle weight
11-12OKTE15E3Specifications11

Double cab
Item
2WDM/T
A/T
Vehicles with 15 inchtyresVehicles with 16 inchtyresKerb weightWithout optional parts1,650 kg1,730 kg1,745 kgWith full optional parts1,710 kg1,840 kg1,855 kgMaximum gross vehicle weight2,630 kg2,800 kgMaximum axle weightFront1,030 kg1,260 kgRear1,700 kg1,800 kgMaximum towable weightWith brake1,800 kg2,700 kgWithout brake750 kgMaximum trailer-nose weight75 kg112 kgMaximum gross combination weight4,400 kg5,465 kgMaximum permissible weight of the coupling device45 kg45 kg*Seating capacity (including a driver)5 persons*
: Crossmember (weight = 10 kg) must be dismountedNOTEl Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
Vehicle weight
11-13OKTE15E3Specifications11

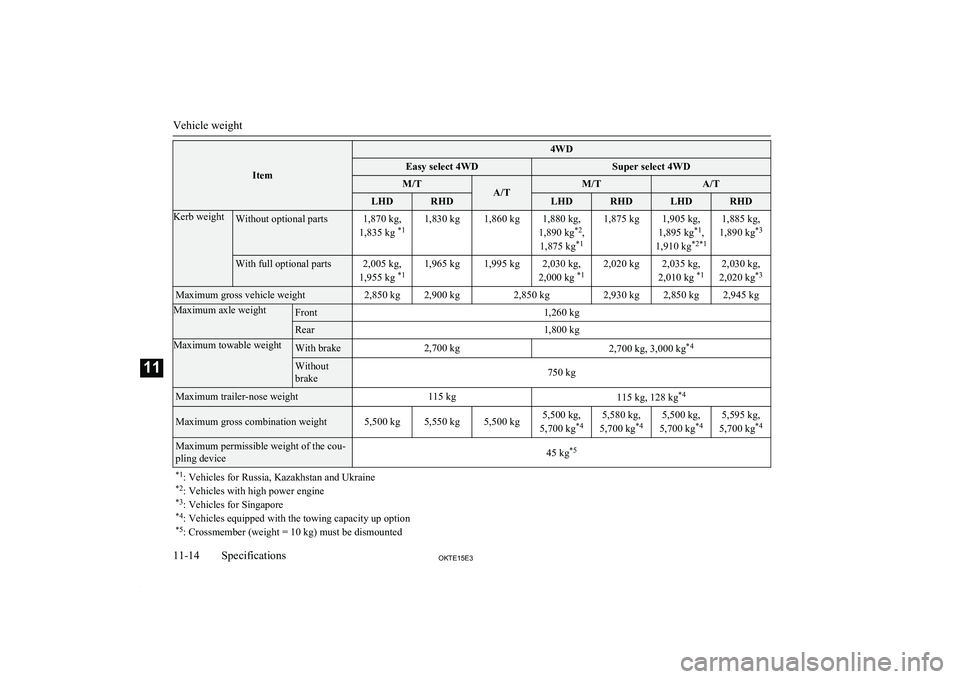

Item
4WDEasy select 4WDSuper select 4WDM/TA/TM/TA/TLHDRHDLHDRHDLHDRHDKerb weightWithout optional parts1,870 kg,
1,835 kg *11,830 kg1,860 kg1,880 kg,
1,890 kg *2
,
1,875 kg *11,875 kg1,905 kg,
1,895 kg *1
,
1,910 kg *2*11,885 kg,
1,890 kg *3With full optional parts2,005 kg,
1,955 kg *11,965 kg1,995 kg2,030 kg,
2,000 kg *12,020 kg2,035 kg,
2,010 kg *12,030 kg,
2,020 kg *3Maximum gross vehicle weight2,850 kg2,900 kg2,850 kg2,930 kg2,850 kg2,945 kgMaximum axle weightFront1,260 kgRear1,800 kgMaximum towable weightWith brake2,700 kg2,700 kg, 3,000 kg *4Without
brake750 kgMaximum trailer-nose weight115 kg115 kg, 128 kg *4Maximum gross combination weight5,500 kg5,550 kg5,500 kg5,500 kg,
5,700 kg *45,580 kg,
5,700 kg *45,500 kg,
5,700 kg *45,595 kg,
5,700 kg *4Maximum permissible weight of the cou-
pling device45 kg *5*1
: Vehicles for Russia, Kazakhstan and Ukraine
*2 : Vehicles with high power engine
*3 : Vehicles for Singapore
*4 : Vehicles equipped with the towing capacity up option
*5 : Crossmember (weight = 10 kg) must be dismounted
Vehicle weight
11-14OKTE15E3Specifications11

Item
4WDEasy select 4WDSuper select 4WDM/TA/TM/TA/TLHDRHDLHDRHDLHDRHDSeating capacity (including a driver)5 persons*1: Vehicles for Russia, Kazakhstan and Ukraine
*2 : Vehicles with high power engine
*3 : Vehicles for Singapore
*4 : Vehicles equipped with the towing capacity up option
*5 : Crossmember (weight = 10 kg) must be dismountedNOTEl Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.

Vehicle weight
11-15OKTE15E3Specifications11

Engine specificationsE01100604045Item
Standard power engineHigh power engine2WD with 15 inchtyres2WD with 16 inchtyres, 4WDM/TA/TEngine typeFour-cylinder, in line,water cooled four-cy- cle, double overhead
camshaft with small- sized intercooler and turbochargerFour-cylinder, in line, water cooled four-cycle, double overhead cam- shaft with intercooler and turbochargerEngine models4D56Total displacement2,477 ccBore91.1 mmStroke95.0 mmCompression ratio16.5:1, 17.0:1 *116.5:1Valve clearanceIntake0.09 mm (cold)Exhaust0.14 mm (cold)Maximum output (EEC net)94 kW/4,000 r/min100 kW/4,000 r/min,
100 kW/3,500 r/min *2131 kW/3,750 r/min, 131 kW/4,000 r/min *2Maximum torque (EEC net)240 Nm/1,250 to
3,750 r/min314 Nm/1,500 to2,680 r/min,
314 Nm/2,000 r/min *2400 Nm/2,000 to
2,850 r/min350 Nm/1,800 to3,500 r/min*1: Vehicles to comply with the Euro 3 or Euro 4 regulation
*2 : Vehicles for Russia, Kazakhstan and Ukraine

Engine specifications
11-16OKTE15E3Specifications11

Transmission specificationsE01100702693
Item
M/TA/T2WD4WD
2WD
4WDVehicleswith 15
inch tyresVehicles with 16
inch tyresEasy select 4WD
Super select 4WD
Easy select4WD
Super select 4WDHigh pow-er engineStandard
power en- gine
4A/T5A/T
Transmis-
sion1 st
gear ra-
tio4.3132.8423.7892 nd
gear ra-
tio2.3301.4952.0573 rd
gear ra-
tio1.4361.0001.4214 th
gear ra-
tio1.0000.7311.0005 th
gear ra-
tio0.788—0.731Reverse
gear ratio4.2202.7203.865TransferHigh gear ratio—1.000—1.000Low gearratio—1.900—1.900* : Vehicles for Russia, Kazakhstan and Ukraine
Transmission specifications
11-17OKTE15E3Specifications11

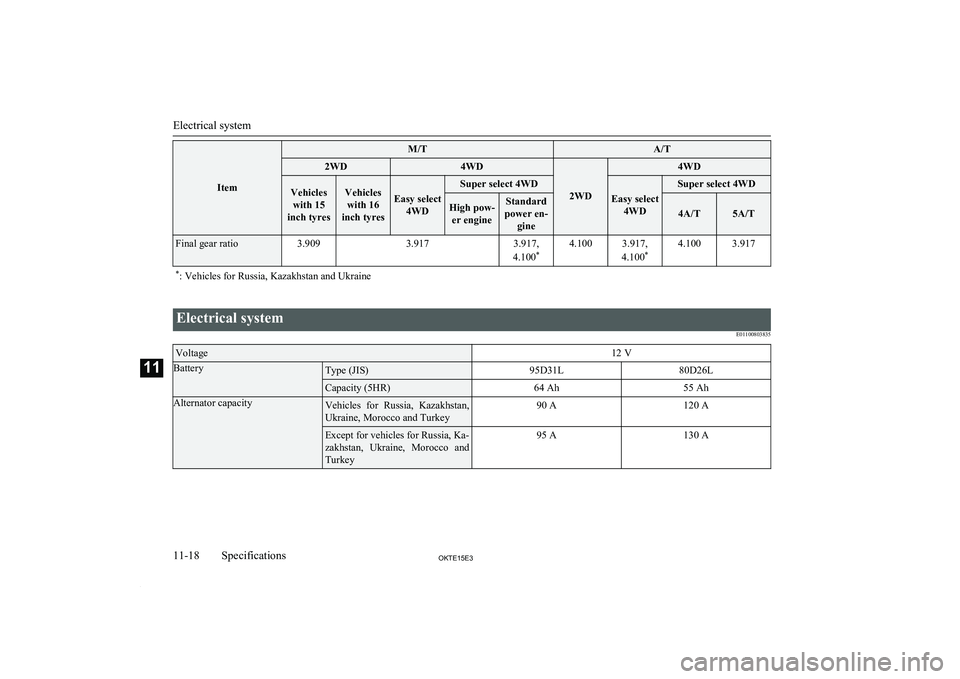

Item
M/TA/T2WD4WD
2WD
4WDVehicleswith 15
inch tyresVehicles with 16
inch tyresEasy select 4WD
Super select 4WD
Easy select4WD
Super select 4WDHigh pow-er engineStandard
power en- gine
4A/T5A/T
Final gear ratio3.9093.9173.917,
4.100 *4.1003.917,
4.100 *4.1003.917*
: Vehicles for Russia, Kazakhstan and Ukraine

Electrical system
E01100803835Voltage12 VBatteryType (JIS)95D31L80D26LCapacity (5HR)64 Ah55 AhAlternator capacityVehicles for Russia, Kazakhstan,
Ukraine, Morocco and Turkey90 A120 AExcept for vehicles for Russia, Ka-
zakhstan, Ukraine, Morocco and
Turkey95 A130 A

Electrical system
11-18OKTE15E3Specifications11

Tyres and wheelsE01100902204Tyre195R15C 106/104R8PR,215/70R15C
109/107R *205/80R16 104S RF,
205R16C 110/108R 8PR245/70R16 111S RF245/65R17 111S RFWheelSize15x6JJ16x6JJ16x7J17x7 1/2JOffset46 mm38 mm*: On vehicles with 195 size tyres, this size of snow tyres can also be used instead.NOTEl Contact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

Other specifications
E01101000862Fuel systemFuel controlDirect injection common rail systemFuel pumpElectronic controlled rotary typeClutchDry single disc clutch with diaphragm spring, hydraulic actionSteering systemRack & pinion type, power assistedSuspensionFrontIndependent type, wishbone, coil springRearRigid type, leaf springService brakesTypeVehicles without ABSHydraulic, front and rear split double circuit system with power assistanceVehicles with ABSHydraulic, diagonal split double circuit system with power assistance
Tyres and wheels
11-19OKTE15E3Specifications11

FrontVentilated disc brakesRearDrum brakesParking brakesParking brake acts mechanically on rear wheels

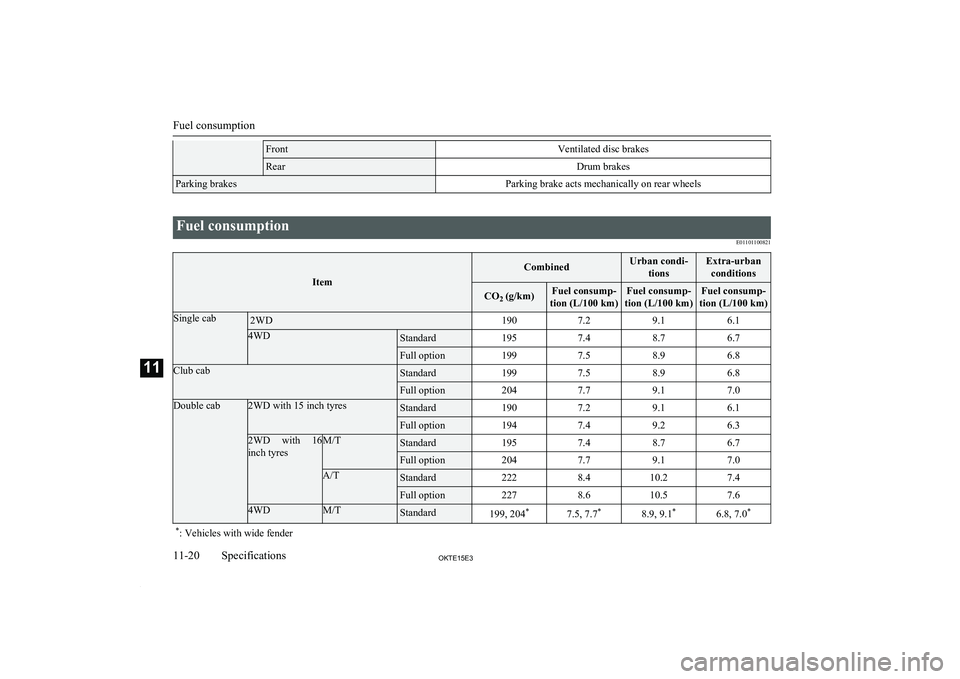

Fuel consumptionE01101100821
Item
CombinedUrban condi-tionsExtra-urbanconditionsCO 2 (g/km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)Single cab2WD1907.29.16.14WDStandard1957.48.76.7Full option1997.58.96.8Club cabStandard1997.58.96.8Full option2047.79.17.0Double cab2WD with 15 inch tyresStandard1907.29.16.1Full option1947.49.26.32WD with 16 inch tyresM/TStandard1957.48.76.7Full option2047.79.17.0A/TStandard2228.410.27.4Full option2278.610.57.64WDM/TStandard199, 204 *7.5, 7.7*8.9, 9.1*6.8, 7.0**
: Vehicles with wide fender
Fuel consumption
