Page 371 of 426
WARNINGlAlways consult a specialist when repair-
ing or replacing the bulbs of high intensi-
ty discharge headlamps.
This is because the power circuit, bulbs
and electrodes generate a high voltage that could cause an electric shock.NOTEl It is not possible to repair or replace only the
bulb for the side turn-signal lamp (on fend-
er).
Check with a MITSUBISHI MOTORS Au-
thorized Service point when the lamp needs to be repaired or replaced.Rear
1- High-mounted stop lamp
2- Tail and stop lamps: 21/5 W (P21/5W) 3- Rear turn-signal lamps: 21 W (PY21W)4- Rear fog lamp (driver’s side): 21W
(P21W)
Reversing lamps: 21 W (P21W)
5- Licence plate lamps: 5 W (W5W)
Codes in parentheses indicate bulb types.
NOTEl The following lamps uses LEDs rather than
bulbs. For repair and replacement, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
• Side turn-signal lamps (on outside rear-
view mirror)
• Position lamps (Vehicles with high inten-
sity discharge headlamps)
• Daytime running lamps (Vehicles with
high intensity discharge headlamps)
• High-mounted stop lampInside
E01003403381
1- Type 1
Rear room lamp: 8 W
Type 2
Room lamp: 8 W
2- Front room & map lamps*: 7.5 W
Replacement of lamp bulbs
10-23OKTE17E1Maintenance10 Type 1 Type 2
Page 372 of 426
3- Glove box lamp: 1.4 WHeadlamps (halogen bulb)
E01003502532
1.When replacing the bulb on the right
side of the vehicle, remove the clamps
(A) of the air cleaner filter and move the upper cover (B) towards the rear of the
vehicle.
*: Front of the vehicle
NOTEl When moving the upper cover towards the
rear of the vehicle, remove the harness fromthe air cleaner hooks (C).
*: Front of the vehicle
l After replacing the bulb, make sure that the
hinges at the front of the vehicle are firmly
set.
2. Disconnect the connector (A).
3. Remove the sealing cover (B).
Replacement of lamp bulbs
10-24OKTE17E1Maintenance10
Page 373 of 426
4.Unhook the spring (C) which secures the
bulb, and then remove the headlamp bulb.
5. To install the bulb, perform the removal
steps in reverse.
Position lamps
E01003702417
1. When replacing the bulb on the left side
of the vehicle, remove the clip (A) hold-
ing down the washer tank spout and
move the spout towards the rear of the vehicle.
2. Turn the bulb socket anticlockwise to re-
move it. And remove the bulb from the
socket by pulling out.
3. To install the bulb, perform the removal
steps in reverse.
Front turn-signal lamps
E01003802304
Except for vehicles with high in- tensity discharge headlamps
1. When replacing the bulb on the left side
of the vehicle, remove the clip (A) hold- ing down the washer tank spout and
Replacement of lamp bulbs
10-25OKTE17E1Maintenance10
Page 374 of 426
move the spout towards the rear of the
vehicle.
2. Turn the bulb socket anticlockwise to re-
move it. And remove the bulb from the
socket by turning it anticlockwise while pressing in.
3. To install the bulb, perform the removal
steps in reverse.
Vehicles with high intensity dis-
charge headlamps
1. When replacing the bulb on the left side
of the vehicle, remove the clip (A) hold- ing down the washer tank spout and
move the spout towards the rear of the vehicle.
2. Turn the bulb socket anticlockwise to re-
move it. And remove the bulb from the
socket by turning it anticlockwise while pressing in.
3. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-26OKTE17E1Maintenance10
Page 375 of 426

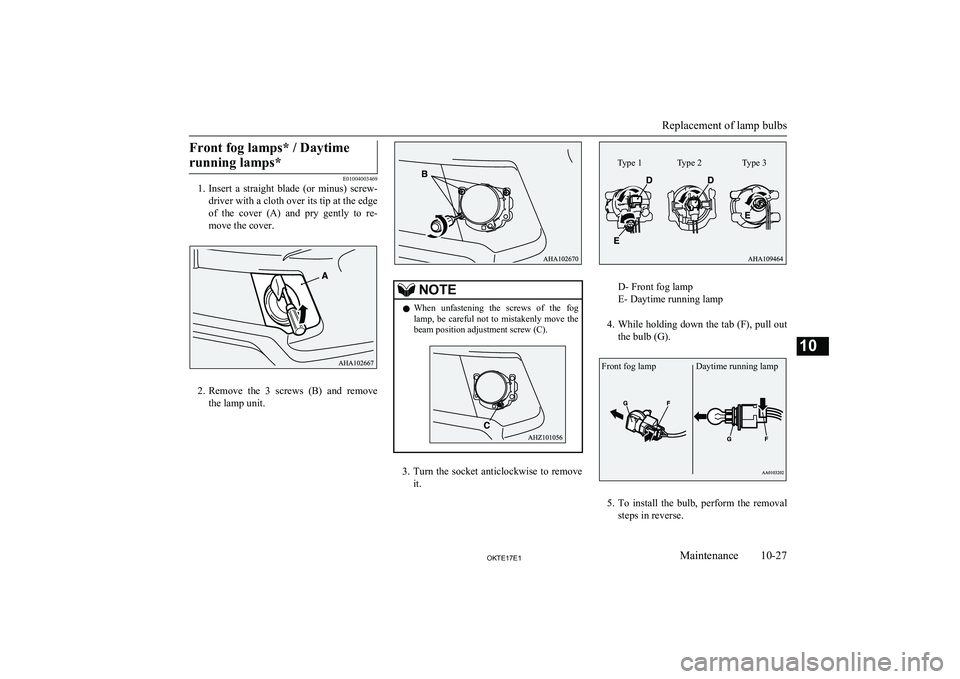

Front fog lamps* / Daytimerunning lamps*
E01004003469
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip at the edge
of the cover (A) and pry gently to re-
move the cover.
2. Remove the 3 screws (B) and remove
the lamp unit.
NOTEl When unfastening the screws of the fog
lamp, be careful not to mistakenly move thebeam position adjustment screw (C).
3. Turn the socket anticlockwise to remove
it.
D- Front fog lamp
E- Daytime running lamp
4. While holding down the tab (F), pull out
the bulb (G).
5. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-27OKTE17E1Maintenance10 Type 1 Type 2 Type 3 Front fog lamp Daytime running lamp
Page 376 of 426

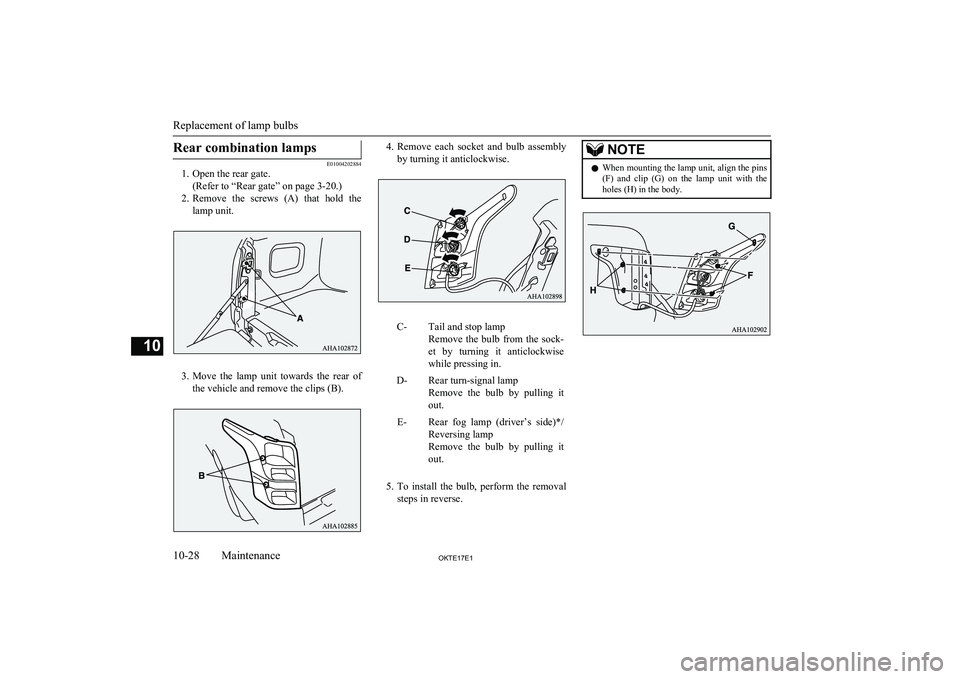

Rear combination lamps
E01004202884
1. Open the rear gate.
(Refer to “Rear gate” on page 3-20.)
2. Remove the screws (A) that hold the
lamp unit.
3. Move the lamp unit towards the rear of
the vehicle and remove the clips (B).
4. Remove each socket and bulb assembly
by turning it anticlockwise.C-Tail and stop lamp
Remove the bulb from the sock- et by turning it anticlockwise
while pressing in.D-Rear turn-signal lamp
Remove the bulb by pulling it
out.E-Rear fog lamp (driver’s side)*/ Reversing lamp
Remove the bulb by pulling it out.
5. To install the bulb, perform the removal
steps in reverse.
NOTEl When mounting the lamp unit, align the pins
(F) and clip (G) on the lamp unit with the
holes (H) in the body.
Replacement of lamp bulbs
10-28OKTE17E1Maintenance10
Page 377 of 426

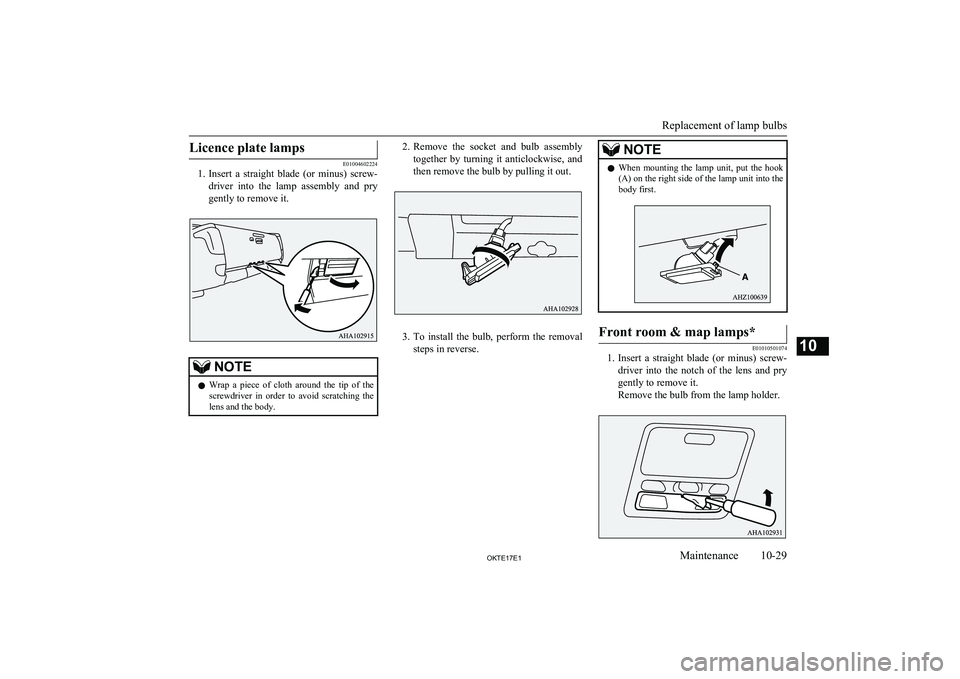

Licence plate lamps
E01004602224
1. Insert a straight blade (or minus) screw-
driver into the lamp assembly and pry
gently to remove it.
NOTEl Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens and the body.2. Remove the socket and bulb assembly
together by turning it anticlockwise, and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When mounting the lamp unit, put the hook
(A) on the right side of the lamp unit into thebody first.Front room & map lamps*
E01010501074
1. Insert a straight blade (or minus) screw-
driver into the notch of the lens and pry
gently to remove it.
Remove the bulb from the lamp holder.
Replacement of lamp bulbs
10-29OKTE17E1Maintenance10
Page 378 of 426

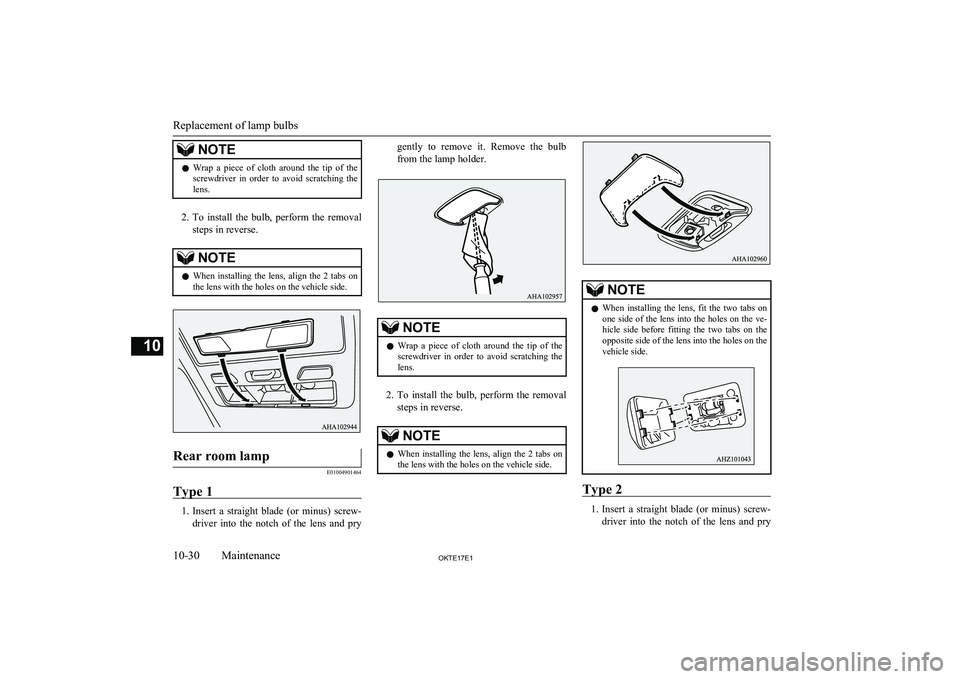

NOTElWrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side.Rear room lamp
E01004901464
Type 1
1. Insert a straight blade (or minus) screw-
driver into the notch of the lens and pry
gently to remove it. Remove the bulb
from the lamp holder.NOTEl Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side.NOTEl When installing the lens, fit the two tabs on
one side of the lens into the holes on the ve-hicle side before fitting the two tabs on the opposite side of the lens into the holes on the
vehicle side.
Type 2
1. Insert a straight blade (or minus) screw-
driver into the notch of the lens and pry
Replacement of lamp bulbs
10-30OKTE17E1Maintenance10
Page 379 of 426
gently to remove it. Remove the bulb
from the lamp holder.NOTEl Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, fit the two tabs on
one side of the lens into the holes on the ve-hicle side before fitting the two tabs on the opposite side of the lens into the holes on the
vehicle side.Glove box lamp
E01006101516
Have the glove box lamp bulb replaced at a
MITSUBISHI MOTORS Authorized Service
Point.
Masking the headlamps
E01011601085
When entering a country in which vehiclesare driven on the opposite side of the road to the country in which your vehicles is sup-plied, necessary measures have to be taken to
avoid dazzling oncoming traffic.
High intensity discharge head-
lamp type
Do not need any adjustment.
Halogen headlamp type
Mask the headlamps according to the next
procedure. 1. Turn the headlamp off and wait until the
headlamps got cold.
2. According to the illustrations, prepare
the sticker (A) to stick the headlamp sur-
face of right and left.
NOTEl Use a sticker with a light blocking effect
enough.
Using of a sticker without a light blocking
effect will not acquire a blocking effect.
3. Seeing from the headlamp front, position
(C) of the sticker and the central mark
(B) of the headlamp and stick a sticker along the vertical dotted line.
Masking the headlamps
10-31OKTE17E1Maintenance10
Page 380 of 426
NOTElAlign the vertical dotted line with the line of
the reflector in the headlamp.
Masking the headlamps
10-32OKTE17E1Maintenance10 LHDLeft lens
Right lens
115mm105mm
37mm
50mm RHDLeft lens
Right lens
105mm
37mm
50mm
115mm
