5. Close the key case firmly.
6. Attach the screw (A) removed in step 1.
(Keyless entry key only)
7. Check the keyless entry system to see
that it works.
Keyless operation system*
E00305601871
The keyless operation system allows you to lock and unlock the doors, start the engine
and change the operation mode simply by
carrying the keyless operation key with you. The switches on the keyless operation key can also be used as the key switch of keyless
entry system.
Refer to “Starting and stopping the engine” on page 6-17.
Refer to “Keyless entry system*” on page 3-03.

The driver should always carry the keyless operation key. This key is necessary for lock- ing and unlocking the doors, starting the en-
gine and otherwise operating the vehicle, so before locking and leaving the vehicle, be
sure to check that you have the keyless oper- ation key.WARNINGl People with implantable cardiac pace-
makers or implantable cardiovascular-de- fibrillators should not go near the exterior
transmitters (A) or the interior transmit-
ters (B). The radio waves used by the key-
less operation system could adversely af- fect implantable cardiac pacemakers orimplantable cardiovascular-defibrillators.
Keyless operation system*
3-07OKTE17E1Locking and unlocking3Keyless entry key+ side - side
Coin type battery CR1620 Keyless operation key+ side - side
Coin type battery CR2032 Club cab

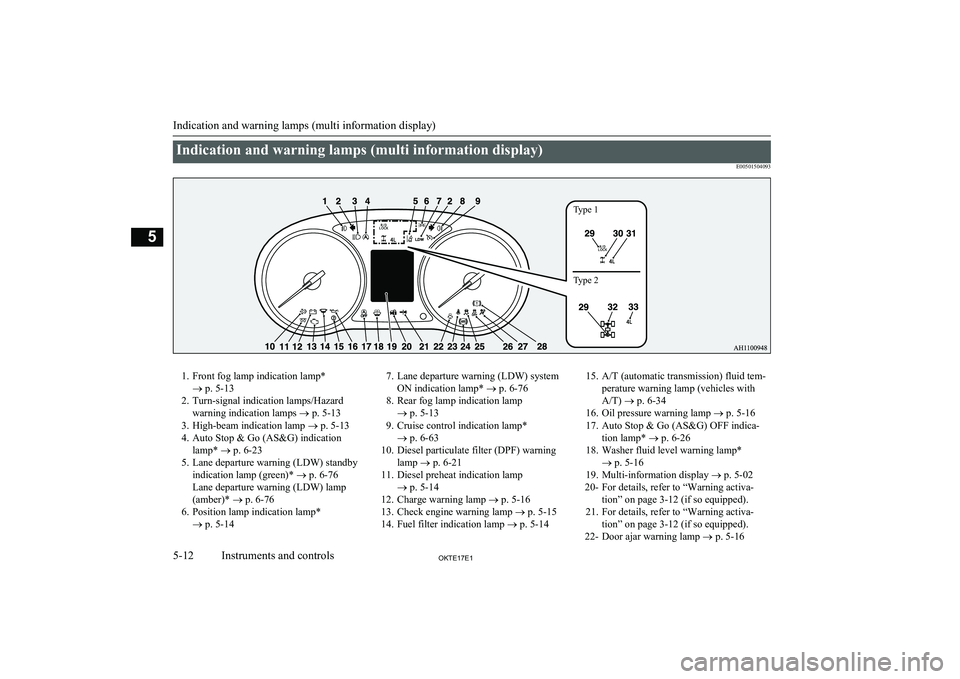

Indication and warning lamps (multi information display)E005015040931. Front fog lamp indication lamp*® p. 5-13
2. Turn-signal indication lamps/Hazard warning indication lamps ® p. 5-13
3. High-beam indication lamp ® p. 5-13
4. Auto Stop & Go (AS&G) indication lamp* ® p. 6-23
5. Lane departure warning (LDW) standby indication lamp (green)* ® p. 6-76
Lane departure warning (LDW) lamp
(amber)* ® p. 6-76
6. Position lamp indication lamp* ® p. 5-147. Lane departure warning (LDW) system
ON indication lamp* ® p. 6-76
8. Rear fog lamp indication lamp ® p. 5-13
9. Cruise control indication lamp* ® p. 6-63
10. Diesel particulate filter (DPF) warning lamp ® p. 6-21
11. Diesel preheat indication lamp ® p. 5-14
12. Charge warning lamp ® p. 5-16
13. Check engine warning lamp ® p. 5-15
14. Fuel filter indication lamp ® p. 5-1415. A/T (automatic transmission) fluid tem-
perature warning lamp (vehicles with
A/T) ® p. 6-34
16. Oil pressure warning lamp ® p. 5-16
17. Auto Stop & Go (AS&G) OFF indica- tion lamp* ® p. 6-26
18. Washer fluid level warning lamp* ® p. 5-16
19. Multi-information display ® p. 5-02
20- For details, refer to “Warning activa- tion” on page 3-12 (if so equipped).
21. For details, refer to “Warning activa- tion” on page 3-12 (if so equipped).
22- Door ajar warning lamp ® p. 5-16
Indication and warning lamps (multi information display)
5-12OKTE17E1Instruments and controls5Type 1
Type 2

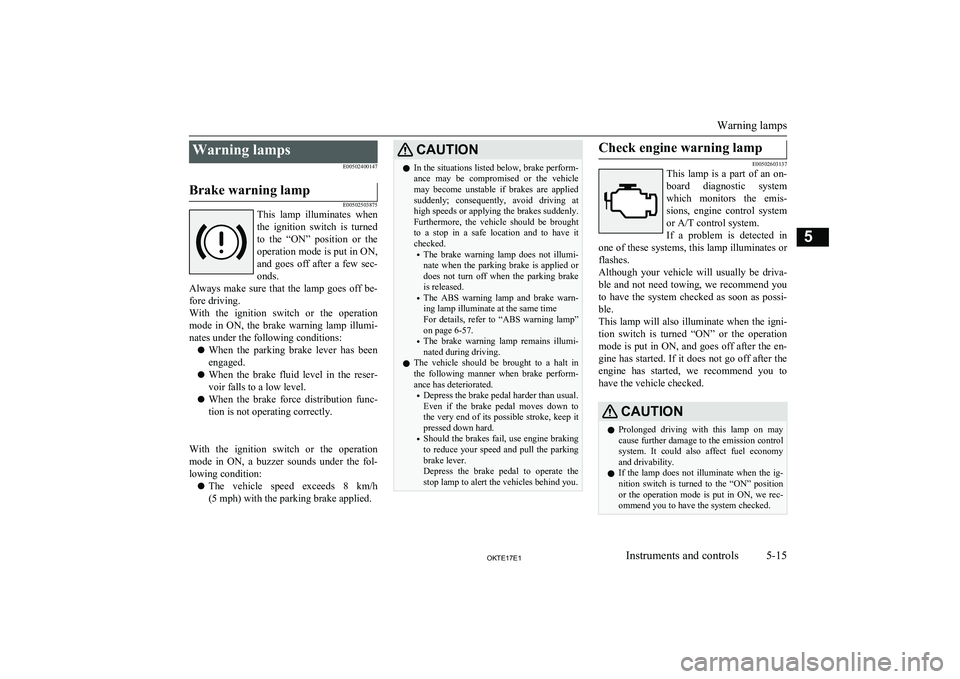

Warning lampsE00502400147Brake warning lamp
E00502503875
This lamp illuminates whenthe ignition switch is turnedto the “ON” position or the
operation mode is put in ON, and goes off after a few sec-onds.
Always make sure that the lamp goes off be- fore driving.
With the ignition switch or the operation mode in ON, the brake warning lamp illumi-
nates under the following conditions:
l When the parking brake lever has been
engaged.
l When the brake fluid level in the reser-
voir falls to a low level.
l When the brake force distribution func-
tion is not operating correctly.

With the ignition switch or the operation
mode in ON, a buzzer sounds under the fol- lowing condition:
l The vehicle speed exceeds 8 km/h
(5 mph) with the parking brake applied.
CAUTIONl In the situations listed below, brake perform-
ance may be compromised or the vehicle may become unstable if brakes are applied
suddenly; consequently, avoid driving at
high speeds or applying the brakes suddenly. Furthermore, the vehicle should be brought
to a stop in a safe location and to have it
checked.
• The brake warning lamp does not illumi-
nate when the parking brake is applied ordoes not turn off when the parking brake is released.
• The ABS warning lamp and brake warn-
ing lamp illuminate at the same time
For details, refer to “ABS warning lamp”
on page 6-57.
• The brake warning lamp remains illumi-
nated during driving.
l The vehicle should be brought to a halt in
the following manner when brake perform- ance has deteriorated.
• Depress the brake pedal harder than usual.
Even if the brake pedal moves down to
the very end of its possible stroke, keep it
pressed down hard.
• Should the brakes fail, use engine braking
to reduce your speed and pull the parking
brake lever.
Depress the brake pedal to operate the
stop lamp to alert the vehicles behind you.Check engine warning lamp
E00502603137
This lamp is a part of an on-
board diagnostic system
which monitors the emis-
sions, engine control system or A/T control system.
If a problem is detected in
one of these systems, this lamp illuminates or flashes.
Although your vehicle will usually be driva-
ble and not need towing, we recommend you
to have the system checked as soon as possi-
ble.
This lamp will also illuminate when the igni-
tion switch is turned “ON” or the operation mode is put in ON, and goes off after the en-gine has started. If it does not go off after the
engine has started, we recommend you to have the vehicle checked.
CAUTIONl Prolonged driving with this lamp on may
cause further damage to the emission control
system. It could also affect fuel economy and drivability.
l If the lamp does not illuminate when the ig-
nition switch is turned to the “ON” position
or the operation mode is put in ON, we rec- ommend you to have the system checked.
Warning lamps
5-15OKTE17E1Instruments and controls5

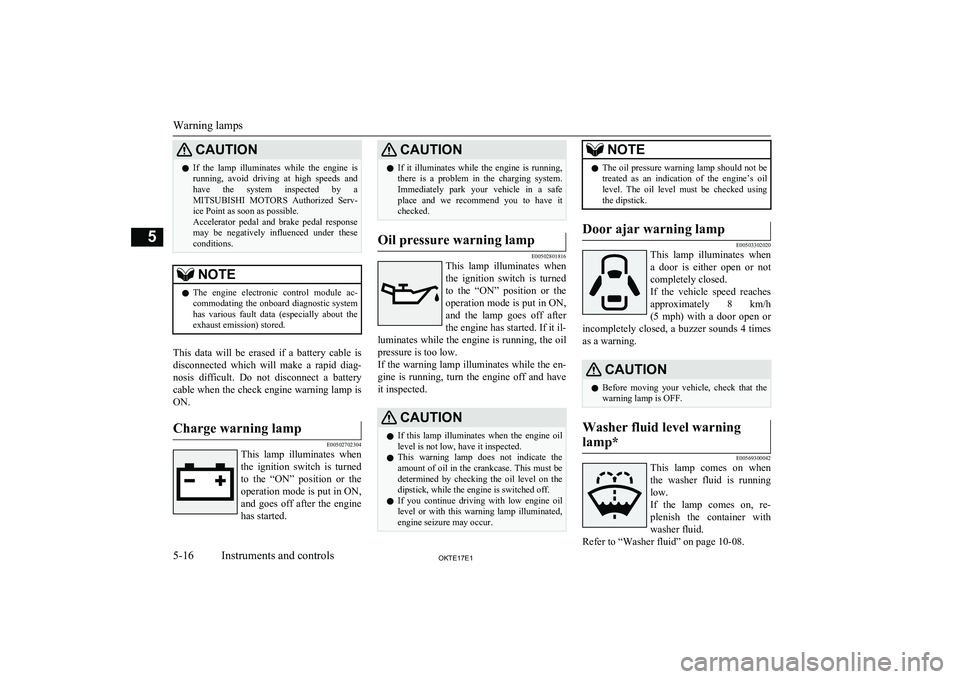

CAUTIONlIf the lamp illuminates while the engine is
running, avoid driving at high speeds and have the system inspected by a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible.
Accelerator pedal and brake pedal response may be negatively influenced under these
conditions.NOTEl The engine electronic control module ac-
commodating the onboard diagnostic system has various fault data (especially about the
exhaust emission) stored.
This data will be erased if a battery cable is
disconnected which will make a rapid diag- nosis difficult. Do not disconnect a battery
cable when the check engine warning lamp is ON.
Charge warning lamp
E00502702304
This lamp illuminates when the ignition switch is turnedto the “ON” position or the
operation mode is put in ON, and goes off after the engine
has started.
CAUTIONl If it illuminates while the engine is running,
there is a problem in the charging system.
Immediately park your vehicle in a safe place and we recommend you to have it
checked.Oil pressure warning lamp
E00502801816
This lamp illuminates when
the ignition switch is turnedto the “ON” position or the
operation mode is put in ON, and the lamp goes off after
the engine has started. If it il-
luminates while the engine is running, the oil
pressure is too low.
If the warning lamp illuminates while the en- gine is running, turn the engine off and have
it inspected.
CAUTIONl If this lamp illuminates when the engine oil
level is not low, have it inspected.
l This warning lamp does not indicate the
amount of oil in the crankcase. This must be determined by checking the oil level on the
dipstick, while the engine is switched off.
l If you continue driving with low engine oil
level or with this warning lamp illuminated,
engine seizure may occur.NOTEl The oil pressure warning lamp should not be
treated as an indication of the engine’s oil
level. The oil level must be checked using
the dipstick.Door ajar warning lamp
E00503302020
This lamp illuminates when
a door is either open or not
completely closed.
If the vehicle speed reaches approximately 8 km/h
(5 mph) with a door open or
incompletely closed, a buzzer sounds 4 times as a warning.
CAUTIONl Before moving your vehicle, check that the
warning lamp is OFF.Washer fluid level warning
lamp*
E00569300042
This lamp comes on when
the washer fluid is running low.
If the lamp comes on, re-
plenish the container with washer fluid.
Refer to “Washer fluid” on page 10-08.
Warning lamps
5-16OKTE17E1Instruments and controls5

refer to “Refill capacities” on page 11-18.Combination headlampsand dipper switch E00506004080
Headlamps
NOTElDo not leave the lamps on for a long time
while the engine is stationary (not running).A run-down battery could result.
l When it rains, or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy, but this does not indicate a
functional problem.
When the lamp is switched on, the heat will remove the fog. However, if water gathers
inside the lamp, we recommend you to have it checked.Type 1
Rotate the switch to turn on the lamps.
OFFAll lamps offPosition, tail, licence plate and instru-
ment panel lamps onHeadlamps and other lamps go onType 2
Rotate the switch to turn on the lamps.
OFFAll lamps off
AUTO
With the ignition switch or the
operation mode is in ON, head-
lamps, position, tail, licence plate
and instrument panel lamps turn
on and off automatically in ac-
cordance with outside light level.
All lamps turn off automatically
when the ignition switch is turned
to “OFF” position or the opera-
tion mode is put in OFF.Position, tail, licence plate and in-
strument panel lamps onHeadlamps and other lamps go on
Combination headlamps and dipper switch
5-17OKTE17E1Instruments and controls5

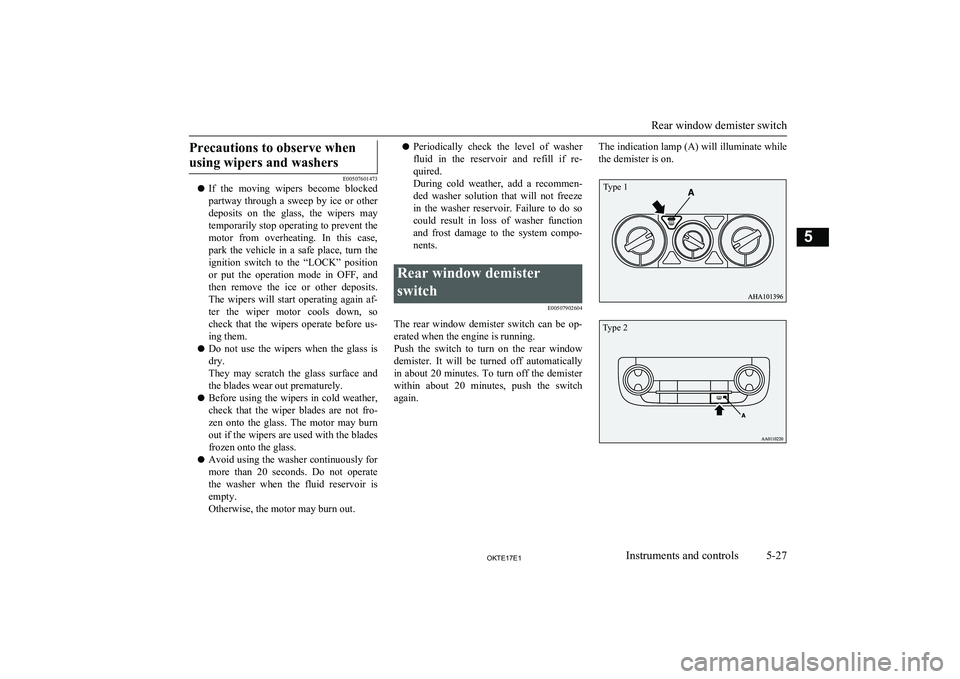

Precautions to observe whenusing wipers and washers
E00507601473
l If the moving wipers become blocked
partway through a sweep by ice or other deposits on the glass, the wipers maytemporarily stop operating to prevent the
motor from overheating. In this case,
park the vehicle in a safe place, turn the ignition switch to the “LOCK” position
or put the operation mode in OFF, and
then remove the ice or other deposits.
The wipers will start operating again af- ter the wiper motor cools down, so
check that the wipers operate before us-
ing them.
l Do not use the wipers when the glass is
dry.
They may scratch the glass surface and the blades wear out prematurely.
l Before using the wipers in cold weather,
check that the wiper blades are not fro-zen onto the glass. The motor may burn
out if the wipers are used with the blades
frozen onto the glass.
l Avoid using the washer continuously for
more than 20 seconds. Do not operate the washer when the fluid reservoir isempty.
Otherwise, the motor may burn out.
l Periodically check the level of washer
fluid in the reservoir and refill if re-
quired.
During cold weather, add a recommen- ded washer solution that will not freeze
in the washer reservoir. Failure to do so
could result in loss of washer function and frost damage to the system compo- nents.Rear window demister
switch E00507902604
The rear window demister switch can be op-erated when the engine is running.
Push the switch to turn on the rear window
demister. It will be turned off automatically
in about 20 minutes. To turn off the demister
within about 20 minutes, push the switch again.
The indication lamp (A) will illuminate while
the demister is on.
Rear window demister switch
5-27OKTE17E1Instruments and controls5Type 1 Type 2

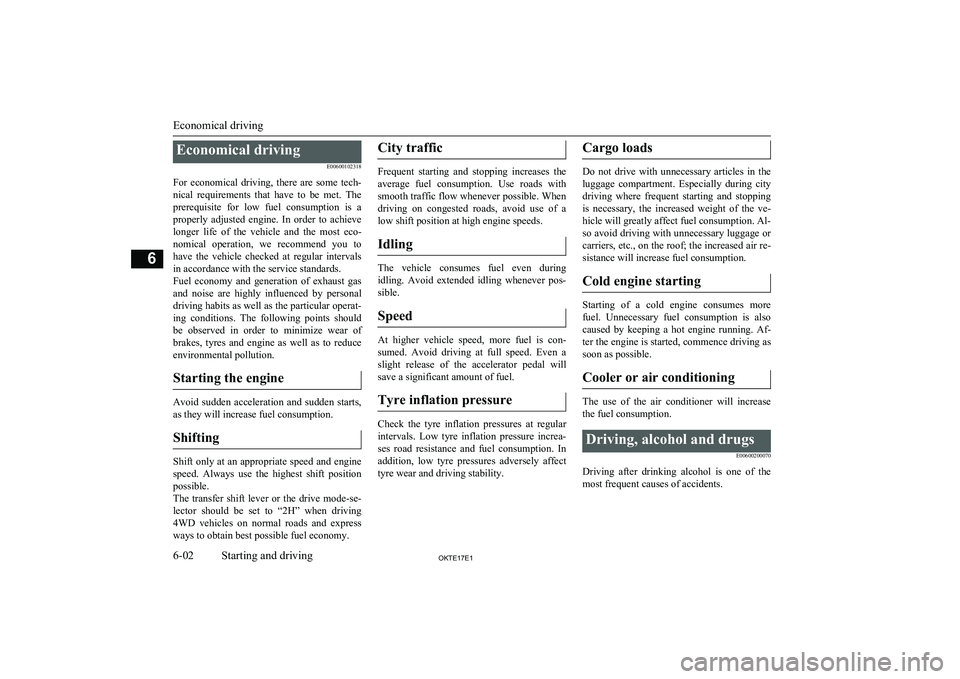

Economical drivingE00600102318
For economical driving, there are some tech- nical requirements that have to be met. Theprerequisite for low fuel consumption is a
properly adjusted engine. In order to achieve longer life of the vehicle and the most eco- nomical operation, we recommend you tohave the vehicle checked at regular intervals in accordance with the service standards.
Fuel economy and generation of exhaust gas
and noise are highly influenced by personal
driving habits as well as the particular operat- ing conditions. The following points shouldbe observed in order to minimize wear of
brakes, tyres and engine as well as to reduce
environmental pollution.
Starting the engine
Avoid sudden acceleration and sudden starts,
as they will increase fuel consumption.
Shifting
Shift only at an appropriate speed and engine speed. Always use the highest shift position
possible.
The transfer shift lever or the drive mode-se-
lector should be set to “2H” when driving 4WD vehicles on normal roads and express
ways to obtain best possible fuel economy.
City traffic
Frequent starting and stopping increases the
average fuel consumption. Use roads with smooth traffic flow whenever possible. When driving on congested roads, avoid use of a
low shift position at high engine speeds.
Idling
The vehicle consumes fuel even during idling. Avoid extended idling whenever pos-
sible.
Speed
At higher vehicle speed, more fuel is con-
sumed. Avoid driving at full speed. Even a slight release of the accelerator pedal willsave a significant amount of fuel.
Tyre inflation pressure
Check the tyre inflation pressures at regularintervals. Low tyre inflation pressure increa-ses road resistance and fuel consumption. In
addition, low tyre pressures adversely affect tyre wear and driving stability.
Cargo loads
Do not drive with unnecessary articles in the
luggage compartment. Especially during city
driving where frequent starting and stopping is necessary, the increased weight of the ve-
hicle will greatly affect fuel consumption. Al- so avoid driving with unnecessary luggage or carriers, etc., on the roof; the increased air re- sistance will increase fuel consumption.
Cold engine starting
Starting of a cold engine consumes more fuel. Unnecessary fuel consumption is alsocaused by keeping a hot engine running. Af-
ter the engine is started, commence driving as soon as possible.
Cooler or air conditioning
The use of the air conditioner will increase the fuel consumption.
Driving, alcohol and drugs
E00600200070
Driving after drinking alcohol is one of the
most frequent causes of accidents.
Economical driving
6-02OKTE17E1Starting and driving6

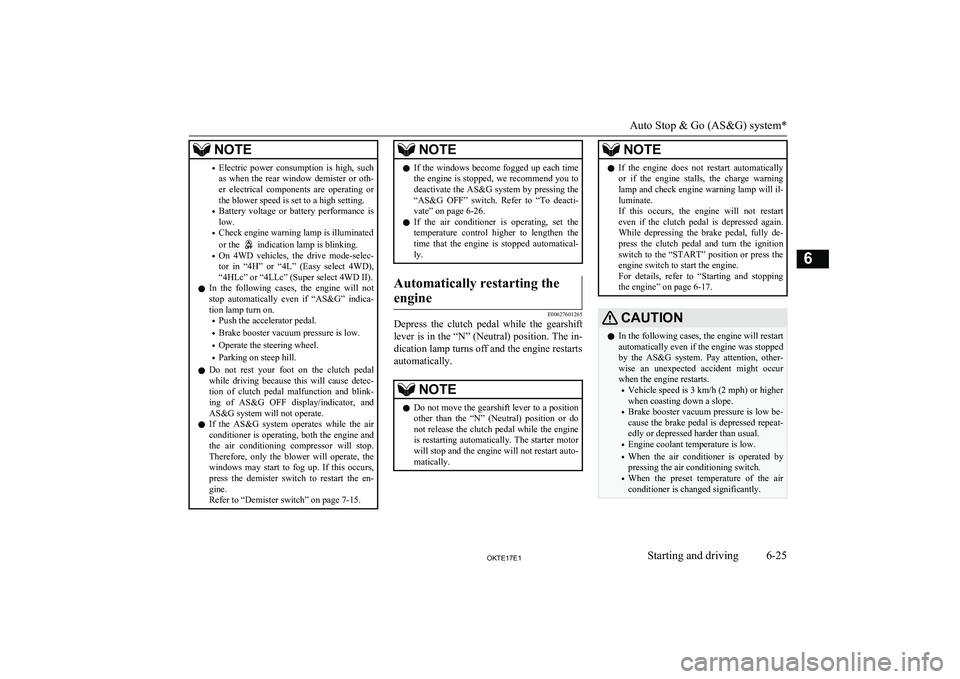

NOTE•Electric power consumption is high, such
as when the rear window demister or oth-
er electrical components are operating or
the blower speed is set to a high setting.
• Battery voltage or battery performance is
low.
• Check engine warning lamp is illuminated
or the
indication lamp is blinking.
• On 4WD vehicles, the drive mode-selec-
tor in “4H” or “4L” (Easy select 4WD),
“4HLc” or “4LLc” (Super select 4WD II).
l In the following cases, the engine will not
stop automatically even if “AS&G” indica-
tion lamp turn on.
• Push the accelerator pedal.
• Brake booster vacuum pressure is low.
• Operate the steering wheel.
• Parking on steep hill.
l Do not rest your foot on the clutch pedal
while driving because this will cause detec-
tion of clutch pedal malfunction and blink-
ing of AS&G OFF display/indicator, and AS&G system will not operate.
l If the AS&G system operates while the air
conditioner is operating, both the engine and
the air conditioning compressor will stop.
Therefore, only the blower will operate, the windows may start to fog up. If this occurs,
press the demister switch to restart the en- gine.
Refer to “Demister switch” on page 7-15.
NOTEl If the windows become fogged up each time
the engine is stopped, we recommend you to
deactivate the AS&G system by pressing the
“AS&G OFF” switch. Refer to “To deacti- vate” on page 6-26.
l If the air conditioner is operating, set the
temperature control higher to lengthen the
time that the engine is stopped automatical- ly.Automatically restarting the
engine
E00627601265
Depress the clutch pedal while the gearshift lever is in the “N” (Neutral) position. The in- dication lamp turns off and the engine restarts
automatically.
NOTEl Do not move the gearshift lever to a position
other than the “N” (Neutral) position or do
not release the clutch pedal while the engine is restarting automatically. The starter motor will stop and the engine will not restart auto-
matically.NOTEl If the engine does not restart automatically
or if the engine stalls, the charge warning lamp and check engine warning lamp will il-
luminate.
If this occurs, the engine will not restart even if the clutch pedal is depressed again. While depressing the brake pedal, fully de-press the clutch pedal and turn the ignition
switch to the “START” position or press the engine switch to start the engine.
For details, refer to “Starting and stopping
the engine” on page 6-17.CAUTIONl In the following cases, the engine will restart
automatically even if the engine was stopped
by the AS&G system. Pay attention, other- wise an unexpected accident might occur
when the engine restarts.
• Vehicle speed is 3 km/h (2 mph) or higher
when coasting down a slope.
• Brake booster vacuum pressure is low be-
cause the brake pedal is depressed repeat- edly or depressed harder than usual.
• Engine coolant temperature is low.
• When the air conditioner is operated by
pressing the air conditioning switch.
• When the preset temperature of the air
conditioner is changed significantly.
Auto Stop & Go (AS&G) system*
6-25OKTE17E1Starting and driving6

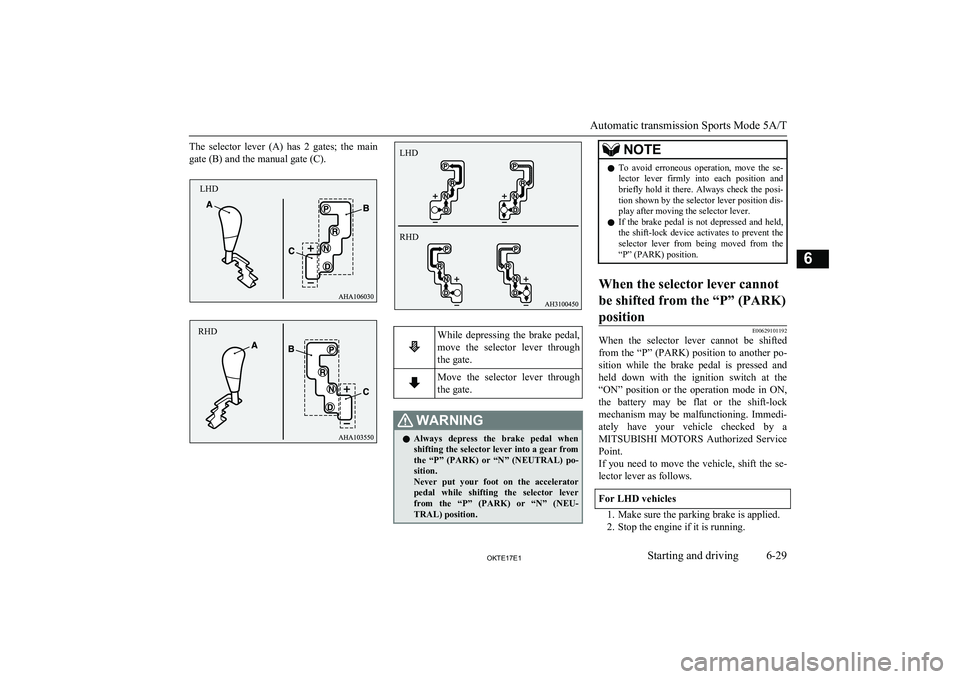

The selector lever (A) has 2 gates; the maingate (B) and the manual gate (C).While depressing the brake pedal,
move the selector lever through the gate.Move the selector lever throughthe gate.WARNINGl Always depress the brake pedal when
shifting the selector lever into a gear from the “P” (PARK) or “N” (NEUTRAL) po-sition.
Never put your foot on the accelerator
pedal while shifting the selector lever
from the “P” (PARK) or “N” (NEU- TRAL) position.NOTEl To avoid erroneous operation, move the se-
lector lever firmly into each position and
briefly hold it there. Always check the posi- tion shown by the selector lever position dis-
play after moving the selector lever.
l If the brake pedal is not depressed and held,
the shift-lock device activates to prevent the selector lever from being moved from the “P” (PARK) position.When the selector lever cannot
be shifted from the “P” (PARK)position
E00629101192
When the selector lever cannot be shifted from the “P” (PARK) position to another po-
sition while the brake pedal is pressed and
held down with the ignition switch at the “ON” position or the operation mode in ON,the battery may be flat or the shift-lock
mechanism may be malfunctioning. Immedi-
ately have your vehicle checked by a MITSUBISHI MOTORS Authorized Service
Point.
If you need to move the vehicle, shift the se- lector lever as follows.
For LHD vehicles
1. Make sure the parking brake is applied. 2. Stop the engine if it is running.
Automatic transmission Sports Mode 5A/T
6-29OKTE17E1Starting and driving6LHD RHD LHD
RHD

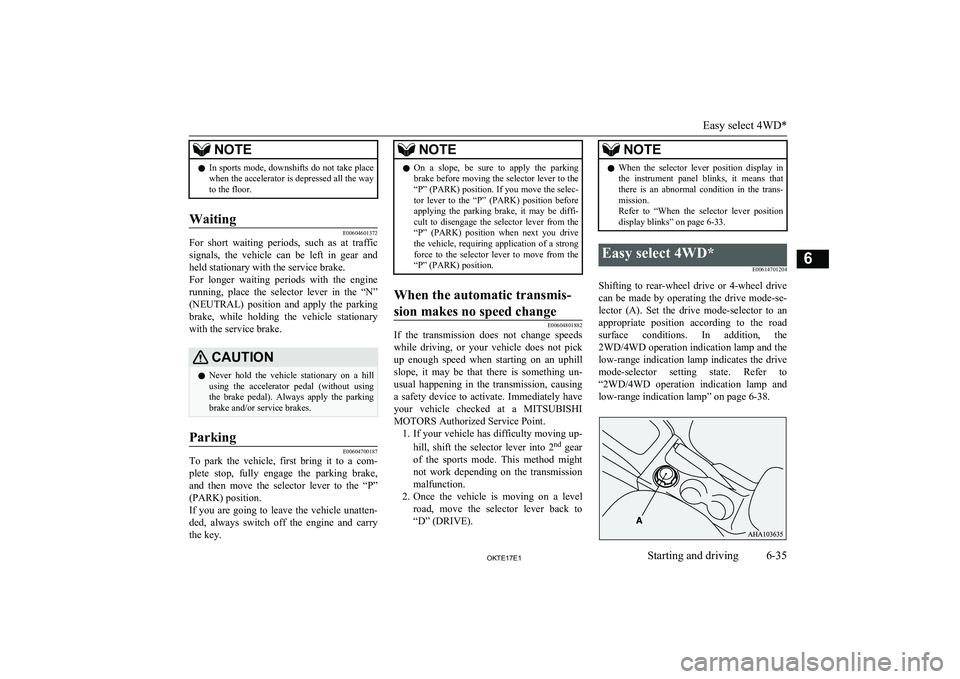

NOTElIn sports mode, downshifts do not take place
when the accelerator is depressed all the way to the floor.Waiting
E00604601372
For short waiting periods, such as at traffic
signals, the vehicle can be left in gear and held stationary with the service brake.
For longer waiting periods with the engine
running, place the selector lever in the “N” (NEUTRAL) position and apply the parking
brake, while holding the vehicle stationary with the service brake.
CAUTIONl Never hold the vehicle stationary on a hill
using the accelerator pedal (without using
the brake pedal). Always apply the parking brake and/or service brakes.Parking
E00604700187
To park the vehicle, first bring it to a com-
plete stop, fully engage the parking brake,and then move the selector lever to the “P”
(PARK) position.
If you are going to leave the vehicle unatten-
ded, always switch off the engine and carry the key.
NOTEl On a slope, be sure to apply the parking
brake before moving the selector lever to the
“P” (PARK) position. If you move the selec- tor lever to the “P” (PARK) position before applying the parking brake, it may be diffi-
cult to disengage the selector lever from the
“P” (PARK) position when next you drive the vehicle, requiring application of a strong
force to the selector lever to move from the
“P” (PARK) position.When the automatic transmis-
sion makes no speed change
E00604801882
If the transmission does not change speeds
while driving, or your vehicle does not pick up enough speed when starting on an uphillslope, it may be that there is something un-
usual happening in the transmission, causing a safety device to activate. Immediately have
your vehicle checked at a MITSUBISHI
MOTORS Authorized Service Point. 1. If your vehicle has difficulty moving up-
hill, shift the selector lever into 2 nd
gear
of the sports mode. This method might
not work depending on the transmission malfunction.
2. Once the vehicle is moving on a level
road, move the selector lever back to“D” (DRIVE).
NOTEl When the selector lever position display in
the instrument panel blinks, it means that
there is an abnormal condition in the trans- mission.
Refer to “When the selector lever position
display blinks” on page 6-33.Easy select 4WD*
E00614701204
Shifting to rear-wheel drive or 4-wheel drivecan be made by operating the drive mode-se-
lector (A). Set the drive mode-selector to an appropriate position according to the roadsurface conditions. In addition, the 2WD/4WD operation indication lamp and the
low-range indication lamp indicates the drive
mode-selector setting state. Refer to “2WD/4WD operation indication lamp and low-range indication lamp” on page 6-38.
Easy select 4WD*
6-35OKTE17E1Starting and driving6
