MITSUBISHI L200 2017 Owner's Manual (in English)
Manufacturer: MITSUBISHI, Model Year: 2017, Model line: L200, Model: MITSUBISHI L200 2017Pages: 426, PDF Size: 14.12 MB
Page 391 of 426

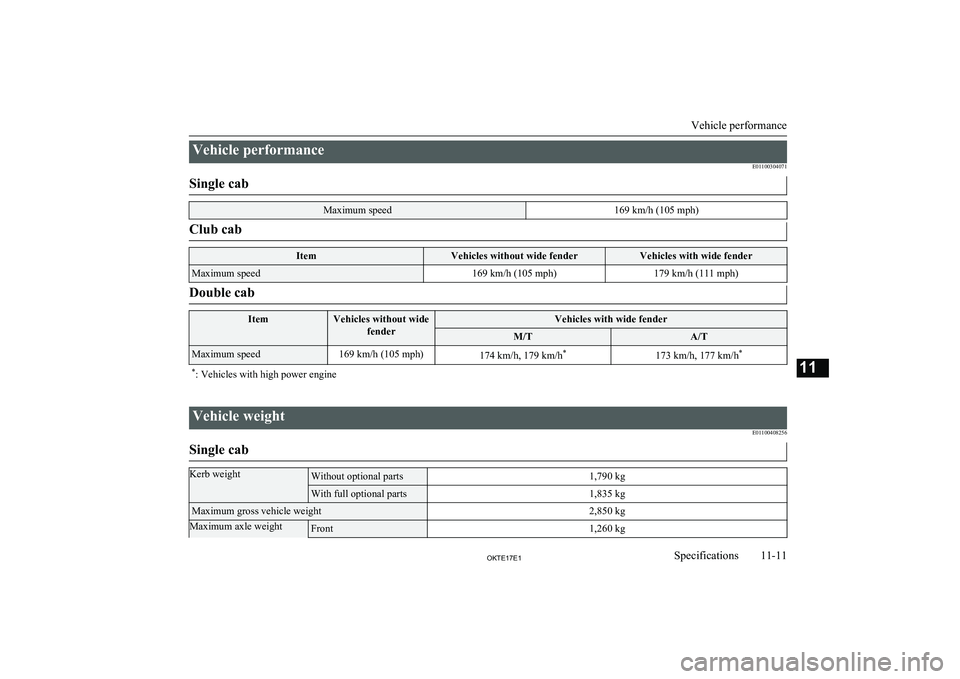

Vehicle performanceE01100304071Single cabMaximum speed169 km/h (105 mph)Club cabItemVehicles without wide fenderVehicles with wide fenderMaximum speed169 km/h (105 mph)179 km/h (111 mph)Double cabItemVehicles without widefenderVehicles with wide fenderM/TA/TMaximum speed169 km/h (105 mph)174 km/h, 179 km/h *173 km/h, 177 km/h**
: Vehicles with high power engine
Vehicle weight
E01100408256Single cabKerb weightWithout optional parts1,790 kgWith full optional parts1,835 kgMaximum gross vehicle weight2,850 kgMaximum axle weightFront1,260 kg
Vehicle performance
11-11OKTE17E1Specifications11

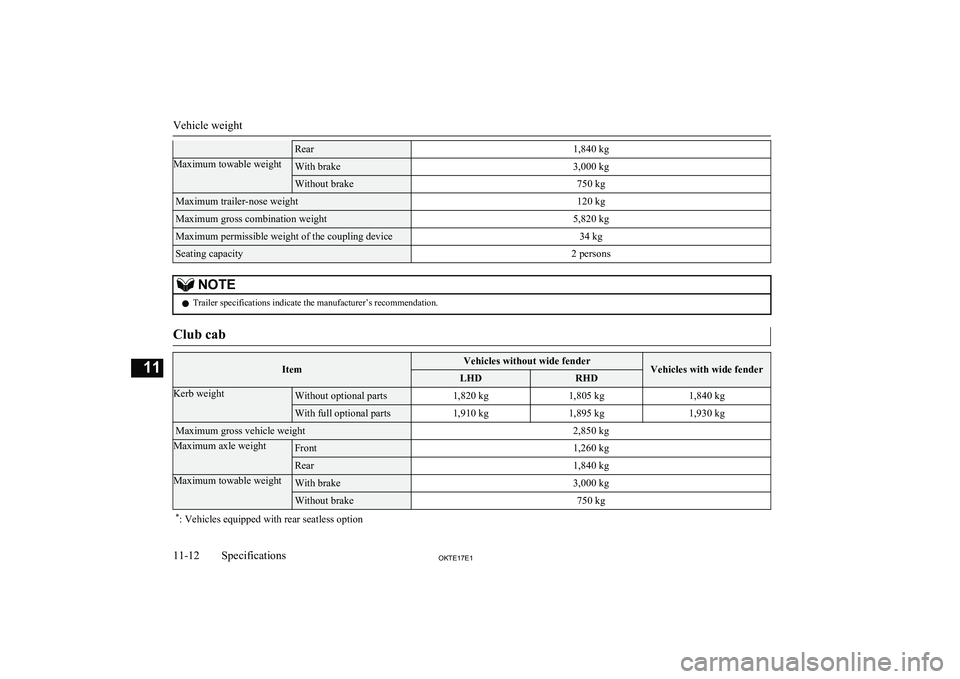

Page 392 of 426
Rear1,840 kgMaximum towable weightWith brake3,000 kgWithout brake750 kgMaximum trailer-nose weight120 kgMaximum gross combination weight5,820 kgMaximum permissible weight of the coupling device34 kgSeating capacity2 personsNOTElTrailer specifications indicate the manufacturer’s recommendation.Club cabItemVehicles without wide fenderVehicles with wide fenderLHDRHDKerb weightWithout optional parts1,820 kg1,805 kg1,840 kgWith full optional parts1,910 kg1,895 kg1,930 kgMaximum gross vehicle weight2,850 kgMaximum axle weightFront1,260 kgRear1,840 kgMaximum towable weightWith brake3,000 kgWithout brake750 kg*
: Vehicles equipped with rear seatless option
Vehicle weight
11-12OKTE17E1Specifications11

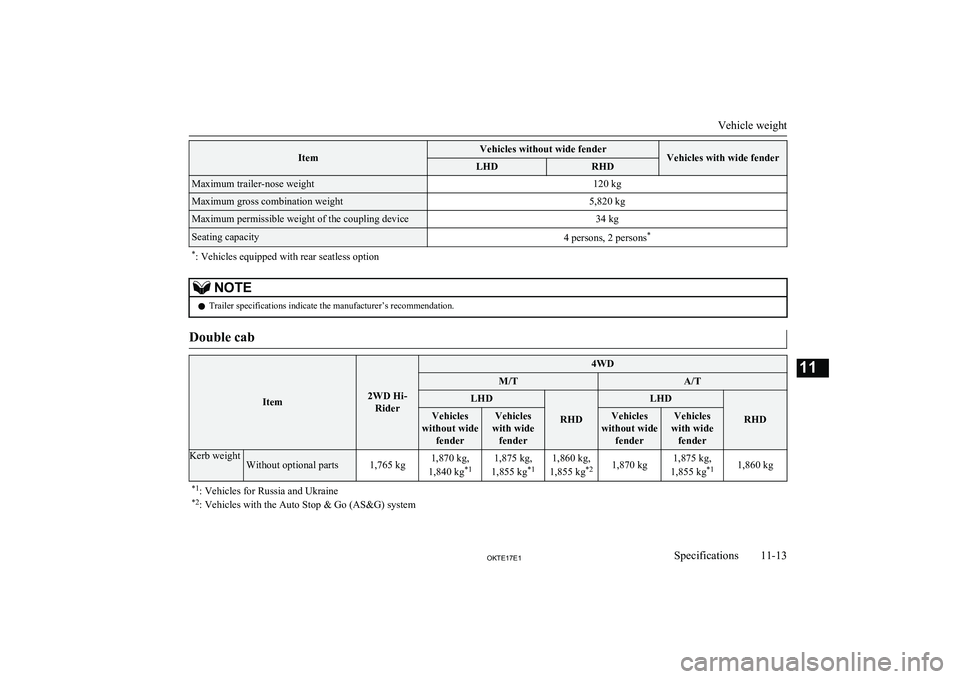

Page 393 of 426
ItemVehicles without wide fenderVehicles with wide fenderLHDRHDMaximum trailer-nose weight120 kgMaximum gross combination weight5,820 kgMaximum permissible weight of the coupling device34 kgSeating capacity4 persons, 2 persons**
: Vehicles equipped with rear seatless optionNOTEl Trailer specifications indicate the manufacturer’s recommendation.Double cab
Item2WD Hi-
Rider
4WDM/TA/TLHD
RHD
LHD
RHD
Vehicles
without wide fenderVehicles
with wide fenderVehicles
without wide fenderVehicles
with wide fenderKerb weightWithout optional parts1,765 kg1,870 kg,
1,840 kg *11,875 kg,
1,855 kg *11,860 kg,
1,855 kg *21,870 kg1,875 kg,
1,855 kg *11,860 kg*1
: Vehicles for Russia and Ukraine
*2 : Vehicles with the Auto Stop & Go (AS&G) system
Vehicle weight
11-13OKTE17E1Specifications11
Page 394 of 426

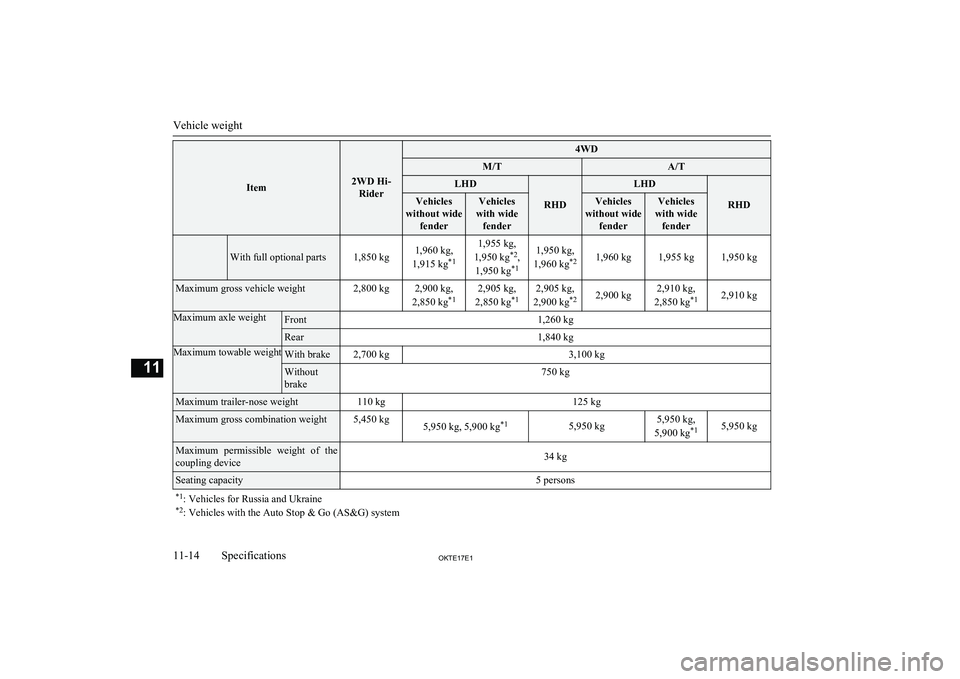

Item2WD Hi-Rider
4WDM/TA/TLHD
RHD
LHD
RHD
Vehicles
without wide fenderVehicles
with wide fenderVehicles
without wide fenderVehicles
with wide fender
With full optional parts1,850 kg1,960 kg,
1,915 kg *11,955 kg,
1,950 kg *2
,
1,950 kg *11,950 kg,
1,960 kg *21,960 kg1,955 kg1,950 kg
Maximum gross vehicle weight2,800 kg2,900 kg,
2,850 kg *12,905 kg,
2,850 kg *12,905 kg,
2,900 kg *22,900 kg2,910 kg,
2,850 kg *12,910 kgMaximum axle weightFront1,260 kgRear1,840 kgMaximum towable weightWith brake2,700 kg3,100 kgWithout
brake750 kgMaximum trailer-nose weight110 kg125 kgMaximum gross combination weight5,450 kg5,950 kg, 5,900 kg *15,950 kg5,950 kg,
5,900 kg *15,950 kgMaximum permissible weight of the
coupling device34 kgSeating capacity5 persons*1 : Vehicles for Russia and Ukraine
*2 : Vehicles with the Auto Stop & Go (AS&G) system
Vehicle weight
11-14OKTE17E1Specifications11
Page 395 of 426

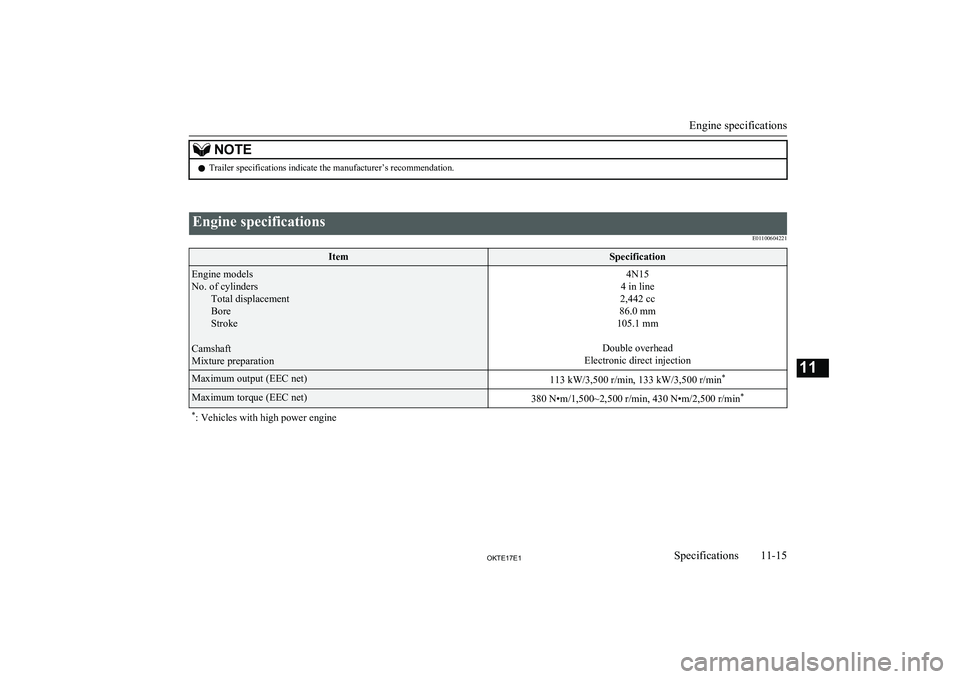

NOTElTrailer specifications indicate the manufacturer’s recommendation.
Engine specifications
E01100604221ItemSpecificationEngine models
No. of cylinders Total displacement
Bore
Stroke
Camshaft
Mixture preparation4N15
4 in line
2,442 cc
86.0 mm
105.1 mm
Double overhead
Electronic direct injectionMaximum output (EEC net)113 kW/3,500 r/min, 133 kW/3,500 r/min *Maximum torque (EEC net)380 N•m/1,500~2,500 r/min, 430 N•m/2,500 r/min **
: Vehicles with high power engine
Engine specifications
11-15OKTE17E1Specifications11
Page 396 of 426

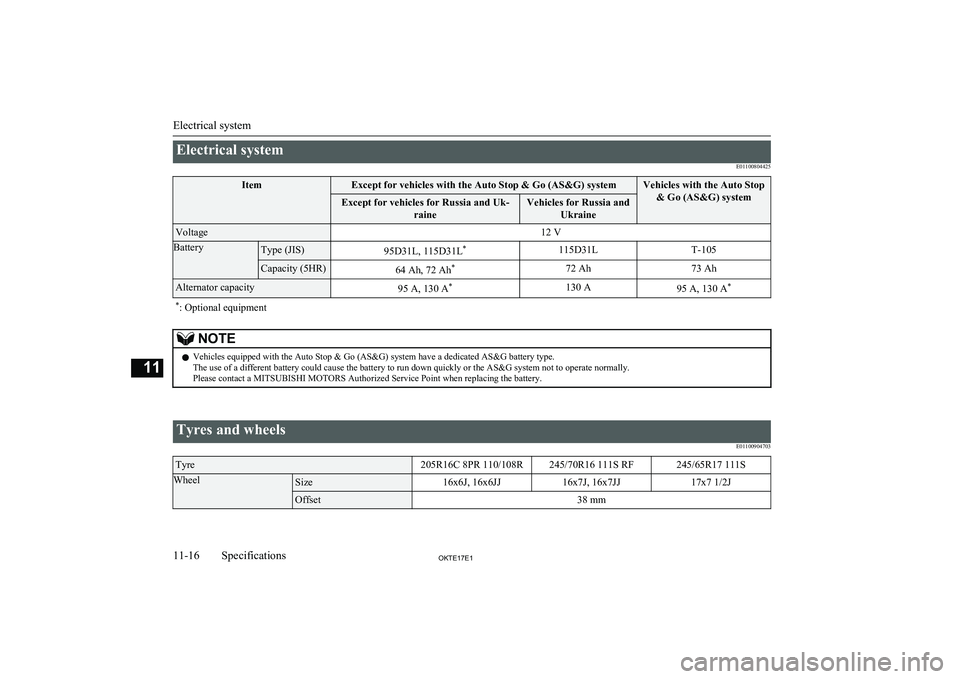

Electrical systemE01100804425ItemExcept for vehicles with the Auto Stop & Go (AS&G) systemVehicles with the Auto Stop& Go (AS&G) systemExcept for vehicles for Russia and Uk- raineVehicles for Russia andUkraineVoltage12 VBatteryType (JIS)95D31L, 115D31L *115D31LT-105Capacity (5HR)64 Ah, 72 Ah*72 Ah73 AhAlternator capacity95 A, 130 A*130 A95 A, 130 A**
: Optional equipmentNOTEl Vehicles equipped with the Auto Stop & Go (AS&G) system have a dedicated AS&G battery type.
The use of a different battery could cause the battery to run down quickly or the AS&G system not to operate normally.
Please contact a MITSUBISHI MOTORS Authorized Service Point when replacing the battery.
Tyres and wheels
E01100904703Tyre205R16C 8PR 110/108R245/70R16 111S RF245/65R17 111SWheelSize16x6J, 16x6JJ16x7J, 16x7JJ17x7 1/2JOffset38 mm
Electrical system
11-16OKTE17E1Specifications11
Page 397 of 426
NOTElContact a MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

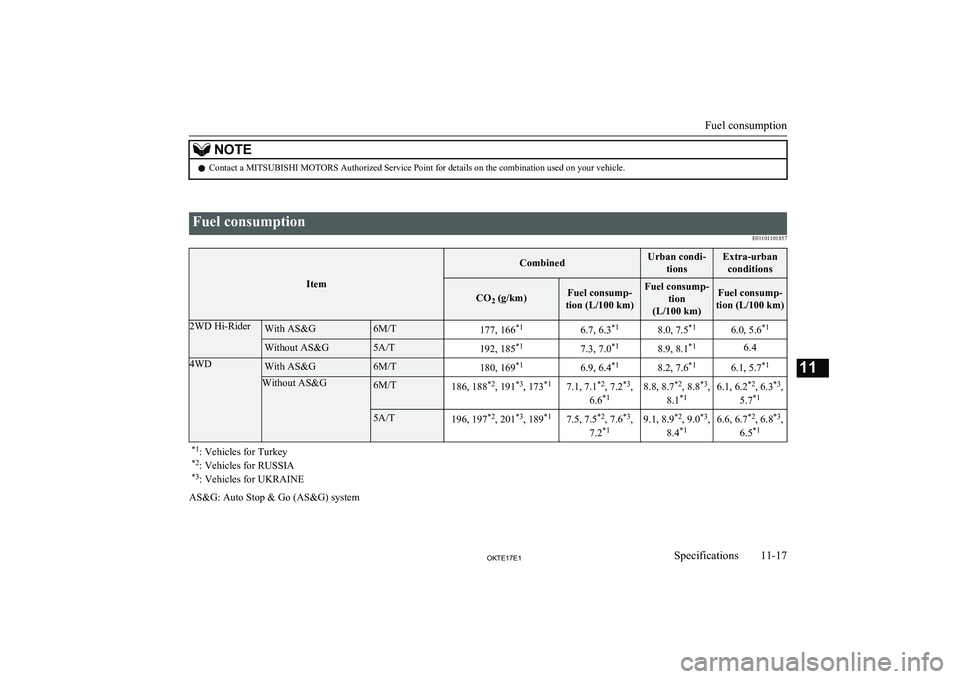

Fuel consumption
E01101101857
Item
CombinedUrban condi-tionsExtra-urbanconditions
CO 2 (g/km)Fuel consump-
tion (L/100 km)Fuel consump- tion
(L/100 km)Fuel consump-
tion (L/100 km)2WD Hi-RiderWith AS&G6M/T177, 166 *16.7, 6.3*18.0, 7.5 *16.0, 5.6*1Without AS&G5A/T192, 185 *17.3, 7.0*18.9, 8.1 *16.44WDWith AS&G6M/T180, 169 *16.9, 6.4*18.2, 7.6 *16.1, 5.7*1Without AS&G6M/T186, 188 *2
, 191 *3
, 173 *17.1, 7.1 *2
, 7.2 *3
,
6.6 *18.8, 8.7 *2
, 8.8 *3
,
8.1 *16.1, 6.2 *2
, 6.3 *3
,
5.7 *15A/T196, 197 *2
, 201 *3
, 189 *17.5, 7.5 *2
, 7.6 *3
,
7.2 *19.1, 8.9 *2
, 9.0 *3
,
8.4 *16.6, 6.7 *2
, 6.8 *3
,
6.5 *1*1
: Vehicles for Turkey
*2 : Vehicles for RUSSIA
*3 : Vehicles for UKRAINE
AS&G: Auto Stop & Go (AS&G) system
Fuel consumption
11-17OKTE17E1Specifications11
Page 398 of 426

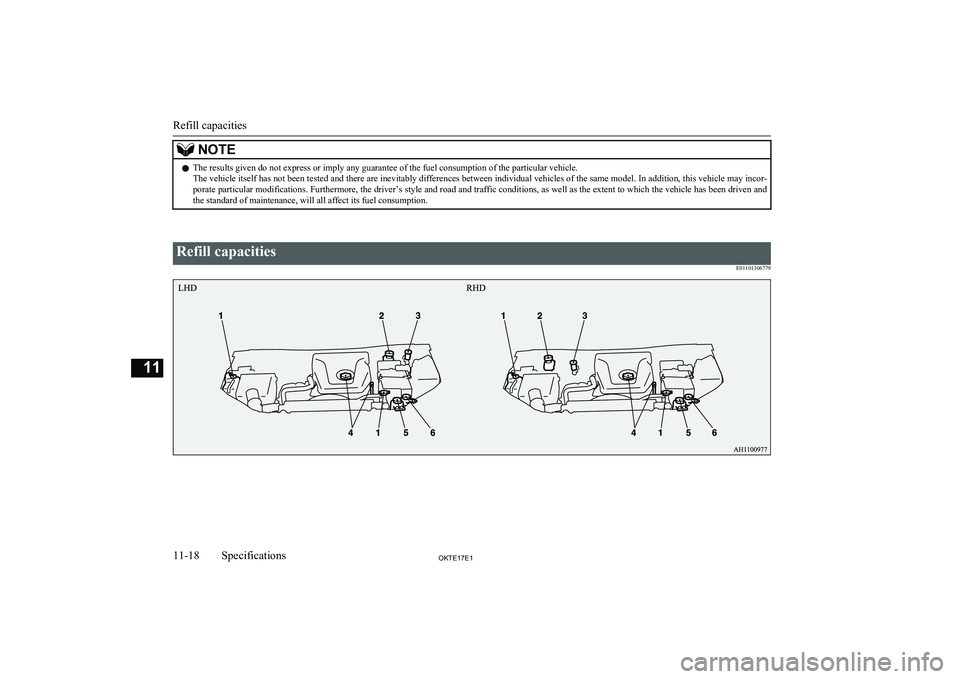

NOTElThe results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.
Refill capacities
E01101306779
Refill capacities
11-18OKTE17E1Specifications11
Page 399 of 426

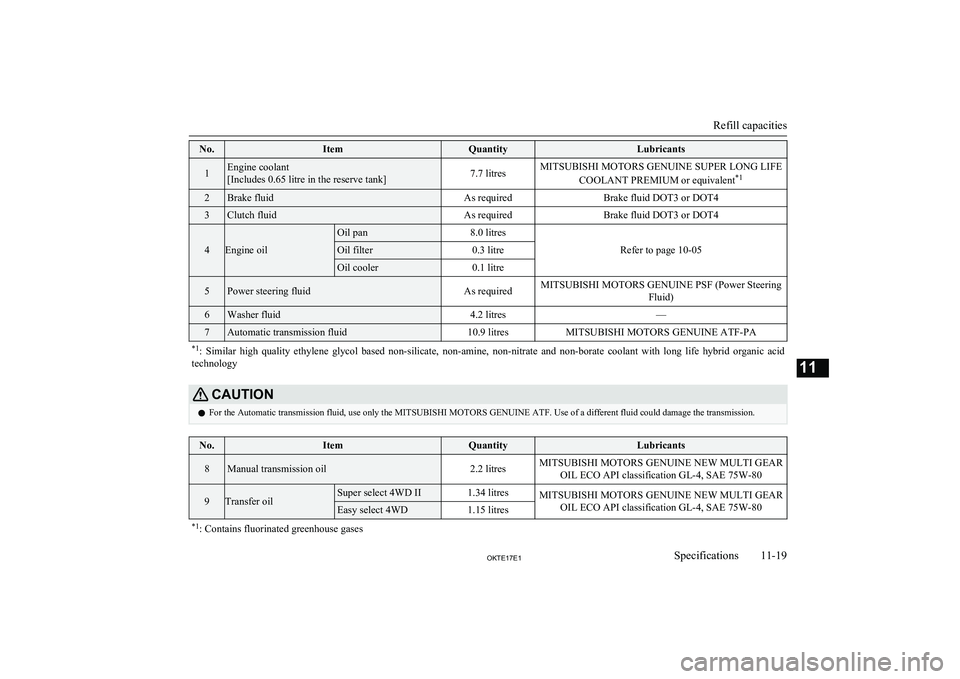

No.ItemQuantityLubricants1Engine coolant
[Includes 0.65 litre in the reserve tank]7.7 litresMITSUBISHI MOTORS GENUINE SUPER LONG LIFE
COOLANT PREMIUM or equivalent *12Brake fluidAs requiredBrake fluid DOT3 or DOT43Clutch fluidAs requiredBrake fluid DOT3 or DOT4
4Engine oil
Oil pan8.0 litres
Refer to page 10-05
Oil filter0.3 litreOil cooler0.1 litre5Power steering fluidAs requiredMITSUBISHI MOTORS GENUINE PSF (Power Steering
Fluid)6Washer fluid4.2 litres—7Automatic transmission fluid10.9 litresMITSUBISHI MOTORS GENUINE ATF-PA*1: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid
technologyCAUTIONl For the Automatic transmission fluid, use only the MITSUBISHI MOTORS GENUINE ATF. Use of a different fluid could damage the transmission.No.ItemQuantityLubricants8Manual transmission oil2.2 litresMITSUBISHI MOTORS GENUINE NEW MULTI GEAR
OIL ECO API classification GL-4, SAE 75W-809Transfer oilSuper select 4WD II1.34 litresMITSUBISHI MOTORS GENUINE NEW MULTI GEAR OIL ECO API classification GL-4, SAE 75W-80Easy select 4WD1.15 litres*1: Contains fluorinated greenhouse gases
Refill capacities
11-19OKTE17E1Specifications11
Page 400 of 426

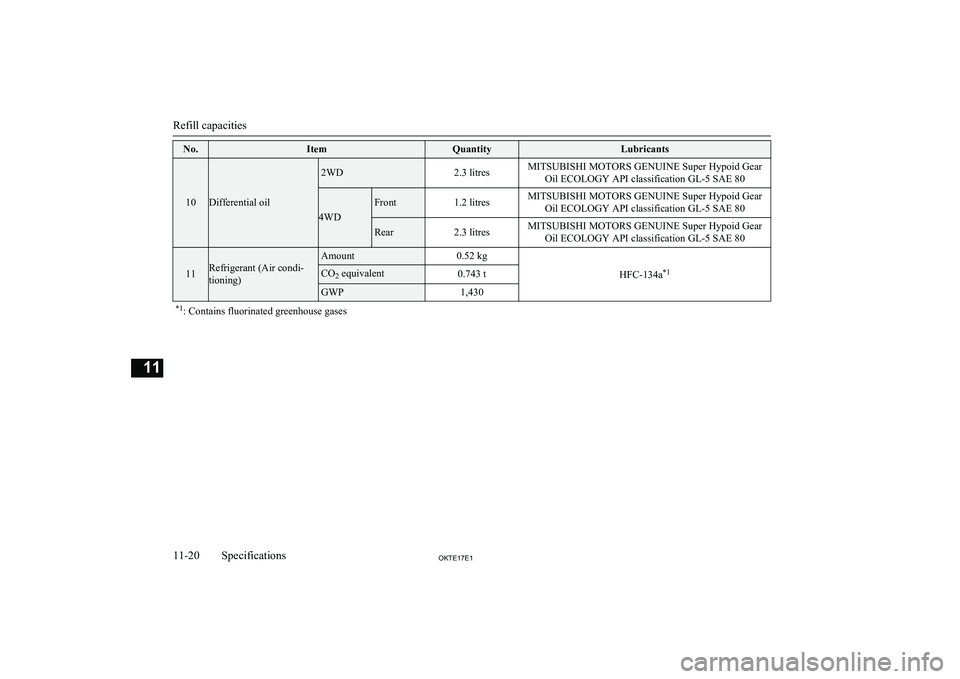

No.ItemQuantityLubricants
10Differential oil
2WD2.3 litresMITSUBISHI MOTORS GENUINE Super Hypoid GearOil ECOLOGY API classification GL-5 SAE 80
4WD
Front1.2 litresMITSUBISHI MOTORS GENUINE Super Hypoid GearOil ECOLOGY API classification GL-5 SAE 80Rear2.3 litresMITSUBISHI MOTORS GENUINE Super Hypoid GearOil ECOLOGY API classification GL-5 SAE 80
11Refrigerant (Air condi-
tioning)
Amount0.52 kg
HFC-134a *1
CO
2 equivalent0.743 tGWP1,430*1
: Contains fluorinated greenhouse gases
Refill capacities
11-20OKTE17E1Specifications11
