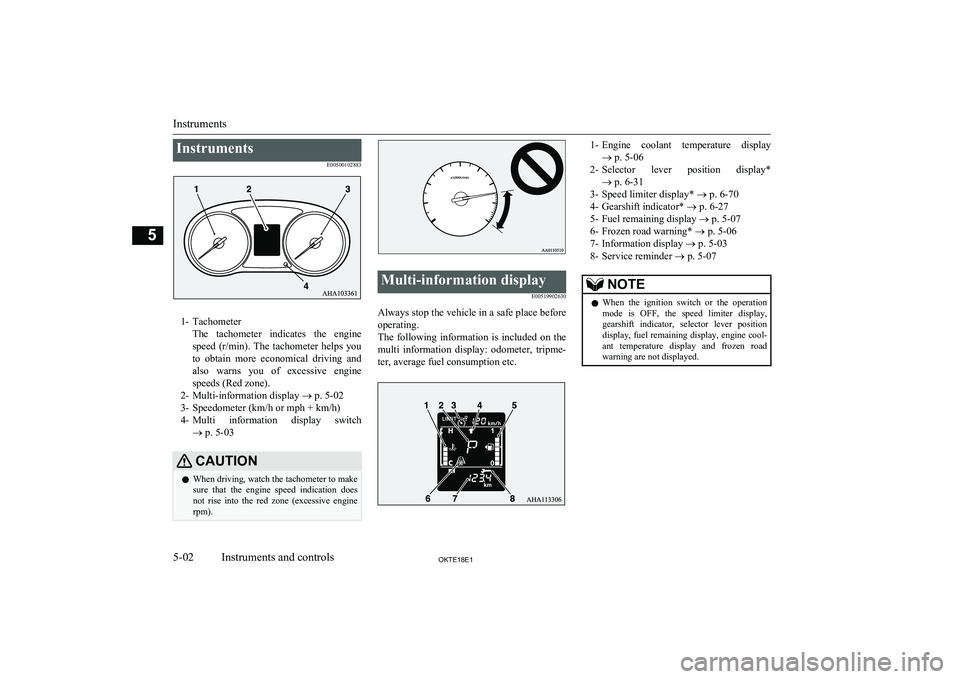

InstrumentsE00500102883
1- TachometerThe tachometer indicates the engine
speed (r/min). The tachometer helps you to obtain more economical driving and
also warns you of excessive engine
speeds (Red zone).
2- Multi-information display ® p. 5-02
3- Speedometer (km/h or mph + km/h)
4- Multi information display switch
® p. 5-03
CAUTIONl When driving, watch the tachometer to make
sure that the engine speed indication does not rise into the red zone (excessive enginerpm).Multi-information display
E00519902630
Always stop the vehicle in a safe place beforeoperating.
The following information is included on the multi information display: odometer, tripme-
ter, average fuel consumption etc.
1- Engine coolant temperature display
® p. 5-06
2- Selector lever position display*
® p. 6-31
3- Speed limiter display* ® p. 6-70
4- Gearshift indicator* ® p. 6-27
5- Fuel remaining display ® p. 5-07
6- Frozen road warning* ® p. 5-06
7- Information display ® p. 5-03
8- Service reminder ® p. 5-07NOTEl When the ignition switch or the operation
mode is OFF, the speed limiter display,
gearshift indicator, selector lever position display, fuel remaining display, engine cool-
ant temperature display and frozen road warning are not displayed.
Instruments
5-02OKTE18E1Instruments and controls5

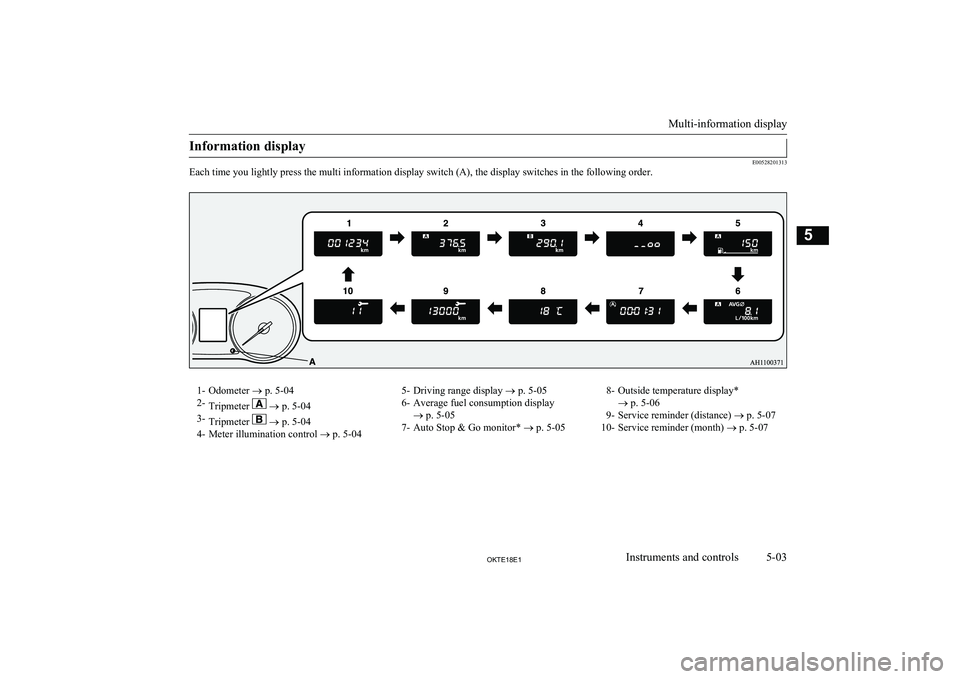

Information display
E00528201313
Each time you lightly press the multi information display switch (A), the display switches in the following order.
1- Odometer ® p. 5-04
2- Tripmeter
® p. 5-04
3- Tripmeter
® p. 5-04
4- Meter illumination control ® p. 5-04
5- Driving range display ® p. 5-05
6- Average fuel consumption display ® p. 5-05
7- Auto Stop & Go monitor* ® p. 5-058- Outside temperature display*
® p. 5-06
9- Service reminder (distance) ® p. 5-07
10- Service reminder (month) ® p. 5-07
Multi-information display
5-03OKTE18E1Instruments and controls5

NOTElWhen the ignition switch or the operation mode is OFF, the driving range display, average fuel consumption display and outside temperature display are not
displayed.
l While driving, the service reminder is not displayed even if you operate the multi information display switch.

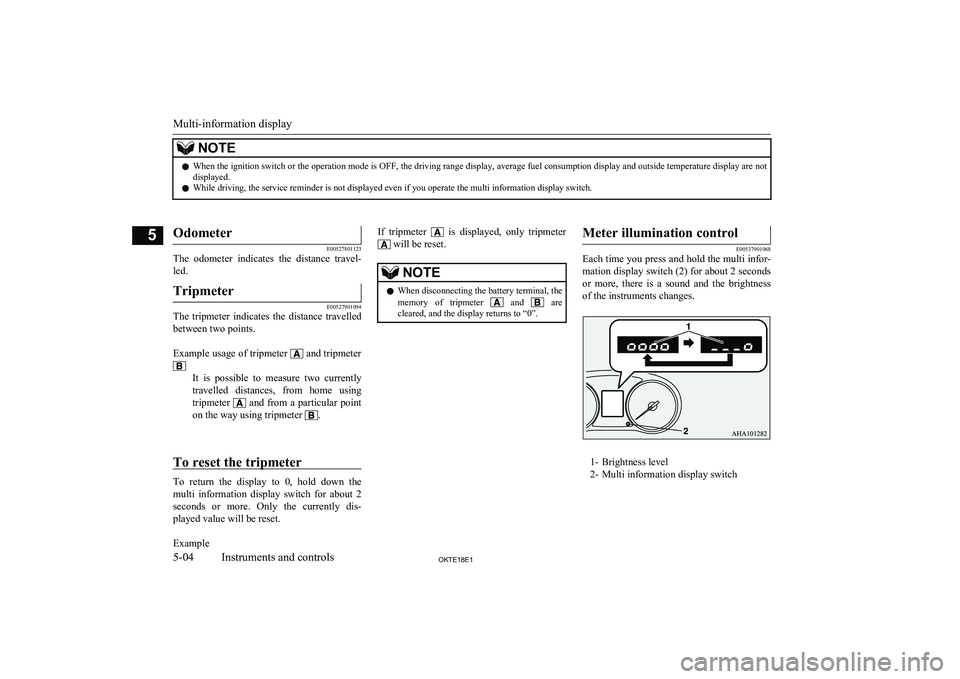

Odometer
E00527801123
The odometer indicates the distance travel-
led.
Tripmeter
E00527901094
The tripmeter indicates the distance travelled between two points.

Example usage of tripmeter
and tripmeter
It is possible to measure two currently
travelled distances, from home using
tripmeter
and from a particular point
on the way using tripmeter
.

To reset the tripmeter
To return the display to 0, hold down the multi information display switch for about 2
seconds or more. Only the currently dis-
played value will be reset.

Example
If tripmeter is displayed, only tripmeter
will be reset.NOTEl When disconnecting the battery terminal, the
memory of tripmeter and are
cleared, and the display returns to “0”.Meter illumination control
E00537901068
Each time you press and hold the multi infor-
mation display switch (2) for about 2 seconds or more, there is a sound and the brightnessof the instruments changes.
1- Brightness level
2- Multi information display switch
Multi-information display
5-04OKTE18E1Instruments and controls5

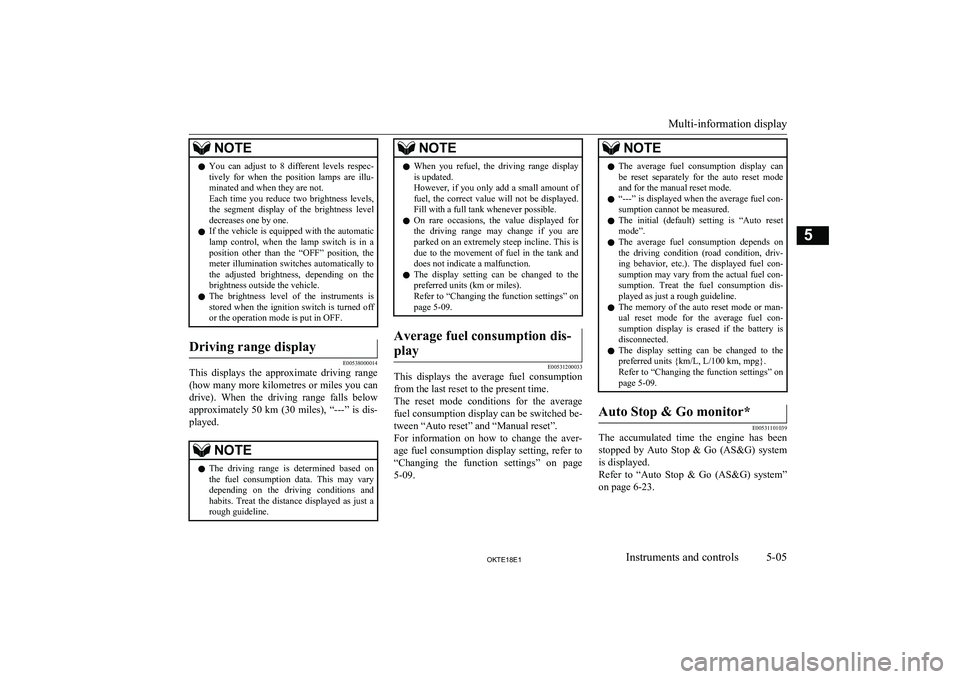

NOTElYou can adjust to 8 different levels respec-
tively for when the position lamps are illu- minated and when they are not.
Each time you reduce two brightness levels, the segment display of the brightness level decreases one by one.
l If the vehicle is equipped with the automatic
lamp control, when the lamp switch is in a position other than the “OFF” position, the
meter illumination switches automatically to
the adjusted brightness, depending on the
brightness outside the vehicle.
l The brightness level of the instruments is
stored when the ignition switch is turned off or the operation mode is put in OFF.Driving range display
E00538000014
This displays the approximate driving range
(how many more kilometres or miles you can drive). When the driving range falls below
approximately 50 km (30 miles), “---” is dis-
played.
NOTEl The driving range is determined based on
the fuel consumption data. This may vary depending on the driving conditions and habits. Treat the distance displayed as just a
rough guideline.NOTEl When you refuel, the driving range display
is updated.
However, if you only add a small amount of fuel, the correct value will not be displayed.
Fill with a full tank whenever possible.
l On rare occasions, the value displayed for
the driving range may change if you areparked on an extremely steep incline. This is
due to the movement of fuel in the tank and
does not indicate a malfunction.
l The display setting can be changed to the
preferred units (km or miles).
Refer to “Changing the function settings” on page 5-09.Average fuel consumption dis-
play
E00531200033
This displays the average fuel consumption from the last reset to the present time.
The reset mode conditions for the average fuel consumption display can be switched be-
tween “Auto reset” and “Manual reset”.
For information on how to change the aver-
age fuel consumption display setting, refer to “Changing the function settings” on page 5-09.
NOTEl The average fuel consumption display can
be reset separately for the auto reset mode and for the manual reset mode.
l “---” is displayed when the average fuel con-
sumption cannot be measured.
l The initial (default) setting is “Auto reset
mode”.
l The average fuel consumption depends on
the driving condition (road condition, driv- ing behavior, etc.). The displayed fuel con- sumption may vary from the actual fuel con-
sumption. Treat the fuel consumption dis- played as just a rough guideline.
l The memory of the auto reset mode or man-
ual reset mode for the average fuel con-sumption display is erased if the battery isdisconnected.
l The display setting can be changed to the
preferred units {km/L, L/100 km, mpg}.
Refer to “Changing the function settings” on page 5-09.Auto Stop & Go monitor*
E00531101039
The accumulated time the engine has been
stopped by Auto Stop & Go (AS&G) system
is displayed.
Refer to “Auto Stop & Go (AS&G) system” on page 6-23.
Multi-information display
5-05OKTE18E1Instruments and controls5

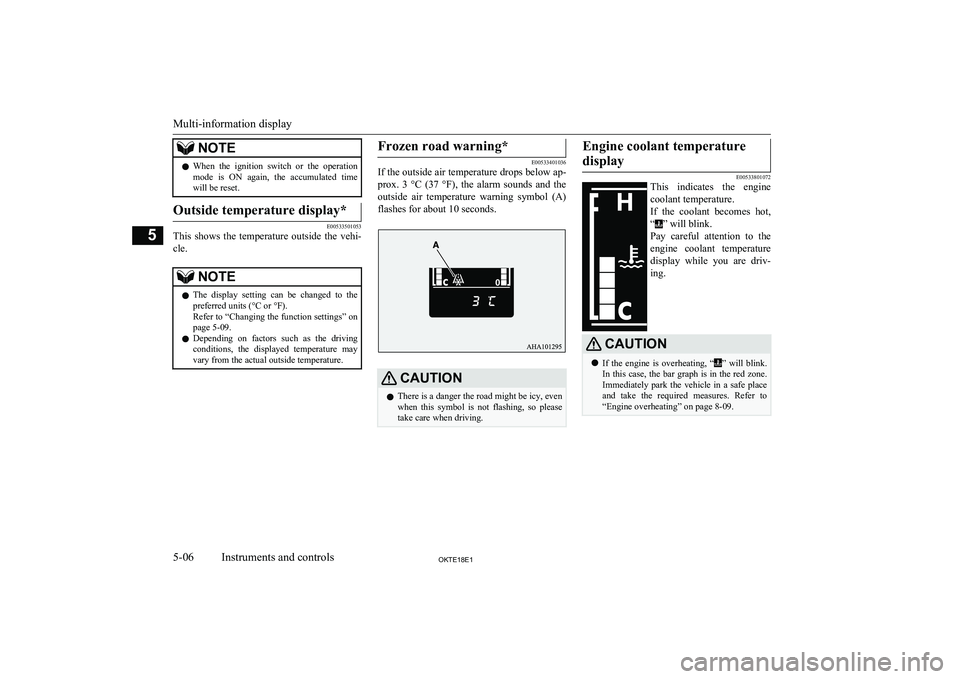

NOTElWhen the ignition switch or the operation
mode is ON again, the accumulated time
will be reset.Outside temperature display*
E00533501053
This shows the temperature outside the vehi-
cle.
NOTEl The display setting can be changed to the
preferred units (°C or °F).
Refer to “Changing the function settings” on page 5-09.
l Depending on factors such as the driving
conditions, the displayed temperature may vary from the actual outside temperature.Frozen road warning*
E00533401036
If the outside air temperature drops below ap-
prox. 3 °C (37 °F), the alarm sounds and the outside air temperature warning symbol (A)
flashes for about 10 seconds.
CAUTIONl There is a danger the road might be icy, even
when this symbol is not flashing, so please take care when driving.Engine coolant temperature
display
E00533801072
This indicates the engine
coolant temperature.
If the coolant becomes hot, “
” will blink.
Pay careful attention to the engine coolant temperature
display while you are driv-
ing.
CAUTIONl If the engine is overheating, “” will blink.
In this case, the bar graph is in the red zone.
Immediately park the vehicle in a safe place
and take the required measures. Refer to “Engine overheating” on page 8-09.
Multi-information display
5-06OKTE18E1Instruments and controls5

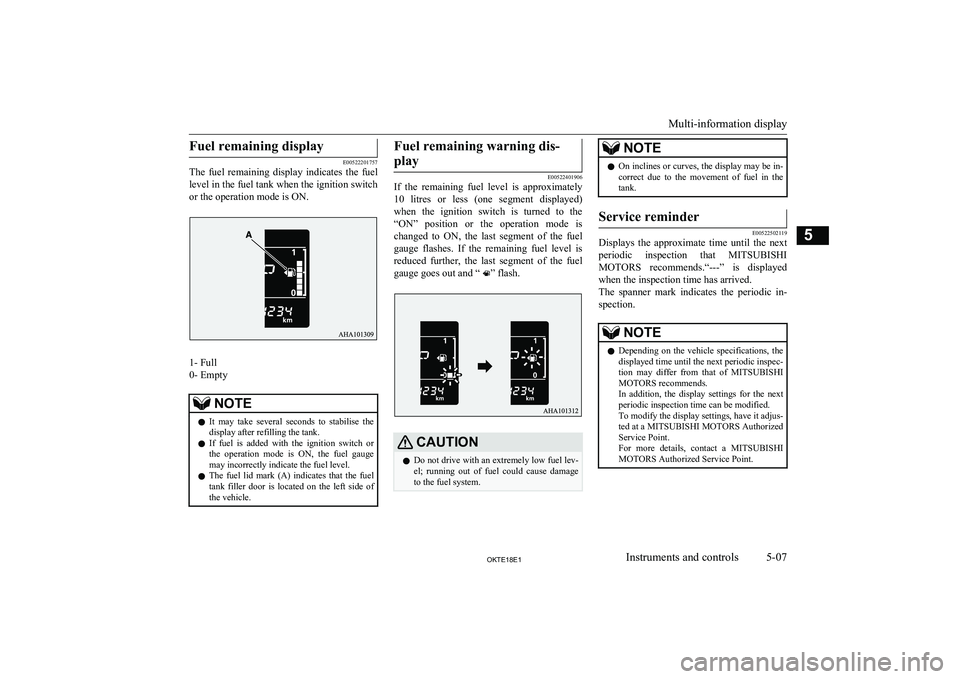

Fuel remaining display
E00522201757
The fuel remaining display indicates the fuel
level in the fuel tank when the ignition switch or the operation mode is ON.
1- Full
0- Empty
NOTEl It may take several seconds to stabilise the
display after refilling the tank.
l If fuel is added with the ignition switch or
the operation mode is ON, the fuel gauge
may incorrectly indicate the fuel level.
l The fuel lid mark (A) indicates that the fuel
tank filler door is located on the left side of the vehicle.Fuel remaining warning dis-
play
E00522401906
If the remaining fuel level is approximately
10 litres or less (one segment displayed)
when the ignition switch is turned to the “ON” position or the operation mode is
changed to ON, the last segment of the fuel gauge flashes. If the remaining fuel level is
reduced further, the last segment of the fuel gauge goes out and “
” flash.
CAUTIONl Do not drive with an extremely low fuel lev-
el; running out of fuel could cause damage to the fuel system.NOTEl On inclines or curves, the display may be in-
correct due to the movement of fuel in the
tank.Service reminder
E00522502119
Displays the approximate time until the next
periodic inspection that MITSUBISHI
MOTORS recommends.“---” is displayed
when the inspection time has arrived.
The spanner mark indicates the periodic in- spection.
NOTEl Depending on the vehicle specifications, the
displayed time until the next periodic inspec-
tion may differ from that of MITSUBISHI
MOTORS recommends.
In addition, the display settings for the next periodic inspection time can be modified.
To modify the display settings, have it adjus-
ted at a MITSUBISHI MOTORS Authorized Service Point.
For more details, contact a MITSUBISHI
MOTORS Authorized Service Point.
Multi-information display
5-07OKTE18E1Instruments and controls5

1.Displays the time until the next periodic
inspection.
NOTEl The distance is shown in units of 100 km
(100 miles). The time is shown in units of months.
2. This informs you that a periodic inspec-
tion is due. Please consult a MITSUBISHI MOTORS Authorized
Service Point.
3. After your vehicle is inspected at a
MITSUBISHI MOTORS Authorized
Service Point, it displays the time until the next periodic inspection.

To reset
The “---” display can be reset while the igni- tion switch or the operation mode is in OFF. 1. When you lightly press the multi infor-
mation display switch a few times, the
information display switches to the serv- ice reminder display.
2. Press and hold the multi information dis-
play switch for about 2 seconds or more to make the spanner mark start flashing.
(If there is no operation for about 10 sec-
onds with flashing, the display will re-
vert to its original indication.)
3. Lightly press the multi information dis-
play switch while the icon is flashing to
change the display from “---” to
“cLEAr”. After this, the time until the next periodic inspection will be dis-played.CAUTIONl The customer is responsible for making sure
that periodic inspection and maintenance are
performed.
Inspections and maintenance must be per- formed to prevent accidents and malfunc- tions.NOTEl “---” display cannot be reset when the igni-
tion switch or the operation mode is in ON.
Multi-information display
5-08OKTE18E1Instruments and controls5Distance
Month

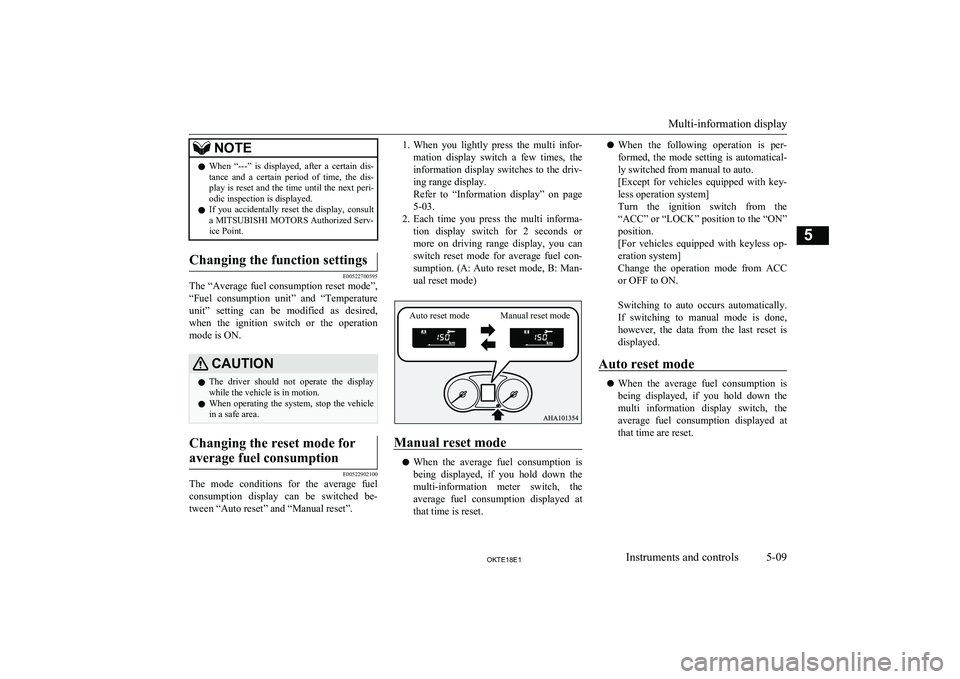

NOTElWhen “---” is displayed, after a certain dis-
tance and a certain period of time, the dis-
play is reset and the time until the next peri- odic inspection is displayed.
l If you accidentally reset the display, consult
a MITSUBISHI MOTORS Authorized Serv-
ice Point.Changing the function settings
E00522700595
The “Average fuel consumption reset mode”,
“Fuel consumption unit” and “Temperature unit” setting can be modified as desired,when the ignition switch or the operation
mode is ON.
CAUTIONl The driver should not operate the display
while the vehicle is in motion.
l When operating the system, stop the vehicle
in a safe area.Changing the reset mode for
average fuel consumption
E00522902100
The mode conditions for the average fuel consumption display can be switched be- tween “Auto reset” and “Manual reset”.
1. When you lightly press the multi infor-
mation display switch a few times, the information display switches to the driv-
ing range display.
Refer to “Information display” on page
5-03.
2. Each time you press the multi informa-
tion display switch for 2 seconds or
more on driving range display, you can
switch reset mode for average fuel con- sumption. (A: Auto reset mode, B: Man-ual reset mode)
Manual reset mode
l When the average fuel consumption is
being displayed, if you hold down the multi-information meter switch, the
average fuel consumption displayed at that time is reset.
l When the following operation is per-
formed, the mode setting is automatical-
ly switched from manual to auto.
[Except for vehicles equipped with key- less operation system]
Turn the ignition switch from the
“ACC” or “LOCK” position to the “ON” position.
[For vehicles equipped with keyless op- eration system]
Change the operation mode from ACC
or OFF to ON.

Switching to auto occurs automatically. If switching to manual mode is done,
however, the data from the last reset is
displayed.
Auto reset mode
l When the average fuel consumption is
being displayed, if you hold down the multi information display switch, the average fuel consumption displayed atthat time are reset.
Multi-information display

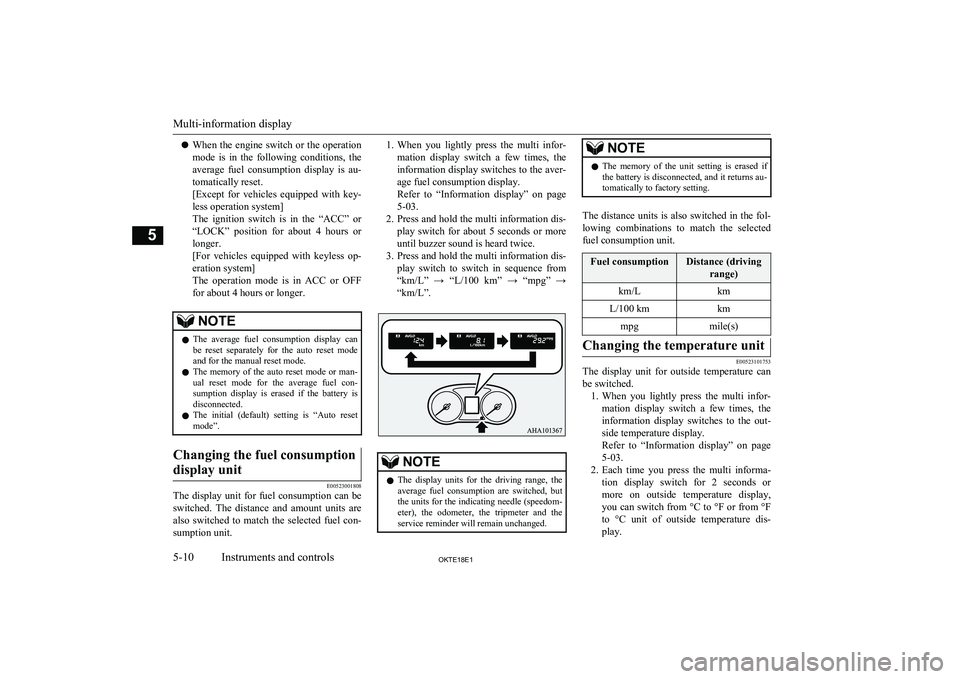

5-09OKTE18E1Instruments and controls5 Auto reset mode Manual reset mode

lWhen the engine switch or the operation
mode is in the following conditions, the
average fuel consumption display is au-
tomatically reset.
[Except for vehicles equipped with key-
less operation system]
The ignition switch is in the “ACC” or “LOCK” position for about 4 hours or
longer.
[For vehicles equipped with keyless op- eration system]
The operation mode is in ACC or OFF
for about 4 hours or longer.NOTEl The average fuel consumption display can
be reset separately for the auto reset mode and for the manual reset mode.
l The memory of the auto reset mode or man-
ual reset mode for the average fuel con- sumption display is erased if the battery isdisconnected.
l The initial (default) setting is “Auto reset
mode”.Changing the fuel consumption
display unit
E00523001808
The display unit for fuel consumption can be
switched. The distance and amount units are also switched to match the selected fuel con- sumption unit.
1. When you lightly press the multi infor-
mation display switch a few times, theinformation display switches to the aver-age fuel consumption display.
Refer to “Information display” on page
5-03.
2. Press and hold the multi information dis-
play switch for about 5 seconds or more until buzzer sound is heard twice.
3. Press and hold the multi information dis-
play switch to switch in sequence from “km/L” → “L/100 km” → “mpg” →“km/L”.NOTEl The display units for the driving range, the
average fuel consumption are switched, but the units for the indicating needle (speedom- eter), the odometer, the tripmeter and the
service reminder will remain unchanged.NOTEl The memory of the unit setting is erased if
the battery is disconnected, and it returns au- tomatically to factory setting.
The distance units is also switched in the fol-
lowing combinations to match the selected
fuel consumption unit.
Fuel consumptionDistance (driving range)km/LkmL/100 kmkmmpgmile(s)Changing the temperature unit
E00523101753
The display unit for outside temperature canbe switched. 1. When you lightly press the multi infor-
mation display switch a few times, the information display switches to the out-
side temperature display.
Refer to “Information display” on page
5-03.
2. Each time you press the multi informa-
tion display switch for 2 seconds or more on outside temperature display,you can switch from °C to °F or from °F
to °C unit of outside temperature dis-
play.
Multi-information display
5-10OKTE18E1Instruments and controls5
