MITSUBISHI L200 2018 (in English) Workshop Manual

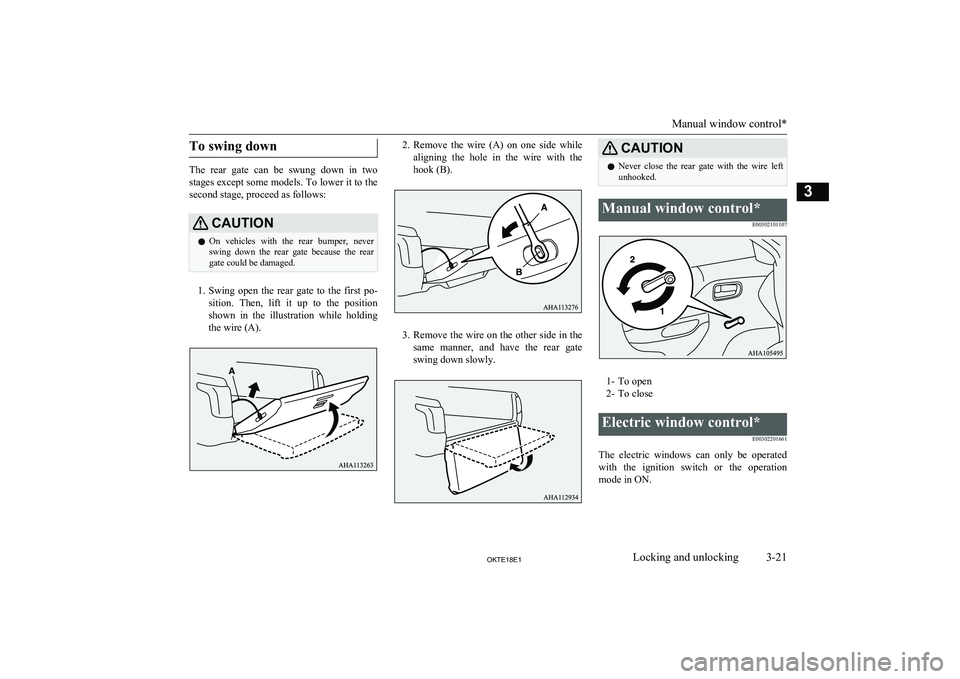

To swing down
The rear gate can be swung down in two
stages except some models. To lower it to the second stage, proceed as follows:
CAUTIONl On vehicles with the rear bumper, never
swing down the rear gate because the rear
gate could be damaged.
1. Swing open the rear gate to the first po-
sition. Then, lift it up to the position shown in the illustration while holding
the wire (A).
2. Remove the wire (A) on one side while
aligning the hole in the wire with the hook (B).
3. Remove the wire on the other side in the
same manner, and have the rear gate
swing down slowly.
CAUTIONl Never close the rear gate with the wire left
unhooked.Manual window control*
E00302101107
1- To open2- To close
Electric window control*
E00302201661
The electric windows can only be operatedwith the ignition switch or the operation
mode in ON.
Manual window control*
3-21OKTE18E1Locking and unlocking3

Electric window control switch
E00302303161
Each door window opens or closes while the
corresponding switch is operated.
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window (Double cab)
4- Rear right door window (Double cab)
5- Lock switch
WARNINGl Before operating the electric window con-
trol, make sure that nothing can get trap-
ped (head, hand, finger, etc.).
l Never leave the vehicle without removing
the key.
l Never leave a child (or other person who
might not be capable of safe operation of the electric window control) in the vehicle alone.WARNINGl The child may tamper with the switch at
the risk of its hands or head being trap-
ped in the window.
Driver’s switches
The driver’s switches can be used to operate
all door windows. A window can be opened or closed by operating the correspondingswitch.
Press the switch down to open the window, and pull up the switch to close it.
If the switch for the driver’s window is fully
pressed down/pulled up, the door window au- tomatically opens/closes completely.
If you want to stop the window movement,
operate the switch lightly in the reverse direc-
tion.
Passenger’s switches
The passenger’s switches can be used to op-
erate the corresponding passenger’s door
windows.
Press the switch down for opening the win-
dow, and pull up the switch for closing it.NOTEl Repeated operation with the engine stopped
will run down the battery. Operate the win-
dow switches only while the engine is run- ning.
l The rear door windows only open halfway.Lock switch
E00303102361
When this switch is operated, the passenger’s
switches cannot be used to open or close the door windows and the driver’s switch cannot
open or close any door windows other than
the driver’s door window.
Electric window control*
3-22OKTE18E1Locking and unlocking3Driver’s switch
LHDDriver’s switch
RHD

To unlock, press it once again.
1- Lock
2- Unlock
WARNINGl A child may tamper with the switch at the
risk of its hands or head being trapped in the window. When driving with a child in
the vehicle, please press the window lock switch to disable the passenger’s switches.Timer function
E00302402080
The door windows can be opened or closed
for 30 seconds after the engine is stopped.
However, once the driver’s door or the front passenger’s door is opened, the windows can-
not be operated.
Safety mechanism (driver’s
window only)
E00302502108
When the door window is automatically
closed by pulling up the switch fully, if a hand or head is trapped in the closing win-
dow, it will lower automatically.
Nonetheless, make sure that nobody puts
their head or hand out of the window when
closing the driver’s door window.
The lowered window will become operation-
al after a few seconds.
WARNINGl If the battery terminals are disconnected
or the fuse for electric window is replaced,
the safety mechanism will be cancelled. If a hand or head got trapped, a serious injury could result.CAUTIONl The safety mechanism is cancelled just be-
fore the window is fully closed. This allows the window to close completely. Therefore be especially careful that no fingers are trap-
ped in the window.
l The safety mechanism is deactivated while
the switch is pulled up. Therefore be espe-
cially careful that fingers are not trapped in the door window opening.NOTEl The safety mechanism can be activated if the
driving conditions or other circumstancescause the driver’s door window to be subjec- ted to a physical shock similar to that caused
by a trapped hand or head.
l If the safety mechanism is activated five or
more times in a row, the safety mechanism
will be cancelled and the door window will not close correctly.
In such a case, the following procedure
should be implemented to rectify this situa- tion. If the window is open, repeatedly raise
the driver’s door window switch until that window has been fully closed. Following
this, release the switch, raise the switch once
again and hold it in this condition for at least
1 second, then release it. You should now be able to operate in the normal fashion.
l If the battery terminals are disconnected or
the fuse for electric window is replaced, the safety mechanism will be cancelled and the
door window will not automatically open/ close completely.
If the window is open, repeatedly raise the
driver’s door window switch until the win-
dow has been fully closed. Following this, release the switch, raise the switch once again and hold it in this condition for at least
1 second, then release it. You should now be able to operate the driver’s door window in
the normal fashion.
Electric window control*
3-23OKTE18E1Locking and unlocking3

OKTE18E1

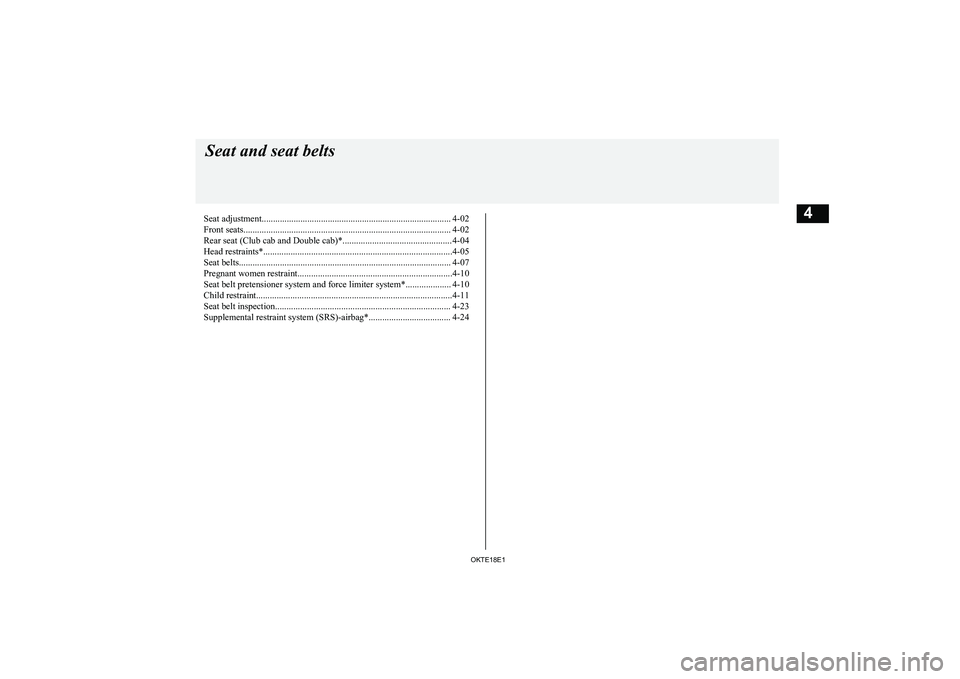

Seat adjustment................................................................................... 4-02Front seats........................................................................................... 4-02
Rear seat (Club cab and Double cab)*................................................ 4-04
Head restraints*...................................................................................4-05
Seat belts............................................................................................. 4-07 Pregnant women restraint....................................................................4-10
Seat belt pretensioner system and force limiter system*.................... 4-10
Child restraint......................................................................................4-11 Seat belt inspection............................................................................. 4-23Supplemental restraint system (SRS)-airbag*.................................... 4-24Seat and seat belts
OKTE18E14

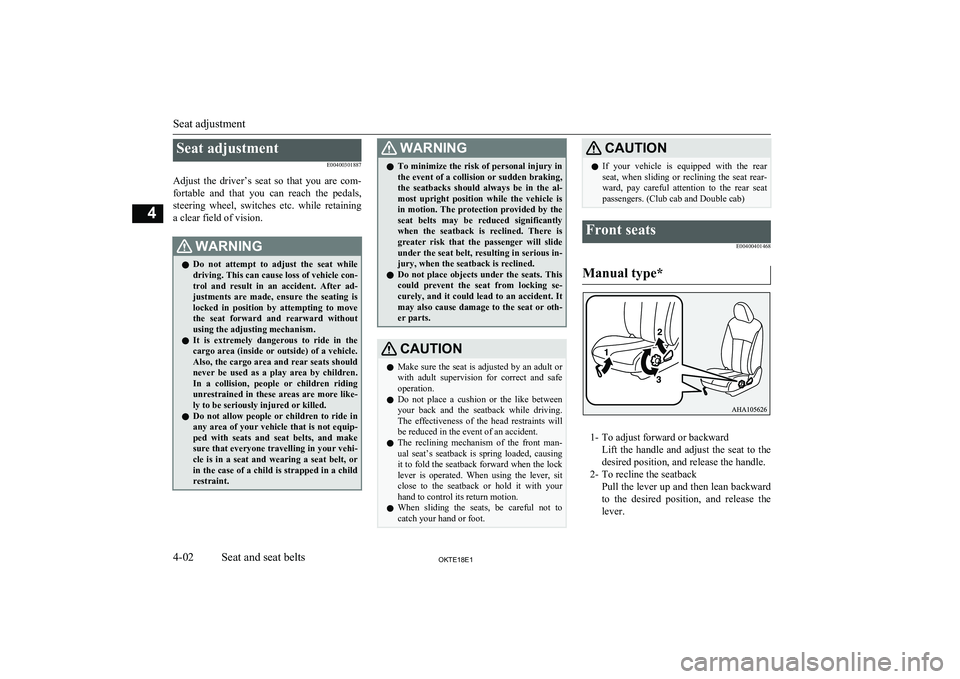

Seat adjustmentE00400301887
Adjust the driver’s seat so that you are com- fortable and that you can reach the pedals,
steering wheel, switches etc. while retaining a clear field of vision.WARNINGl Do not attempt to adjust the seat while
driving. This can cause loss of vehicle con- trol and result in an accident. After ad-
justments are made, ensure the seating is locked in position by attempting to move
the seat forward and rearward without
using the adjusting mechanism.
l It is extremely dangerous to ride in the
cargo area (inside or outside) of a vehicle. Also, the cargo area and rear seats should
never be used as a play area by children. In a collision, people or children ridingunrestrained in these areas are more like- ly to be seriously injured or killed.
l Do not allow people or children to ride in
any area of your vehicle that is not equip- ped with seats and seat belts, and make
sure that everyone travelling in your vehi- cle is in a seat and wearing a seat belt, or
in the case of a child is strapped in a child restraint.WARNINGl To minimize the risk of personal injury in
the event of a collision or sudden braking,the seatbacks should always be in the al- most upright position while the vehicle is
in motion. The protection provided by the seat belts may be reduced significantly when the seatback is reclined. There is
greater risk that the passenger will slide
under the seat belt, resulting in serious in- jury, when the seatback is reclined.
l Do not place objects under the seats. This
could prevent the seat from locking se-
curely, and it could lead to an accident. It may also cause damage to the seat or oth-
er parts.CAUTIONl Make sure the seat is adjusted by an adult or
with adult supervision for correct and safe operation.
l Do not place a cushion or the like between
your back and the seatback while driving.The effectiveness of the head restraints will
be reduced in the event of an accident.
l The reclining mechanism of the front man-
ual seat’s seatback is spring loaded, causing
it to fold the seatback forward when the lock lever is operated. When using the lever, sit close to the seatback or hold it with yourhand to control its return motion.
l When sliding the seats, be careful not to
catch your hand or foot.CAUTIONl If your vehicle is equipped with the rear
seat, when sliding or reclining the seat rear- ward, pay careful attention to the rear seat
passengers. (Club cab and Double cab)Front seats
E00400401468
Manual type*
1- To adjust forward or backwardLift the handle and adjust the seat to the
desired position, and release the handle.
2- To recline the seatback Pull the lever up and then lean backwardto the desired position, and release the lever.
Seat adjustment
4-02OKTE18E1Seat and seat belts4

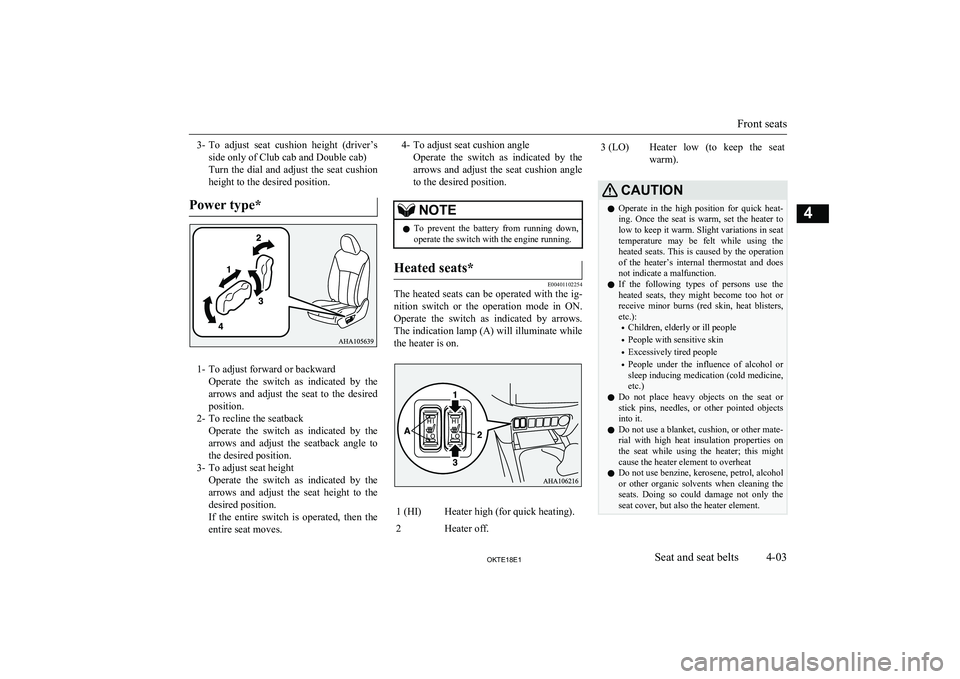

3-To adjust seat cushion height (driver’s
side only of Club cab and Double cab)
Turn the dial and adjust the seat cushion height to the desired position.
Power type*
1- To adjust forward or backward Operate the switch as indicated by thearrows and adjust the seat to the desired
position.
2- To recline the seatback Operate the switch as indicated by the
arrows and adjust the seatback angle to
the desired position.
3- To adjust seat height Operate the switch as indicated by thearrows and adjust the seat height to the
desired position.
If the entire switch is operated, then the entire seat moves.
4- To adjust seat cushion angle
Operate the switch as indicated by thearrows and adjust the seat cushion angle
to the desired position.NOTEl To prevent the battery from running down,
operate the switch with the engine running.Heated seats*
E00401102254
The heated seats can be operated with the ig-
nition switch or the operation mode in ON.
Operate the switch as indicated by arrows. The indication lamp (A) will illuminate whilethe heater is on.
1 (HI)Heater high (for quick heating).2Heater off.3 (LO)Heater low (to keep the seat
warm).CAUTIONl Operate in the high position for quick heat-
ing. Once the seat is warm, set the heater to low to keep it warm. Slight variations in seat
temperature may be felt while using the heated seats. This is caused by the operation
of the heater’s internal thermostat and does not indicate a malfunction.
l If the following types of persons use the
heated seats, they might become too hot or receive minor burns (red skin, heat blisters,
etc.):
• Children, elderly or ill people
• People with sensitive skin
• Excessively tired people
• People under the influence of alcohol or
sleep inducing medication (cold medicine, etc.)
l Do not place heavy objects on the seat or
stick pins, needles, or other pointed objects into it.
l Do not use a blanket, cushion, or other mate-
rial with high heat insulation properties on the seat while using the heater; this might
cause the heater element to overheat
l Do not use benzine, kerosene, petrol, alcohol
or other organic solvents when cleaning the seats. Doing so could damage not only the seat cover, but also the heater element.
Front seats
4-03OKTE18E1Seat and seat belts4

CAUTIONlIf water or any other liquid is spilled on the
seat, allow it to dry thoroughly before at-tempting to use the heater.
l Turn the heater off immediately if it appears
to be malfunctioning during use.Rear seat (Club cab and
Double cab)* E00401301536
When a person is sitting in the middle seatingposition of the rear seat, adjust the head re-straint to height at which it lock in position.
Refer to “Head restraints*” on page 4-05.
(Double cab)
Folding the seatback forward
(Double cab)
E00401601467
Pull up the band on the top of the seatback
and fold it forward.
To return
E00415600041
Raise the seatback until it is locked securely
in place.
Push and pull the seatback lightly to be sure
it is secure.
Folding up the seat cushion
(Club cab)*
E00411301063
The right and left seat cushions can be folded up separately.
To fold the seat cushions up, raise the seat
cushions.
Securely retain the seat cushion by hooking
the retaining band (A) onto the head restraint
(B) of the rear seat.Armrest (Double cab)
E00401701804
To use the armrest, fold it down.
To return to the original position, push it
backward (into the seatback) until it is level with the seat. (Double cab)
Rear seat (Club cab and Double cab)*
4-04OKTE18E1Seat and seat belts4

NOTElDo not climb or sit on the armrest. Doing so
could damage the armrest.
l The top surface of the armrest contains a cup
holder for rear seat occupants.
Refer to “Cup holder” on page 7-106.Head restraints*
E00403302869WARNINGlDriving without the head restraints in
place can cause you and your passengers
serious injury or death in an accident. To reduce the risk of injury in an accident, always make sure the head restraints are
installed and properly positioned when the seat is occupied.
l Never place a cushion or similar device on
the seatback. This can adversely affect head restraint performance by increasing
the distance between your head and the restraint.To adjust height
Front seats
Adjust the head restraint height so that the
centre of the head restraint is as close as pos-
sible to ear level to reduce the chances of in- jury in the event of collision. Any person too
tall for the head restraint to reach their seated ear level, should adjust the restraint as highas possible.
To raise the head restraint, move it upward. To lower the restraint, move it downward
while pushing the height adjusting knob (A) in the direction of the arrow. After adjust-
ment, push the head restraint downward and make sure that it is locked.
Rear centre seat
To reduce the risk of injury in an accident,
pull up the head restraint to the locked posi- tion.

To raise the head restraint, move it upward.
To lower the restraint, move it downward
while pushing the height adjusting knob (A) in the direction of the arrow. After adjust-
ment, push the head restraint downward and make sure that it is locked.Head restraints*
4-05OKTE18E1Seat and seat belts4

WARNINGlWhen a person sits in the middle seating
position of the rear seat, pull up the head
restraint to a height at which it locks in position. Be sure to make this adjustment
before starting to drive. Serious injuries could otherwise be suffered as the result
of an impact. (Double cab)NOTEl The head restraint height of the outer seat in
the rear seat cannot be adjusted.
To remove
Lift the head restraint with the height adjust-
ing knob (A) pushed in.
To install
Confirm that the head restraint is facing the
correct direction, and then insert it into the seatback while pressing the height adjusting
knob (A) in the direction indicated by the ar-
row.
The head restraint stalk with the adjustment notches (B) must be installed in the hole withthe adjusting knob (A) (except head restraints
of the outer seat).
CAUTIONl Confirm that the height adjusting knob (A)
is correctly adjusted as shown in the illustra- tion, and also lift the head restraints to en- sure that they do not come out of the seat-back.CAUTIONl The shape and size of the head restraint dif-
fers according to the seat. Always use the
correct head restraint provided for the seat and do not install the head restraint in the
wrong direction.
Head restraints*
4-06OKTE18E1Seat and seat belts4
