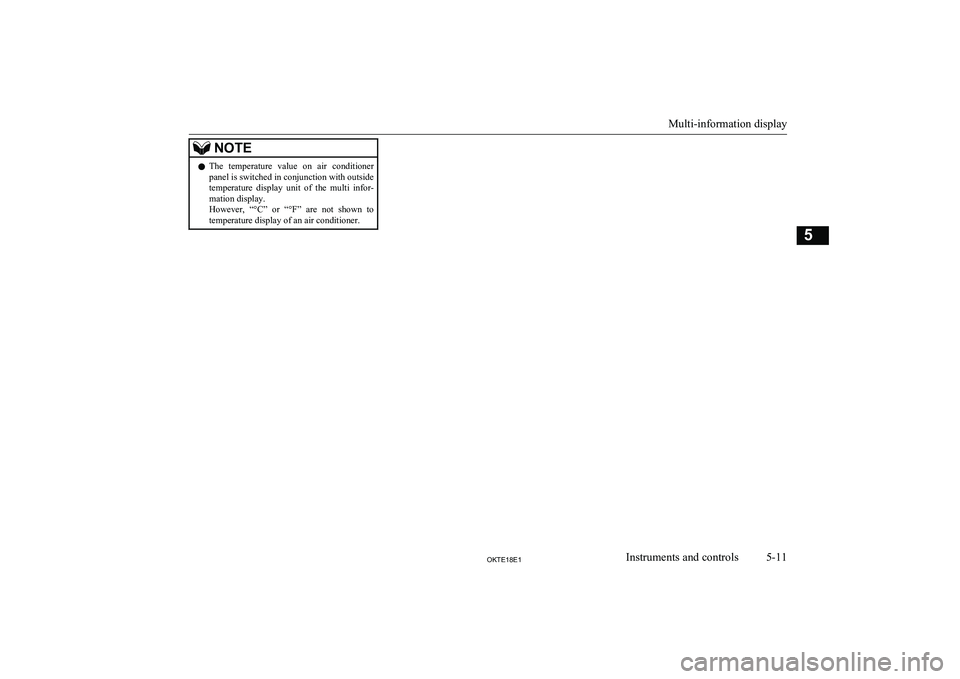

NOTElThe temperature value on air conditioner
panel is switched in conjunction with outside
temperature display unit of the multi infor-
mation display.
However, “°C” or “°F” are not shown to
temperature display of an air conditioner.
Multi-information display
5-11OKTE18E1Instruments and controls5

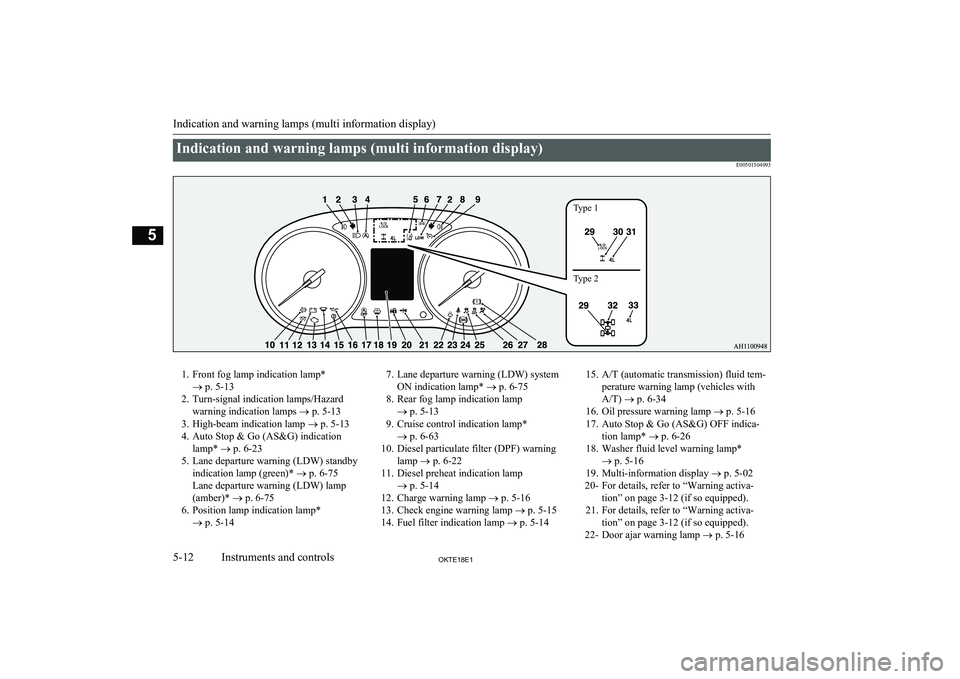

Indication and warning lamps (multi information display)E005015040931. Front fog lamp indication lamp*® p. 5-13
2. Turn-signal indication lamps/Hazard warning indication lamps ® p. 5-13
3. High-beam indication lamp ® p. 5-13
4. Auto Stop & Go (AS&G) indication lamp* ® p. 6-23
5. Lane departure warning (LDW) standby indication lamp (green)* ® p. 6-75
Lane departure warning (LDW) lamp
(amber)* ® p. 6-75
6. Position lamp indication lamp* ® p. 5-147. Lane departure warning (LDW) system
ON indication lamp* ® p. 6-75
8. Rear fog lamp indication lamp ® p. 5-13
9. Cruise control indication lamp* ® p. 6-63
10. Diesel particulate filter (DPF) warning lamp ® p. 6-22
11. Diesel preheat indication lamp ® p. 5-14
12. Charge warning lamp ® p. 5-16
13. Check engine warning lamp ® p. 5-15
14. Fuel filter indication lamp ® p. 5-1415. A/T (automatic transmission) fluid tem-
perature warning lamp (vehicles with
A/T) ® p. 6-34
16. Oil pressure warning lamp ® p. 5-16
17. Auto Stop & Go (AS&G) OFF indica- tion lamp* ® p. 6-26
18. Washer fluid level warning lamp* ® p. 5-16
19. Multi-information display ® p. 5-02
20- For details, refer to “Warning activa- tion” on page 3-12 (if so equipped).
21. For details, refer to “Warning activa- tion” on page 3-12 (if so equipped).
22- Door ajar warning lamp ® p. 5-16
Indication and warning lamps (multi information display)
5-12OKTE18E1Instruments and controls5Type 1
Type 2

23- Seat belt reminder/warning lamp® p. 4-08
24- Anti-lock brake system (ABS) warning lamp ® p. 6-57
25- Active Stability & Traction Control (ASTC) indication lamp ® p. 6-61
26- Active Stability & Traction Control (ASTC) OFF indication lamp
® p. 6-6127- Supplement Restraint System (SRS)
warning lamp ® p. 4-34
28- Brake warning lamp ® p. 5-15
29. Rear differential lock indication lamp* ® p. 6-45
30. 2WD/4WD operation indication lamp* ® p. 6-38
31. Low-range indication lamp* ® p. 6-3832- 2WD/4WD operation indication lamp*
® p. 6-42
33- Low-range indication lamp* ® p. 6-42

Indication lamps
E00501600100Turn-signal indication lamps/
Hazard warning indication lamps
E00501701616
These indication lamps blink
in the following situations.
l When the turn-signal
lever is moved to acti-
vate a turn-signal lamp.
Refer to “Turn-signal
lever” on page 5-20.
l When the hazard warning flasher switch
is pressed to activate the hazard warning lamps.
Refer to “Hazard warning flasher switch” on page 5-21.
l When the hazard warning lamps auto-
matically activate due to sudden braking
while driving.
Refer to “Emergency stop signal sys- tem*” on page 6-56.High-beam indication lamp
E00501801271
This indication lamp illumi-
nates when the high-beam is used.
Front fog lamp indication
lamp*
E00501901621
This lamp illuminates while
the front fog lamps are on.
Rear fog lamp indication lamp
E00502001397
This lamp illuminates while the rear fog lamp is on.
Indication lamps
5-13OKTE18E1Instruments and controls5

Position lamp indication lamp*
E00508901301
This indication lamp illumi-
nates while the position
lamps are on.

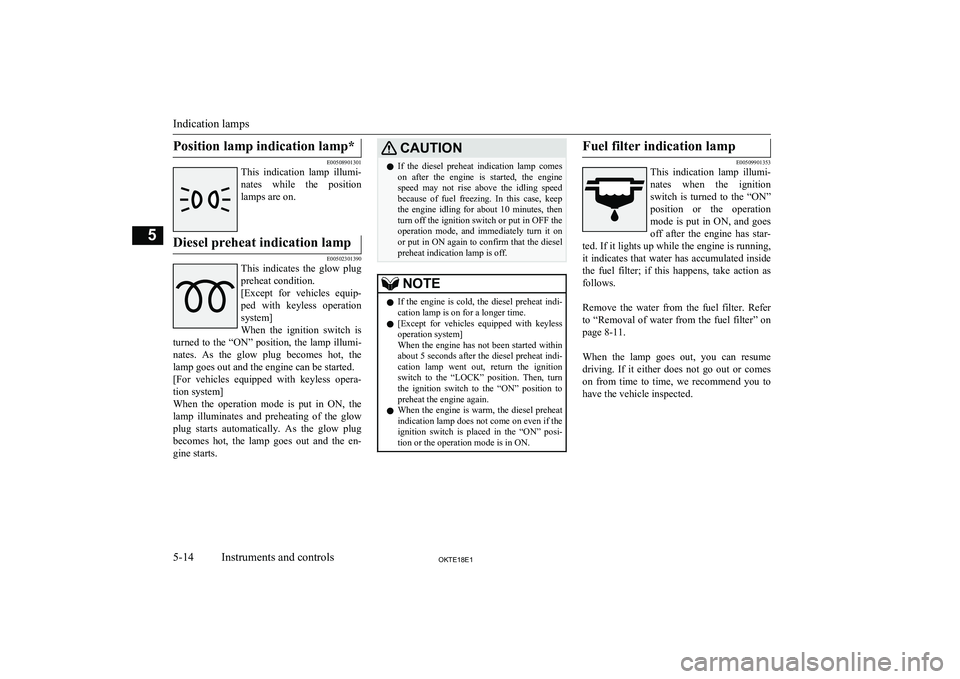

Diesel preheat indication lamp
E00502301390
This indicates the glow plug
preheat condition.
[Except for vehicles equip-
ped with keyless operation system]
When the ignition switch is
turned to the “ON” position, the lamp illumi-
nates. As the glow plug becomes hot, the lamp goes out and the engine can be started.
[For vehicles equipped with keyless opera- tion system]
When the operation mode is put in ON, the
lamp illuminates and preheating of the glow
plug starts automatically. As the glow plug becomes hot, the lamp goes out and the en-
gine starts.
CAUTIONl If the diesel preheat indication lamp comes
on after the engine is started, the engine speed may not rise above the idling speedbecause of fuel freezing. In this case, keep
the engine idling for about 10 minutes, then turn off the ignition switch or put in OFF the operation mode, and immediately turn it onor put in ON again to confirm that the diesel
preheat indication lamp is off.NOTEl If the engine is cold, the diesel preheat indi-
cation lamp is on for a longer time.
l [Except for vehicles equipped with keyless
operation system]
When the engine has not been started within about 5 seconds after the diesel preheat indi- cation lamp went out, return the ignition
switch to the “LOCK” position. Then, turn
the ignition switch to the “ON” position to preheat the engine again.
l When the engine is warm, the diesel preheat
indication lamp does not come on even if the
ignition switch is placed in the “ON” posi-
tion or the operation mode is in ON.Fuel filter indication lamp
E00509901353
This indication lamp illumi-
nates when the ignition switch is turned to the “ON”
position or the operation
mode is put in ON, and goes off after the engine has star-
ted. If it lights up while the engine is running,
it indicates that water has accumulated inside the fuel filter; if this happens, take action as
follows.

Remove the water from the fuel filter. Refer to “Removal of water from the fuel filter” on
page 8-11.

When the lamp goes out, you can resume driving. If it either does not go out or comes
on from time to time, we recommend you to have the vehicle inspected.
Indication lamps
5-14OKTE18E1Instruments and controls5

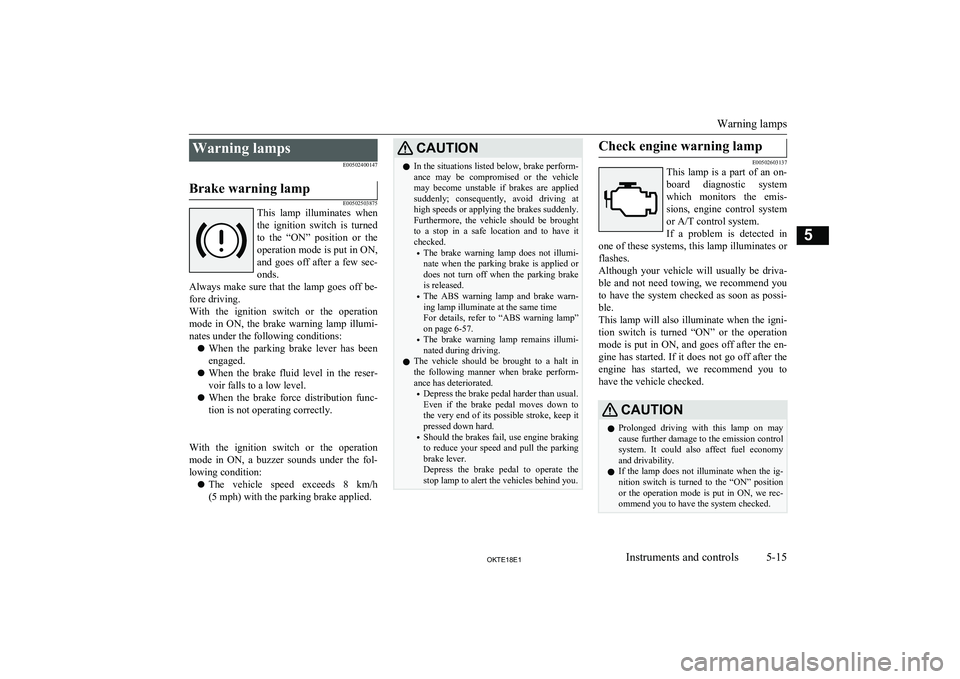

Warning lampsE00502400147Brake warning lamp
E00502503875
This lamp illuminates whenthe ignition switch is turnedto the “ON” position or the
operation mode is put in ON, and goes off after a few sec-onds.
Always make sure that the lamp goes off be- fore driving.
With the ignition switch or the operation mode in ON, the brake warning lamp illumi-
nates under the following conditions:
l When the parking brake lever has been
engaged.
l When the brake fluid level in the reser-
voir falls to a low level.
l When the brake force distribution func-
tion is not operating correctly.

With the ignition switch or the operation
mode in ON, a buzzer sounds under the fol- lowing condition:
l The vehicle speed exceeds 8 km/h
(5 mph) with the parking brake applied.
CAUTIONl In the situations listed below, brake perform-
ance may be compromised or the vehicle may become unstable if brakes are applied
suddenly; consequently, avoid driving at
high speeds or applying the brakes suddenly. Furthermore, the vehicle should be brought
to a stop in a safe location and to have it
checked.
• The brake warning lamp does not illumi-
nate when the parking brake is applied ordoes not turn off when the parking brake is released.
• The ABS warning lamp and brake warn-
ing lamp illuminate at the same time
For details, refer to “ABS warning lamp”
on page 6-57.
• The brake warning lamp remains illumi-
nated during driving.
l The vehicle should be brought to a halt in
the following manner when brake perform- ance has deteriorated.
• Depress the brake pedal harder than usual.
Even if the brake pedal moves down to
the very end of its possible stroke, keep it
pressed down hard.
• Should the brakes fail, use engine braking
to reduce your speed and pull the parking
brake lever.
Depress the brake pedal to operate the
stop lamp to alert the vehicles behind you.Check engine warning lamp
E00502603137
This lamp is a part of an on-
board diagnostic system
which monitors the emis-
sions, engine control system or A/T control system.
If a problem is detected in
one of these systems, this lamp illuminates or flashes.
Although your vehicle will usually be driva-
ble and not need towing, we recommend you
to have the system checked as soon as possi-
ble.
This lamp will also illuminate when the igni-
tion switch is turned “ON” or the operation mode is put in ON, and goes off after the en-gine has started. If it does not go off after the
engine has started, we recommend you to have the vehicle checked.
CAUTIONl Prolonged driving with this lamp on may
cause further damage to the emission control
system. It could also affect fuel economy and drivability.
l If the lamp does not illuminate when the ig-
nition switch is turned to the “ON” position
or the operation mode is put in ON, we rec- ommend you to have the system checked.
Warning lamps
5-15OKTE18E1Instruments and controls5

CAUTIONlIf the lamp illuminates while the engine is
running, avoid driving at high speeds and have the system inspected by a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible.
Accelerator pedal and brake pedal response may be negatively influenced under these
conditions.NOTEl The engine electronic control module ac-
commodating the onboard diagnostic system has various fault data (especially about the
exhaust emission) stored.
This data will be erased if a battery cable is
disconnected which will make a rapid diag- nosis difficult. Do not disconnect a battery
cable when the check engine warning lamp is ON.
Charge warning lamp
E00502702304
This lamp illuminates when the ignition switch is turnedto the “ON” position or the
operation mode is put in ON, and goes off after the engine
has started.
CAUTIONl If it illuminates while the engine is running,
there is a problem in the charging system.
Immediately park your vehicle in a safe place and we recommend you to have it
checked.Oil pressure warning lamp
E00502801816
This lamp illuminates when
the ignition switch is turnedto the “ON” position or the
operation mode is put in ON, and the lamp goes off after
the engine has started. If it il-
luminates while the engine is running, the oil
pressure is too low.
If the warning lamp illuminates while the en- gine is running, turn the engine off and have
it inspected.
CAUTIONl If this lamp illuminates when the engine oil
level is not low, have it inspected.
l This warning lamp does not indicate the
amount of oil in the crankcase. This must be determined by checking the oil level on the
dipstick, while the engine is switched off.
l If you continue driving with low engine oil
level or with this warning lamp illuminated,
engine seizure may occur.NOTEl The oil pressure warning lamp should not be
treated as an indication of the engine’s oil
level. The oil level must be checked using
the dipstick.Door ajar warning lamp
E00503302020
This lamp illuminates when
a door is either open or not
completely closed.
If the vehicle speed reaches approximately 8 km/h
(5 mph) with a door open or
incompletely closed, a buzzer sounds 4 times as a warning.
CAUTIONl Before moving your vehicle, check that the
warning lamp is OFF.Washer fluid level warning
lamp*
E00569300042
This lamp comes on when
the washer fluid is running low.
If the lamp comes on, re-
plenish the container with washer fluid.
Refer to “Washer fluid” on page 10-08.
Warning lamps
5-16OKTE18E1Instruments and controls5

refer to “Capacity” on page 11-17.Combination headlampsand dipper switch E00506004514
Headlamps
NOTElDo not leave the lamps on for a long time
while the engine is stationary (not running).A run-down battery could result.
l When it rains, or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy, but this does not indicate a
functional problem.
When the lamp is switched on, the heat will remove the fog. However, if water gathers
inside the lamp, we recommend you to have it checked.
l The bulbs of the high intensity discharge
headlamps (if so equipped) have the follow-
ing characteristics.
• While the headlamps are used, the light
will gradually become a bluish-white col- our.
• The life time of a bulb becomes shorter as
it is repeatedly turned on and off. Whenthe bulb approaches the end of its life time, the brightness may decrease, the
bulb may flicker, and the light may be- come a reddish colour. If this occurs, have
the vehicle inspected by a MITSUBISHI
MOTORS Authorized Service Point.NOTE
Type 1
Rotate the switch to turn on the lamps.
OFFAll lamps offPosition, tail, licence plate and instru-
ment panel lamps onHeadlamps and other lamps go onType 2
Rotate the switch to turn on the lamps.
OFFAll lamps off
AUTO
With the ignition switch or the
operation mode is in ON, head-
lamps, position, tail, licence plate
and instrument panel lamps turn
on and off automatically in ac-
cordance with outside light level.
All lamps turn off automatically
when the ignition switch is turned
to “OFF” position or the opera-
tion mode is put in OFF.Position, tail, licence plate and in-
strument panel lamps onHeadlamps and other lamps go on
Combination headlamps and dipper switch
5-17OKTE18E1Instruments and controls5

NOTElThe sensitivity of the automatic on/off con-
trol can be adjusted. For further information,contact a MITSUBISHI MOTORS Author-
ized Service Point.
l If the front fog lamps (if so equipped) turn
on when they are supposed to with theswitch in the “AUTO” position, the lamps
turn off automatically with the ignition
switch or operation mode off.
l When the headlamps are turned off by the
automatic on/off control with the ignition
switch in the “ON” position or the operation
mode in ON, the front fog lamps (if so
equipped) and rear fog lamps also go off.
When the headlamps are subsequently turned back on by the automatic on/off con-
trol, the front fog lamps also come on but the rear fog lamp stays off. If you wish to turn
the rear fog lamp back on, operate the switch again.
l Do not cover the sensor (A) for the automat-
ic on/off control by affixing a sticker or label
to the windscreen.NOTEl If the lamps do not turn on or off with the
switch in the “AUTO” position, manually
operate the switch and we recommend you
to have your vehicle checked.
Lamps (headlamps, fog lamp,
etc.) auto-cutout function
l If the following operation is performed
while the lamp switch is in the “” po-
sition, the lamps are automatically
turned off when the driver’s door is
opened.
[Except vehicles equipped with keyless
operation system]
The ignition switch is turned to the
“LOCK” or “ACC” position, or the key is removed from the ignition switch.
[For vehicles equipped with keyless op- eration system]
The operation mode is in OFF or ACC.
l If the following operation is performed
while the lamp switch is in the “” po-
sition, the lamps are automatically
turned off if the driver’s door then re- mains closed for approximately three
minutes.
[Except vehicles equipped with keyless
operation system]
The ignition switch is turned to the
“LOCK” or “ACC” position, or the key is removed from the ignition switch.
[For vehicles equipped with keyless op- eration system]
The operation mode is in OFF or ACC.NOTEl The lamp auto-cutout function can also be
disabled.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.Lamp monitor buzzer
E00506101732
If the following operation is performed, a
buzzer will sound to remind the driver to turn
off the lamps.
[Except for vehicles equipped with keyless
operation system]
Combination headlamps and dipper switch
5-18OKTE18E1Instruments and controls5

If the driver’s door is opened when the key is
in the “LOCK” or “ACC” position or re-
moved from the ignition switch while the
lamps are on.
[For vehicles equipped with keyless opera- tion system]
If the driver’s door is opened when the opera- tion mode is in ACC or OFF while the lamps
are on.

In both cases, the buzzer will automatically
stop if the auto-cutoff function is activated, the lamp switch is turned off, or the door is
closed.Daytime running lamp
E00530601343
The daytime running lamps comes on when the engine is running and the lamp switch is
in the “OFF” or “AUTO” position and the
tail lamps are off.

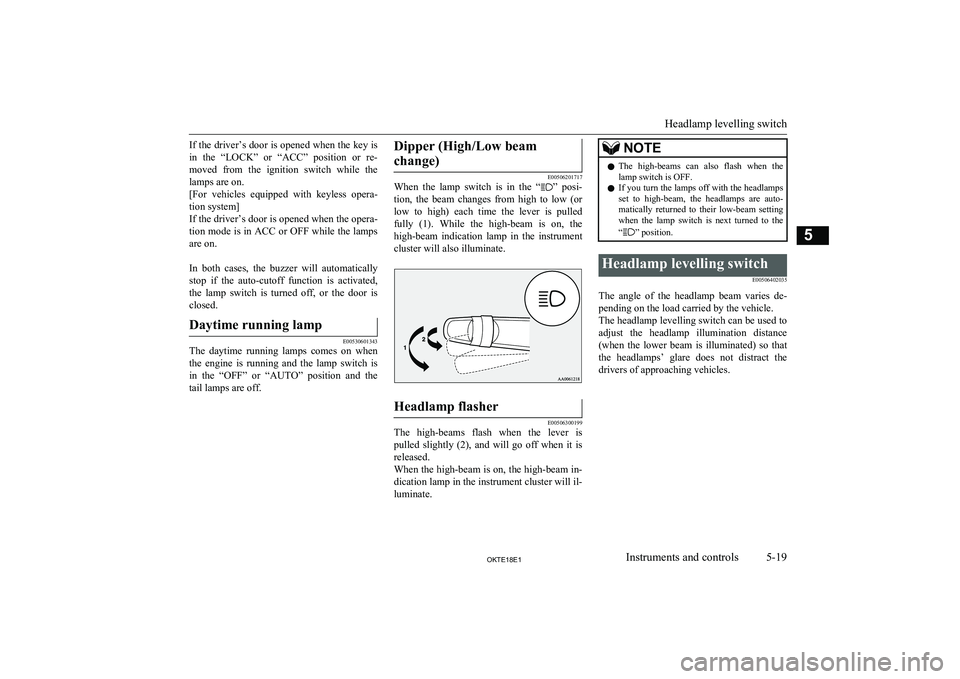

Dipper (High/Low beam
change)
E00506201717
When the lamp switch is in the “” posi-
tion, the beam changes from high to low (or
low to high) each time the lever is pulled fully (1). While the high-beam is on, the
high-beam indication lamp in the instrument
cluster will also illuminate.
Headlamp flasher
E00506300199
The high-beams flash when the lever is pulled slightly (2), and will go off when it is
released.
When the high-beam is on, the high-beam in- dication lamp in the instrument cluster will il-
luminate.
NOTEl The high-beams can also flash when the
lamp switch is OFF.
l If you turn the lamps off with the headlamps
set to high-beam, the headlamps are auto- matically returned to their low-beam setting
when the lamp switch is next turned to the
“
” position.
Headlamp levelling switch
E00506402035
The angle of the headlamp beam varies de-pending on the load carried by the vehicle.The headlamp levelling switch can be used to
adjust the headlamp illumination distance (when the lower beam is illuminated) so that the headlamps’ glare does not distract thedrivers of approaching vehicles.
Headlamp levelling switch
5-19OKTE18E1Instruments and controls5

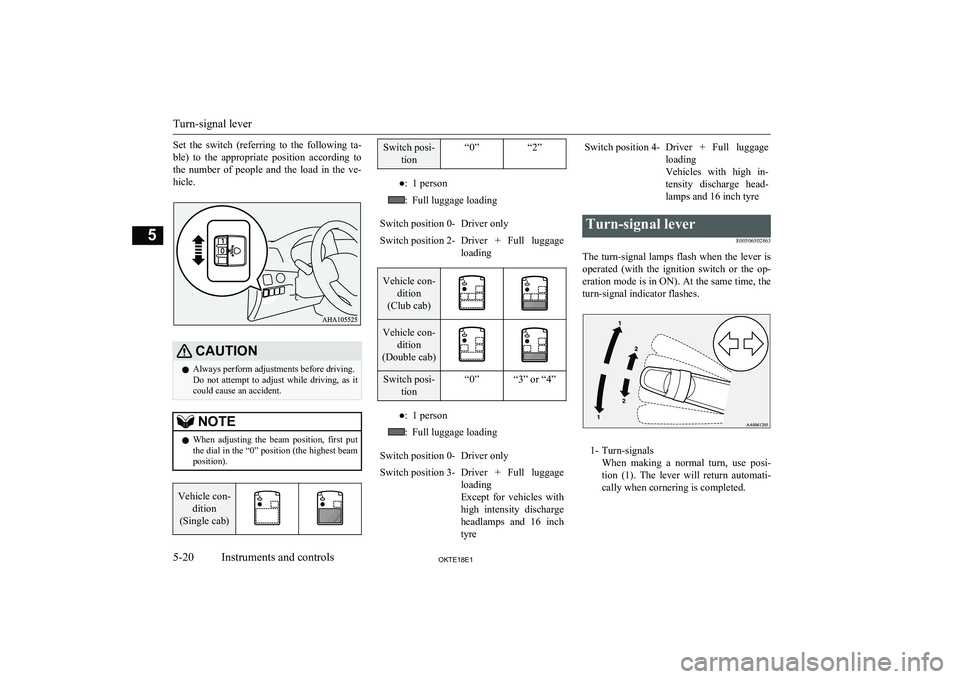

Set the switch (referring to the following ta-
ble) to the appropriate position according to the number of people and the load in the ve-
hicle.CAUTIONl Always perform adjustments before driving.
Do not attempt to adjust while driving, as it could cause an accident.NOTEl When adjusting the beam position, first put
the dial in the “0” position (the highest beamposition).Vehicle con-
dition
(Single cab)Switch posi- tion“0”“2”●:1 person:Full luggage loadingSwitch position 0-Driver onlySwitch position 2-Driver + Full luggageloadingVehicle con- dition
(Club cab)Vehicle con- dition
(Double cab)Switch posi- tion“0”“3” or “4”●:1 person:Full luggage loadingSwitch position 0-Driver onlySwitch position 3-Driver + Full luggageloading
Except for vehicles with
high intensity discharge headlamps and 16 inch
tyreSwitch position 4-Driver + Full luggage loading
Vehicles with high in- tensity discharge head- lamps and 16 inch tyreTurn-signal lever
E00506502863
The turn-signal lamps flash when the lever is
operated (with the ignition switch or the op- eration mode is in ON). At the same time, the
turn-signal indicator flashes.
1- Turn-signals When making a normal turn, use posi-
tion (1). The lever will return automati- cally when cornering is completed.
Turn-signal lever
5-20OKTE18E1Instruments and controls5
