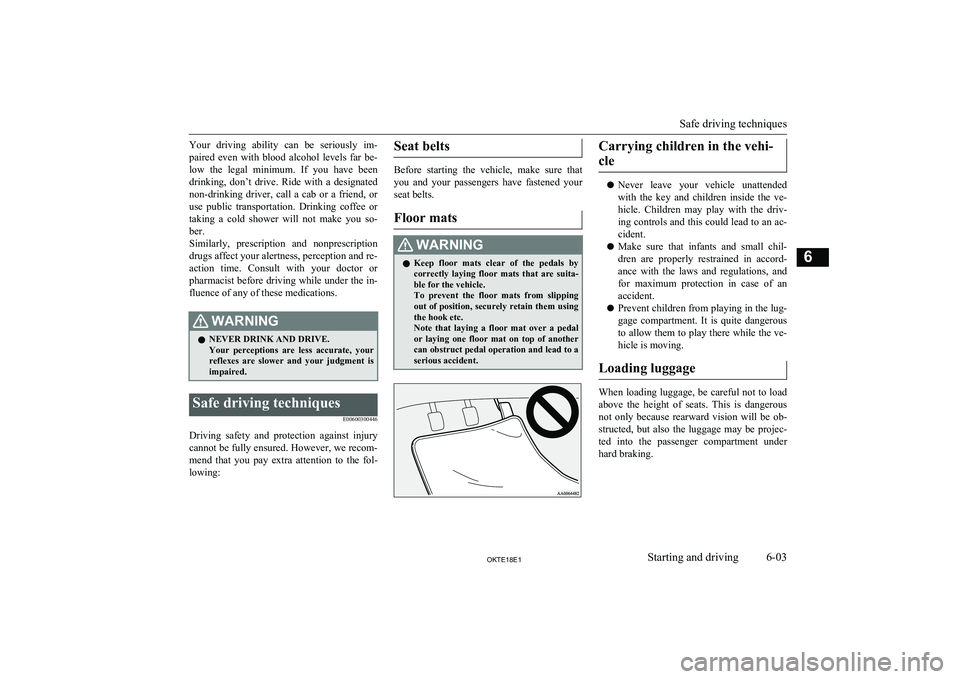

Your driving ability can be seriously im-
paired even with blood alcohol levels far be- low the legal minimum. If you have beendrinking, don’t drive. Ride with a designated
non-drinking driver, call a cab or a friend, or
use public transportation. Drinking coffee or taking a cold shower will not make you so-ber.
Similarly, prescription and nonprescription
drugs affect your alertness, perception and re- action time. Consult with your doctor or
pharmacist before driving while under the in- fluence of any of these medications.WARNINGl NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your reflexes are slower and your judgment is
impaired.Safe driving techniques
E00600300446
Driving safety and protection against injury
cannot be fully ensured. However, we recom- mend that you pay extra attention to the fol-
lowing:
Seat belts
Before starting the vehicle, make sure that
you and your passengers have fastened your seat belts.
Floor mats
WARNINGl Keep floor mats clear of the pedals by
correctly laying floor mats that are suita-
ble for the vehicle.
To prevent the floor mats from slipping out of position, securely retain them usingthe hook etc.
Note that laying a floor mat over a pedal
or laying one floor mat on top of another can obstruct pedal operation and lead to a
serious accident.Carrying children in the vehi-
cle
l Never leave your vehicle unattended
with the key and children inside the ve-hicle. Children may play with the driv-
ing controls and this could lead to an ac- cident.
l Make sure that infants and small chil-
dren are properly restrained in accord-
ance with the laws and regulations, and
for maximum protection in case of an accident.
l Prevent children from playing in the lug-
gage compartment. It is quite dangerous
to allow them to play there while the ve- hicle is moving.
Loading luggage
When loading luggage, be careful not to load above the height of seats. This is dangerous
not only because rearward vision will be ob- structed, but also the luggage may be projec-ted into the passenger compartment underhard braking.
Safe driving techniques
6-03OKTE18E1Starting and driving6

Running-in recommendationsE00600404315
During the running-in period for the first 1,000 km (620 miles), it is advisable to drive your new vehicle using the following precautions as a guideline to aid long life as well as future economy and performance.
l Do not race the engine at high speeds.
l Avoid rapid starting, accelerating, braking and prolonged high-speed running.
l Keep to the running-in speed limit shown below.
Please note that the legal speed limits displayed must be adhered to.
l Do not exceed loading limits.
l Refrain from towing a trailer.Vehicles with M/T
Shift point
Speed limit2WDVehicles with Easy Select 4WDVehicles with Super Select 4WD II2H, 4H4L2H, 4H, 4HLc4LLc1st
gear20 km/h (12 mph)20 km/h (12 mph)5 km/h (3 mph)20 km/h (12 mph)5 km/h (3 mph)2nd
gear40 km/h (25 mph)40 km/h (25 mph)15 km/h (9 mph)40 km/h (25 mph)15 km/h (9 mph)3rd
gear65 km/h (40 mph)65 km/h (40 mph)25 km/h (16 mph)65 km/h (40 mph)25 km/h (16 mph)4th
gear95 km/h (59 mph)95 km/h (59 mph)35 km/h (22 mph)95 km/h (59 mph)35 km/h (22 mph)5th
gear110 km/h (68 mph)110 km/h (68 mph)
45 km/h (28 mph)
115 km/h (71 mph)
45 km/h (28 mph)6th
gear55 km/h (34 mph)55 km/h (34 mph)
Running-in recommendations
6-04OKTE18E1Starting and driving6

Vehicles with A/T
Shift point
Speed limit2WDVehicles with Easy Select 4WDVehicles with Super Select 4WD II2H, 4H4L2H, 4H, 4HLc4LLc1st
gear15 km/h (9 mph)15 km/h (9 mph)5 km/h (3 mph)20 km/h (12 mph)5 km/h (3 mph)2nd
gear35 km/h (22 mph)35 km/h (22 mph)15 km/h (9 mph)40 km/h (25 mph)15 km/h (9 mph)3rd
gear55 km/h (34 mph)55 km/h (34 mph)20 km/h (12 mph)60 km/h (37 mph)20 km/h (12 mph)4th
gear85 km/h (53 mph)85 km/h (53 mph)30 km/h (19 mph)85 km/h (53 mph)30 km/h (19 mph)5th
gear110 km/h (68 mph)110 km/h (68 mph)45 km/h (28 mph)115 km/h (71 mph)45 km/h (28 mph)CAUTIONl On 4WD vehicles, the “4L” (Easy Select 4WD), “4LLc” (Super Select 4WD II) range gives maximum torque for low-speed driving on steep slopes, as well
as sandy, muddy, and other difficult surfaces. On vehicles with A/T, do not exceed speeds of approximately 70 km/h in “4L” (Easy Select 4WD), “4LLc”
(Super Select 4WD II) range.

Parking brake
E00600502817
To park the vehicle, first bring it to a com- plete stop, fully apply the parking brake suf-
ficiently to hold the vehicle.
Parking brake
6-05OKTE18E1Starting and driving6

To apply
1-Firmly depress and hold the brake pedal,
then pull the lever up without pushing
the button at the end of hand grip.
CAUTIONl When you intend to apply the parking brake,
firmly press the brake pedal to bring the ve-hicle to a complete stop before pulling theparking brake lever.
Pulling the parking brake lever with the ve- hicle moving could make the rear wheels
lock up, thereby making the vehicle unsta- ble. It could also make the parking brake
malfunction.NOTEl Apply sufficient force to the parking brake
lever to hold the vehicle stationary after the foot brake is released.NOTEl If the parking brake does not hold the vehi-
cle stationary after the foot brake is released,
have your vehicle checked immediately.
To release
1- Firmly depress and hold the brake pedal,
then pull the lever up slightly.
2- Push the button at the end of hand grip.
3- Lower the lever fully.
CAUTIONl Before driving, be sure that the parking
brake is fully released and brake warning
lamp is off.
If a vehicle is driven without releasing the
parking brake, the brake will be overheated, resulting in ineffective braking and possible
brake failure.CAUTIONl If the brake warning lamp does not extin-
guish when the parking brake is fully re- leased, the brake system may be abnormal.
Have your vehicle checked immediately.
For details, refer to “Brake warning lamp” on page 5-15.NOTEl To prevent the parking brake from being re-
leased unintentionally, the lever must be
pulled up slightly before it can be pushed down. Simply pressing the button does not
enable the lever to be pushed down.Parking
E00600602704
To park the vehicle, fully engage the parkingbrake, and then move the gearshift lever to 1 st
or “R” (Reverse) position for vehicles equip-
ped with M/T, or set the selector lever to “P”
(PARK) position for vehicles equipped with
A/T.

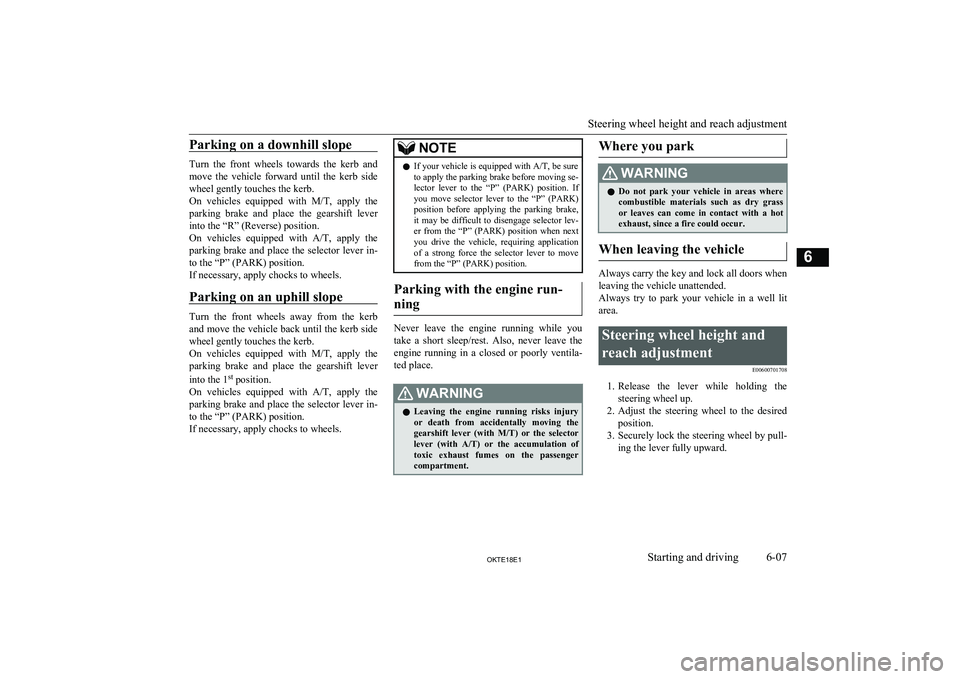

Parking on a hill
To prevent the vehicle from rolling, follow these procedures:
Parking
6-06OKTE18E1Starting and driving6

Parking on a downhill slope
Turn the front wheels towards the kerb andmove the vehicle forward until the kerb side wheel gently touches the kerb.
On vehicles equipped with M/T, apply the
parking brake and place the gearshift lever into the “R” (Reverse) position.
On vehicles equipped with A/T, apply the
parking brake and place the selector lever in-
to the “P” (PARK) position.
If necessary, apply chocks to wheels.
Parking on an uphill slope
Turn the front wheels away from the kerband move the vehicle back until the kerb side wheel gently touches the kerb.
On vehicles equipped with M/T, apply the
parking brake and place the gearshift lever
into the 1 st
position.
On vehicles equipped with A/T, apply the
parking brake and place the selector lever in- to the “P” (PARK) position.
If necessary, apply chocks to wheels.
NOTEl If your vehicle is equipped with
A/T, be sure
to apply the parking brake before moving se- lector lever to the “P” (PARK) position. If
you move selector lever to the “P” (PARK) position before applying the parking brake,it may be difficult to disengage selector lev- er from the “P” (PARK) position when next
you drive the vehicle, requiring application of a strong force the selector lever to move
from the “P” (PARK) position.
Parking with the engine run-
ning
Never leave the engine running while you
take a short sleep/rest. Also, never leave the engine running in a closed or poorly ventila-
ted place.
WARNINGl Leaving the engine running risks injury
or death from accidentally moving the
gearshift lever (with M/T) or the selector
lever (with A/T) or the accumulation of
toxic exhaust fumes on the passenger
compartment.Where you parkWARNINGl Do not park your vehicle in areas where
combustible materials such as dry grass
or leaves can come in contact with a hot exhaust, since a fire could occur.
When leaving the vehicle
Always carry the key and lock all doors when
leaving the vehicle unattended.
Always try to park your vehicle in a well lit
area.
Steering wheel height and
reach adjustment E00600701708
1.Release the lever while holding the
steering wheel up.
2. Adjust the steering wheel to the desired
position.
3. Securely lock the steering wheel by pull-
ing the lever fully upward.
Steering wheel height and reach adjustment
6-07OKTE18E1Starting and driving6

A- LockedB- Release
*: Vehicles equipped with the reach adjust- ment
WARNINGl Do not attempt to adjust the steering
wheel while you are driving the vehicle.Inside rear-view mirror
E00600802126
Adjust the rear-view mirror only after mak-
ing any seat adjustments so you have a clear
view to the rear of the vehicle.WARNINGl Do not attempt to adjust the rear-view
mirror while driving. This can be danger-
ous.
Always adjust the mirror before driving.
Adjust the rear-view mirror to maximize the
view through the rear window.
To adjust the vertical mirror
position
It is possible to move the mirror up and down
to adjust its position.
To adjust the mirror position
It is possible to move the mirror up/down and left/right to adjust its position.
Inside rear-view mirror
6-08OKTE18E1Starting and driving6Type 1
Type 2 Type 2
Type 1

To reduce the glare
Type 1
The lever (A) at the bottom of the mirror can be used to adjust the mirror to reduce the
glare from the headlamps of vehicles behind
you during night driving.
1- Normal
2- Anti-glare
Type 2
When the headlamps of the vehicles behind you are very bright, the reflection factor ofthe rear-view mirror is automatically changed
to reduce the glare.
When the ignition switch is turned to the
“ON” position or the operation mode is put in
ON, the reflection factor of the mirror is au- tomatically changed.
NOTEl Do not hang items on, or spray glass cleaner
on the sensor (1), as reduced sensitivitycould result.Outside rear-view mirrors
E00600900628To adjust the mirror position
E00601001971WARNINGlDo not attempt to adjust the rear-view
mirrors while driving. This can be dan-
gerous.
Always adjust the mirrors before driving.
l Your vehicle is equipped with convex type
mirrors.
Please take into consideration, that ob- jects you see in the mirror will look small-er and farther away compared to a nor-mal flat mirror.
Do not use this mirror to estimate dis-
tance of following vehicles when changing lanes.
Outside rear-view mirrors
6-09OKTE18E1Starting and driving6

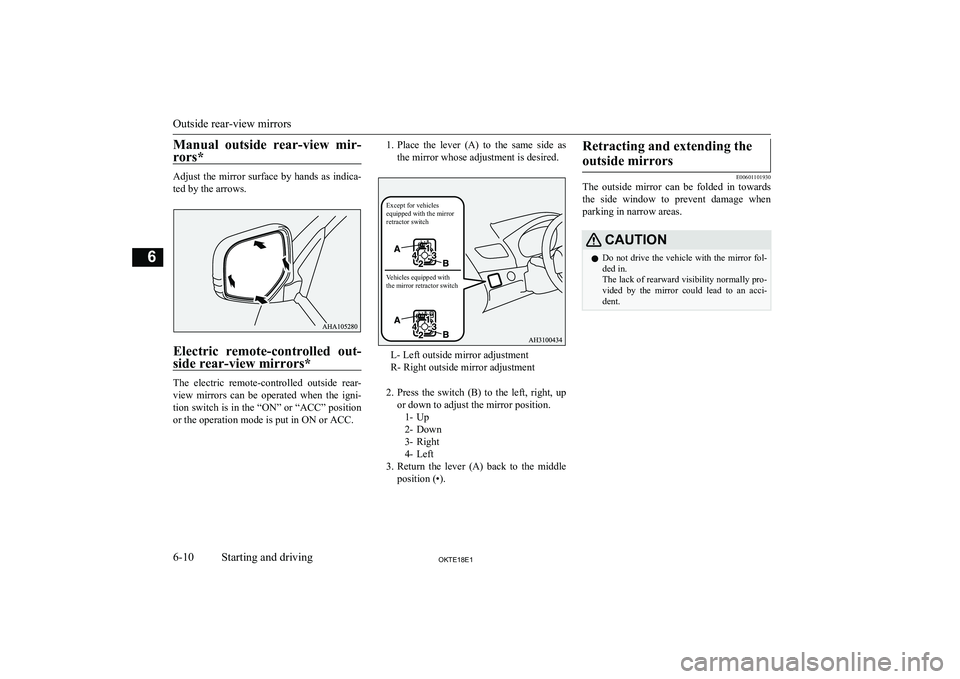

Manual outside rear-view mir-rors*
Adjust the mirror surface by hands as indica-
ted by the arrows.
Electric remote-controlled out- side rear-view mirrors*
The electric remote-controlled outside rear-view mirrors can be operated when the igni-
tion switch is in the “ON” or “ACC” position or the operation mode is put in ON or ACC.
1. Place the lever (A) to the same side as
the mirror whose adjustment is desired.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
2. Press the switch (B) to the left, right, up
or down to adjust the mirror position. 1- Up
2- Down
3- Right
4- Left
3. Return the lever (A) back to the middle
position (•).
Retracting and extending the
outside mirrors
E00601101930
The outside mirror can be folded in towards
the side window to prevent damage when
parking in narrow areas.
CAUTIONl Do not drive the vehicle with the mirror fol-
ded in.
The lack of rearward visibility normally pro-
vided by the mirror could lead to an acci- dent.
Outside rear-view mirrors
6-10OKTE18E1Starting and driving6 Except for vehicles
equipped with the mirror
retractor switch
Vehicles equipped with
the mirror retractor switch

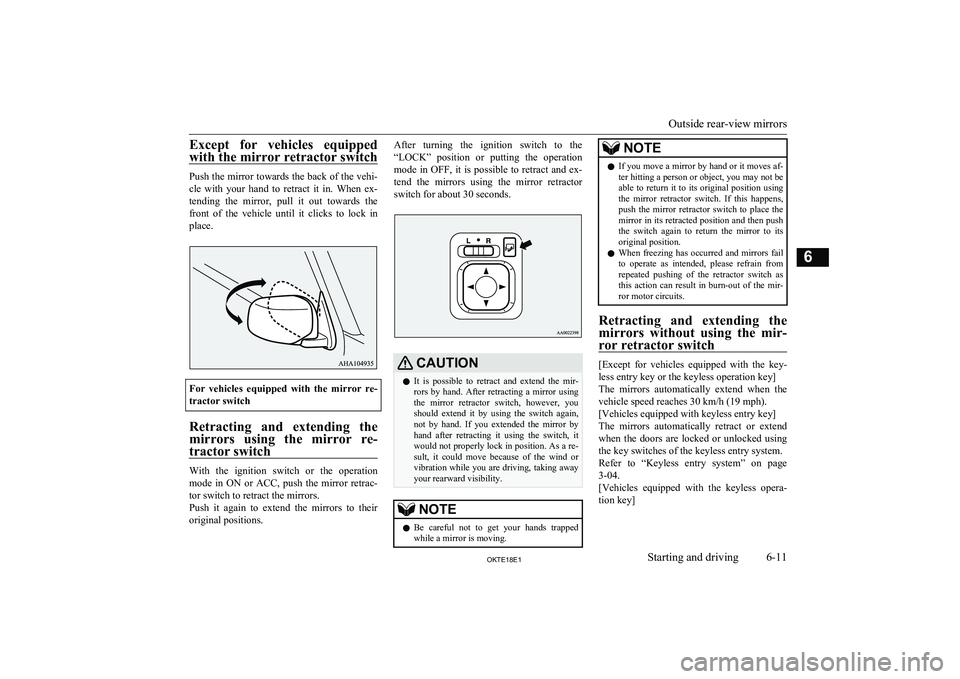

Except for vehicles equippedwith the mirror retractor switch
Push the mirror towards the back of the vehi- cle with your hand to retract it in. When ex-
tending the mirror, pull it out towards the
front of the vehicle until it clicks to lock in
place.
For vehicles equipped with the mirror re-
tractor switch
Retracting and extending the
mirrors using the mirror re-
tractor switch
With the ignition switch or the operation
mode in ON or ACC, push the mirror retrac-
tor switch to retract the mirrors.
Push it again to extend the mirrors to their original positions.
After turning the ignition switch to the
“LOCK” position or putting the operation
mode in OFF, it is possible to retract and ex- tend the mirrors using the mirror retractor
switch for about 30 seconds.CAUTIONl It is possible to retract and extend the mir-
rors by hand. After retracting a mirror using
the mirror retractor switch, however, you should extend it by using the switch again,
not by hand. If you extended the mirror by
hand after retracting it using the switch, it would not properly lock in position. As a re-
sult, it could move because of the wind or
vibration while you are driving, taking away your rearward visibility.NOTEl Be careful not to get your hands trapped
while a mirror is moving.NOTEl If you move a mirror by hand or it moves af-
ter hitting a person or object, you may not beable to return it to its original position using
the mirror retractor switch. If this happens,
push the mirror retractor switch to place the mirror in its retracted position and then push
the switch again to return the mirror to its original position.
l When freezing has occurred and mirrors fail
to operate as intended, please refrain from repeated pushing of the retractor switch as
this action can result in burn-out of the mir- ror motor circuits.
Retracting and extending the
mirrors without using the mir- ror retractor switch
[Except for vehicles equipped with the key-less entry key or the keyless operation key]
The mirrors automatically extend when the
vehicle speed reaches 30 km/h (19 mph).
[Vehicles equipped with keyless entry key]
The mirrors automatically retract or extend when the doors are locked or unlocked using the key switches of the keyless entry system.
Refer to “Keyless entry system” on page 3-04.
[Vehicles equipped with the keyless opera-
tion key]
Outside rear-view mirrors
6-11OKTE18E1Starting and driving6

The mirrors automatically retract or extendwhen the doors are locked or unlocked using the key switches or the keyless operation
function of the keyless operation system.
Refer to “Keyless entry system” on page 3-04.
Refer to “Keyless operation system: To oper- ate using the keyless operation function” on
page 3-10.NOTEl Functions can be modified as stated below.
Please consult a MITSUBISHI MOTORS
Authorized Service Point.
• Automatically extend when the driver’s
door is closed, and then the following op- eration is performed.
[Except vehicles equipped with keyless operation system]
Turn the ignition switch to the “ON” or
“ACC” position.
[Vehicles equipped with keyless operation
system]
Put the operation mode in ON or ACC.
• Automatically retract when the ignition
switch is turned to the “LOCK” position
or the operation mode is put in OFF, and the driver’s door is then opened.
• Automatically extend when the vehicle
speed reaches 30 km/h (19 mph). (vehi-
cles equipped with the keyless entry key
or the keyless operation key)NOTE• Deactivate the automatic extension func-
tion.

The outside rear-view mirrors can be folded
or extended by the following operations,
even if changing to any of the above.
After pressing the “LOCK” switch to lock the doors, if the “LOCK” switch is pressed
again twice in a row within about 30 sec-
onds, the outside rear-view mirrors will re- tract.
After pressing the “UNLOCK” switch to un-
lock the doors, if the “UNLOCK” switch is
pressed again twice in a row within about 30 seconds, the outside rear-view mirrors will
extend again.Heated mirror*
E00601201641
To demist or defrost the outside rear-view
mirrors, press the rear window demister
switch.
The indication lamp (A) will illuminate while
the demister is on.
The heater will be turned off automatically in
about 20 minutes depending on the outside temperature.
Outside rear-view mirrors
6-12OKTE18E1Starting and driving6 Type 1 Type 2
