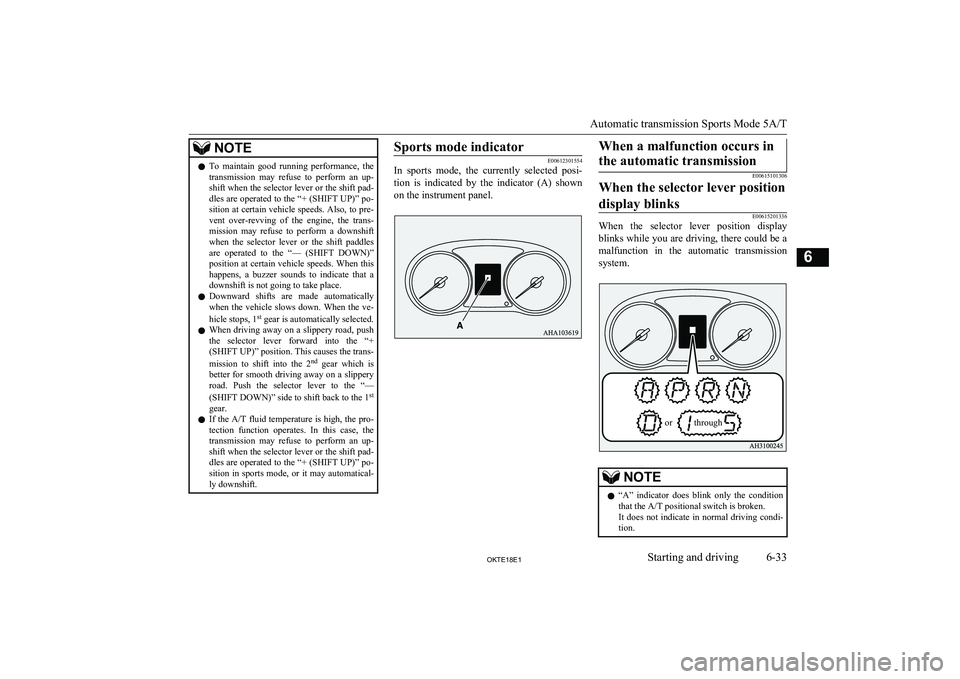

NOTElTo maintain good running performance, the
transmission may refuse to perform an up- shift when the selector lever or the shift pad-dles are operated to the “+ (SHIFT UP)” po-
sition at certain vehicle speeds. Also, to pre- vent over-revving of the engine, the trans-
mission may refuse to perform a downshift when the selector lever or the shift paddlesare operated to the “— (SHIFT DOWN)”
position at certain vehicle speeds. When this
happens, a buzzer sounds to indicate that a downshift is not going to take place.
l Downward shifts are made automatically
when the vehicle slows down. When the ve-
hicle stops, 1 st
gear is automatically selected.
l When driving away on a slippery road, push
the selector lever forward into the “+(SHIFT UP)” position. This causes the trans-
mission to shift into the 2 nd
gear which is
better for smooth driving away on a slippery
road. Push the selector lever to the “—
(SHIFT DOWN)” side to shift back to the 1 st
gear.
l If the
A/T fluid temperature is high, the pro-
tection function operates. In this case, the
transmission may refuse to perform an up- shift when the selector lever or the shift pad-
dles are operated to the “+ (SHIFT UP)” po- sition in sports mode, or it may automatical-
ly downshift.Sports mode indicator
E00612301554
In sports mode, the currently selected posi-
tion is indicated by the indicator (A) shown
on the instrument panel.
When a malfunction occurs in
the automatic transmission
E00615101306
When the selector lever position
display blinks
E00615201336
When the selector lever position display blinks while you are driving, there could be a
malfunction in the automatic transmission system.
NOTEl “A” indicator does blink only the condition
that the A/T positional switch is broken.
It does not indicate in normal driving condi- tion.
Automatic transmission Sports Mode 5A/T
6-33OKTE18E1Starting and driving6 or through

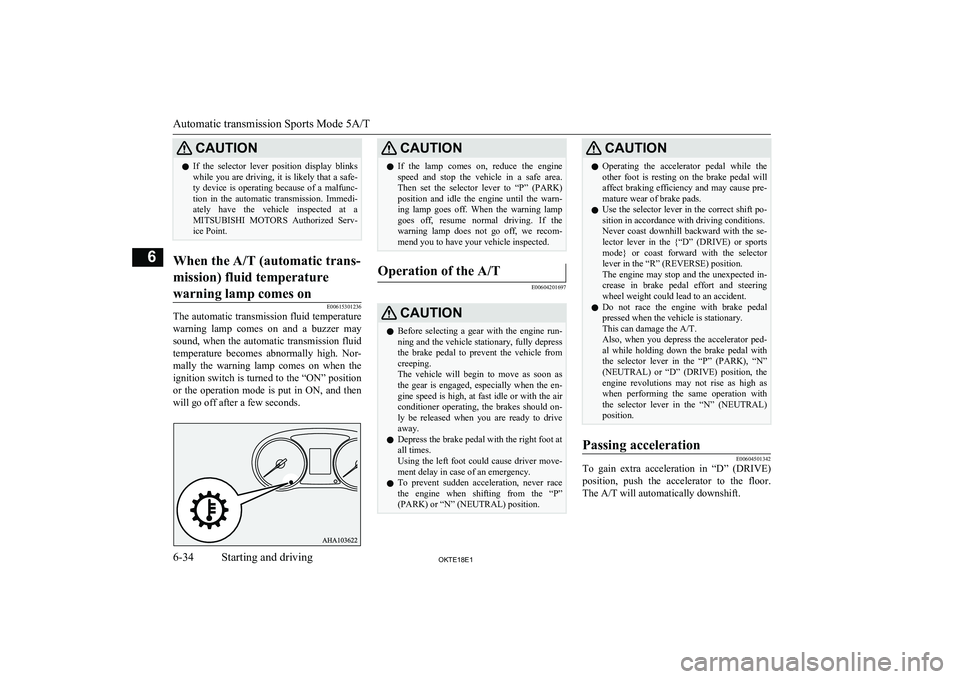

CAUTIONlIf the selector lever position display blinks
while you are driving, it is likely that a safe-
ty device is operating because of a malfunc- tion in the automatic transmission. Immedi-
ately have the vehicle inspected at a MITSUBISHI MOTORS Authorized Serv-
ice Point.When the A/T (automatic trans-
mission) fluid temperature warning lamp comes on
E00615301236
The automatic transmission fluid temperature warning lamp comes on and a buzzer may
sound, when the automatic transmission fluid
temperature becomes abnormally high. Nor- mally the warning lamp comes on when the
ignition switch is turned to the “ON” position or the operation mode is put in ON, and then
will go off after a few seconds.
CAUTIONl If the lamp comes on, reduce the engine
speed and stop the vehicle in a safe area.Then set the selector lever to “P” (PARK)
position and idle the engine until the warn-
ing lamp goes off. When the warning lamp goes off, resume normal driving. If the
warning lamp does not go off, we recom- mend you to have your vehicle inspected.Operation of the A/T
E00604201697
CAUTIONl Before selecting a gear with the engine run-
ning and the vehicle stationary, fully depress
the brake pedal to prevent the vehicle from
creeping.
The vehicle will begin to move as soon as the gear is engaged, especially when the en- gine speed is high, at fast idle or with the airconditioner operating, the brakes should on-
ly be released when you are ready to drive
away.
l Depress the brake pedal with the right foot at
all times.
Using the left foot could cause driver move- ment delay in case of an emergency.
l To prevent sudden acceleration, never race
the engine when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.CAUTIONl Operating the accelerator pedal while the
other foot is resting on the brake pedal will affect braking efficiency and may cause pre-
mature wear of brake pads.
l Use the selector lever in the correct shift po-
sition in accordance with driving conditions.Never coast downhill backward with the se-
lector lever in the {“D” (DRIVE) or sports mode} or coast forward with the selector
lever in the “R” (REVERSE) position.
The engine may stop and the unexpected in- crease in brake pedal effort and steering
wheel weight could lead to an accident.
l Do not race the engine with brake pedal
pressed when the vehicle is stationary.
This can damage the A/T.
Also, when you depress the accelerator ped- al while holding down the brake pedal withthe selector lever in the “P” (PARK), “N”
(NEUTRAL) or “D” (DRIVE) position, the
engine revolutions may not rise as high as when performing the same operation with
the selector lever in the “N” (NEUTRAL)
position.Passing acceleration
E00604501342
To gain extra acceleration in “D” (DRIVE)
position, push the accelerator to the floor.The A/T will automatically downshift.
Automatic transmission Sports Mode 5A/T
6-34OKTE18E1Starting and driving6

NOTElIn sports mode, downshifts do not take place
when the accelerator is depressed all the way to the floor.Waiting
E00604601372
For short waiting periods, such as at traffic
signals, the vehicle can be left in gear and held stationary with the service brake.
For longer waiting periods with the engine
running, place the selector lever in the “N” (NEUTRAL) position and apply the parking
brake, while holding the vehicle stationary with the service brake.
CAUTIONl Never hold the vehicle stationary on a hill
using the accelerator pedal (without using
the brake pedal). Always apply the parking brake and/or service brakes.Parking
E00604700187
To park the vehicle, first bring it to a com-
plete stop, fully engage the parking brake,and then move the selector lever to the “P”
(PARK) position.
If you are going to leave the vehicle unatten-
ded, always switch off the engine and carry the key.
NOTEl On a slope, be sure to apply the parking
brake before moving the selector lever to the
“P” (PARK) position. If you move the selec- tor lever to the “P” (PARK) position before applying the parking brake, it may be diffi-
cult to disengage the selector lever from the
“P” (PARK) position when next you drive the vehicle, requiring application of a strong
force to the selector lever to move from the
“P” (PARK) position.When the automatic transmis-
sion makes no speed change
E00604801882
If the transmission does not change speeds
while driving, or your vehicle does not pick up enough speed when starting on an uphillslope, it may be that there is something un-
usual happening in the transmission, causing a safety device to activate. Immediately have
your vehicle checked at a MITSUBISHI
MOTORS Authorized Service Point. 1. If your vehicle has difficulty moving up-
hill, shift the selector lever into 2 nd
gear
of the sports mode. This method might
not work depending on the transmission malfunction.
2. Once the vehicle is moving on a level
road, move the selector lever back to“D” (DRIVE).
NOTEl When the selector lever position display in
the instrument panel blinks, it means that
there is an abnormal condition in the trans- mission.
Refer to “When the selector lever position
display blinks” on page 6-33.Easy Select 4WD*
E00614701259
Shifting to rear-wheel drive or 4-wheel drivecan be made by operating the drive mode-se-
lector (A). Set the drive mode-selector to an appropriate position according to the roadsurface conditions. In addition, the 2WD/4WD operation indication lamp and the
low-range indication lamp indicates the drive
mode-selector setting state. Refer to “2WD/4WD operation indication lamp and low-range indication lamp” on page 6-38.
Easy Select 4WD*
6-35OKTE18E1Starting and driving6

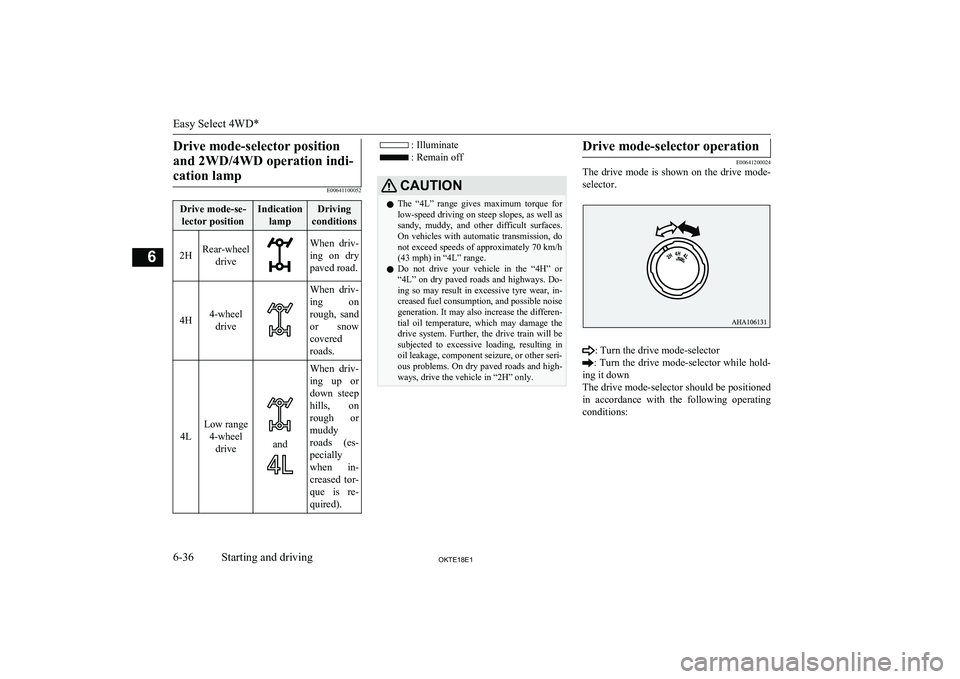

Drive mode-selector positionand 2WD/4WD operation indi- cation lamp
E00641100052
Drive mode-se- lector positionIndication lampDriving
conditions
2HRear-wheel driveWhen driv-
ing on dry paved road.
4H4-wheel drive
When driv-
ing on rough, sand
or snow covered
roads.
4L
Low range 4-wheel drive
and
When driv-
ing up or down steep
hills, on rough or
muddy
roads (es- pecially
when in-
creased tor-
que is re- quired).: Illuminate
: Remain offCAUTIONl The “4L” range gives maximum torque for
low-speed driving on steep slopes, as well assandy, muddy, and other difficult surfaces.
On vehicles with automatic transmission, do not exceed speeds of approximately 70 km/h
(43 mph) in “4L” range.
l Do not drive your vehicle in the “4H” or
“4L” on dry paved roads and highways. Do-
ing so may result in excessive tyre wear, in-
creased fuel consumption, and possible noise
generation. It may also increase the differen-
tial oil temperature, which may damage the drive system. Further, the drive train will besubjected to excessive loading, resulting in
oil leakage, component seizure, or other seri-
ous problems. On dry paved roads and high- ways, drive the vehicle in “2H” only.Drive mode-selector operation
E00641200024
The drive mode is shown on the drive mode-
selector.
: Turn the drive mode-selector
: Turn the drive mode-selector while hold-
ing it down
The drive mode-selector should be positioned
in accordance with the following operating conditions:
Easy Select 4WD*
6-36OKTE18E1Starting and driving6

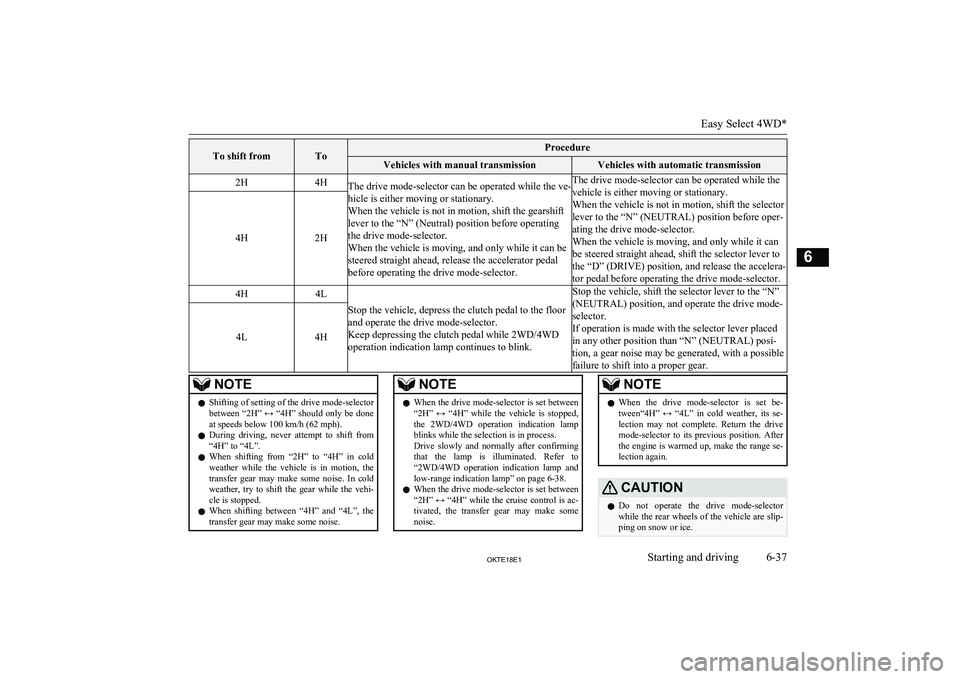

To shift fromToProcedureVehicles with manual transmissionVehicles with automatic transmission2H4HThe drive mode-selector can be operated while the ve-
hicle is either moving or stationary.
When the vehicle is not in motion, shift the gearshift
lever to the “N” (Neutral) position before operating
the drive mode-selector.
When the vehicle is moving, and only while it can be steered straight ahead, release the accelerator pedal
before operating the drive mode-selector.The drive mode-selector can be operated while the
vehicle is either moving or stationary.
When the vehicle is not in motion, shift the selector
lever to the “N” (NEUTRAL) position before oper-
ating the drive mode-selector.
When the vehicle is moving, and only while it can
be steered straight ahead, shift the selector lever to
the “D” (DRIVE) position, and release the accelera- tor pedal before operating the drive mode-selector.
4H2H
4H4L
Stop the vehicle, depress the clutch pedal to the floor
and operate the drive mode-selector.
Keep depressing the clutch pedal while 2WD/4WD
operation indication lamp continues to blink.
Stop the vehicle, shift the selector lever to the “N”
(NEUTRAL) position, and operate the drive mode-
selector.
If operation is made with the selector lever placed
in any other position than “N” (NEUTRAL) posi-
tion, a gear noise may be generated, with a possible
failure to shift into a proper gear.
4L4H
NOTEl Shifting of setting of the drive mode-selector
between “2H” ↔ “4H” should only be doneat speeds below 100 km/h (62 mph).
l During driving, never attempt to shift from
“4H” to “4L”.
l When shifting from “2H” to “4H” in cold
weather while the vehicle is in motion, the transfer gear may make some noise. In cold
weather, try to shift the gear while the vehi-
cle is stopped.
l When shifting between “4H” and “4L”, the
transfer gear may make some noise.NOTEl When the drive mode-selector is set between
“2H” ↔ “4H” while the vehicle is stopped,
the 2WD/4WD operation indication lamp blinks while the selection is in process.
Drive slowly and normally after confirming that the lamp is illuminated. Refer to “2WD/4WD operation indication lamp and
low-range indication lamp” on page 6-38.
l When the drive mode-selector is set between
“2H” ↔ “4H” while the cruise control is ac-
tivated, the transfer gear may make some
noise.NOTEl When the drive mode-selector is set be-
tween“4H” ↔ “4L” in cold weather, its se-
lection may not complete. Return the drive mode-selector to its previous position. After
the engine is warmed up, make the range se- lection again.CAUTIONl Do not operate the drive mode-selector
while the rear wheels of the vehicle are slip-
ping on snow or ice.
Easy Select 4WD*
6-37OKTE18E1Starting and driving6

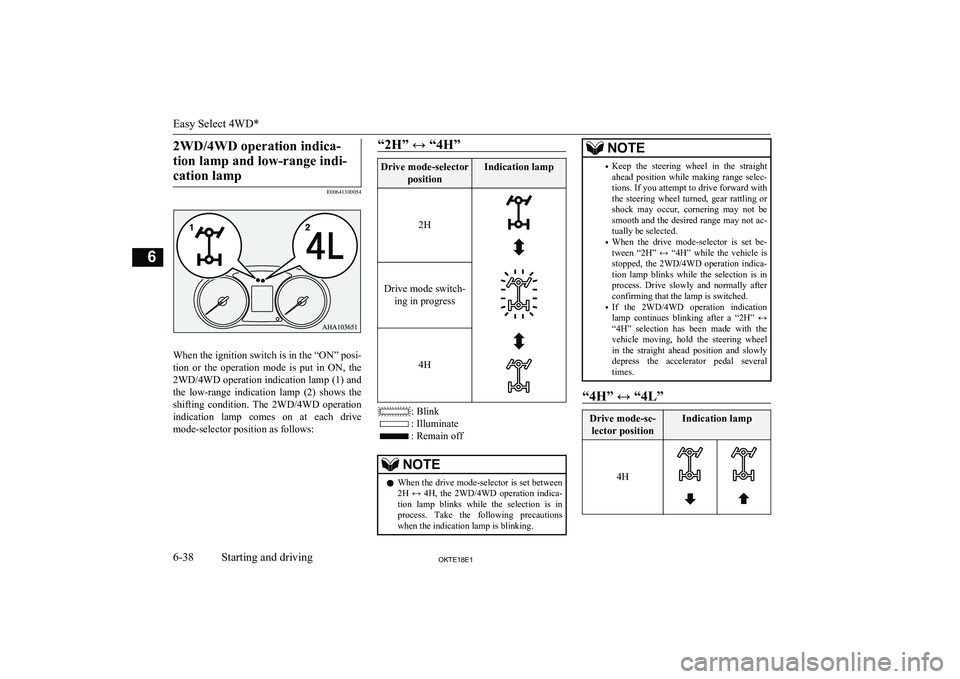

2WD/4WD operation indica-tion lamp and low-range indi- cation lamp
E00641300054
When the ignition switch is in the “ON” posi-
tion or the operation mode is put in ON, the 2WD/4WD operation indication lamp (1) andthe low-range indication lamp (2) shows the
shifting condition. The 2WD/4WD operation
indication lamp comes on at each drive mode-selector position as follows:
“2H” ↔ “4H”Drive mode-selector
positionIndication lamp
2HDrive mode switch-ing in progress4H
: Blink
: Illuminate
: Remain off
NOTEl When the drive mode-selector is set between
2H ↔ 4H, the 2WD/4WD operation indica-tion lamp blinks while the selection is in
process. Take the following precautions
when the indication lamp is blinking.NOTE• Keep the steering wheel in the straight
ahead position while making range selec-
tions. If you attempt to drive forward with the steering wheel turned, gear rattling or
shock may occur, cornering may not be smooth and the desired range may not ac-
tually be selected.
• When the drive mode-selector is set be-
tween “2H” ↔ “4H” while the vehicle isstopped, the 2WD/4WD operation indica-
tion lamp blinks while the selection is in
process. Drive slowly and normally after confirming that the lamp is switched.
• If the 2WD/4WD operation indication
lamp continues blinking after a “2H” ↔
“4H” selection has been made with the vehicle moving, hold the steering wheel in the straight ahead position and slowly
depress the accelerator pedal several
times.
“4H” ↔ “4L”
Drive mode-se-
lector positionIndication lamp
4HEasy Select 4WD*
6-38OKTE18E1Starting and driving6

Drive mode-se-lector positionIndication lamp
Drive mode
switching in pro- gress
and
4Landand
: Blink
: Illuminate
: Remain off

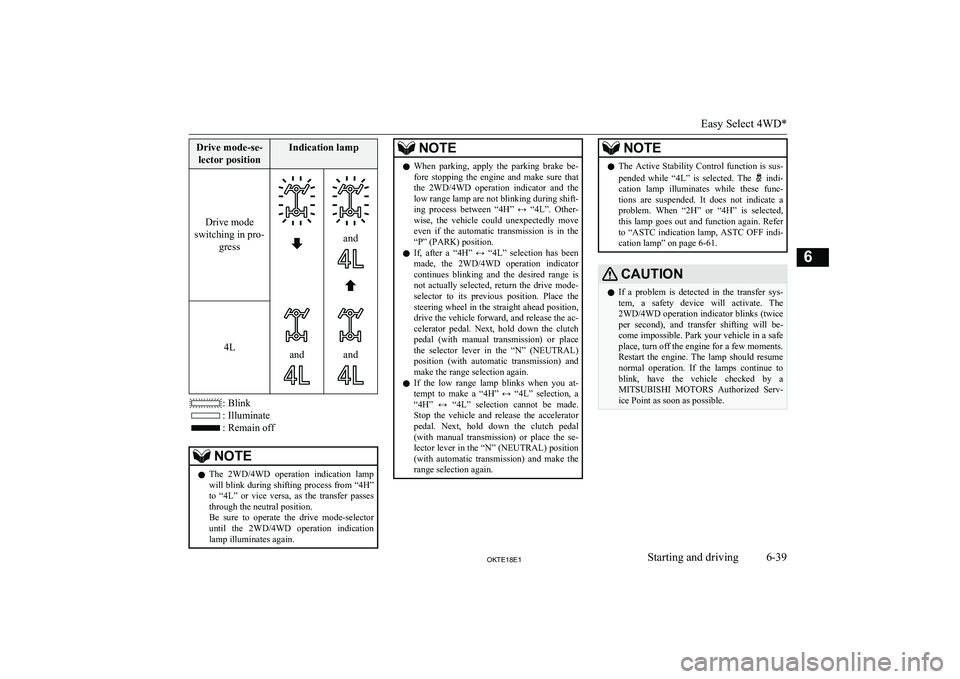

NOTElThe 2WD/4WD operation indication lamp
will blink during shifting process from “4H”to “4L” or vice versa, as the transfer passes
through the neutral position.
Be sure to operate the drive mode-selector
until the 2WD/4WD operation indication lamp illuminates again.NOTEl When parking, apply the parking brake be-
fore stopping the engine and make sure that the 2WD/4WD operation indicator and the low range lamp are not blinking during shift-ing process between “4H” ↔ “4L”. Other- wise, the vehicle could unexpectedly move
even if the automatic transmission is in the
“P” (PARK) position.
l If, after a “4H” ↔ “4L” selection has been
made, the 2WD/4WD operation indicator
continues blinking and the desired range is not actually selected, return the drive mode- selector to its previous position. Place the steering wheel in the straight ahead position,
drive the vehicle forward, and release the ac- celerator pedal. Next, hold down the clutch
pedal (with manual transmission) or place the selector lever in the “N” (NEUTRAL)
position (with automatic transmission) and make the range selection again.
l If the low range lamp blinks when you at-
tempt to make a “4H” ↔ “4L” selection, a
“4H” ↔ “4L” selection cannot be made. Stop the vehicle and release the accelerator
pedal. Next, hold down the clutch pedal (with manual transmission) or place the se-lector lever in the “N” (NEUTRAL) position(with automatic transmission) and make the range selection again.NOTEl The Active Stability Control function is sus-
pended while “4L” is selected. The indi-
cation lamp illuminates while these func- tions are suspended. It does not indicate a
problem. When “2H” or “4H” is selected,
this lamp goes out and function again. Refer to “ASTC indication lamp, ASTC OFF indi- cation lamp” on page 6-61.CAUTIONl If a problem is detected in the transfer sys-
tem, a safety device will activate. The 2WD/4WD operation indicator blinks (twiceper second), and transfer shifting will be-
come impossible. Park your vehicle in a safe place, turn off the engine for a few moments.Restart the engine. The lamp should resume normal operation. If the lamps continue to
blink, have the vehicle checked by a MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible.
Easy Select 4WD*
6-39OKTE18E1Starting and driving6

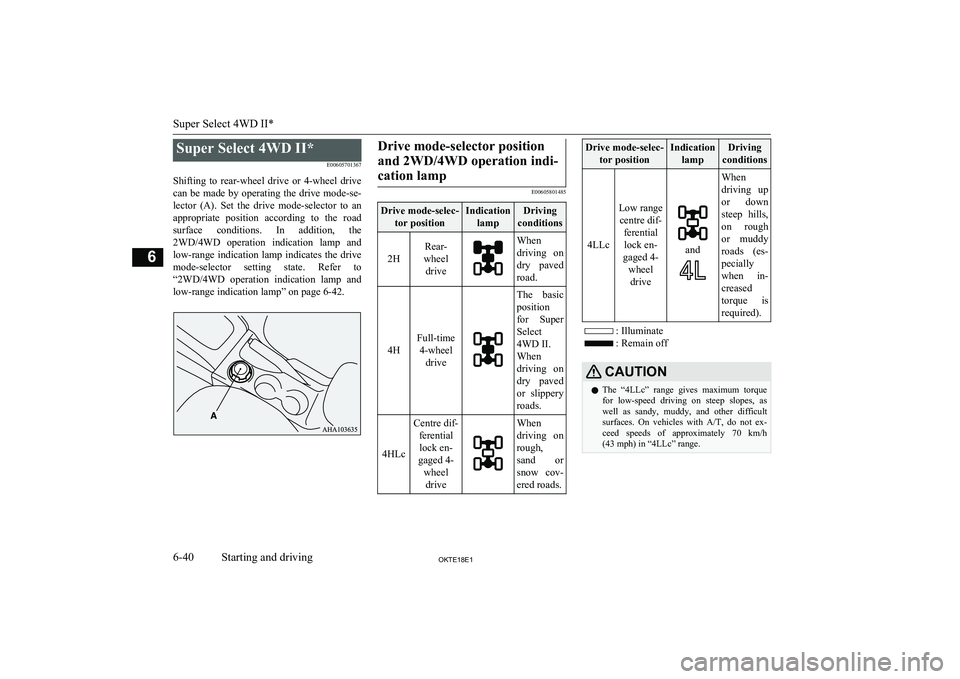

Super Select 4WD II*E00605701367
Shifting to rear-wheel drive or 4-wheel drive can be made by operating the drive mode-se-
lector (A). Set the drive mode-selector to an appropriate position according to the roadsurface conditions. In addition, the 2WD/4WD operation indication lamp andlow-range indication lamp indicates the drive
mode-selector setting state. Refer to “2WD/4WD operation indication lamp and
low-range indication lamp” on page 6-42.Drive mode-selector position
and 2WD/4WD operation indi- cation lamp
E00605801485
Drive mode-selec- tor positionIndicationlampDriving
conditions
2H
Rear-
wheel driveWhen
driving on
dry paved road.
4H
Full-time 4-wheel drive
The basic
position
for Super Select
4WD II.
When
driving on
dry paved
or slippery roads.
4HLc
Centre dif- ferentiallock en-
gaged 4- wheeldriveWhen
driving on
rough,
sand or snow cov-ered roads.Drive mode-selec- tor positionIndicationlampDriving
conditions
4LLc
Low range centre dif- ferentiallock en-
gaged 4- wheeldrive
and
When
driving up
or down steep hills,on rough or muddy
roads (es- pecially
when in-
creased
torque is required).
: Illuminate
: Remain off
CAUTIONl The “4LLc” range gives maximum torque
for low-speed driving on steep slopes, as
well as sandy, muddy, and other difficult
surfaces. On vehicles with A/T, do not ex-
ceed speeds of approximately 70 km/h
(43 mph) in “4LLc” range.
Super Select 4WD II*
6-40OKTE18E1Starting and driving6

CAUTIONlDo not drive your vehicle in the “4HLc” or
“4LLc” position on dry paved roads and highways. Doing so may result in excessivetyre wear, increased fuel consumption, and
possible noise generation. It may also in-
crease the differential oil temperature, which
may damage the drive system. Further, the drive train will be subjected to excessive loading, resulting in oil leakage, component
seizure, or other serious problems. On dry
paved roads and highways, drive the vehicle
in “2H” or “4H” only.Drive mode-selector operation
E00605901402

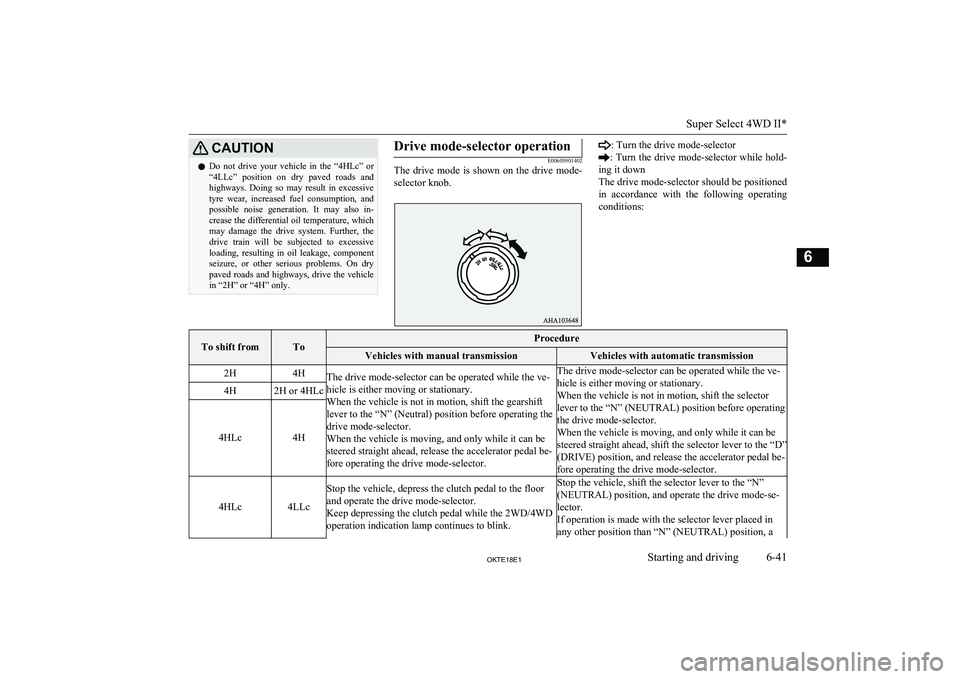

The drive mode is shown on the drive mode-
selector knob.
: Turn the drive mode-selector
: Turn the drive mode-selector while hold-
ing it down
The drive mode-selector should be positioned
in accordance with the following operating conditions:To shift fromToProcedureVehicles with manual transmissionVehicles with automatic transmission2H4HThe drive mode-selector can be operated while the ve-
hicle is either moving or stationary.
When the vehicle is not in motion, shift the gearshift
lever to the “N” (Neutral) position before operating the
drive mode-selector.
When the vehicle is moving, and only while it can be
steered straight ahead, release the accelerator pedal be- fore operating the drive mode-selector.The drive mode-selector can be operated while the ve-
hicle is either moving or stationary.
When the vehicle is not in motion, shift the selector
lever to the “N” (NEUTRAL) position before operating
the drive mode-selector.
When the vehicle is moving, and only while it can be
steered straight ahead, shift the selector lever to the “D”
(DRIVE) position, and release the accelerator pedal be-
fore operating the drive mode-selector.4H2H or 4HLc
4HLc4H4HLc4LLc
Stop the vehicle, depress the clutch pedal to the floor
and operate the drive mode-selector.
Keep depressing the clutch pedal while the 2WD/4WD
operation indication lamp continues to blink.Stop the vehicle, shift the selector lever to the “N”
(NEUTRAL) position, and operate the drive mode-se-
lector.
If operation is made with the selector lever placed in any other position than “N” (NEUTRAL) position, a
Super Select 4WD II*
6-41OKTE18E1Starting and driving6

To shift fromToProcedureVehicles with manual transmissionVehicles with automatic transmission4LLc4HLcgear noise may be generated, with a possible failure to
shift into a proper gear.NOTEl Setting of the drive mode-selector between
“2H”, “4H” and “4HLc” should only bedone at speeds below 100 km/h (62 mph).
l During driving, never attempt to shift from
“4HLc” to “4LLc”.
l When shifting between “2H”, “4H” and
“4HLc” in cold weather while the vehicle is
in motion, the transfer gear may make some noise. In cold weather, try to shift the gearwhile the vehicle is stopped.
l When shifting between “4LLc” and “4HLc”,
the transfer gear may make some noise.
l When the drive mode-selector is set between
“2H”, “4H” and “4HLc” while the vehicle is
stopped, the 2WD/4WD operation indication lamp blinks while the selection is in process. Drive slowly and normally after confirmingthat the lamp is illuminated. (Refer to “2WD/4WD operation indication lamp and
low-range indication lamp” on page 6-42.)
l When the drive mode-selector is set between
“2H”, “4H” and “4HLc” while the cruise
control is activated, the transfer gear may
make some noise.NOTEl When the drive mode-selector is set be-
tween“4HLc” ↔ “4LLc” in cold weather, its selection may not complete. Return the drivemode-selector to its previous position. After
the engine is warmed up, make the range se-
lection again.CAUTIONl Do not operate the drive mode-selector
while the rear wheels of the vehicle are slip-

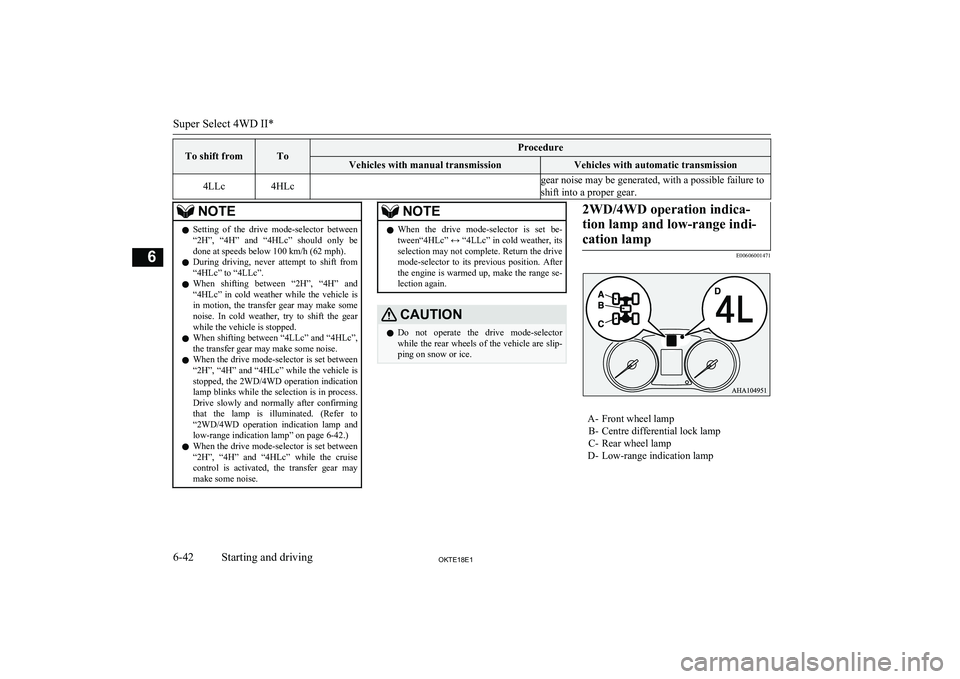

ping on snow or ice.2WD/4WD operation indica-
tion lamp and low-range indi- cation lamp
E00606001471
A- Front wheel lamp B- Centre differential lock lamp
C- Rear wheel lamp
D- Low-range indication lamp
Super Select 4WD II*
6-42OKTE18E1Starting and driving6
