MITSUBISHI L200 2018 Owner's Manual (in English)

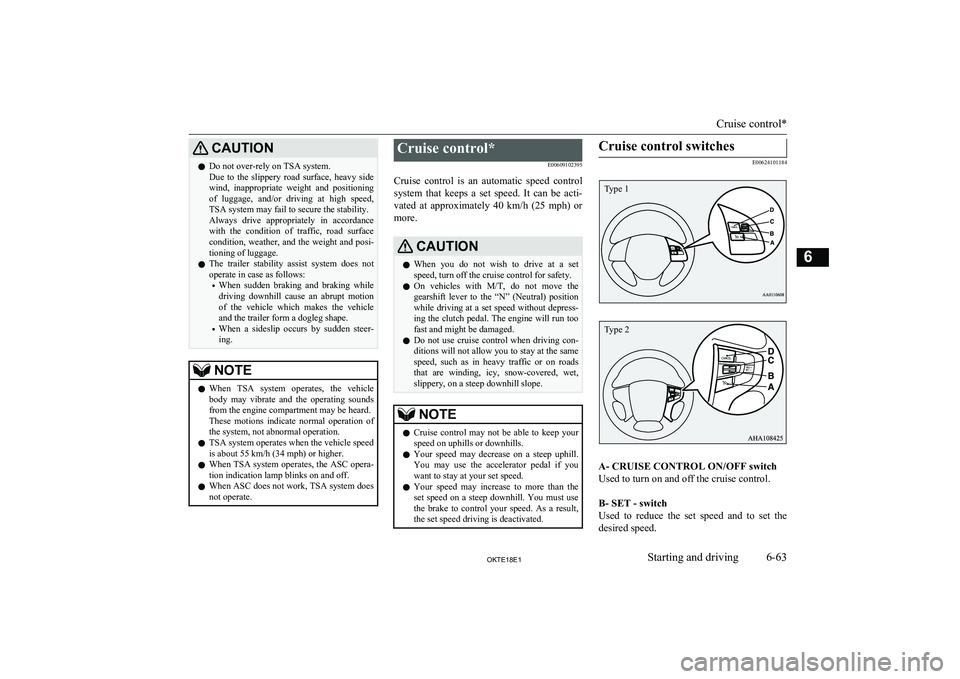

CAUTIONlDo not over-rely on TSA system.
Due to the slippery road surface, heavy side wind, inappropriate weight and positioning
of luggage, and/or driving at high speed,
TSA system may fail to secure the stability. Always drive appropriately in accordance with the condition of traffic, road surface condition, weather, and the weight and posi-tioning of luggage.
l The trailer stability assist system does not
operate in case as follows:
• When sudden braking and braking while
driving downhill cause an abrupt motion
of the vehicle which makes the vehicle and the trailer form a dogleg shape.
• When a sideslip occurs by sudden steer-
ing.NOTEl When TSA system operates, the vehicle
body may vibrate and the operating sounds
from the engine compartment may be heard.
These motions indicate normal operation of
the system, not abnormal operation.
l TSA system operates when the vehicle speed
is about 55 km/h (34 mph) or higher.
l When TSA system operates, the ASC opera-
tion indication lamp blinks on and off.
l When ASC does not work, TSA system does
not operate.Cruise control*
E00609102395
Cruise control is an automatic speed control system that keeps a set speed. It can be acti-vated at approximately 40 km/h (25 mph) or
more.CAUTIONl When you do not wish to drive at a set
speed, turn off the cruise control for safety.
l On vehicles with
M/T, do not move the
gearshift lever to the “N” (Neutral) position while driving at a set speed without depress-
ing the clutch pedal. The engine will run too
fast and might be damaged.
l Do not use cruise control when driving con-
ditions will not allow you to stay at the same speed, such as in heavy traffic or on roadsthat are winding, icy, snow-covered, wet,
slippery, on a steep downhill slope.NOTEl Cruise control may not be able to keep your
speed on uphills or downhills.
l Your speed may decrease on a steep uphill.
You may use the accelerator pedal if you
want to stay at your set speed.
l Your speed may increase to more than the
set speed on a steep downhill. You must use the brake to control your speed. As a result, the set speed driving is deactivated.Cruise control switches
E00624101184
A- CRUISE CONTROL ON/OFF switch
Used to turn on and off the cruise control.
B- SET - switch
Used to reduce the set speed and to set the
desired speed.

Cruise control*
6-63OKTE18E1Starting and driving6 Type 1 Type 2

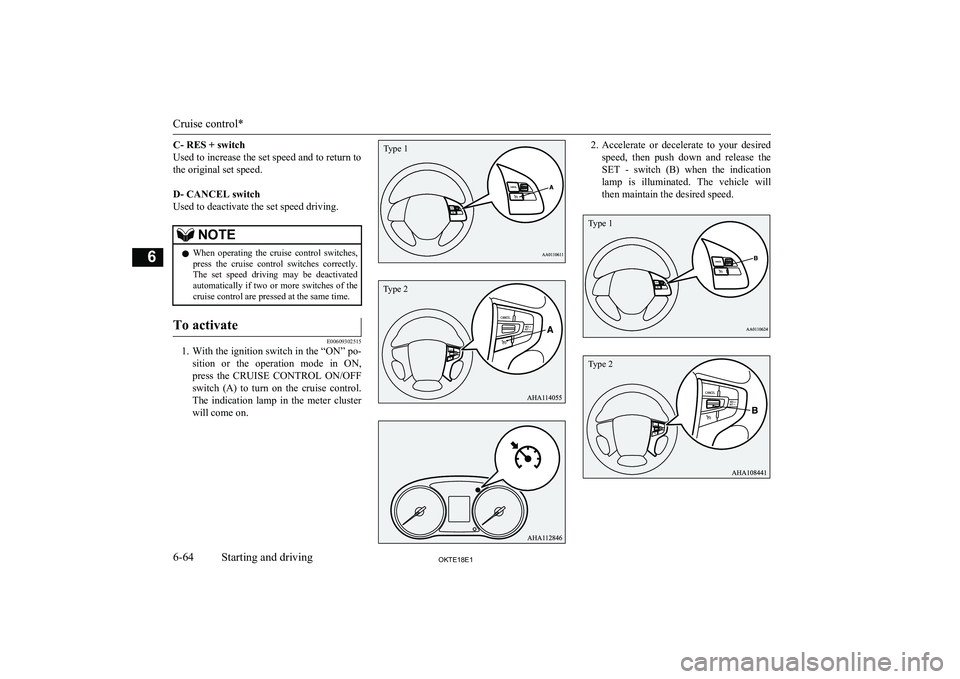

C- RES + switch
Used to increase the set speed and to return to
the original set speed.

D- CANCEL switch
Used to deactivate the set speed driving.NOTEl When operating the cruise control switches,
press the cruise control switches correctly.
The set speed driving may be deactivated automatically if two or more switches of the
cruise control are pressed at the same time.To activate
E00609302515
1. With the ignition switch in the “ON” po-
sition or the operation mode in ON, press the CRUISE CONTROL ON/OFF
switch (A) to turn on the cruise control. The indication lamp in the meter clusterwill come on.
2. Accelerate or decelerate to your desired
speed, then push down and release the SET - switch (B) when the indication
lamp is illuminated. The vehicle will then maintain the desired speed.
Cruise control*
6-64OKTE18E1Starting and driving6 Type 1 Type 2 Type 1 Type 2

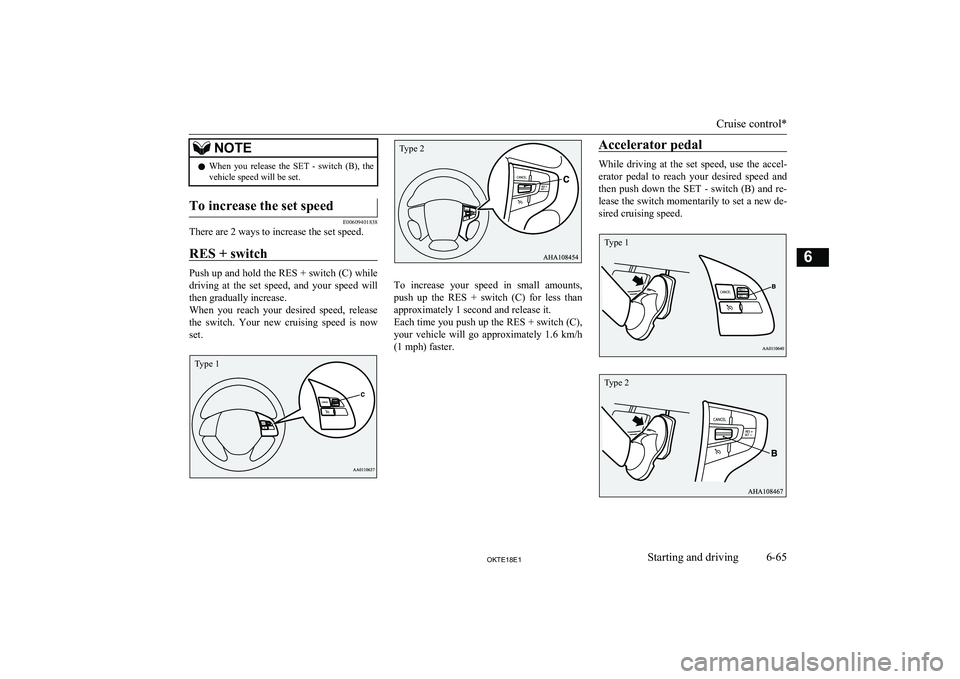

NOTElWhen you release the SET - switch (B), the
vehicle speed will be set.To increase the set speed
E00609401838
There are 2 ways to increase the set speed.
RES + switch
Push up and hold the RES + switch (C) whiledriving at the set speed, and your speed will
then gradually increase.
When you reach your desired speed, release the switch. Your new cruising speed is now
set.
To increase your speed in small amounts,
push up the RES + switch (C) for less than approximately 1 second and release it.
Each time you push up the RES + switch (C), your vehicle will go approximately 1.6 km/h (1 mph) faster.
Accelerator pedal
While driving at the set speed, use the accel-
erator pedal to reach your desired speed and
then push down the SET - switch (B) and re- lease the switch momentarily to set a new de-
sired cruising speed.Cruise control*
6-65OKTE18E1Starting and driving6 Type 1 Type 2 Type 1 Type 2

To decrease the set speed
E00609501770
There are 2 ways to decrease the set speed.
SET - switch
Push down and hold the SET - switch (B) while driving at the set speed, and your speed
will slow down gradually.
When you reach your desired speed, release the switch. Your new cruising speed is nowset.
To slow down your speed in small amounts,
push down the SET - switch (B) for less than approximately 1 second and release it.
Each time you push down the SET - switch (B), your vehicle will slow down by approxi-
mately 1.6 km/h (1 mph).
Brake pedal
While driving at the set speed, use the brake
pedal, which disengages the cruise control,
then push down the SET - switch (B) and re-
lease the switch momentarily to set a new de- sired cruising speed.Cruise control*
6-66OKTE18E1Starting and driving6Type 1 Type 2 Type 1 Type 2

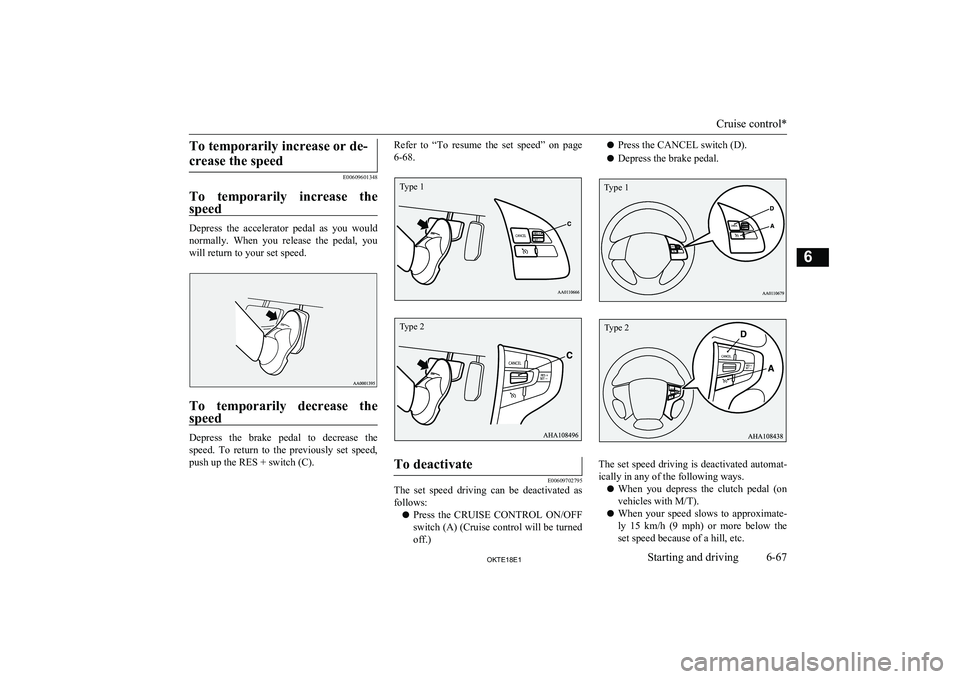

To temporarily increase or de-crease the speed
E00609601348
To temporarily increase the speed
Depress the accelerator pedal as you would
normally. When you release the pedal, you will return to your set speed.
To temporarily decrease the
speed
Depress the brake pedal to decrease the speed. To return to the previously set speed,
push up the RES + switch (C).
Refer to “To resume the set speed” on page
6-68.To deactivate
E00609702795
The set speed driving can be deactivated as
follows:
l Press the CRUISE CONTROL ON/OFF
switch (A) (Cruise control will be turned off.)
l Press the CANCEL switch (D).
l Depress the brake pedal.
The set speed driving is deactivated automat-
ically in any of the following ways.
l When you depress the clutch pedal (on
vehicles with M/T).
l When your speed slows to approximate-
ly 15 km/h (9 mph) or more below the set speed because of a hill, etc.
Cruise control*
6-67OKTE18E1Starting and driving6 Type 1 Type 2 Type 1 Type 2

lWhen your speed slows to approximate-
ly 40 km/h (25 mph) or less.
l When the Active Stability & Traction
control (ASTC) starts operating.
Refer to “Active Stability & Traction
Control (ASTC)” on page 6-59.WARNINGl On vehicles equipped with
A/T, although
the set driving speed will be deactivated when shifting to the “N” (NEUTRAL) po-
sition, never move the selector lever to the “N” (NEUTRAL) position while driving.
You would have no engine braking and
could cause a serious accident.
Also, the set speed driving may be deactiva-
ted as follows:
l When the engine speed rises and ap-
proaches the tachometer’s red zone (the red-coloured part of the tachometer di-
al).
CAUTIONl When the set speed driving is deactivated
automatically in any situation other thanthose listed above, there may be a system
malfunction.
Press the CRUISE CONTROL ON/OFF switch to turn off the cruise control and have your vehicle inspected by a MITSUBISHI
MOTORS Authorized Service Point.To resume the set speed
E00609801959
If the set driving speed is deactivated by the
condition described in “To deactivate” on
page 6-67, you can resume the previously set
speed by pushing up the RES + switch (C)
while driving at a speed of approximately 40 km/h (25 mph) or higher.
Cruise control*
6-68OKTE18E1Starting and driving6 Type 1 Type 2

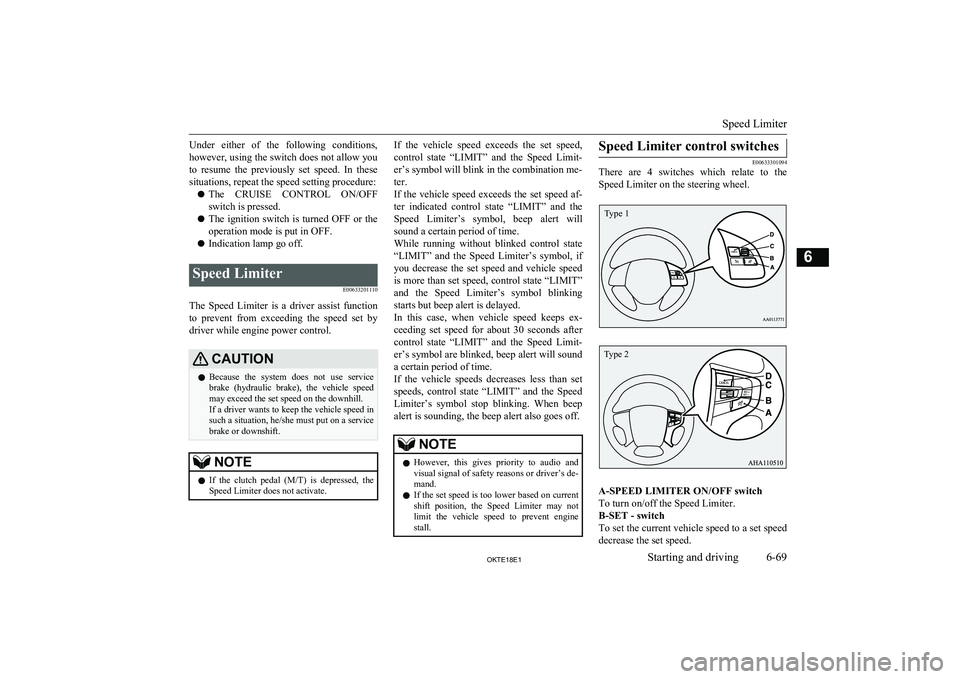

Under either of the following conditions,however, using the switch does not allow you
to resume the previously set speed. In these
situations, repeat the speed setting procedure:
l The CRUISE CONTROL ON/OFF
switch is pressed.
l The ignition switch is turned OFF or the
operation mode is put in OFF.
l Indication lamp go off.Speed Limiter
E00633201110
The Speed Limiter is a driver assist functionto prevent from exceeding the speed set by
driver while engine power control.
CAUTIONl Because the system does not use service
brake (hydraulic brake), the vehicle speed may exceed the set speed on the downhill.
If a driver wants to keep the vehicle speed in such a situation, he/she must put on a servicebrake or downshift.NOTEl If the clutch pedal
(M/T) is depressed, the
Speed Limiter does not activate.If the vehicle speed exceeds the set speed,
control state “LIMIT” and the Speed Limit-
er’s symbol will blink in the combination me-
ter.
If the vehicle speed exceeds the set speed af- ter indicated control state “LIMIT” and the
Speed Limiter’s symbol, beep alert will sound a certain period of time.
While running without blinked control state “LIMIT” and the Speed Limiter’s symbol, if
you decrease the set speed and vehicle speed is more than set speed, control state “LIMIT” and the Speed Limiter’s symbol blinking
starts but beep alert is delayed.
In this case, when vehicle speed keeps ex- ceeding set speed for about 30 seconds after
control state “LIMIT” and the Speed Limit- er’s symbol are blinked, beep alert will sound
a certain period of time.
If the vehicle speeds decreases less than set
speeds, control state “LIMIT” and the Speed Limiter’s symbol stop blinking. When beep
alert is sounding, the beep alert also goes off.NOTEl However, this gives priority to audio and
visual signal of safety reasons or driver’s de-mand.
l If the set speed is too lower based on current
shift position, the Speed Limiter may not
limit the vehicle speed to prevent engine stall.Speed Limiter control switches
E00633301094
There are 4 switches which relate to the
Speed Limiter on the steering wheel.
A-SPEED LIMITER ON/OFF switch
To turn on/off the Speed Limiter.
B-SET - switch
To set the current vehicle speed to a set speed decrease the set speed.
Speed Limiter
6-69OKTE18E1Starting and driving6 Type 1 Type 2

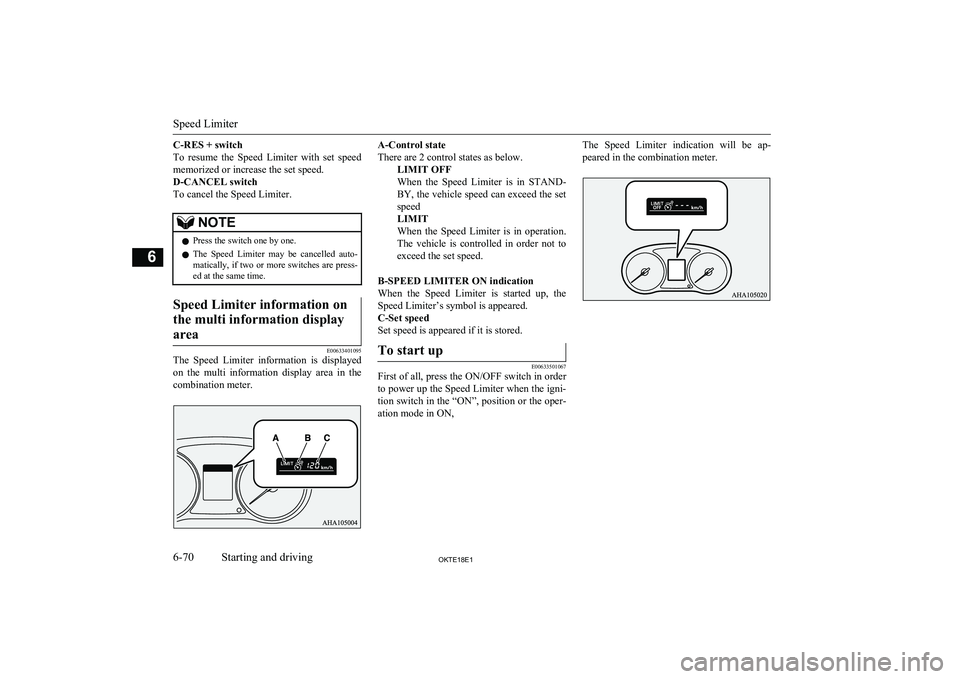

C-RES + switch
To resume the Speed Limiter with set speed memorized or increase the set speed.
D-CANCEL switch
To cancel the Speed Limiter.NOTEl Press the switch one by one.
l The Speed Limiter may be cancelled auto-
matically, if two or more switches are press-ed at the same time.Speed Limiter information on
the multi information display area
E00633401095
The Speed Limiter information is displayed on the multi information display area in the
combination meter.
A-Control state
There are 2 control states as below. LIMIT OFF
When the Speed Limiter is in STAND-
BY, the vehicle speed can exceed the set speed
LIMIT
When the Speed Limiter is in operation.
The vehicle is controlled in order not to exceed the set speed.
B-SPEED LIMITER ON indication
When the Speed Limiter is started up, the Speed Limiter’s symbol is appeared.
C-Set speed
Set speed is appeared if it is stored.To start up
E00633501067
First of all, press the ON/OFF switch in order to power up the Speed Limiter when the igni-
tion switch in the “ON”, position or the oper- ation mode in ON,
The Speed Limiter indication will be ap-
peared in the combination meter.
Speed Limiter
6-70OKTE18E1Starting and driving6

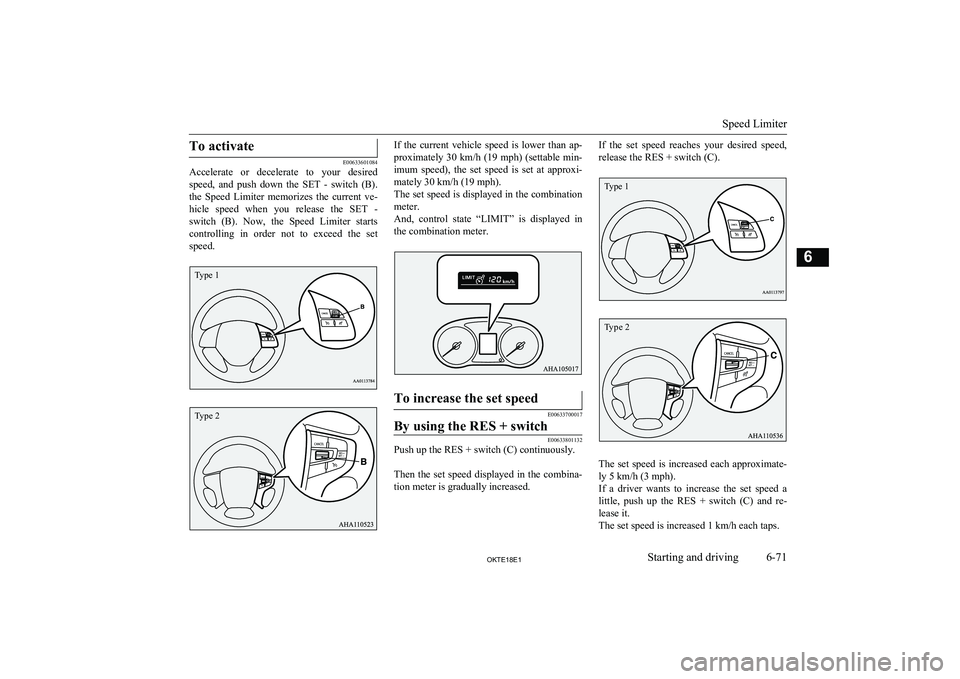

To activate
E00633601084
Accelerate or decelerate to your desired
speed, and push down the SET - switch (B).the Speed Limiter memorizes the current ve-
hicle speed when you release the SET -
switch (B). Now, the Speed Limiter starts controlling in order not to exceed the set speed.
If the current vehicle speed is lower than ap-proximately 30 km/h (19 mph) (settable min- imum speed), the set speed is set at approxi-
mately 30 km/h (19 mph).
The set speed is displayed in the combination meter.
And, control state “LIMIT” is displayed in
the combination meter.To increase the set speed
E00633700017
By using the RES + switch
E00633801132
Push up the RES + switch (C) continuously.
Then the set speed displayed in the combina- tion meter is gradually increased.
If the set speed reaches your desired speed,
release the RES + switch (C).
The set speed is increased each approximate- ly 5 km/h (3 mph).
If a driver wants to increase the set speed a
little, push up the RES + switch (C) and re- lease it.
The set speed is increased 1 km/h each taps.
Speed Limiter
6-71OKTE18E1Starting and driving6Type 1 Type 2 Type 1 Type 2

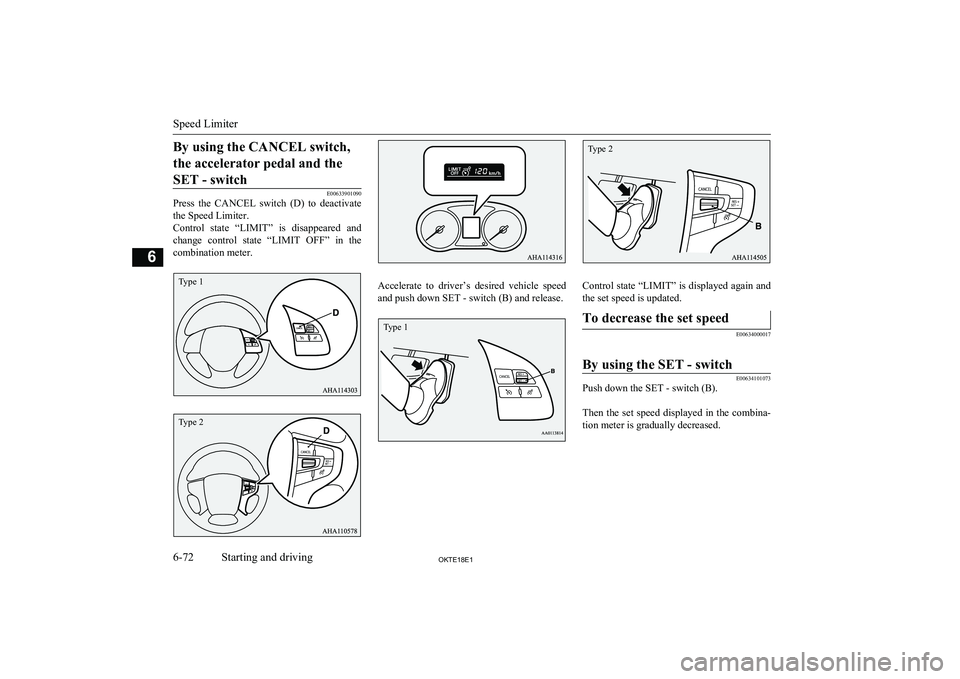

By using the CANCEL switch,the accelerator pedal and the SET - switch
E00633901090
Press the CANCEL switch (D) to deactivate
the Speed Limiter.
Control state “LIMIT” is disappeared and
change control state “LIMIT OFF” in the combination meter.
Accelerate to driver’s desired vehicle speedand push down SET - switch (B) and release.Control state “LIMIT” is displayed again andthe set speed is updated.
To decrease the set speed
E00634000017

By using the SET - switch
E00634101073
Push down the SET - switch (B).

Then the set speed displayed in the combina- tion meter is gradually decreased.
Speed Limiter
6-72OKTE18E1Starting and driving6Type 1 Type 2 Type 1 Type 2
