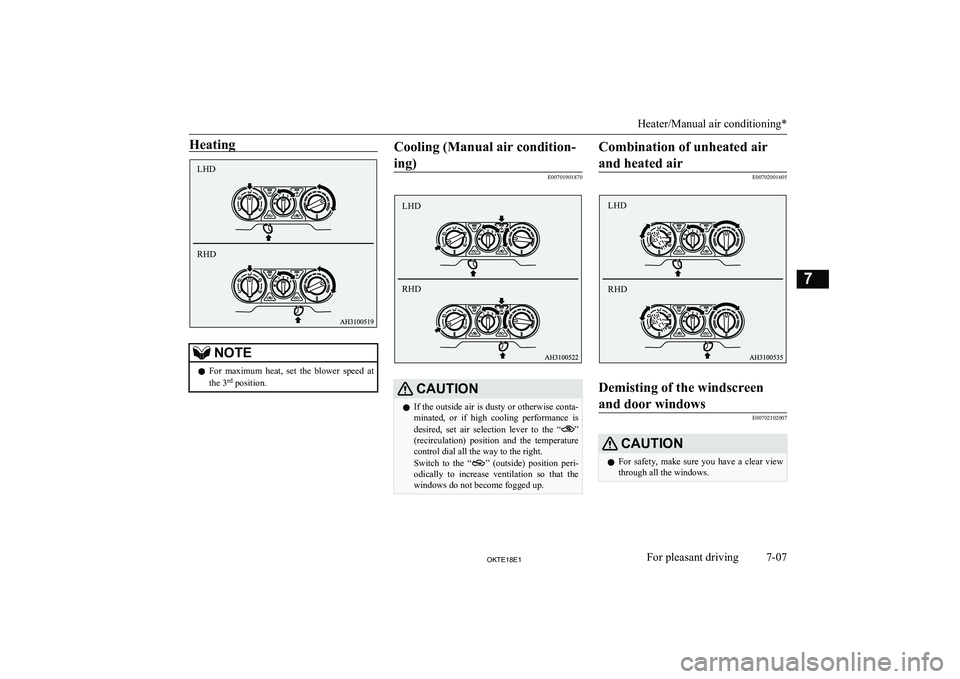

HeatingNOTElFor maximum heat, set the blower speed at
the 3 rd
position.Cooling (Manual air condition-
ing)
E00701901870
CAUTIONl If the outside air is dusty or otherwise conta-
minated, or if high cooling performance is
desired, set air selection lever to the “
”
(recirculation) position and the temperature control dial all the way to the right.
Switch to the “
” (outside) position peri-
odically to increase ventilation so that the windows do not become fogged up.
Combination of unheated air
and heated air
E00702001605
Demisting of the windscreenand door windows
E00702102007
CAUTIONl For safety, make sure you have a clear view
through all the windows.
Heater/Manual air conditioning*
7-07OKTE18E1For pleasant driving7LHD
RHD LHD
RHD LHD
RHD

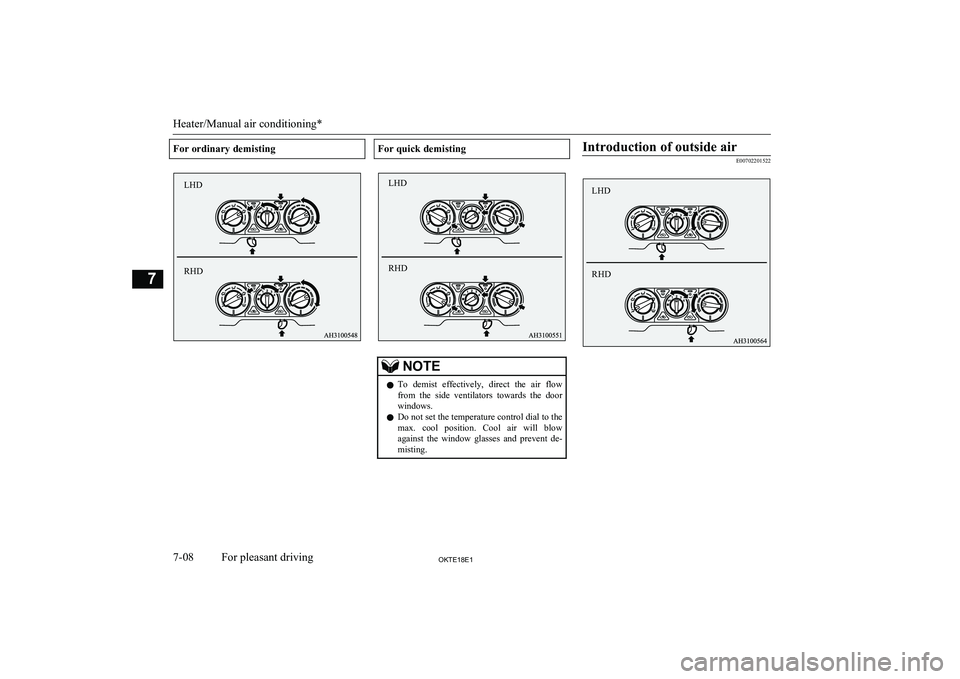

For ordinary demistingFor quick demistingNOTElTo demist effectively, direct the air flow
from the side ventilators towards the door windows.
l Do not set the temperature control dial to the
max. cool position. Cool air will blow
against the window glasses and prevent de- misting.Introduction of outside air
E00702201522
Heater/Manual air conditioning*
7-08OKTE18E1For pleasant driving7RHD
LHD LHD
RHD LHD
RHD

Automatic climate control air conditioner*E00702401638
The air conditioner can only be used while the engine is running.CAUTIONl The engine speed may increase when the air conditioning is operating. With an increased engine speed, an
A/T vehicle will creep to a greater degree than
with a lower engine speed. Fully depress the brake pedal to prevent the vehicle from creeping.

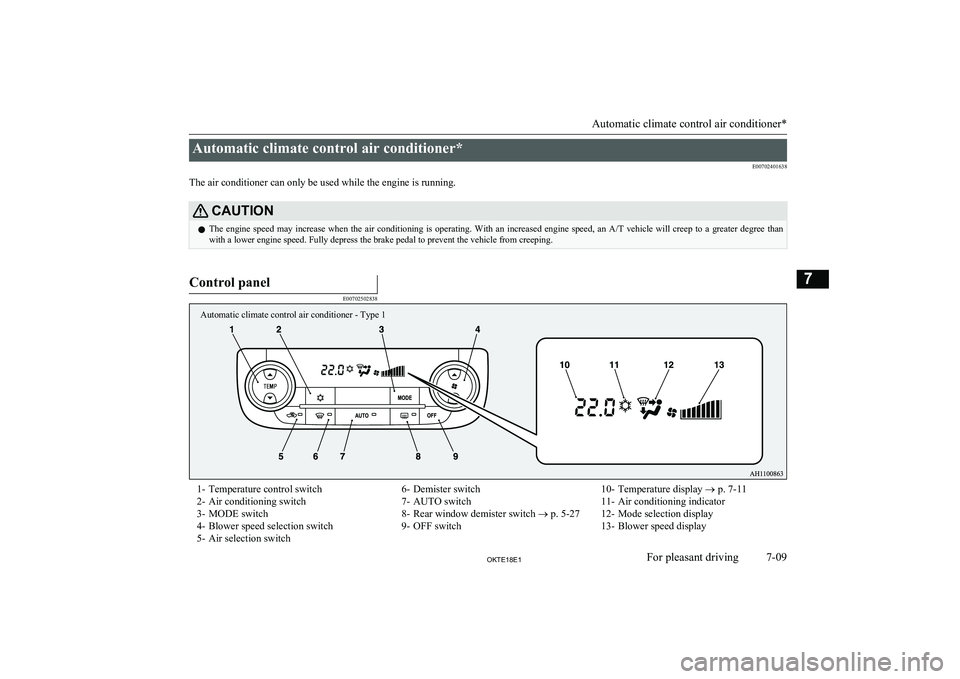

Control panel
E00702502838
1- Temperature control switch
2- Air conditioning switch
3- MODE switch
4- Blower speed selection switch
5- Air selection switch6- Demister switch
7- AUTO switch
8- Rear window demister switch ® p. 5-27
9- OFF switch10- Temperature display ® p. 7-11
11- Air conditioning indicator
12- Mode selection display
13- Blower speed display
Automatic climate control air conditioner*
7-09OKTE18E1For pleasant driving7 Automatic climate control air conditioner - Type 1

1-Driver’s side temperature control switch
(LHD vehicles)
Passenger’s side temperature control
switch (RHD vehicles)
2- Air conditioning switch
3- Blower speed selection switch
4- MODE switch 5- Passenger’s side temperature control
switch (LHD vehicles)
Driver’s side temperature control switch
(RHD vehicles)
6- Air selection switch
7- Demister switch
8- AUTO switch
9- Rear window demister switch ® p. 5-27
10- OFF switch11- Driver’s side temperature display (LHD
vehicles) ® p. 7-11
Passenger’s side temperature display (RHD vehicles) ® p. 7-11
12- DUAL indicator
13- Mode selection display
14- Passenger’s side temperature display
(LHD vehicles) ® p. 7-11
Driver’s side temperature display (RHD vehicles) ® p. 7-11
15- Air conditioning indicator
16- Blower speed displayNOTEl There is an interior air temperature sensor
(A) in the illustrated position.
Never place anything on top of the sensor,
since doing so will prevent it from function- ing properly.
Automatic climate control air conditioner*
7-10OKTE18E1For pleasant driving7Dual-zone automatic climate control air conditioner - Type 2

NOTElIn extreme cold, the air conditioning control
panel screen may operate sluggishly. This does not indicate a problem.
It will disappear when the vehicle interior temperature rises to a normal temperature.Blower speed selection switch
E00702801456

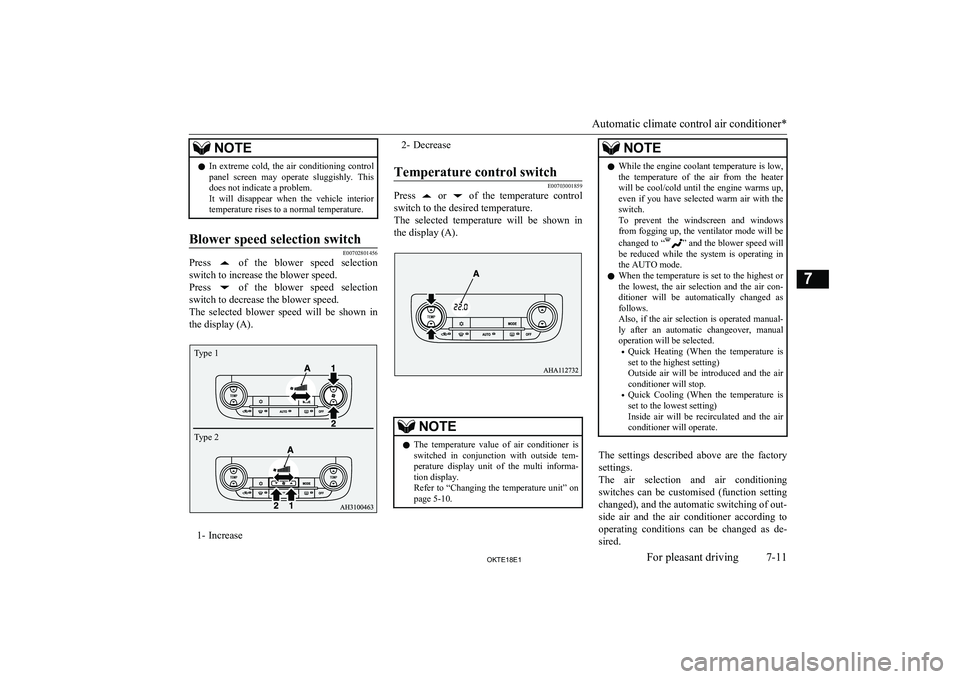

Press of the blower speed selection
switch to increase the blower speed.
Press
of the blower speed selection
switch to decrease the blower speed.
The selected blower speed will be shown in
the display (A).
1- Increase
2- DecreaseTemperature control switch
E00703001859
Press or of the temperature control
switch to the desired temperature.
The selected temperature will be shown in
the display (A).

NOTEl The temperature value of air conditioner is
switched in conjunction with outside tem-
perature display unit of the multi informa- tion display.
Refer to “Changing the temperature unit” on
page 5-10.NOTEl While the engine coolant temperature is low,
the temperature of the air from the heaterwill be cool/cold until the engine warms up, even if you have selected warm air with the
switch.
To prevent the windscreen and windows from fogging up, the ventilator mode will be
changed to “
” and the blower speed will
be reduced while the system is operating in the AUTO mode.
l When the temperature is set to the highest or
the lowest, the air selection and the air con-
ditioner will be automatically changed as follows.
Also, if the air selection is operated manual-
ly after an automatic changeover, manual operation will be selected.
• Quick Heating (When the temperature is
set to the highest setting)
Outside air will be introduced and the air conditioner will stop.
• Quick Cooling (When the temperature is
set to the lowest setting)
Inside air will be recirculated and the air
conditioner will operate.
The settings described above are the factory
settings.
The air selection and air conditioning
switches can be customised (function setting changed), and the automatic switching of out-side air and the air conditioner according to
operating conditions can be changed as de-
sired.
Automatic climate control air conditioner*
7-11OKTE18E1For pleasant driving7 Type 1
Type 2

For further information, we recommend youto consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Refer to “Customizing the air conditioning
switch” on page 7-14.
Refer to “Customizing the air selection” on page 7-13.
Synchronized mode and dual mode*
The driver’s side and the passenger’s side
temperature can be controlled independently.
At this time, the “DUAL” indicator will be
shown in the display (A).
l Synchronized mode
If the driver’s side temperature control switch is pressed, the passenger’s side temperature will also be controlled to the
same setting temperature as the driver’s
side.
l Dual mode
If the passenger’s side temperature con-
trol switch is pressed under synchron- ized mode, the system will switch to du-
al mode. In dual mode, the driver’s side
and the passenger’s side temperature can
be set separately by using each tempera- ture control switch.
Press the AUTO switch to return to
synchronized mode.Air selection switch
E00703401967
To change the air selection, simply press the air selection switch.
l Outside air: Indication lamp (A) is OFF
Outside air is introduced into the passen- ger compartment.
l Recirculated air: Indication lamp (A) is
ON
Air is recirculated inside the passenger
compartment.CAUTIONl Use of the recirculation position for exten-
ded time may cause the windows to fog up.NOTEl Normally, use the outside position to keep
the windscreen and side windows clear and
quickly remove fog or frost from the wind- screen.
If high cooling performance is desired, or if
the outside air is dusty or otherwise contami- nated use the recirculation position. Switch
to the outside position periodically to in- crease ventilation so that the windows do notbecome fogged up.
Automatic climate control air conditioner*
7-12OKTE18E1For pleasant driving7

NOTElWhen the engine coolant temperature rises
to a certain level, the air selection is auto-
matically switched to the recirculation posi- tion and the indication lamp (A) comes on.
At this time, the system will not switch to the outside position even if the air selection
switch is pressed.Customizing the air selection
E00739600123
Functions can be changed as desired, as sta-
ted below.
l Enable automatic air control
When the AUTO switch is pressed, the
air selection switch is also controlled au- tomatically.

l Disable automatic air control
Even when the AUTO switch is pressed, the air selection switch is not controlled
automatically.

l Setting change method
Hold down the air selection switch for approximately 10 seconds or more. • When the setting is changed from ena-
ble to disable
3 sounds are emitted and the indica- tion lamp flashes 3 times.
• When the setting is changed from dis-
able to enable
2 sounds are emitted and the indica- tion lamp flashes 3 times.NOTEl The factory setting is “Enable automatic air
control.”
l When the demister switch is pressed, in or-
der to prevent misting of the windows the
ventilator automatically switches to outside air even if “Disable automatic air control” is set.AUTO switch
E00702601135
When the AUTO switch is pressed, the indi-
cation lamp (A) comes on and the mode se- lection, blower speed adjustment, recircula-
ted/outside air selection, temperature adjust- ment, and air conditioner ON/OFF status are all controlled automatically.
Automatic climate control air conditioner*
7-13OKTE18E1For pleasant driving7

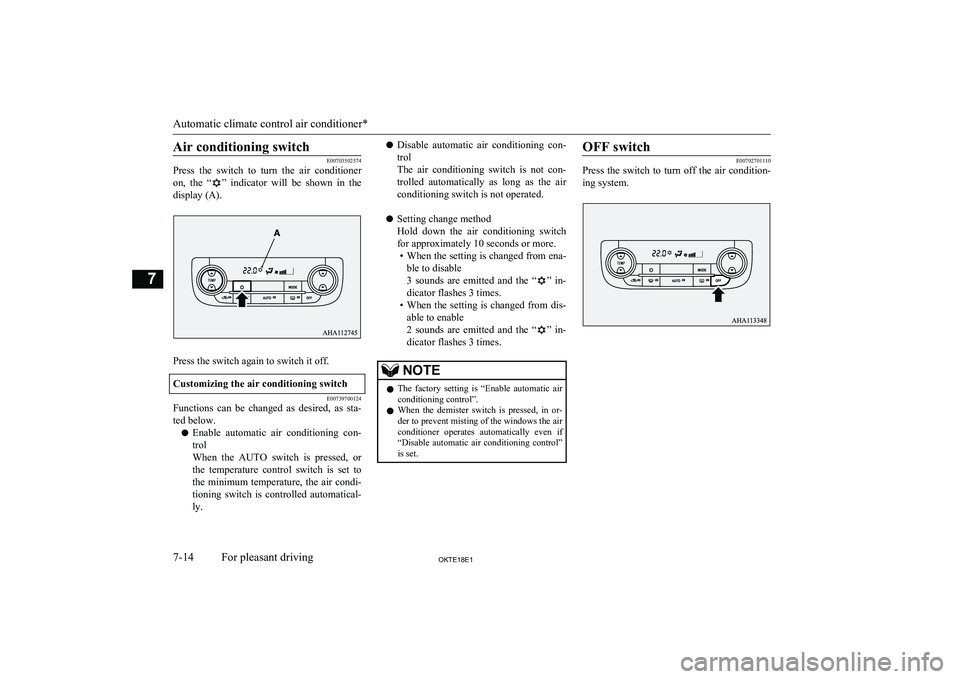

Air conditioning switch
E00703502574
Press the switch to turn the air conditioner
on, the “
” indicator will be shown in the
display (A).
Press the switch again to switch it off.
Customizing the air conditioning switch
E00739700124
Functions can be changed as desired, as sta- ted below.
l Enable automatic air conditioning con-
trol
When the AUTO switch is pressed, or the temperature control switch is set to
the minimum temperature, the air condi- tioning switch is controlled automatical-
ly.

l Disable automatic air conditioning con-
trol
The air conditioning switch is not con-
trolled automatically as long as the air
conditioning switch is not operated.

l Setting change method
Hold down the air conditioning switch
for approximately 10 seconds or more. • When the setting is changed from ena-
ble to disable
3 sounds are emitted and the “
” in-
dicator flashes 3 times.
• When the setting is changed from dis-
able to enable
2 sounds are emitted and the “
” in-
dicator flashes 3 times.
NOTEl The factory setting is “Enable automatic air
conditioning control”.
l When the demister switch is pressed, in or-
der to prevent misting of the windows the air
conditioner operates automatically even if “Disable automatic air conditioning control”
is set.OFF switch
E00702701110
Press the switch to turn off the air condition-
ing system.
Automatic climate control air conditioner*
7-14OKTE18E1For pleasant driving7

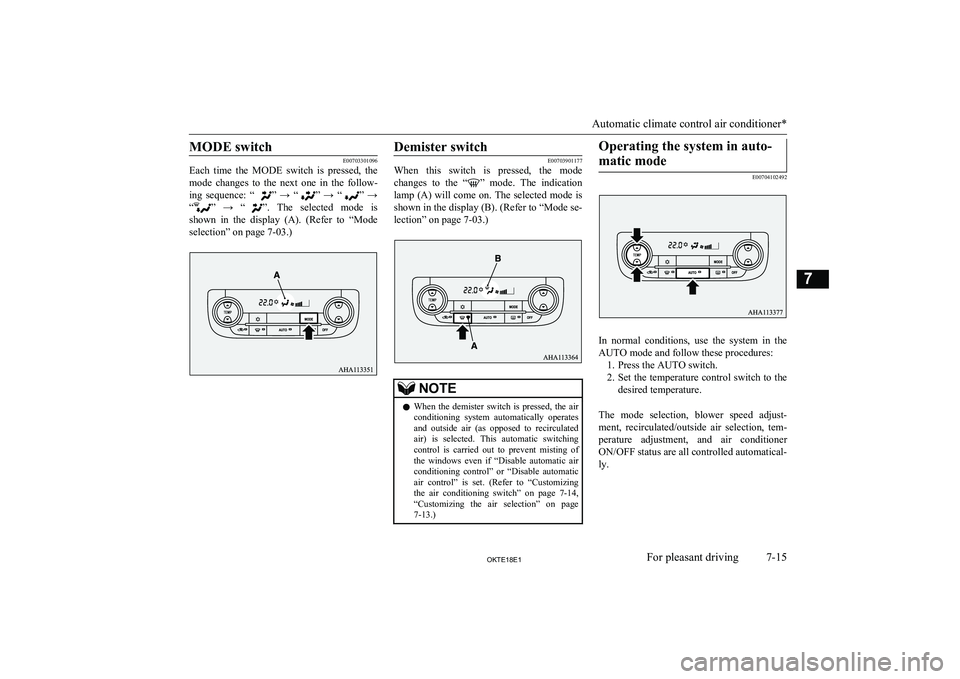

MODE switch
E00703301096
Each time the MODE switch is pressed, the
mode changes to the next one in the follow-
ing sequence: “
” → “” → “” →
“
” → “”. The selected mode is
shown in the display (A). (Refer to “Mode
selection” on page 7-03.)
Demister switch
E00703901177
When this switch is pressed, the mode
changes to the “
” mode. The indication
lamp (A) will come on. The selected mode is shown in the display (B). (Refer to “Mode se-
lection” on page 7-03.)
NOTEl When the demister switch is pressed, the air
conditioning system automatically operates and outside air (as opposed to recirculated air) is selected. This automatic switching control is carried out to prevent misting of
the windows even if “Disable automatic air conditioning control” or “Disable automaticair control” is set. (Refer to “Customizing
the air conditioning switch” on page 7-14,
“Customizing the air selection” on page 7-13.)Operating the system in auto-
matic mode
E00704102492
In normal conditions, use the system in the
AUTO mode and follow these procedures: 1. Press the AUTO switch.
2. Set the temperature control switch to the
desired temperature.
The mode selection, blower speed adjust-
ment, recirculated/outside air selection, tem-
perature adjustment, and air conditioner
ON/OFF status are all controlled automatical-
ly.
Automatic climate control air conditioner*
7-15OKTE18E1For pleasant driving7

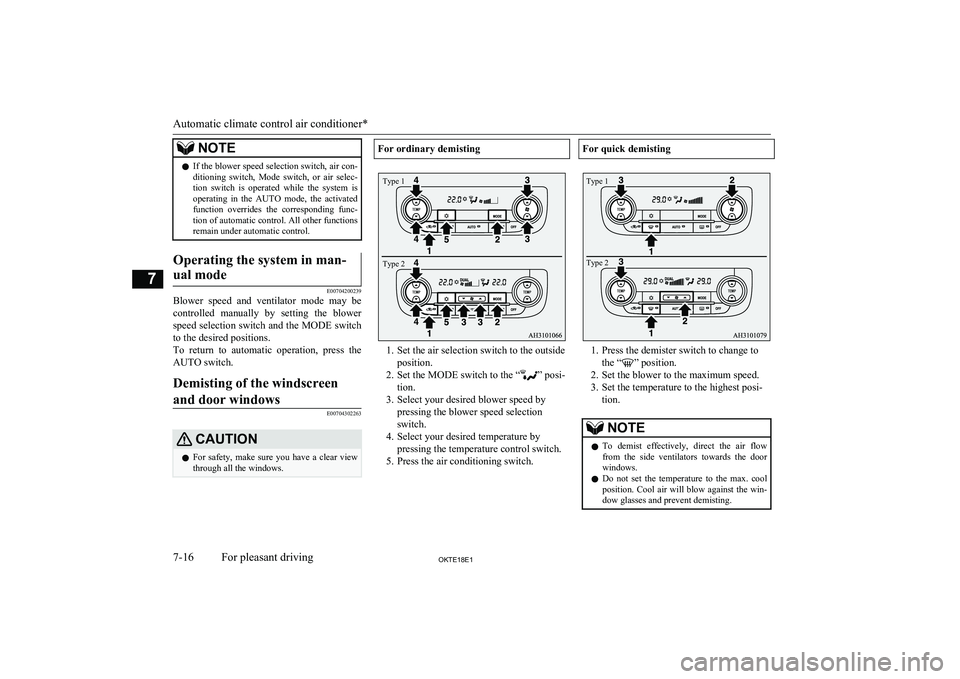

NOTElIf the blower speed selection switch, air con-
ditioning switch, Mode switch, or air selec- tion switch is operated while the system is
operating in the AUTO mode, the activated
function overrides the corresponding func- tion of automatic control. All other functions
remain under automatic control.Operating the system in man-
ual mode
E00704200239
Blower speed and ventilator mode may be
controlled manually by setting the blower speed selection switch and the MODE switchto the desired positions.
To return to automatic operation, press the AUTO switch.
Demisting of the windscreen
and door windows
E00704302263
CAUTIONl For safety, make sure you have a clear view
through all the windows.For ordinary demisting
1. Set the air selection switch to the outside
position.
2. Set the MODE switch to the “
” posi-
tion.
3. Select your desired blower speed by pressing the blower speed selection
switch.
4. Select your desired temperature by pressing the temperature control switch.
5. Press the air conditioning switch.
For quick demisting
1. Press the demister switch to change to the “
” position.
2. Set the blower to the maximum speed.
3. Set the temperature to the highest posi- tion.
NOTEl To demist effectively, direct the air flow
from the side ventilators towards the door windows.
l Do not set the temperature to the max. cool
position. Cool air will blow against the win-
dow glasses and prevent demisting.
Automatic climate control air conditioner*
7-16OKTE18E1For pleasant driving7 Type 1
Type 2 Type 1
Type 2
