Page 252 of 788
Page 254 of 788

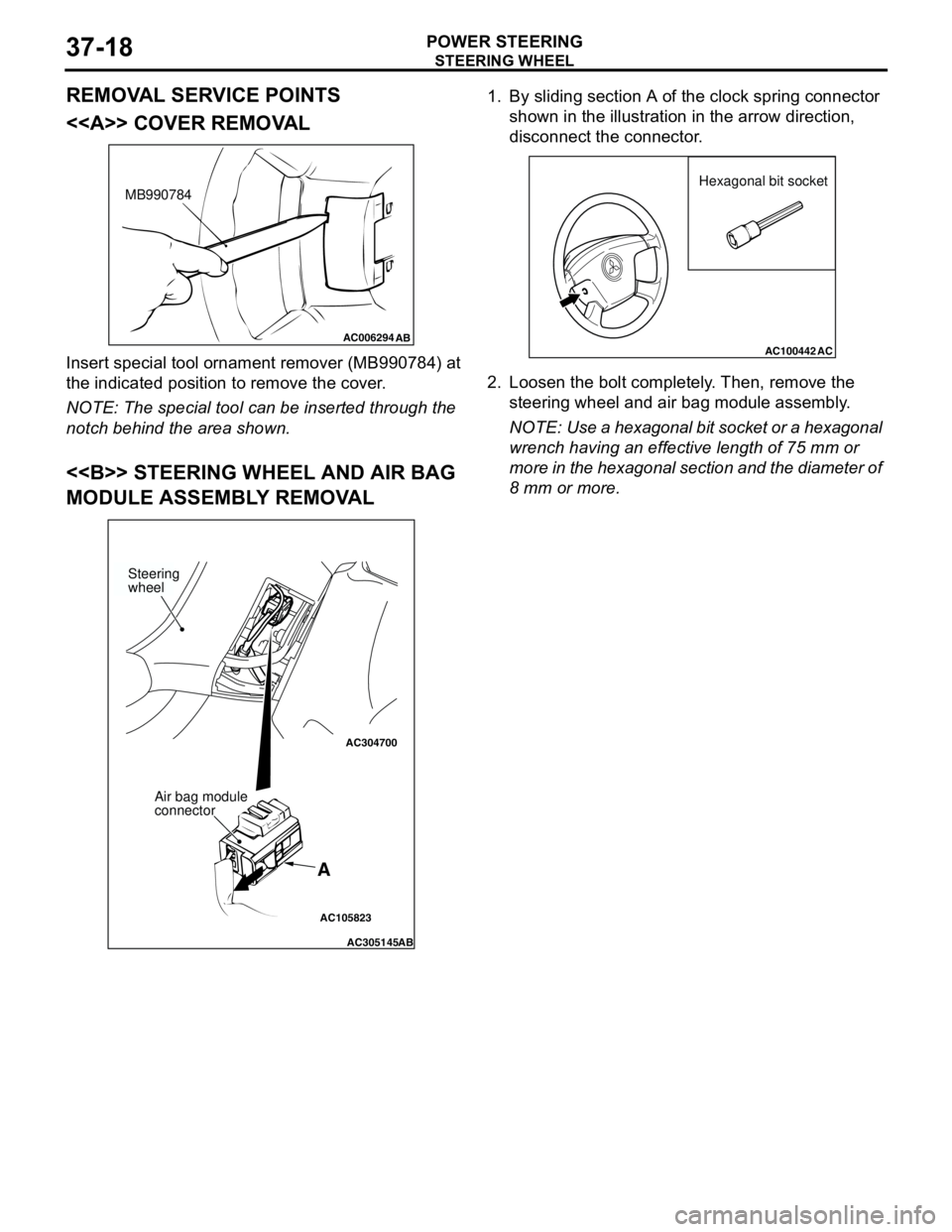

STEERING WHEEL
POWER STEERING37-20
<> STEERING WHEEL AND AIRBAG
MODULE ASSEMBLY REMOVAL1. By sliding section A of the clock spring connector
as shown in the illustration in the arrow direction,
disconnect the connector.
2. Loosen the bolt completely. Then, remove the
steering wheel and airbag module assembly.
NOTE: Use a hexagonal bit socket or a hexagonal
wrench having an effective length of 75 mm or
more in the hexagonal section and the diameter of
8 mm or more.
AC105823
AC304700
AC305145AB
A
Steering
wheel
Air bag module
connector
AC211762AC
Hexagonal bit
socket
Page 270 of 788
POWER STEERING GEAR BOX AND LINKAGE
POWER STEERING37-36
>>N<< TIE ROD END/LOCK NUT
INSTALLATION
Screw in the tie rod end to achieve the right and left
length as illustrated. Lock with the lock nut.
NOTE: The lock nuts must be tightened securely
only after the steering gear is installed to the vehicle
and toe-in is adjusted.
>>O<< GEAR MOUNTING RUBBER
INSTALLATION
Install the gear mounting rubber to the rack housing
so that the distance is as shown in the illustration.
TIE ROD END BALL JOINT DUST COVER
REPLACEMENT
M1372008200327
If the dust cover is damaged accidentally during
service work, replace the dust cover as follows:
1. Apply specified grease to the lip and inside of the
dust cover.
Specified grease:
Multipurpose grease SAE J310, NLGI No.2 or
equivalent
2. Drive in the dust cover with special tool front axle
base (MB990776) until it is fully seated.
3. Check the dust cover for cracks or damage by
pushing it with your finger.
AC001011
AM
Lock nut Edge of bellows
assembly groove
180 mm
AC100275
AB
220 mm
AC001012
AB
MB990776
Page 288 of 788
WINDOW GLASS
BODY42-10
WINDOW REPAIRM1422005600027
The windshield, rear window glass, quarter window
glass and tailgate window glass are attached by an
urethane-base adhesive to the window frame. This
adhesive provides improved glass holding and
sealing, and also gives body openings a greater
structural strength.
ITEMS
HANDLING OF AUTO WINDOW SEALER
Keep the sealant in a cool place, not exposed to the
direct rays of the sun. Do not place any heavy article
on the sealant nor press it, otherwise it will become
deformed. Avoid storing the sealant for more than 6
months, because it will lose its sealing effect.
BODY PINCH-WELD FLANGE SERVICING
Before servicing the body pinch-weld flange, remove
old adhesive completely. If the flange requires
painting, bake it after painting is completed. Name Remark
Adhesive 3M ATD Part No.8609 Super Fast Urethane Auto Glass Sealant or
equivalent
Primer 3M ATD Part No.8608 Super Fast Urethane Primer or equivalent
Spacers Available as service part
Dam Available as service part
Anti-rust solvent (or Tectyl
506T.Valvoline Oil Company)For rust prevention
Isopropyl alcohol For grease removal from bonded surface
Steel piano wire Dia. × length... 0.6mm × 1m For cutting adhesive
Glass adhesive knife For cutting adhesive
Adhesive gun For pressing-out adhesive
