OVERALL CONFIGURATION DIAGRAM
CONFIGURATION DIAGRAMS80-5
OVERALL WIRING DIAGRAM
M1801000101294
AC301178AB
Front wiring
harness (RH)Control wiring
harness Instrument panel
wiring harness Roof wiring
harnessFloor wiring
harness (RH)
Battery wiring
harness Front wiring
harness (LH) Front door
wiring harness
Floor wiring
harness (LH) Fuel wiring
harnessRear door
wiring harness
Front bumper
wiring harness
Rear bumper
wiring harness
*
*
Tailgate wiring
harness
NO
TE: .
1.This illu stration shows o n ly major wirin g harne sses.
2.*: also eq uipp ed at t he rig h t side.
Page 416 of 800
ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS80-6
ENGINE COMPARTMENT
ENGINE COMPARTMENT
AC301123
Front wiring
harness (RH)
A-01
A-32
A-31
A-29
A-28
A-27
A-26
A-25 A-23
A-24 A-22
AC
1
Front bumper
wiring harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
A
A-01(2-GR)Side turn signal lamp (RH)
A-02(2-GR)Side turn signal lamp (LH)
A-03(2-B)Wheel speed sensor (Front: LH)
A-04X(4)Front fog lamp relay or spare connector
(for front fog lamp)
A-05X(4)Horn relay
A-09X(4)Fan control relay
A-10X(11)Front-ECU
A-11X(11)Front-ECU
A-12(2-B)Front wiring harness (LH) and control
wiring harness combination
A-13(12-B)Front wiring harness (LH) and control
wiring harness combination
A-14(3-B)Headlamp (LH)
A-15(6-B)Front combination lamp (LH)
A-16(2)Front turn signal lamp (LH)
Page 417 of 800
AC502048AB
A-02A-03
A-04X
A-05X
A-09X
A-10X
A-11X
A-12
A-13
A-14
A-15
A-16
A-17
A-18
A-19
A-20
A-21 Front wiring
harness
(LH)
12
A-33
A-17(2-B)Front fog lamp (LH)
A-18(3-GR)Cooling fan motor drive control unit
A-19(1-B)Horn (HI)
A-20(2-B)Front wiring harness (LH) and front
bumper wiring harness combination
A-21(1-B)Horn (LO)
A-22(2-B)Front fog lamp (RH)
A-23(2)Front turn signal lamp (RH)
A-24(1)Spare connector (for front fog lamp)
A-25(6-B)Front combination lamp (RH)
A-26(2)Windshield washer motor
A-27(2-G)Rear washer motor
A-28(2-B)Headlamp washer motor
A-29(3-B)Headlamp (RH)
A-31(2-BR)Dual pressure switch
A-32(2-B)Wheel speed sensor (Front: RH)
A-33(2-BR)Outside thermo sensor
ENGINE COMP AR TMEN T
CONF IGURA TION D I A G RA MS80-7
Page 418 of 800
ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS80-8
ENGINE COMPARTMENT
M1801000302451
AC301126
Front wiring
harness (RH)
A-01
A-32
A-31
A-29 A-30
A-27
A-26
A-25 A-23
A-24 A-22
AC
1
Front bumper
wiring harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
A
A-01(2-GR)Side turn signal lamp (RH)
A-02(2-GR)Side turn signal lamp (LH)
A-03(2-B)Wheel speed sensor (Front: LH)
A-04X(4)Front fog lamp relay or spare connector
(for front fog lamp)
A-05X(4)Horn relay
A-09X(4)Fan control relay
A-10X(11)Front-ECU
A-11X(11)Front-ECU
A-12(2-B)Front wiring harness (LH) and control
wiring harness combination
A-14(3-B)Headlamp (LH)
A-15(6-B)Front combination lamp (LH)
A-16(2)Front turn signal lamp (LH)
A-17(2-B)Front fog lamp (LH)
Page 419 of 800
AC502049
A-33
AB
A-02A-03
A-04X
A-05X
A-09X
A-10X
A-11X
A-12
A-14
A-15
A-16
A-17
A-18
A-19
A-20
A-21 Front wiring
harness
(LH)
12
A-18(3-GR)Cooling fan motor drive control unit
A-19(1-B)Horn (HI)
A-20(2-B)Front wiring harness (LH) and front
bumper wiring harness combination
A-21(1-B)Horn (LO)
A-22(2-B)Front fog lamp (RH)
A-23(2)Front turn signal lamp (RH)
A-24(1)Spare connector (for front fog lamp)
A-25(6-B)Front combination lamp (RH)
A-26(2)Windshield washer motor
A-27(2-G)Rear washer motor
A-29(3-B)Headlamp (RH)
A-30(2-GR)No connection
A-31(2-BR)Dual pressure switch
A-32(2-B)Wheel speed sensor (Front: RH)
A-33(2-BR)Outside thermo sensor
ENGINE COMP AR TMEN T
CONF IGURA TION D I A G RA MS80-9
Page 421 of 800
AC301130AB
9
10
11
13
B-06B-07
B-09
B-10X
B-15X
B-16X
B-17XB-18
Battery wiring
harness
B-19
B-20
B-21
*
B-18(6-B)Control wiring harness and battery wiring
harness combination
B-19(10-GR)A/T control solenoid valve assembly
B-20(10-B)Inhibitor switch
B-21(4-B)Engine control oxygen sensor (Front)
B-22(1)Sta rt er
B-23(1-B)Sta rt er
B-24(1-B)Engine oil pressure switch
B-25(1)Alternator
B-26(4-GR)Alternator
ENGINE AND TRA N SMISSION
CONF IGURA TION D I A G RA MS80-11
NOTE: On A/T only , the st andard routing positions
for the
corrug a ted tu be and wiring harne ss are
marked by*.
Page 425 of 800
AC301133AB
9
10
11
13
B-06B-07
B-01
B-10X
B-14X
B-15X
B-16X
B-17X
B-18
Battery wiring
harness
B-19
B-20
B-21
*
B-17X(4)A/C compressor relay
B-18(6-B)Control wiring harness and battery wiring
harness combination
B-19(10-GR)A/T control solenoid valve assembly
B-20(10-B)Inhibitor switch
B-21(4-B)Engine control oxygen sensor (Front)
B-22(1)Sta rt er
B-23(1-B)Sta rt er
B-24(1-B)Engine oil pressure switch
B-25(1)Alternator
B-26(4-GR)Alternator
ENGINE AND TRA
N SMISSION
CONF IGURA TION D I A G RA MS80-15
NOTE: On A/T only , the st andard routing positions
for the
corrug a ted tu be and wiring harne ss are
marked by*.
Page 429 of 800
AC502050
B-07
AB
910
11
13
B-06B-09
B-10X
B-15X
B-16X
B-17X
B-18
Battery wiring
harness
B-21
B-22
B-23
B-19
B-20
B-05B-08
B-24
Earth
cable
B-16X(4)Engine control relay
B-17X(4)A/C compressor relay
B-18(6-B)Control wiring harness and battery wiring
harness combination
B-19(10-GR)A/T control solenoid valve assembly
B-20(10-B)Inhibitor switch
B-21(4-B)Engine control oxygen sensor (Front)
B-22(1)Sta rt er
B-23(1-B)Sta rt er
B-24(1-B)Engine oil pressure switch
B-25(1)Alternator
B-26(4-GR)Alternator
ENGINE AND TRA N SMISSION
CONF IGURA TION D I A G RA MS80-19
Page 433 of 800
AC301139AB
9
10
11
13
B-05B-07B-01
B-10X
B-14X
B-16X
B-17X
B-18
Battery wiring
harness
B-22
B-24B-06
B-08
B-23B-21
Earth
cable
B-16X(4)Engine control relay
B-17X(4)A/C compressor relay
B-18(6-B)Control wiring harness and battery wiring
harness combination
B-21(4-B)Engine control oxygen sensor (Front)
B-22(1)Sta rt er
B-23(1-B)Sta rt er
B-24(1-B)Engine oil pressure switch
B-25(1)Alternator
B-26(4-GR)Alternator
ENGINE AND TRA
N SMISSION
CONF IGURA TION D I A G RA MS80-23
Page 436 of 800
DASH PANEL
CONFIGURATION DIAGRAMS80-26

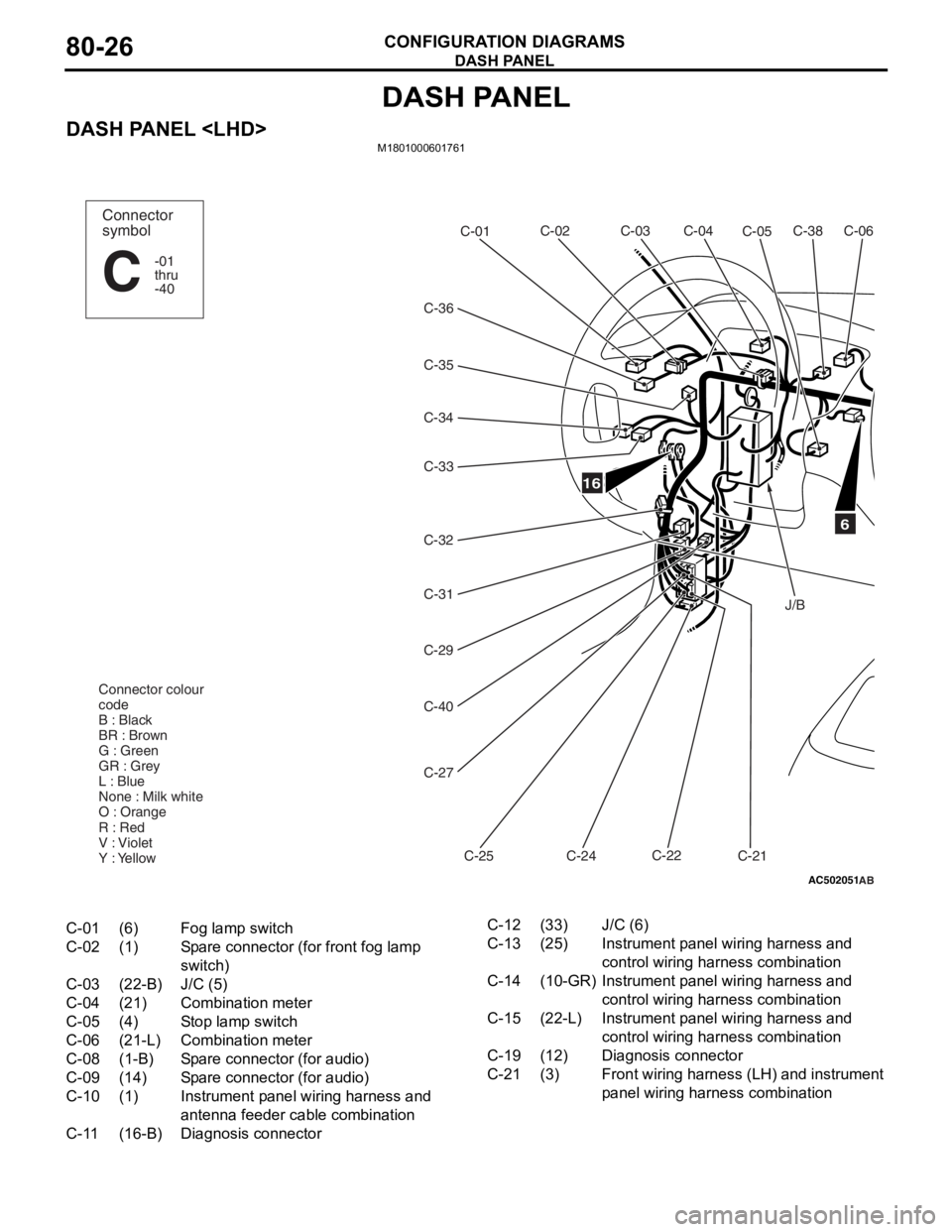

DASH PANEL
DASH PANEL
AC502051
16
C-38C-06
C-05
C-02
C-01
C-34
C-32 C-31
C-29
C-40
C-27
C-25 C-24C-22
C-21
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
-01
thru
-40
C
C-04
C-03
C-36
C-33
C-35
6
J/B
AB
C-01(6)Fog lamp switch
C-02(1)Spare connector (for front fog lamp
switch)
C-03(22-B)J/C (5)
C-04(21)Combination meter
C-05(4)Stop lamp switch
C-06(21-L)Combination meter
C-08(1-B)Spare connector (for audio)
C-09(14)Spare connector (for audio)
C-10(1)Instrument panel wiring harness and
antenna feeder cable combination
C-11(16-B)Diagnosis connector
C-12(33)J/C (6)
C-13(25)Instrument panel wiring harness and
control wiring harness combination
C-14(10-GR)Instrument panel wiring harness and
control wiring harness combination
C-15(22-L)Instrument panel wiring harness and
control wiring harness combination
C-19(12)Diagnosis connector
C-21(3)Front wiring harness (LH) and instrument
panel wiring har ness combination
