MITSUBISHI LANCER 2017 8.G Owners Manual

Listen to an iPod 7-34 Comfort controls
7
Press the MEDIA key to set the iPod as the source. The selected source is indicated on the dis- play.
Press the key or key to select the track. This enables selection of the next or previous track. Hold down the 3 key or the 4 key. Fast forward/rewind is possible. Repeat playback and shuffle playback are possible. Press the 1RPT key. Repeat playback of th
e track currently being
played.
 For vehicles with a Bluetooth
® 2.0 interface,
the types of devices that can be connectedmay vary. [For vehicles sold in U.S.A.] For details, access the Mitsubishi MotorsNorth America website. [For vehicles sold in Canada and Mexico] For details, access the Mitsubishi Motorswebsite. Please read and agree to the “Warn- ing about Links to the Web Sites of Other Companies”. The websites mentioned abovemay connect you to websites other than the Mitsubishi Motors website. http://www.mitsubishi-motors.com/en/prod-ucts/index.html  Regarding how to connect the iPod/iPhone, refer to “How to connect an iPod” on page 5-161.  When connecting the iPod/iPhone, use a commercially-available iPod connectioncable.  Set up the device in order that no unsafe actions, such as plugging in the connection cable are taken while driving.  When inserting and removing the iPod/iPhone, for safety’s sake first stop the vehicle.  Depending on the status of the iPod/iPhone, it may take some time until the device is rec-ognized, or playback starts.  Buttons on the product will not operate while iPod/iPhone is connected.NOTE
 iPod/iPhone specifications and settings may mean that connection is not possible, or result in differences in operation or display.  Depending on audio data in the iPod/iPhone, track information may not be displayed cor- rectly.  Depending on the status of the vehicle and device, the iPod/iPhone may not play back after starting the engine.  Data containing copyright information may not play back.  It is recommended that the iPod/iPhone equalizer settings be set to flat.  Operate the iPod/iPhone while connected to this product.  If the iPod/iPhone is connected via Bluetooth as a Bluetooth-capable audio device, then donot connect the iPod/iPhone using an iPod cable. Connection using both methods will result in erroneous operation.  If an iPod/iPhone does not operate correctly, then remove the iPod/iPhone from the prod-uct, reset, then reconnect.
Play iPod
NOTE
Select the Track (File) Fast Forward or Rewind Switch Playback Mode Repeat Playback (RPT)
NOTE
 Pressing again will cancel.
BK0237700US.bo
ok 34 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

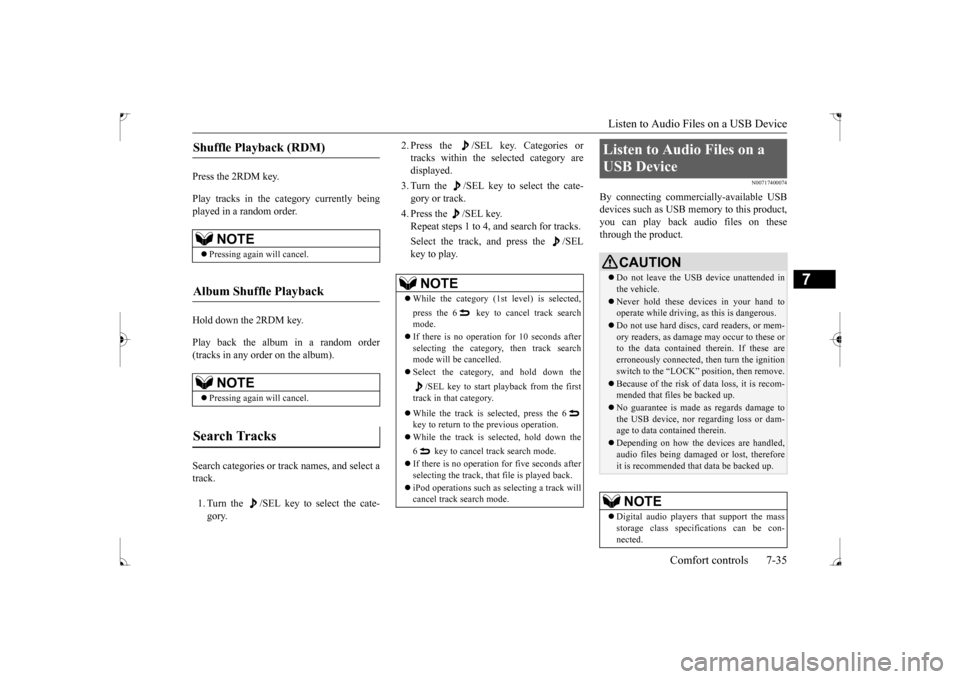

Listen to Audio Files on a USB Device
Comfort controls 7-35
7
Press the 2RDM key. Play tracks in the category currently being played in a random order. Hold down the 2RDM key. Play back the album in a random order (tracks in any order on the album). Search categories or track names, and select a track. 1. Turn the /SEL key to select the cate- gory.
2. Press the /SEL key. Categories or tracks within the selected category are displayed. 3. Turn the /SEL key to select the cate- gory or track. 4. Press the /SEL key. Repeat steps 1 to 4, and search for tracks. Select the track, and press the /SEL key to play.
N00717400074
By connecting commercially-available USBdevices such as USB memory to this product,you can play back audio files on these through the product.
Shuffle Playback (RDM)
NOTE
 Pressing again will cancel.
Album Shuffle Playback
NOTE
Pressing again will cancel.
Search Tracks
NOTE
While the category (1st level) is selected, press the 6 key to cancel track search mode.  If there is no operation for 10 seconds after selecting the category, then track search mode will be cancelled.  Select the category, and hold down the
/SEL key to start playback from the first
track in that category.  While the track is selected, press the 6 key to return to the previous operation.  While the track is selected, hold down the 6 key to cancel track search mode.  If there is no operation for five seconds after selecting the track, that file is played back.  iPod operations such as selecting a track will cancel track search mode.
Listen to Audio Files on a USB Device
CAUTION Do not leave the USB device unattended in the vehicle. Never hold these devices in your hand to operate while driving, as this is dangerous. Do not use hard discs, card readers, or mem- ory readers, as damage may occur to these or to the data contained therein. If these are erroneously connected, then turn the ignitionswitch to the “LOCK” position, then remove. Because of the risk of data loss, it is recom- mended that files be backed up. No guarantee is made as regards damage to the USB device, nor regarding loss or dam- age to data contained therein. Depending on how the devices are handled, audio files being damaged or lost, therefore it is recommended that data be backed up.NOTE
 Digital audio players that support the mass storage class specifications can be con-nected.
BK0237700US.bo
ok 35 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Listen to Audio Files on a USB Device 7-36 Comfort controls
7
Press the MEDIA key to set USB as the source. The selected source is indicated on the dis- play.
Press the key or key to select the track. This enables selection of the next or previous track. Hold down the 3 key or the 4 key. Fast forward/rewind is possible. Repeat playback, random playback, and scan playback are possible. Press the 1RPT key. Repeat playback of th
e track currently being
played.
 For details regarding the types of USB devices that can be connected and the types of files that can be played back in vehicles with a Bluetooth
® 2.0 interface, refer to
“Types of connectable devices and supportedfile specifications” on page 5-161.  Regarding how to connect USB devices, refer to “How to connect a USB memory device” on page 5-160.  When connecting a USB device, use a con- nection cable. Failure to use a connection cable when connecting may place undue loadon, or damage the USB connector.  Set up the device in order that no unsafe actions, such as plugging in the connection cable are taken while driving.  When inserting and removing the USB device, for safety’s sake first stop the vehi- cle.  Do not insert other than audio devices into the USB port. Damage to the device or equipment may result.  Depending on the status of the USB device, it may take some time until the device is rec- ognized, or playback starts.  Depending on USB devices, buttons on the product will not operate while the USBdevice is connected.  USB device specifications and settings may mean that connection is not possible, or result in differences in operation or display.NOTE
 Depending on audio data in the USB device, track information may not be displayed cor- rectly.  Depending on the status of the vehicle and device, the iPod/iPhone may not play back after starting the engine.  Data containing copyright information may not play back.  This product can play back MP3, WMA, and AAC format audio files.  Depending on the type of USB device, usage may not be possible, or functions that can be used may be restricted.  The recommended file system for USB memory is FAT32.  The maximum supported capacity for USB memory is 32GB.  Operate the USB device containing recorded audio files while connected to this product.
Play Back of Audio Files on a USB Device
NOTE
Select the Track (File) Fast Forward or Rewind Switch Playback Mode Repeat Playback (RPT)
NOTE
 Pressing again will cancel.
BK0237700US.bo
ok 36 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Listen to Audio Files on a USB Device
Comfort controls 7-37
7
Hold down the 1RPT key. Repeat playback of the tracks within the folder currently being played. Press the 2RDM key. Play tracks in the folder currently being played in a random order.
Hold down the 2RDM key. Play the tracks in all folders in a random order. Press the SCAN key. Play the first 10 seconds of each of the tracks on the whole USB device in order.
Hold down the SCAN key. Play the first 10 seconds of the first track in each folder on the USB device in order. Search folders and files, and select a track. 1. Turn the /SEL key to select the folder. 2. Press the /SEL key. Files within the selected folder are dis- played. 3. Turn the /SEL key to select the file.4. Press the /SEL key.
 Selecting a file will cancel this. However, it will not be cancelled in vehicles with a Bluetooth
® 2.0 interface.
Folder Repeat Playback
NOTE
 Pressing again will cancel.  Selecting a folder will cancel this.  Cycling up/down through files will cancel this.  Even if the file is selected, folder repeat playback will not be cancelled.
Folder Random Playback (RDM)
NOTE
 Pressing again will cancel.  Selecting a folder will cancel this.NOTE
Cycling up/down through files will cancel this.  Even if the file is selected, folder random playback will not be cancelled.
All Folder Random Playback
NOTE
 Pressing again will cancel.  Selecting a folder will cancel this.  Cycling up/down through files will cancel this.  Even if the file is selected, all folder random playback will not be cancelled.
Scan Playback (SCAN)
NOTE
NOTE
 Press this button again during playback if you wish to hear that track, and that track will play normally.
Folder Scan Playback
NOTE
 Press this button again during playback if you wish to hear that track, and that track will play normally.
Search Tracks
BK0237700US.bo
ok 37 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

To play iPod/USB memory device tracks via voice
operation (vehicles with
Bluetooth 2.0 interface)
7-38 Comfort controls
7
This plays the selected file (track).
N00772001041
When connected to the USB input terminal, desired tracks on the iPod/USB memorydevice which is connected to the USB input
terminal can be selected and played via voice operation. For information concerning the voice recog- nition function or speaker registration func- tion, refer to “Bluetooth
® 2.0 interface” on
page 5-139. The following explains how to prepare forvoice operation and play the tracks.
N00772101084
To use the voice operation, press theSPEECH button first.
N00772201027
1. Say “Play” on the main menu.
2. After the voice guide says “Would you like to play by Artist, Album, Playlist or Genre?,” say “Artist”. 3. After the voice guide says “What Artist would you like to play?,” say the artistname. 4. If there is only one match, the system pro- ceeds to step 6.5. If there are two or more matches, the voice guide will say “More than one match was found, would you like to play?” If you say “Yes,” the sys- tem proceeds to step 6. If you say “No,” the next matching artistis uttered by the system.
NOTE
 While the folder is selected, press the 6 key to cancel track search mode.  If there is no operation for 10 seconds after selecting the folder, then track search mode will be cancelled.  Select the folder, and hold down the /SEL key to start playback from the first track in that folder.  While the file is selected, press the 6 key to return to the previous operation.  While the file is selected, hold down the 6 key to cancel track search mode.  If there is no operation for five seconds after selecting the file, that file is played back.  Operations such as selecting a track will can- cel track search mode.
To play iPod/USB memory device tracks via voice oper-ation (vehicles with Blue-tooth 2.0 interface)
Preparation for voice operation 1- SPEECH button 2- PICK-UP buttonTo search by artist name
NOTE
 The Bluetooth
® 2.0 interface starts recogniz-
ing the connected device.If the connected device cannot be recognized or a connection error occurs, the Bluetooth
®
2.0 interface starts an appropriate voice guide. Follow the voice guide.NOTE
 If you say “Artist ,” you can skip step 3.
BK0237700US.bo
ok 38 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

To play iPod/USB memory device tracks via voice
operation (vehicles with Bluetooth 2.0 interface)
Comfort controls 7-39
7
6. After the voice guide says “Playing ,” the system creates a playlist index for the artist. 7. The system exits the voice recognition mode and starts playback.
N00772301028
1. Say “Play” on the main menu.
2. After the voice guide says “Would you like to play by Artist, Album, Playlist or Genre?,” say “Album”. 3. After the voice guide says “What Album would you like to play?” say the albumtitle. 4. If there is only one match, the system pro- ceeds to step 6.5. If there are two or more matches, the voice guide will say “More than one match was found, would you like to play?” If you say “Yes,” the sys- tem proceeds to step 6. If you say “No,” the next matching albumis uttered by the system.
6. After the voice guide says “Playing ,” the system creates a playl- ist index for the album title. 7. The system exits the voice recognition mode and starts playback.
N00772401029
1. Say “Play” on the main menu.
NOTE
 If you say “No” to three or all artist names uttered by the system, the voice guide will say “Artist not found, please try again” and the system returns to step 2.  Search time is dependant on the number of songs on your connected device. Devices containing a large number of songs may takelonger to return search results.NOTE
 If the confirmation function is active, the voice guide confirms if the artist name is correct. If the artist name is correct, say “Yes”. If not, say “No”. After the voice guidesays “Artist not found, please try again,” the system returns to step 2.
To search by album title
NOTE
 The Bluetooth
® 2.0 interface starts recogniz-
ing the connected device.If the connected device cannot be recognized or a connection error occurs, the Bluetooth
®
2.0 interface starts an appropriate voice guide. Follow the voice guide.NOTE
 If you say “Album
