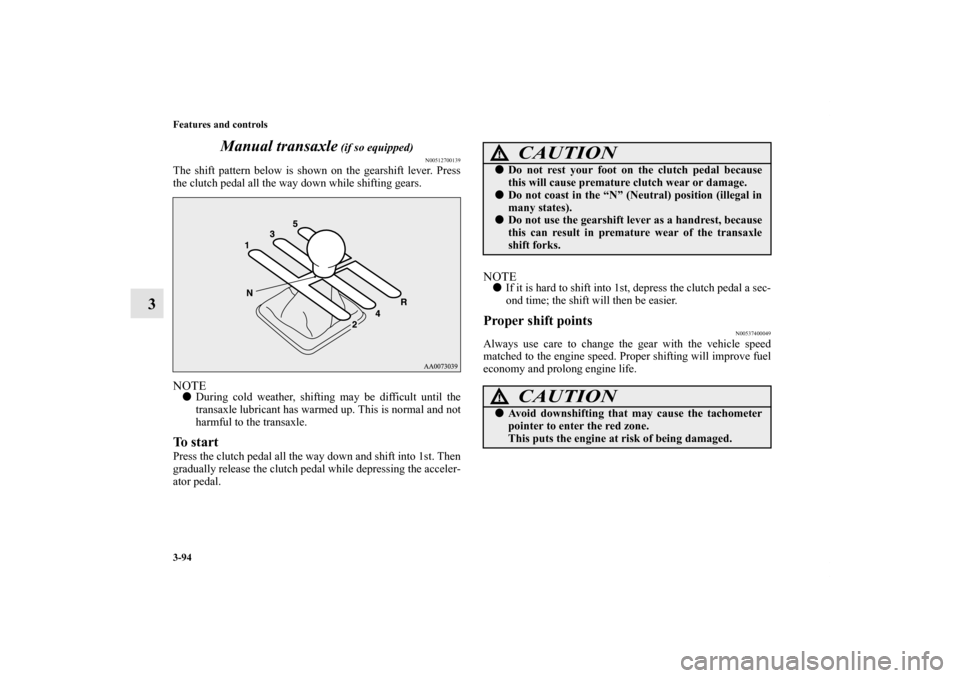

3Manual transaxle
(if so equipped)
N00512700139
The shift pattern below is shown on the gearshift lever. Press
the clutch pedal all the way down while shifting gears.NOTE
During cold weather, shifting may be difficult until the
transaxle lubricant has warmed up. This is normal and not
harmful to the transaxle.To startPress the clutch pedal all the way down and shift into 1st. Then
gradually release the clutch pedal while depressing the acceler-
ator pedal.
NOTE
If it is hard to shift into 1st, depress the clutch pedal a sec-
ond time; the shift will then be easier.Proper shift points
N00537400049
Always use care to change the gear with the vehicle speed
matched to the engine speed. Proper shifting will improve fuel
economy and prolong engine life.
CAUTION
!
Do not rest your foot on the clutch pedal because
this will cause premature clutch wear or damage.
Do not coast in the “N” (Neutral) position (illegal in
many states).
Do not use the gearshift lever as a handrest, because
this can result in premature wear of the transaxle
shift forks.
CAUTION
!
Avoid downshifting that may cause the tachometer
pointer to enter the red zone.
This puts the engine at risk of being damaged.
BK0150900US.book 94 ページ ２０１２年５月７日　月曜日　午後１２時９分

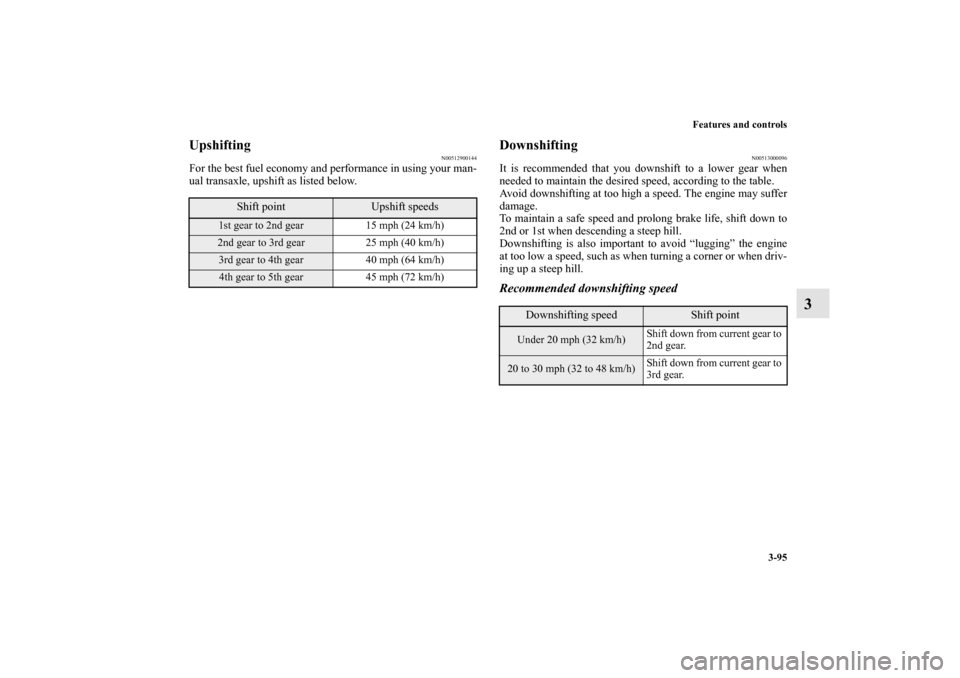

Features and controls
3-95
3
Upshifting
N00512900144
For the best fuel economy and performance in using your man-
ual transaxle, upshift as listed below.
Downshifting
N00513000096
It is recommended that you downshift to a lower gear when
needed to maintain the desired speed, according to the table.
Avoid downshifting at too high a speed. The engine may suffer
damage.
To maintain a safe speed and prolong brake life, shift down to
2nd or 1st when descending a steep hill.
Downshifting is also important to avoid “lugging” the engine
at too low a speed, such as when turning a corner or when driv-
ing up a steep hill.Recommended downshifting speed
Shift point
Upshift speeds
1st gear to 2nd gear 15 mph (24 km/h)2nd gear to 3rd gear 25 mph (40 km/h)3rd gear to 4th gear 40 mph (64 km/h)4th gear to 5th gear 45 mph (72 km/h)
Downshifting speed
Shift point
Under 20 mph (32 km/h)Shift down from current gear to
2nd gear.20 to 30 mph (32 to 48 km/h)Shift down from current gear to
3rd gear.
BK0150900US.book 95 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-96 Features and controls
3
Driving precautions
N00513100156

The table below shows the maximum recommended driv-
ing speed for in each gear. Do not drive near or at these
speeds for prolonged periods of time.Maximum possible driving speed
Do not use the gearshift lever as a handrest. This can
result in premature wear of the transaxle shift forks.
Twin Clutch SST (Sportronic Shift Trans-
mission)
(if so equipped)
N00539700017
The Twin Clutch SST is a transmission that, through integrated
control of the engine and transmission, is able to achieve both
the smooth shifting of an automatic transaxle and the accelera-
tion and fuel economy close to a manual transaxle. In addition,
the control mode can be selected from three types to suit the
driving conditions.
Together with manual shifting, the transmission is capable of
responding to a variety of driving circumstances.
Twin Clutch SST control mode→ P. 3 - 1 0 5
Manual shift → P.3-107
Shift points
Maximum possible driving speed
1st gear 37 mph (60 km/h)2nd gear 55 mph (90 km/h)3rd gear 74 mph (120 km/h)4th gear 99 mph (160 km/h)
BK0150900US.book 96 ページ ２０１２年５月７日　月曜日　午後１２時９分

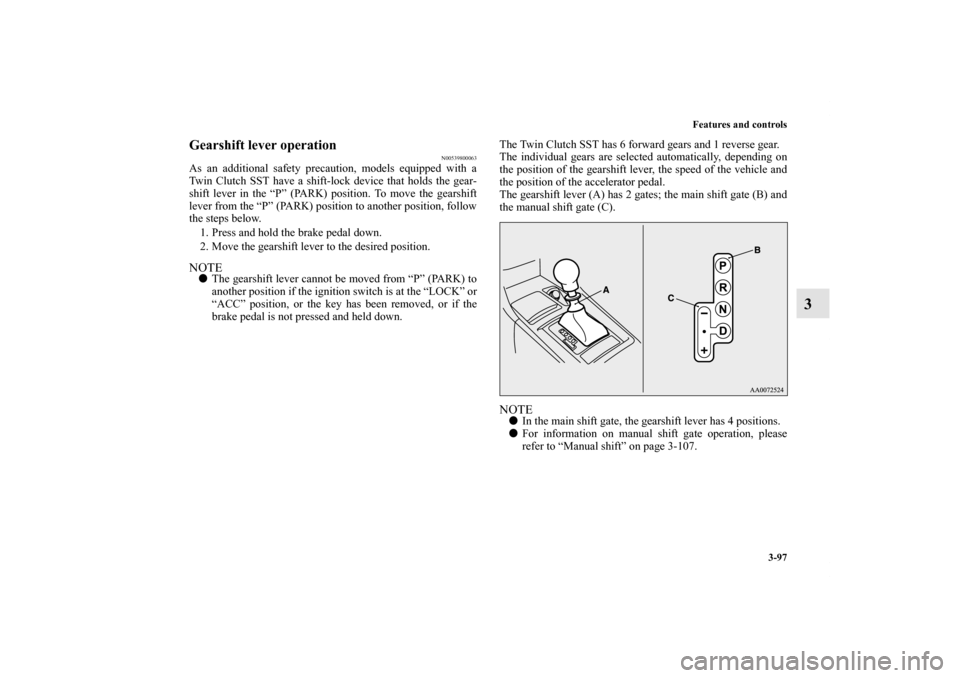

Features and controls
3-97
3
Gearshift lever operation
N00539800063
As an additional safety precaution, models equipped with a
Twin Clutch SST have a shift-lock device that holds the gear-
shift lever in the “P” (PARK) position. To move the gearshift
lever from the “P” (PARK) position to another position, follow
the steps below.
1. Press and hold the brake pedal down.
2. Move the gearshift lever to the desired position.NOTE
The gearshift lever cannot be moved from “P” (PARK) to
another position if the ignition switch is at the “LOCK” or
“ACC” position, or the key has been removed, or if the
brake pedal is not pressed and held down.The Twin Clutch SST has 6 forward gears and 1 reverse gear.
The individual gears are selected automatically, depending on
the position of the gearshift lever, the speed of the vehicle and
the position of the accelerator pedal.
The gearshift lever (A) has 2 gates; the main shift gate (B) and
the manual shift gate (C).
NOTE
In the main shift gate, the gearshift lever has 4 positions.

For information on manual shift gate operation, please
refer to “Manual shift” on page 3-107.
BK0150900US.book 97 ページ ２０１２年５月７日　月曜日　午後１２時９分

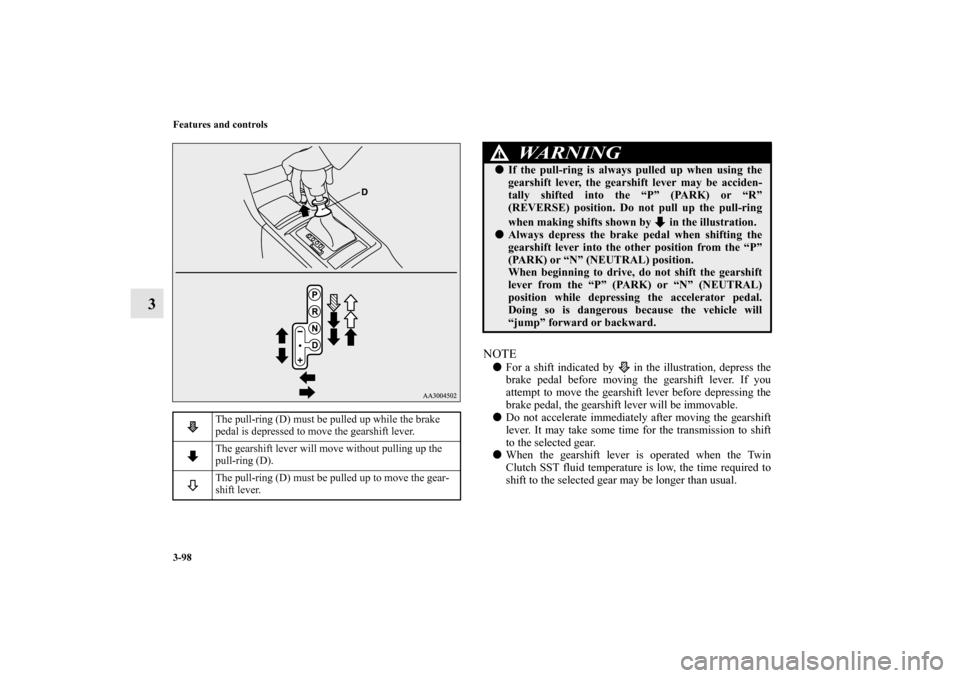

3-98 Features and controls
3
NOTE
For a shift indicated by in the illustration, depress the
brake pedal before moving the gearshift lever. If you
attempt to move the gearshift lever before depressing the
brake pedal, the gearshift lever will be immovable.

Do not accelerate immediately after moving the gearshift
lever. It may take some time for the transmission to shift
to the selected gear.

When the gearshift lever is operated when the Twin
Clutch SST fluid temperature is low, the time required to
shift to the selected gear may be longer than usual.
The pull-ring (D) must be pulled up while the brake
pedal is depressed to move the gearshift lever.
The gearshift lever will move without pulling up the
pull-ring (D).
The pull-ring (D) must be pulled up to move the gear-
shift lever.
WA R N I N G
!
If the pull-ring is always pulled up when using the
gearshift lever, the gearshift lever may be acciden-
tally shifted into the “P” (PARK) or “R”
(REVERSE) position. Do not pull up the pull-ring
when making shifts shown by in the illustration.
Always depress the brake pedal when shifting the
gearshift lever into the other position from the “P”
(PARK) or “N” (NEUTRAL) position.
When beginning to drive, do not shift the gearshift
lever from the “P” (PARK) or “N” (NEUTRAL)
position while depressing the accelerator pedal.
Doing so is dangerous because the vehicle will
“jump” forward or backward.
BK0150900US.book 98 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-99
3

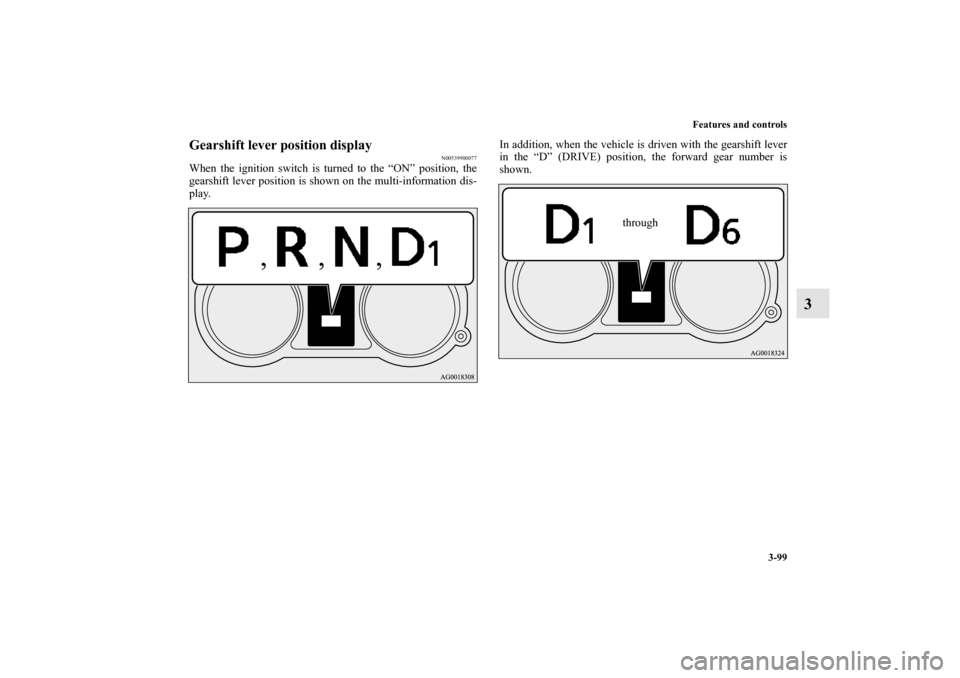

Gearshift lever position display
N00539900077
When the ignition switch is turned to the “ON” position, the
gearshift lever position is shown on the multi-information dis-
play. In addition, when the vehicle is driven with the gearshift lever
in the “D” (DRIVE) position, the forward gear number is
shown.
through
BK0150900US.book 99 ページ ２０１２年５月７日　月曜日　午後１２時９分

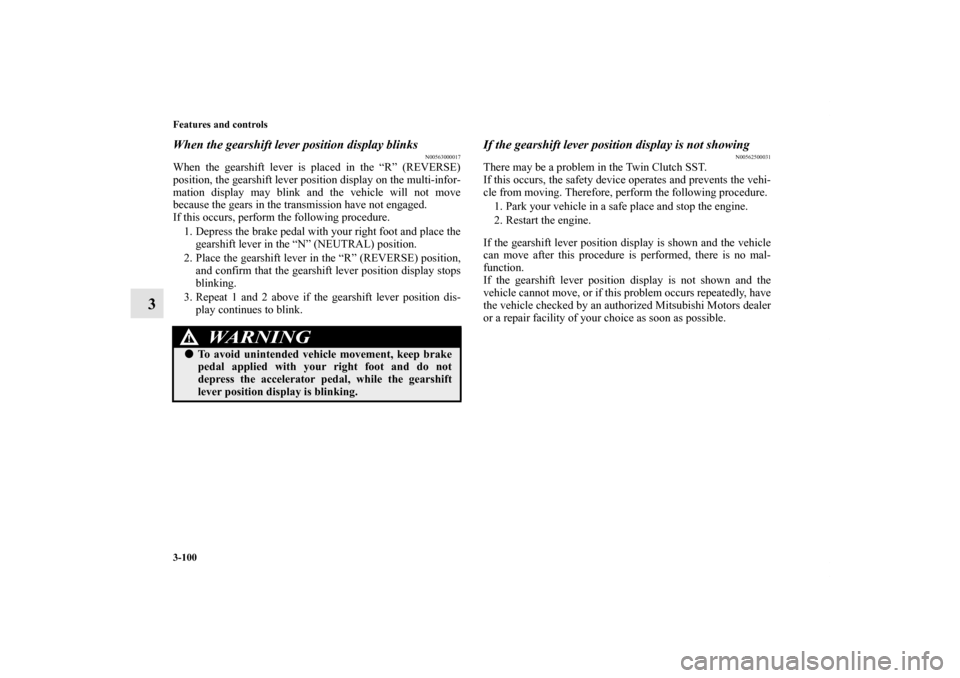

3-100 Features and controls
3
When the gearshift lever position display blinks
N00563000017
When the gearshift lever is placed in the “R” (REVERSE)
position, the gearshift lever position display on the multi-infor-
mation display may blink and the vehicle will not move
because the gears in the transmission have not engaged.
If this occurs, perform the following procedure.
1. Depress the brake pedal with your right foot and place the
gearshift lever in the “N” (NEUTRAL) position.
2. Place the gearshift lever in the “R” (REVERSE) position,
and confirm that the gearshift lever position display stops
blinking.
3. Repeat 1 and 2 above if the gearshift lever position dis-
play continues to blink.
If the gearshift lever position display is not showing
N00562500031
There may be a problem in the Twin Clutch SST.
If this occurs, the safety device operates and prevents the vehi-
cle from moving. Therefore, perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the gearshift lever position display is shown and the vehicle
can move after this procedure is performed, there is no mal-
function.
If the gearshift lever position display is not shown and the
vehicle cannot move, or if this problem occurs repeatedly, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice as soon as possible.
WA R N I N G
!
To avoid unintended vehicle movement, keep brake
pedal applied with your right foot and do not
depress the accelerator pedal, while the gearshift
lever position display is blinking.
BK0150900US.book 100 ページ ２０１２年５月７日　月曜日　午後１２時９分

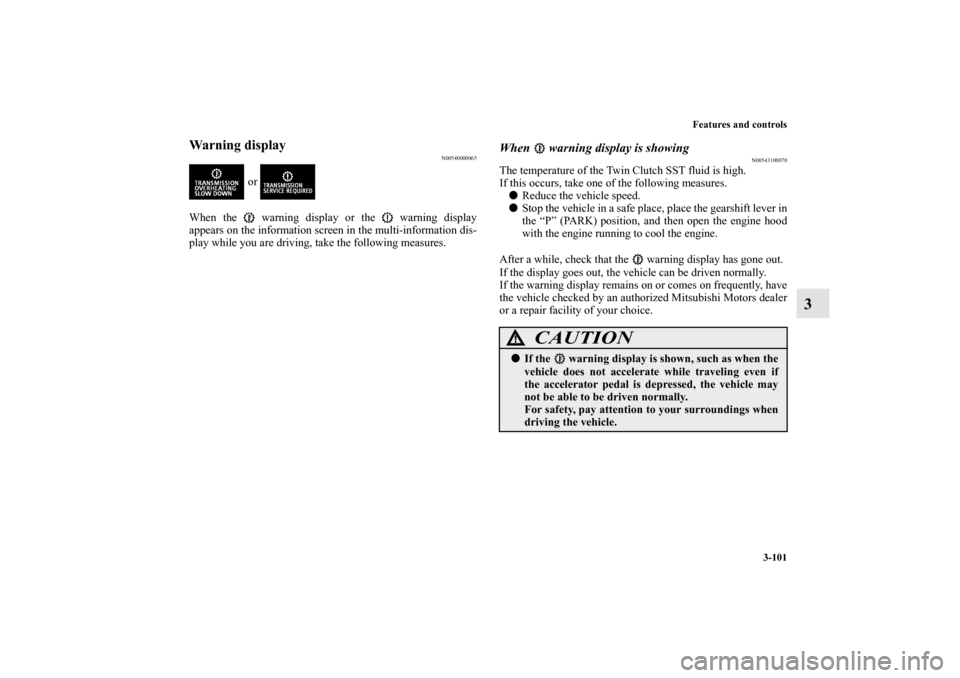

Features and controls
3-101
3
Warning display
N00540000065
or
When the warning display or the warning display
appears on the information screen in the multi-information dis-
play while you are driving, take the following measures.
When warning display is showing
N00543100070
The temperature of the Twin Clutch SST fluid is high.
If this occurs, take one of the following measures.

Reduce the vehicle speed.

Stop the vehicle in a safe place, place the gearshift lever in
the “P” (PARK) position, and then open the engine hood
with the engine running to cool the engine.
After a while, check that the warning display has gone out.
If the display goes out, the vehicle can be driven normally.
If the warning display remains on or comes on frequently, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
CAUTION
!
If the warning display is shown, such as when the
vehicle does not accelerate while traveling even if
the accelerator pedal is depressed, the vehicle may
not be able to be driven normally.
For safety, pay attention to your surroundings when
driving the vehicle.
BK0150900US.book 101 ページ ２０１２年５月７日　月曜日　午後１２時９分

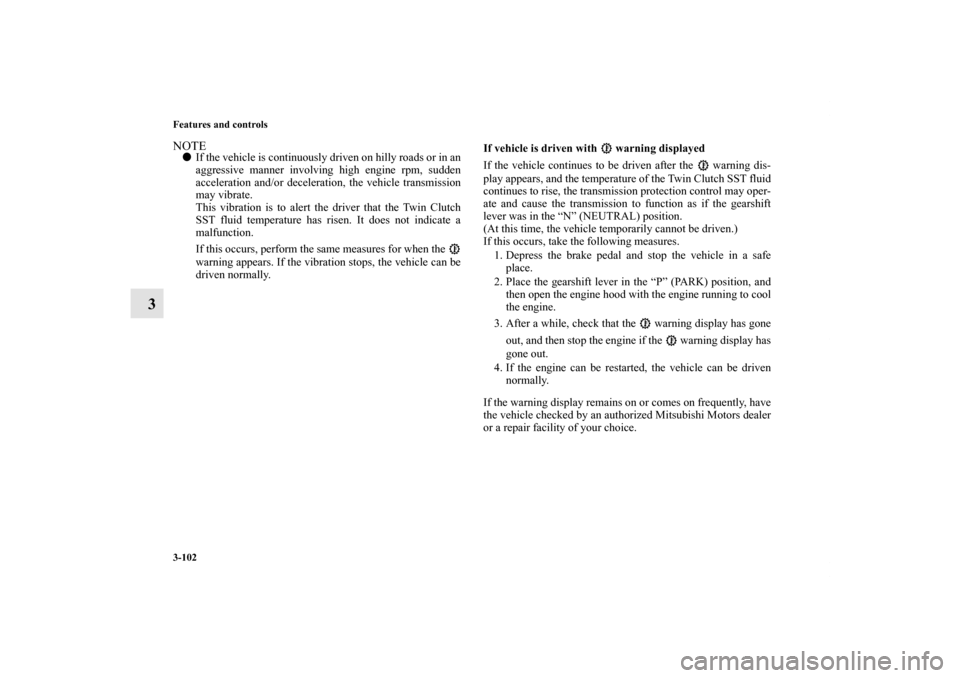

3-102 Features and controls
3
NOTE
If the vehicle is continuously driven on hilly roads or in an
aggressive manner involving high engine rpm, sudden
acceleration and/or deceleration, the vehicle transmission
may vibrate.
This vibration is to alert the driver that the Twin Clutch
SST fluid temperature has risen. It does not indicate a
malfunction.
If this occurs, perform the same measures for when the
warning appears. If the vibration stops, the vehicle can be
driven normally.If vehicle is driven with warning displayed
If the vehicle continues to be driven after the warning dis-
play appears, and the temperature of the Twin Clutch SST fluid
continues to rise, the transmission protection control may oper-
ate and cause the transmission to function as if the gearshift
lever was in the “N” (NEUTRAL) position.
(At this time, the vehicle temporarily cannot be driven.)
If this occurs, take the following measures.
1. Depress the brake pedal and stop the vehicle in a safe
place.
2. Place the gearshift lever in the “P” (PARK) position, and
then open the engine hood with the engine running to cool
the engine.
3. After a while, check that the warning display has gone
out, and then stop the engine if the warning display has
gone out.
4. If the engine can be restarted, the vehicle can be driven
normally.
If the warning display remains on or comes on frequently, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
BK0150900US.book 102 ページ ２０１２年５月７日　月曜日　午後１２時９分

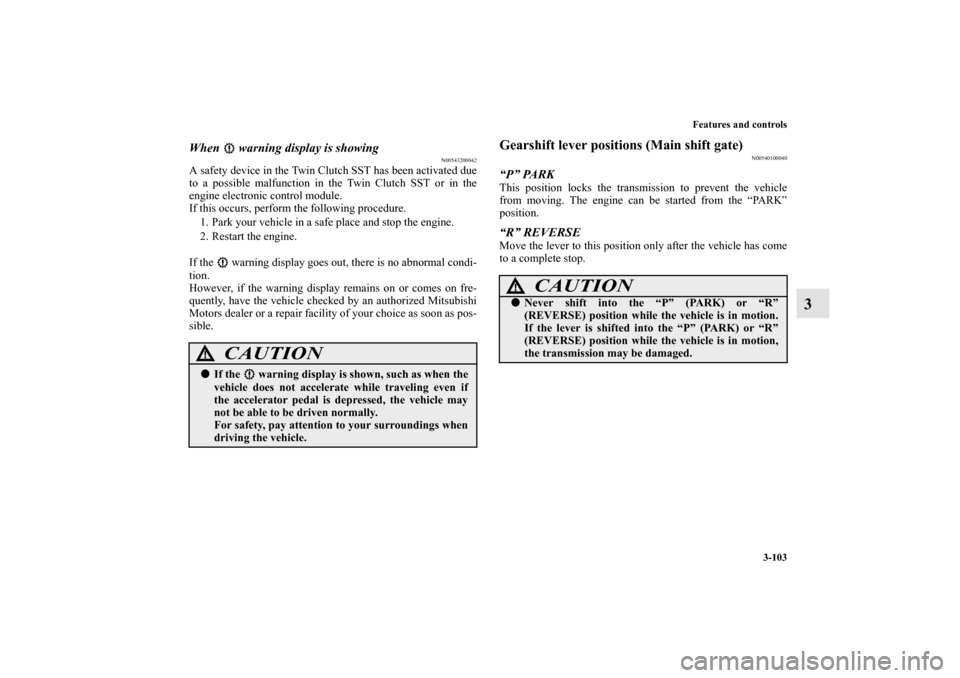

Features and controls
3-103
3
When warning display is showing
N00543200042
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST or in the
engine electronic control module.
If this occurs, perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the warning display goes out, there is no abnormal condi-
tion.
However, if the warning display remains on or comes on fre-
quently, have the vehicle checked by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as soon as pos-
sible.
Gearshift lever positions (Main shift gate)
N00540100040
“P” PARKThis position locks the transmission to prevent the vehicle
from moving. The engine can be started from the “PARK”
position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
CAUTION
!
If the warning display is shown, such as when the
vehicle does not accelerate while traveling even if
the accelerator pedal is depressed, the vehicle may
not be able to be driven normally.
For safety, pay attention to your surroundings when
driving the vehicle.
CAUTION
!
Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion,
the transmission may be damaged.
BK0150900US.book 103 ページ ２０１２年５月７日　月曜日　午後１２時９分
