3-124 Features and controls
3

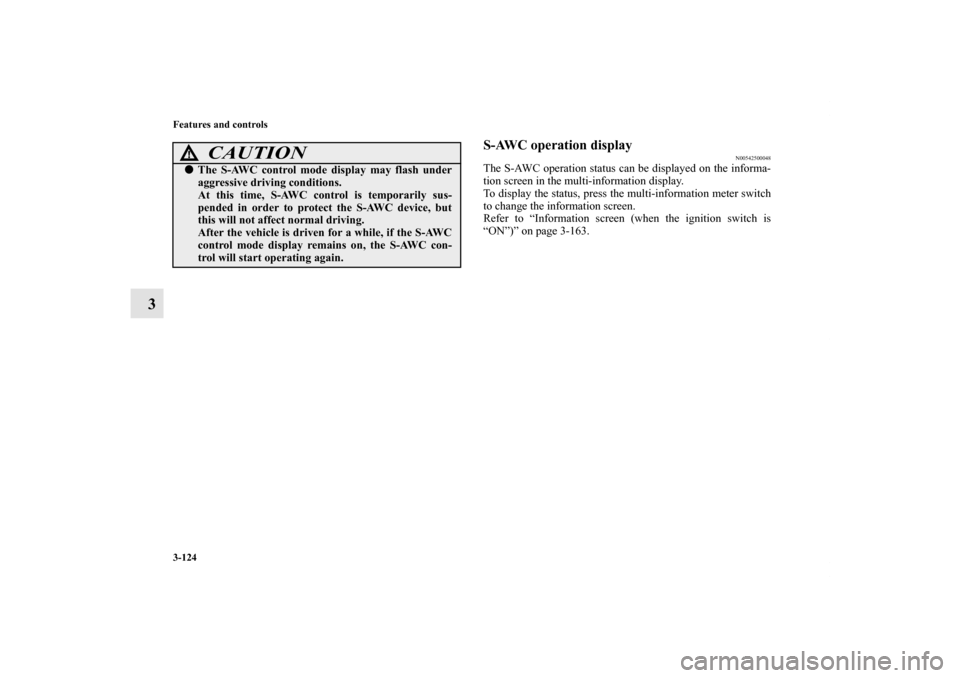

S-AWC operation display
N00542500048
The S-AWC operation status can be displayed on the informa-
tion screen in the multi-information display.
To display the status, press the multi-information meter switch
to change the information screen.
Refer to “Information screen (when the ignition switch is
“ON”)” on page 3-163.
CAUTION
!
The S-AWC control mode display may flash under
aggressive driving conditions.
At this time, S-AWC control is temporarily sus-
pended in order to protect the S-AWC device, but
this will not affect normal driving.
After the vehicle is driven for a while, if the S-AWC
control mode display remains on, the S-AWC con-
trol will start operating again.
BK0150900US.book 124 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-125
3

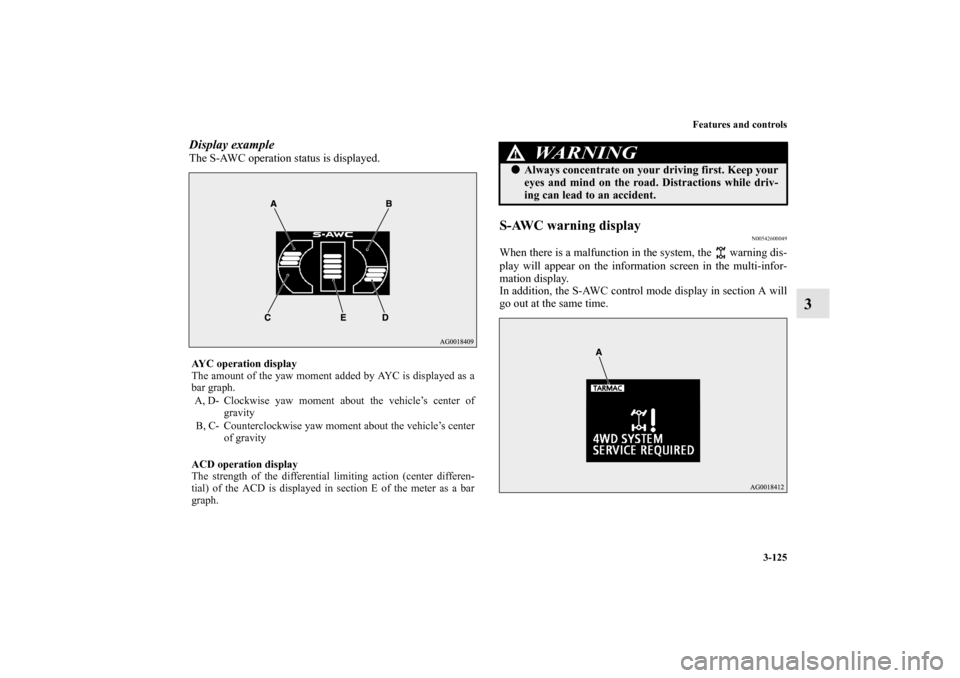

Display exampleThe S-AWC operation status is displayed.
S-AWC warning display
N00542600049
When there is a malfunction in the system, the warning dis-
play will appear on the information screen in the multi-infor-
mation display.
In addition, the S-AWC control mode display in section A will
go out at the same time.
AYC operation display
The amount of the yaw moment added by AYC is displayed as a
bar graph.
A, D- Clockwise yaw moment about the vehicle’s center of
gravity
B, C- Counterclockwise yaw moment about the vehicle’s center
of gravity
ACD operation display
The strength of the differential limiting action (center differen-
tial) of the ACD is displayed in section E of the meter as a bar
graph.
WA R N I N G
!
Always concentrate on your driving first. Keep your
eyes and mind on the road. Distractions while driv-
ing can lead to an accident.
BK0150900US.book 125 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-126 Features and controls
3
NOTE
If the ambient temperature drops and the viscosity of the
AWC control fluid increases, the warning may be dis-
played.
At this time, S-AWC control is temporarily suspended,
but this will not affect normal driving.
After the vehicle is driven for a while, if the engine is
restarted after the AWC control fluid warms up or the
ambient temperature increases, the S-AWC control will
start operating again if the warning display goes out.

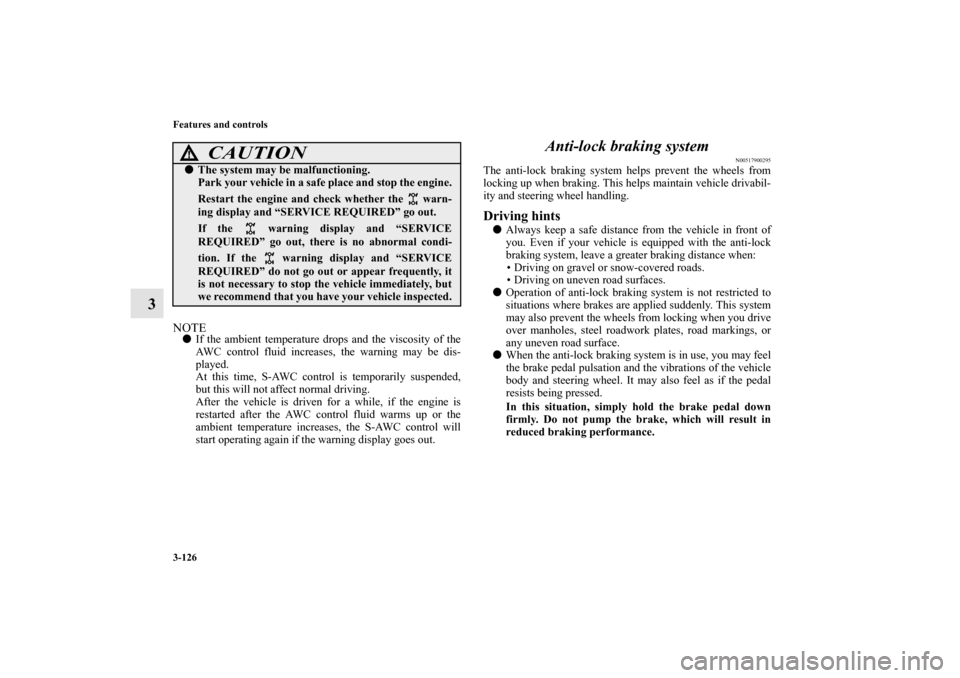

Anti-lock braking system
N00517900295
The anti-lock braking system helps prevent the wheels from
locking up when braking. This helps maintain vehicle drivabil-
ity and steering wheel handling.Driving hints
Always keep a safe distance from the vehicle in front of
you. Even if your vehicle is equipped with the anti-lock
braking system, leave a greater braking distance when:
• Driving on gravel or snow-covered roads.
• Driving on uneven road surfaces.

Operation of anti-lock braking system is not restricted to
situations where brakes are applied suddenly. This system
may also prevent the wheels from locking when you drive
over manholes, steel roadwork plates, road markings, or
any uneven road surface.

When the anti-lock braking system is in use, you may feel
the brake pedal pulsation and the vibrations of the vehicle
body and steering wheel. It may also feel as if the pedal
resists being pressed.
In this situation, simply hold the brake pedal down
firmly. Do not pump the brake, which will result in
reduced braking performance.
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the warn-
ing display and “SERVICE REQUIRED” go out.
If the warning display and “SERVICE
REQUIRED” go out, there is no abnormal condi-
tion. If the warning display and “SERVICE
REQUIRED” do not go out or appear frequently, it
is not necessary to stop the vehicle immediately, but
we recommend that you have your vehicle inspected.
BK0150900US.book 126 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-127
3

An operation noise is emitted from the engine compart-
ment or feel a shock from the brake pedal when start driv-
ing immediately after starting the engine. These are
normal sound or operation that the anti-lock braking sys-
tem makes when performing a self-check. It does not indi-
cate a malfunction.

The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below approxi-
mately 3 mph (5 km/h).

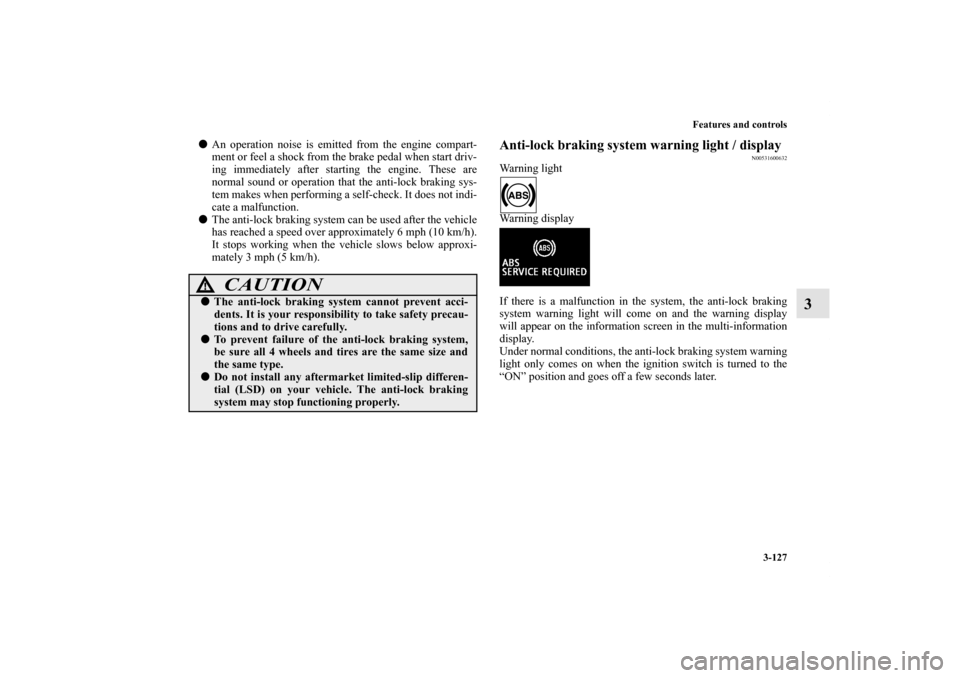

Anti-lock braking system warning light / display
N00531600632
Warning light
Warning display
If there is a malfunction in the system, the anti-lock braking
system warning light will come on and the warning display
will appear on the information screen in the multi-information
display.
Under normal conditions, the anti-lock braking system warning
light only comes on when the ignition switch is turned to the
“ON” position and goes off a few seconds later.
CAUTION
!
The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.
To prevent failure of the anti-lock braking system,
be sure all 4 wheels and tires are the same size and
the same type.
Do not install any aftermarket limited-slip differen-
tial (LSD) on your vehicle. The anti-lock braking
system may stop functioning properly.
BK0150900US.book 127 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-128 Features and controls
3

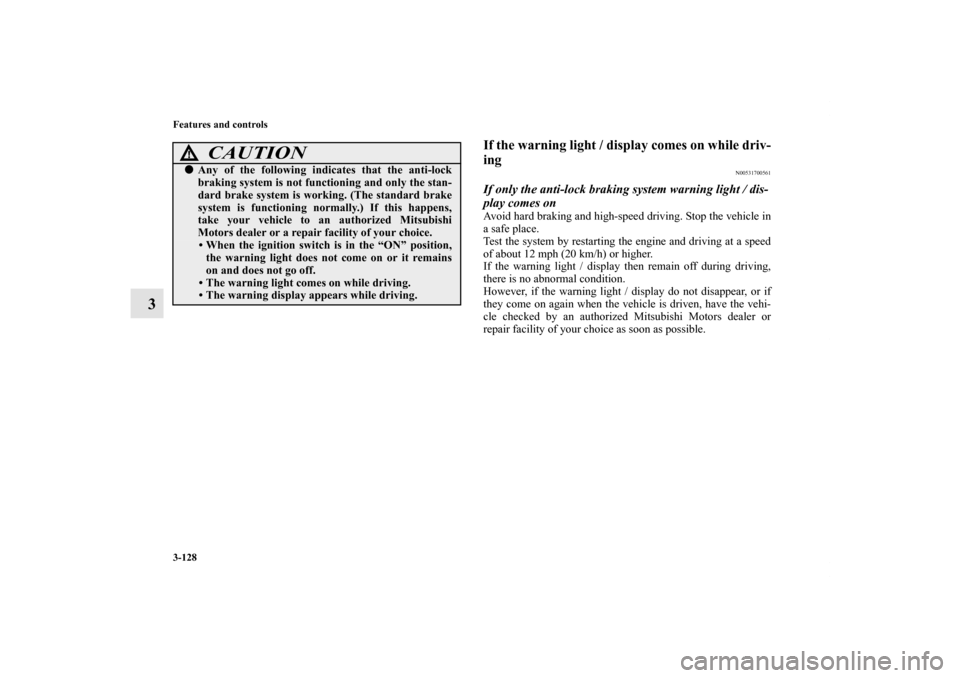

If the warning light / display comes on while driv-
ing
N00531700561
If only the anti-lock braking system warning light / dis-
play comes onAvoid hard braking and high-speed driving. Stop the vehicle in
a safe place.
Test the system by restarting the engine and driving at a speed
of about 12 mph (20 km/h) or higher.
If the warning light / display then remain off during driving,
there is no abnormal condition.
However, if the warning light / display do not disappear, or if
they come on again when the vehicle is driven, have the vehi-
cle checked by an authorized Mitsubishi Motors dealer or
repair facility of your choice as soon as possible.
CAUTION
!
Any of the following indicates that the anti-lock
braking system is not functioning and only the stan-
dard brake system is working. (The standard brake
system is functioning normally.) If this happens,
take your vehicle to an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
• When the ignition switch is in the “ON” position,
the warning light does not come on or it remains
on and does not go off.
• The warning light comes on while driving.
• The warning display appears while driving.
BK0150900US.book 128 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-129
3
If the anti-lock braking system warning light / display
and brake warning light / display come on at the same
timeWarning light


The anti-lock braking system and brake force distribution func-
tion may not work, so hard braking could make the vehicle
unstable.
Avoid hard braking and high-speed driving. Stop the vehicle in
a safe place and contact an authorized Mitsubishi Motors
dealer or repair facility of your choice.NOTE
The anti-lock braking system warning light and brake
warning light illuminate at the same time and the warning
displays appear alternately on the information screen in
the multi-information display.
After driving on icy roads
N00529200035
After driving on snow or icy roads, remove any snow and ice
which may have been left around the wheels. On vehicles that
have an anti-lock braking system, be careful not to damage the
wheel speed sensors (A) or the cables located at each wheel.Front
BK0150900US.book 129 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-130 Features and controls

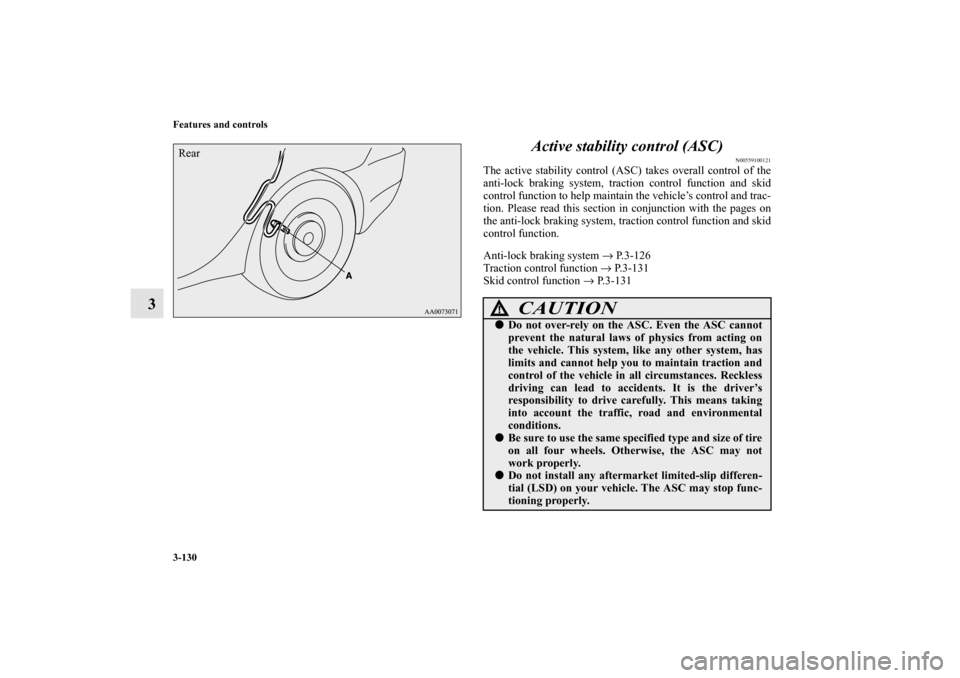

3Active stability control (ASC)
N00559100121
The active stability control (ASC) takes overall control of the
anti-lock braking system, traction control function and skid
control function to help maintain the vehicle’s control and trac-
tion. Please read this section in conjunction with the pages on
the anti-lock braking system, traction control function and skid
control function.
Anti-lock braking system → P. 3 - 1 2 6
Traction control function → P.3-131
Skid control function → P.3-131
Rear
CAUTION
!
Do not over-rely on the ASC. Even the ASC cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibility to drive carefully. This means taking
into account the traffic, road and environmental
conditions.
Be sure to use the same specified type and size of tire
on all four wheels. Otherwise, the ASC may not
work properly.
Do not install any aftermarket limited-slip differen-
tial (LSD) on your vehicle. The ASC may stop func-
tioning properly.
BK0150900US.book 130 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-131
3
NOTE
An operation noise may be emitted from the engine com-
partment in the following situations. The sound is associ-
ated with checking the operations of the ASC. At this
time, you may feel a shock from the brake pedal if you
depress it. These do not indicate a malfunction.
• When the ignition switch is set to the “ON” position.
• When the vehicle is driven for a while after the engine is
turned on.

When the ASC is activated, you may feel a vibration in
the vehicle body or hear a whining sound from the engine
compartment.
This indicates that the system is operating normally. It
does not indicate a malfunction.

When the anti-lock braking system warning light is illu-
minated, the ASC is not active.

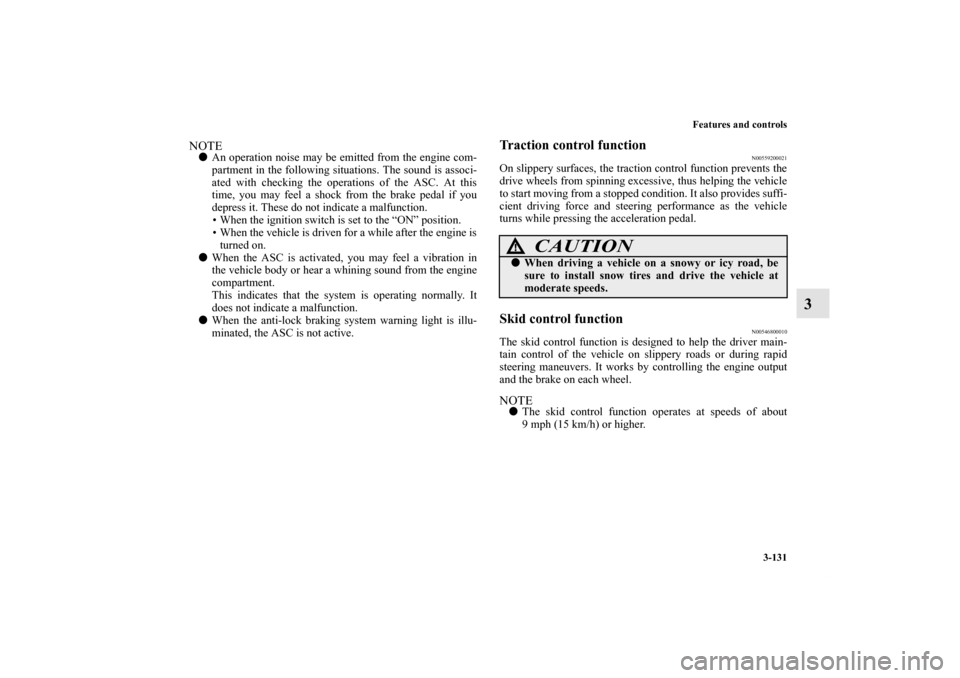

Traction control function
N00559200021
On slippery surfaces, the traction control function prevents the
drive wheels from spinning excessive, thus helping the vehicle
to start moving from a stopped condition. It also provides suffi-
cient driving force and steering performance as the vehicle
turns while pressing the acceleration pedal.Skid control function
N00546800010
The skid control function is designed to help the driver main-
tain control of the vehicle on slippery roads or during rapid
steering maneuvers. It works by controlling the engine output
and the brake on each wheel.NOTE
The skid control function operates at speeds of about
9 mph (15 km/h) or higher.
CAUTION
!
When driving a vehicle on a snowy or icy road, be
sure to install snow tires and drive the vehicle at
moderate speeds.
BK0150900US.book 131 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-132 Features and controls
3

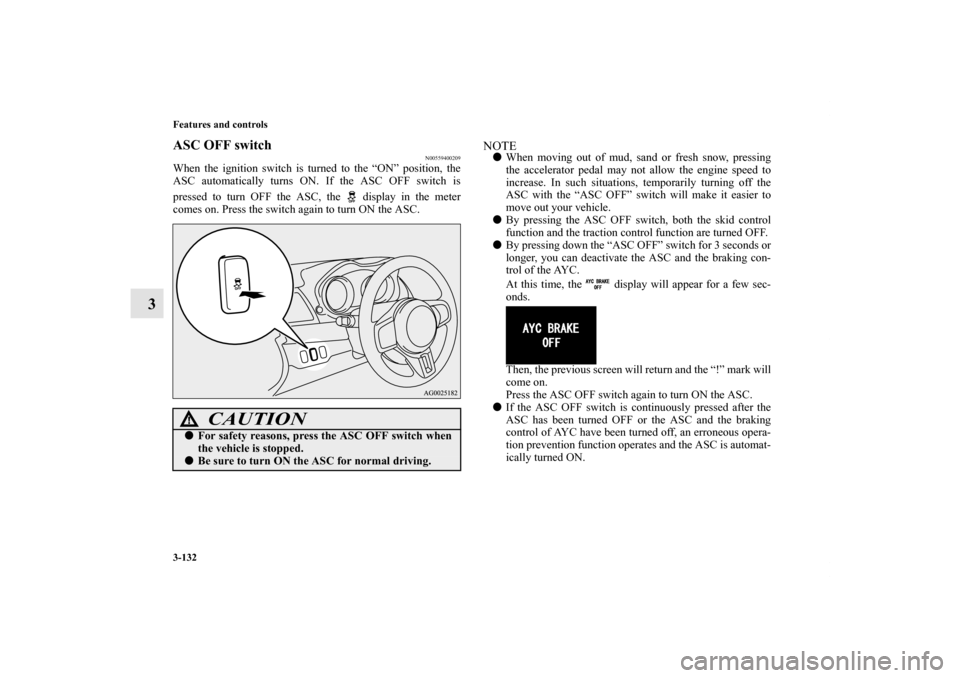

ASC OFF switch
N00559400209
When the ignition switch is turned to the “ON” position, the
ASC automatically turns ON. If the ASC OFF switch is
pressed to turn OFF the ASC, the display in the meter
comes on. Press the switch again to turn ON the ASC.
NOTE
When moving out of mud, sand or fresh snow, pressing
the accelerator pedal may not allow the engine speed to
increase. In such situations, temporarily turning off the
ASC with the “ASC OFF” switch will make it easier to
move out your vehicle.

By pressing the ASC OFF switch, both the skid control
function and the traction control function are turned OFF.

By pressing down the “ASC OFF” switch for 3 seconds or
longer, you can deactivate the ASC and the braking con-
trol of the AYC.
At this time, the display will appear for a few sec-
onds.
Then, the previous screen will return and the “!” mark will
come on.
Press the ASC OFF switch again to turn ON the ASC.

If the ASC OFF switch is continuously pressed after the
ASC has been turned OFF or the ASC and the braking
control of AYC have been turned off, an erroneous opera-
tion prevention function operates and the ASC is automat-
ically turned ON.
CAUTION
!
For safety reasons, press the ASC OFF switch when
the vehicle is stopped.
Be sure to turn ON the ASC for normal driving.
BK0150900US.book 132 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-133
3

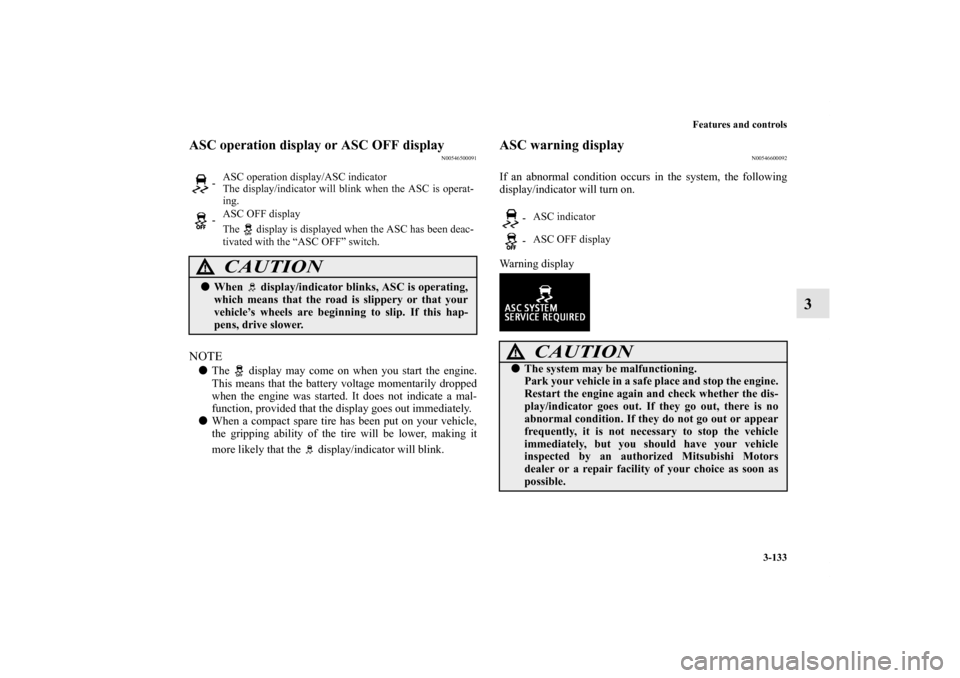

ASC operation display or ASC OFF display
N00546500091
NOTE
The display may come on when you start the engine.
This means that the battery voltage momentarily dropped
when the engine was started. It does not indicate a mal-
function, provided that the display goes out immediately.

When a compact spare tire has been put on your vehicle,
the gripping ability of the tire will be lower, making it
more likely that the display/indicator will blink.
ASC warning display
N00546600092
If an abnormal condition occurs in the system, the following
display/indicator will turn on.
Warning display
- ASC operation display/ASC indicator
The display/indicator will blink when the ASC is operat-
ing.
-ASC OFF display
The display is displayed when the ASC has been deac-
tivated with the “ASC OFF” switch.
CAUTION
!
When display/indicator blinks, ASC is operating,
which means that the road is slippery or that your
vehicle’s wheels are beginning to slip. If this hap-
pens, drive slower.
- ASC indicator
-ASC OFF display
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine again and check whether the dis-
play/indicator goes out. If they go out, there is no
abnormal condition. If they do not go out or appear
frequently, it is not necessary to stop the vehicle
immediately, but you should have your vehicle
inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as
possible.
BK0150900US.book 133 ページ ２０１２年５月７日　月曜日　午後１２時９分
