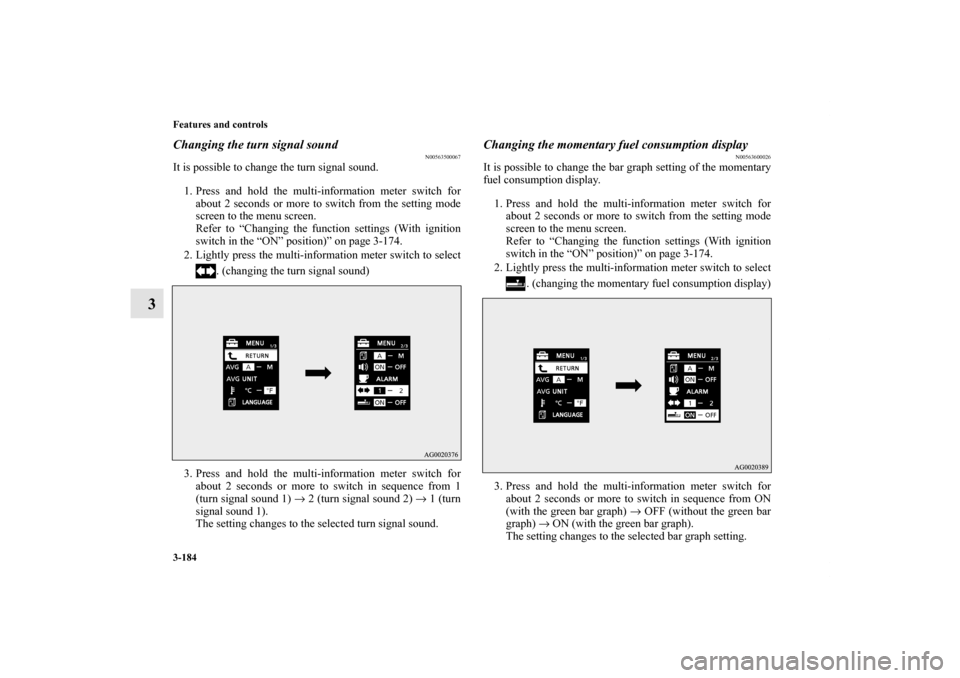

3-184 Features and controls
3
Changing the turn signal sound
N00563500067
It is possible to change the turn signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
. (changing the turn signal sound)
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn
signal sound 1).
The setting changes to the selected turn signal sound.
Changing the momentary fuel consumption display
N00563600026
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.
BK0150900US.book 184 ページ ２０１２年５月７日　月曜日　午後１２時９分

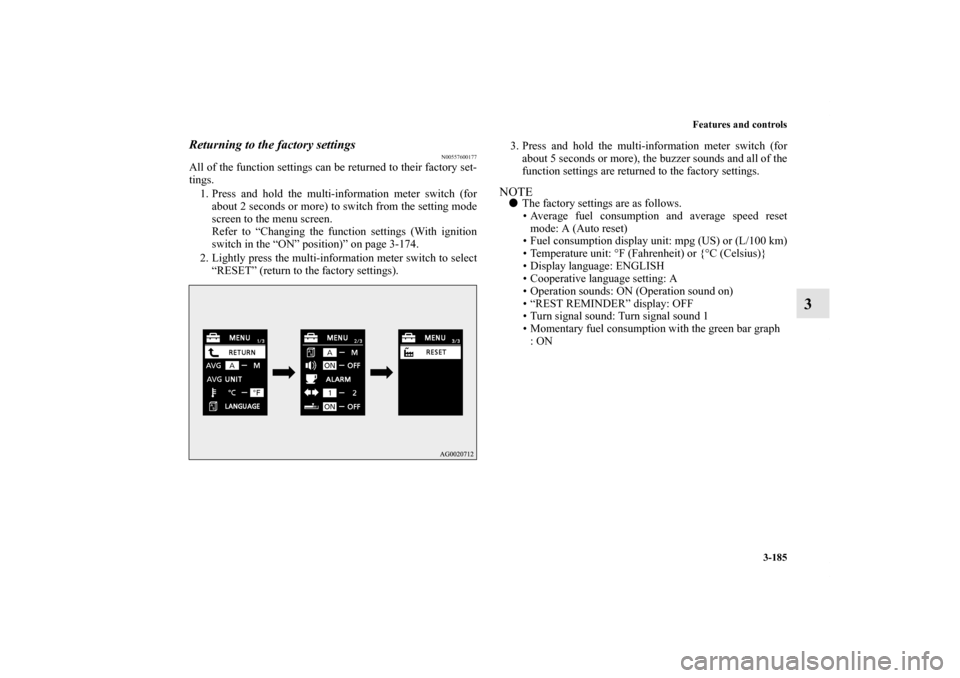

Features and controls
3-185
3
Returning to the factory settings
N00557600177
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings).3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.
NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or {°C (Celsius)}
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph
: ON
BK0150900US.book 185 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-186 Features and controls

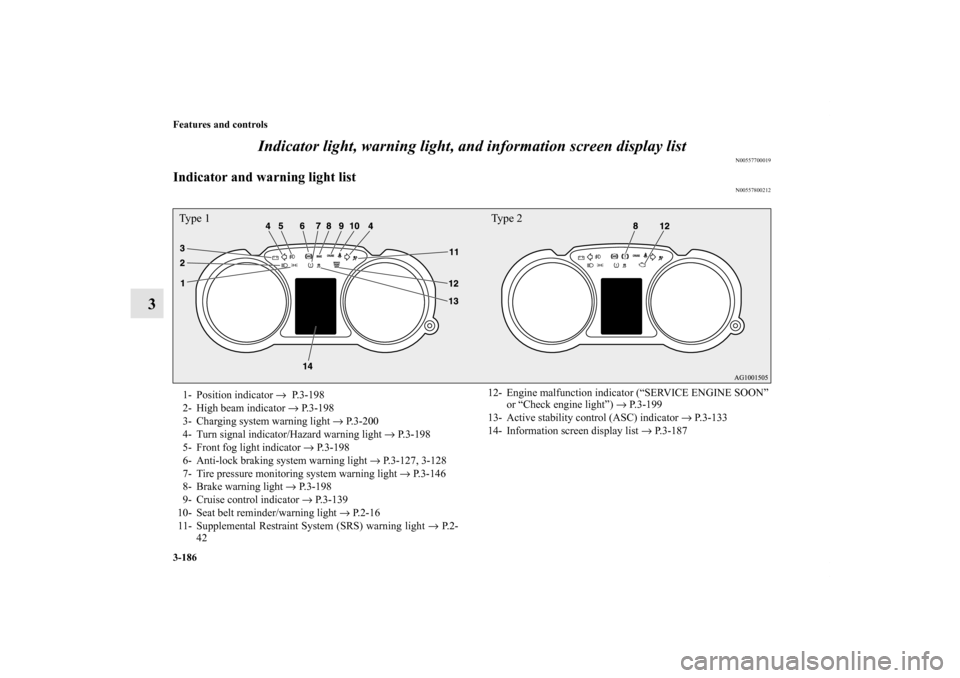

3Indicator light, warning light, and information screen display list
N00557700019
Indicator and warning light list
N00557800212
Type 1 Type 21- Position indicator → P.3-198
2- High beam indicator → P.3-198
3- Charging system warning light → P.3-200
4- Turn signal indicator/Hazard warning light → P.3-198
5- Front fog light indicator → P.3-198
6- Anti-lock braking system warning light → P.3-127, 3-128
7- Tire pressure monitoring system warning light → P.3-146
8- Brake warning light → P. 3 - 1 9 8
9- Cruise control indicator → P.3-139
10- Seat belt reminder/warning light → P.2-16
11- Supplemental Restraint System (SRS) warning light → P. 2 -
4212- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-199
13- Active stability control (ASC) indicator → P.3-133
14- Information screen display list → P. 3 - 1 8 7
BK0150900US.book 186 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-187
3

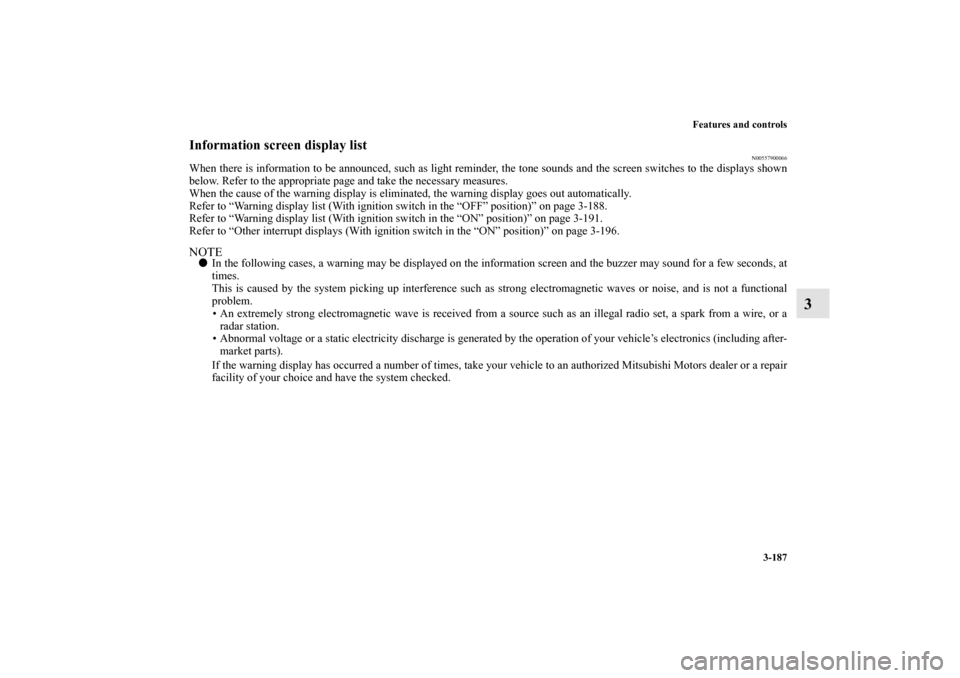

Information screen display list
N00557900066
When there is information to be announced, such as light reminder, the tone sounds and the screen switches to the displays shown
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (With ignition switch in the “OFF” position)” on page 3-188.
Refer to “Warning display list (With ignition switch in the “ON” position)” on page 3-191.
Refer to “Other interrupt displays (With ignition switch in the “ON” position)” on page 3-196.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of your vehicle’s electronics (including after-
market parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
BK0150900US.book 187 ページ ２０１２年５月７日　月曜日　午後１２時９分

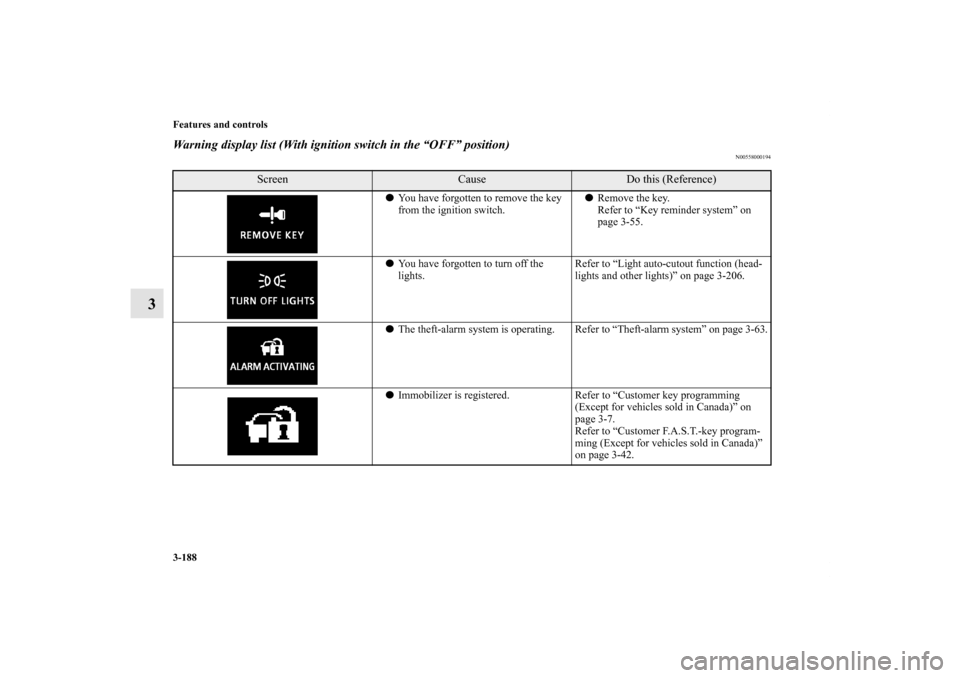

3-188 Features and controls
3
Warning display list (With ignition switch in the “OFF” position)
N00558000194
Screen
Cause
Do this (Reference)

You have forgotten to remove the key
from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-55.

You have forgotten to turn off the
lights.Refer to “Light auto-cutout function (head-
lights and other lights)” on page 3-206.

The theft-alarm system is operating. Refer to “Theft-alarm system” on page 3-63.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-7.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-42.
BK0150900US.book 188 ページ ２０１２年５月７日　月曜日　午後１２時９分

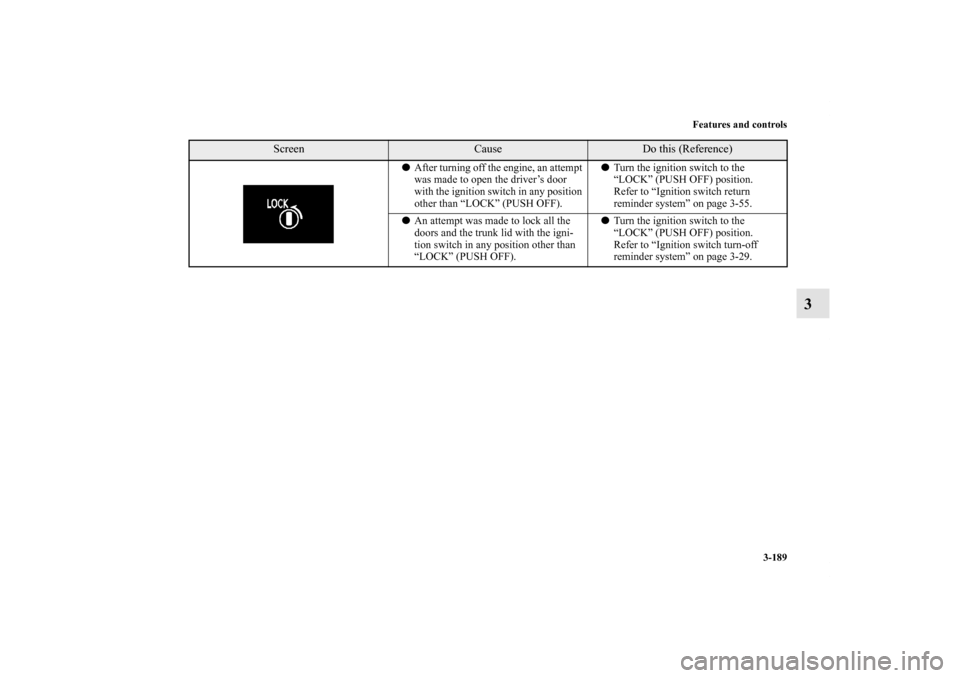

Features and controls
3-189
3

After turning off the engine, an attempt
was made to open the driver’s door
with the ignition switch in any position
other than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch return
reminder system” on page 3-55.

An attempt was made to lock all the
doors and the trunk lid with the igni-
tion switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-29.
Screen
Cause
Do this (Reference)
BK0150900US.book 189 ページ ２０１２年５月７日　月曜日　午後１２時９分

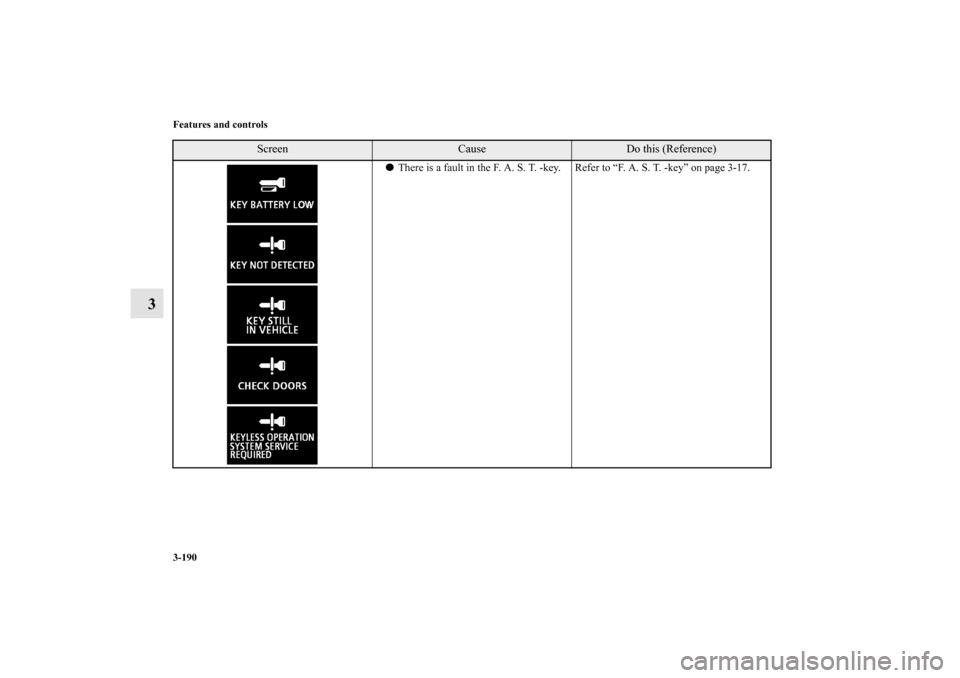

3-190 Features and controls
3

There is a fault in the F. A. S. T. -key. Refer to “F. A. S. T. -key” on page 3-17.
Screen
Cause
Do this (Reference)
BK0150900US.book 190 ページ ２０１２年５月７日　月曜日　午後１２時９分

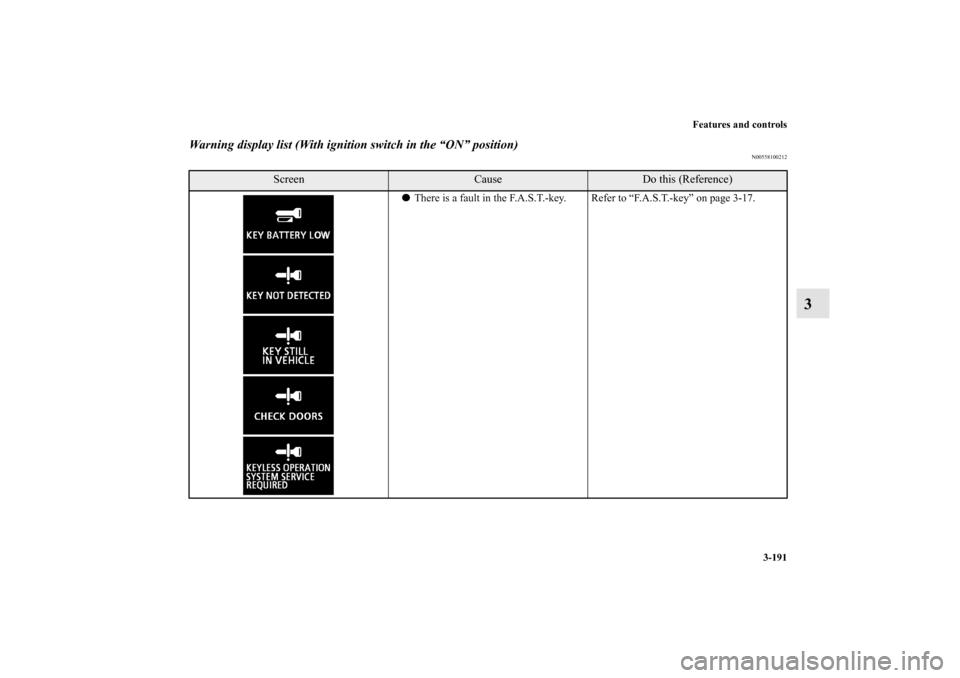

Features and controls
3-191
3
Warning display list (With ignition switch in the “ON” position)
N00558100212
Screen
Cause
Do this (Reference)

There is a fault in the F.A.S.T.-key. Refer to “F.A.S.T.-key” on page 3-17.
BK0150900US.book 191 ページ ２０１２年５月７日　月曜日　午後１２時９分

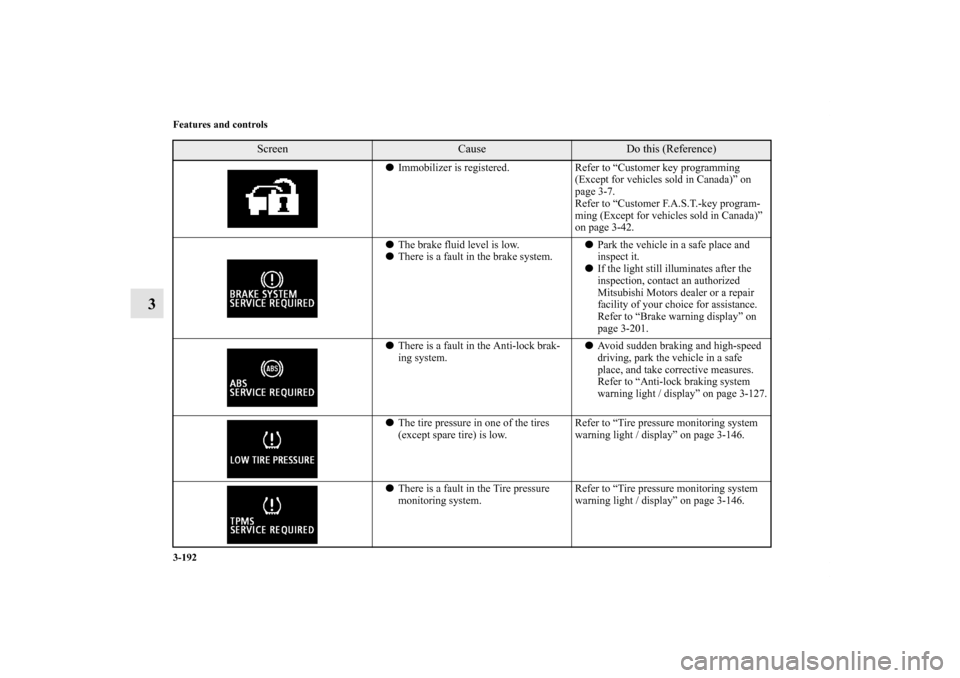

3-192 Features and controls
3

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-7.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-42.

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized
Mitsubishi Motors dealer or a repair
facility of your choice for assistance.
Refer to “Brake warning display” on
page 3-201.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning light / display” on page 3-127.

The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire pressure monitoring system
warning light / display” on page 3-146.

There is a fault in the Tire pressure
monitoring system.Refer to “Tire pressure monitoring system
warning light / display” on page 3-146.
Screen
Cause
Do this (Reference)
BK0150900US.book 192 ページ ２０１２年５月７日　月曜日　午後１２時９分

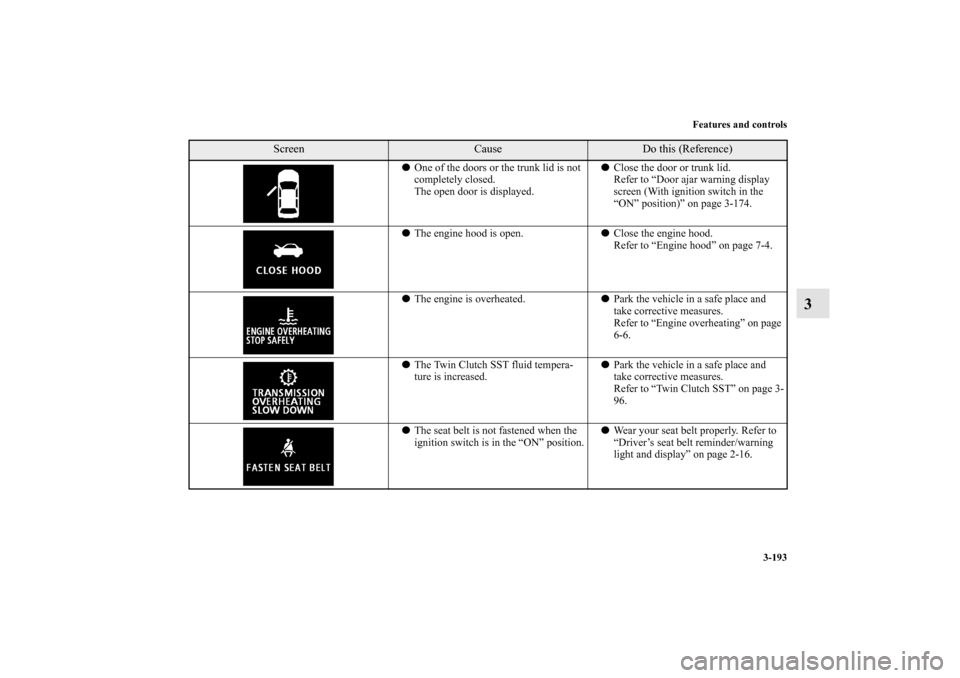

Features and controls
3-193
3

One of the doors or the trunk lid is not
completely closed.
The open door is displayed.
Close the door or trunk lid.
Refer to “Door ajar warning display
screen (With ignition switch in the
“ON” position)” on page 3-174.

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-6.

The Twin Clutch SST fluid tempera-
ture is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Twin Clutch SST” on page 3-
96.

The seat belt is not fastened when the
ignition switch is in the “ON” position.
Wear your seat belt properly. Refer to
“Driver’s seat belt reminder/warning
light and display” on page 2-16.
Screen
Cause
Do this (Reference)
