3-154 Features and controls
3

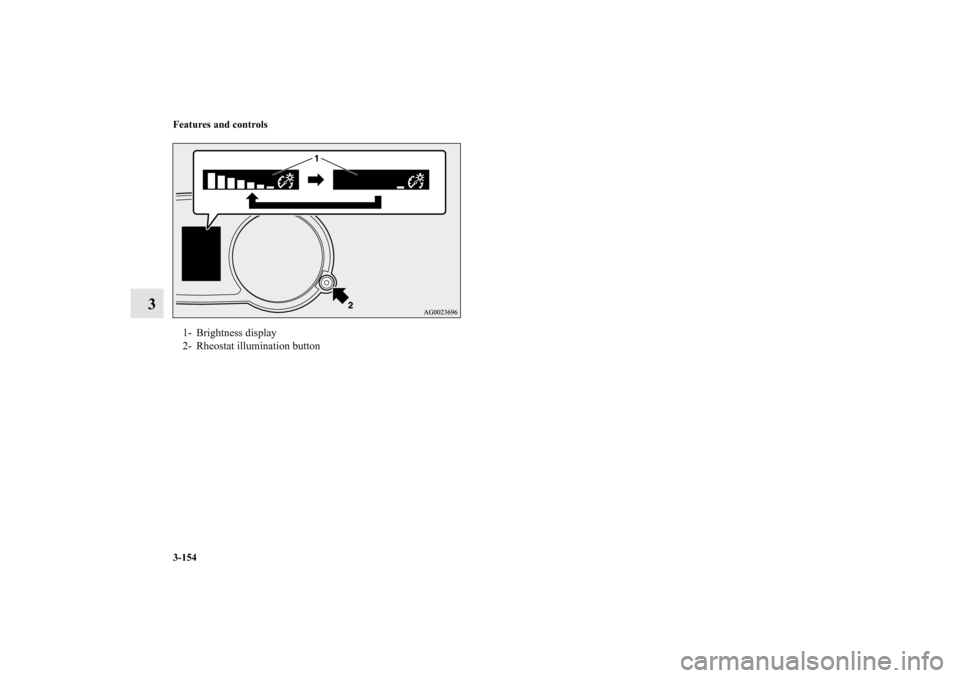

1- Brightness display
2- Rheostat illumination button
BK0150900US.book 154 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-155

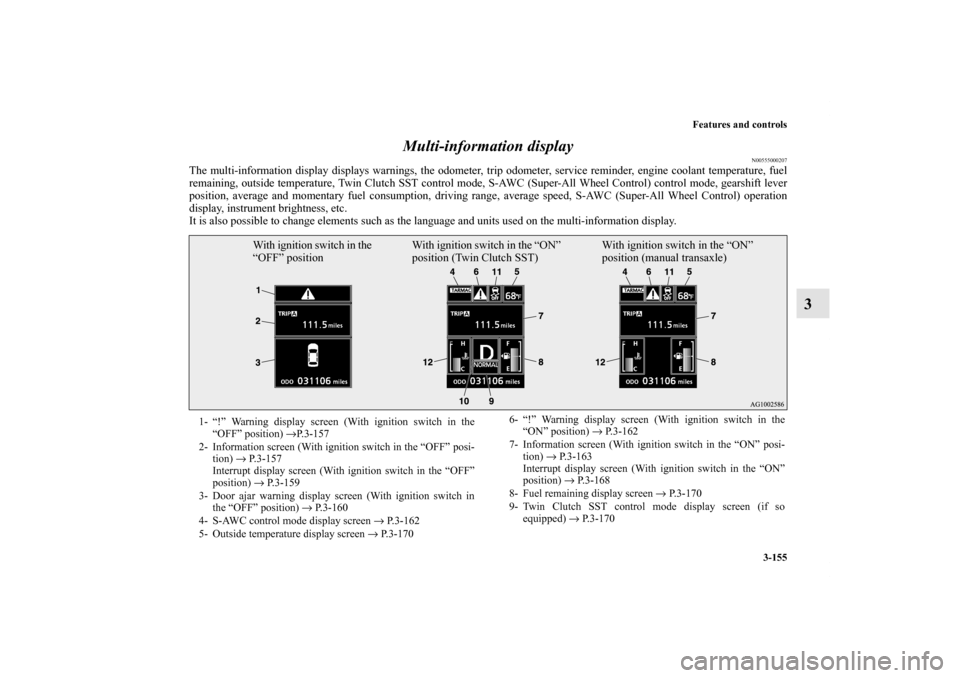

3 Multi-information display
N00555000207
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, S-AWC (Super-All Wheel Control) control mode, gearshift lever
position, average and momentary fuel consumption, driving range, average speed, S-AWC (Super-All Wheel Control) operation
display, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the
“OFF” positionWith ignition switch in the “ON”
position (Twin Clutch SST)With ignition switch in the “ON”
position (manual transaxle)
1- “!” Warning display screen (With ignition switch in the
“OFF” position) →P. 3 - 1 5 7
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-157
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-159
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-160
4- S-AWC control mode display screen → P.3-162
5- Outside temperature display screen → P.3-1706- “!” Warning display screen (With ignition switch in the
“ON” position) → P.3-162
7- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-163
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3 - 1 6 8
8- Fuel remaining display screen → P.3-170
9- Twin Clutch SST control mode display screen (if so
equipped) → P. 3 - 1 7 0
BK0150900US.book 155 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-156 Features and controls
3
NOTE
The trip computer function fuel units, temperature units,
display language, and other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-157.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-188.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON”)” on page 3-161.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-163.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-191.

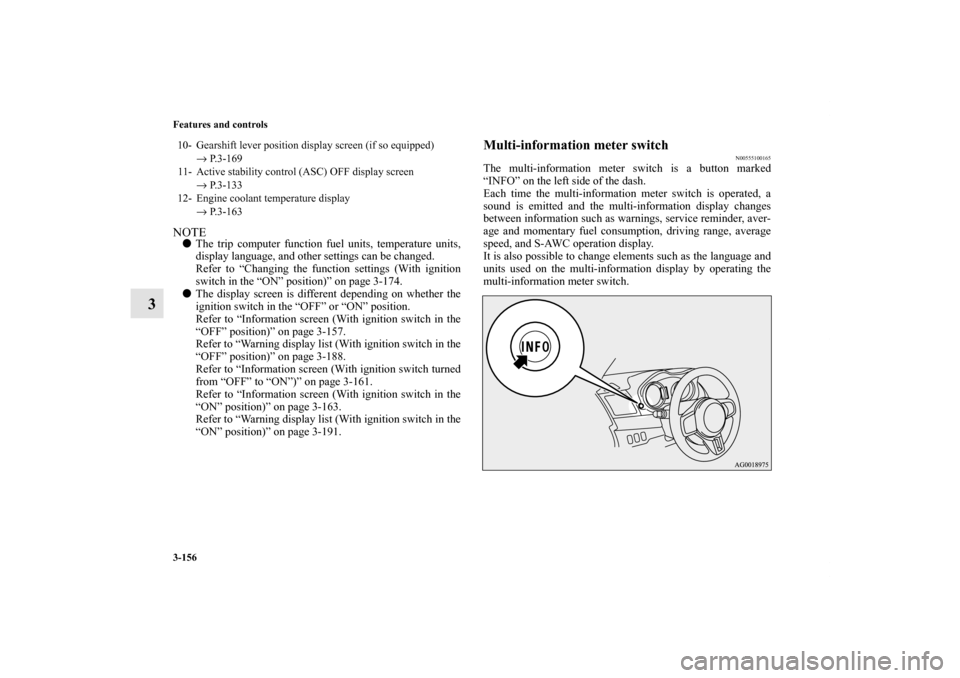

Multi-information meter switch
N00555100165
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, service reminder, aver-
age and momentary fuel consumption, driving range, average
speed, and S-AWC operation display.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
10- Gearshift lever position display screen (if so equipped)
→ P. 3 - 1 6 9
11- Active stability control (ASC) OFF display screen
→ P. 3 - 1 3 3
12- Engine coolant temperature display
→ P. 3 - 1 6 3BK0150900US.book 156 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-157
3
“!” Warning display screen (With ignition switch
in the “OFF” position)
N00555200078
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the “!”
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-159.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the “!” warning goes out automatically.NOTE
When the “!” warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-157.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-163.

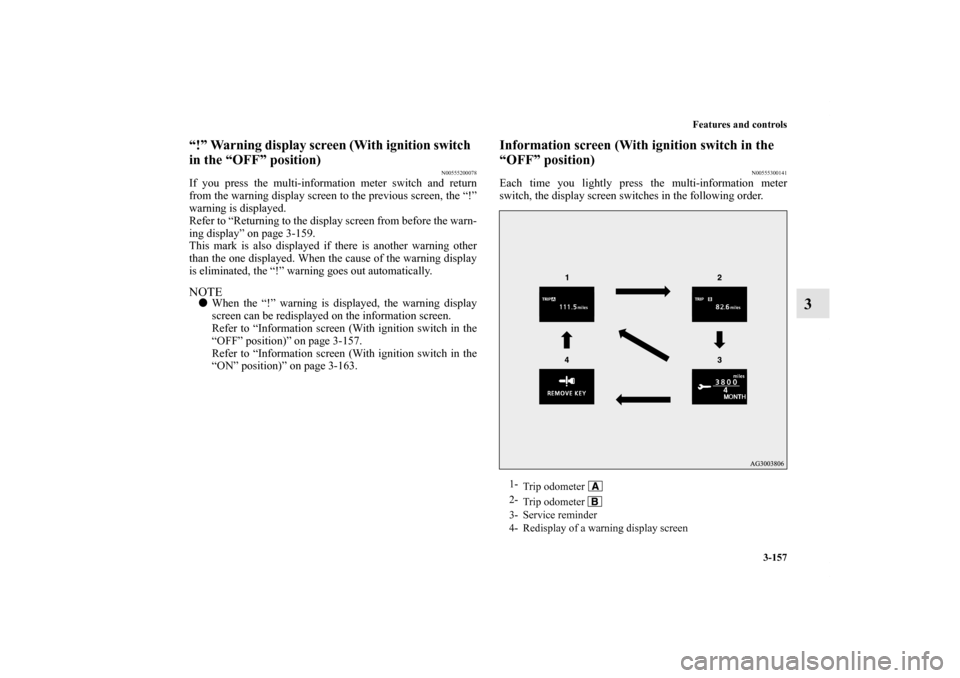

Information screen (With ignition switch in the
“OFF” position)
N00555300141
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.1-
Trip odometer
2-
Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
BK0150900US.book 157 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-158 Features and controls
3

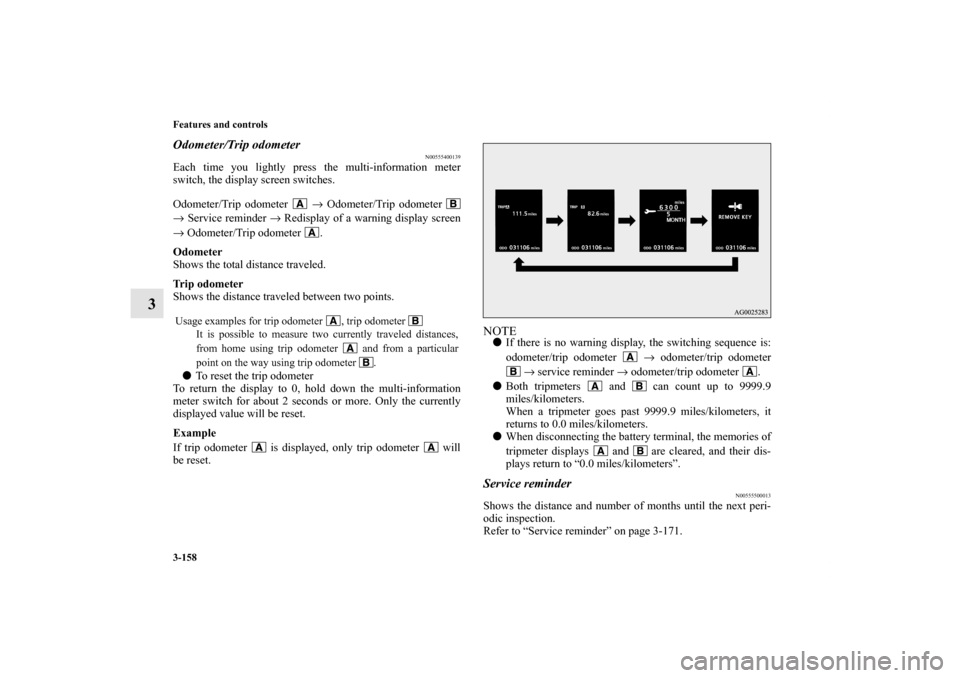

Odometer/Trip odometer
N00555400139
Each time you lightly press the multi-information meter
switch, the display screen switches.
Odometer/Trip odometer → Odometer/Trip odometer
→ Service reminder → Redisplay of a warning display screen
→ Odometer/Trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.

To reset the trip odometer
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example
If trip odometer is displayed, only trip odometer will
be reset.
NOTE
If there is no warning display, the switching sequence is:
odometer/trip odometer → odometer/trip odometer
→ service reminder → odometer/trip odometer .

Both tripmeters and can count up to 9999.9
miles/kilometers.
When a tripmeter goes past 9999.9 miles/kilometers, it
returns to 0.0 miles/kilometers.

When disconnecting the battery terminal, the memories of
tripmeter displays and are cleared, and their dis-
plays return to “0.0 miles/kilometers”.Service reminder
N00555500013
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-171.
Usage examples for trip odometer , trip odometer
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .BK0150900US.book 158 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-159
3

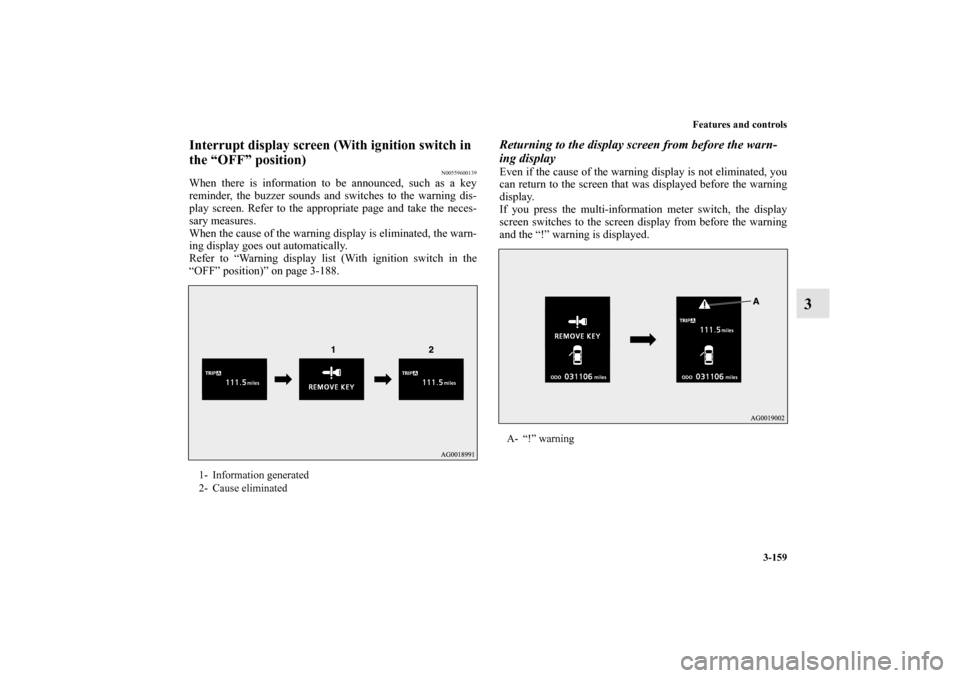

Interrupt display screen (With ignition switch in
the “OFF” position)
N00559600139
When there is information to be announced, such as a key
reminder, the buzzer sounds and switches to the warning dis-
play screen. Refer to the appropriate page and take the neces-
sary measures.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-188.
Returning to the display screen from before the warn-
ing displayEven if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the screen display from before the warning
and the “!” warning is displayed.
1- Information generated
2- Cause eliminated
A- “!” warning
BK0150900US.book 159 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-160 Features and controls
3
NOTE
Warning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screen
When the “!” warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-157.

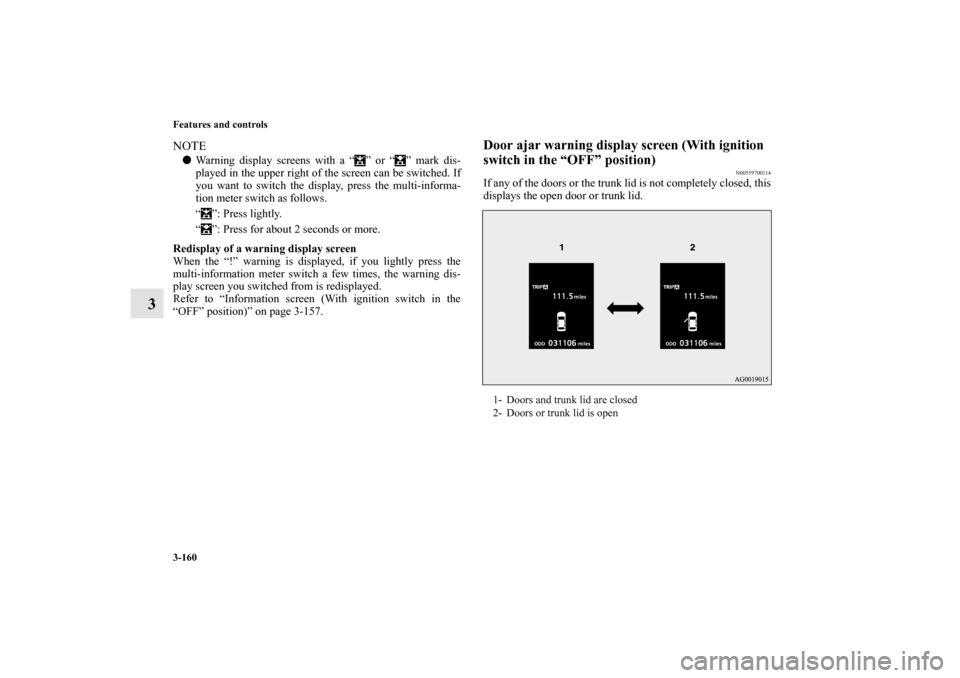

Door ajar warning display screen (With ignition
switch in the “OFF” position)
N00559700114
If any of the doors or the trunk lid is not completely closed, this
displays the open door or trunk lid.1- Doors and trunk lid are closed
2- Doors or trunk lid is open
BK0150900US.book 160 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-161
3

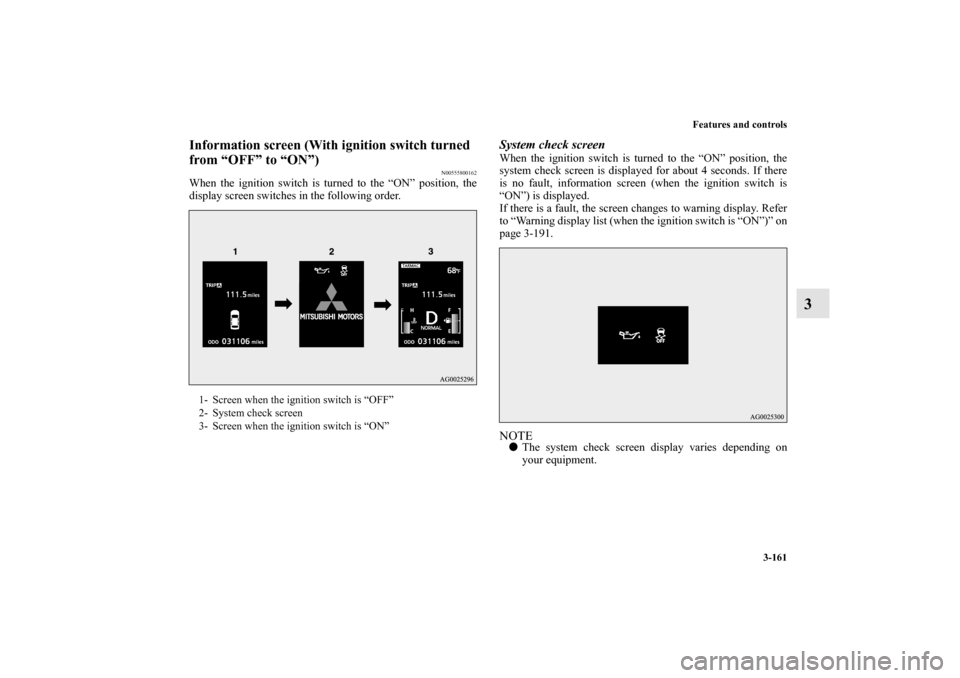

Information screen (With ignition switch turned
from “OFF” to “ON”)
N00555800162
When the ignition switch is turned to the “ON” position, the
display screen switches in the following order.
System check screenWhen the ignition switch is turned to the “ON” position, the
system check screen is displayed for about 4 seconds. If there
is no fault, information screen (when the ignition switch is
“ON”) is displayed.
If there is a fault, the screen changes to warning display. Refer
to “Warning display list (when the ignition switch is “ON”)” on
page 3-191.NOTE
The system check screen display varies depending on
your equipment.
1- Screen when the ignition switch is “OFF”
2- System check screen
3- Screen when the ignition switch is “ON”
BK0150900US.book 161 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-162 Features and controls
3

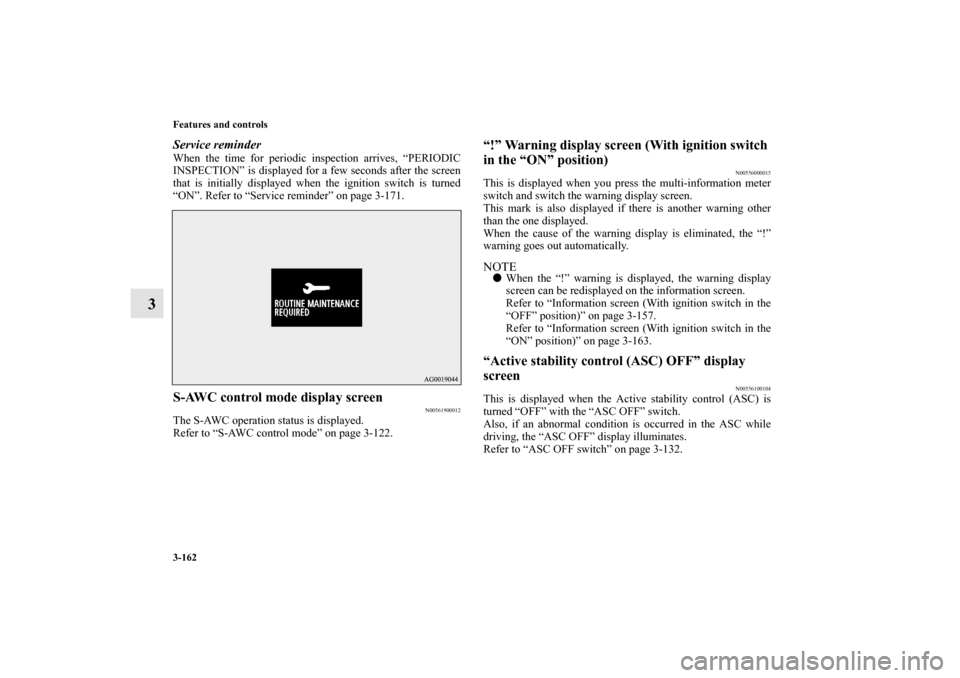

Service reminderWhen the time for periodic inspection arrives, “PERIODIC
INSPECTION” is displayed for a few seconds after the screen
that is initially displayed when the ignition switch is turned
“ON”. Refer to “Service reminder” on page 3-171.S-AWC control mode display screen
N00561900012
The S-AWC operation status is displayed.
Refer to “S-AWC control mode” on page 3-122.
“!” Warning display screen (With ignition switch
in the “ON” position)
N00556000015
This is displayed when you press the multi-information meter
switch and switch the warning display screen.
This mark is also displayed if there is another warning other
than the one displayed.
When the cause of the warning display is eliminated, the “!”
warning goes out automatically.NOTE
When the “!” warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-157.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-163.“Active stability control (ASC) OFF” display
screen
N00556100104
This is displayed when the Active stability control (ASC) is
turned “OFF” with the “ASC OFF” switch.
Also, if an abnormal condition is occurred in the ASC while
driving, the “ASC OFF” display illuminates.
Refer to “ASC OFF switch” on page 3-132.
BK0150900US.book 162 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-163
3

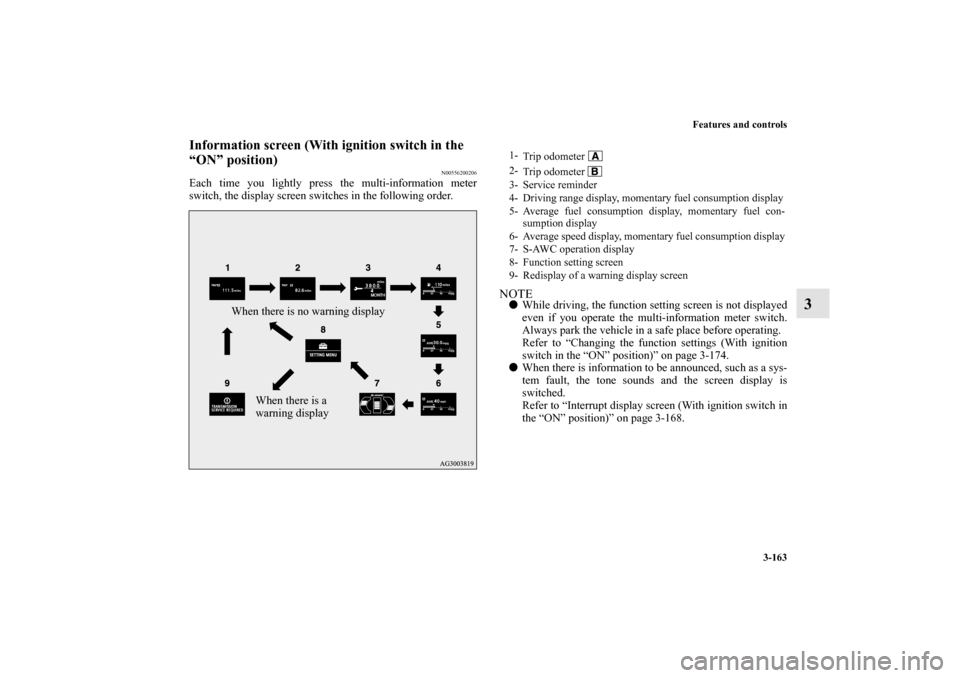

Information screen (With ignition switch in the
“ON” position)
N00556200206
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
NOTE
While driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.

When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
switched.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-168.
When there is no warning display
When there is a
warning display
1-
Trip odometer
2-
Trip odometer
3- Service reminder
4- Driving range display, momentary fuel consumption display
5- Average fuel consumption display, momentary fuel con-
sumption display
6- Average speed display, momentary fuel consumption display
7- S-AWC operation display
8- Function setting screen
9- Redisplay of a warning display screen
BK0150900US.book 163 ページ ２０１２年５月７日　月曜日　午後１２時９分
