MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual
Manufacturer: MITSUBISHI, Model Year: 2013, Model line: LANCER EVOLUTION, Model: MITSUBISHI LANCER EVOLUTION 2013 10.GPages: 626, PDF Size: 19.71 MB
Page 261 of 626
3-174 Features and controls
3

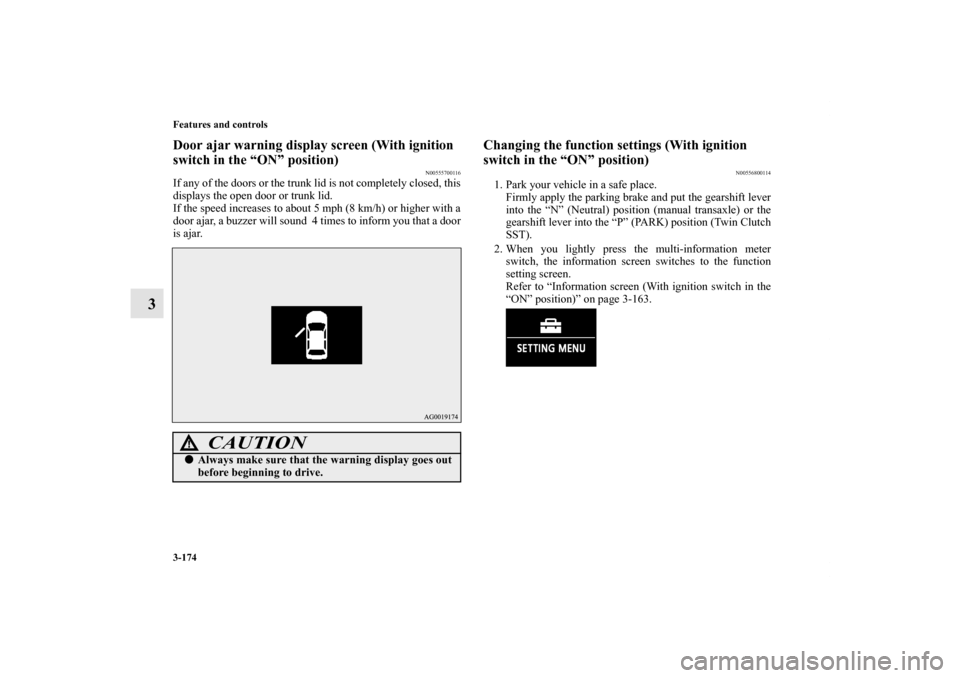

Door ajar warning display screen (With ignition
switch in the “ON” position)
N00555700116
If any of the doors or the trunk lid is not completely closed, this
displays the open door or trunk lid.
If the speed increases to about 5 mph (8 km/h) or higher with a
door ajar, a buzzer will sound 4 times to inform you that a door
is ajar.
Changing the function settings (With ignition
switch in the “ON” position)
N00556800114
1. Park your vehicle in a safe place.
Firmly apply the parking brake and put the gearshift lever
into the “N” (Neutral) position (manual transaxle) or the
gearshift lever into the “P” (PARK) position (Twin Clutch
SST).
2. When you lightly press the multi-information meter
switch, the information screen switches to the function
setting screen.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-163.
CAUTION
!Always make sure that the warning display goes out
before beginning to drive.
BK0150900US.book 174 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 262 of 626
Features and controls
3-175
3

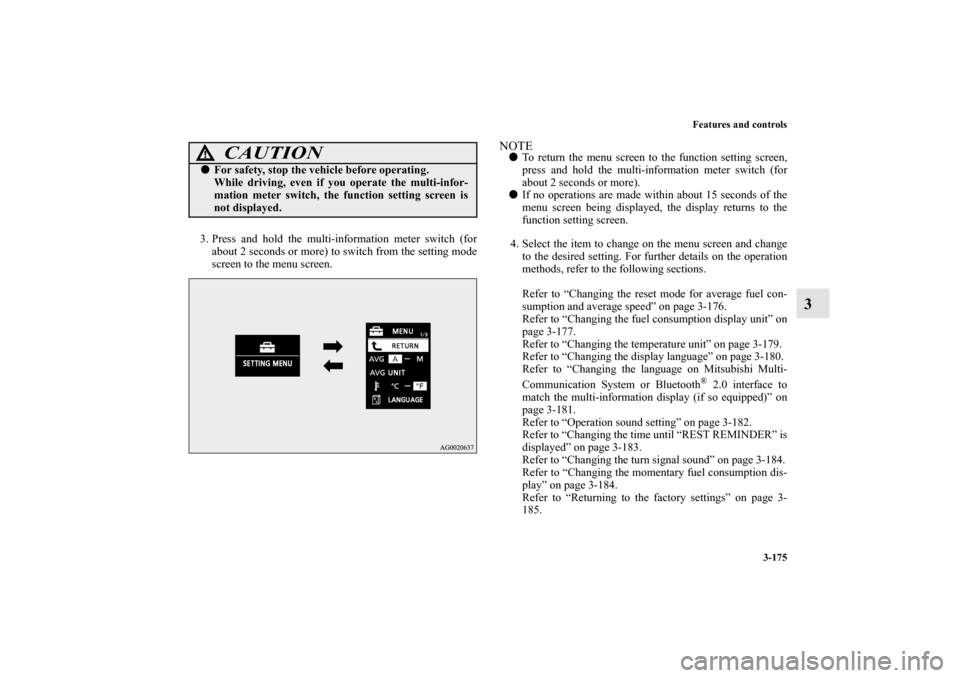

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
NOTETo return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).
If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-176.
Refer to “Changing the fuel consumption display unit” on
page 3-177.
Refer to “Changing the temperature unit” on page 3-179.
Refer to “Changing the display language” on page 3-180.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-181.
Refer to “Operation sound setting” on page 3-182.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-183.
Refer to “Changing the turn signal sound” on page 3-184.
Refer to “Changing the momentary fuel consumption dis-
play” on page 3-184.
Refer to “Returning to the factory settings” on page 3-
185.
CAUTION
!For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.
BK0150900US.book 175 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 263 of 626
3-176 Features and controls
3

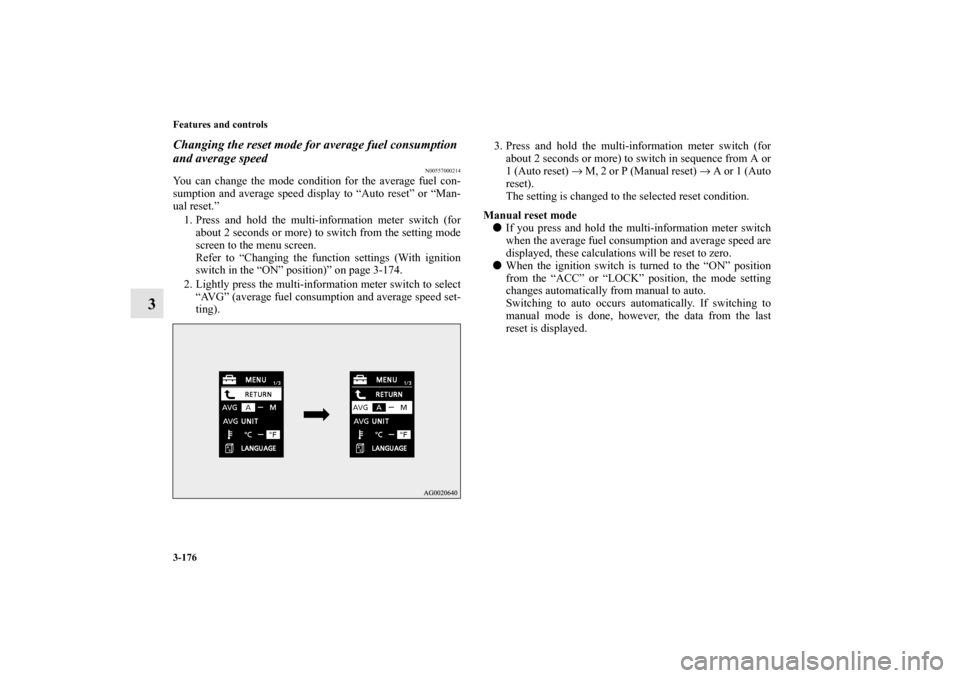

Changing the reset mode for average fuel consumption
and average speed
N00557000214
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset.”
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A or
1 (Auto reset) → M, 2 or P (Manual reset) → A or 1 (Auto
reset).
The setting is changed to the selected reset condition.
Manual reset mode
If you press and hold the multi-information meter switch
when the average fuel consumption and average speed are
displayed, these calculations will be reset to zero.
When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.BK0150900US.book 176 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 264 of 626
Features and controls
3-177
3

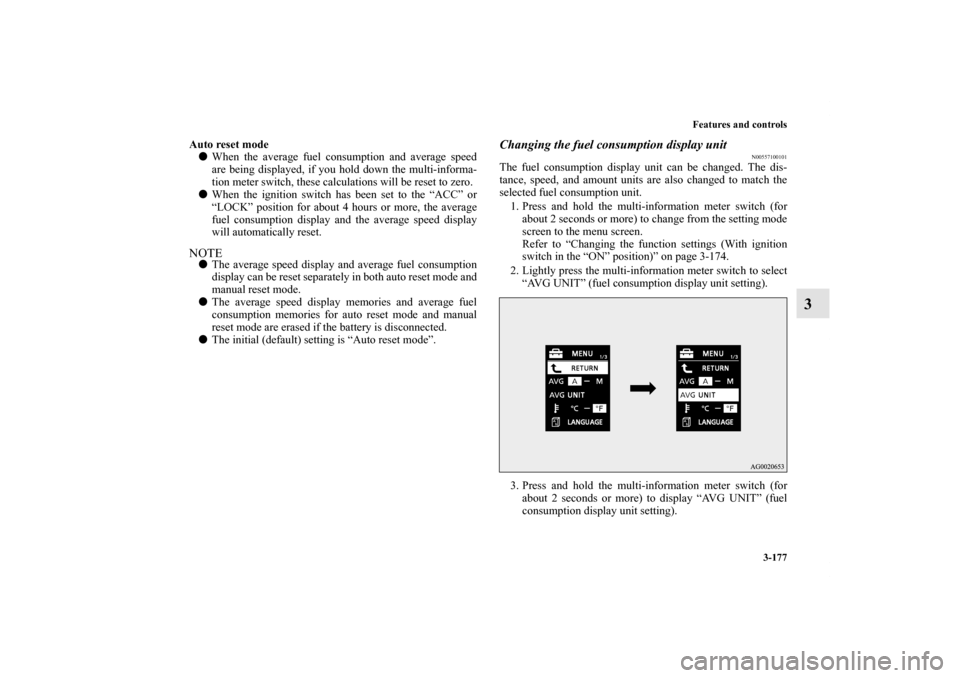

Auto reset mode
When the average fuel consumption and average speed
are being displayed, if you hold down the multi-informa-
tion meter switch, these calculations will be reset to zero.
When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display and the average speed display
will automatically reset.NOTEThe average speed display and average fuel consumption
display can be reset separately in both auto reset mode and
manual reset mode.
The average speed display memories and average fuel
consumption memories for auto reset mode and manual
reset mode are erased if the battery is disconnected.
The initial (default) setting is “Auto reset mode”.
Changing the fuel consumption display unit
N00557100101
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
“AVG UNIT” (fuel consumption display unit setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).
BK0150900US.book 177 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 265 of 626
3-178 Features and controls
3

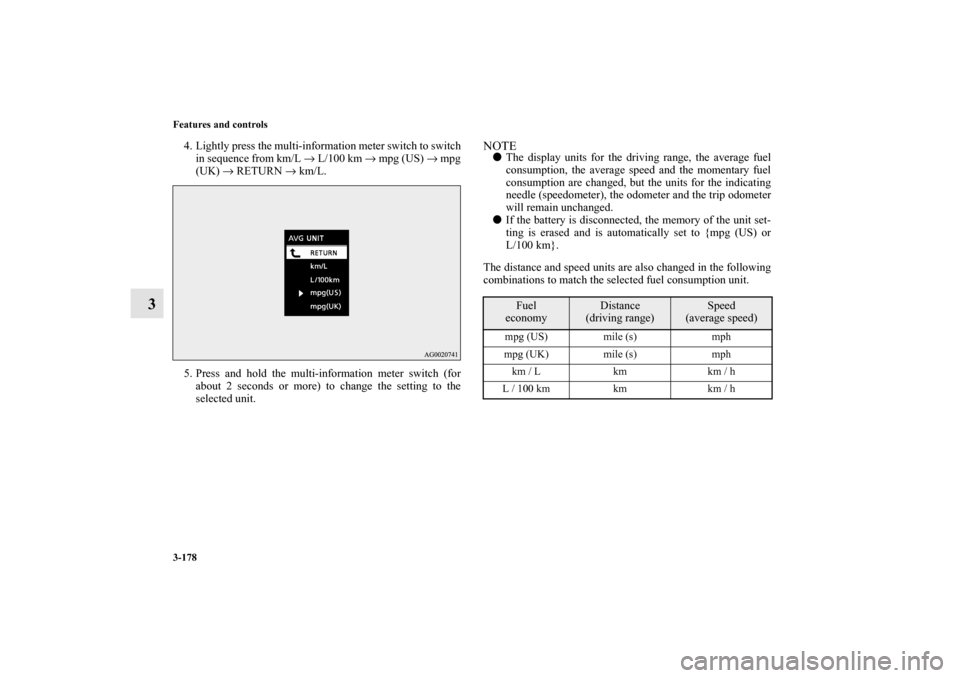

4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.
NOTEThe display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Fuel
economy
Distance
(driving range)
Speed
(average speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L km km / h
L / 100 km km km / h
BK0150900US.book 178 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 266 of 626
Features and controls
3-179
3

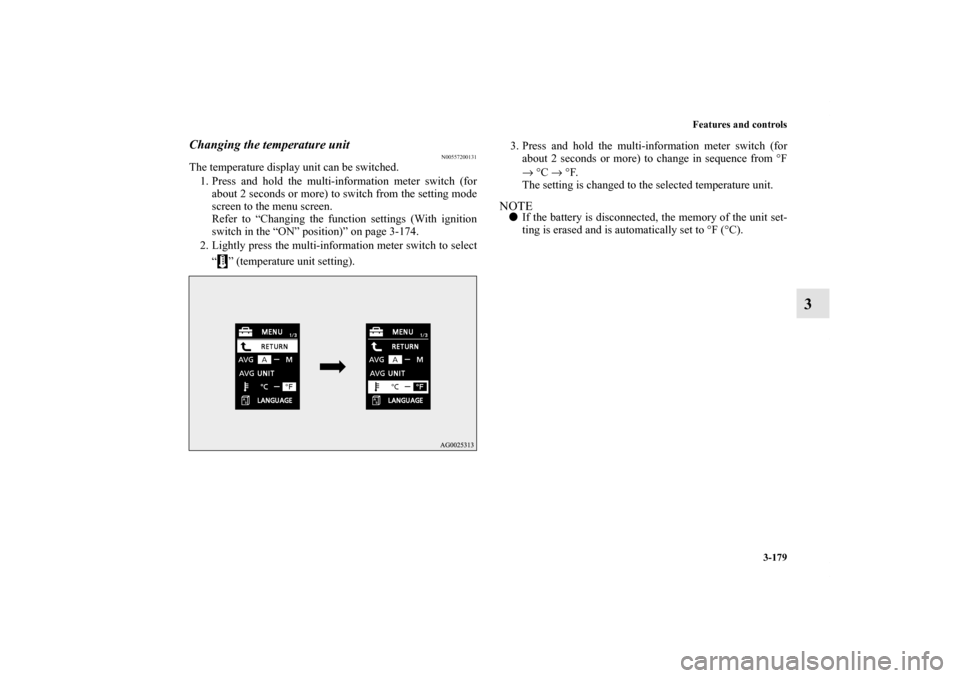

Changing the temperature unit
N00557200131
The temperature display unit can be switched.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change in sequence from °F
→ °C → °F.
The setting is changed to the selected temperature unit.
NOTEIf the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (°C).
BK0150900US.book 179 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 267 of 626
3-180 Features and controls
3

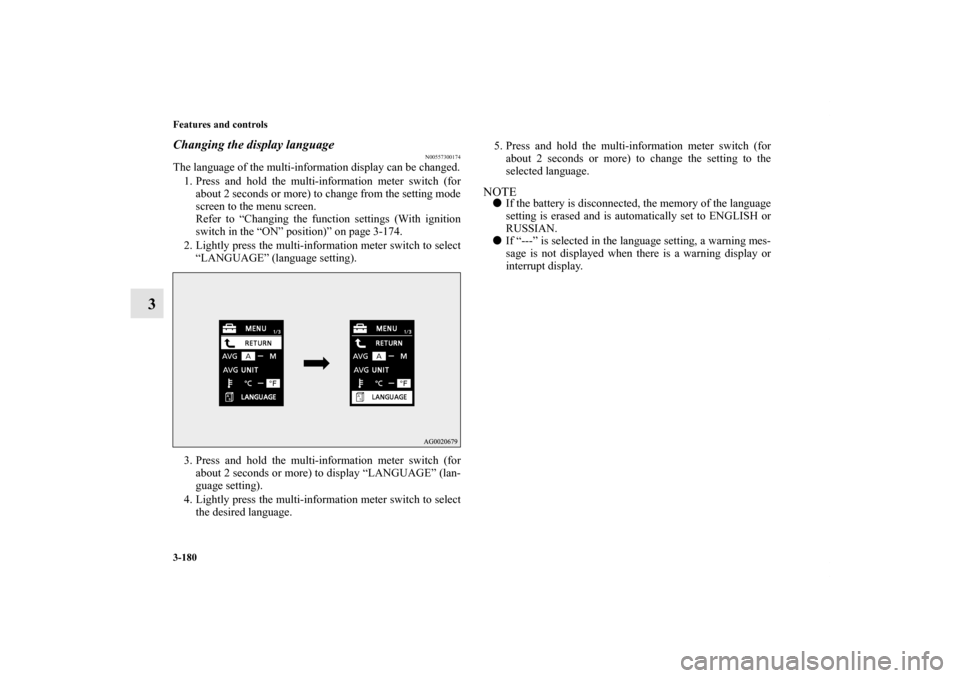

Changing the display language
N00557300174
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to select
the desired language.5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.
NOTEIf the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH or
RUSSIAN.
If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.
BK0150900US.book 180 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 268 of 626
Features and controls
3-181
3

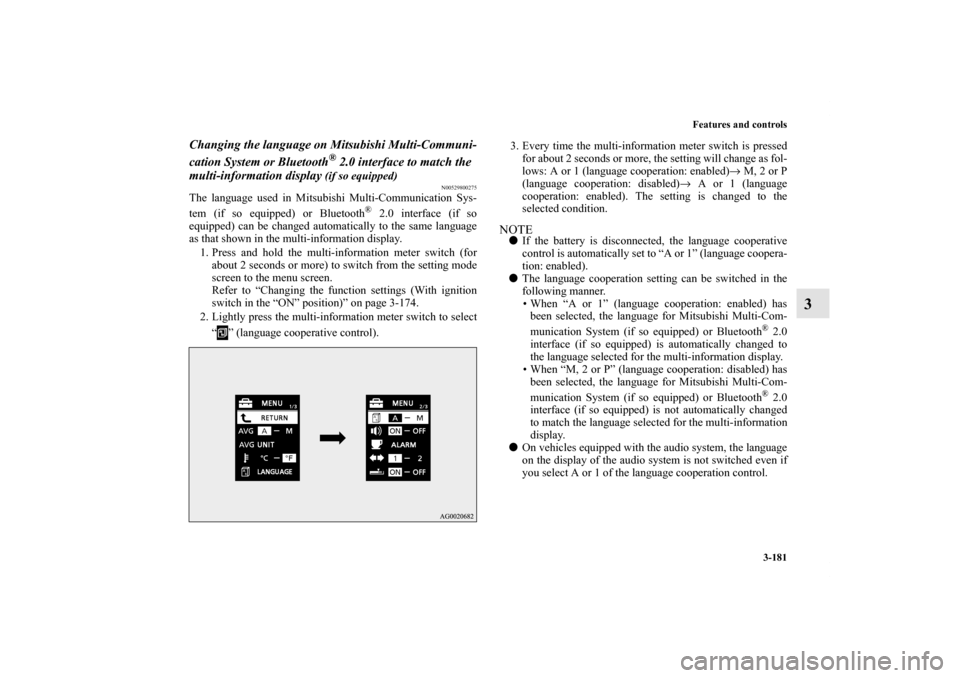

Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800275
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).3. Every time the multi-information meter switch is pressed
for about 2 seconds or more, the setting will change as fol-
lows: A or 1 (language cooperation: enabled)→ M, 2 or P
(language cooperation: disabled)→ A or 1 (language
cooperation: enabled). The setting is changed to the
selected condition.
NOTEIf the battery is disconnected, the language cooperative
control is automatically set to “A or 1” (language coopera-
tion: enabled).
The language cooperation setting can be switched in the
following manner.
• When “A or 1” (language cooperation: enabled) has
been selected, the language for Mitsubishi Multi-Com-
munication System (if so equipped) or Bluetooth
® 2.0
interface (if so equipped) is automatically changed to
the language selected for the multi-information display.
• When “M, 2 or P” (language cooperation: disabled) has
been selected, the language for Mitsubishi Multi-Com-
munication System (if so equipped) or Bluetooth® 2.0
interface (if so equipped) is not automatically changed
to match the language selected for the multi-information
display.
On vehicles equipped with the audio system, the language
on the display of the audio system is not switched even if
you select A or 1 of the language cooperation control.
BK0150900US.book 181 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 269 of 626
3-182 Features and controls
3

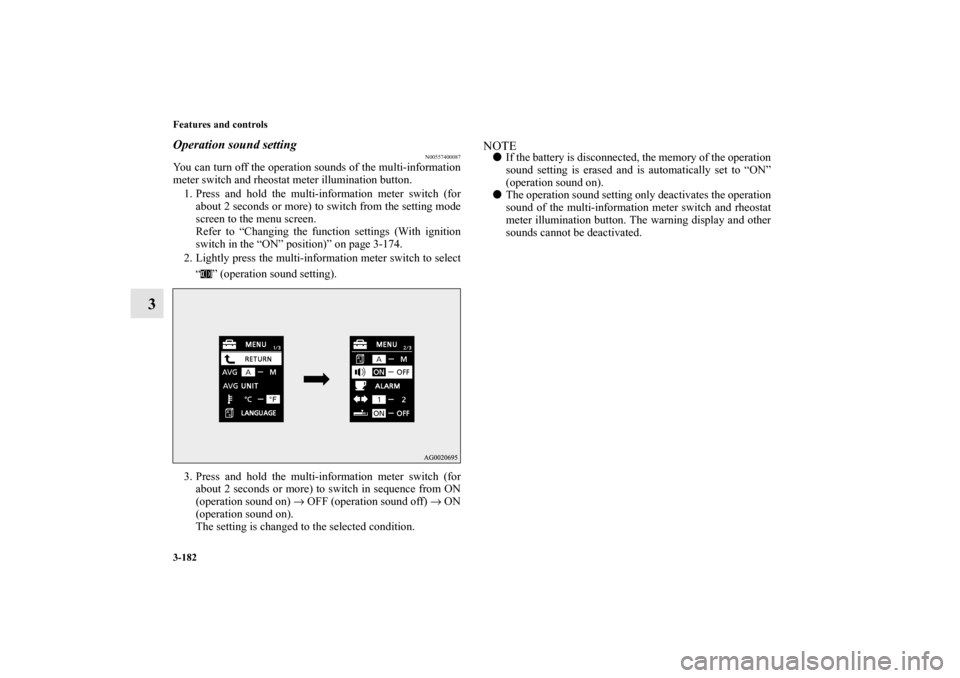

Operation sound setting
N00557400087
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.
NOTEIf the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).
The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
BK0150900US.book 182 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 270 of 626
Features and controls
3-183
3
Changing the time until “REST REMINDER” is dis-
played
N00557500091
The time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-174.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.
NOTEIf the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.
The drive time is reset when the ignition switch is in the
“OFF” position.
BK0150900US.book 183 ページ ２０１２年５月７日 月曜日 午後１２時９分
