MITSUBISHI LANCER EVOLUTION 2015 10.G MMCS Manual

Other Settings
221
INFO/SETTINGS SETTINGS

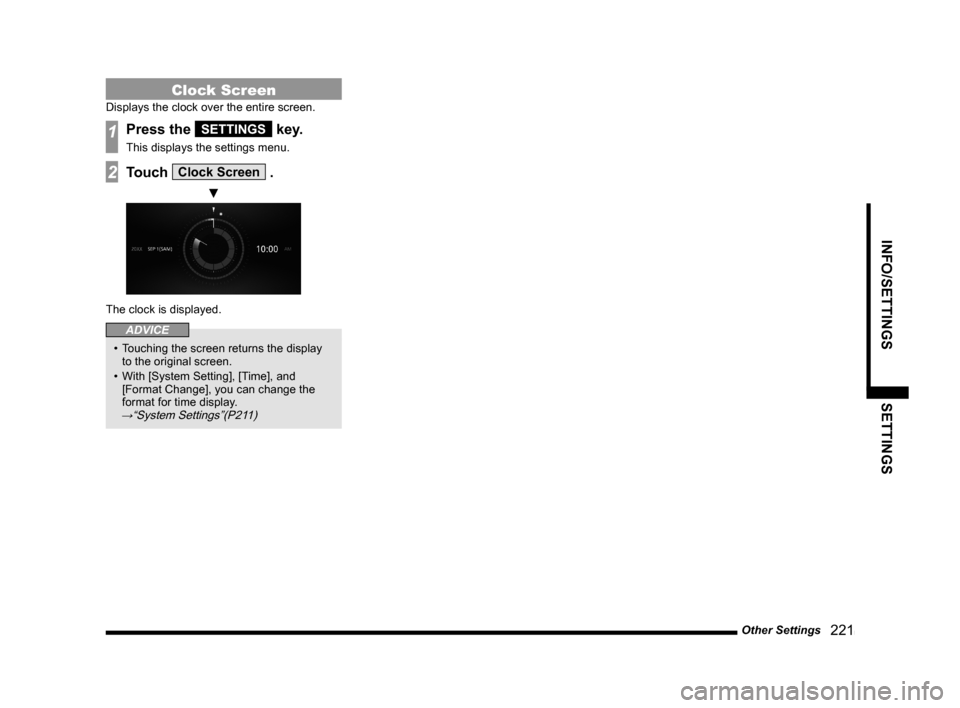

Clock Screen
Displays the clock over the entire screen.
1Press the SETTINGS key.
This displays the settings menu.
2Touch Clock Screen .
▼
The clock is displayed.
ADVICE
• Touching the screen returns the display
to the original screen.
• With [System Setting], [Time], and
[Format Change], you can change the
format for time display.
→“System Settings”(P211)

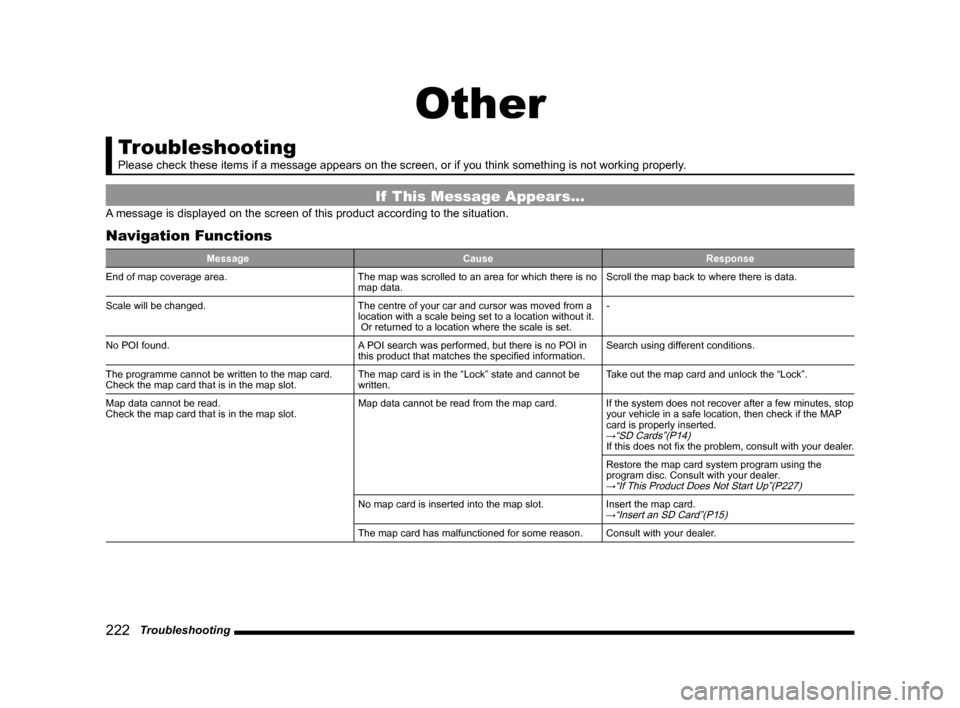

222 Troubleshooting
Other
Troubleshooting
Please check these items if a message appears on the screen, or if you think something is not working properly.
If This Message Appears...
A message is displayed on the screen of this product according to the situation.
Navigation Functions
Message Cause Response
End of map coverage area. The map was scrolled to an area for which there is no
map data.Scroll the map back to where there is data.
Scale will be changed. The centre of your car and cursor was moved from a
location with a scale being set to a location without it.
Or returned to a location where the scale is set.-
No POI found. A POI search was performed, but there is no POI in
this product that matches the specifi ed information.Search using different conditions.
The programme cannot be written to the map card.
Check the map card that is in the map slot. The map card is in the “Lock” state and cannot be
written.Take out the map card and unlock the “Lock”.
Map data cannot be read.
Check the map card that is in the map slot. Map data cannot be read from the map card. If the system does not recover after a few minutes, stop
your vehicle in a safe location, then check if the MAP
card is properly inserted.
→“SD Cards”(P14)If this does not fi x the problem, consult with your dealer.
Restore the map card system program using the
program disc. Consult with your dealer.
→“If This Product Does Not Start Up”(P227)
No map card is inserted into the map slot. Insert the map card.→“Insert an SD Card”(P15)
The map card has malfunctioned for some reason. Consult with your dealer.

Troubleshooting
223
Other
Audio Functions
Message Cause Response
Play is impossible due to a mechanism error. The drive has malfunctioned for some reason. Check that there is no problem with the disc, and insert
the disc again. If the problem persists, consult with your
dealer.
The disc is damaged or warped. Do not insert a damaged or warped disc.
Play is impossible due to low battery voltage. The vehicle's battery voltage has dropped. Check the battery.
Cannot be played.
Check the disk.A disc is inserted that cannot be played. Insert a disc that can be played.
→“Types of Disc That Can Be Played Back” (P86)
The disc is inserted upside down. Insert with the label side up.
The disc has condensation on it. Wait a while before inserting again.
The disc is dirty. Clean the read surface of the disc.
Play is impossible due to high temperatures. The temperature inside the product is high. Remove the disc, and wait for the internal temperature
to return to normal.
This iPod cannot be played. Authentication failed. Reconnect your iPod.
The connected iPod has an unsupported format and
cannot be recognized.Use an iPod that supports this product.
(P8)
This iPod software version is not correct. Please use the latest version software.
This USB memory cannot be played. Authentication failed. Reconnect the USB device.
No data that can be played. There are no audio fi les that can be played back. Add audio fi les that can be played.
→“Audio Files(MP3/WMA/AAC/WAV)”(P87)
An iPod not containing any tracks has been
connected.Connect an iPod containing tracks.
Cannot be played. Unsupported audio fi les have been played. Confi rm audio fi les that can be played.
→“Audio Files(MP3/WMA/AAC/WAV)”(P87)
Copyright protected fi les have been played. Copyright protected fi les cannot be played.
Use fi les that are not copyright protected.
The audio fi le is corrupted. Add uncorrupted audio fi les.
The SD card in the USER slot could not be written.
Check the SD card.The SD card in the user slot is in the “Lock” state and
cannot be written.Take out the SD card from the user slot and unlock the
“Lock”.

224 Troubleshooting

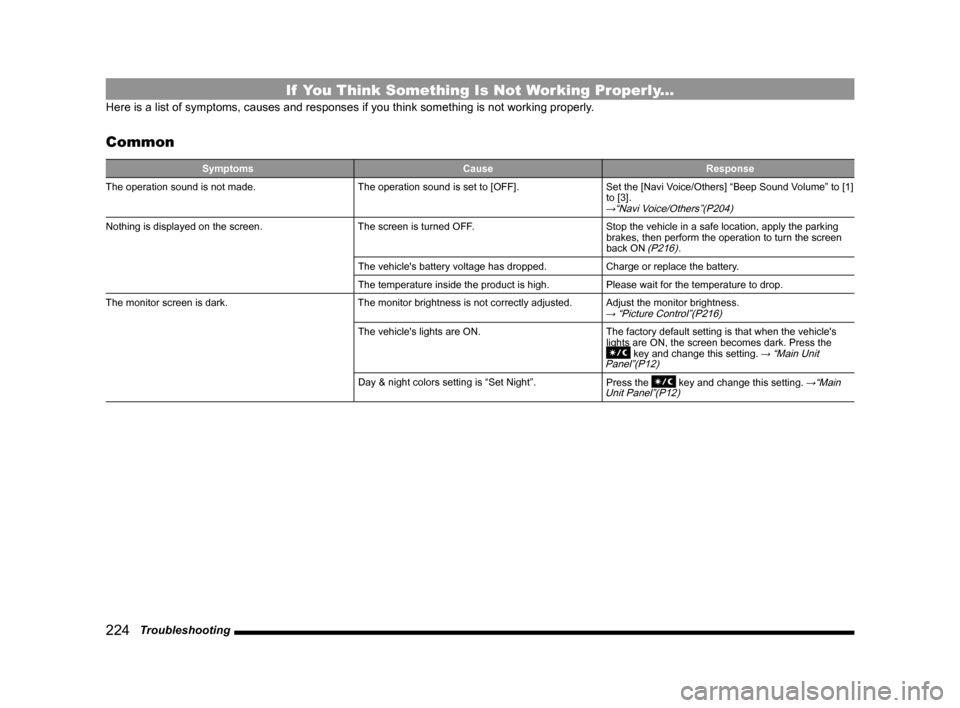

If You Think Something Is Not Working Properly...
Here is a list of symptoms, causes and responses if you think something is not working properly.
Common
Symptoms Cause Response
The operation sound is not made. The operation sound is set to [OFF]. Set the [Navi Voice/Others] “Beep Sound Volume” to [1]
to [3].
→“Navi Voice/Others”(P204)
Nothing is displayed on the screen. The screen is turned OFF. Stop the vehicle in a safe location, apply the parking
brakes, then perform the operation to turn the screen
back ON
(P216).
The vehicle's battery voltage has dropped. Charge or replace the battery.
The temperature inside the product is high. Please wait for the temperature to drop.
The monitor screen is dark. The monitor brightness is not correctly adjusted. Adjust the monitor brightness.
→ “Picture Control”(P216)
The vehicle's lights are ON. The factory default setting is that when the vehicle's
lights are ON, the screen becomes dark. Press the
key and change this setting. → “Main Unit
Panel”(P12)
Day & night colors setting is “Set Night”.
Press the key and change this setting. →“Main
Unit Panel”(P12)

Troubleshooting
225
Other

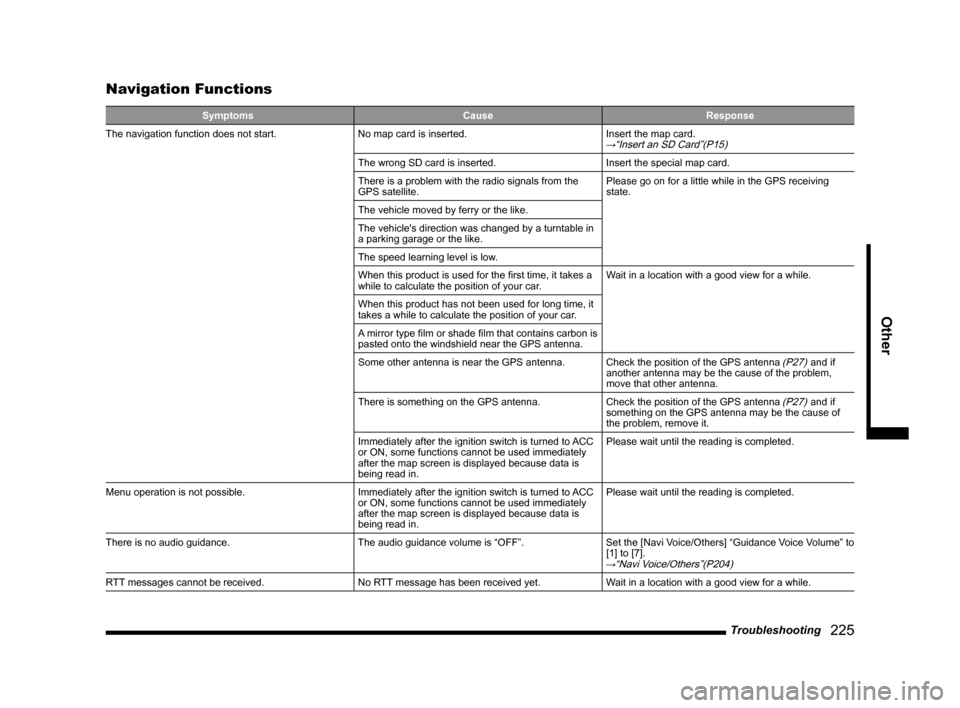

Navigation Functions
Symptoms Cause Response
The navigation function does not start. No map card is inserted. Insert the map card.→“Insert an SD Card”(P15)
The wrong SD card is inserted. Insert the special map card.
There is a problem with the radio signals from the
GPS satellite.Please go on for a little while in the GPS receiving
state.
The vehicle moved by ferry or the like.
The vehicle's direction was changed by a turntable in
a parking garage or the like.
The speed learning level is low.
When this product is used for the fi rst time, it takes a
while to calculate the position of your car.Wait in a location with a good view for a while.
When this product has not been used for long time, it
takes a while to calculate the position of your car.
A mirror type fi lm or shade fi lm that contains carbon is
pasted onto the windshield near the GPS antenna.
Some other antenna is near the GPS antenna. Check the position of the GPS antenna
(P27) and if
another antenna may be the cause of the problem,
move that other antenna.
There is something on the GPS antenna. Check the position of the GPS antenna
(P27) and if
something on the GPS antenna may be the cause of
the problem, remove it.
Immediately after the ignition switch is turned to ACC
or ON, some functions cannot be used immediately
after the map screen is displayed because data is
being read in.Please wait until the reading is completed.
Menu operation is not possible. Immediately after the ignition switch is turned to ACC
or ON, some functions cannot be used immediately
after the map screen is displayed because data is
being read in.Please wait until the reading is completed.
There is no audio guidance. The audio guidance volume is “OFF”. Set the [Navi Voice/Others] “Guidance Voice Volume” to
[1] to [7].
→“Navi Voice/Others”(P204)
RTT messages cannot be received. No RTT message has been received yet. Wait in a location with a good view for a while.

226 Troubleshooting

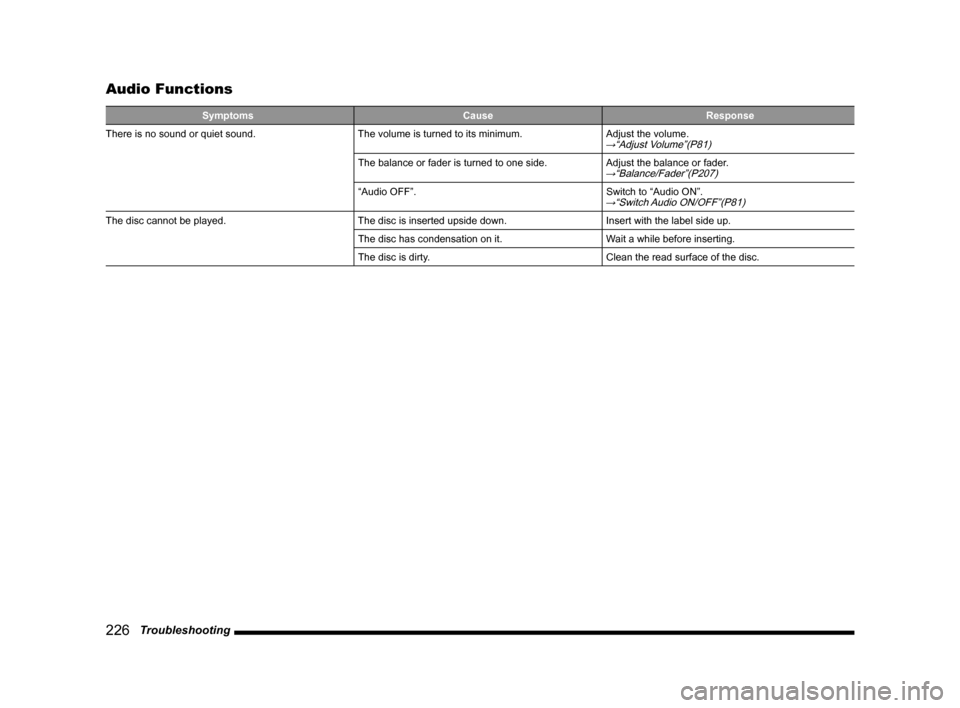

Audio Functions
Symptoms Cause Response
There is no sound or quiet sound. The volume is turned to its minimum. Adjust the volume.→“Adjust Volume”(P81)
The balance or fader is turned to one side. Adjust the balance or fader.→“Balance/Fader”(P207)
“Audio OFF”. Switch to “Audio ON”.→“Switch Audio ON/OFF”(P81)
The disc cannot be played. The disc is inserted upside down. Insert with the label side up.
The disc has condensation on it. Wait a while before inserting.
The disc is dirty. Clean the read surface of the disc.

Troubleshooting
227
Other

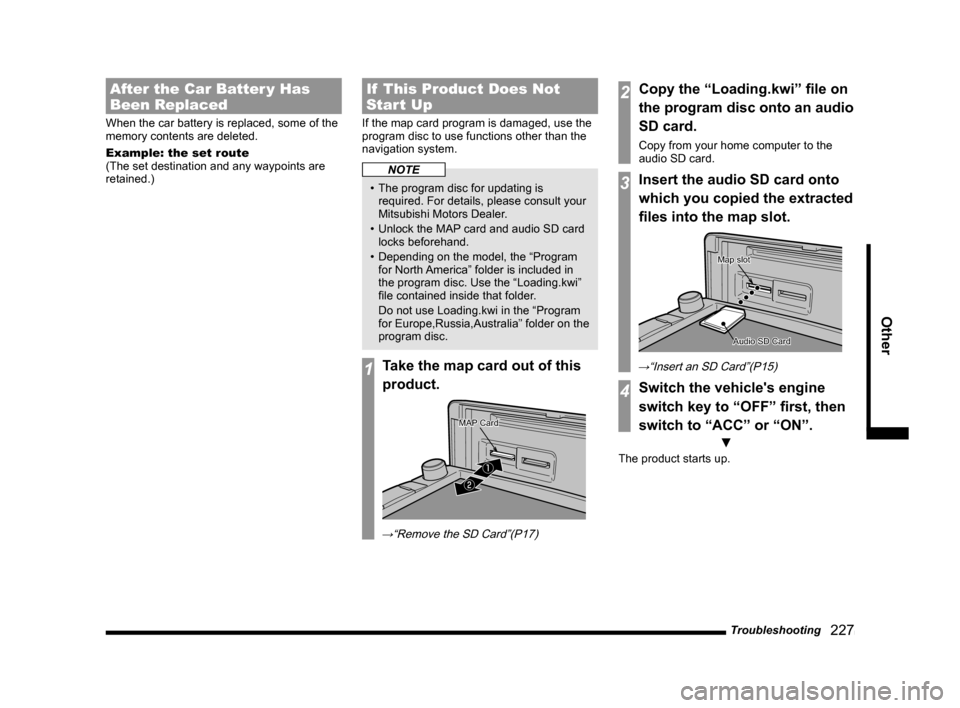

After the Car Batter y Has
Been Replaced
When the car battery is replaced, some of the
memory contents are deleted.
Example: the set route
(The set destination and any waypoints are
retained.)
If This Product Does Not
Start Up
If the map card program is damaged, use the
program disc to use functions other than the
navigation system.
NOTE
• The program disc for updating is
required. For details, please consult your
Mitsubishi Motors Dealer.
• Unlock the MAP card and audio SD card
locks beforehand.
• Depending on the model, the “Program
for North America” folder is included in
the program disc. Use the “Loading.kwi”
fi le contained inside that folder.
Do not use Loading.kwi in the “Program
for Europe,Russia,Australia” folder on the
program disc.
1Take the map card out of this
product.
ƒ
„
MAP CardMAP Card
→“Remove the SD Card”(P17)
2Copy the “Loading.kwi” fi le on
the program disc onto an audio
SD card.
Copy from your home computer to the
audio SD card.
3Insert the audio SD card onto
which you copied the extracted
fi les into the map slot.
Audio SD CardAudio SD Card
Map slotMap slot
→“Insert an SD Card”(P15)
4Switch the vehicle's engine
switch key to “OFF” fi rst, then
switch to “ACC” or “ON”.
▼
The product starts up.

228 END USER LICENSE AGREEMENT OF THE HERE DATABASE
END USER LICENSE AGREEMENT OF THE HERE DATABASE
END-USER TERMS
The content provided (“Data”) is licensed, not sold. By opening this package, or
installing, copying, or otherwise using the Data, you agree to be bound by the
terms of this agreement. If you do not agree to the terms of this agreement, you
are not permitted to install, copy, use, resell or transfer the Data. If you wish to
reject the terms of this agreement, and have not installed, copied, or used the
Data, you must contact your retailer or HERE North America, LLC (as defi ned
below) within thirty (30) days of purchase for a refund of your purchase price. To
contact HERE, please visit www.here.com.
The Data is provided for your personal, internal use only and may not be resold.
It is protected by copyright, and is subject to the following terms (this “End ¬User
License Agreement”) and conditions which are agreed to by you, on the one
hand, and HERE and its licensors (including their licensors and suppliers) on the
other hand. For purposes of these terms, “HERE” shall mean (a) HERE North
America, LLC with respect to Data for the Americas and/or the Asia Pacifi c region
and (b) HERE Europe B.V. for Data for Europe, the Middle East and/or Africa.
The Data includes certain information and related content provided under
license to HERE from third parties and is subject to the applicable supplier
terms and copyright notices set forth at the following URL:http://here.com/legal/
supplierterms/
TERMS AND CONDITIONS
License Limitations on Use: You agree that your license to use this Data is limited
to and conditioned on use for solely personal, noncommercial purposes, and not
for service bureau, timesharing or other similar purposes. Except as otherwise
set forth herein, you agree not to otherwise reproduce, copy, modify, decompile,
disassemble or reverse engineer any portion of this Data, and may not transfer
or distribute it in any form, for any purpose, except to the extent permitted by
mandatory laws.
License Limitations on Transfer: Your limited license does not allow transfer or
resale of the Data, except on the condition that you may transfer the Data and all
accompanying materials on a permanent basis if: (a) you retain no copies of the
Data; (b) the recipient agrees to the terms of this End User License Agreement;
and (c) you transfer the Data in the exact same form as you purchased it
by physically transferring the original media (e.g., the CD-ROM or DVD you
purchased), all original packaging, all Manuals and other documentation.
Specifi cally, Multidisc sets may only be transferred or sold as a complete set as
provided to you and not as a subset thereof.Additional License Limitations: Except where you have been specifi cally
licensed to do so by HERE in a separate written agreement, and without
limiting the preceding paragraph, your license is conditioned on use of the Data
as prescribed in this agreement, and you may not (a) use this Data with any
products, systems, or applications installed or otherwise connected to or in
communication with vehicles capable of vehicle navigation, positioning, dispatch,
real time route guidance, fl eet management or similar applications; or (b) with, or
in communication with, including without limitation, cellular phones, palmtop and
handheld computers, pagers, and personal digital - assistants or PDAs.
Warning: This Data may contain inaccurate or incomplete information due to
the passage of time, changing circumstances, sources used and the nature of
collecting comprehensive geographic Data, any of which may lead to incorrect
results.
No Warranty: This Data is provided to you “as is”, and you agree to use it
at your own risk. HERE and its licensors (and their licensors and suppliers)
make no guarantees, representations or warranties of any kind, express or
implied, arising by law or otherwise, including but not limited to, content, quality,
accuracy, completeness, effectiveness, reliability, fi tness for a particular purpose,
usefulness, use or results to be obtained from this Data, or that the Data or
server will be uninterrupted or error free.
Disclaimer of Warranty: HERE AND ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) DISCLAIM ANY WARRANTIES, EXPRESS OR
IMPLIED, OF QUALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE OR NONINFRINGEMENT. Some States, Territories
and Countries do not allow certain warranty exclusions, so to that extent the
above exclusion may not apply to you.

END USER LICENSE AGREEMENT OF THE HERE DATABASE
229
Other
Disclaimer of Liability: HERE AND ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) SHALL NOT BE LIABLE TO YOU IN RESPECT
OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF
THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS,
INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM
THE USE OR POSSESSION OF THIS DATA; OR FOR ANY LOSS OF PROFIT,
REVENUE, CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF
YOUR USE OF OR INABILITY TO USE THIS DATA, ANY DEFECT IN THIS
DATA, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN
AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF
HERE OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. Some States,
Territories and Countries do not allow certain liability exclusions or damages
limitations, so to that extent the above may not apply to you.
Export Control: You agree not to export from anywhere any part of the Data or
any direct product thereof except in compliance with, and with all licenses and
approvals required under, applicable export laws, rules and regulations, including
but not limited to the laws, rules and regulations administered by the Offi ce of
Foreign Assets Control of the U.S. Department of Commerce and the Bureau of
Industry and Security of the U.S. Department of Commerce. To the extent that
any such export laws, rules or regulations prohibit HERE from complying with
any of its obligations hereunder to deliver or distribute Data, such failure shall be
excused and shall not constitute a breach of this Agreement.
Entire Agreement: These terms and conditions constitute the entire agreement
between HERE (and its licensors, including their licensors and suppliers) and you
pertaining to the subject matter hereof, and supersedes in their entirety any and
all written or oral agreements previously existing between us with respect to such
subject matter.
Severability: You and HERE agree that if any portion of this agreement is found
illegal or unenforceable, that portion shall be severed and the remainder of the
Agreement shall be given full force and effect.Governing Law: The above terms and conditions shall be governed by the laws
of the State of Illinois (for Data for the Americas and/or the Asia Pacifi c region) or
The Netherlands (for Data for Europe, the Middle East and Africa), without giving
effect to (i) its confl ict of laws provisions, or (ii) the United Nations Convention for
Contracts for the International Sale of Goods, which is explicitly excluded. For
any and all disputes, claims and actions arising from or in connection with the
Data (“Claims”), you agree to submit to the personal jurisdiction of (a) the State of
Illinois for Claims related to Data for the Americas and/or the Asia Pacifi c region
provided to you hereunder, and (b) The Netherlands for Data for Europe, the
Middle East and/or Africa provided to you hereunder.
Government End Users: If the Data is being acquired by or on behalf of the
United States government or any other entity seeking or applying rights similar to
those customarily claimed by the United States government,this Data is a
“commercial item” as that term is defi ned at 48 C.F.R. (“FAR”) 2.101, is licensed
in accordance with this End User License Agreement, and each copy of Data
delivered or otherwise furnished shall be marked and embedded as appropriate
with the following “Notice of Use”, and be treated in accordance with such Notice:
NOTICE OF USE
CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME:HERE
CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: 425 West
Randolph Street, Chicago, IL 60606.
This Data is a commercial item as defined in FAR 2.101 and is subject to the
End¬ User License Agreement under which this Data was provided.
© 1987-2013 HERE. All rights reserved.
If the Contracting Offi cer, federal government agency, or any federal offi cial
refuses to use the legend provided herein, the Contracting Offi cer, federal
government agency, or any federal offi cial must notify HERE prior to seeking
additional or alternative rights in the Data.
© 1987-2013 HERE. All rights reserved.
