MITSUBISHI LANCER EVOLUTION 2015 10.G Workshop Manual

Supplemental Restraint System (SRS) - airbag 4-26 Seat and restraint systems
4
N00408301622
Warning light
Warning display The system checks itself every time the igni- tion switch is turned to the “ON” position. The SRS warning light will come on for sev-eral seconds and then go out. This is normal and means the system is work- ing properly.If there is a problem involving one or more of the SRS components, the warning light will come on and stay on. At the same time, thewarning display will appear on the informa- tion screen in the multi information display. The SRS warning light/display is shared bythe SRS airbag and the seat belt pre-tensioner system.
N00407900028
The driver’s airbag is located under the pad-ded cover in the middle of the steering wheel. The front passenger’s airbag is contained inthe instrument panel above the glove com- partment. The driver’s airbag and the front passenger’s airbag are designed to deploy atthe same time. However,
the front passen-
ger’s airbag does not deploy when the front passenger seat is not occupied or when theweight sensor in the front passenger seat senses a weight on the seat of less than approximately 66 pounds (30 kg).
WA R N I N G If any of the following conditions occur, you should immediately have the airbag system in your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:• The passenger’s airbag off indicatorcomes on when an adult is sitting on thefront passenger seat.• The passenger’s airbag off indicator doesnot come on when the front passenger’s seat is not occupied.• The passenger’s airbag off indicator doesnot come on when the ignition switch is turned to the “ON” position.• The passenger’s airbag off indicatorcomes on and goes out repeatedly.
 Do not attach any accessory to your vehi- cle that makes the passenger’s airbag offindicator difficult or impossible to see. You must be able to see the passenger’s airbag off indicator and verify the statusof the passenger’s airbag system.
SRS warning light/display
WA R N I N G If any of the following conditions occur, there may be a problem with the SRS air- bags and/or seat belt pre-tensioners, and they may not function properly in a colli-sion or may suddenly activate without a collision:• Even when the ignition switch is in ON,the SRS warning light does not come on or it remains on.
• The SRS warning light and/or the warn- ing display comes on while driving.The SRS airbags and seat belt pre-ten- sioners are designed to help reduce therisk of serious injury or death in certain collisions. If either of the above conditions occurs, immediately have your vehiclechecked by an authorized Mitsubishi Motors dealer.
Driver’s and passenger’s front airbag system
WA R N I N G
BK0210800US.bo
ok 26 ページ ２０１４年４月８日　火曜日　午前１１時２８分

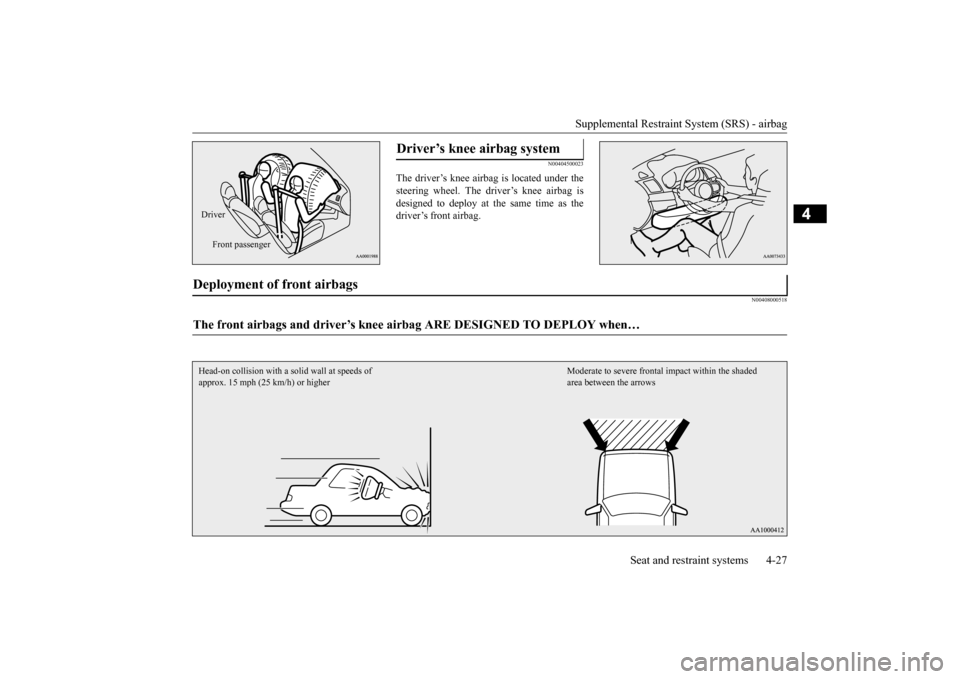

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-27
4
N00404500023
The driver’s knee airbag is located under the steering wheel. The driver’s knee airbag isdesigned to deploy at the same time as the driver’s front airbag.
N00408000518
Driver Front passenger
Driver’s knee airbag system
Deployment of front airbags The front airbags and driver’s knee airb
ag ARE DESIGNED TO DEPLOY when…
Head-on collision with a so
lid wall at speeds of
approx. 15 mph (25 km/h) or higher
Moderate to severe frontal
impact within the shaded
area between the arrows
BK0210800US.bo
ok 27 ページ ２０１４年４月８日　火曜日　午前１１時２８分

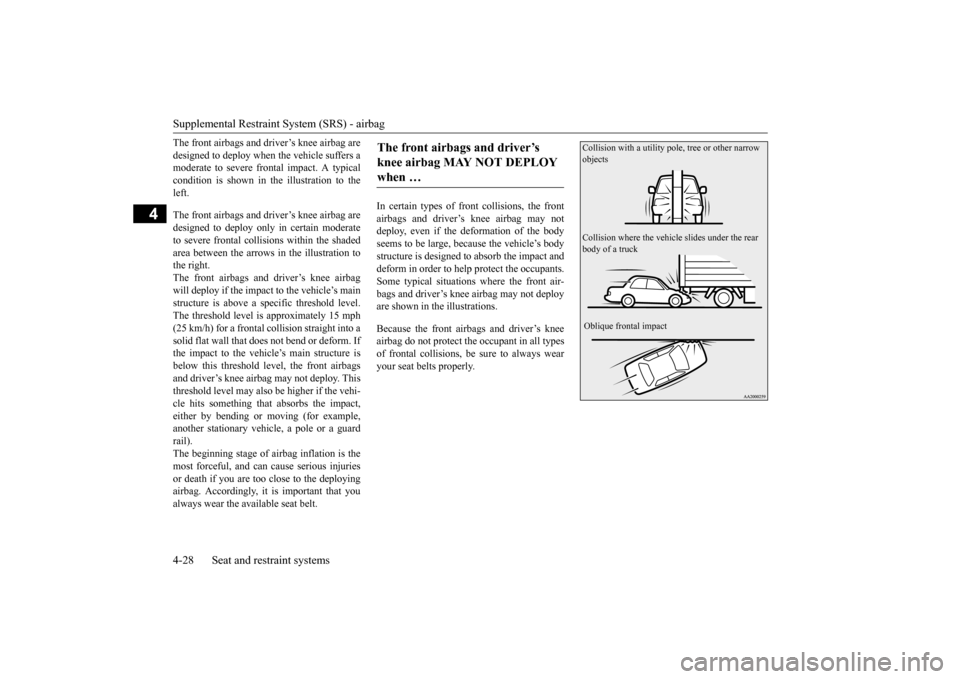

Supplemental Restraint System (SRS) - airbag
4-28 Seat and restraint systems
4
The front airbags and driver’s knee airbag are
designed to deploy when the vehicle suffers a
moderate to severe frontal impact. A typical
condition is shown in the illustration to the
left.
The front airbags and driver’s knee airbag are
designed to deploy only in certain moderate
to severe frontal collisions within the shaded
area between the arrows in the illustration to
the right.
The front airbags and driver’s knee airbag
will deploy if the impact to the vehicle’s main
structure is above a specific threshold level.
The threshold level is approximately 15 mph
(25 km/h) for a frontal collision straight into a
solid flat wall that does not bend or deform. If
the impact to the vehicle’s main structure is
below this threshold level, the front airbags
and driver’s knee airbag may not deploy. This
threshold level may also be higher if the vehi-
cle hits something that absorbs the impact,
either by bending or moving (for example,
another stationary vehicle, a pole or a guard
rail).
The beginning stage of airbag inflation is the
most forceful, and can cause serious injuries
or death if you are too close to the deploying
airbag. Accordingly, it is important that you
always wear the available seat belt. In certain types of front collisions, the front
airbags and driver’s knee airbag may not
deploy, even if the deformation of the body
seems to be large, because the vehicle’s body
structure is designed to absorb the impact and
deform in order to help protect the occupants.
Some typical situations where the front air-
bags and driver’s knee airbag may not deploy
are shown in the illustrations.
Because the front airbags and driver’s knee
airbag do not protect the occupant in all types
of frontal collisions, be sure to always wear
your seat belts properly.
The front airbags and driver’s
knee airbag MAY NOT DEPLOY
when …
Collision with a utility pole
, tree or other narrow
objects
Collision where the vehicle slides under the rear
body of a truck
Oblique frontal impact
SC00000500-2.fm 28 ページ ２０１４年４月１６日　水曜日　午後２時２分

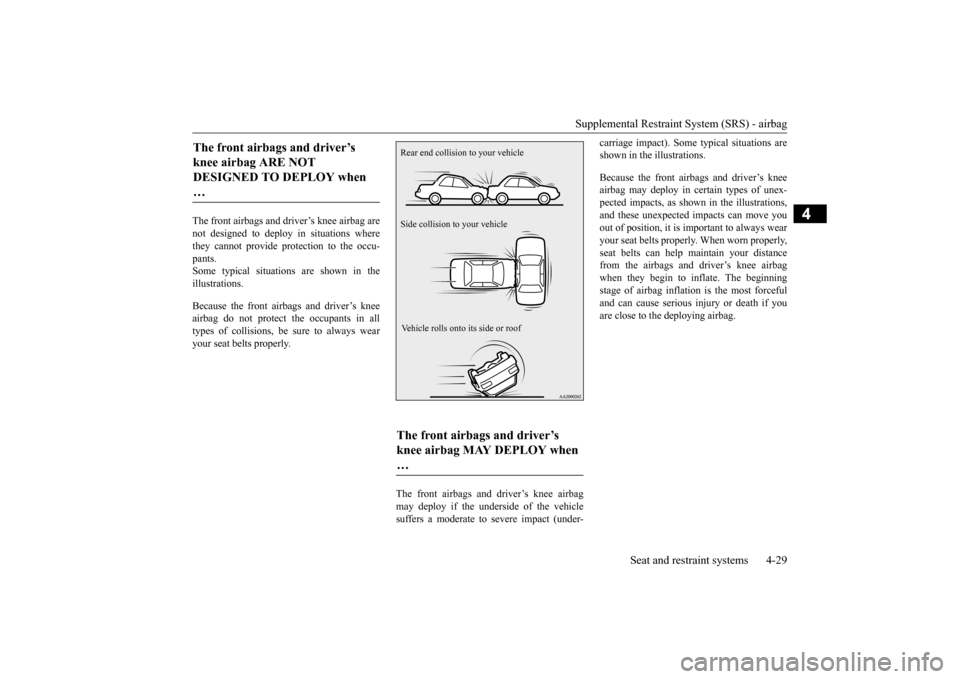

Supplemental Restraint System (SRS) - airbagSeat and restraint systems 4-29
4
The front airbags and driver’s knee airbag are
not designed to deploy in situations where
they cannot provide protection to the occu-
pants.
Some typical situations are shown in the
illustrations.
Because the front airbags and driver’s knee
airbag do not protect the occupants in all
types of collisions, be sure to always wear
your seat belts properly. The front airbags and driver’s knee airbag
may deploy if the underside of the vehicle
suffers a moderate to severe impact (under-carriage impact). Some typical situations are
shown in the illustrations.
Because the front airbags and driver’s knee
airbag may deploy in certain types of unex-
pected impacts, as shown in the illustrations,
and these unexpected impacts can move you
out of position, it is important to always wear
your seat belts properly. When worn properly,
seat belts can help maintain your distance
from the airbags and driver’s knee airbag
when they begin to inflate. The beginning
stage of airbag inflation is the most forceful
and can cause serious injury or death if you
are close to the deploying airbag.The front airbags and driver’s
knee airbag ARE NOT
DESIGNED TO DEPLOY when
…
The front airbags and driver’s
knee airbag MAY DEPLOY when
… Rear end collision
to your vehicle
Side collision to your vehicle
Vehicle rolls onto its side or roof
SC00000500-2.fm 29 ページ ２０１４年４月１６日　水曜日　午後２時２分

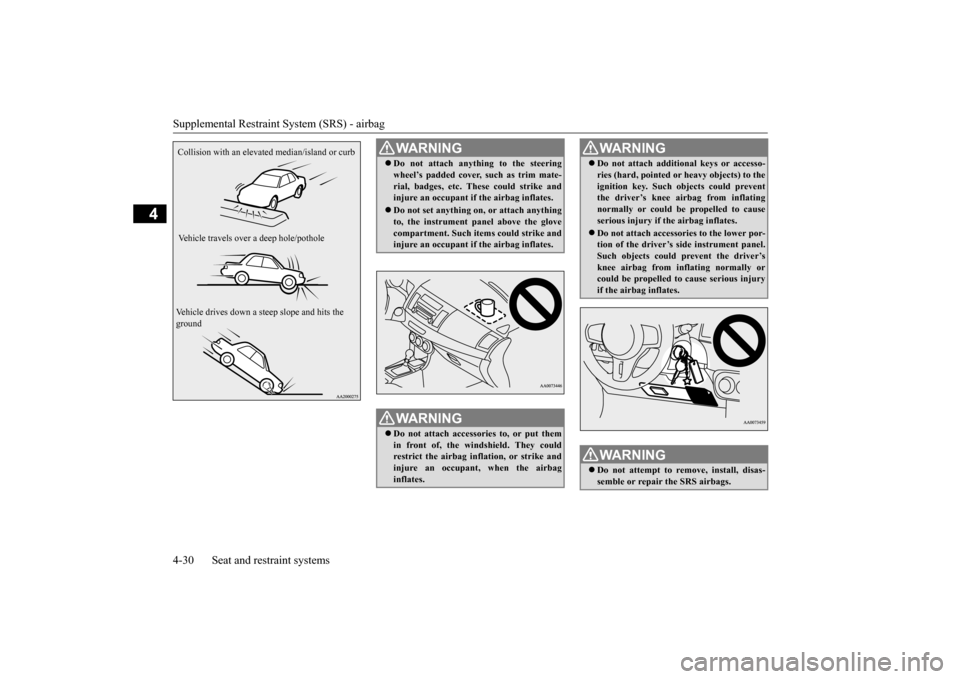

Supplemental Restraint System (SRS) - airbag
4-30 Seat and restraint systems
4
Collision with an elevated median/island or curb
Vehicle travels over a deep hole/pothole
Vehicle drives down a steep slope and hits the
ground
WA R N I N G Do not attach anything to the steering
wheel’s padded cover, such as trim mate-
rial, badges, etc. These could strike and
injure an occupant if the airbag inflates. Do not set anything on, or attach anything
to, the instrument panel above the glove
compartment. Such items could strike and
injure an occupant if the airbag inflates. WA R N I N GDo not attach accessories to, or put them
in front of, the windshield. They could
restrict the airbag inflation, or strike and
injure an occupant, when the airbag
inflates.
Do not attach additional keys or accesso-
ries (hard, pointed or heavy objects) to the
ignition key. Such objects could prevent
the driver’s knee airbag from inflating
normally or could be propelled to cause
serious injury if the airbag inflates. Do not attach accessories to the lower por-
tion of the driver’s side instrument panel.
Such objects could prevent the driver’s
knee airbag from inflating normally or
could be propelled to cause serious injury
if the airbag inflates.WA R N I N GDo not attempt to remove, install, disas-
semble or repair the SRS airbags.WA R N I N G
SC00000500-2.fm 30 ページ ２０１４年４月１６日　水曜日　午後２時２分

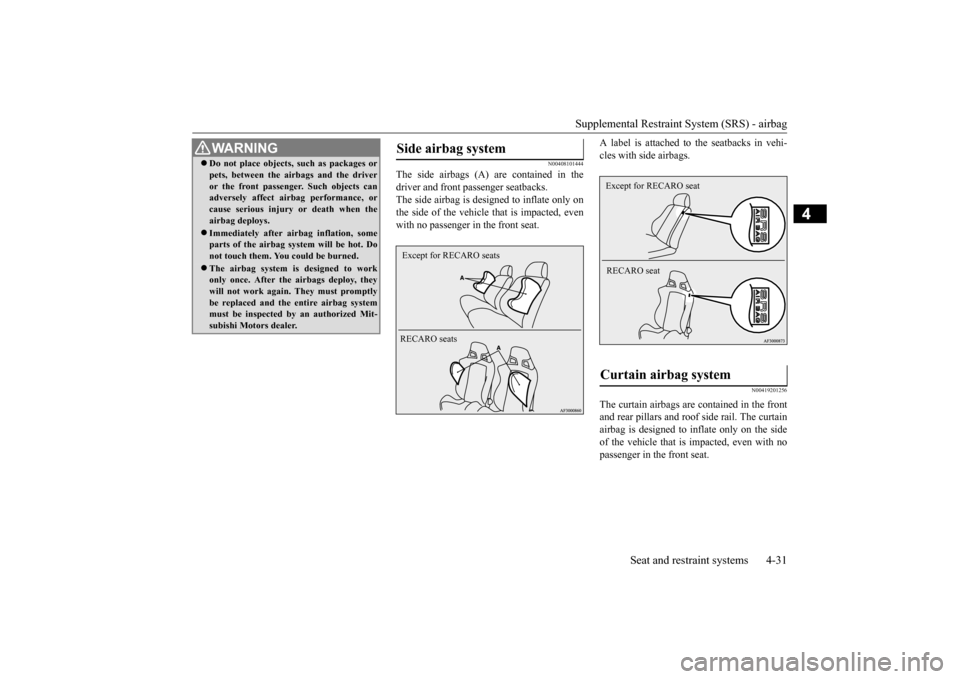

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-31
4
N00408101444
The side airbags (A) are contained in the driver and front passenger seatbacks.The side airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat.
A label is attached to the seatbacks in vehi- cles with side airbags.
N00419201256
The curtain airbags are contained in the frontand rear pillars and roof side rail. The curtain airbag is designed to inflate only on the side of the vehicle that is impacted, even with nopassenger in the front seat.
 Do not place objects, such as packages or pets, between the airbags and the driver or the front passenger. Such objects can adversely affect airbag performance, or cause serious injury or death when theairbag deploys. Immediately after airbag inflation, some parts of the airbag system will be hot. Do not touch them. You could be burned.  The airbag system is designed to work only once. After the airbags deploy, they will not work again. They must promptlybe replaced and the entire airbag system must be inspected by an authorized Mit- subishi Motors dealer.WA R N I N G
Side airbag system Except for RECARO seats RECARO seats
Curtain airbag system Except for RECARO seat RECARO seat
BK0210800US.bo
ok 31 ページ ２０１４年４月８日　火曜日　午前１１時２８分

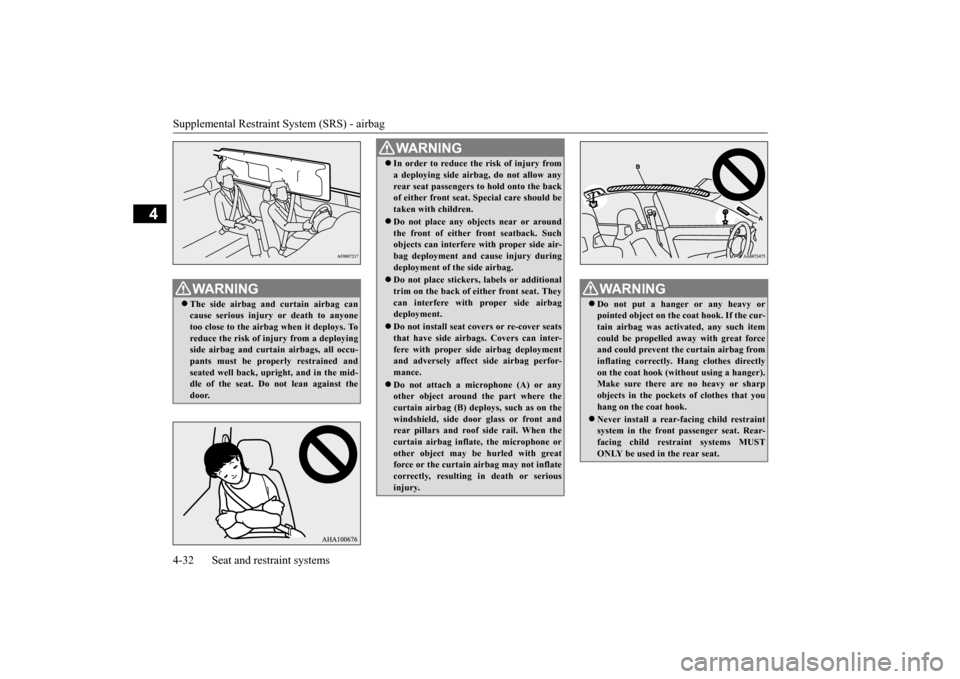

Supplemental Restraint System (SRS) - airbag 4-32 Seat and restraint systems
4
WA R N I N G The side airbag and curtain airbag can cause serious injury or death to anyone too close to the airbag when it deploys. To reduce the risk of injury from a deployingside airbag and curtain airbags, all occu- pants must be properly restrained and seated well back, upright, and in the mid-dle of the seat. Do not lean against the door.
WA R N I N G In order to reduce the risk of injury from a deploying side airbag, do not allow any rear seat passengers to hold onto the back of either front seat. Special care should be taken with children. Do not place any objects near or around the front of either front seatback. Suchobjects can interfere with proper side air- bag deployment and cause injury during deployment of the side airbag. Do not place stickers, labels or additional trim on the back of either front seat. Theycan interfere with proper side airbag deployment. Do not install seat covers or re-cover seats that have side airbags. Covers can inter- fere with proper side airbag deploymentand adversely affect side airbag perfor- mance. Do not attach a microphone (A) or any other object around the part where the curtain airbag (B) deploys, such as on thewindshield, side door glass or front and rear pillars and roof side rail. When the curtain airbag inflate, the microphone orother object may be hurled with great force or the curtain airbag may not inflate correctly, resulting in death or serious injury.
WA R N I N G Do not put a hanger or any heavy or pointed object on the coat hook. If the cur- tain airbag was activated, any such item could be propelled away with great forceand could prevent the curtain airbag from inflating correctly. Hang clothes directly on the coat hook (without using a hanger).Make sure there are no heavy or sharp objects in the pockets of clothes that you hang on the coat hook. Never install a rear-facing child restraint system in the front passenger seat. Rear-facing child restraint systems MUST ONLY be used in the rear seat.
BK0210800US.bo
ok 32 ページ ２０１４年４月８日　火曜日　午前１１時２８分

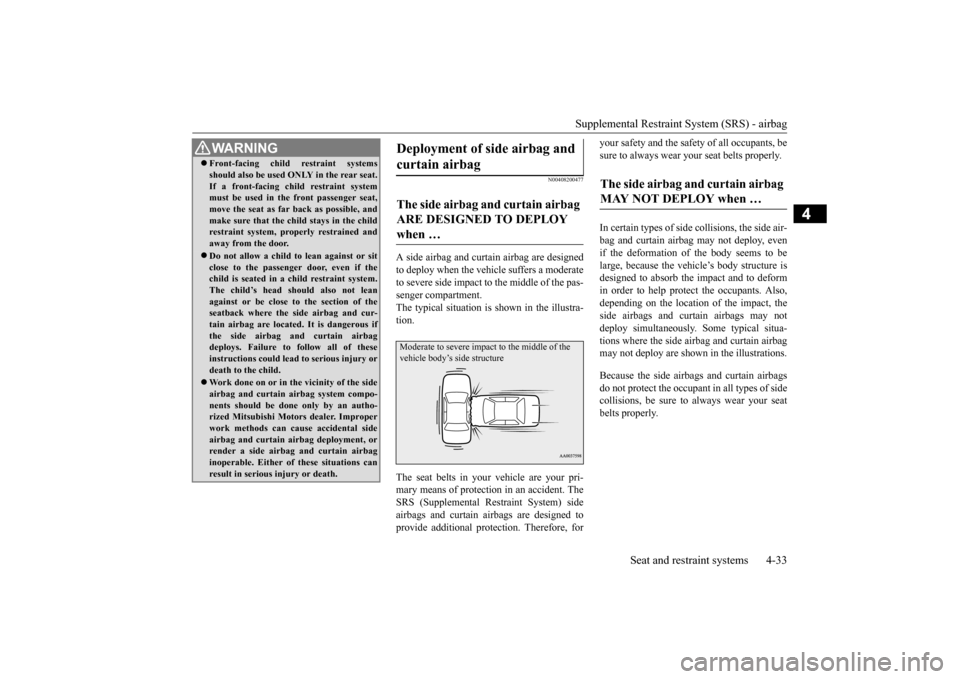

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-33
4
N00408200477
A side airbag and curtain airbag are designed to deploy when the vehicle suffers a moderateto severe side impact to the middle of the pas- senger compartment. The typical situation is shown in the illustra-tion. The seat belts in your vehicle are your pri- mary means of protection in an accident. The SRS (Supplemental Restraint System) sideairbags and curtain airbags are designed to provide additional protection. Therefore, for
your safety and the safety of all occupants, be sure to always wear your seat belts properly. In certain types of side collisions, the side air- bag and curtain airbag may not deploy, evenif the deformation of the body seems to be large, because the vehicle’s body structure is designed to absorb the impact and to deformin order to help protect the occupants. Also,depending on the location of the impact, the side airbags and curtain airbags may not deploy simultaneously. Some typical situa-tions where the side airbag and curtain airbag may not deploy are shown in the illustrations. Because the side airbags and curtain airbags do not protect the occupant in all types of sidecollisions, be sure to always wear your seat belts properly.
 Front-facing child restraint systems should also be used ONLY in the rear seat. If a front-facing child restraint system must be used in the front passenger seat, move the seat as far back as possible, andmake sure that the child stays in the child restraint system, properly restrained and away from the door. Do not allow a child to lean against or sit close to the passenger door, even if thechild is seated in a child restraint system. The child’s head should also not lean against or be close to the section of theseatback where the side airbag and cur- tain airbag are located.
It is dangerous if
the side airbag and curtain airbagdeploys. Failure to follow all of these instructions could lead to serious injury or death to the child. Work done on or in the vicinity of the side airbag and curtain airbag system compo-nents should be done only by an autho- rized Mitsubishi Motors dealer. Improper work methods can cause accidental sideairbag and curtain airbag deployment, or render a side airbag and curtain airbag inoperable. Either of these situations can result in serious injury or death.WA R N I N G
Deployment of side airbag and curtain airbag The side airbag and curtain airbag ARE DESIGNED TO DEPLOY when … Moderate to severe impact to the middle of the vehicle body’s side structure
The side airbag and curtain airbag MAY NOT DEPLOY when …
BK0210800US.bo
ok 33 ページ ２０１４年４月８日　火曜日　午前１１時２８分

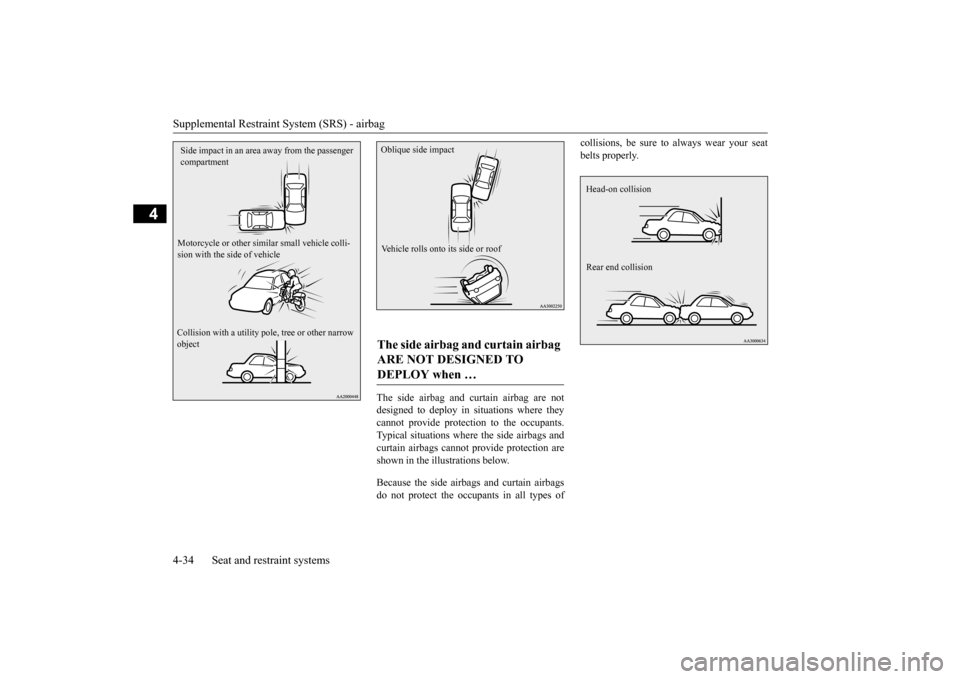

Supplemental Restraint System (SRS) - airbag 4-34 Seat and restraint systems
4
The side airbag and curtain airbag are not designed to deploy in situations where theycannot provide protection to the occupants. Typical situations where the side airbags and curtain airbags cannot provide protection areshown in the illustrations below. Because the side airbags and curtain airbags do not protect the occupants in all types of
collisions, be sure to always wear your seat belts properly.
Side impact in an area away from the passenger compartment Motorcycle or other similar small vehicle colli- sion with the side of vehicle Collision with a utility pole,
tree or other narrow
object
The side airbag and curtain airbag ARE NOT DESIGNED TO DEPLOY when … Oblique side impact Vehicle rolls onto its side or roof
Head-on collision Rear end collision
BK0210800US.bo
ok 34 ページ ２０１４年４月８日　火曜日　午前１１時２８分

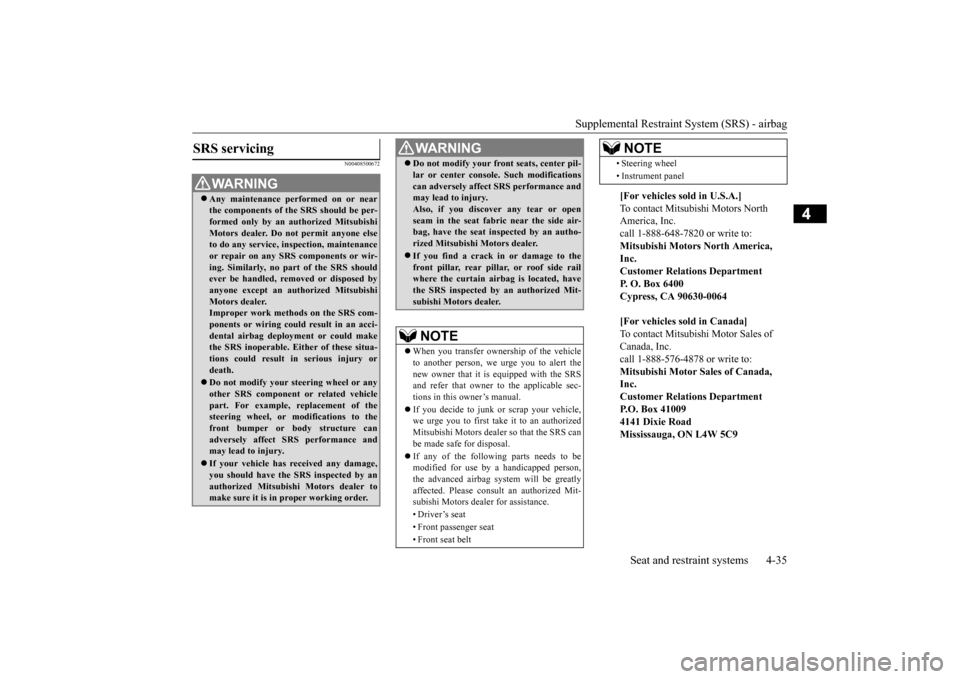

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-35
4
N00408500672
SRS servicing
WA R N I N G Any maintenance performed on or near the components of the SRS should be per- formed only by an authorized Mitsubishi Motors dealer. Do not permit anyone elseto do any service, inspection, maintenance or repair on any SRS components or wir- ing. Similarly, no part of the SRS shouldever be handled, removed or disposed by anyone except an authorized Mitsubishi Motors dealer.Improper work methods on the SRS com- ponents or wiring could result in an acci- dental airbag deployment or could makethe SRS inoperable. Either of these situa- tions could result in serious injury or death.  Do not modify your steering wheel or any other SRS component or related vehiclepart. For example, replacement of the steering wheel, or modifications to the front bumper or body structure canadversely affect SRS performance and may lead to injury. If your vehicle has received any damage, you should have the SRS inspected by an authorized Mitsubishi Motors dealer to make sure it is in proper working order.
 Do not modify your front seats, center pil- lar or center console. Such modifications can adversely affect SRS performance and may lead to injury. Also, if you discover any tear or openseam in the seat fabric near the side air- bag, have the seat inspected by an autho- rized Mitsubishi Motors dealer.  If you find a crack in or damage to the front pillar, rear pillar, or roof side railwhere the curtain airbag is located, have the SRS inspected by an authorized Mit- subishi Motors dealer.NOTE
 When you transfer ownership of the vehicle to another person, we urge you to alert the new owner that it is equipped with the SRS and refer that owner to the applicable sec-tions in this owner’s manual.  If you decide to junk or scrap your vehicle, we urge you to first take
it to an authorized
Mitsubishi Motors dealer so that the SRS can be made safe for disposal.  If any of the following parts needs to be modified for use by a handicapped person, the advanced airbag system will be greatly affected. Please consult an authorized Mit-subishi Motors dealer for assistance. • Driver’s seat• Front passenger seat • Front seat beltWA R N I N G
• Steering wheel • Instrument panel[For vehicles sold in U.S.A.] To contact Mitsubishi Motors North America, Inc. call 1-888-648-7820 or write to:Mitsubishi Motors North America, Inc. Customer Relations DepartmentP. O. Box 6400Cypress, CA 90630-0064 [For vehicles sold in Canada] To contact Mitsubishi Motor Sales of Canada, Inc. call 1-888-576-4878 or write to:Mitsubishi Motor Sales of Canada, Inc. Customer Relations DepartmentP.O. Box 41009 4141 Dixie Road Mississauga, ON L4W 5C9NOTE
