MITSUBISHI LANCER EVOLUTION IX 2005 Workshop Manual

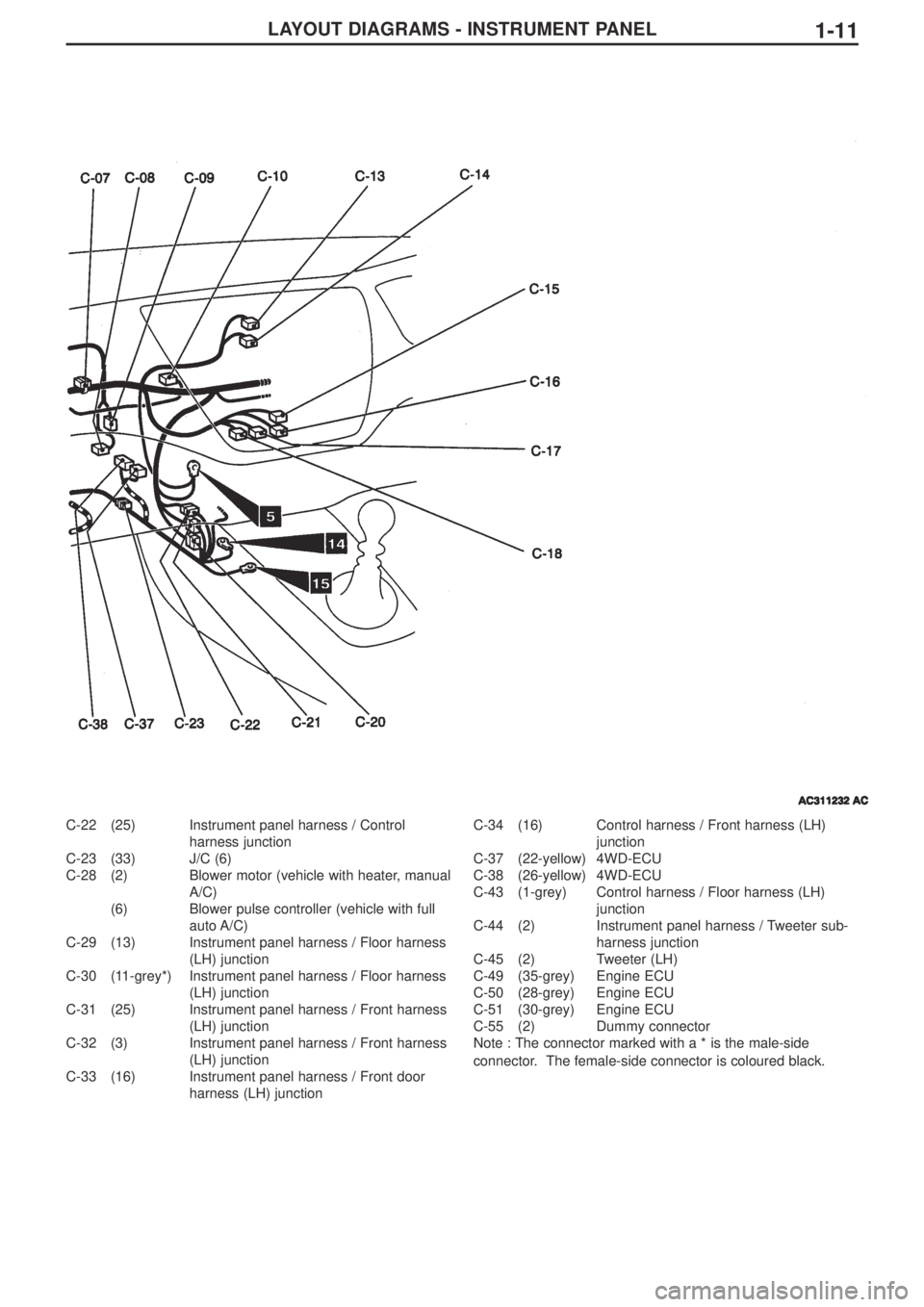

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-11
C-22 (25) Instrument panel harness / Control
harness junction
C-23 (33) J/C (6)
C-28 (2) Blower motor (vehicle with heater, manual
A/C)
(6) Blower pulse controller (vehicle with full
auto A/C)
C-29 (13) Instrument panel harness / Floor harness
(LH) junction
C-30 (11-grey*) Instrument panel harness / Floor harness
(LH) junction
C-31 (25) Instrument panel harness / Front harness
(LH) junction
C-32 (3) Instrument panel harness / Front harness
(LH) junction
C-33 (16) Instrument panel harness / Front door
harness (LH) junctionC-34 (16) Control harness / Front harness (LH)
junction
C-37 (22-yellow) 4WD-ECU
C-38 (26-yellow) 4WD-ECU
C-43 (1-grey) Control harness / Floor harness (LH)
junction
C-44 (2) Instrument panel harness / Tweeter sub-
harness junction
C-45 (2) Tweeter (LH)
C-49 (35-grey) Engine ECU
C-50 (28-grey) Engine ECU
C-51 (30-grey) Engine ECU
C-55 (2) Dummy connector
Note : The connector marked with a * is the male-side
connector. The female-side connector is coloured black.

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-12
C-101 (1) Roof antenna
C-103 (14) Spare audio connector
C-104 (5) Sunlight sensor (vehicle with full auto
A/C)
C-106 (21) Combination meter
C-107 (22-grey) J/C (3)
C-108 (21-blue) Combination meter
C-110 (22-black) J/C (4)
C-111 (1) Spare connector for fog lamp switchC-112 (11-black) Remote control mirror switch
C-113 (6) Instrument panel harness / Roof harness
junction
C-114 (20) Instrument panel harness / Front door
harness (RH) junction
C-115 (25) Instrument panel harness / Front harness
(RH) junction
Instrument Panel (cont’d)
Connector Symbol
Driver’s side
Instrument panel harness

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-13
C-116 (13) Instrument panel harness / Floor harness
(RH) junction
C-118 (4) Stop lamp switch
C-119 (22-blue) J/C (2)
C-120 (2-black) Cabin temperature sensor (vehicle with
full auto A/C)
C-121 (12) Diagnosis connector
C-122 (16-black) Diagnosis connector
C-124 (22-yellow) SRS-ECU
C-125 (20-yellow) SRS-ECU
C-126 (2) Instrument panel harness/ Clutch switch
sub-harness junction
C-127 (2) Clutch switchC-128 (2) Tweeter (RH)
C-129 96) Fog lamp switch
C-130 (6-grey) Headlamp levelling switch
C-131 (9-grey) Instrument panel harness / Floor harness
(RH) junction
C-132 (2) Dummy connector
C-133 (11) Instrument panel harness / Control
harness junction
C-134 (6) ACD mode switch
C-138 (4) Generic spare connector
Roof
harness
Front harness (RH) Front door harness (RH)
Floor harness (RH)

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-14
C-201 (6) Ignition switch
C-202 (7) Key reminder switch
C-203 (10) Column switch
C-204 (4-yellow) Clock spring
C-205 (6) Clock spring
C-206 (1) Horn switch
C-207 (2) Driver’s airbag module (squib)
C-208 (13) Instrument panel harness / J/B junctionC-209 (14) Instrument panel harness / J/B junction
C-210 (6) Instrument panel harness / J/B junction
C-211 (1-black) Instrument panel harness / J/B junction
C-212 (28) Instrument panel harness / J/B junction
C-213 (5) Demister relay
Instrument panel (cont’d)
Connector Symbol
Steering wheel
Clock spring
Instrument panel
harness

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-15
C-214 (5) Blower relay
C-215 (15) Floor harness (RH) / J/B junction
C-216 (3) Roof harness / J/B junction
C-217 (4) Dummy connector
C-218 (4) Dummy connector
C-219 (4) Fuel pump relay 2
C-220 (4) Intercooler water spray relay
C-221 (4) Fuel pump relay 1C-222 (5) Power window relay
C-223 (2) Instrument panel harness / J/B junction
C-224 (20) ETACS-ECU
C-225 (24-grey) ETACS-ECU
C-226 (24) ETACS-ECU
C-228 (5) Steer sensor
(Front side)
Instrument panel harness
Dedicated fuse
Floor harness (RH)
Roof harness(Rear side)

LAYOUT DIAGRAMS - FLOOR / ROOF1-16
D-01 (3) Door switch (front : RH)
D-02 (2-black) Seatbelt pre-tensioner (RH)
D-03 (8) Floor harness (RH) / Rear door harness
(RH) junction
D-04 (2) Front cabin lamp
D-05 (2-black) Rear ABS sensor (RH)
D-06 (2-grey) Rear cabin lamp (Vehicle not fitted with
sunroof)
D-07 (3) Door switch (rear : RH)
D-09 (3) Door switch (rear : LH)D-10 (5-grey) Fuel pump and fuel gauge unit (main)
D-11 (2-black) Rear ABS sensor (LH)
D-12 (8) Floor harness (RH) / Fuel harness
junction
D-13 (8) Floor harness (LH) / Rear door harness
(LH) junction
D-14 (2-black) Seatbelt pre-tensioner (LH)
D-15 (3) Door switch (front : LH)
FLOOR / ROOF
Connector Symbol
Roof harness
Floor
harness (RH)
Instrument panel harness
Console harness

LAYOUT DIAGRAMS - FLOOR / ROOF1-17
D-17 (4) Console harness / Instrument panel
harness junction
D-20 (1) Cigarette lighter
D-21 (1-black) Cigarette lighter
D-22 (2-black) Cigarette lighter illumination lamp
D-23 (2-black) Ashtray illumination lamp
D-24 (2) Driver’s seatbelt switch
D-25 (1-black) Parking brake switchD-26 (6-black) Sunroof switch
D-27 (10) Sunroof motor ASSY
D-28 (2) Fuel gauge unit (sub)
D-29 (3-black) Front/rear G sensor
D-30 (1) Floor harness (RH) / Fuel harness
junction
D-31 (3-black) Lateral G sensor
D-32 (6) Intercooler water spray switch
Vehicle with sunroof
Roof harness Fuel harness
Floor harness (LH)

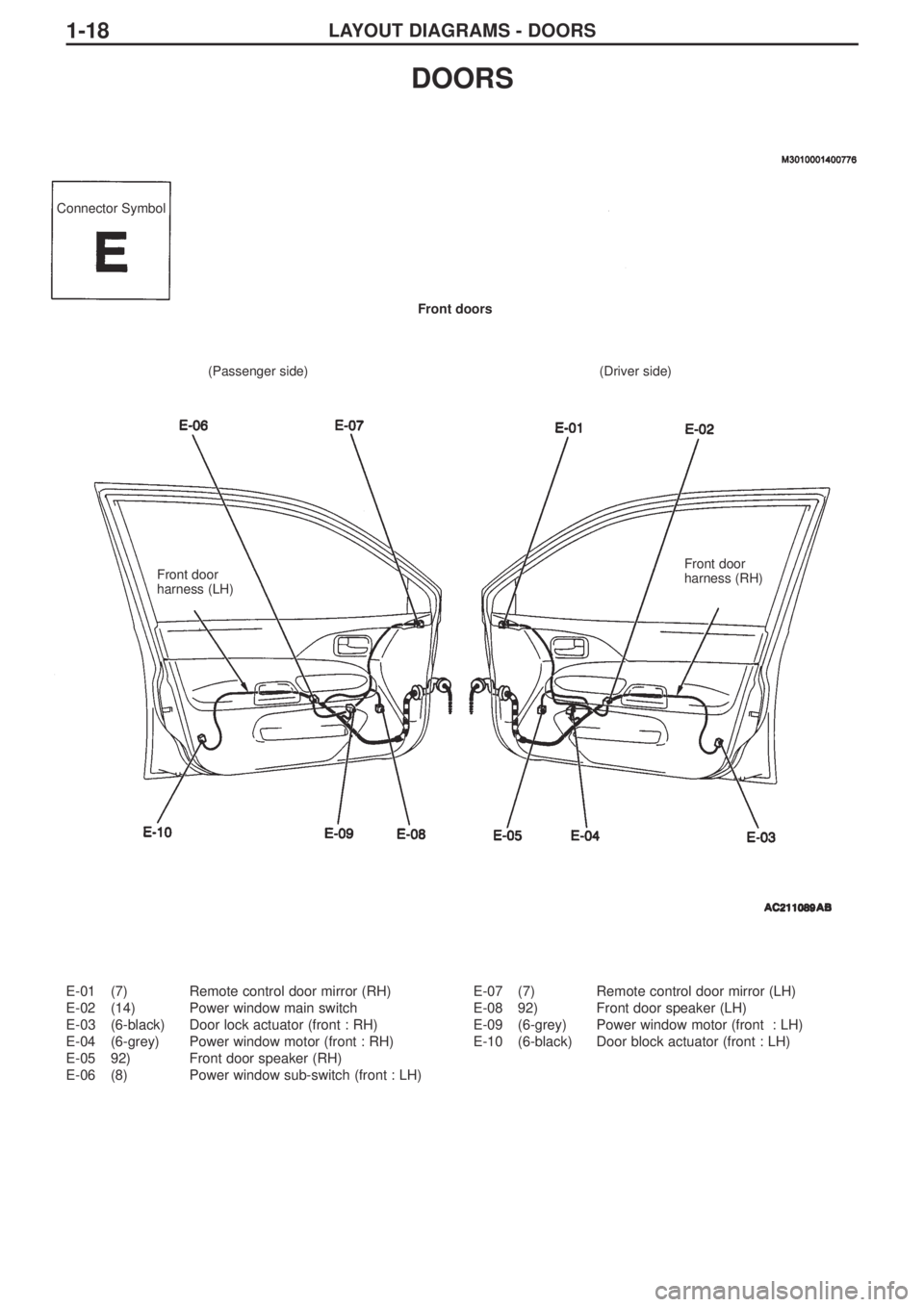

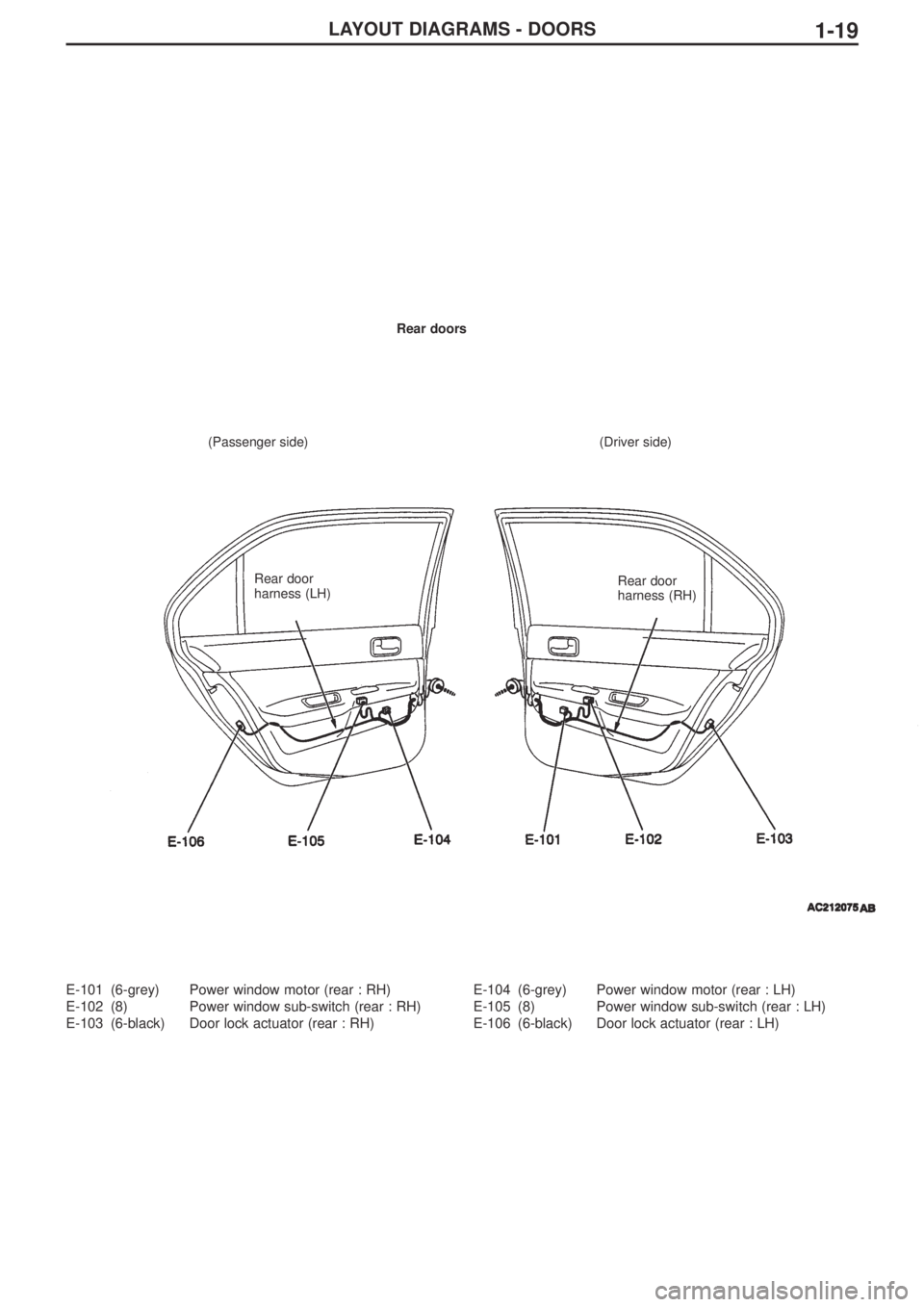

LAYOUT DIAGRAMS - DOORS1-18
E-01 (7) Remote control door mirror (RH)
E-02 (14) Power window main switch
E-03 (6-black) Door lock actuator (front : RH)
E-04 (6-grey) Power window motor (front : RH)
E-05 92) Front door speaker (RH)
E-06 (8) Power window sub-switch (front : LH)E-07 (7) Remote control door mirror (LH)
E-08 92) Front door speaker (LH)
E-09 (6-grey) Power window motor (front : LH)
E-10 (6-black) Door block actuator (front : LH)
DOORS
Connector Symbol
(Passenger side) (Driver side)Front doors
Front door
harness (LH)Front door
harness (RH)

LAYOUT DIAGRAMS - DOORS 1-19
E-101 (6-grey) Power window motor (rear : RH)
E-102 (8) Power window sub-switch (rear : RH)
E-103 (6-black) Door lock actuator (rear : RH)E-104 (6-grey) Power window motor (rear : LH)
E-105 (8) Power window sub-switch (rear : LH)
E-106 (6-black) Door lock actuator (rear : LH)
Rear doors
(Passenger side) (Driver side)
Rear door
harness (LH)Rear door
harness (RH)

LAYOUT DIAGRAMS - BOOT COMPARTMENT1-20
F-01 (2) Boot compartment light
F-02 (2-black) High-mount stop light
F-05 (4) Rear wiper motor
F-06 (2) Rear speaker (RH)
F-07 (1) Demister (+)
F-10 (6-black) Rear combination light (RH)
F-11 (1) Boot compartment light switch
F-12 (2-grey) Licence plate light (RH)
F-13 (2-grey) Licence plate light (LH)
F-14 (2-grey) Floor harness (LH) / Bumper harness
junction
F-15 (6-black) Rear combination lamp (LH)
F-16 (2) Rear speaker (LH)F-18 (1-black) Demister (-)
F-19 (2) Windscreen washer motor
F-20 (2-green) Rear washer motor
F-21 (2-black) Electric pump
F-22 (8-grey) Floor harness (LH) / 4WD harness
junction
F-23 (2-black) Directional valve (left) (vehicle with AYC)
F-24 (2-black) Directional valve (right) (vehicle with AYC)
F-25 (3-black) Proportional valve (for ACD)
F-26 (3-black) Proportional valve (for AYC (vehicle with
AYC)
F-27 (3-black) Pressure sensor
F-28 (2) Dummy connector
BOOT COMPARTMENT
Connector Symbol
Bumper harness Demister earth
Floor harness (LH)
4WD harnessFloor harness (RH)
