MITSUBISHI LANCER IX 2006 Service Manual

CENTRAL DOOR LOCKING SYSTEM

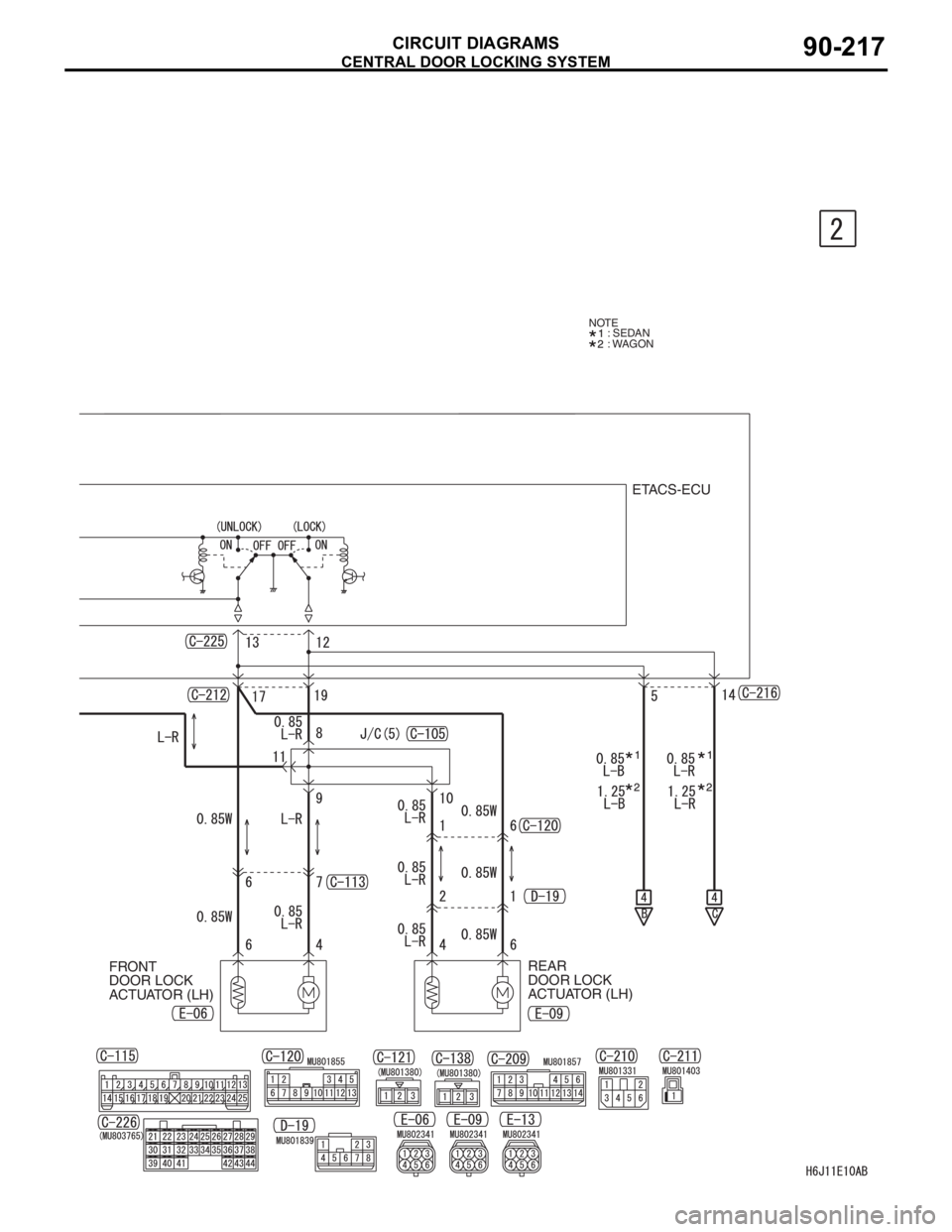

CIRCUIT DIAGRAMS90-217
FRONT
DOOR LOCK
ACTUATOR (LH)REAR
DOOR LOCK
ACTUATOR (LH)ETACS-ECU
NOTE
: SEDAN
: WAGON

CENTRAL DOOR LOCKING SYSTEM

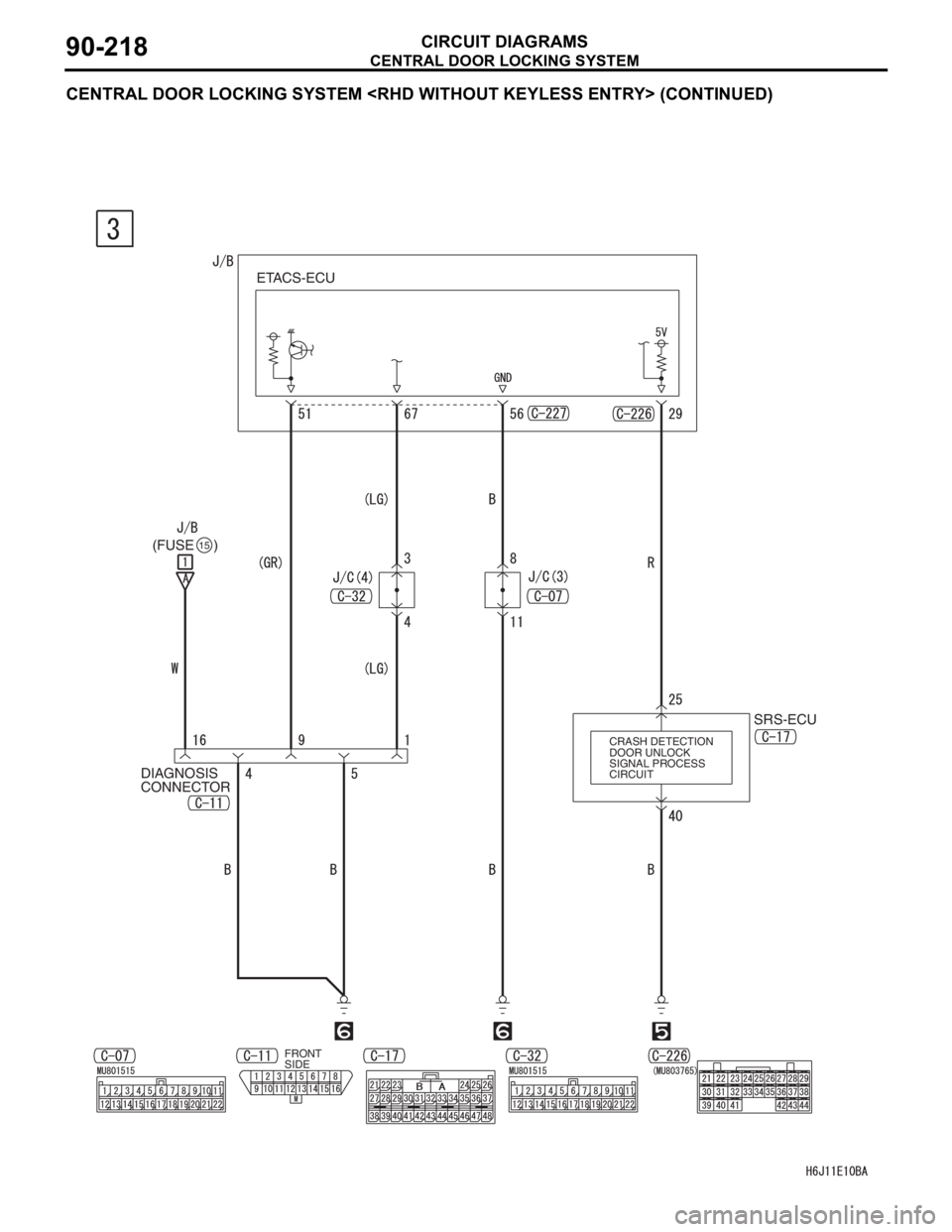

CIRCUIT DIAGRAMS90-218
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
ETACS-ECU
(FUSE )
15
DIAGNOSIS
CONNECTORSRS-ECU
CRASH DETECTION
DOOR UNLOCK
SIGNAL PROCESS
CIRCUIT
FRONT
SIDE

CENTRAL DOOR LOCKING SYSTEM

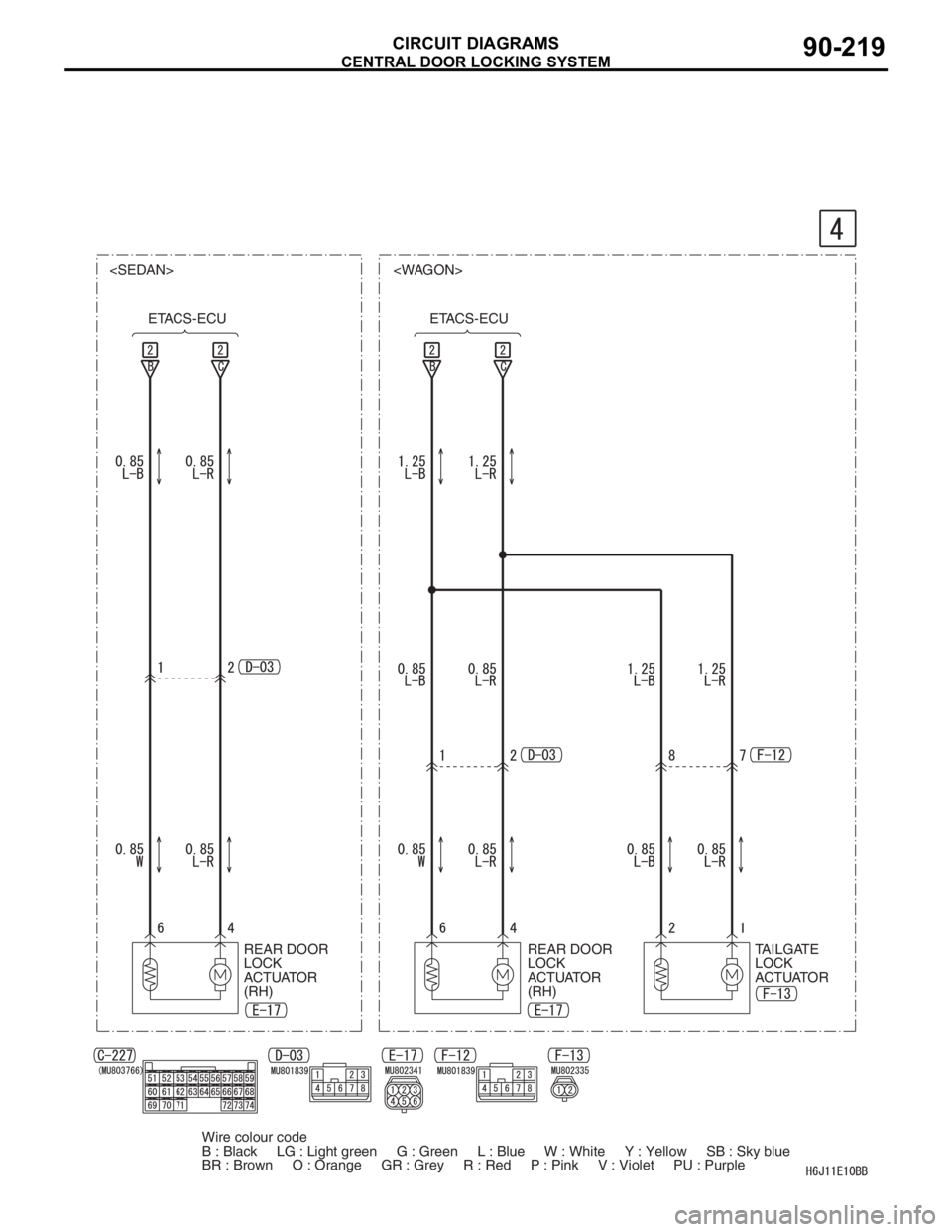

CIRCUIT DIAGRAMS90-219

ETACS-ECU ETACS-ECU
REAR DOOR
LOCK
ACTUATOR
(RH)REAR DOOR
LOCK
ACTUATOR
(RH)TAILGATE
LOCK
ACTUATOR
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-220
CENTRAL DOOR LOCKING SYSTEM
M1901004703332
IGNITION
SWITCH (IG1) BATTERY
POWER
SOURCE FUSIBLE
LINK1
FRONT
SIDE
FRONT
DOOR LOCK
ACTUATOR
(LH) DIAGNOSIS
CONNECTOR
J/B SIDE
KEY
REMINDER
SWITCH
(WHEN
REMOVING
KEY: ON) RELAY
BOX
·FRONT
FOG LAMP
·HEADLAMP
·HEADLAMP
LEVELLING
SYSTEM
·REAR FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER ·HEADLAMP
WASHER

CENTRAL DOOR LOCKING SYSTEM

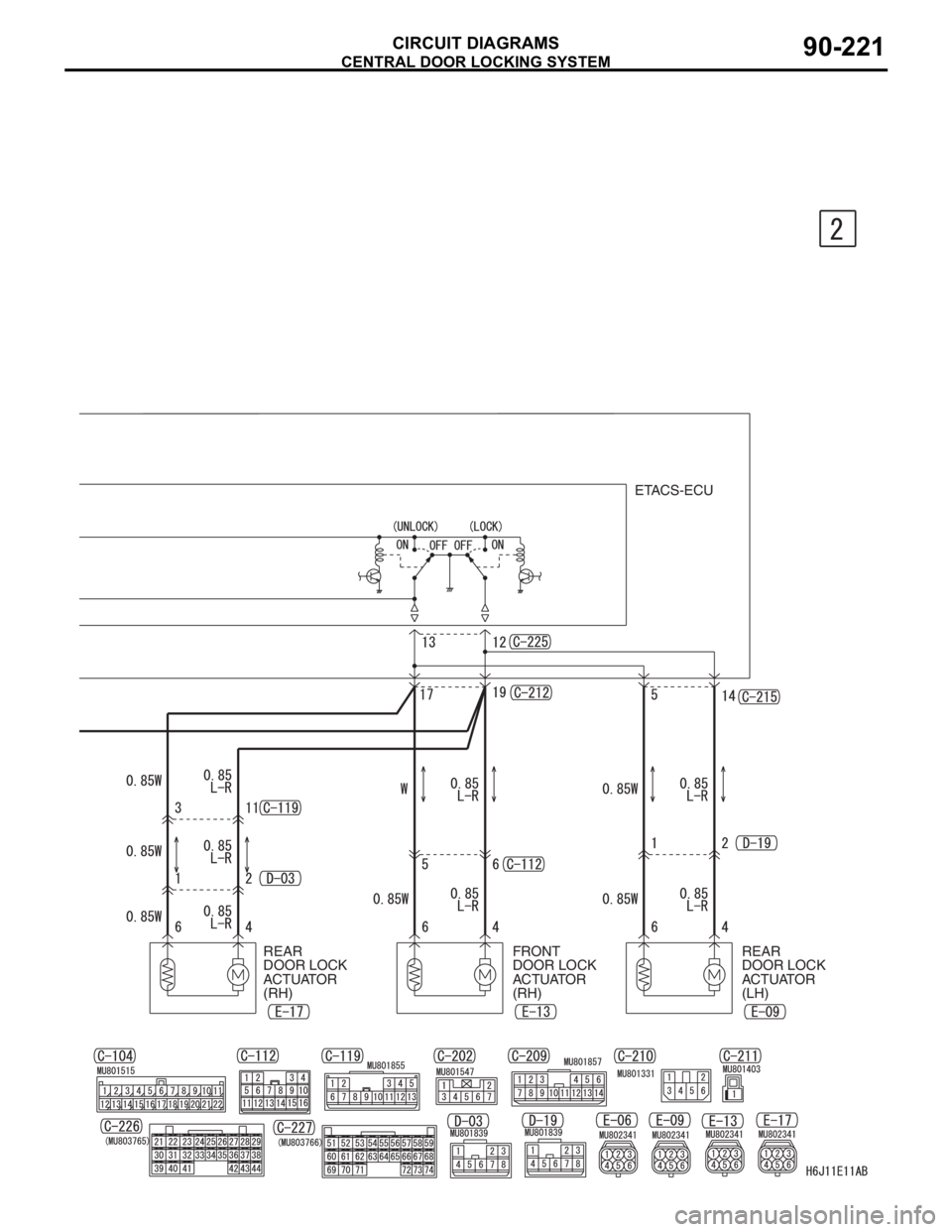

CIRCUIT DIAGRAMS90-221
FRONT
DOOR LOCK
ACTUATOR
(RH)REAR
DOOR LOCK
ACTUATOR
(LH) ETACS-ECU
REAR
DOOR LOCK
ACTUATOR
(RH)

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-222
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
J/B SIDE
BATTERY
RELAY
BOX
SIDE TURN
SIGNAL LAMP
(LH)ETACS-
ECU
FRONT
TURN
SIGNAL
LAMP (LH)REAR
COMBINATION
LAMP (RH) REAR
COMBINATION
LAMP (LH) TURN-SIGNAL
LAMP RELAY: LH
TURN-SIGNAL
LAMP RELAY: RH

CENTRAL DOOR LOCKING SYSTEM

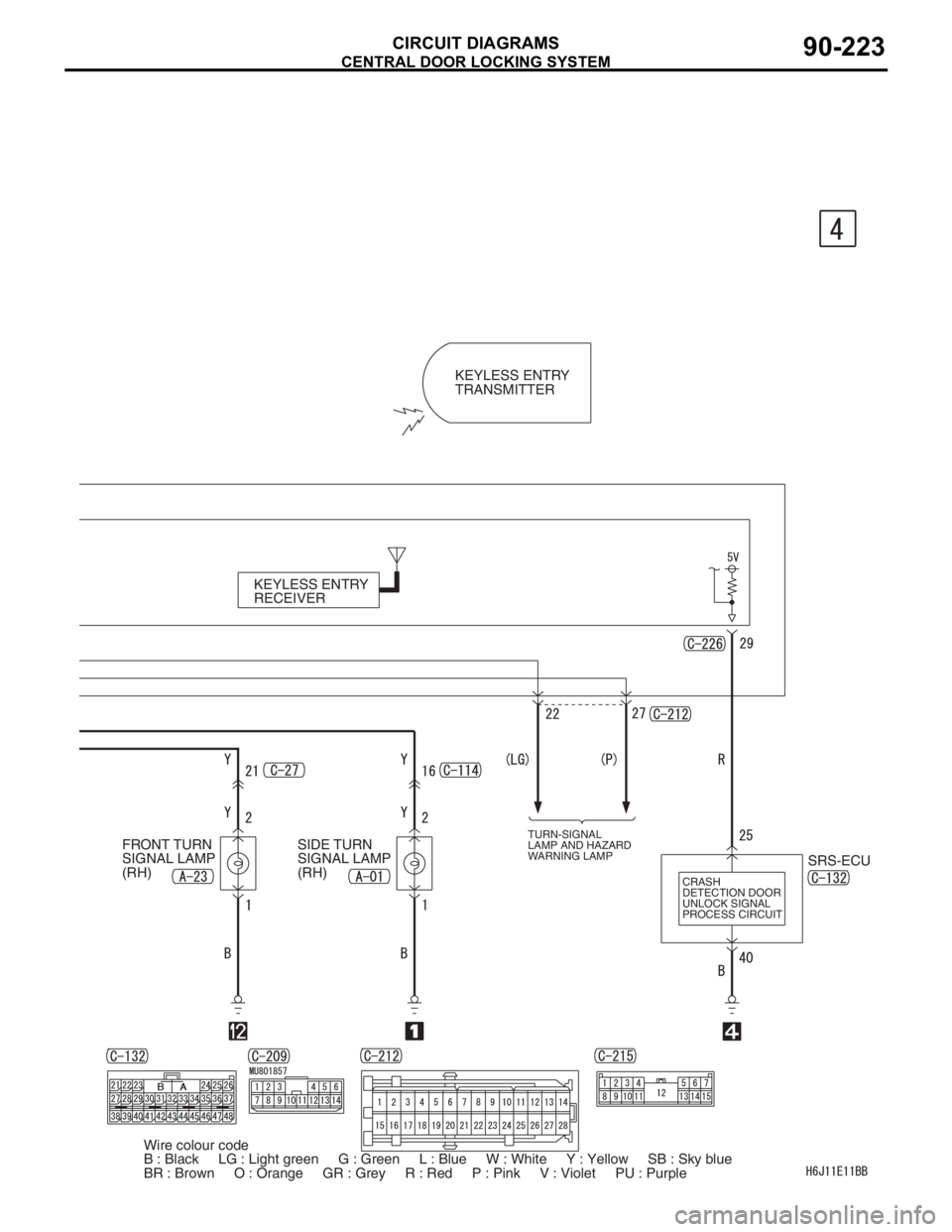

CIRCUIT DIAGRAMS90-223
FRONT TURN
SIGNAL LAMP
(RH)SIDE TURN
SIGNAL LAMP
(RH)TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP
KEYLESS ENTRY
RECEIVERKEYLESS ENTRY
TRANSMITTER
SRS-ECU
CRASH
DETECTION DOOR
UNLOCK SIGNAL
PROCESS CIRCUIT
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM

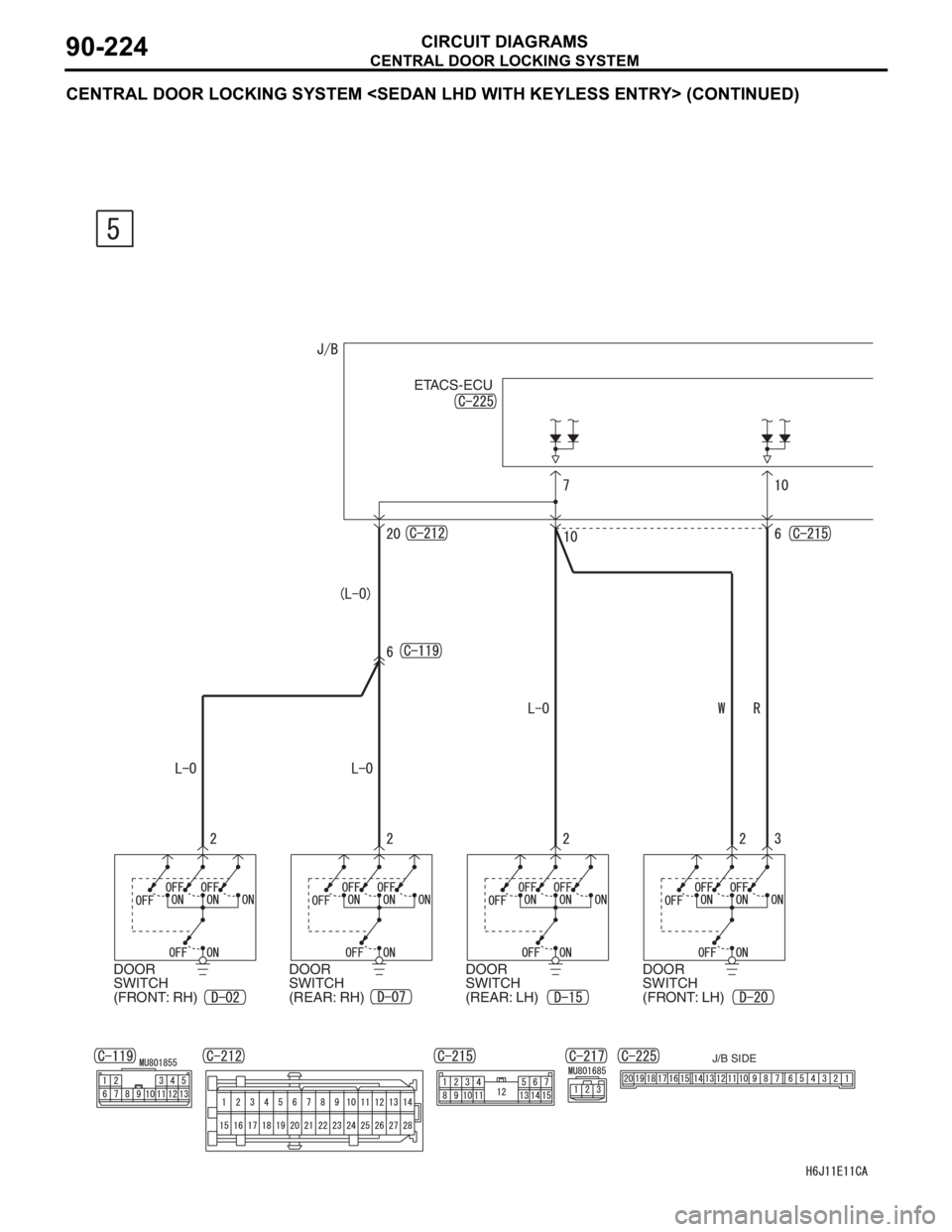

CIRCUIT DIAGRAMS90-224
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
J/B SIDE
ETACS-ECU
DOOR
SWITCH
(FRONT: RH)DOOR
SWITCH
(REAR: RH)DOOR
SWITCH
(REAR: LH)DOOR
SWITCH
(FRONT: LH)

CENTRAL DOOR LOCKING SYSTEM

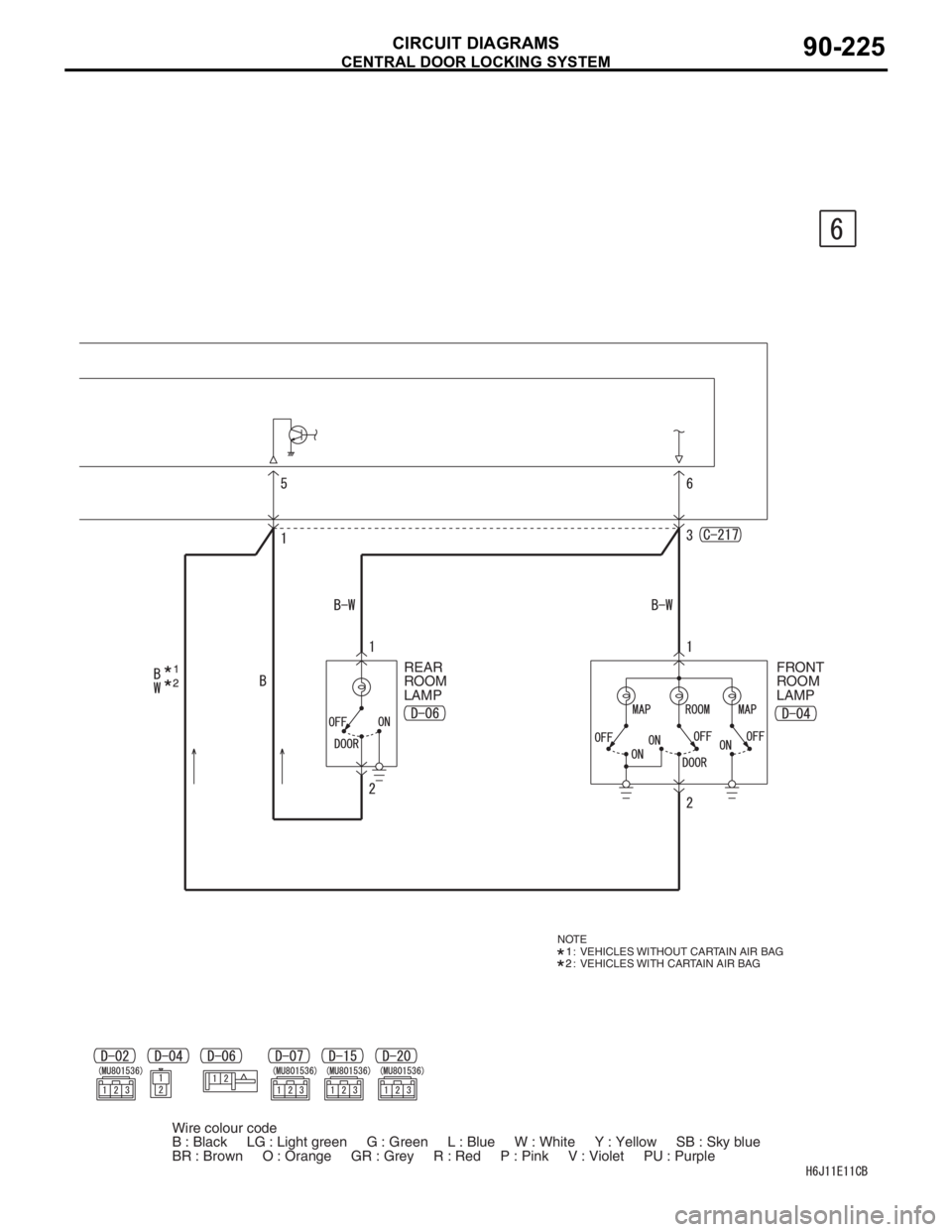

CIRCUIT DIAGRAMS90-225
NOTE: VEHICLES WITHOUT CARTAIN AIR BAG
: VEHICLES WITH CARTAIN AIR BAG
REAR
ROOM
LAMPFRONT
ROOM
LAMP
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-226
CENTRAL DOOR LOCKING SYSTEM
M1901004703343
IGNITION
SWITCH (IG1) BATTERY
POWER
SOURCE FUSIBLE
LINK1
FRONT
SIDE
FRONT
DOOR LOCK
ACTUATOR
(RH) DIAGNOSIS
CONNECTOR
·FRONT
FOG LAMP
·HEADLAMP
·HEADLAMP
LEVELLING
SYSTEM
·REAR FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER
J/B SIDE
KEY
REMINDER
SWITCH
(WHEN
REMOVING
KEY: ON) RELAY
BOX
